A3LDIVA2BDDVD Player/Video Cassette Recorder

filename[010COV.fm] model name1[SLV-D300P] [3-083-945-11 (1) US] filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010COV.fm] 3-083-945-11 (1) US DVD Player/ Video Cassette Recorder Operating Instructions For customers in the USA If you have any questions about your Sony DVD-VCR, you may call Sony Customer Information Services Company at 1-800-VHS-SONY (847-7669). For all other Sony product questions, please call Sony Customer Information Services Company at 1-800-222-SONY (7669). Or write to: Sony Customer Information Services Company 12451 Gateway Boulevard Ft. Myers, FL 33913 For Customers in Canada If this product is not working properly, please call 1-877-602-2008 for Peace of Mind Warranty Replacement service. For other product related questions please contact our Customer Information Service Center at 1-877-899-7669 or write to us at: Customer Information Service 115 Gordon Baker Road, Toronto, Ontario, M2H 3R6 SLV-D300P © 2003 Sony Corporation 010COV.book Page 1 Saturday, March 15, 2003 4:29 PM filename[010WAR.fm] model name1[SLV-D300P] [3-083-945-11 (1) US] 2 WARNING filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010WAR.fm] WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus. CAUTION The use of optical instruments with this product will increase eye hazard. As the laser beam used in this DVD player is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. For customers in the U.S.A Owner’s Record The model and serial numbers are located at the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. SLV-D300P Serial No.______________ CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. Welcome! Thank you for purchasing this Sony DVD Player/Video Cassette Recorder. Before operating this player, please read this manual thoroughly and retain it for future reference. General Precautions • Operate the unit only on 120 V AC, 60 Hz. • This unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off. • Unplug the unit from the wall outlet if you do not intend to use it for an extended period of time. To disconnect the cord, pull it out by the plug, never by the cord. • If the unit is brought directly from a cold to a warm location, moisture may condense inside the unit and cause damage to the video head and tape. When you first install the unit, or when you move it from a cold to a warm location, wait for about three hours before operating the unit. • Do not install the unit in an inclined position. It is designed to be operated in a horizontal position only. • Keep the unit and cassettes away from equipment with strong magnets, such as microwave ovens or large loudspeakers. • Do not place heavy objects on the unit. 010COV.book Page 2 Saturday, March 15, 2003 4:29 PM 3 Important Safeguards filename[010WAR.fm] model name1[SLV-D300P] [3-083-945-11 (1) US] filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010WAR.fm] Important Safeguards For your protection, please read these safety instructions completely before operating the appliance, and keep this manual for future reference. Carefully observe all warnings, precautions and instructions on the appliance, or the one described in the operating instructions and adhere to them. Use Installation Power sources This set should be operated only from the type of power source indicated on the marking label . If you are not sure of the type of electrical power supplied to your home, consult your dealer or local power company. For those sets designed to operate from battery power, or other sources, refer to the operating instructions. Grounding or Polarization This set is equipped with a polarized ac power cord plug (a plug having one blade wider than the other), or with a three-wire grounding type plug (a plug having a third pin for grounding). Follow the instructions below: For the set with a polarized ac power cord plug: This plug will …

Text truncated - open the document above for the full version.

61 Using the DVD’s menu DVD Additional Operations filename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US] filename[G:\2003combo\3083945111\3083945111SLVD300PUC\010DVD.fm] DVD Additional Operations Using the DVD’s menu Note • Depending on the DVD, you may not be able to use the TOP MENU button. A DVD is divided into long sections of a picture or a music feature called “titles.” When you play a DVD which contains several titles, you can select the title you want using the TOP MENU button. When you play DVDs that allow you to select items such as the language for the subtitles and the language for the sound, select these items using the MENU button. 1 Press TOP MENU or MENU. The disc’s menu appears on the TV screen. The contents of the menu vary from disc to disc. 2 Press V/v/B/b to select the item you want to play or change. You can also use the number buttons to select the item. 3 Press ENTER. Number buttons V/v/B/b ENTER MENU TOP MENU 010COV.book Page 61 Wednesday, March 19, 2003 10:21 AM 62 Zooming into a scene filename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US] filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010DVD.fm] Zooming into a scene Notes • You cannot use 4 × magnification when you play VIDEO CDs. • The zoom function may not work depending on the DVD. You can zoom into a scene during playback or still mode. To zoom into a JPEG image, see “Playing JPEG image files” on page 78. 1 Press ZOOM. “” appears. 2 Press V/v/B/b to move “” to the position where you want to zoom in. 3 Press ENTER repeatedly to change the magnification. Each time you press the button, the magnification changes as shown below. 2× t 4× t 2× t normal magnification ZOOM V/v/B/b ENTER 010COV.book Page 62 Saturday, March 15, 2003 4:29 PM 63 Changing the angles DVD Additional Operations filename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US] filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010DVD.fm] Changing the angles Note • Depending on the DVD, you may not be able to change the angles even if multi-angles are recorded on the DVD. If various angles (multi-angles) for a scene are recorded on the DVD, “” appears in the display when you press ANGLE during playback. This means that you can change the viewing angle. 1 Press ANGLE during playback. The angle number appears on the display. The number after the slash indicates the total number of angles. 2 Press B/b repeatedly to select the angle number. The scene changes to the selected angle. ANGLE B/b 010COV.book Page 63 Saturday, March 15, 2003 4:29 PM 64 Displaying the subtitle filename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US] filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010DVD.fm] Displaying the subtitle To turn off the subtitles Select “Off” in step 3. Note • Depending on the DVD, you may not be able to change the subtitles even if multilingual subtitles are recorded on it. You also may not be able to turn them off. If subtitles are recorded on the disc, you can change the subtitles or turn them on and off whenever you want while playing a DVD. 1 Press SUBTITLE during playback. 2 Press B/b repeatedly to select the language. Depending on the DVD, the choice of language varies. Refer to “DVD Audio/Subtitle Language” on page 108 for the abbreviation of the language. 3 Press V/v repeatedly to select “On.” SUBTITLE V/v/B/b ENTER 010COV.book Page 64 Saturday, March 15, 2003 4:29 PM 65 Various play mode functions (Program play, Shuffle play, Repeat play) DVD Additional Operations filename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US] filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010DVD.fm] Various play mode functions (Program play, Shuffle play, Repeat play) You can set the following play modes: • Program play (page 65) • Shuffle play (page 67) • Repeat play (page 68) Note • The play mode is canceled when: – you open the disc tray – the player enters standby mode by pressing [/1. Creating your own program (Program play) You can play the contents of a disc in the order you want by arranging the order of the chapters or tracks on the disc to create your own program. You can program up to 20 chapters and tracks. HPLAY Number buttons V/v/B/b ENTER CLEAR REPEAT continued 010COV.book Page 65 Saturday, March 15, 2003 4:29 PM 66 Various play mode functions (Program play, Shuffle play, Repeat play) filename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US] filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010DVD.fm] To stop program play Press CLEAR. To change or cancel a program Note • You can do repeat play or shuffle play of the programed tracks. During program play, follow the steps of “Playing repeatedly (Repeat play)” (page 68) or “Playing in random order (Shuffle play)” (page 67). 1 Press REPEAT when the DVD player is in stop mode. 2 Press B/b to select “PROGRAM”, then press ENTER. 3 Press V/v/B/b to select the track number you want to program, then press ENTER. You can also use the number buttons to enter the track number. 4 To program other tracks, repeat step 3. The programed track numbers are displayed in the selected order. 5 Press HPLAY to start program play. Program play starts. When the program ends, you can restart the same program again by pressing HPLAY. 1 Follow steps 1 and 2 of “Creating your own program (Program play).” 2 Press CLEAR. The last programed number is canceled. 3 Follow step 3 for new programing. 010COV.book Page 66 Saturday, March 15, 2003 4:29 PM 67 Various play mode functions (Program play, Shuffle play, Repeat play) DVD Additional Operations filename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US] filename[H:\2003combo\3083945111-0228\3083945111SLVD300PUC\010DVD.fm] Playing in random order (Shuffle play) To return to normal play Press CLEAR. You can shuffle the playback order of tracks. Subsequent “shuffling” may produce a different playing order. 1 Press REPEAT when the DVD player is in stop mode. 2 Press B/b to select …

Text truncated - open the document above for the full version.

April 28, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Mike Nicolay SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LDIVA2BD 731 Confirmation No.: TC472095 Correspondence Reference No.: 7675 Request for Tech. Info.: 04/04/03 Dear Mike, Transmitted herewith, on behalf of Samsung Electronics Co., Ltd. is an amendment provided in response to the request for technical information dated April 4, 2003. 1. Please find attached the radiated emission data sheet. We trust this information is sufficient to resolve FCC questions in this application. If you have any further questions, please do not hesitate to contact us. cc: Samsung Electronics Co., Ltd.

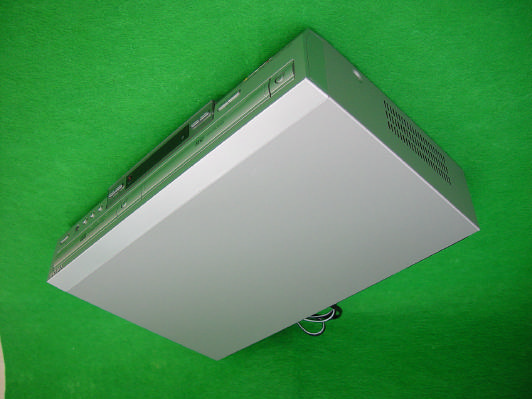

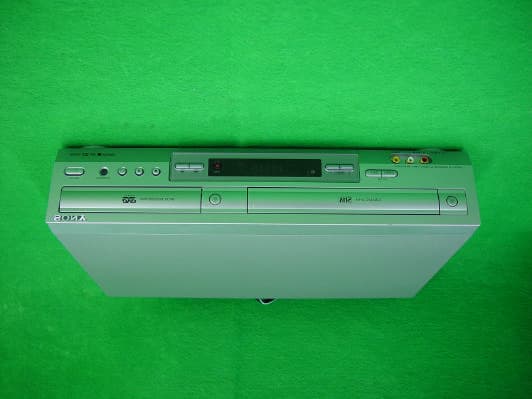

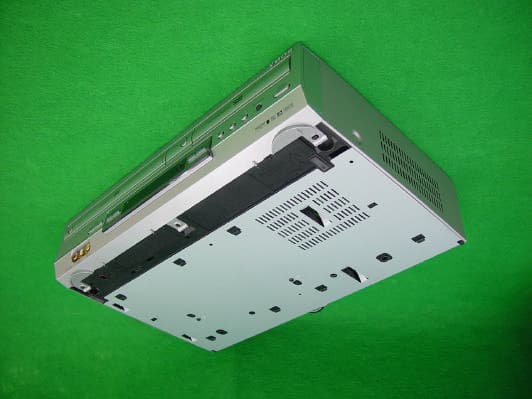

Photograph of SLV-D300P - FCC ID : A3LDIVA2BD [Front View] [Rear View] [Top View & Side] [Bottom View & Side]

Location of Rating Label

[Top View – Top Cover Open] [Top of Main PCB View] [Bottom of Main PCB View] Photograph of TM-BLOCK - Type name : TMZH2-002A [Top View] [Bottom View]

Project No. : LBE030608 Page 1 of 26 Project No. :LBE030608 Product :Video Cassette Recorder Model No. :SLV-D300P Date of test :March 11 ~ 18, 2003 Issued Date :March 18, 2003 Tested by: Kyung Chul , Min / Test Engineer Reviewed by: No Cheon, PARK / Test Engineer Authorized by: Kyu Baek, CHUNG / Chief of EMC Lab. SAMSUNG ELECTRONICS Co., Ltd. EMC Test Laboratory 416 Maetan-3 Dong, Paldal-Ku, Suwon City, Kyungki-Do, Korea,442-742 Tel. : 81-31-200-2185 Fax. : 81-31-200-2189 This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC TEST REPORT Project No. : LBE030608 Page 2 of 26 Table of Contents 1. Introduction & Summary 1.1 Description of the EUT 1.2 Test facility 1.3 Test mode 1.4 Measuring instrument setup 1.5 Test rule and Procedure 1.6 Test Summary 2. Test equipment 3. Test Results 3.1 RADIATED EMISSION MEASUREMENT 3.2 AC POWERLINE CONDUCTED EMISSION MEASUREMENT 3.3 OUTPUT SIGNAL LEVEL MEASUREMENT 3.4 OUTPUT TERMINAL CONDUCTED SPURIOUS EMISSION MEASUREMENT 3.5 ANTENNA TRANSFER SWITCH ISOLATION MEASUREMENT This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE030608 Page 3 of 26 1. Introduction & Summary 1.1 Description of the EUT Applicant Project Number Equipment Under Test Trade Name Model Number Variant Model Type of RF Output Connector FCC ID Number CH.3 CH.4 Mains input 1.2 Test facility The EMI/EMS measurement facilities used to collect the tested data are located at 416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea. The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR 16-1 & 16-2. SAMSUNG Electronics Co.,Ltd is accredited by Korea Laboratory Accreditation Scheme(KOLAS) which signed the International Laboratory Accreditation Cooperation (ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(s). Measured in Semi-anechoic chamber #1 that is FCC Registration Number 98856. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Operating(RF Modulator) Frequency Type "F" Connector 75ohm(Unbalanced) A3LDIVA2BD 120V 60Hz Visual Carrier 61.25MHz Aural Carrier 65.75MHz Visual Carrier 67.25MHz Aural Carrier 71.75MHz None SAMSUNG SAMSUNG ELECTRONICS Co., Ltd. LBE030608 Video Cassette Recorder SLV-D300P Project No. : LBE030608 Page 4 of 26 1.3 Test mode The EUT was tested in the following operating modes(at both channel 3 and 4) for the tests mention in this report: 1) Playback mode [ VHS Play] A video tape recorded with VITS signal was played on the EUT. 2) Record mode [ NTSC Signal Input] A NTSC signal(Color bar with grea lines) was supplied at ch. 5(77.25MHz) through the Ant. input connector for recording. 3) Record mode [ 1V VITS Signal Input] A 1V peak-to-peak VITS signal was supplied through the video input connector for recording. 4) Record mode [ 5V VITS Signal Input] A 5V peak-to-peak VITS signal was supplied through the video input connector for recording. 5) Playback mode [ DVD Play] Note: The NTSC TV signal input record mode is not applicable to the antenna transfer switch test. 1.4 Measuring instrument setup The explanation of measuring instrument setup when respective function is used in any frequency band is as following: Frequency Band InstrumentDetectorResolutionVideo [MHz]functionBandwidthBandwidth Spectrum analyzerPeak 100kHz (1MHz) 1MHz EMI Test receiverQuasi-Peak120kHz- Above 1000EMI Test receiverAverage1MHz- This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 30 to 1000 Project No. : LBE030608 Page 5 of 26 1.5 Test rule and Procedure FCC Rule Part 15, Subpart B : Unintentional Radiators TV Interface Devices. Test Procedure : ANSI C63.4-1992 1.6 Test Summary Result Pass Pass Pass Pass Pass * N/A : Test not applicable 2. Test equipment EquipmentModel No.Serial No.Makers Last calibration and Interval 8566B3340A21744H.P03/03/04, 12Months Firmware versions : Rev.29.9.86 Quasi-peak adapter85650A2521A00687H.P02/10/09, 12Months RF Preselector85685A2602A00224H.P02/10/09, 12Months ESCS30839809/022R & S02/06/18, 12Months Firmware versions : Main 1.08, OTP 02.01, GRA 02.03 Field strength meterESVP860688/015R & S03/02/28, 12Months L.I.S.NESH3-Z5847265/028R & S02/12/03, 12Months Pattern GeneratorPM5418-TDSILO627116PHILIPS03/12/07, 12Months VITS GeneratorMG318AM08643ANRITSU03/02/18, 12Months Matching PAD9730-NIHON- Bi-Log AntennaCBL6112B2767SCHAFFNER02/ 04/26, 12Months This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. ANSI C63.4-1992 ANSI C63.4-1992 Applied Standards ANSI C63.4-1992 ANSI C63.4-1992 ANSI C63.4-1992 Spectrum analyzer Field strength meter Test item OUTPUT TERMINAL CONDUCTED SPURIOUS EMISSION ANTENNA TRANSFER SWITCH ISOLATION AC POWERLINE CONDUCTED EMISSION RADIATED EMISSION OUTPUT SIGNAL LEVEL Project No. : LBE030608 Page 6 of 26 3. Test Results 3.1 RADIATED EMISSION MEASUREMENT 3.1.1 Test Procedure Configurate the EUT System in accordance with ANSI C63.4-1992section 8 and 12.2. Power cords for the EUT System are connected the receptacle on the ground plane. The output ports are connected to the cable provided with the device and the ending port of the cable are terminated in the proper impedance. To find out the maximum emission, change the position of the cable, and the EUT operation mode under normal usage of the EUT. The spectrum analyzer are scanned from 30MHz to 1,000MHz in channel 3 and 4. 3.1.2 Setup Photograph This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE030608 Page 7 of 26 3.1.3 Test Results EUT Mode :Playback mode [ VHS Play] at CH.3 and CH.4 This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE030608 Page 8 of 26 …

Text truncated - open the document above for the full version.

z Radiated Emission Graph Explanation z z Explanation by parts z 1 : EUT Name & Operation Condition z 2. Maximun radiation frequency value reading z 3. Limit Line z  Limit Line – ( Cable Loss + Antenna Factor) z For example in 30MHz z FCC Limit : 40dBuV z Cable loss : 0.53dB z Antenna Factor : 18.1dB The indicate limit line was calculated by the following calculation: 40-(0.53+18.1) = 21.37 dBuV 4. Start Frequency & Resolution Bandwidth 5. Stop Frequency & Sweep Time 6. The radiation noise graph was produced by taking cumulative measurements from an antenna placed horizontally and vertically at 1-4M.. 2 3. Limit Line 4 5 1 6. Radiation Noise

Project No. : LBE030608 Page 20 of 26 3.3 OUTPUT SIGNAL LEVEL MEASUREMENT 3.3.1 Test Procedure Configurate the EUT System in accordance with ANSI C63.4-1992 section 12.2. The RF output terminal is connected is to the spectrum analyzer through the matching transformer with a calibrated 75 ohms coaxial cable. Then, the RF output signal level is measured under the EUT condition produces the maximum signal level. 3.3.2 Setup Photograph This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE030608 Page 22 of 26 3.4 OUTPUT TERMINAL CONDUCTED SPURIOUS EMISSION MEASUREMENT 3.4.1 Test Procedure The EUT system and measuring instrument are set up in the same manner of the output signal measurement. The spectrum was scanned from 30MHz to more than 4.6MHz below the visual carrier frequency, and from more than 7.4MHz above the visual carrier frequency to 1000MHz. Then, the significant spurious emissions are measured at the output terminal. 3.4.2 Setup Photograph This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE030608 Page 25 of 26 3.5 ANTENNA TRANSFER SWITCH ISOLATION MEASUREMENT 3.5.1 Test Procedure Configurate the EUT System in accordance with ANSI C63.4-1992 section 12.2. The RF output terminal is terminated in the proper impedance. The ANT input terminal is connected is to the spectrum analyzer through the matching transformer with a calibrated 75 ohms coaxial cable. Then, the RF output leakage level is measured under the EUT condition produces the maximum signal level. 3.5.2 Setup Photograph This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory.
