A3LDIVA500PDVD Player / Video Cassette Recorder

filename[010COV.fm] model name1[SLV-D500P] [3-083-946-11 (1) US] filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010COV.fm] 3-083-946-11 (1) US DVD Player/ Video Cassette Recorder Operating Instructions For customers in the USA If you have any questions about your Sony DVD-VCR, you may call Sony Customer Information Services Company at 1-800-VHS-SONY (847-7669). For all other Sony product questions, please call Sony Customer Information Services Company at 1-800-222-SONY (7669). Or write to: Sony Customer Information Services Company 12451 Gateway Boulevard Ft. Myers, FL 33913 For Customers in Canada If this product is not working properly, please call 1-877-602-2008 for Peace of Mind Warranty Replacement service. For other product related questions please contact our Customer Information Service Center at 1-877-899-7669 or write to us at: Customer Information Service 115 Gordon Baker Road, Toronto, Ontario, M2H 3R6 SLV-D500P © 2003 Sony Corporation 010COV.book Page 1 Thursday, April 24, 2003 12:37 PM filename[010WAR.fm] model name1[SLV-D500P] [3-083-946-11 (1) US] 2 WARNING filename[C:\3083946111SLVD500PUC0424\010WAR.fm] WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus. CAUTION The use of optical instruments with this product will increase eye hazard. As the laser beam used in this DVD player is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only. USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. For customers in the U.S.A Owner’s Record The model and serial numbers are located at the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. SLV-D500P Serial No.______________ CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. Welcome! Thank you for purchasing this Sony DVD Player/Video Cassette Recorder. Before operating this player, please read this manual thoroughly and retain it for future reference. General Precautions • Operate the unit only on 120 V AC, 60 Hz. • This unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off. • Unplug the unit from the wall outlet if you do not intend to use it for an extended period of time. To disconnect the cord, pull it out by the plug, never by the cord. • If the unit is brought directly from a cold to a warm location, moisture may condense inside the unit and cause damage to the video head and tape. When you first install the unit, or when you move it from a cold to a warm location, wait for about three hours before operating the unit. • Do not install the unit in an inclined position. It is designed to be operated in a horizontal position only. • Keep the unit and cassettes away from equipment with strong magnets, such as microwave ovens or large loudspeakers. • Do not place heavy objects on the unit. 010WAR.fm Page 2 Monday, May 5, 2003 5:53 PM 3 Important Safety Instructions filename[010WAR.fm] model name1[SLV-D500P] [3-083-946-11 (1) US] filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010WAR.fm] Important Safety Instructions 1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with dry cloth. 7 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10 Protect t…

Text truncated - open the document above for the full version.

61 Audio Setup DVD Settings and Adjustments filename[010SET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US] filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010SET.fm] Notes • If you select surround setting while playing a DVD, the player does not output Dolby Digital signals from the DIGITAL AUDIO OUT (OPTICAL or COAXIAL) jack (when you set “Dolby Digital” to “D-PCM”). • If you connect a component that does not conform to the selected audio signal, a loud noise (or no sound) will come out from the speakers, affecting your ears or causing the speakers to be damaged. 010COV.book Page 61 Thursday, April 24, 2003 12:37 PM 62 Screen Setup filename[010SET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US] filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010SET.fm] Screen Setup “Screen Setup” allows you to set the screen according to the playback and connection conditions. 1 Press SET UP when the DVD player is in stop mode. The “SETUP MENU” appears. 2 Press V/v/B/b to select (DVD Setup), then press ENTER. The “DVD SETUP” menu appears. 3 Press V/v to select “Screen Setup,” then press ENTER. V/v/B/b ENTER SET UP O RETURN 010COV.book Page 62 Thursday, April 24, 2003 12:37 PM 63 Screen Setup DVD Settings and Adjustments filename[010SET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US] filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010SET.fm] Menu choices • TV Type (DVD only) Selects the aspect ratio of the connected TV (4:3 standard or wide). The default setting is indicated in bold print. •Black Level You can enhance the black level by increasing the brightness and contrast when viewing DVDs with the PROGRESSIVE indicator turned off. The default setting is indicated in bold print. 4 Press V/v to select the setup item from the displayed list: “TV Type,” “Black Level,” or “Video Out.” 5 Press B/b to select an item, then press O RETURN to confirm the setting. 6 Press O RETURN repeatedly to exit the menu. 4:3 Letter BoxSelect this when you connect a 4:3 screen TV. Displays a wide picture with bands on the upper and lower portions of the screen. 4:3 Pan ScanSelect this when you connect a 4:3 screen TV. Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit. 16:9Select this when you connect a wide-screen TV or a TV with a wide mode function. OnIncreases the contrast. OffStops the increase of the contrast. 4:3 Pan Scan4:3 Letter Box16:9 continued 010COV.book Page 63 Thursday, April 24, 2003 12:37 PM 64 Screen Setup filename[010SET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US] filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010SET.fm] •Video Out You must set this setting when you use S VIDEO OUT or COMPONENT VIDEO OUT jacks to connect to the TV. The default setting is indicated in bold print. Tip • You can select the type of signal output from the COMPONENT VIDEO OUT jacks. When you press the PROGRESSIVE button on the front panel when the DVD player is in stop mode, progressive signal is selected and the PROGRESSIVE indicator lights up in blue. Select this when you have a TV that can accept progressive signal. When you are connected to a standard (interlace format) TV, turn off the PROGRESSIVE indicator. Notes • Playback settings stored in the disc take priority over the “DVD SETUP” menu settings and not all the functions described may work. • Depending on the DVD, “4:3 Letter Box” may be selected automatically instead of “4:3 Pan Scan” or vice versa. • The connection using S VIDEO OUT or COMPONENT VIDEO OUT jacks is only for the DVD player. • If you select progressive signal when you connect the DVD player to a TV that cannot accept the signal in progressive format, the image quality will deteriorate. In this case, press the PROGRESSIVE button to turn off the PROGRESSIVE indicator. • You can output progressive signal only from COMPONENT VIDEO OUT jacks. If you turn on the PROGRESSIVE indicator when you set “Video Out” to “S-video”, COMPONENT VIDEO OUT takes priority over S VIDEO OUT. • The PROGRESSIVE button is not available when the DVD player is in play mode. Use the PROGRESSIVE button in stop mode. S-VideoSelect this when you use the S VIDEO OUT jack on the rear panel to connect to the TV. ComponentSelect this when you use the COMPONENT VIDEO OUT jacks on the rear panel to connect to the TV. 010COV.book Page 64 Thursday, April 24, 2003 12:37 PM 65 Setting the display or sound track language DVD Settings and Adjustments filename[010SET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US] filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010SET.fm] Setting the display or sound track language You can set various languages for the disc’s menu, sound track or subtitle. 1 Press SET UP when the DVD player is in stop mode . The “SETUP MENU” appears. 2 Press V/v/B/b to select (DVD Setup), then press ENTER. The “DVD SETUP” menu appears. 3 Press V/v to select the language setup item from the displayed list: “DVD Menu,” “Audio,” or “Subtitle.” Then press ENTER. V/v/B/b ENTER SET UP O RETURN continued 010COV.book Page 65 Thursday, April 24, 2003 12:37 PM 66 Setting the display or sound track language filename[010SET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US] filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010SET.fm] Tip If you select “Others” in step 4, an additional language menu appears. Press V/v/B/b to select the desired language, then press ENTER. Notes • When you select a language that is not recorded on the DVD in step 4, one of the recorded languages will be automatically selected. • Playback settings stored in the disc take priority over the DVD SETUP settings and not all the functions described may work. 4 Press V/v to select the desired language, then press ENTER. • DVD MENU LANGUAGE You can select the desired language for the disc’s menu. • AUDIO LANGUAGE Switches the language of the sound…

Text truncated - open the document above for the full version.

SLV-D500P

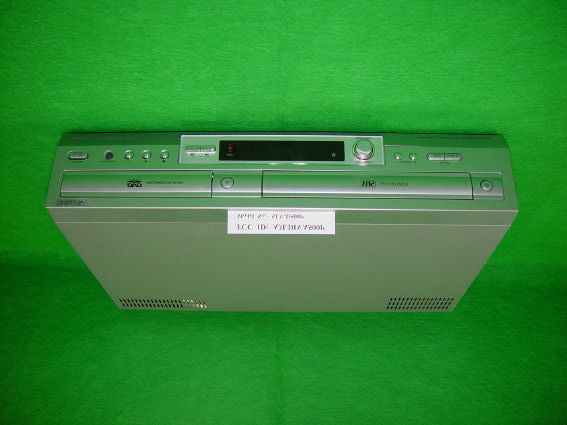

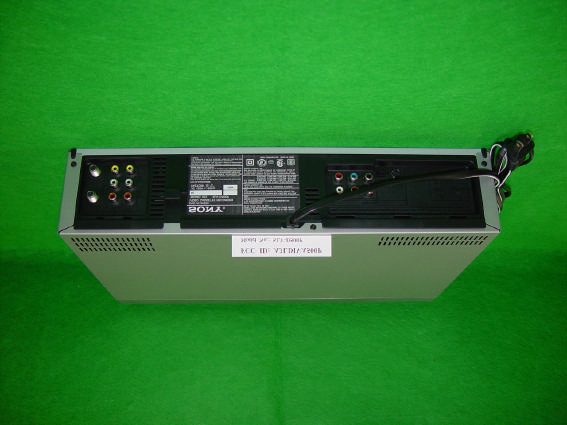

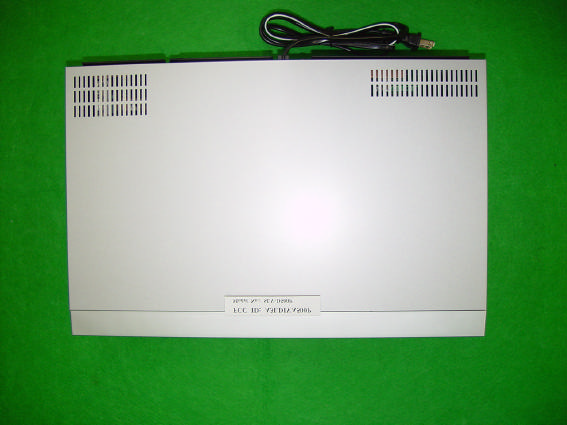

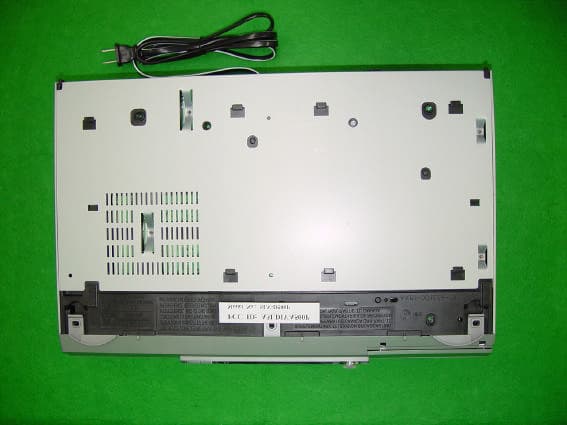

Photograph of SLV-D500P - FCC ID : A3LDIVA500P [Front View] [Rear View] [Top View] [Bottom View]

Location of Rating Label Zoom In

[Top View – Top Cover Open] [Top of Main PCB View] [Bottom of Main PCB View] Photograph of TM-BLOCK - Type name : TMZH2-002A [Top View] [Bottom View]

Project No. : LBE031085 Page 1 of 43 Project No. :LBE031085 Product :Video Cassette Recorder Model No. :SLV-D500P Date of test :May 12 ~ 14, 2003 Issued Date :May 14, 2003 Tested by: Kyung Chul , Min / Test Engineer Reviewed by: No Cheon, PARK / Test Engineer Authorized by: Kyu Baek, CHUNG / Chief of EMC Lab. SAMSUNG ELECTRONICS Co., Ltd. EMC Test Laboratory 416 Maetan-3 Dong, Paldal-Ku, Suwon City, Kyungki-Do, Korea,442-742 Tel. : 81-31-200-2185 Fax. : 81-31-200-2189 This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC TEST REPORT Project No. : LBE031085 Page 2 of 43 Table of Contents 1. Introduction & Summary 1.1 Description of the EUT 1.2 Test facility 1.3 Test mode 1.4 Measuring instrument setup 1.5 Test rule and Procedure 1.6 Test Summary 2. Test equipment 3. Test Results 3.1 RADIATED EMISSION MEASUREMENT 3.2 AC POWERLINE CONDUCTED EMISSION MEASUREMENT 3.3 OUTPUT SIGNAL LEVEL MEASUREMENT 3.4 OUTPUT TERMINAL CONDUCTED SPURIOUS EMISSION MEASUREMENT 3.5 ANTENNA TRANSFER SWITCH ISOLATION MEASUREMENT This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE031085 Page 3 of 43 1. Introduction & Summary 1.1 Description of the EUT Applicant Project Number Equipment Under Test Trade Name Model Number Variant Model Type of RF Output Connector FCC ID Number CH.3 CH.4 Mains input 1.2 Test facility The EMI/EMS measurement facilities used to collect the tested data are located at 416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea. The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR 16-1 & 16-2. SAMSUNG Electronics Co.,Ltd is accredited by Korea Laboratory Accreditation Scheme(KOLAS) which signed the International Laboratory Accreditation Cooperation (ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(s). Measured in Semi-anechoic chamber #1 that is FCC Registration Number 98856. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Operating(RF Modulator) Frequency Type "F" Connector 75ohm(Unbalanced) A3LDIVA500P 120V 60Hz Visual Carrier 61.25MHz Aural Carrier 65.75MHz Visual Carrier 67.25MHz Aural Carrier 71.75MHz None SAMSUNG SAMSUNG ELECTRONICS Co., Ltd. LBE031085 Video Cassette Recorder SLV-D500P Project No. : LBE031085 Page 4 of 43 1.3 Test mode The EUT was tested in the following operating modes(at both channel 3 and 4) for the tests mention in this report: 1) Playback mode [ VHS Play] A video tape recorded with VITS signal was played on the EUT. 2) Record mode [ NTSC Signal Input] A NTSC signal(Color bar with grea lines) was supplied at ch. 5(77.25MHz) through the Ant. input connector for recording. 3) Record mode [ 1V VITS Signal Input] A 1V peak-to-peak VITS signal was supplied through the video input connector for recording. 4) Record mode [ 5V VITS Signal Input] A 5V peak-to-peak VITS signal was supplied through the video input connector for recording. 5) Play mode [ DVD Play] Note: The NTSC TV signal input record mode is not applicable to the antenna transfer switch test. 1.4 Measuring instrument setup The explanation of measuring instrument setup when respective function is used in any frequency band is as following: Frequency Band InstrumentDetectorResolutionVideo [MHz]functionBandwidthBandwidth Spectrum analyzerPeak 100kHz (1MHz) 1MHz EMI Test receiverQuasi-Peak120kHz- Above 1000EMI Test receiverAverage1MHz- This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 30 to 1000 Project No. : LBE031085 Page 5 of 43 1.5 Test rule and Procedure FCC Rule Part 15, Subpart B : Unintentional Radiators TV Interface Devices. Test Procedure : ANSI C63.4-1992 1.6 Test Summary Result Pass Pass Pass Pass Pass * N/A : Test not applicable 2. Test equipment EquipmentModel No.Serial No.Makers Last calibration and Interval 8566B3340A21744H.P03/03/04, 12Months Firmware versions : Rev.29.9.86 Quasi-peak adapter85650A2521A00687H.P02/10/09, 12Months RF Preselector85685A2602A00224H.P02/10/09, 12Months ESCS30839809/022R & S02/06/18, 12Months Firmware versions : Main 1.08, OTP 02.01, GRA 02.03 Field strength meterESVP860688/015R & S03/02/28, 12Months L.I.S.NESH3-Z5847265/028R & S02/12/03, 12Months Pattern GeneratorPM5418-TDSILO627116PHILIPS03/12/07, 12Months VITS GeneratorMG318AM08643ANRITSU03/02/18, 12Months Matching PADRAM829712/026R & S- Test ReceiverESI26882692/002R & S02/10/25, 12Months Bi-Log AntennaCBL6112B2766SCHAFFNER03/ 04/26, 12Months This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. ANSI C63.4-1992 ANSI C63.4-1992 Applied Standards ANSI C63.4-1992 ANSI C63.4-1992 ANSI C63.4-1992 Spectrum analyzer Field strength meter Test item OUTPUT TERMINAL CONDUCTED SPURIOUS EMISSION ANTENNA TRANSFER SWITCH ISOLATION AC POWERLINE CONDUCTED EMISSION RADIATED EMISSION OUTPUT SIGNAL LEVEL Project No. : LBE031085 Page 6 of 43 3. Test Results 3.1 RADIATED EMISSION MEASUREMENT 3.1.1 Test Procedure Configurate the EUT System in accordance with ANSI C63.4-1992section 8 and 12.2. Power cords for the EUT System are connected the receptacle on the ground plane. The output ports are connected to the cable provided with the device and the ending port of the cable are terminated in the proper impedance. To find out the maximum emission, change the position of the cable, and the EUT operation mode under normal usage of the EUT. The spectrum analyzer are scanned from 30MHz to 1,000MHz in channel 3 and 4. 3.1.2 Setup Photograph This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE031085 Page 7 of 43 3.1.3 Radiated Emission Test Data The initial step in collecting radiated data was to perform a quasi-peak scan over the measurement range using a receiver. All other em…

Text truncated - open the document above for the full version.

Project No. : LBE031085 Page 6 of 43 3. Test Results 3.1 RADIATED EMISSION MEASUREMENT 3.1.1 Test Procedure Configurate the EUT System in accordance with ANSI C63.4-1992section 8 and 12.2. Power cords for the EUT System are connected the receptacle on the ground plane. The output ports are connected to the cable provided with the device and the ending port of the cable are terminated in the proper impedance. To find out the maximum emission, change the position of the cable, and the EUT operation mode under normal usage of the EUT. The spectrum analyzer are scanned from 30MHz to 1,000MHz in channel 3 and 4. 3.1.2 Setup Photograph This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory.
