A3LDNUBS234BWiFi Module

Confidential Material for Internal Use Only 1 DNUB-S234B Block Diagram Confidential Material for Internal Use Only BCM43234B System Block Diagram Confidential Material for Internal Use Only 2

416, Maethan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, KOREA Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Date: December 29, 2011 RE: Request of confidentiality for FCC ID: A3LDNUBS234B To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Sectio 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. Hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 day after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. Temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Operational Description 2 Schematics SHORT-TERM 3 External Photos 4 Internal Photos 5 Test-Setup Photos 6 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, December 29, 2011 NAME : Jaywoo Lee TITLE : Engineer COMPANY : : Samsung Electronics Co., Ltd. 416 Maetan-dong, Young-Tong gu, Suwon, Korea 442-742

416, Maethan 3-Dong, Youngtong-Ku, Suwon-City, Kyung-ki-Do, KOREA Attn: Reviewing Engineer Federal communications Commission 7435 Oakland Mills Road Columbia, MD 21046 2011-12-28 RE: PART 15 UNLICENSED MODULAR TRANSMITTER APPROVAL To whom It May Concern: We, Samsung Electronics Co., Ltd., Hereby requests a Modular Approval of our Wi-Fi Module, described as follows: Brand name: SAMSUNG Model name: Wi-Fi Module FCC ID : A3LDNUBS234B In FCC Public Notice DA 00-1407 released June 26, 2000 there are eight numbered requirements that our RF Transceiver Module complies with. 1. The modular transmitter must have an own shielding : The radio portion of this module has been shielded, Please see photographs provided with the application. 2. The modular transmitter must have buffered modulation/data inputs. : All inputs to the modules are buffered through logic U1 inputs. Refer to Block Diagram. 3. The modular transmitter must have its own power supply regulation. : The IC Contain an own voltage regulation. In case of changes in the supply voltage VCC (for example caused by temperature changes or other effects), the internal voltage will be stabilized. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204c: This module is equipped with an onboard PCB Antenna. For further details please refer to the antenna data sheet included in the filing. 5. The modular transmitter must be tested in a stand-alone configuration: This module was tested in a stand-alone configuration. 6. The modular transmitter must be labeled with its own FCC ID number: This module is labeled with its own FCC ID number, Please see product label design and the external photograph of the device with this label submitted with the application. 7. The modular transmitter must comply with any specific rule of operation requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements: This module is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. The modular transmitter must comply with any applicable RF exposure requirements: This module is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the test report. Sincerely, Name: Jaywoo Lee Title: Engineer Company: SAMSUNG ELECTRONICS CO., LTD

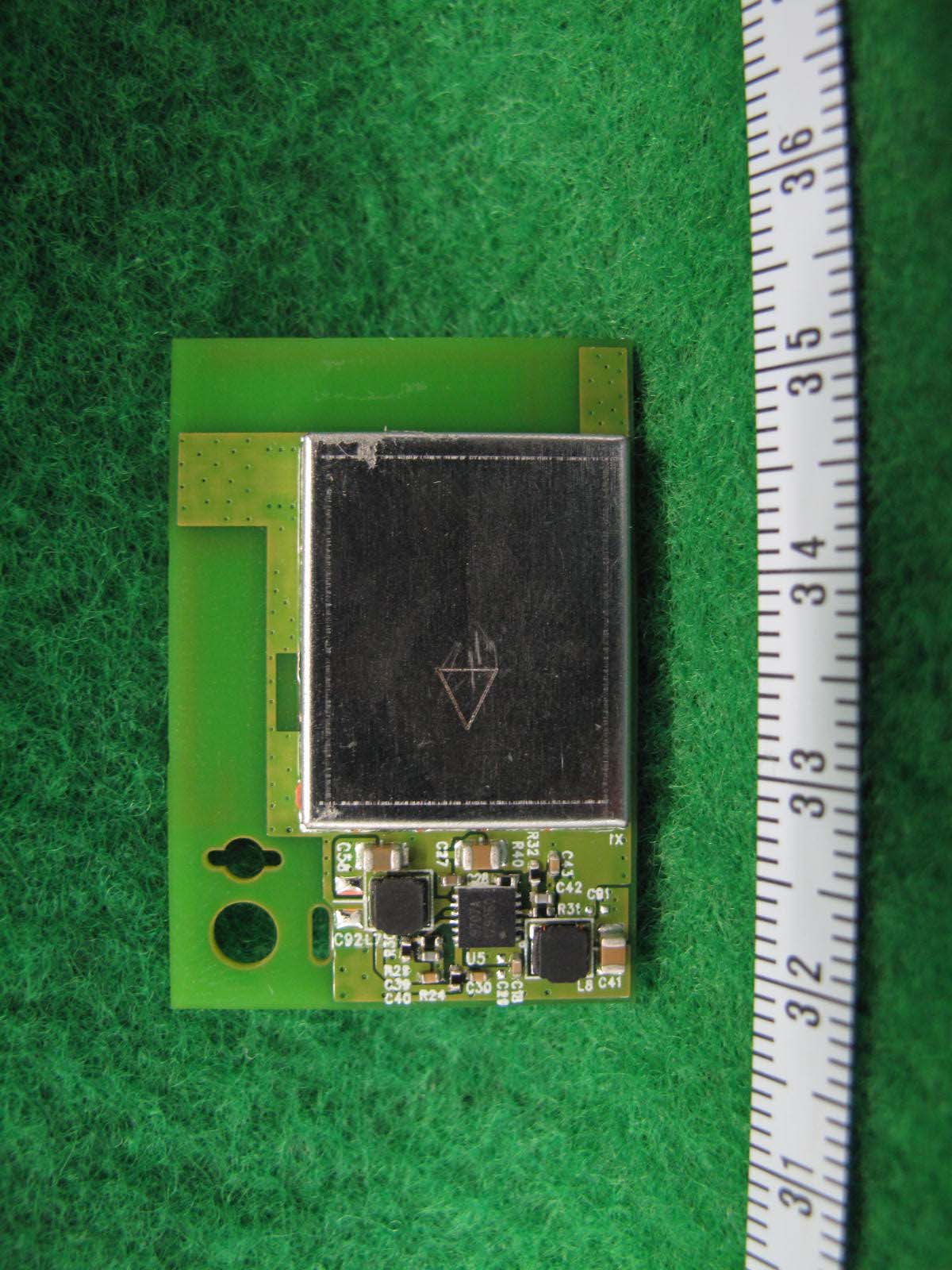

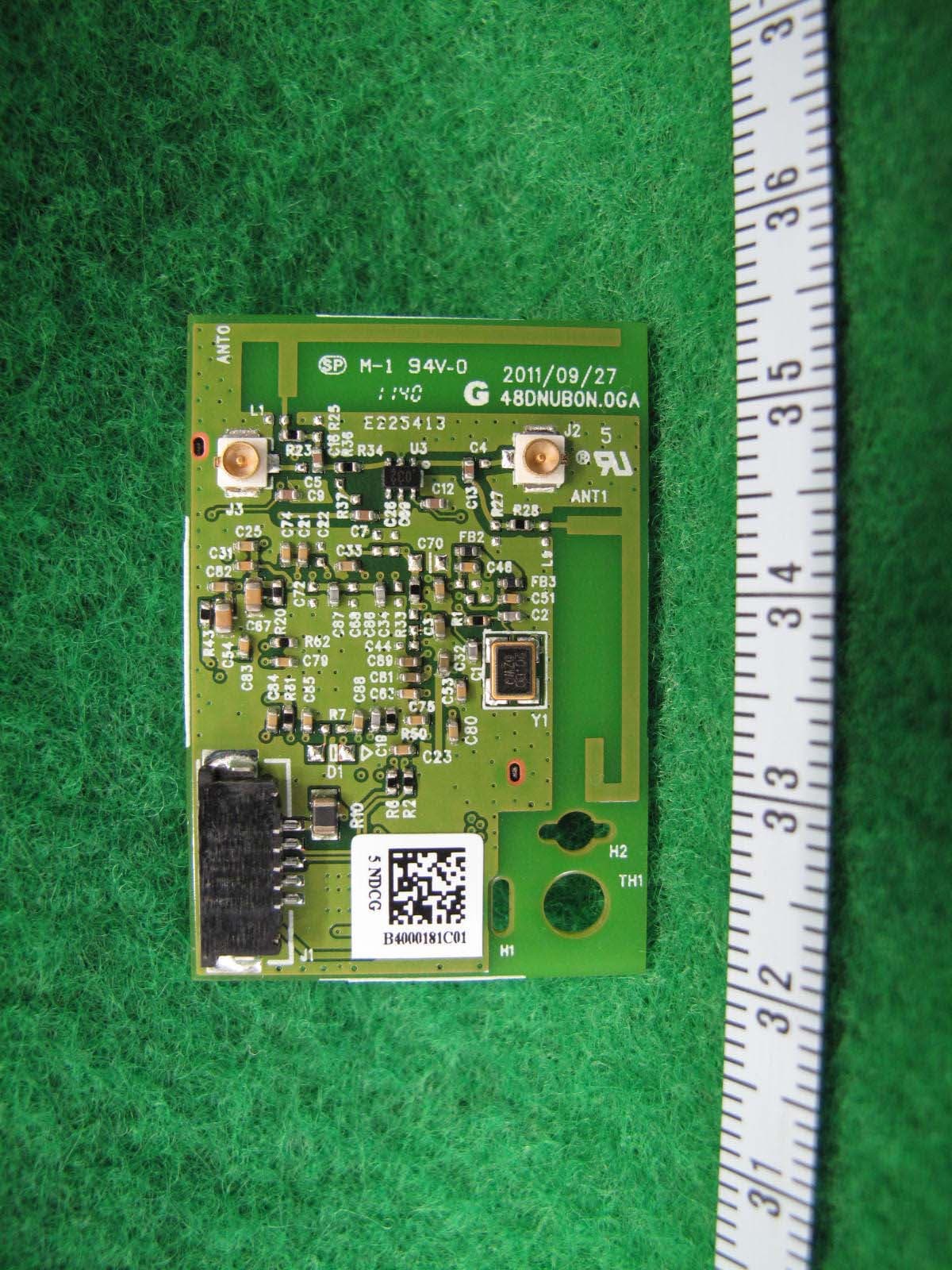

Test Report No.: NK-11-R-284 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LDNUBS234B / IC ID :649E-DNUBS234B Page 100 of 102 APPENDIX C – EUT PHOTOGRAPHS Front View of EUT Test Report No.: NK-11-R-284 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LDNUBS234B / IC ID :649E-DNUBS234B Page 101 of 102 Rear View of EUT

Test Report No.: NK-11-R-284 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LDNUBS234B / IC ID :649E-DNUBS234B Page 97 of 102 APPENDIX A – LABELLING REQUIREMENTS The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. ※ See other informations in the manual Labeling Requirements

Test Report No.: NK-11-R-284 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LDNUBS234B / IC ID :649E-DNUBS234B Page 102 of 102 View of EUT without shielding can

Test Report No.: NK-11-R-284 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LDNUBS234B / IC ID :649E-DNUBS234B Page 2 of 102 TABLE OF CONTENTS 1. Scope 4 2. Introduction (Site Description) 5 2.1 Test facility 5 2.2 Accreditation and listing 6 3. Test Conditions & EUT Information 7 3.1 Operation During Test 7 3.2 Support Equipment 8 3.3 Setup Drawing 8 3.4 EUT Information 9 4. Summary of Test Results 10 5. Recommendation / Conclusion 11 6. Antenna Requirements 11 7. Description of Test 12 7.1 Conducted Emissions 12 7.2 Radiated Emissions 13 7.3 6 dB Bandwidth 14 7.4 Maximum Peak Output Power 14 7.5 Peak Power Spectral Density 15 7.6 Conducted Spurious Emissions 15 8. Test Data 16 8.1 Conducted Emissions 16 8.2 Radiated Emissions 19 8.3 6 dB Modulated Bandwidth 20 8.4 Peak Power Output 30 8.5 Power Spectral Density 31 8.6 Conducted Spurious Emissions 41 Test Report No.: NK-11-R-284 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LDNUBS234B / IC ID :649E-DNUBS234B Page 3 of 102 8.7 Radiated Spurious Emissions 66 9 Accuracy of Measurement 92 10. Test Equipment 94 Appendix A: Labeling Requirement 95 Appendix B: Photographs of Test Set-up 96 Appendix C: EUT Photographs 98 Appendix D: Maximum Permissible Exposure 101 Test Report No.: NK-11-R-284 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LDNUBS234B / IC ID :649E-DNUBS234B Page 4 of 102 1. SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 15 and IC RSS-210. Responsible Party : Contact Person : Manufacturer : Samsung Electronics Co., Ltd. Mr. Jaywoo. Lee Samsung Electronics Co., Ltd. 416 Maetan-3Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 KOREA z FCC ID: A3LDNUBS234B z Model: DNUB-S234B z Brand Name: SAMSUNG z EUT Type: Wi-Fi Module z Classification: FCC part 15 Spread Spectrum Transmitter z Applied Standard: FCC 47 CFR Part 15 subpart C and IC RSS-210 z Test Procedure(s): ANSI C63.4-2003 and FCC procedure dated March 23, 2005 entitled “Measurements of Digital Transmission Systems Operating Under Section 15.247”. z Dates of Test: Oct. 19, 2011 ~ Oct. 28, 2011 z Place of Tests: Nemko Korea Co., Ltd. Test Report No.: NK-11-R-284 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LDNUBS234B / IC ID :649E-DNUBS234B Page 5 of 102 2. INTRODUCTION 2.1 Test facility The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions emanating from Samsung Electronics Co., Ltd. FCC ID : A3LDNUBS234B and IC ID : 649E-DNUBS234B These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory. The site address is 300-2, Osan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do, KOREA. The area of Nemko Korea Corporation Ltd. EMC Test Site is located in a mountain area at 80 kilo-meters (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18 miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4 2003. Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab. and Incheon Airport. Nemko Korea Co., Ltd. EMC Lab. 300-2, Osan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do, KOREA 449-852 Tel)+82-31-330-1700 Fax)+82-31-322-2332 Test Report No.: NK-11-R-284 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LDNUBS234B / IC ID :649E-DNUBS234B Page 6 of 102 2.2 Accreditation and listing Accreditation type Accreditation number FCC part 15/18 Filing site Registration No. 97992 CAB Accreditation for DOC Designation No. KR0026 KOLAS Accredited Lab. (Korea Laboratory Accreditation Scheme) Registration No. 155 Canada IC Registered site Site No. 2040E-1 VCCI registration site(RE/CE/Telecom CE) Member No. 2118 EMC CBTL - KCC(RRL)Designated Lab. Registration No. KR0026 SASO registered Lab and Certification Body Registration No. 2008-15 Test Report No.: NK-11-R-284 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LDNUBS234B / IC ID :649E-DNUBS234B Page 7 of 102 3. TEST CONDITIONS & EUT INFORMATION 3.1 Operation During Test The EUT is the SISO transceiver which is module supporting the 802.11b/g/n mode. It has WLAN 1 x 1 Diversity function (11b mode: 1TX, 1RX, 11g mode: 1TX, 1RX, 11N mode: 1TX, 1RX). The EUT was tested at the lowest channel, middle channel and the highest channel with the maximum RF power and all test data recorded in the report. During the test, the EUT was connected to laptop PC and then a test program was executed to operate EUT continuously. The EUT is programmed with the following setting during the testing: Test frequency 2412 MHz 2437 MHz 2462 MHz 802.11b Programed Level 17 17 17 Data rate (Mbps) 1 1 1 802.11g Programed Level 14 15 15 Data rate (Mbps) 6 6 6 802.11n(HT20) Programed Level 13 17 15 Data rate (Mbps) MCS0 MCS0 MCS0 Table of test modes Test Items Mode Data rate (Mbps) Conducted Emissions 802.11n HT20 MCS0 Radiated Emissions 802.11n HT20 MCS0 6 dB Bandwidth 802.11b 1 802.11g 6 802.11n(HT20) MCS0 Peak Output Power 802.11b 1 802.11g 6 802.11n(HT20) MCS0 Power Spectral Density 802.11b 1 802.11g 6 802.11n(HT20) MCS0 Conducted Spurious Emission, Radiated Spurious Emission, Band edge Emission 802.11b 1 802.11g 6 802.11n(HT20) MCS0 Test …

Text truncated - open the document above for the full version.

Test Report No.: NK-11-R-284 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LDNUBS234B / IC ID :649E-DNUBS234B Page 98 of 102 APPENDIX B – PHOTOGRAPHS OF TEST SET-UP The Conducted Test Picture and Radiated Test Picture and show the worst-case configuration and cable placement. z Conducted Test Picture(Front) z Conducted Test Picture(Rear) Test Report No.: NK-11-R-284 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LDNUBS234B / IC ID :649E-DNUBS234B Page 99 of 102 z Radiated Test Picture(Front) z Radiated Test Picture(Rear)
