A3LDNURS11WiFi module

DATE: February 29 th , 2012 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Nemko Korea Co., Ltd. (300-2, Osan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi Korea) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Samsung Electronics Co., Ltd.(18600 Broadwick St., Rancho Dominguez, CA 90220, USA). Dated this 29 th Day of February 20 12 Agency agreement expiration date: February 29 th , 2013 By: SANG KYUNG (PETER), RA Signature Printed Title: General Manager On behalf of : Samsung Electronics Co., Ltd. Telephone: 310-900-5250

Attn: Reviewing Engineer Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Date: February 29 th , 2012 RE: PART 15 UNLICENSED SINGLE MODULAR APPROVAL REQUEST To Whom It May Concern: We, Samsung Electronics Co., Ltd., hereby requests a Single Modular Approval of our RF Transceiver Module, described as follows: -. Brand name: SAMSUNG -. FCC ID: A3LDNURS11 -. Model name: DNUR-S1(1) The requirements of section 15.212 of the FCC rules have been met as indicated in the following statements: 1. The radio elements of the modular transmitter must have their own shielding.: The radio portion of this module has been shielded, please see photographs provided with the application. 2.The modular transmitter must have buffered modulation/data inputs: This module has a memory management unit inside of the IC(Ralink_RT5370). It buffers the data inputs from USB terminal. 3.The modular transmitter must have its own power supply regulation: IC(Ralink_RT5370) contains an own voltage regulation. In case of changes in the supply voltage VCC(for example caused by temperature changes or other effects), the internal voltage will be stabilized. 4.The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204c: This module is equipped with an onboard PCB pattern antenna. For further details please refer to the antenna data sheet included in the filing. 5.The modular transmitter must be tested in a stand-alone configuration: This module was tested in a stand-alone configuration. 6.The modular transmitter must be labeled with its own FCC ID number: This module is labeled with its own FCC ID number. Please see product label design and the labeling requirement of the device with this label submitted with the application. 7.The modular transmitter must comply with any specific rule of operation requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements: This module is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in Users Manual. 8.The modular transmitter must comply with any applicable RF exposure requirements: This module is compliant with all applicable RF exposure requirements. RF exposure is addressed in the test report. Please contact me if there are any questions. Sincerely, Name: Sang Kyung (Peter), Ra Title: General Manager Company Name: Samsung Electronics Co., Ltd.

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Date: February 29 th , 2012 RE: Request of confidentiality for FCC ID: A3LDNURS11 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. Hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 day after the grant as outlined in Public Notice DA 04-1705. This provision will give Samsung Electronics Co., Ltd. Temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Name: Sang Kyung (Peter), Ra Title: General Manager Company Name: Samsung Electronics Co., Ltd.

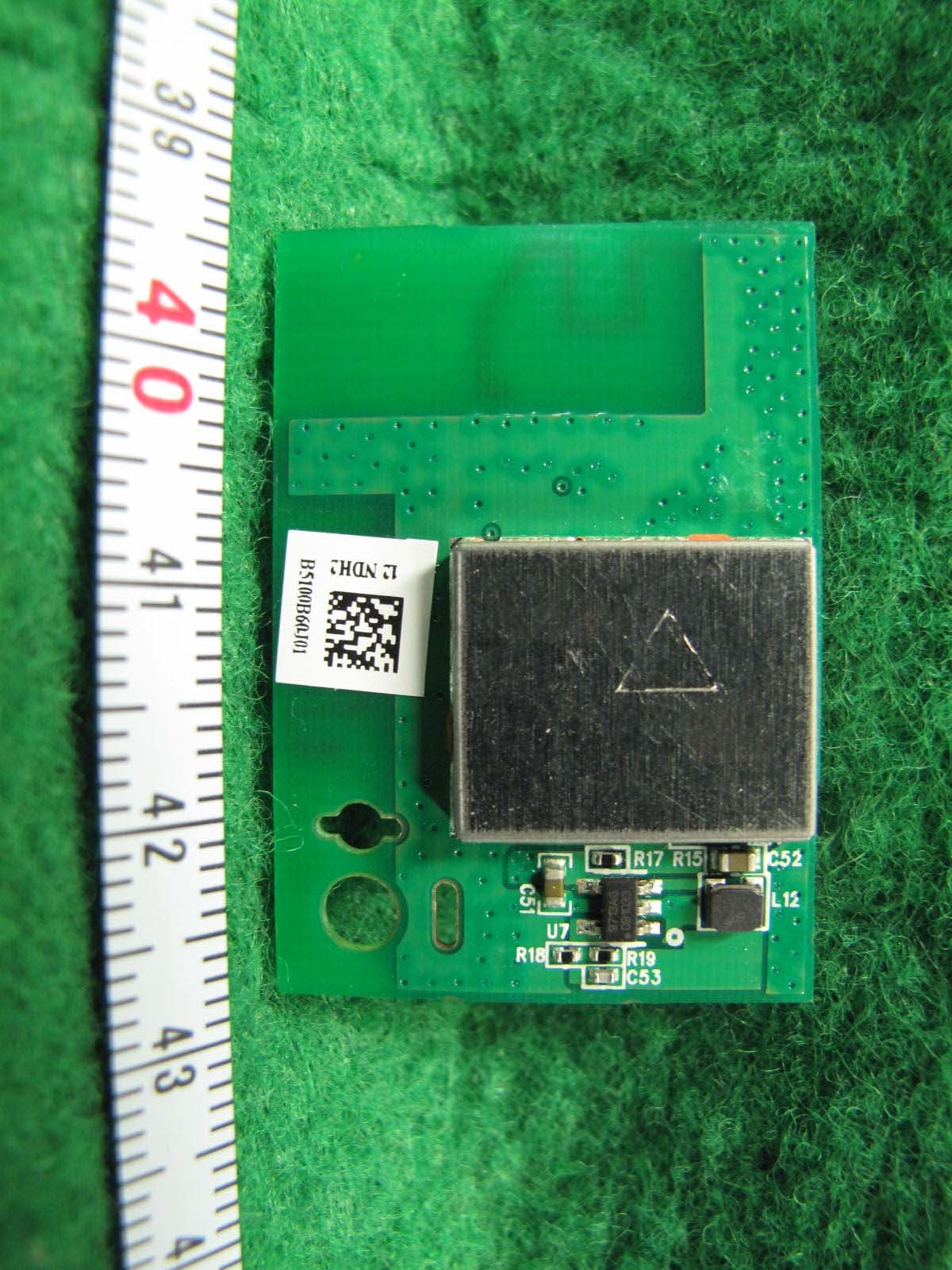

Test Report No.: NK-12-R-015 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LDNURS11 / IC :649E-DNURS11 Page 68 of 72 APPENDIX C – EUT PHOTOGRAPHS Front View of EUT Test Report No.: NK-12-R-015 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LDNURS11 / IC :649E-DNURS11 Page 69 of 72 Rear View of EUT

Test Report No.: NK-12-R-015 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LDNURS11 / IC :649E-DNURS11 Page 65 of 72 APPENDIX A – LABELLING REQUIREMENTS The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. ※ See other informations in the manual (Front view of mainboard) Labeling Requirements

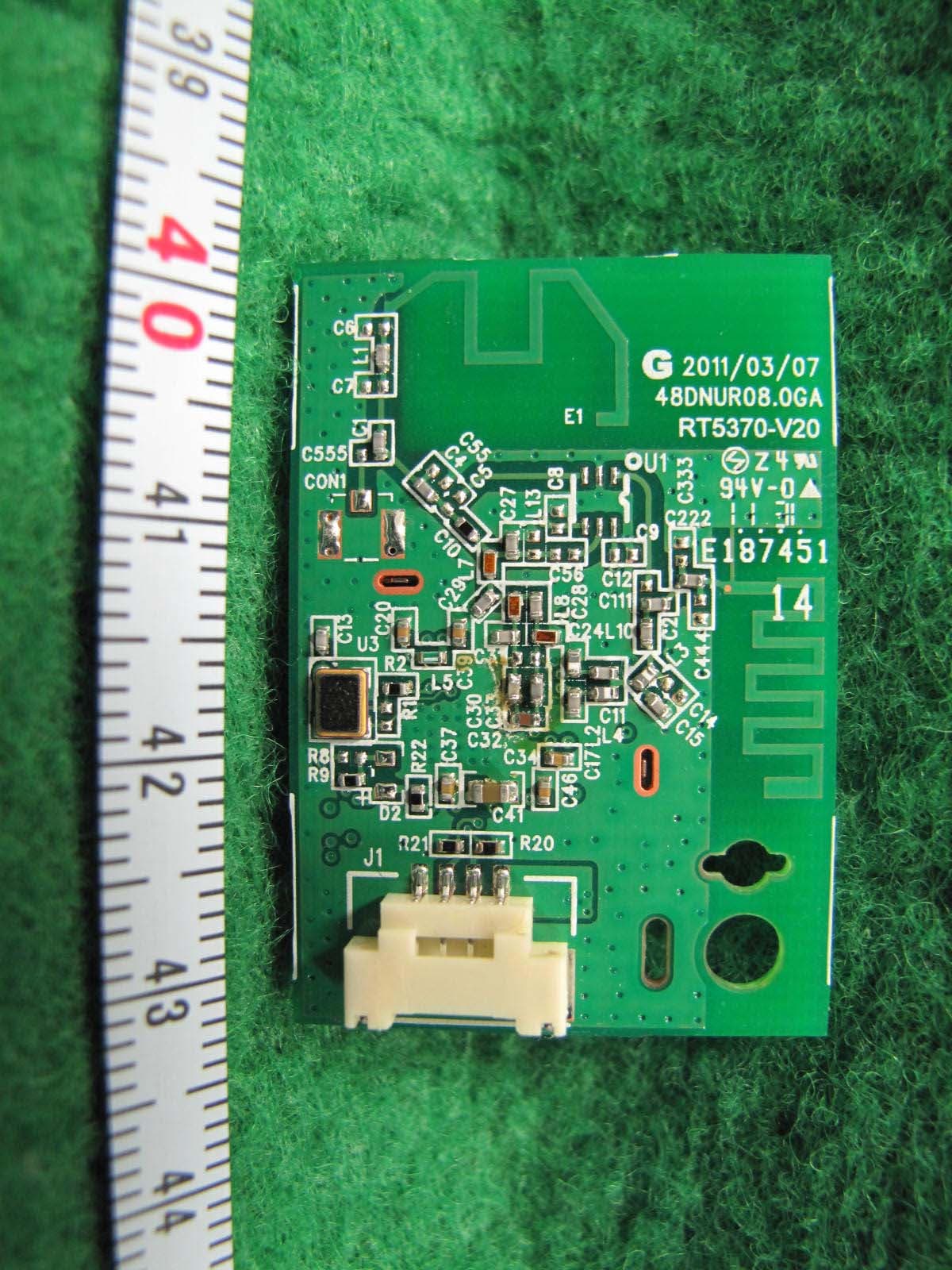

Test Report No.: NK-12-R-015 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LDNURS11 / IC :649E-DNURS11 Page 70 of 72 Without shielding can of EUT

Test Report No.: NK-12-R-015 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LDNURS11 / IC :649E-DNURS11 Page 2 of 72 TABLE OF CONTENTS 1. Scope 4 2. Introduction (Site Description) 5 2.1 Test facility 5 2.2 Accreditation and listing 6 3. Test Conditions & EUT Information 7 3.1 Operation During Test 7 3.2 Support Equipment 9 3.3 Setup Drawing 9 3.4 EUT Information 10 4. Summary of Test Results 11 5. Recommendation / Conclusion 12 6. Antenna Requirements 12 7. Description of Test 13 7.1 Conducted Emissions 13 7.2 Radiated Emissions 14 7.3 6 dB Bandwidth 15 7.4 Maximum Peak Output Power 15 7.5 Peak Power Spectral Density 16 7.6 Conducted Spurious Emissions 16 8. Test Data 17 8.1 Conducted Emissions 17 8.2 Radiated Emissions 20 8.3 6 dB Modulated Bandwidth 21 8.4 Peak Power Output 27 8.5 Peak Power Spectral Density 28 8.6 Conducted Spurious Emissions 34 Test Report No.: NK-12-R-015 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LDNURS11 / IC :649E-DNURS11 Page 3 of 72 8.7 Radiated Spurious Emissions 47 9 Accuracy of Measurement 62 10. Test Equipment 64 Appendix A: Labeling Requirement 65 Appendix B: Photographs of Test Set-up 66 Appendix C: EUT Photographs 68 Appendix D: Maximum Permissible Exposure 71 Test Report No.: NK-12-R-015 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LDNURS11 / IC :649E-DNURS11 Page 4 of 72 1. SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 15 and IC RSS-210. Responsible Party : Contact Person : Manufacturer : Samsung Electronics Co., Ltd. Mr. Sukjun. Lee Samsung Electronics Co., Ltd. 416 Maetan-3Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 KOREA  FCC ID: A3LDUNRS11  Model: DNUR-S1(1)  Brand Name: SAMSUNG  EUT Type: WiFi module  Classification: FCC part 15 Spread Spectrum Transmitter  Applied Standard: FCC 47 CFR Part 15 subpart C and IC RSS-210  Test Procedure(s): ANSI C63.4-2003 and FCC procedure dated March 23, 2005 entitled “Measurements of Digital Transmission Systems Operating Under Section 15.247”  Dates of Test: February 10, 2012 ~ February 23, 2012  Place of Tests: Nemko Korea Co., Ltd. Test Report No.: NK-12-R-015 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LDNURS11 / IC :649E-DNURS11 Page 5 of 72 2. INTRODUCTION 2.1 Test facility The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions emanating from Samsung Electronics Co., Ltd. FCC ID : A3LDNURS11 and IC : 649E-DNURS11 These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory. The site address is 67-1 & 300-2, Osan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do, KOREA. The area of Nemko Korea Corporation Ltd. EMC Test Site is located in a mountain area at 80 kilo-meters (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18 miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4 2003. Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab. and Incheon Airport. Nemko Korea Co., Ltd. EMC Lab. 67-1 & 300-2, Osan-Ri, Mohyeon- Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do, KOREA 449-852 Tel)+82-31-330-1700 Fax )+82-31-322-2332 Test Report No.: NK-12-R-015 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LDNURS11 / IC :649E-DNURS11 Page 6 of 72 2.2 Accreditation and listing Accreditation type Accreditation number FCC part 15/18 Filing site Registration No. 97992 CAB Accreditation for DOC Designation No. KR0026 KOLAS Accredited Lab. (Korea Laboratory Accreditation Scheme) Registration No. 155 Canada IC Registered site Site No. 2040E-1 VCCI registration site(RE/CE/Telecom CE) Member No. 2118 EMC CBTL - KCC(RRL)Designated Lab. Registration No. KR0026 SASO registered Lab and Certification Body Registration No. 2008-15 Test Report No.: NK-12-R-015 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LDNURS11 / IC :649E-DNURS11 Page 7 of 72 3. TEST CONDITIONS & EUT INFORMATION 3.1 Operation During Test The EUT is the SISO transceiver which is module supporting the 802.11b/g/n mode. During the test, the EUT was connected to laptop PC and then a test program was executed to operate EUT continuously. The operating voltage of EUT was 5 Vdc supplied from a USB port on Laptop PC. The EUT was tested at the lowest channel, middle channel and the highest channel with the maximum output power in accordance with the manufacturer’s specifications. The worst data were recorded in the report. The EUT is programmed with the following setting during the testing: Test frequency 2412 MHz 2437 MHz 2462 MHz 802.11b Programed Level 11 16 16 Data rate (Mbps) 1 1 1 802.11g Programed Level 1E 1D 1D Data rate (Mbps) 54 54 54 802.11n Programed Level 1E 1E 1E Data rate (Mbps) MCS7 MCS7 MCS7 Test Report No.: NK-12-R-015 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LDNURS11 / IC :649E-DNURS11 Page 8 of 72 Table of test modes Test Items Mode Data rate (Mbps) Conducted Emissions 802.11g 54 Radiated Emissions 802.11g 54 6 dB Bandwidth 802.11b 1 802.11g 54 802.11n MCS7 Peak Output Power 802.11b 1 802.11g 54 802.11n MCS7 Peak Power Spectral Density 802.11b 1 802.11g 54 802.11n MCS7 Co…
