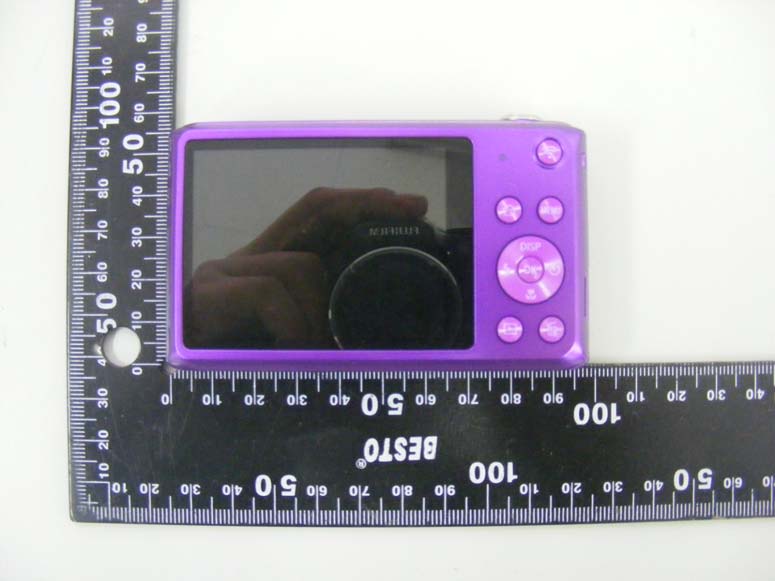

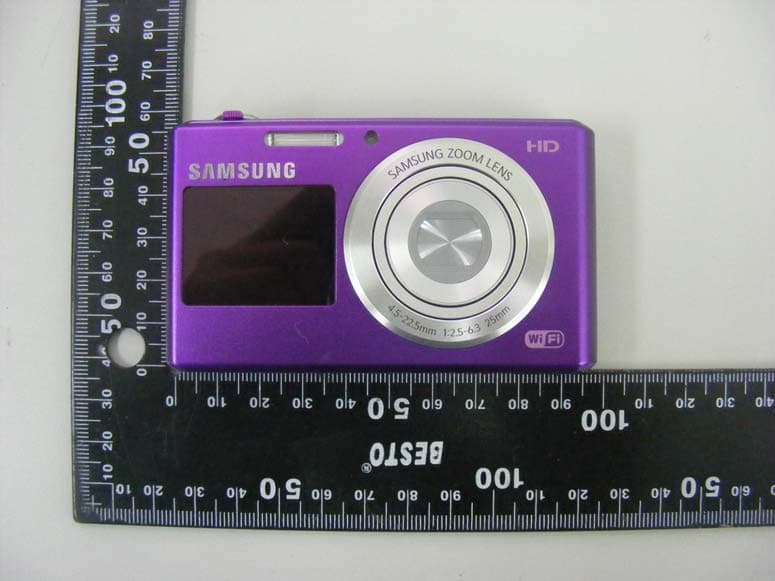

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT

FCC/IC Label 1.(1) FCC Label Drawing G (2) FCC Label Location i–››–”Gš‹ŒG–Gl|{GG 2.(1) IC Label Drawing (2) IC Label Location i–››–”Gš‹ŒG–Gl|{GG .0%&-8#'

Model : DV150F Internal photos of EUT Internal Photos of EUT Samsung Electronics Co., Ltd. DV150F Top view of Main PCB Bottom view of Main PCB Top view of CCD Bottom view of CCD Internal Photos of EUT Samsung Electronics Co., Ltd. DV150F Top view of Sub PCB Bottom view of Sub PCB Antenna Internal Photos of EUT Samsung Electronics Co., Ltd. DV150F Top view of Rear AMOLED Bottom view of Rear AMOLED Top view of Front AMOLED Bottom view of Front AMOLED Internal Photos of EUT Samsung Electronics Co., Ltd. DV150F Inside of EUT

Report File No. : F690501/RF-SAR002034 Date of Issue :2012-11-23 Page :1 / 60 SAR TEST REPORT Equipment Under Test:Digital Camera Model No.:DV150F Applicant:Samsung Electronics Co., Ltd. Address of Applicant:416, Maetan-dong, Yeongtong-gu, Suwon-city, Gyeonggi-do, Korea FCC ID:A3L-DV150F IC ID649E-DV150F Device Category:Portable Device Exposure Category:General Population /Uncontrolled Exposure Date of Receipt:2012-11-13 Date of Test(s):2012-11-21 Date of Issue:2012-11-23 Max. SAR: 0.485W/㎏(11b) Standards:FCC OET Bulletin 65 supplement C RSS-102 (Issue 4) IEEE 1528, 2003 ANSI/IEEE C95.1, C95.3 In the configuration tested, the EUT complied with the standards specified above. Remarks: Tested by :Minhyuk Han2012-11-23 Approved by:Feel Jeong 2012-11-23 This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS Testing Korea Co., Ltd. or testing done by SGS Testing Korea Co., Ltd. in connection with distribution or use of the product described in this report must be approved by SGS Testing Korea Co., Ltd. in writing. Report File No. : F690501/RF-SAR002034 Date of Issue :2012-11-23 Page :2 / 60 Contents 1. General Information 1.1 Testing Laboratory........................................................................................... 3 1.2 Details of Applicant.......................................................................................... 3 1.3 Version of Report............................................................................................. 3 1.4 Description of EUT(s)....................................................................................... 3 1.5 Test Environment............................................................................................. 4 1.6 Operation description........................................................................................ 4 1.7 Evaluation procedures....................................................................................... 4 1.8 The SAR Measurement System............................................................................ 5 1.9 System Components.......................................................................................... 7 1.10 SAR System Verification.................................................................................... 8 1.11 Tissue Simulant Fluid for the Frequency Band.......................................................... 10 1.12 Test Standards and Limits................................................................................... 11 1.13 Justification for Extended SAR Dipole Calibrations................................................... 12 2 Instruments List................................................................................. 13 3 Summary of Results ........................................................................... 14 3.1 FCC Power Measurement Procedures..................................................................... 14 3.2 RF Conducted Power....................................................................................... 14 3.3 SAR Test Configuration ................................................................................... 16 3.4 Still cameras and video cameras Test position ......................................................... 17 APPENDIX A. DASY5 SAR Report B. Uncertainty Analysis C. Calibration certificate Report File No. : F690501/RF-SAR002034 Date of Issue :2012-11-23 Page :3 / 60 1. General Information 1.1Testing Laboratory SGSKorea Co., Ltd. Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 Telephone: +82 +31428 5700 FAX: +82 +31 427 2371 Homepage:All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms- and-Conditions.aspx 1.2 Details of Applicant Manufacturer:Samsung Electronics Co., Ltd. Address:416, Maetan-dong, Yeongtong-gu, Suwon-city, Gyeonggi-do, Korea Contact Person:Moonki-Seok Phone No.:+82 +31 2776800 E-mail:[email protected] 1.3 Version of Report Version NumberDateRevision 002012-11-23Initial issue 1.4 Description of EUT(s) EUT Type : Digital Camera Model : DV150F Serial Number : N/A H/W Version : DV 2012.10.17 S/W Version : 1112 Mode of Operation : WLAN Body worn Accessory : None Tx Frequency Range : 2412㎒~ 2462㎒(WLAN) Max. Conducted RF Power: 12.81㏈m (WLAN) Battery Type : DC 3.7 V (Li-ion Battery) Report File No. : F690501/RF-SAR002034 Date of Issue :2012-11-23 Page :4 / 60 1.5 Test Environment Ambient temperature: (22±2) ° C Tissue Simulating Liquid: (22±2) ° C Relative Humidity : (55±5) % R.H. 1.6 Operation Configuration The client provided a special driver and test program which can control the frequency and power of the WLAN module. Measurements were performed at the lowest, middle and highest channels of the operating band. The EUT was set to maximum power level during all tests and at the beginning of each test the battery was fully charged. The DASY5 system measures power drift during SAR testing by comparing e-field in the same location at the beginning and at the end of measurement. 1.7 EVALUATION PROCEDURES - Power Reference Measurement Procedures The Power Reference Measurement and Power Drift Measurements are for monitoring the power drift of the device under test in the batch process. The Minimum distance of probe sensors to surface determines the closest measurement point to phantom surface. The minimum distance of probe sensors to surface is …

Text truncated - open the document above for the full version.

Report Number: F690501/RF-RTL005990 Page: 2 of 61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea INDEX Table of contents 1. General information --------------------------------------------------------------------------------------3 2. Transmitter radiated spurious emissions and conducted spurious emission --------------6 3. 6 ໒ bandwidth & 99% Occupied Bandwidth----------------------------------------------------- 34 4. Maximum peak output power --------------------------------------------------------------------------46 5. Power Spectral Density --------------------------------------------------------------------------------- 49 6. Transmitter AC Power Line Conducted Emission-------------------------------------------------56 7. Antenna Requirement ----------------------------------------------------------------------------------- 61 Report Number: F690501/RF-RTL005990 Page: 3 of 61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) -Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx . Telephone : +82 31 428 5700 FAX : +82 31 427 2371 1.2. Details of Applicant Applicant : SAMSUNG ELETRONICS Co., Ltd. Address : 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-742 Korea Contact Person : Seok, Moon-Ki Phone No. : +82 31 277 6800 1.3. Details of Factory Information Applicant : TIANJIN SAMSUNG OPTO-ELECTRONICS CO., LTD. Address: No.9 ZhangHeng Street, Micro-Electronic Industial Park, JinGang Road, Tian Jin, China 1.4. Description of EUT Kind of Product Digital Camera Model Name DV150F Serial Number N/A Power Supply DC 3.7 V Frequency Range 2 412 ໬ ~ 2 462 ໬ (11b/g/n_HT20_SISO) Modulation Technique DSSS, OFDM Number of Channels 11 channel (11b/g/n_HT20) Antenna Type Internal type (FPCB Antenna) Antenna Gain 2 412 ໬ ~ 2 462 ໬: -1.57 ໒i 1.5. Declaration by the manufacturer Report Number: F690501/RF-RTL005990 Page: 4 of 61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.6. Test Equipment List Equipment Manufacturer Model S/NCal Date Cal Interval Cal Due. Signal Generator R&S SMR40 100272 Aug. 23, 2012 Annual Aug. 23, 2013 Spectrum Analyzer Agilent N9030A US51350132Oct. 30, 2012 Annual Oct. 30, 2013 Attenuator AEROFLEX / INMET 26A – 10dB 1 Apr. 02, 2012 Annual Apr. 02, 2013 High Pass Filter Wainwright WHK3.0/18G-10SS 344 Jul. 12, 2012 Annual Jul. 12, 2013 High Pass Filter Wainwright WHK7.5//26.5G-6SSN/A Jul. 12, 2012 Annual Jul. 12, 2013 Low Pass Filter Mini-Circuits NLP-1200+ V8979400903-1Jul. 12, 2012 Annual Jul. 12, 2013 Power Sensor R&S NRP-Z81 100669 Apr. 03, 2012 Annual Apr. 03, 2013 DC power Supply Agilent U8002A MY49030063Jan. 03, 2012 Annual Jan. 03, 2013 Preamplifier R&S 8447F 2944A03909 Jul. 03, 2012 Annual Jul. 03, 2013 Preamplifier R&S SCU 18 10117 Jan. 02, 2012 Annual Jan. 02, 2013 Preamplifier MITEQ Inc. JS44-18004000-35-8P1546891 Jul. 12, 2012 Annual Jul. 12, 2013 Test Receiver R&S ESU26 100109 Feb. 21, 2012 Annual Feb. 21, 2013 Bilog Antenna SCHWARZBECK VULB9163 396 May 12, 2011 Biennial May 12, 2013 Horn Antenna SCHWARZBECK BBHA9170 BBHA9170431May 15, 2012 Biennial May 15, 2014 Horn Antenna R&S HF 906 100326 Nov. 23, 2011 Biennial Nov. 23, 2013 Antenna Master INN-CO MM4000 N/A N/A N/A N.C.R. Turn Table INN-CO DS 1200 S N/A N/A N/A N.C.R. Test Receiver R&S ESHS10 863365/018 Jun. 04, 2012 Annual Jun. 04, 2013 Two-Line V-Network R&S ENV216 100190 Jan. 09, 2012 Annual Jan. 09, 2013 Anechoic Chamber SY Corporation L × W × H (6.5 m × 3.5 m × 3.5 m) N/A N/A N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N/A N/A N.C.R. ൘ Support equipmentG DescriptionGManufacturerModelGSerial NumberG N/A - - - Report Number: F690501/RF-RTL005990 Page: 5 of 61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.7. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part15 Subpart C § 15.247, RSS-210 Issue8, RSS-Gen Issue3 Standard section Test Item(s) Result 15.205 15.209 15.247(d) RSS-210 A8.5 Transmitter Radiated Spurious Emissions Conducted Spurious Emission Complied 15.247(a)(2) RSS-210 A8.2(a) RSS-Gen 4.6.1 6໒ Bandwidth and 99% Occupied Bandwidth Complied 15.247(b)(3) RSS-210 A8.4(4) Maximum Peak Output Power Complied 15.247(e) RSS-210 A8.3(2) Power Spectral Density Complied 15.207 RSS-Gen 7.2.4 Transmitter AC Power Line Conducted Emission Complied 1.8. Test Procedure(s) The measurement procedures described in the American National Standard for Methods of Measurement of Radio-N…

Text truncated - open the document above for the full version.

Report Number: F690501/RF-RTL005990 Page: 31 of 61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea Note: Offset (༐) = Attenuator(༐) + Cable loss (༐) Result (༐m) = Spurious offset (༐) + Reading values (༐m) Frequency (໬)Spurious offset (໒)Reading values (໒m) Result (໒m) 3 709.70 11.59 -56.21 -45.39 25 678.80 Noise Level - - Report Number: F690501/RF-RTL005990 Page: 32 of 61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea High Channel Report Number: F690501/RF-RTL005990 Page: 33 of 61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea Note: Offset (༐) = Attenuator(༐) + Cable loss (༐) Result (༐m) = Spurious offset (༐) + Reading values (༐m) Frequency (໬)Spurious offset (໒)Reading values (໒m) Result (໒m) 2 483.50 10.82 -60.69 -49.87 3 750.30 11.59 -56.58 -44.99 26 369.10 Noise Level - - Report Number: F690501/RF-RTL005990 Page: 34 of 61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 3. 6 ໒ Bandwidth Measurement and 99% Bandwidth 3.1. Test Setup G EUTAttenuatorSpectrum Analyzer 3.2. Limit According to §15.247(a)(2), systems using digital modulation techniques may operate in the 902 ~928 ໬, 2 400 ~ 2 483.5 ໬, and 5 725 ~ 5 825 ໬ bands. The minimum of 6໒ Bandwidth shall be at least 500 ໫ 3.3. Test Procedure 3.3.1. 6 ໒ Bandwidth All data rates and modes were investigated for this test. The full data for the worst case data rate are reported in this section. The test follows section 7.1 of FCC KDB Publication 558074 1. Set resolution bandwidth (RBW) = 1 – 5 % or DTS BW, not to exceed 100 ໫ 2. Set the video bandwidth (VBW) ˻ 3 ዖ͑RBW. 3. Detector = Peak. 4. Trace mode = max hold. 5. Sweep = auto couple. 6. Allow the trace to stabilize. 7. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude point (upper and lower) that are attenuated by 6 ໒Grelative to the maximum level measured in the fundamental emission. 3.3.2. 99% Bandwidth The test follows section 4.6.1 of RSS-Gen 1. Set the spectrum analyzer as SPAN = 2 or 3 times necessary bandwidth 2. RBW = approximately 1 % of the SPAN 3. VBW is set to 3 times RBW 4. Detector = sampling 5. Trace mode = max hold. G 6. Measure lowest and highest frequencies are placed in a running sum until 0.5 % and 99.5 % of the total is reached. 7. Record 99% occupied bandwidth between the lowest and the highest frequencies repeat measurement for all the test channels. G Report Number: F690501/RF-RTL005990 Page: 35 of 61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 3.4. Test Results Ambient temperature : (24ρ͑2) ୅ Relative humidity : 47 % R.H. Operation Mode Data Rate (Mbps) Channel Channel Frequency (໬) 6໒ Bandwidth (໬) 99 % Bandwidth (໬) DSSS (802.11b) 1 Low 2 412 10.10 13.91 Middle 2 437 10.00 13.91 High 2 462 10.10 13.86 OFDM (802.11g) 6 Low 2 412 16.45 17.41 Middle 2 437 16.50 17.37 High 2 462 16.45 17.38 OFDM (802.11n_HT20) MCS0 Low 2 412 17.60 18.45 Middle 2 437 17.60 18.40 High 2 462 17.60 18.41 Report Number: F690501/RF-RTL005990 Page: 36 of 61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 6໒ Bandwidth DSSS : 802.11b Low Channel Middle Channel Report Number: F690501/RF-RTL005990 Page: 37 of 61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea High Channel OFDM : 802.11g Low Channel Report Number: F690501/RF-RTL005990 Page: 38 of 61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea Middle Channel High Channel Report Number: F690501/RF-RTL005990 Page: 39 of 61 The results shown in this test report refer only to the sam…

Text truncated - open the document above for the full version.

Test setup photos of EUT A. Photo of Field Strength & Spurious Emission Test B. Photos of conducted power line test

Test Setup Photographs Front Rear Right Edge Left Edge Top Bottom EUT Photo Front Back Right Edge Left Edge Top Bottom Battery
