A3LDV300FDigital Camera

This user manual includes detailed usage instructions for your camera. Please read this manual thoroughly. User Manual DV300F  Click a topic Basic troubleshootingQuick referenceContents Basic functionsExtended functionsShooting optionsPlayback/EditingWireless networkSettingsAppendixesIndex 1 Keep your camera away from small children and pets.Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well.Do not expose the camera to direct sunlight or high temperatures for an extended period of time.Prolonged exposure to sunlight or extreme temperatures can cause permanent damage to your camera’s internal components.Avoid covering the camera or charger with blankets or clothes.The camera may overheat, which may distort the camera or cause a fire.If liquid or foreign objects enter your camera, immediately disconnect all power sources, such as the battery or charger, and then contact a Samsung service center. Health and safety informationAlways comply with the following precautions and usage tips to avoid dangerous situations and ensure peak performance of your c amera. Warning —situations that could cause injury to yourself or others Do not disassemble or attempt to repair your camera. This may result in electric shock or damage to the camera.Do not use your camera near flammable or explosive gases and liquids.This may cause a fire or explosion. Do not insert flammable materials into the camera or store these materials near the camera.This may cause a fire or electric shock.Do not handle your camera with wet hands.This may result in electric shock.Prevent damage to subjects’ eyesight.Do not use the flash in close proximity (closer than 1 m/3 ft) to people or animals. If you use the flash too close to your subject’s eyes, this can cause temporary or permanent eyesight damage. 2 Caution —situations that could cause damage to your camera or other equipment Remove the batteries from your camera when storing it for an extended period of time. Installed batteries may leak or corrode over time and cause serious damage to your camera.Use only authentic, manufacturer-recommended, Lithium-ion replacement batteries. Do not damage or heat the battery.Inauthentic, damaged, or heated batteries may cause a fire or personal injury.Use only Samsung-approved batteries, chargers, cables and accessories.• Using unauthorized batteries, chargers, cables or accessories can cause batteries to explode, damage your camera, or cause injury. • Samsung is not responsible for damage or injuries caused by unapproved batteries, chargers, cables or accessories. Use the battery only for its intended purpose.Misusing the battery may cause a fire or electric shock. Do not touch the flash while it fires.The flash is very hot when fired and may burn your skin.When you use the AC charger, turn off the camera before you disconnect the power to the AC charger.Failing to do so may result in fire or electric shock.Disconnect the charger from the wall socket when not in use.Failing to do so may result in fire or electric shock.Do not use a damaged power supply cord, plug, or loose outlet when you charge batteries.This may cause a fire or electric shock.Do not allow the AC charger to come in contact with the +/- terminals on the battery.This may cause a fire or electric shock.Do not force the camera’s parts or apply pressure to the camera.This may cause your camera to malfunction. Health and safety information 3 Health and safety informationExercise caution when you connect cables or adapters and install batteries and memory cards.If you force the connectors, improperly connect cables, or improperly install batteries and memory cards, you can damage ports, connectors, and accessories.Keep cards with magnetic strips away from the camera case.Information stored on the card may be damaged or erased.Never use a damaged charger, battery, or memory card.This may result in electric shock or camera malfunction or cause a fire. Check that the camera is operating properly before use.The manufacturer takes no responsibility for any loss of files or damage that may result from camera malfunction or improper use.You must plug the small end of the USB cable into your camera.If the cable is reversed, it may damage your files. The manufacturer is not responsible for any loss of data. 4 Copyright information• Microsoft Windows and the Windows logo are registered trademarks of the Microsoft Corporation. • Mac is a registered trademark of the Apple Corporation. • Wi-Fi ® , the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. • Trademarks and trade names used in this manual are the property of their respective owners. • Camera specifications or contents of this manual may be changed without prior notice due to upgrade of camera functions. • We recommend using your camera within the country where you purchase it. • You are not allowed to reuse or distribute any part of this manual without prior permission. • For Open Source License information, refer to the ‘OpenSourceInfo.pdf’ in the provided CD-ROM. Outline of the User ManualBasic functions 13 Learn about your camera’s layout, icons, and basic functions for shooting.Extended functions 34 Learn how to capture a photo and record a video by selecting a mode.Shooting options 57 Learn how to set the options in Shooting mode.Playback/Editing 84 Learn how to play back photos or videos, and edit photos or videos. Also, learn how to connect your camera to your computer, photo printer, TV, HDTV, or 3D TV.Wireless network 111 Learn to connect to wireless local area networks (WLANs) and use functions.Settings 131 Refer to options to configure your camera’s settings.Appendixes 137 Get information about error messages, specifications, and maintenance. 5 Indicators used in this manual Shooting mode Indicator Smart Auto S Program …

Text truncated - open the document above for the full version.

Date: Oct 19, 2010 Fe deral Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. UL CCS Certi fication Division 47173 Benicia Street Fremont, CA 94538, USA Dear Sir/Madam We, SAMSUNG ELECTRONICS CO., LTD., located at 416, Maetan-3dong, Yeongtong-gu, Suwon-City, Gyeonggi-do, 443-742, Korea as manufacturer of the product model: DV300F, declare that DV300F has 11 channels of allowed operating range from 2412 MHz to 2462 MHz by software in USA. Accordingly, Ad-Hoc mode will not be operated outside the allowed frequency band used in USA. FCC ID: A3LDV300F Sincerely, _________________________________ Sang Kyung (Peter) Ra / General Manager Samsung Electronics Co., Ltd.

Date: February 14, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Charles. Kim (or Feel. Jeong) and of SGS Korea Co., Ltd and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Charles. Kim (or Feel. Jeong) of SGS Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyung (Peter) Ra / General Manager Samsung Electronics Co., Ltd.

Date: October 17, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LDV300F To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST 1 Block Diagram 2 Operational Descriptions Permanent 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos Short-Term 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Sang Kyung (Peter) Ra / General Manager Samsung Electronics Co., Ltd.

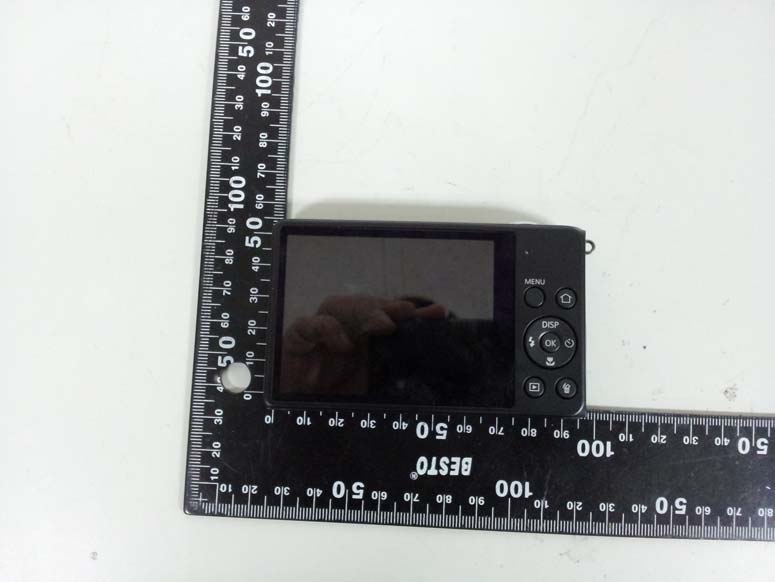

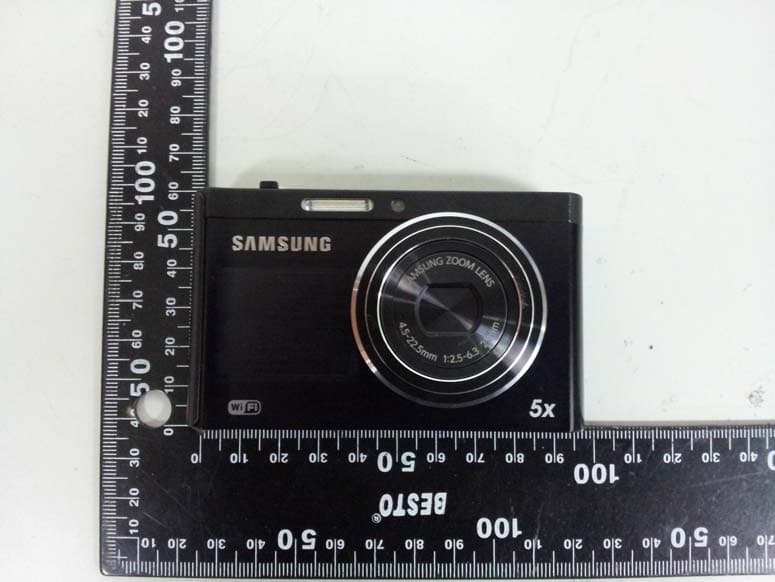

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Slide view of EUT

FCC/IC Label 1. FCC/IC Label Drawing SAMSUNG ELECTRONICS CO., LTD. Model : DV300F FCC ID : A3LDV300F IC: 649E­DV300F Made in China 2. FCC/IC Label Location Bottom side of EUT

Internal photos of EUT Internal view of EUT Top view of LCD PCB Bottom view of LCD PCB Top view of keypad PCB Bottom view of keypad PCB Top view of main PCB Bottom view of main PCB Top view of flash PCB Bottom view of flash PCB Top view of lens Bottom view of lens WLAN antenna Antenna

Report Number: F690501/RF-RTL005138 Page: 2 of 59 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea INDEX Table of contents 1. General information --------------------------------------------------------------------------------------3 2. Transmitter radiated spurious emissions and conducted spurious emission --------------6 3. Receiver Radiated Spurious Emission --------------------------------------------------------------25 4. 6 ໒ bandwidth ------------------------------------------------------------------------------------------- 27 5. Maximum peak output power --------------------------------------------------------------------------39 6. Power Spectral Density --------------------------------------------------------------------------------- 41 7. Transmitter AC Power Line Conducted Emission-------------------------------------------------48 8. Receiver AC Power Line Conducted Emission --------------------------------------------------- 53 9. Antenna Requirement ----------------------------------------------------------------------------------- 57 10. RF Exposure evaluation------------------------------------------------------------------------------- 58 Report Number: F690501/RF-RTL005138 Page: 3 of 59 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. - Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-dong, Korea - 705, Dongcheon-dong Suji-gu, Yongin-si, Gyeonggi-do, Korea www.ee.sgs.com/korea Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 1.2. Details of Applicant Applicant : SAMSUNG ELECTRONICS Co., Ltd. Address : 416, Maetan3-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea Contact Person : Kim, Hyuck Phone No. : +82 +31 277 6803 1.3. Details of Factory Information Name : TIANJIN SAMSUNG OPTO-ELECTRONICS CO., LTD. Address :No.9 ZhangHeng Street, Micro-Electronic Industrial Park, JinGang Road, Tianjin, China 1.4. Description of EUT Kind of Product Digital Camera Model Name DV300F Serial Number N / A Power Supply DC 3.7 V (Li-ion Battery) Frequency Range 2 412 ~ 2 462 ໬ (802.11b/g/n-HT20_SISO) Modulation Technique DSSS, OFDM Number of Channels 11 Antenna Type Integral Type Antenna Gain -0.66໒i 1.5. Declaration by the manufacturer - 802.11n supports HT20 mode only. Report Number: F690501/RF-RTL005138 Page: 4 of 59 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.6.Test Equipment List EquipmentManufacturer Model S/NCal Due. Signal Generator R & S SMR40 100272 Jul. 15, 2012 Spectrum Analyzer R & S FSV30 100768 Mar. 31, 2012 Power Divider KRYTAR 6005265 126340 Sep. 01, 2012 High Pass Filter Wainwright WHK3.0/18G-10SS 344 Jul. 07, 2012 DC power Supply Agilent U8002A MY49030063 Jan. 05, 2012 Preamplifier H.P. 8447F 2944A03909 Jul. 04, 2012 Preamplifier R & S SCU 18 10117 Mar. 23, 2012 Test Receiver R & S ESU26 100109 Feb. 21, 2012 Two-Line V-Network R & S ENV216 100190 Jan. 06, 2012 Test Receiver R & S ESHS10 863365/018 Apr. 27, 2012 Bilog Antenna SCHWARZBECK MESSELEKTRONIK VULB9163 396 Apr. 27, 2013 Horn Antenna R & S HF 907 100019 Jul. 29, 2012 Horn Antenna SCHWARZBECK BBH 9120D BBHA9170431 Mar. 17, 2012 Antenna Master EMCO 1050 N.C.R. N.C.R. Turn Table Daeil EMC DI-1500 N.C.R. N.C.R. Anechoic Chamber SY Corporation L × W × H (6.5 m×3.5 m×3.5 m) N.C.R. N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N.C.R. N.C.R. Report Number: F690501/RF-RTL005138 Page: 5 of 59 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.7. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD:FCC Part15 subpart B&C, RSS-210, RSS-Gen Standard section Test Item Result 15.205(a) 15.209 15.247(d) A8.5 Transmitter Radiated Spurious Emissions Conducted Spurious Emission Complied 15.109(a) RSS-Gen 6 Receiver Radiated Spurious Emission Complied 15.247(a)(2) A8.2(a) 6 dB Bandwidth and 99% BW Complied 15.247(b)(3) A8.4(4) Maximum Peak Output Power Complied 15.247(e) A8.3(2) Power Spectral Density Complied 15.207 RSS-Gen 7.2.4 Transmitter AC Power Line Conducted Emission Complied 15.107 RSS-Gen 7.2.4 Receiver AC Power Line Conducted Emission Complied 15.247(i) 1.1307(b)(1) RSS-Gen 5.5/ RSS-102 Maximum Permissible Exposure (Exposure of Humans to RF Fields) Complied 1.8. Conclusion of worst-case The field strength of spurious emission was measured in three orthogonal EUT positions(X-axis, Y-axis and Z-axis). Worst case is Z-axis. 1 Mbps is the highest output power in the 11b. 6 Mbps is the highest output power in the 11g. In case of 11n, we chose MCS0 mode. 1.9. Test report revision Revision Report number Description 0 F690501/RF-RTL005138 Initial Report Number: F690501/RF-RTL005138 Page: 6 of 59 The results shown in this test report …

Text truncated - open the document above for the full version.

Report Number: F690501/RF-RTL005138 Page: 39 of 59 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 5. Maximum Peak Output Power Measurement 5.1. Test Setup EUT Power sensor Test PC (Test program) Attenuator ͑ 5.2. Limit According to §15.247(b)(3), for systems using digital modulation in the 902 ~ 928 ໬, 2 400 ~2 483.5 ໬, and 5 725 ~ 5 850 ໬ band: 1 Watt. As an alternative to a peak power measurement, compliance with the one watt limit can be based on a measurement of the maximum conducted output power. Maximum Conducted output Power is defined as the total transmit power delivered to all antennas and antenna elements averaged across all symbols in the signaling alphabet when the transmitter is operating at its maximum power control level. Power must be summed across all antenna elements. The average must not include any intervals during which the transmitter is off or is transmitting at a reduced power level. If multiple modes of operation are possible (e.g., alternative modulation methods), the maximum conducted output power is the highest total transmit power occurring in any mode. According to §15.247(b)(4), the conducted output power limit specified in paragraph(b) of this section is based on the use of antenna with directional gains that do not exceed 6 ໒i. Except as shown in paragraph(c) of this section, if transmitting antenna of directional gain greater than 6 ໒i are used, the conducted output power from the intentional radiator shall be reduced below the stated values in paragraph (b)(1), (b)(2), and (b)(3) of this section , as appropriate, by the amount in ໒ that the directional gain of the antenna exceeds 6໒i. 5.3. Test Procedure 1. Place the EUT on the table and set it in the transmitting mode. 2. Remove the antenna from the EUT and then connect a low loss RF cable from the antenna port to power sensor. 3. Adjust the period of operating transmission in test program in order to use power sensor and then measure average power and peak power about each data rate of WLAN at the appropriate frequencies. 4. Record in the test report. Report Number: F690501/RF-RTL005138 Page: 40 of 59 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 5.4. Test Results Ambient temperature : (24ρ͑2) ୅ Relative humidity : 47 % R.H. Operation Mode Channel Channel Frequency (໬) Attenuator + Cable offset (໒) Peak Power Output (໒m) Peak Power Limit (໒m) DSSS (802.11b) Low 2 412 5.72 12.41 30 Middle 2 437 12.82 30 High 2 462 12.95 30 OFDM (802.11g) Low 2 412 18.22 30 Middle 2 437 18.45 30 High 2 462 18.50 30 OFDM (802.11n) Low 2 412 17.52 30 Middle 2 437 17.90 30 High 2 462 18.00 30 Report Number: F690501/RF-RTL005138 Page: 41 of 59 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 6. POWER SPECTRAL DENSITY MEASUREMENT 6.1. Test Setup EUTAttenuator Spectrum Analyzer ͑͑ 6.2. Limit §15.247(e) For digitally modulated system, the power spectral density conducted from the intentional radiator to the antenna shall not be greater than 8 ໒m in any 3 ໫ band any time interval of continuous transmission. This power spectral density shall be determined in accordance with the provisions of paragraph (b) of this section. The same method of determining the conducted output power shall be used to determine the power spectral density. 6.3. Test Procedure 1. Place the EUT on the table and set it in transmitting mode. Remove the antenna from the EUT and then connect a low loss RF cable from the antenna port to the spectrum analyzer. 2.Set the spectrum analyzer as RBW = 3 ໫, VBW = 10 ໫, Span = 300 ໫ and Sweep = 100 s. 3. Record the max. reading. 4. Repeat the above procedure until the measurements for all frequencies are completed. Report Number: F690501/RF-RTL005138 Page: 42 of 59 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 6.4. Test Results Ambient temperature : (24ρ͑2) ୅ Relative humidity : 47 % R.H. Operation Mode Frequency Final RF Power Level in 3໫ BW (໒m) Maximum Limit (໒m) DSSS (802.11b) 2 412 ໬ -19.14 8 2 437 ໬ -18.19 8 2 462 ໬ -17.04 8 OFDM (802.11g) 2 412 ໬ -19.81 8 2 437 ໬ -18.60 8 2 462 ໬ -19.64 8 OFDM (802.11n) 2 412 ໬ -19.44 8 2 437 ໬ -19.29 8 2 462 ໬ -19.64 8 Report Number: F690501/RF-RTL005138 Page: 43 of 59 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea DSSS : 802.11b Low Channel Middle Channel Report Number: F690501/RF-RTL005138 Page: 44 of 59 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot…

Text truncated - open the document above for the full version.

Test setup photos of EUT A. Photo of Spurious Emission Test B. Photos of conducted power line test
