A3LDVDVR300DVD Recorder/ Video Cassette Recorder

POWER TV MUTE 100 + DVD VOL F.ADVMARKER TITLE LIST DISC MENUTITLE MENU RETURN INFO.TV/VCRSUBTITLEREC SPEED RECDVD COPY VCRREC PAUSE TIME SLIP PIP 00015J CLEAR MENUANYKEY PLAY LIST SEARCHSKIP CH/TRKOPEN/CLOSE VCRTV INPUT SEL. TIMER REC SELECT AUDIO TV POWER Instruction Manual DVD-VR300 www.samsungusa.com Contents 2- Contents  Safety Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Precaution . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Before reading the user’s manual . . . . . . . . .10 How to use a DVD Recorder-VCR . . . . . . . .11  Welcome General Features . . . . . . . . . . . . . . . . . . . . .13 Disc Information . . . . . . . . . . . . . . . . . . . . .14 Disc Specification . . . . . . . . . . . . . . . . . . . . .15  System Overview Front Panel Display . . . . . . . . . . . . . . . . . .17 Front Panel Overview . . . . . . . . . . . . . . . . .18 Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . .18 Tour of the Remote control . . . . . . . . . . . . .19  Connections Quick Overview . . . . . . . . . . . . . . . . . . . . . .20 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . .21 Connecting the Antenna Cable . . . . . . . . . .21 Connecting the Video Cable . . . . . . . . . . . . .23 Connecting the Audio cable . . . . . . . . . . . .26 Connecting the external devices . . . . . . . . . .29 Connecting the Power Cord . . . . . . . . . . . . .31 Preparing the Remote Control . . . . . . . . . . .31 System Setup On-Screen Menu Navigation . . . . . . . . . . . .32 Manual Clock Set . . . . . . . . . . . . . . . . . . . .33 Setting Up the Language Features . . . . . . . .34 Setting Up the Audio Options . . . . . . . . . . .35 Setting Up the Display (Video) Options . . . .36 Setting Up the Parental Control . . . . . . . . . .37 Channel Set . . . . . . . . . . . . . . . . . . . . . . . . .38 Auto Channel Memory . . . . . . . . . . . . . . . .39 Channel Add/Delete . . . . . . . . . . . . . . . . . .40 RF Out Channel . . . . . . . . . . . . . . . . . . . . .41 VCR Setting . . . . . . . . . . . . . . . . . . . . . . . .42 Video Input . . . . . . . . . . . . . . . . . . . . . . . .44 Playback *DVD Playback Front Display . . . . . . . . . . . . . . . . . . . . . . . .45 Playing a Disc . . . . . . . . . . . . . . . . . . . . . . .46 Using the Disc and Title Menu . . . . . . . . . . .47 Using the Search&Skip Functions . . . . . . . .47 Show Motion Play / Step Motion Play . . . . .47 About ANYKEY . . . . . . . . . . . . . . . . . . . . . .48 Repeat Play . . . . . . . . . . . . . . . . . . . . . . . . .48 Using the A-B Repeat Function . . . . . . . . . .49 Moving to a scene directly . . . . . . . . . . . . . .50 Selecting the subtitle & audio language . . . .51 Changing the camera angle . . . . . . . . . . . . .52 Using the Bookmark . . . . . . . . . . . . . . . . . .53 Zooming-In . . . . . . . . . . . . . . . . . . . . . . . .54 Playing Back an Audio CD (CDDA) . . . . . . .55 Play Option Mode . . . . . . . . . . . . . . . . . . . .56 Picture CD Playback . . . . . . . . . . . . . . . . . .57 Picture back MP3 CD . . . . . . . . . . . . . . . . .58 Using PIP . . . . . . . . . . . . . . . . . . . . . . . . . . .59 *VCR Playback Playing a VCR . . . . . . . . . . . . . . . . . . . . . . .60 Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . .60 Special VCR Playback Features . . . . . . . . . .61 S-VHS Playback . . . . . . . . . . . . . . . . . . . . .62 Variable Search System . . . . . . . . . . . . . . . . .62 Contents - 3 Contents Recording *DVD Recording Recording the current channel you are watching 63 One-Touch Recording(OTR) . . . . . . . . . . . .64 Making a Timer Recording . . . . . . . . . . . . . .65 Editing Timer Record List . . . . . . . . . . . . . .67 Cancle Timer recording . . . . . . . . . . . . . . . .68 Watching the Images Being Recorded (Time Slip) .68 Recording through a DV jack . . . . . . . . . . . .69 Deleting a Timer Recording Entry . . . . . . . .69 *VCR Recording Basic Recording . . . . . . . . . . . . . . . . . . . . . .70 Special Recording Features . . . . . . . . . . . . .71 Record Speed . . . . . . . . . . . . . . . . . . . . . . . .71 Copy to DVD or VCR . . . . . . . . . . . . . . . . .72  Editing Viewing the Menu Functions for a Disc . . . .74 Viewing Title List . . . . . . . . . . . . . . . . . . . . .76 Playing a Title List Entry . . . . . . . . . . . . . . .77 Renaming a Title List Entry . . . . . . . . . . . .78 Deleting a Title List Entry . . . . . . . . . . . . . .79 Locking a Title List Entry . . . . . . . . . . . . . .80 Deleting a Section from a Title List Entry . .81 Creating a Playlist Entry . . . . . . . . . . . . . . .83 Editing a Playlist Entry . . . . . . . . . . . . . . . .84 Editing Scene for a Playlist Entry . . . . . . . . .86 Copying a Playlist Entry to the VCR . . . . . . . .87 Deleting a Playlist Entry to the Playlist . . . . . . .91 Disc Manager . . . . . . . . . . . . . . . . . . . . . . . . . . .91  Reference Troubleshooting (DVD-VIDEO/DVD-RAM/ DVD-RW/DVD-R) . . . . . . . . . . . . . . . . . . . . . . .99 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . .100 Problems and Solutions (VCR) . . . . . . . . . . . . .101 Specifications . . . . . . . . . . . . . . . . . . . . . . . .102 G etting Started Getting Started - 5 G etting Started 4- Getting Started Warning TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury. This symbol indicates important instruc- tions accompanying the product. Do not install this equipment in a confined space such as a bookcase or similar unit. WARNING: To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture. CAUTION : DVD Recorder-VCRS USE AN INVISI- BLE LASER BEAM WHICH …

Text truncated - open the document above for the full version.

S ystem Setup System Setup - 4342 - System Setup S ystem Setup n : : : Select “Tape Length” Press the RIGHT button to select the Tape Length. This information is usually printed on the tape box. The menu cycles through: T-120, T-160 or T-180. Once the type of cassette is set, the VCR can display the amount of time remaining on the tape when you press the INFO. button. 4 n : : : Select “Auto Play” Move the selection bar to “Auto Play,” then press right button to select from the follow- ing options: • On - The VCR will automatically begin playing a video tape when it is insert- ed, as long as the safety tab of the cassette has been removed. • Off - Auto play is disabled. 5 n : : : Select “Auto Repeat” Move the selection bar to “ Auto Repeat”. It sets the VCR to play a tape repeatedly [unless a tape control is activated (stop, fast forward or rewind). 6 VCR Setting T-120 T-160 T-180 Select “VCR” Using the Up/Down buttons, move the selection bar to “VCR” then press ENTER to select. 3 On Off Off On VCR Setting If you want your videotapes to play automatically when you insert them, turn on Auto Play. Open “MENU” With the VCR in Stop or Play mode, press the MENU button. 1 Select “System” Use the UP/DOWN buttons to highlight “System” then press the ENTER button. 2 RF output Channel Select “RF Output Channel” Move the selection bar to “RF output Channel”, then press right to change. 4 Change “RF Output CH” Select 3 ch or 4 ch. Then press ENTER to change. 5 Change “TV Channel” A message will appear on your TV. When the message disappears, change your TV to channel 3 or 4 to match the RF output channel of the player. 6  Only tapes that are missing the Record Safety Tab will play automatically when inserted. Note RF Output Channel 44 - System Setup S ystem Setup Plyingback Playback- 45 Front Display You can set the Front Panel Display to be bright all the time, dim all the time, dim during power off. Open “ MENU” With the DVD in Stop or Play mode, press the MENU button. . 1 Select “Setup” Using the UP/DOWN buttons, move the selection bar to “Setup” then press ENTER to select. 2 Select “System ” Using the UP/DOWN buttons, move the selection bar to “System ” then press ENTER to select. 3 Video Input If you watch video through Line 2, you can choose composite video or super video. Open “MENU” With the DVD Recorder-VCR in stop or play mode, press the MENU button. 1 Select “Setup” Using the UP/DOWN buttons, move the selection bar to “Setup” then press ENTER to select. 2 Select “System” Using the Up/Down buttons to highlight “System” then press the ENTER button. 3 Select “Video Input” Use the UP/DOWN buttons to highlight “Video Input”, then press ENTER button and choose line 2 (composite) or S-Video. 4 P layback Playback - 47 For DVD-VIDEO disc For DVD-RAM/DVD-RW disc Using the Disc and Title Menu Press the DISC MENU button to enter the disc menu of the disc. • Move to the setup menu related to play- back operation. • You can select audio language and subtitle and so on provided by the disc. 1 Press the TITLE LIST button to display title list. 1 Press the PLAY LIST button to display play list. 2 Press the TITLE MENU button to move to the title menu of the disc. • Use this button if the disc contains more than one title. Some type of discs may not support the title menu functionality. 2 Some type of discs contains a dedicated menu sys- tem that allows you to select special functions for title, chapter, audio track, subtitle, film preview, information on characters, etc. Searching through a Chapter or Track Using the Search & Skip Functions During play, press the SEARCH ➛➛or ❿❿but- ton on the remote control. • You can scan the program in the reverse order. To return to normal speed playback, press the ❿ II button . DVD-VIDEO/❿❿Fast X 2 Æ❿❿Fast X 4 Æ DVD-RAM/DVD-RW❿❿Fast X 8 Æ❿❿Fast X 16 Æ DVD-R❿❿Fast X 32 Æ❿❿Fast X 128 AUDIO CD(CDDA) ❿❿Fast X 2 Æ❿❿Fast X 4 Æ ❿❿Fast X 8 Follow these directions to playback an entry from the Movie List. Skipping Chapters or Tracks During play, press the l➛➛or ❿❿lbutton on the remote control. • If you press the l ➛➛ button If you press the l ➛➛ button, it moves to the beginning of the chapter or track. Pressing the button once again within 3 seconds returns to the beginning of the previous chapter or track. • If you press the ❿❿ lbutton If you press the ❿❿lbutton, it moves to the next chapter or track. 46 - Playback P layback Front Display Set “Front Display” Move the selection bar to “Front Display,” then press RIGHT button to select from the following options: • Auto dim – Front Panel Display will dim automatically during power off. • Bright – Front Panel Display will be bright all the time. • Dim – Front Panel Display will be dim all the time. 4 Playing a Disc Press the OPEN/CLOSE button. • The STANDBY indicator light goes out and the tray opens. 1 Place a disc gently into the tray with the disc’s label facing up. • For DVD-RAM discs, insert printed side facing up. 2 Press the PLAY/PAUSE button or OPEN/CLOSE button to close the disc tray. • Your DVD Recorder-VCR close the disc tray and playback the disc automatically. • If you insert common audio CD (CDDA) or data CD of MP3 files, your DVD Recorder-VCR will display the file list on the screen and playback the songs auto- matically. 3 Press the STOP button during play 4 Auto dim Bright Dim  Your DVD Recorder-VCR memorize the stop position when you stop playback, and resume playback from the memorized position when you press the PLAY button again. (Except that you have removed the disc, pressed the STOP button twice, or urned off the power.). This function is applicable for DVD-VIDEO, DVD-RAM, DVD-RW or audio CD (CDDA) only.  Press the ❿❙button to hear the next song in the playlist when playing back an audio CD or MP3 disc.  If the disc contains a folder(s), select the desired folder and press the ENTER but- ton to view the files. Note P layback Playback - 4948 - Playback P layback Using Repeat Play (For DVD-VIDEO/DVD- RAM…

Text truncated - open the document above for the full version.

This Document can not be used without Samsung’s authorization Samsung Electronics 5-1 5. Block Diagram MPEG-2 A/V CODEC (DMN-8602) 4MB FLASH AM29LV1DL (2Mx16bit) 1MB SRAM K6F8016U3A-TF55 (512Kx16bit) Video Decoder (TVP5146) Audio A/D (PCM1802) VCR Micom (MN101D06F) Front Panel A/V 1-Chip (LA71207) HI-FI (AN3663) Audio D/A (PCM1753) IEEE1394PHY (TSB41AB1) TM BLOCK ATAPI DVD-RAM Drive (4.7GB) VCR DECK (X-11) RF RF Out VHF/UHF S-VIDEO LINE1 LINE2 1394 Jack CVBS from Tuner L/R from Tuner 64MB DDR-SDRAM K4H561638D (16M x 16bit x 2ea) Y Pb Pr S-VIDEO VIDEO L R L R COAXIAL OPTICAL DIGITAL AUDIO OUT IEC-958 Key Input Remocon

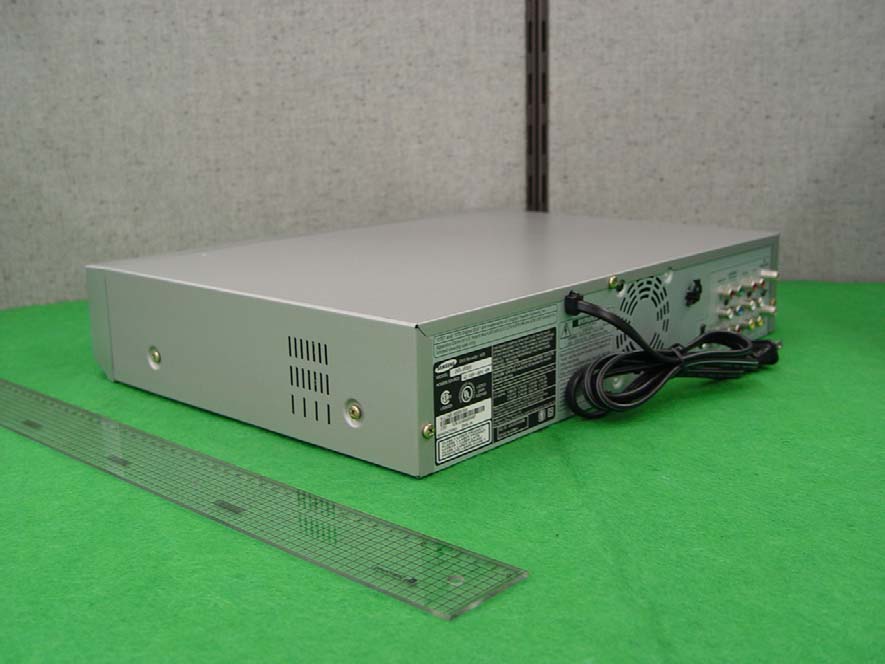

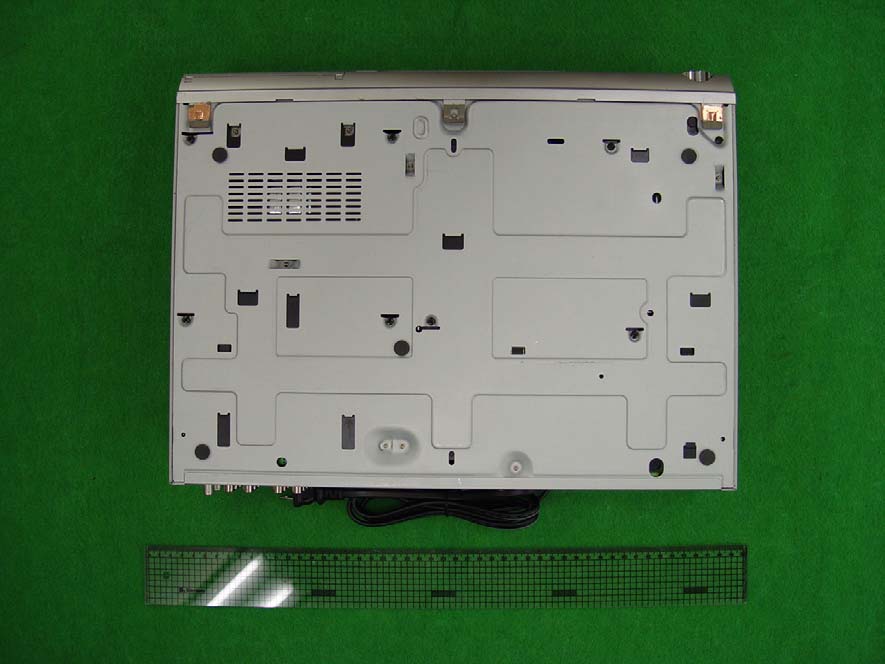

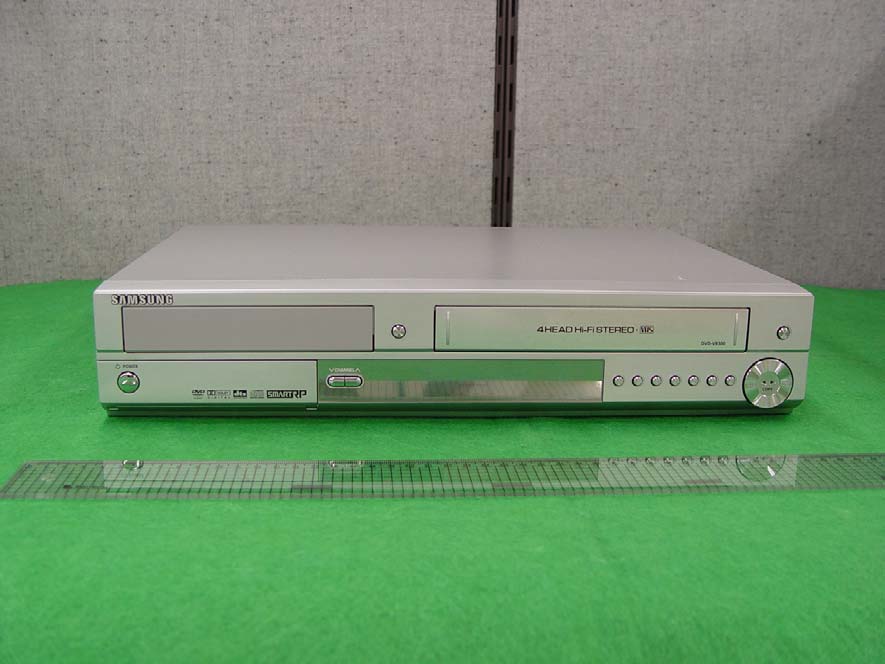

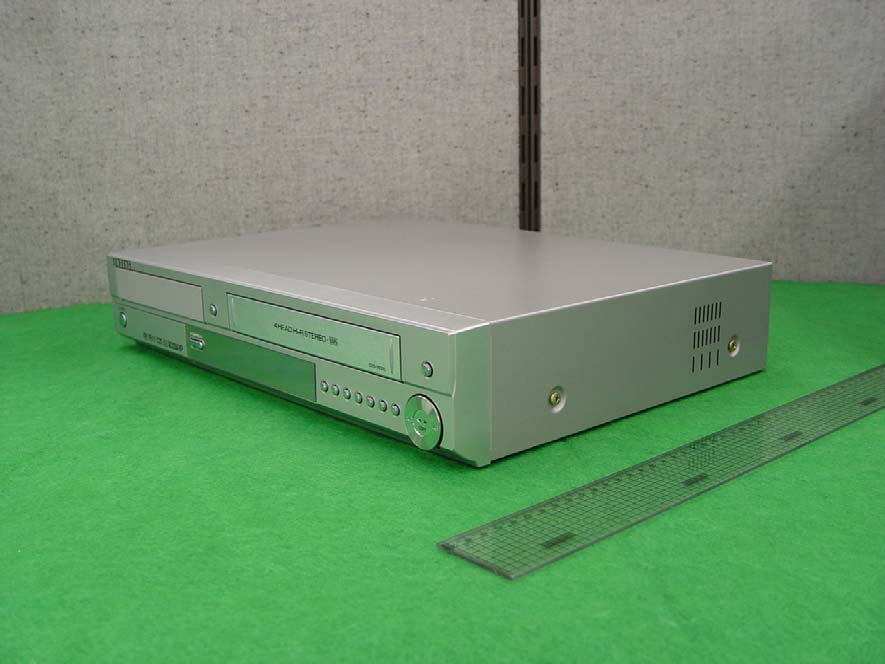

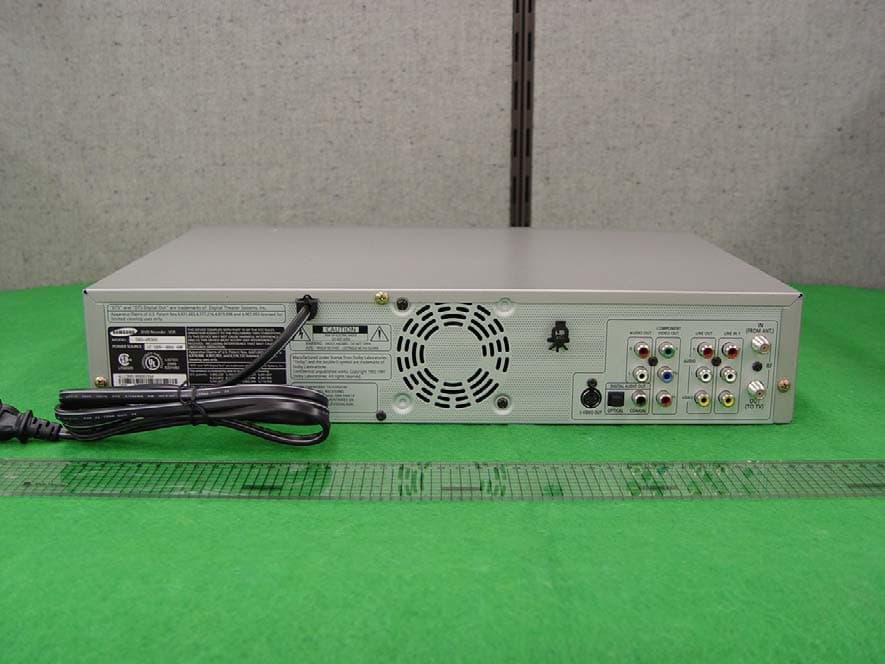

Photograph of DVD-VR300 - FCC ID : A3LDVDVR300 Fro nt View Rear View Photograph of DVD-VR300 - FCC ID : A3LDVDVR300 To p V i e w Bottom View Photograph of DVD-VR300 - FCC ID : A3LDVDVR300 Front / Side View Rear / Side View

Labeling requirement FCC IDENTIFICATION & STATEMENT Location: on the label rating Location: on the label rating THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID: A3LDVDVR300 MADE BY SAMSUNG IN INDONESIA

Photograph of DVD-VR300 - FCC ID : A3LDVDVR300 Front View – Front/Top cover open Top View – Front/Top cover open Photograph of DVD-VR300 - FCC ID : A3LDVDVR300 Front View – Front/Top cover open & Deck remove Fro nt pan el View Photograph of DVD-VR300 - FCC ID : A3LDVDVR300 Top of Main PCB View Bottom of Main PCB View Photograph of DVD-VR300 - FCC ID : A3LDVDVR300 Top of DVD PCB View Bottom of Main PCB View Photograph of DVD-VR300 - FCC ID : A3LDVDVR300 Top of DVD2 PCB and AV Jack PCB Bottom of SMPS DVD2 PCB and AV Jack PCB Photograph of DVD-VR300 - FCC ID : A3LDVDVR300 Top of VHS Deck Mechanism View Bottom of VHS Deck Mechanism View Photograph of DVD-VR300 - FCC ID : A3LDVDVR300 Top of DVD Deck Mechanism View Bottom of DVD Deck Mechanism View Photograph of DVD-VR300 - FCC ID : A3LDVDVR300 Top of DVD Deck Mechanism View Bottom of DVD Deck Mechanism View Photograph of TM-BLOCK TM-BLOCK TYPE: VHA35ASE To p V i e w Bottom View

“” “” ““ ’

Page : 1 of 74 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040947 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC Test Report According to FCC Part 15 Subpart B Project No. LBE040947 Equipment under Test Address 416 Maetan3-Dong,Yeongtong-Gu,Suwon-City,Gyeonggi-Do, Korea,443-742 Product Name DVD Recorder / Video Cassette Recorder Model Name DVD-VR300 Manufacturer SAMSUNG Brand Name SAMSUNG Broadcasting System NTSC-M Variant Model See Page 3 Date of Test May 11 ~ 18, 2004 Issued Date May 20, 2004 Name/Position Signature Tested by Tae Young JANG Test Engineer Reviewed by No Cheon, Park Manager of EMC Lab. Authorized by Kyu Baek, Chung Chief of EMC Lab. 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. NVLAP LAB CODE 200623-0 Page : 2 of 74 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040947 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Table of Contents 1. General Information 1.1 Basic Information related Product 1.2 Detail Information related Product 1.3 Test Configuration 1.4 EUT Operating Conditions 1.5 Applied Standard 1.6 Test Facility 2. Summary of Test Results 3. Description of individual tests 3. 1 Conducted Emission 3. 2 Radiated Emission 3. 3 Output Signal Level 3. 4 Output Terminal Conducted Spurious Emission 3. 5 Ant. Transfer Switch 4. Appendix A 4.1 Test Photography 4.2 EUT Photography Page : 3 of 74 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040947 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1. General Information 1.1 Basic Information related Product Applicant Samsung Electronics Co. Ltd; Model name DVD-VR300 Applicant Address Samsung Electronics Co. Ltd; 416 Maetan3- Dong, Yeongtong-Gu, Suwon- City, Gyeonggi-Do, Korea, 443-742 Contact Person WOOSUNG CHO Kind of product DVD Recorder / Video Cassette Recorder Valiant list Manufacturer Samsung Electronics Co.Ltd; Page : 4 of 74 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040947 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.2 Detail Information related Product Specification Gerneral Power Requirment 120V AC, 60Hz Power Consumption 45Watts Weight 4.1 kg Dimensions 430mm(W)*270mm(D)*79mm(H) Input Video(1,2,3) 1.0V p-p at 75ohm load, sync negative S-Vedio input(Y:1.0V p-p,C:0.286V p-p at 75 ohm load) Max. Audio Inout Level 2 Vrms DV Input IEEE 1394(4p) compatible jack Receivable Channels Regular TV broadcasting : VHF(2~13),UHF(14~60) Cable TV broadcasting : 1 ~125 Output Audio Audio input jacks 1,2 Optical/Coaxial digital audio output support Min 100dB signal-to-noise ratio Max. 0.005% total harmonic distortion(T.H.D) at average 1kHz Video Video input jacks 1,2 S-video output 1,2(Y:1.0V p-p,C:0.286Vp-p,at 75 ohm load) Component output(Y:1.0Vp-p,Pb:0.70Vp-p,Pr:0.70Vp-p at 75 ohm load) DVD Picture Compression format MPEG-II Audio Compression format Dolby AC-3 256kbps Recording Quality LP(2 Mbps), SP(4 Mbps), XP(8 Mbps) Video S/N Ratio Min. 50dB at standard recording Audio S/N Ratio Min. 75dB Audio frequency characteristics 20Hz ~ 20kHz Page : 5 of 74 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040947 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.3 Operating Mode and Condition The EUT was tested in the following operating modes(at both channel 3 and 4) for the tests mention in this report : 1) DVD Recording ( NTSC Signal ) A NTSC signal(Color bar) was supplied at ch.69(801.25MHz) through the ant. Input connector 2) DVD Recording ( 1V VITS Signal ) A 1V peak-to-peak VITS signal was supplied through the video input connector for recording. 3) DVD Recording ( 5V VITS Signal ) A 5V peak-to-peak VITS signal was supplied through the video input connector for recording. 4) DVD Play In this test mode, a DVD recorded with NTSC signal was played on the EUT. 5) DVD Copy mode In this test mode, a video tape recorded with NTSC signal copy to DVD disc. 6) VCR Recording ( NTSC Signal ) A NTSC signal(Color bar) was supplied at ch.5(77.25MHz) through the ant. Input connector 7) VCR Recording ( 1V VITS Signal ) A 1V peak-to-peak VITS signal was supplied through the video input connector for recording. 8) VCR Recording ( 5V VITS Signal ) A 5V peak-to-peak VITS signal was supplied through the video input connector for recording. 9) VCR Play In this test mode, a video tape recorded with VITS signal was played on the EUT. 10) VCR Copy mode Note: The NTSC TV signal input record mode is not applicable to the antenna transfer switch test. 1.4 Equipment Modifications No equipment modifications were required. Page : 6 of 74 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040947 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.5 Test Configuration Used EUT and Peripherals Seq Device Model Name Serial # Maker Note A DVD Combo DVD-VR300 - SAMSUNG EUT B Remote Controller - - SAMSUNG EUT Used Cable Description Connect Cable Length [m] Shielded [Y/N]Remark 1 AC Power Cable 1.5 N to the mains 2 AV In Cable 1.2 N Terminated video : 75 ohm Audio In : 1k ohm 3 AV Out Cable 1.2 N Terminated video : 75 ohm Audio In : 10k ohm 4 Front AV In Cable 1.2 N Terminated video : 75 ohm Audio In : 1k oh…

Text truncated - open the document above for the full version.

Page : 71 of 74 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040947 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 4. Appendix A 4.1 Test Photography Picture 1. Conducted Emission (Front) Picture 2. Conducted Emission (Rear) Page : 72 of 74 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040947 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 3. Radiated Emission (Front) Picture 4. Radiated Emission (Rear) Page : 73 of 74 Samsung EMC Testing and Certification Laboratory Project NO. :LBE040947 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 5. Output Signal Level
