A3LDVDVR345DVD Recorder / Video Cassette Recorder

Instruction Manual DVD-VR345 www.samsung.com AK68-00995G-00 English 00995G-VR345-XAA-Eng1-13 2006.4.10 2:49 PM Page 1 2- English G etting Started Warning TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury. This symbol indicates important instructions accompanying the product. Do not install this equipment in a confined space such as a bookcase or similar unit. WARNING: To prevent damage which may result in fire or electric shock hazard, do not expose this appli- ance to rain or moisture. CAUTION : This DVD Recorder & VCR USES AN INVISI- BLE LASER BEAM WHICH CAN CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE RECORDER COR- RECTLYAS INSTRUCTED. CAUTION THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL. CAUTIONS Caution: To prevent electric shock, match wide blade of plug to wide slot, fully insert. Attention: Pour éviter les chocs électriques, introduíre la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu au fond. This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections. FCC NOTE (for U.S.A): This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer- ence in a residential installation. This equipment gener- ates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc- tions, may cause harmful interference to radio communi- cations. However, there is no guarantee that interfer- ence will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the follow- ing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit differ- ent from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV techni- cian for help. Caution: FCC regulations state that any unauthorized changes or modifications to this equipment may void the user’s authority to operate it. This unit can be used only where the power supply is AC 120V, 60Hz. It cannot be used else- where. This DVD Recorder & VCR is designed and manufactured to respond to the Region Management Information. If the Region number of a DVD disc does not corre- spond to the Region number of this , the DVD Recorder & VCR cannot play the disc. This device is protected by U.S. Patent Nos.4,631,603;4,577,216;4,819,098;4,907,093; and 6,516,132. This product incorporates copyright pro- tection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision,and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. This product is covered by one or more of the following U.S. patents: 5,034,830 5,060,200 5,457,669 5,561,649 5,691,858 5,705,762 5,987,417 6,043,912 6,222,983 6,272,096 6,377,524 6,377,531 6,385,587 6,389,569 6,389,570 6,408,408 6,466,532 6,473,736 6,477,501 6,480,829 6,556,520 6,556,521 6,556,522 6,594,208 6,674,697 6,674,957 6,721,493 6,728,474 6,741,535 09/610381 09/610695 Note 00995G-VR345-XAA-Eng1-13 2006.4.10 2:49 PM Page 2 English - 3 G etting Started Important Safety Instructions Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future refer- ence. 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings, Install in accordance with the manufacturer's instructions. 8) Do not install near any heat sources such as radi- ators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are pro- vided for your safety. if the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience recep- tacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-sup- ply cord or plug is damaged, liquid has been spilled or objects have fallen i…

Text truncated - open the document above for the full version.

English - 55 P layback Using the Markers 1 Press the MARKERbutton during playback. 2 Press theENTERbutton when the desired scene appears. • The number 01 is displayed and the scene is memorized. 3 Press the œ √button to move to the next position. 4 Press the ENTERbutton again when the desired scene appears. • The number 02 is displayed and the scene is memorized. • DVD-RAM or DVD-RW (VR Mode) discs have the Marker function instead of the Bookmark function. The Marker function allows you to mark up to 99 scenes. Since the scenes may be dis- played as many different pages, numbering is necessary. If a disc in use is encoded with Disc Protect, Markers cannot be set or deleted. Only playback is available. (VR mode) Marker 01---------- N : 1 Marker 0102--------- N : 2 Marker ---- -- -- -- -- -- -- -- -- N : 0 Playing back a Marker 1 Press theMARKERbutton during playback. 2 Press the œ √buttons to select a marked scene. 3 Press the ENTERor √llbutton to start playing from the selected scene. • If you press the NEXT SKIP(√√ l)button or the PREVIOUS SKIP( lœœ)button in marker mode, and the next or current marked point plays for shorter than three seconds, playback starts from the previous marked point. Clearing a Marker 1 Press the MARKERbutton during playback. 2 Press the œ √buttons to select a marked scene. Press theCANCELbutton to delete the selected mark. • When a marker is cleared while DVD-RAM/ DVD-RW(VR mode) is playing, marker numbers will change. For example, if the 7th marker is cleared after ten markers are registered, the marker numbers after the eighth will automatical- ly move ahead by one and the 8th marker becomes the 7th. Marker 0102--------- N : 2 Marker 01 02 03 04 05 060708 09 10 √√ N : 10 Marker 01 02 03 04 05 060708 09-- N : 9 RETURNSELECT CANCELPLAYMOVERETURN CANCELPLAYMOVERETURN CANCELPLAYMOVERETURN CANCELPLAYMOVERETURN 00995G-VR345-XAA-Eng47-75 2006.4.10 2:53 PM Page 55 56- English P layback Buttons on the Remote Control used for CD playback 1. lœœbutton:Returns to the beginning of the current track when pressed during playback. If pressed again, your DVD Recorder & VCR moves to and plays the previous track. If you press this button within three seconds after playback starts, the previous track will be played. If you press this button after three seconds, the current track will be replayed from the beginning. 2. √√lbutton:Plays the next track. 3. Press the ( œœœœ / √√√√ ) button:Fast Play (X2, X4, X8) 4. :Stops a track(song). 5. √ll:Plays a track(song) or pauses playback. 6. ......†† :Selects a track (song). 7. √√ , ENTER button:Plays the selected track (song). 8. ANYKEY:To display the play mode window. (Repeat or Play Option). Playing back an Audio CD (CD-DA) Each disc has a variety of menu functions available. Playing an Audio CD (CD-DA) 1 Insert an Audio CD (CD-DA) into the disc tray. • The Audio CD menu appears and the tracks (songs) are played automatically. 2 Press the ......†† buttons to select the track (song) to start playback from, and then press the ENTER button. Audio CD(CD-DA) Screen Elements 1. Play mode icon. 2. Current track (song): Displays the number of the track currently being played. 3. Displays the current play index and total track number. 4. This shows the operating state of a disc and a playback time corresponding to a portion that is currently played. 5. Displays the track list (song list) and the playing time of each track. 6. Button display Music List CD TRACK 1 √√ 0:00:15 TRACK 1 00:03:50 002 TRACK 2 00:04:00 003 TRACK 3 00:03:49 004 TRACK 4 00:03:47 005 TRACK 5 00:04:29 006 TRACK 6 00:03:44 007 TRACK 7 00:03:44 No. Title Length TRACK 101/15 CDDA PLAYMODE RETURNENTERMOVEEXIT Music List CD TRACK 1 √√ 0:00:15 TRACK 1 00:03:50 002 TRACK 2 00:04:00 003 TRACK 3 00:03:49 004 TRACK 4 00:03:47 005 TRACK 5 00:04:29 006 TRACK 6 00:03:44 007 TRACK 7 00:03:44 No. Title Length TRACK 101/15 CDDA @ ^ % # ! $ PLAYMODE RETURNENTERMOVEEXIT 6 6 1 2 7 3 3 4 5 8 00995G-VR345-XAA-Eng47-75 2006.4.10 2:53 PM Page 56 English - 57 P layback Playing back an MP3 Disc Playing an MP3 Disc 1 Insert an MP3 disc into the disc tray. 2 Press the ...† buttons to select the Disc Navigation, and then press the ENTERor √ button. 3 Press the ...† buttons to select the Music, and then press the ENTERor √ button. 4 Press the ......†† buttons to select the track (song) you want to hear, and then press the ENTERbutton. MP3 Screen Elements 1. Play mode icon. 2. Current track (song): Displays the name of the track being played. 3. Displays the current play index and total file number. 4. This shows the operating state of a disc and a playback time corresponding to a portion that is currently played. 5. Displays the mp3 file and folder list (song list). 6. Button display. 7. MP3 file information Buttons on the Remote Control used for MP3 disc playback 1. lœœbutton:Returns to the beginning of the current track when pressed during playback. If pressed again, your DVD Recorder & VCR moves to and plays the previous track. If you press this button within three seconds after playback starts, the previous track will be played. If you press this button after three seconds, the current track will be replayed from the beginning. 2. √√ lbutton:Plays the next track. 3. :Stops a track(song). 4. √ll:Plays a track(song) or pauses playback. 5. RETURN button:Moves to the folder to which the current song belongs. 6. ......†† :Selects a track (song). 7. √√ , ENTER button:Plays the selected track (song) or displays the files in the selected folder. 8. ANYKEY:To display the play mode window. (Repeat or Play Option). Music List MP3 SONG01 3.5MB 2006/01/01 √√ 0:00:15 ROOT SONG01 002 SONG02 003 SONG03 004 SONG04 005 SONG05 006 SONG06 No. Title SONG0101/11 MP3 PLAYMODE RETURNENTERMOVEEXIT @ & $ ^ % # ! 6 6 1 2 7 3 4 8 5 Music List MP3 SONG01 3.5MB 2006/01/01 √√ 0:00:15 ROOT SONG01 002 SONG02 003 SONG03 004 SONG04 005 SONG05 006 SONG06 No. Title SONG0101/11 MP3 PLAYMODE RETURNENTERMOVEEXIT Disc Navigation DVD-Rec…

Text truncated - open the document above for the full version.

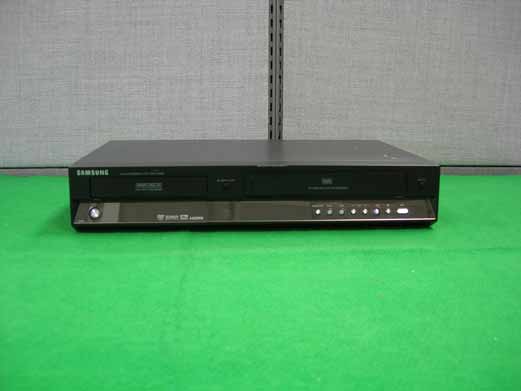

Photograph of DVD-VR345 FCC ID : A3LDVDVR345 FRONT VIEW REAR VIEW Photograph of DVD-VR345 FCC ID : A3LDVDVR345 RIGHT VIEW LEFT VIEW Photograph of DVD-VR345 FCC ID : A3LDVDVR345 TOP VIEW BOTTOM VIEW

Labeling requirement FCC IDENTIFICATION LOCATION: ON THE LABEL RATING THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES AND THE CANADIAN ICES-003. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID: A3LDVDVR345 MADE IN CHINA

Photograph of DVD-VR345 - FCC ID : A3LDVDVR345 FRONT VIEW (FRONT/TOP COVER OPENED) TOP VIEW (FRONT/TOP COVER OPENED) Photograph of DVD-VR345 - FCC ID : A3LDVDVR345 TOP OF MAIN PCB VIEW BOTTOM OF MAIN PCB VIEW Photograph of DVD-VR345 - FCC ID : A3LDVDVR345 TOP OF BACK-END & HDMI PCB VIEW BOTTOM OF BACK-END & HDMI PCB VIEW Photograph of DVD-VR345 - FCC ID : A3LDVDVR345 FERRITE CORE VIEW METAL SHIEL VIEW Photograph of DVD-VR345 - FCC ID : A3LDVDVR345 ETC_1 ETC_2 Photograph of TM-BLOCK TM-BLOCK TYPE: TCMN0682PA26A TOP VIEW BOTTOM VIEW






































  &           !    " ! #  $% $%   %     &
 '     &

& %  $%
   (  $%
&'
& ᜔ ᜔᜔ ᜔ᜉ ᜉᜉ ᜉᜀ ᜀᜀ ᜀᜑ ᜑᜑ ᜑᜑ ᜑᜑ ᜑᚖ ᚖᚖ ᚖᜅ ᜅᜅ ᜅᚔ ᚔᚔ ᚔᚙ ᚙᚙ ᚙᚖ ᚖᚖ ᚖᚔ ᚔᚔ ᚔᜂ ᜂᜂ ᜂᚖ ᚖᚖ ᚖᚕ ᚕᚕ ᚕᚒ ᚒᚒ ᚒᜇ ᜇᜇ ᜇᜇ ᜇᜇ ᜇᜉ ᜉᜉ ᜉᜆ ᜆᜆ ᜆᜓ ᜓᜓ ᜓᚖ ᚖᚖ ᚖᚕ ᚕᚕ ᚕ





































                                           !"   # $  "   % &% % '  &   (  )  *$  !% %                                       ! !! !               " "" "                 # ## # $ $$ $    ! !! !     ! !! !                                          !  % %   % % % % %% %       & && &                                       ' '' '   ( (( (                                 ) )) )     * ** *      + ++ + #     #   &% # + &% , ,, ,          ( (( (    # ## #       - -- -   . .. .                     ) , % "     ) % "     ) $  "     )   "     / // /   ! !! !                      -  .  % /  - 0 &   / !% &% % 0 00 0     . .. .                1 2 "     1  0 "     1 % "       1 11 1           2 22 2        3 33 3          3 %&   0  3   % 3     %             # ## #! !! !                          4 44 4             4 44 4






























0! 4 5 6    0,  & 7%      %
  (    %& "   !89## #48:; % '1!89-3 #48:;
6  8 %     &
 (   " :  0  &
2%  && < 2==   : 9 # 5 #3 >8: 5 ' #>8:;
!< % % %  *      %



!!



        !











     * ** *     4 44 4          . .. .    5 55 5 VHF lowCH.2~CH.B55.25~127.25MHz VHF highCH.C~CH.W+11133.25~361.25MHz UHFCH.W+12~CH.69367.25~801.25MHz             ! !! !" "" " ! !! !   # ## # $ $$ $$ $$ $% %% %& && &      ' '' '  ( (( ( & && & ! !! !) )) )  $ $$ $ ᙩ ᙸ ᚔᚙᙳ ᚅ ᜆᜇᚖᜅ ᙧᚁᙶᙳᙷ ᜄᚙᝉᙨ ᙩ ᙹ ᚔᚙᙳ ᚅ ᚘᜅᚕ ᙧᚁᚂᙳᙷ ᜄᚙᝉᙨ ᚓᝈ ᜦ᜸᜷ᝃᝁ᜸᜵᜵ᜨᜧ ᜇᜀᜅ ᜅᜆᙳᙷ ᙧᚔᚙᙨ     * ** *   ) )) )



     + ++ +                  , ,, ,







6 66 6



       Picture Carrier45.75 Color Carrier42.17 Sound Carrier41.25     - -- -   ) )) )



     . .. .








0  %&  &   ? )#䒅
0 % %&  &   ? )#䒅

















































             RF-MOD Section RF I…

Text truncated - open the document above for the full version.

-1/76- EMC TEST REPORT Samsung Electronics Co., Ltd. 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si,Gyeonggi-Do, 443-742 Korea (Tel: 031 277 7752, Fax: 031 277 7753) Project No. : LBE060823 Page (1)/(76) 1. Applicant ◦ Name of organization : Samsung Electronics Co., Ltd. ◦ Address : 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea ◦ Date of application : 2006. 03. 15 2. Purpose for the report : Approval for EMC 3. Kind of product : DVD Recorder / Video Cassette Recorder (Model name : DVD-VR345) 4. Date of test : 2006. 04. 3 ~ 2006. 04. 13 5. Applied standard : FCC Part 15:2003 Subpart B 6. Test result : PASS The equipment under test has found to be compliant with the applied standards. (Refer to the attached test result for more detail.) 7. FCC ID : A3LDVDVR345 8. Broadcasting system : NTSC-M Tested by Name : Young Jin, Kim Reviewed by Name : No Cheon Park This report is the test result about the sphere accredited by KOLAS which signed the Mutual Recognition Arrangement of International Laboratory Accreditation Cooperation. 2006. 04. 15 Samsung Electronics Co., Ltd. Chief of CS Management Center -2/76- TEST RESULT Test Report No. : LBE060823 Applicant / Address : Samsung Electronics Co., Ltd. 416 Maetan 3-Dong, Yeongtong-Gu,Suwon-Si,Gyeonggi-Do 443-742 Korea Manufacture / Address : Samsung Electronics Co., Ltd. 416 Maetan 3-Dong, Yeongtong-Gu,Suwon-Si,Gyeonggi-Do 443-742 Korea EUT : 1. Product name : DVD Recorder / Video Casette Recorder 2. Model name : DVD-VR345 3. Brand name : Samsung 4. Variant model : None Test Method : ANSI C 63.4:2003 Test Result : PASS The equipment under test has found to be compliant with the applied standards Test Lab. : CS Management Center, Samsung Electronics Co., Ltd. Tested by : Young Jin, Kim Reviewed by : No Cheon Park Date of Issue : 2006. 04. 15 -3/76- Table of contents 1. General information 1.1 Basic information related product 1.2 Detail information related product 1.3 Operating mode and condition 1.4 Equipment modifications 1.5 Test procedure 1.6 Test configuration 1.7 Applied standard 1.8 Test facility 2. Summary of test results 3. Description of individual tests 3.1 Conducted emission 3.2 Radiated emission 3.3 Output Signal Level 3.4 Output Terminal Conducted Spurious Emission 3.5 Antenna Transfer Switch 4. Appendix 4.1 Test photography 4.2 EUT photography -4/76- 1. General information 1.1 Basic information related product Applicant Samsung Electronics Co., Ltd. Model name DVD-VR345 Applicant address 416 Maetan 3-Dong, Yeongtong-Gu,Suwon-Si,Gyeonggi-Do 443-742 Korea Contact person Woo Sung, Cho Kind of product DVD Recorder / Video Casette Recorder Valiant model None Manufacturer Samsung Electronics Co., Ltd. 416 Maetan 3-Dong, Yeongtong-Gu,Suwon-Si,Gyeonggi-Do 443-742 Korea Rated power AC 120 V, 60 Hz New / Alternative / Permissive change information New -5/76- 1.2 Detail Information related product 1.2.1 Specification -6/76- 1.3 Operating mode and condition The EUT was tested in the following operating modes(at both channel 3 and 4) for the tests mention in this report : 1) DVD Play 2) DVD + VCR Recording ( NTSC Signal ) A NTSC signal(Color bar) was supplied at ch.69(801.25 MHz) through the ant. Input connector 3) DVD + VCR Recording ( 1V VITS Signal ) A 1V peak-to-peak VITS signal was supplied through the video input connector for recording. 4) DVD + VCR Recording ( 5V VITS Signal ) A 5V peak-to-peak VITS signal was supplied through the video input connector for recording. 5) VCR Play 6) DVD Copy mode 7) VCR Copy mode Note: The NTSC TV signal input record mode is not applicable to the antenna transfer switch test. 1.4 Equipment modifications No equipment modifications were required. -7/76- 1.5 Test procedure 1.5.1 Conducted emission EUT was placed on a platform nominal size, 1 m by 1.5 m, raised 80 cm above the conducting ground plane. The rear of tabletop was located 40 cm to the vertical conducting ground plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. All other surfaces of tabletop was at least 80 cm from any other grounded conducting surface. I/O cables and AC cables that were connected to the peripherals were bundled in center. They were folded back and forth forming a bindle 30 cm to 40 cm long and were handed at a 40 cm height to the ground plane. Each EUT current-carrying power lead, except the ground(safety) lead, were individually connected through a LISN to the input power source. All unused 50 ohm connectors of the LISN were resistively terminated in 50 ohm when not connected to the measuring equipment. Frequency Band [MHz] Equipment Detector Resolution Bandwidth Video Bandwidth Quasi-Peak 9 kHz - 0.15 to 30 EMI Receiver Average 9 kHz - -8/76- 1.5.2 Radiated emission EUT was placed on a platform of nominal size, 1 m by 1.5 m, raised 80 cm above the conducting ground plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. The I/O cables that were connected to the peripherals were bundle in center. They were folded back and forth forming a bundle 30 cm to 40 cm long and were hanged 40 cm height to the ground plane. Test was made with the antenna positioned in both the horizontal and vertical planes of polarization. The measurement antenna was varied in height above the conducting ground plane and the trun table azimuth was varied to obtain the maximum signal strength The system configuration, clock speed, mode of operation or video resolution, turntable azimuth with respect to the antenna were noted for each frequency found. The spectrum was scanned from 30 to 1 000 MHz using biconiLog antenna. Also, the EMI Receiver was scanned from 1 000 to 2 000 MHz using linearly polarization Double ridge horn antennas were used. The explanation of measuring equipment setup when Respective function is used in any frequency band is as following; Frequency Band [MHz] Equipment Detector Resolution Bandwidth Video Bandwidth 30 to 1 000 EMI Receiver Quasi-Peak…

Text truncated - open the document above for the full version.

-73/76- 4. Appendix 4.1 Test photography Picture 1. Conducted emission Picture 2. Radiated emission (Front) -74/76- Picture 3. Radiated emission (Rear) Picture 4. Output Signal Level -75/76- Picture 5. Output Terminal Conducted Spurious Emission Picture 6. Antenna Transfer Swithch
