A3LEI-HH10Heart Rate Monitor

Type STA. A00151 05/2013. Rev.1.0 www.samsung.com EI-HH10_UM_STA.indb 22013-05-16 오후 2:29:54 User manual Heart Rate Monitor EI-HH10_UM_STA.indb 32013-05-16 오후 2:29:54 EI-HH10_UM_STA.indb 22013-05-16 오후 2:29:54 Contents English ................................................................................................................................1 Español ............................................................................................................................13 EI-HH10_UM_STA.indb 32013-05-16 오후 2:29:54 EI-HH10_UM_STA.indb 42013-05-16 오후 2:29:54 1 English This manual’s images and content may differ from the product and is subject to change • without prior notice. This product is only a health assisting device. It cannot be used for medical diagnostic • purposes. Safety precautions Do not use the device for anything other than its intended use Do not disassemble, modify, or repair the device Any changes or modifications to the device can void your manufacturer’s warranty. For service, take the device to a Samsung Service Centre. When using the device, mind the following: Humidity and liquids may damage parts or electronic circuits.• Do not store the device in hot areas. High temperature may cause damage to the device or • shorten battery life. Do not drop the device or cause impacts to it.• English EI-HH10_UM_STA.indb 12013-05-16 오후 2:29:54 2 Overview Adjustment buckle Bluetooth heart rate monitor Electrode transmitter Chest strap EI-HH10_UM_STA.indb 22013-05-16 오후 2:29:54 3 English Detaching the chest strap Firmly hold the Bluetooth heart rate monitor with both hands, and then bend one side of plastic strap connector downwards. Both strap connectors can be removed simultaneously. Do not pull directly on the chest strap’s elastic to detach it from the Bluetooth heart rate monitor. Doing so may damage the chest strap. EI-HH10_UM_STA.indb 32013-05-16 오후 2:29:54 4 Adjusting the chest strap length Hold both of the adjustment buckles on the chest strap and move them from side to side to adjust the length of the elastic. EI-HH10_UM_STA.indb 42013-05-16 오후 2:29:54 5 English Wearing the Bluetooth heart rate monitor To get the best results, make sure to wear the Bluetooth heart rate monitor directly against the skin. Women should wear it under a sports bra. EI-HH10_UM_STA.indb 52013-05-16 오후 2:29:54 6 Detach one snap button from the Bluetooth heart rate monitor.1 Check the R (right) and L (left) symbol imprinted on the Bluetooth heart rate 2 monitor, and align it correctly on the body when wearing it. Position the chest strap right below the upper chest muscles. 3 Adjust the length of the strap to fit tightly, but comfortably, around the chest.4 To ensure reliable measurement, moisten the electrode transmitter inside • the chest strap with clean water or electrode gel before wearing it. If the heart rate is too weak, the heart rate may not measure correctly. • EI-HH10_UM_STA.indb 62013-05-16 오후 2:29:54 7 English Connecting to a smartphone Download and install the 1 Running pro application from Samsung Apps. To connect to a smartphone and measure heart rate, the Running pro application must be installed on the smartphone. Wear the Bluetooth heart rate monitor, and then launch 2 Running pro on the smartphone. Select 3 Setting → Accessory setting. The smartphone searches for the Bluetooth heart rate monitor automatically. Select the device from the list of available devices and tap 4 Connect to pair. EI-HH10_UM_STA.indb 72013-05-16 오후 2:29:54 8 Tap and hold a displayed name to modify the name of a device in the list. • To set the smartphone to automatically reconnect to a previously paired • device, set Auto Connect to On. Even if the Bluetooth heart rate monitor is paired with the smartphone, • users cannot measure heart rate without launching the Running pro application. The heart rate may not be measured accurately when the Wi-Fi and • Bluetooth features are turned on at the same time. EI-HH10_UM_STA.indb 82013-05-16 오후 2:29:55 9 English Replacing the battery Do not use a fingernail to open the cover. Doing so may damage the fingernail. EI-HH10_UM_STA.indb 92013-05-16 오후 2:29:55 10 Firmly hold the battery cover of the Bluetooth heart rate monitor with one hand, 1 and insert a coin to twist and open the cover. Open the cover and remove the battery. 2 Insert a new battery with the positive side facing upwards.3 Close the cover firmly.4 The remaining battery level can be checked on the smartphone. • Do not open the battery cover aggressively. Doing so may damage the • cover. The CR2032 battery for the Bluetooth heart rate monitor is sold • separately. When using the Blutooth heart rate monitor for 1 hour a day, the average • lifespan of the battery is approximately 1 year. EI-HH10_UM_STA.indb 102013-05-16 오후 2:29:55 11 English Storage and maintenance Rinse the chest strap with clean water after every use.• Do not soak, iron, dry clean or bleach the strap.• Store the device in a cool, dry place.• Do not store the device in humid place, or where the device may get wet. Doing so may • activate the device automatically and drain the battery. EI-HH10_UM_STA.indb 112013-05-16 오후 2:29:55 FCC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by Samsung will void the user’s authority to operate the equipment. Recycling Direct To dispose electronics properly, follow the recycling process regulated in your area or go to Samsung website to find the nearest recycling location: www.samsung.com/recyclingdirect Or call, (877) 278 – 0799. Samsung Telecommunications America, LLC 1301 E. Lookout Drive Richardson, Texas 75082 Phone: 1-800-SAMSUNG Phone: …

Text truncated - open the document above for the full version.

Date: 30, May, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Hyunchae. You (or Feel. Jeong) and of SGS Korea Co., Ltd and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Hyunchae. You (or Feel. Jeong) of SGS Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; Samsung Electronics Co.,Ltd. 19 Chapin Rd., Building D Pine Brook, NJ 07058, United States e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyung (Peter) Ra / General Manager Samsung Electronics Co., Ltd.

Date: April 01, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LEI-HH10 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST 1 Block Diagram 2 Operational Descriptions Permanent 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos Short-Term 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Sang­Joon Mo / Manager Samsung Electronics Co., Ltd. 129, Samsung­ro, Yeongton­gu, Suwon­si, Gyeonggi­do, 443­742, Korea, Republic of

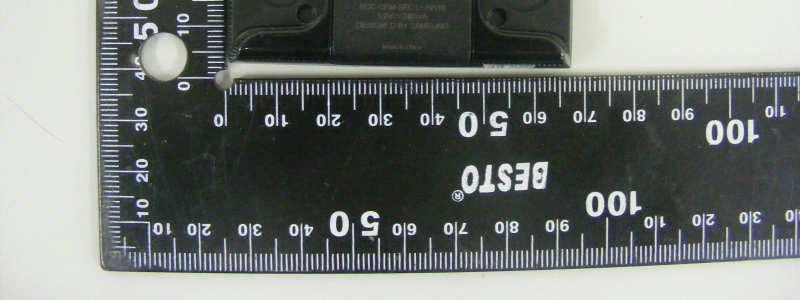

External photos of EUT Top view of EUT Bottom view of EUT Front view of EUT Rear view of EUT Side view of EUT Top view of EUT with Belt Bottom view of EUT with Belt

FCC Label 1. FCC/IC Label Drawing Location <Rear side> <Bottom side> Model: EI-HH10 FCC ID: A3LEI-HH10, IC : 649E-EIHH10

Internal photos of EUT Top view of EUT Top view of Main PCB Bottom view of Main PCB Antenna

FCC ID : A3LEI-HH10 According to KDB 447498 D01 General RF Exposure Guidance v05, section 4.3.1 At 100 ㎒ to 6 ㎓ and for test separation distances ≤ 50 mm, the SAR test exclusion threshold is determined according to the following a) [(max. power of channel, including tune-up tolerance, ㎽) / (min. test separation distance, mm)] x [√f (GHz) ] ≤ 3.0 1. SAR test exclusion threshold Frequency : 2 480 ㎒ (min. separation distances = 5 mm) SAR test exclusion thresholds(5 mm) = (3 x 5) / √ 2.48 = 9.53 ㎽ Max. conducted power(㎽) SAR Test Exclusion Thresholds(5 mm) (㎽) 1.87 9.53 Calculation value : 1.87(㎽) / 5(mm) x = 0.59 So, Calculation value ≤ 3.0 2. Conclusion : No SAR is required.

Report Number : F690501/RF-RTL006587Page: 2of31 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea INDEX Table of ContentsPage 1. General Information ---------------------------------------------------------------------------------3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission------6 3. 6'Bandwidth and 99% Occupied Bandwidth ---------------------------------------------19 4. Maximum Conducted output power -------------------------------------------------------------25 5. Power Spectral Density ----------------------------------------------------------------------------28 6. Antenna Requirement ------------------------------------------------------------------------------31 Report Number : F690501/RF-RTL006587Page: 3of31 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory). - Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 (Lab) - Wireless Div. 1FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 (Chamber) All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No.:+82 31 428 5700 Fax No.:+82 31 427 2371 1.2. Details of Applicant Applicant:Samsung Electronics Co., LTD. Address:129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-742 Republic of Korea Contact Person :Mo, Sang-joon Phone No.:+82 10 8930 6920 1.3. Description of EUT Kind of Product Heart Rate Monitor Model Name EI-HH10 Serial Number N/A Power Supply DC 3.0 V Frequency Range 2 402*~ 2 480* Modulation Technique GFSK Number of Channels 40 channels Channel separation 0%~ 40% Antenna Type Internal type Antenna Gain -3.1'i 1.4. Declaration by the manufacturer - This product is applied for only Bluetooth LE . Report Number : F690501/RF-RTL006587Page: 4of31 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 1.5. Test Equipment List EquipmentManufacturerModelS/NCal Date Cal Interval Cal Due. Signal GeneratorR&S SMR40100272 Aug. 23, 2012 Annual Aug. 23, 2013 Spectrum AnalyzerAgilentN9030AUS51340132Oct. 30, 2012AnnualOct. 30, 2013 Spectrum AnalyzerR&SFSW43100578May 08, 2013AnnualMay 08, 2014 AttenuatorH.P 8498A2702A05558 Jul. 12, 2012AnnualJul. 12, 2013 High Pass FilterWainwrightWHK3.0/18G-10SS344 Jul. 12, 2012AnnualJul. 12, 2013 High Pass FilterWainwrightWHNX7.5/26.5G-6SS11 Jul. 12, 2012AnnualJul. 12, 2013 Low Pass FilterMini-Circuits NLP-1200+ V8979400903-1Jul. 12, 2012 Annual Jul. 12, 2013 Power SensorR&S NRP-Z811007488 Jul. 10, 2012 Annual Jul. 10, 2013 DC power SupplyAgilentU8002AMY50060028Mar. 28, 2013 Annual Mar. 28, 2014 Preamplifier H.P. 8447F2944A03909Jul. 03, 2012AnnualJul. 03, 2013 PreamplifierMITEQ Inc.JS44-18004000-35-8P1546891Jul. 12, 2012 Annual Jul. 12, 2013 PreamplifierR&SSCU 1810117Jan. 14, 2013 Annual Jan. 14, 2014 Test ReceiverR&SESU26100109Feb. 28, 2013 Annual Feb. 28, 2014 Bilog AntennaSCHWARZBECKVULB9163390Apr. 19, 2012BiennialApr. 19, 2014 Horn AntennaSCHWARZBECKBBHA9170 BBHA9170431May 15, 2012BiennialMay 15, 2014 Horn AntennaR&SHF 906 100326Nov. 23, 2011BiennialNov. 23, 2013 Antenna MasterINN-COMM4000 N/AN/AN/AN.C.R. Turn TableINN-CODS 1200 S N/AN/AN/AN.C.R. Anechoic ChamberSY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/AN/AN/AN.C.R. 1.6. Conclusion of worst-case The field strength of spurious emission was measured in three orthogonal EUT positions(X-axis, Y-axis and Z-axis). Worst case is X-axis Report Number : F690501/RF-RTL006587Page: 5of31 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 1.7. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part15 Subpart C § 15.247, RSS-210 Issue8, RSS-Gen Issue3 Standard sectionTest Item(s)Result 15.205 15.209 15.247(d) RSS-210 A8.5 Transmitter Radiated Spurious Emissions Conducted Spurious Emission Complied 15.247(a)(2) RSS-210 A8.2(a) RSS-Gen 4.6.1 6'Bandwidth and 99% Occupied Bandwidth Complied 15.247(b)(3)RSS-210 A8.4(4)Maximum Conducted Output PowerComplied 15.247(e)RSS-210 A8.3(2)Power Spectral DensityComplied 1.8. Test Procedure(s) The measurement procedures described in the American National Standard for Methods of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9"to 40# (ANSI C63.4-2003) and the guidance provided in KDB 558074 were used in the measurement of the DUT. 1.9. Sample calculation Where relevant, the following sample calculation is provided: 1.9.1. Conducted test Offset value (&) = Attenuator (&"+ Cable loss (&) 1.9.2. Radiation test Field strength level (&'#$) = Measured level (&') + Antenna factor (&) + Cable loss (&) - amplifier (&) 1.10. Test rep…
