A3LEJ-CT800Galaxy Tab S 10.5 Bluetooth Keyboard

Printed in Korea Type E. 2014/06 GH68-41758A Rev.1.0 www.samsung.com Galaxy Tab S 10.5 Bluetooth Keyboard MODEL: EJ-CT800 2 Copyright © 2014 Samsung Electronics • Please read this manual before using the device to ensure safe and proper use. • Images may differ in appearance from the actual product. Content is subject to change without prior notice. Trademarks • SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics. • Bluetooth ® is a registered trademark of Bluetooth SIG, Inc. worldwide. • All other trademarks and copyrights are the property of their respective owners. Device layout Notification light Power switch Multipurpose jack Lock button Bluetooth button Slot cover Charging the battery This device has a built-in battery. Before using the device for the first time or when the battery has been unused for extended periods, you must charge the battery. Use only Samsung-approved chargers and cables. Unapproved chargers or cables can cause the battery to explode or damage the device. 3 • To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and easily accessible while charging. • The socket-outlet shall be installed near the equipment and shall be easily accessible. Charging time and standard run time (200 mAh) Charging timeApprox. 2 hrs Standard run time Approx. 120 hrs • Charging time is measured after charging with a Samsung-approved charger. Charge the device by connecting it to the computer or the USB power adaptor via the USB cable. • The notification light turns red while the device is being charged. The notification light turns green when charging is complete. After fully charging, disconnect the device from the charger. First unplug the charger from the device, and then unplug it from the electric socket. • Charging the battery is only possible by connecting the provided USB cable into the multipurpose jack. HDTV adaptors and regular USB connectors are not supported. 4 Using a tablet Mounting the tablet Place the tablet into the slot. To remove the tablet from device, lift the tablet upwards. Follow the instructions when removing the tablet from the device. Otherwise, the tablet or the device may be damaged. Stowing the tablet Completely open the fastener clip located on the front edge of the device. Place the tablet in the slot with the touch screen facing the device. • Battery run time is results of tests performed in the manufacturer's laboratory. Standby time was measured at the time of the first shipment. • The battery charging time and run time may vary depending on the environment the device is used in. Turning the device on or off Slide the Power switch to ON to turn on the device. ON OFF Slide the Power switch to OFF to turn off the device. 5 Connecting to other devices After turning on the device, you can connect the device to other Bluetooth-enabled devices. The device automatically connects to previously connected devices. 1 On the connected device, turn on the Bluetooth feature. The connected device searches for Bluetooth devices. 2 From the search results, select the device name. If the device is not on the list, turn on the device and press and hold the Bluetooth button for more than 3 seconds. 3 When requested, enter the passkey on the connected device's screen and press the Enter key. When pairing is complete, the device's name appears in the device list. Then, use the clip to fasten the tablet to the device. • First align the edges of the tablet with the device, and then lower the tablet into the slot of the device. 2 2 1 1 To separate the tablet from the device, completely open the fastener clip, and then pull the tablet upwards. 6 • Keys cannot be used if the Lock button is pressed. • When the tablet and device are closed and the Lock button is pressed, the Bluetooth connection is deactivated. When you open the tablet, the Bluetooth connection is automatically restored. Notices for using Bluetooth • Ensure that there are no obstacles between your device and a connected mobile device, including human bodies. • Bluetooth uses the same frequency as some industrial, scientific, medical, and low power products. Interference may occur when making connections near these types of products. • Obstructions between the two devices, such as walls, corners, or partitions, may cause a weak connection. Some devices, especially those that are not tested or approved by the Bluetooth SIG, may be incompatible with your device. Disconnecting from other devices Use one of the following methods to disconnect a device: • Turn off the device. • Turn off the Bluetooth feature on the connected device. You can connect to another device only after disconnecting a previously connected device. Press and hold the Bluetooth button for more than 3 seconds to connect to another device. 7 Using the keyboard Before using the keyboard, select a display language on the connected device. For more information about language settings, refer to the user manual of the connected device. 12345789106 111213 • Some key functions may not work properly depending on the connected device's operating system. The device is compatible with Samsung mobile devices running the Android 4.4 OS or above. For more information about upgrading device software, refer to each device's user manual. • The S-Finder key is only available when connected to a tablet that supports the S-Finder feature. 8 No.KeyFunction 1 • Press to return to previous screen. 2 • Press to return to the Home screen. 3 • Press to open the list of recently-used applications. 4 • Press to open the Applications screen. 5 • Press to open a list of options available for the current screen. 6 / • Press to adjust the brightness. 7 / / • Press to adjust the volume. 8 / / • Press to control media file playbacks. 9 • Press on the Home screen to la…

Text truncated - open the document above for the full version.

129, Samsung‐Ro, Yeongtong‐Gu, Suw on‐City Gyeonggi‐Do, 443‐742, Korea June 05, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: I, the undersigned, hereby authorize Lab Manager Feel. Jeong (or Logan. Lee) and of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Feel. Jeong (or Logan. Lee) of SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevan t provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make clai ms regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certifie d as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; 129, Samsun g‐Ro, Yeongtong‐Gu, Suwon‐City Gyeonggi‐Do, 443‐742, Korea i) keep a record of all complaints made know n to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Sang Kyung (Peter) Ra / General Manager SAMSUNG ELECTRONICS Co., Ltd.

129, Samsun g‐Ro, Yeongtong‐Gu, Suwon‐City Gyeonggi‐Do, 443‐ 742, Korea June 05, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST OF CONFIDENTIALITY for FCC ID: A3LEJ‐CT800 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Sang Kyung (Peter) Ra / General Manager SAMSUNG ELECTRONICS Co., Ltd.

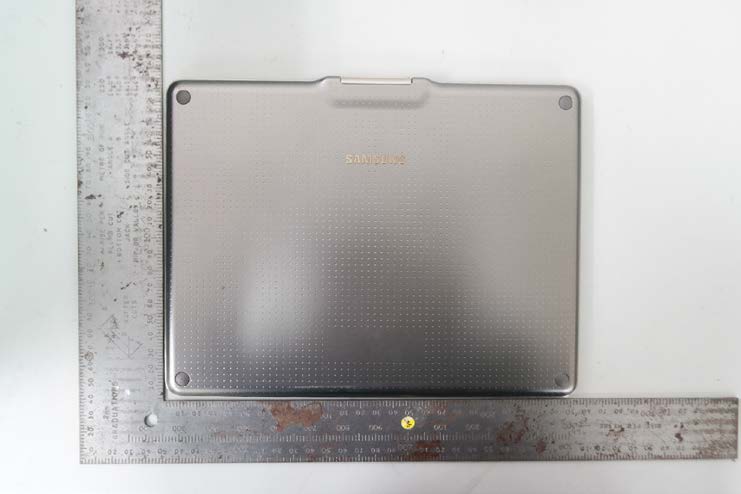

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT

Samsung Electronics Co., Ltd. Model: EJ-CT800 FCC ID: A3LEJ-CT800 IC: 649E-EJCT800 Label Info.

In ternal photos of EUT Top view of main PCB Bottom view of main PCB PCB Pattern Antenna

Report Number: F690501/RF-RTL007686-1 Page : 2 of 48 INDEX Table of Contents Page 1. General Information --------------------------------------------------------------------------------- 3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ------ 7 3. 20㏈ Bandwidth and 99 % BW ------------------------------------------------------------------ 23 4. Maximum Peak Output Power ------------------------------------------------------------------- 29 5. Hopping Channel Separation ------------------------------------------------ --------------------- 31 6. Number of Hopping Frequency ------------------------------------------------------------------ 33 7. Time of Occupancy(Dwell Time) ----------------------------------------------------------------- 36 8. Transmitter AC Power Line Conducted Emission-------------------------------------------- 43 9. Antenna Requirement ------------------------------------------------------------------------------ 48 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) Report Number: F690501/RF-RTL007686-1 Page : 3 of 48 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 3FL, 4, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 435-040 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 428 5700 FAX : +82 31 427 2370 1.2. Details of Applicant Applicant : Samsung Electronics Co., Ltd. Address : 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Republic of Korea Contact Person : Cho, Ha-Yeon Phone No. : +82 31 8062 5071 1.3. Description of EUT Kind of Product Galaxy Tab S 10.5 Bluetooth Keyboard Model Name EJ-CT800 Power Supply DC 3.7 V Frequency Range 2 402 ㎒ ~ 2 480 ㎒ (BT) Modulation Technique GFSK Number of Channels 79 channels Antenna Type PCB Pattern Antenna Type Antenna Gain 4.69㏈i 1.4. Declaration by the manufacturer - Adaptive Frequency Hopping is supported and use at least 20 channels. - The modulation type of this Bluetooth device is only GFSK. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) Report Number: F690501/RF-RTL007686-1 Page : 4 of 48 1.5. Information about the FHSS characteristics: 1.5.1. Pseudorandom Frequency Hopping Sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. 1.5.2. Equal Hopping Frequency Use All Bluetooth units participating in the piconet are time and hop-synchronized to the channel. 1.5.3. Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 1.5.4. System Receiver Input Bandwidth Each channel bandwidth is 1㎒ 1.5.5. Equipment Description 15.247(a)(1) that the rx input bandwidths shift frequencies in synchronization with the transmitted 15.247(g): In accordance with the Bluetooth Industry Standard, the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) system. 15.247(h): In accordance with the Bluetooth Industry Standard, the system does not coordinate it channels selection/ hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) Report Number: F690501/RF-RTL007686-1 Page : 5 of 48 1.6. Test Equipment List Equipment Manufacturer Model S/N Cal Date Cal Interval Cal Due. Signal Generator R&S SMR40 100272 Aug. 10, 2013 Annual Aug. 10, 2014 Spectrum Analyzer Agilent N9030A US51350132 Oct. 08, 2013 Annual Oct. 08, 2014 Spectrum Analyzer R&S FSV30 100768 Mar. 27, 2014 Annual Mar. 27, 2015 Directional Coupler KRYTAR 152613 127447 Mar. 24, 2014 Annual Mar. 24, 2015 Bluetooth Tester TESCOM TC-3000C 3000C000142 Dec. 12, 2013 Annual Dec. 12, 2014 High Pass Filter Wainwright WHK3.0/18G-6SS 4 Jul. 0 2, 2013 Annual Ju l. 02, 2014 High Pass Filter Wainwright WHNX7.5/26.5G-6SS 15 Jul. 0 3, 2013 Annual Ju l. 03, 2014 Low Pass Filter Mini-Circuits NLP-1200+ V 8979400903-1 Jun. 12, 2013 Annual Jun. 12, 2014 Power Sensor R&S NRP-Z81 100669 Mar. 19, 2014 Annual Mar. 19, 2015 DC power Supply Agilent U8002…

Text truncated - open the document above for the full version.

Test setup photos of EUT A. Photo of Radiated Spurious Emission Test (Below 1GHz) B. Photo of Radiated Spurious Emission Test (Above 1GHz)
