Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Samsung Electronics Co., Ltd. Address 19 Chapin Rd., Building D, Pine Brook, New Jersey, 07058 Grantee Code A3L FCC ID A3LEJP5450 Authorized Contact Name Jenni Chun Contact Email [email protected] Contact Phone 973-808-6375 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: June 30, 2021 Print Name: Jenni Chun Title: General Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

19 Chapin Rd., Building D Pine Brook, New Jersey, 07058, United States 30 June 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST FOR CONFIDENTIALITY FCC ID: A3LEJP5450 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics 4 Tune-up Procedure Short‐Term 5 External Photos 6 Internal Photos 7 Test‐Setup Photos 8 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Jenni Chun / General Manager Samsung Electronics North America INC. TEL: +1-973-808-6362 E-mail: [email protected]

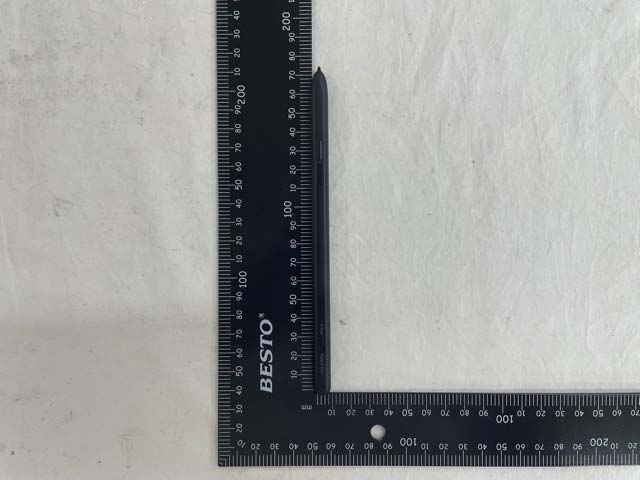

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

S Pen Pro Compatible with Galaxy Smartphone, Tablet and PC that support S Pen. Air actions feature (BLE) is only available on Galaxy Z Fold3 5G, S21 Ultra 5G, Note20 Ultra, Note20, Note10 Lite, Tab S7+, Tab S7, Tab S7 FE, Tab S6 that support One UI 3.1 or later. Check Samsung.com for compatibility Charging via USB-C Rated : 5.0V 100mA S Pen Pro : Made in China Pouch : Made in Korea Important Information: If you open the package, use or retain the device, you accept Samsung’s Terms and Conditions, including an Arbitration Agreement. Full terms, warranty and opt-out information are at www.samsung.com/accessory-legal and the enclosed materials. ©2021 Samsung Electronics America, Inc. Samsung and Samsung Galaxy are registered trademarks of Samsung Electronics Co., Ltd. Other company names, product names and marks mentioned herein are the property of their respective owners and may be trademarks or registered trademarks. Actual appearance of product may vary. For more information, please call 1-800-726-7864. Warning : Reproductive Harm - www.P65Warnings.ca.gov California Proposition 65 Warning Box is recyclable. Recycling facilities for this product package may not exist in your area. Designed by Samsung www.samsung.com Printed in Korea Label (42 x 90) 2 mm 2 mm The device is too small to insert the general information and warning statement, it will be placed on the package box. Model : EJ-P5450 FCC ID : A3LEJP5450 IC : 649E-EJP5450

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB Top view of Sub PCB Bottom view of Sub PCB View of Antenna & Module Bluetooth Low Energy Module Bluetooth Low Energy Antenna

FCC ID: A3LEJP5450 According to KDB 447498 D01 General RF Exposure Guidance. At 100 ㎒ to 6 ㎓ and for test separation distances ≤ 50 ㎜, the SAR test exclusion threshold is determined according to the following [(max. power of channel, including tune-up tolerance, ㎽) / (min. test separation distance, ㎜)] x [√f(㎓)] ≤ 3.0 1. SAR test exclusion threshold Frequency: 2 480 ㎒ (min. separation distances = 0 ㎜) SAR test exclusion thresholds(5 ㎜) = 3 x 5 / (√ 2.480 ) = 9.525 ㎽ Max. tune-up tolerance (㎽) SAR Test Exclusion Thresholds (5 ㎜) (㎽) 1.259 9.525 Calculation value: 1.259 (㎽) / 5 (㎜) x √ 2.480 = 0.397 So, Calculation value ≤ 3.0 Remark; - Max. conducted power (㎽): maximum tolerance power of EUT (1 ㏈m) - Max. conducted power 1.259 (㎽) was calculated. - When the minimum test separation distance is < 5 ㎜, a distance of 5 ㎜ is applied to determine SAR test exclusion. 2. Conclusion: No SAR is required.

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002341 Page: 2 of 33 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) INDEX Table of contents 1. General Information -------------------------------------------------------------------------------------- 3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ---------- 8 3. 6 ㏈ Bandwidth & 99 % Bandwidth ----------------------------------------------------------------- 23 4. Maximum Peak Conducted Output Power --------------------------------------------------------- 28 5. Power Spectral Density --------------------------------------------------------------------------------- 30 6. Antenna Requirement ----------------------------------------------------------------------------------- 33 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002341 Page: 3 of 33 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of Applicant FCC Applicant : Samsung Electronics Co., Ltd. FCC Address : 19, Chapin Rd., Building D, Pine Brook, New Jersey, United States, 07058 IC Applicant : SAMSUNG ELECTRONICS CO. LTD. IC Address : 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Republic of Korea, 16677 Contact Person : Chun, Jenni Phone No. : +1 973 808 6375 1.3. Details of Manufacturer Company : Samsung Electronics Co., Ltd. Address : 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Republic of Korea, 16677 1.4. Description of EUT Kind of Product S PEN Model Name EJ-P5450 Serial Number Conducted: 001, Radiated: 002 Power Supply DC 3.8 V Frequency Range 2 402 ㎒ ~ 2 480 ㎒ (Bluetooth Low Energy) Modulation Technique GFSK Number of Channels 40 channels (Bluetooth Low Energy) Antenna Type PCB Embedded Antenna Antenna Gain 2.54 ㏈i H/W Version Rev 1.0 S/W Version Rev 1.0 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002341 Page: 4 of 33 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1.5. Manufacturer Declaration The Bluetooth version of the EUT is 5.0 and 37, 255 bytes of PHY 1M are supported. 1.6. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Signal Generator R&S SMR40 100272 Jun. 16, 2021 Annual Jun. 16, 2022 Signal Generator R&S SMBV100A 255834 May 31, 2021 Annual May 31, 2022 Spectrum Analyzer R&S FSV30 103210 Dec. 07, 2020 Annual Dec. 07, 2021 Spectrum Analyzer Agilent N9020A MY53421758 Sep. 04, 2020 Annual Sep. 04, 2021 Attenuator AEROFLEX / INMET 26A-10dB 3 Mar. 24, 2021 Annual Mar. 24, 2022 High Pass Filter Wainwright Instrument GmbH WHK3.0/18G-6SS 21 Jun. 04, 2021 Annual Jun. 04, 2022 High Pass Filter Wainwright Instrument GmbH WHNX7.5/26.5G-6SS 11 May 17, 2021 Annual May 17, 2022 Low Pass Filter Mini-Circuits NLP-1200+ V9500401023-2 May 31, 2021 Annual May 31, 2022 Power Sensor R&S NRP-Z81 100669 May 07, 2021 Annual May 07, 2022 DC Power Supply Agilent U8002A MY49030063 Feb. 02, 2021 Annual Feb. 02, 2022 Preamplifier H.P. 8447F 2944A03909 Aug. 06, 2020 Annual Aug. 06, 2021 Signal Conditioning Unit R&S SCU-18 10117 Jun. 09, 2021 Annual Jun. 09, 2022 Preamplifier TESTEK TK-PA1840H 130016 Jan. 07, 2021 Annual Jan. 07, 2022 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 1519 1519-039 Aug. 22, 2019 Biennial Aug. 22, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB 9163 01126 Dec. 22, 2020 Biennial Dec. 22, 2022 Horn Antenna R&S HF906 100326 Feb. 04, 2021 Annual Feb. 04, 2022 Horn Antenna Schwarzbeck Mess-Elektronik BBHA 9170 BBHA9170223 Sep. 16, 2020 Annual Sep. 16, 2021 Test Receiver R&S ESU26 100109 Feb. 19, 2021 Annual Feb. 19, 2022 Turn Table Innco systems GmbH DS 1200 S N/A N.C.R. N/A N.C.R. Controller Innco systems GmbH CONTROLLER CO3000-4P CO3000/963/383 30516/L N.C.R. N/A N.C.R. Antenna Mast Innco systems GmbH MA4640-XP-ET MA4640/536/383 30516/L N.C.R. N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. Coaxial Cable RFONE MWX221-NMSNMS (4 m)J1023142 May 27, 2021 Semi- Annual Nov. 27, 2021 Coaxial Cable RFONE PL520-NMNM-10M (10 m) 20200324001 May 27, 2021 Semi- Annual Nov. 27, 2021 Coaxial Cable RFONE PL360P-292M292M-1.5M- A 20200324002 Feb. 19, 2021 Semi- annual Aug. 19, 2021 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002341 Page: 5 of 33 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1.7. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15 Subpart C, IC RSS-247 Issue 2 and RSS-Gen Issue 5 Section in FCC Section in IC Test Item(s) Result 15.205(a) 15.209 15.247(d) RSS-247 Issue 2 5.5 RSS-Gen Issue 5 8.9 Transmitter Radiated Spurious Emissions and Conducted Spurious Emission Complied 15.247(a)(2) RSS-247 Issue 2 5.2(a) RSS-Gen Issue 5 6.7 6 ㏈ Bandwidth & 99 % Bandwidth Complied 15.247(b)(3) RSS-247 Issue 2 5.4(d) Maximum Peak Conducted Output Power Complied 15.247€ RSS-247 Issue 2 5.2(b) Power Spectral Density Complied 15.207 RSS-Gen Issue 5 8.8 AC Power Line Conducted Emission N/A 1) Note; 1) The AC power line test was not performed because the EUT does not operate while charging. 1.8. Test Procedure(s) The measurem…

Text truncated - open the document above for the full version.

Test setup photos of EUT 1. Orthogonal plane of EUT - The testing was set in the below orthogonal plane and measured. X-axis Y-axis Z-axis 2. Photo of Radiated Spurious Emission Test (Below 1㎓) 3. Photo of Radiated Spurious Emission Test (Above 1㎓) 4. Photos of Conducted Test
