A3LEKGC100ACellular/ PCS UMTS Camera with WLAN and Bluetooth

www.samsung.com User Manual EK-GC100 2 About this manual This device provides high quality mobile communication and entertainment using Samsung’s high standards and technological expertise. This user manual is specially designed to detail the device’s functions and features. • Please read this manual before using the device to ensure safe and proper use. • Descriptions in this manual are based on the device’s default settings. • Images and screenshots used in this manual may differ in appearance from the actual product. • Content in this manual may differ from the final product, or from software provided by service providers or carriers, and is subject to change without prior notice. For the latest version of the manual, refer to the Samsung website, www.samsung.com. • Available features and additional services may vary by device, software, or service provider. • Applications and their functions may vary by country, region, or hardware specifications. Samsung is not liable for performance issues caused by third-party applications. • Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or applications to work improperly. • Software, sound sources, wallpapers, images, and other media provided with this device are licenced for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Samsung is not liable for such copyright infringement by the user. • You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services. To avoid additional charges, select an appropriate data tariff plan. For details, contact your service provider. About this manual 3 Instructional icons Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to your device or other equipment Note: notes, usage tips, or additional information Copyright Copyright © 2012 Samsung Electronics This manual is protected under international copyright laws. No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. Trademarks • SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics. • The Android logo, Google ™ , Google Maps ™ , Google Mail ™ , YouTube ™ , Google Play ™ Store, and Google Talk ™ are trademarks of Google, Inc. • Bluetooth ® is a registered trademark of Bluetooth SIG, Inc. worldwide. • Windows Media Player ® is a registered trademark of Microsoft Corporation. • HDMI, the HDMI logo and the term “High Definition Multimedia Interface” are trademarks or registered trademarks of HDMI Licensing LLC. • Wi-Fi ® , the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. • All other trademarks and copyrights are the property of their respective owners. About this manual 4 DivX ® , DivX Certified ® , and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under licence. ABOUT DIVX VIDEO DivX ® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified ® device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND This DivX Certified ® device must be registered in order to play purchased DivX Video-on- Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. DivX Certified ® to play DivX ® video up to HD 720p, including premium content. 5 Table of Contents Getting started 7 Device layout 8 Buttons 9 Package contents 10 Installing the SIM or USIM card and battery 13 Charging the battery 15 Inserting a memory car d 17 Turning the device on and off 17 Holding the device 18 Locking and unlocking the devic e 18 Adjusting the volume 18 Switching to silent mode Basics 19 Indicator icons 20 Using the touch screen 22 Control motions 24 Notifications 25 Home screen 27 Using applications 27 Applications screen 29 Entering t ext 30 Connecting to a Wi-Fi network 31 Setting up accounts 32 Transfer ring files 34 Securing the device 35 Upgrading the device Media 36 Camera 46 Gallery 48 Photo Editor 51 Video Player 52 Video Maker 54 Music Play er 55 YouTube 56 Instagram Communication 57 Contacts 60 Email 61 Google Mail 62 Talk 63 ChatON 64 Google+ 64 Messenger Web & network 65 Internet 66 Chrome 68 Bluetooth 69 AllShare Pla y Table of Contents 6 Settings 86 About Settings 86 Wi-Fi 87 Bluetooth 87 Share and transfer 88 More settings 89 Sound 90 Display 90 Lock screen 91 More settings 91 Data usage 91 Storage 92 Battery 92 Applications manager 92 Power 92 Add accoun t 92 Cloud 93 Accessibility 93 Motion 94 Voice 95 Accessor y 96 More settings Troubleshooting Application & media stores 70 Play Store 71 Samsung Apps 71 S Suggest 72 Game Hub 72 Play Books 72 Play Mo vies Utilities 73 Memo 74 S Planner 76 Dropbox 76 Clock 78 Calculator 79 Voice Rec order 80 S Voice 80 Google 81 Voice Sear ch 81 Task manager 82 My Files 82 Downloads Travel & local 83 Maps 84 Local 85 Latitude 85 Navigation 7 Getting started Device layout Lens Flash Zoom button Shutter button AF-assist light Power button Flash release GPS antenna Main antenna Flap Tripod mount HDMI port Speaker Microphone Touch screen Headset jack Multipurpose jack Getting started 8 The microphone at the top of the device is active only when you use the voice search or take videos. • Do not cover the antenna area with your hands or other objects. This may cause connectivity…

Text truncated - open the document above for the full version.

www.samsung.com EK-GC100 You can access the full user manual for more information. To learn to access the user manual, see “Viewing the user manual” in this quick start guide. Quick Start Guide 2 This device provides high quality mobile communication and entertainment using Samsung’s high standards and technological expertise. • Content may dier from the nal product, or from software provided by service providers or carriers, and is subject to change without prior notice. • The it ems supplied with the device and any available accessories may vary depending on the region or service provider. 3 • The supplied items are designed only for this device and may not be compatible with other devices. • You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase. • Other accessories may not be compatible with your device. • Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause your device or applications to work improperly. 4 Instructional icons Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to your device or other equipment Note: notes, usage tips, or additional information Copyright Copyright © 2012 Samsung Electronics This guide is protected under international copyright laws. No part of this guide may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. 5 Trademarks • SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics. • The Android logo, Google ™ , Google Maps ™ , Google Mail ™ , YouTube ™ , Google Play ™ Store, and Google Talk ™ are trademarks of Google, Inc. • Bluetooth ® is a registered trademark of Bluetooth SIG, Inc. worldwide. • Windows Media Player ® is a registered trademark of Microsoft Corporation. • HDMI, the HDMI logo and the term “High Definition Multimedia Interface” are trademarks or registered trademarks of HDMI Licensing LLC. • Wi-Fi ® , Wi-Fi Protected Setup ™ , Wi-Fi Direct ™ , Wi-Fi CERTIFIED ™ , and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. Your device uses a non-harmonised frequency and is intended for use in all European countries. The WLAN can be operated in the EU without restriction indoors, but cannot be operated outdoors. • All other trademarks and copyrights are the property of their respective owners. 6 Getting started Device layout Power button AF-assist light Flash Flash release Lens Shutter button Zoom button GPS antenna Main antenna HDMI port Flap Speaker Tripod mount 7 Getting started Microphone Headset jack Multipurpose jack Touch screen Do not cover the antenna area with your hands or other objects. This may cause connectivity problems or drain the battery. 8 Getting started Buttons ButtonFunction Power • Press and hold to turn the device on or off. • Press and hold for 6-8 seconds to reset the device if it has fatal errors or hang-ups, or freezes. • Press to lock or unlock the device. The device goes into lock mode when the touch screen turns off. Menu • Tap to open a list of options available for the current screen. Home • Press to return to the Home screen. • Press and hold to open the list of recent applications. Back • Tap to return to the previous screen. Shutter • On the Home screen, press and hold to turn the camera on. • In the camera application, press to take photos. 9 Getting started Installing the SIM or USIM card and battery Insert the SIM or USIM card provided by the mobile telephone service provider, and the included battery. Only microSIM cards work with the device. 1 Slide the latch and open the flap. 10 Getting started 2 Insert the SIM or USIM card with the gold- coloured contacts facing downwards. 3 Push the SIM or USIM card into the slot until it locks in place. 4 Insert the battery. 11 Getting started 5 Replace the flap and slide the latch. Charging the battery Before using the device for the first time or when the battery has been unused for extended periods, you must charge the battery. Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or cables can cause the battery to explode or damage the device. 12 Getting started Plug the small end of the charger into the multipurpose jack of the device, and plug the large end of the charger into an electric socket. Connecting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty. After fully charging, disconnect the device from the charger. First unplug the charger from the device, and then unplug it from the electric socket. Do not remove the battery before removing the charger. This may damage the device. To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The device should remain close to the electric socket while charging. 13 Getting started Checking the battery charge status When you charge the battery while the device is off, the following icons will show the current battery charge status: ChargingFully charged Turning the device on and off When turning on the device for the first time, follow the on-screen instructions to set up your device. Press and hold the Power button for a few seconds to turn the device on and off. 14 Basics Notifications Notification icons appear on the status bar to report new messages, calendar events, device status, and more. Open the notifications panel, and then view your device’s current status and use available options. Drag down from the status bar to open the notifications panel. To close …

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea October 25, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3L EKGC100A Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible on the bottom at the time of purchase . The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: October 23, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LEKGC100A To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

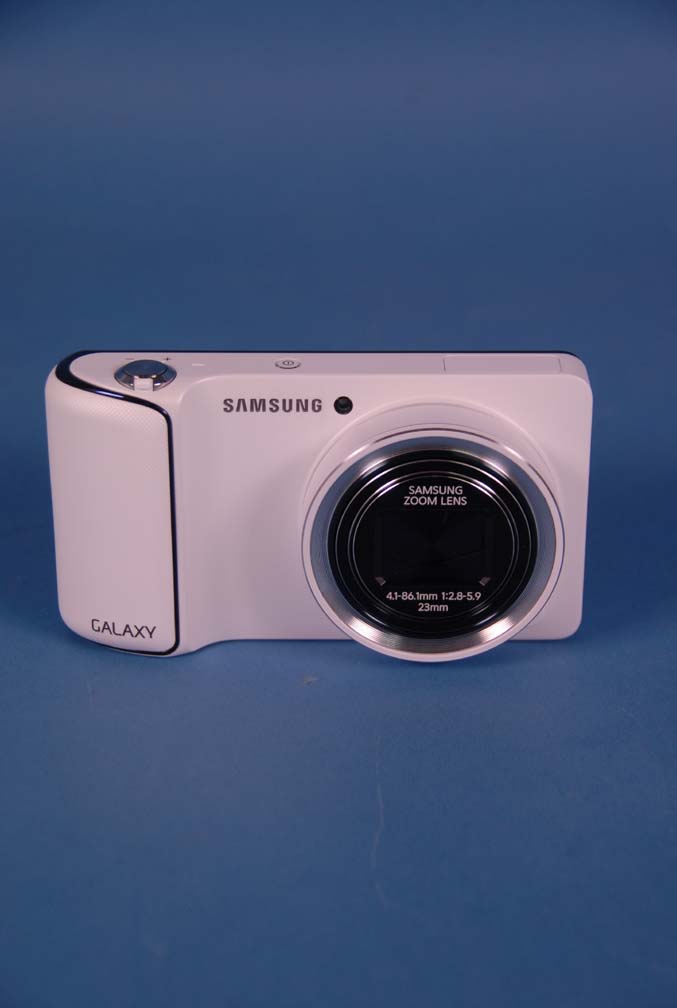

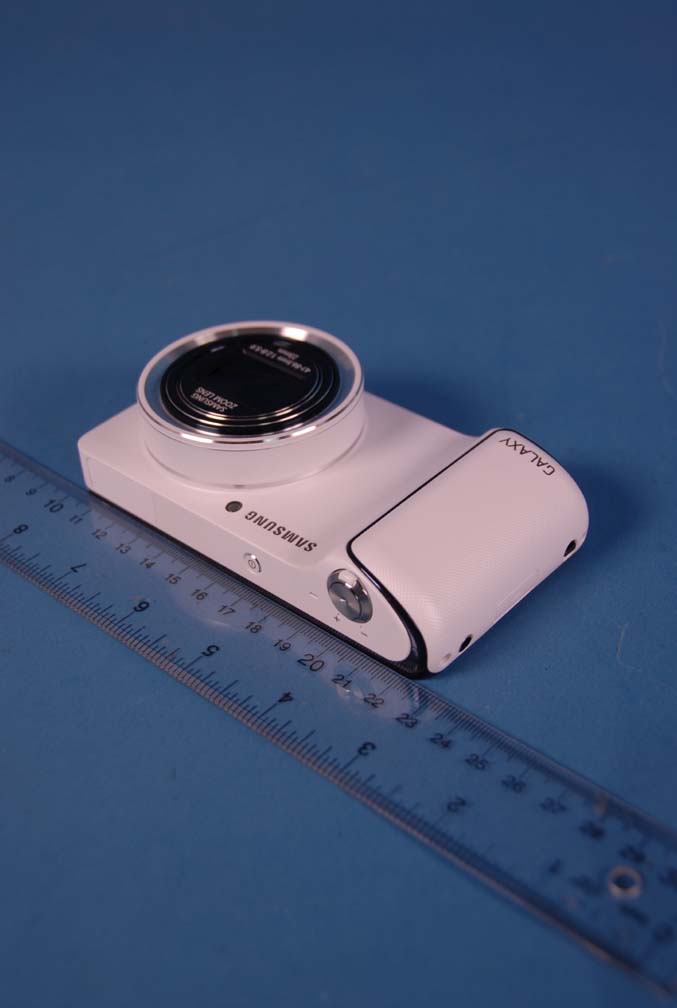

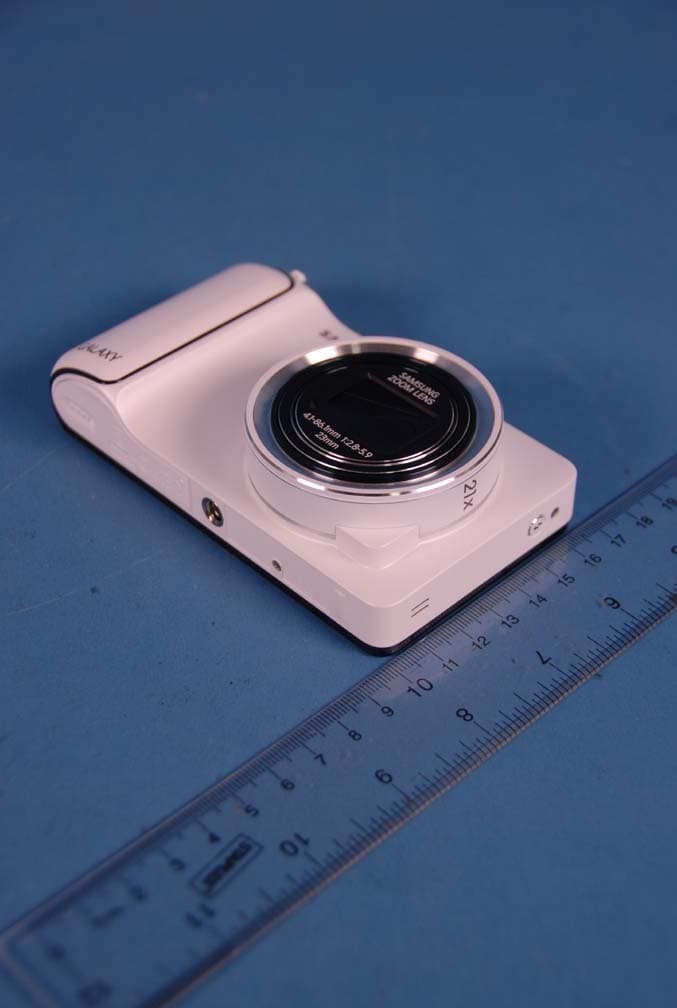

Samsung Electronics Co, Ltd. FCC ID: A3LEKGC100A Model: EK-GC100A External Photos EUT Type: Portable Camera Page 1 of 4 © 2012 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung Electronics Co, Ltd. FCC ID: A3LEKGC100A Model: EK-GC100A External Photos EUT Type: Portable Camera Page 2 of 4 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co, Ltd. FCC ID: A3LEKGC100A Model: EK-GC100A External Photos EUT Type: Portable Camera Page 3 of 4 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co, Ltd. FCC ID: A3LEKGC100A Model: EK-GC100A External Photos EUT Type: Portable Camera Page 4 of 4 © 2012 PCTEST Engineering Laboratory Inc.

Label and Location Samsung Phone Model : EK-GC100 FCC ID: A3LEKGC100A Label1: Label2(imprinted battery cover): Location: Label is placed on bottom of the device

Samsung Electronics Co, Ltd. FCC ID: A3LEKGC100A Model: EK-GC100A Internal Photos EUT Type: Portable Camera Page 1 of 7 © 2012 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung Electronics Co, Ltd. FCC ID: A3LEKGC100A Model: EK-GC100A Internal Photos EUT Type: Portable Camera Page 2 of 7 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co, Ltd. FCC ID: A3LEKGC100A Model: EK-GC100A Internal Photos EUT Type: Portable Camera Page 3 of 7 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co, Ltd. FCC ID: A3LEKGC100A Model: EK-GC100A Internal Photos EUT Type: Portable Camera Page 4 of 7 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co, Ltd. FCC ID: A3LEKGC100A Model: EK-GC100A Internal Photos EUT Type: Portable Camera Page 5 of 7 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co, Ltd. FCC ID: A3LEKGC100A Model: EK-GC100A Internal Photos EUT Type: Portable Camera Page 6 of 7 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics Co, Ltd. FCC ID: A3LEKGC100A Model: EK-GC100A Internal Photos EUT Type: Portable Camera Page 7 of 7 © 2012 PCTEST Engineering Laboratory Inc.

FCC ID: A3LEKGC100A SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: 8/24/12 - 8/27/12. EUT Type: Page 1 of 29 0Y1210031460-R1.A3L 10/04/12 - 10/11/12 Portable Camera © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 08/24/12 - 08/27/12 and 10/04/12 - 10/11/12 416, Maetan 3-dong, Yeongtong-gu, Suwon-si Test Site/Location: Gyeonggi-do, 443-742 PCTEST Lab, Columbia, MD, USA Republic of Korea Document Serial No.: 0Y1210031460-R1.A3L FCC ID: A3LEKGC100A APPLICANT: SAMSUNG ELECTRONICS CO., LTD. EUT Type: Portable Camera Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093 EK-GC100 Hand SAR (W/kg) Body SAR (W/kg) 10 gram (0 mm) 1 gram (10 mm) WCDMA/HSPA 850826.40 - 846.60 MHz22.660.79 0.36 WCDMA/HSPA 19001852.4 - 1907.6 MHz22.723.15 1.10 2.4 GHz WLAN2412 - 2462 MHz15.630.18 0.03 5.8 GHz WLAN5745 - 5825 MHz11.810.260.21 5.2 GHz WLAN5180 - 5240 MHz11.660.390.18 5.3 GHz WLAN5260 - 5320 MHz11.680.650.30 5.5 GHz WLAN5500 - 5700 MHz12.030.600.39 Bluetooth2402 - 2480 MHz10.53 1.12 N/A Band & ModeTx Frequency Conducted Power [dBm] Simultaneous SAR per KDB 690783 D01: Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This revised Test Report (S/N: 0Y1210031460-R1.A3L) supersedes and replaces the previously issued test report on the same subject EUT for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LEKGC100A SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: 8/24/12 - 8/27/12. EUT Type: Page 2 of 29 0Y1210031460-R1.A3L 10/04/12 - 10/11/12 Portable Camera © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 INTRODUCTION ............................................................................................................................. 5 3 SAR MEASUREMENT SETUP ....................................................................................................... 6 4 DOSIMETRIC ASSESSMENT ........................................................................................................ 7 5 FCC RF EXPOSURE LIMITS .......................................................................................................... 8 6 SAR TESTING PROCEDURES ...................................................................................................... 9 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 10 8 RF CONDUCTED POWERS ......................................................................................................... 12 9 SYSTEM VERIFICATION .............................................................................................................. 15 10 SAR DATA SUMMARY ................................................................................................................. 17 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 21 12 EQUIPMENT LIST ......................................................................................................................... 23 13 MEASUREMENT UNCERTAINTIES ............................................................................................ 25 14 CONCLUSION ............................................................................................................................... 27 15 REFERENCES .............................................................................................................................. 28 FCC ID: A3LEKGC100A SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: 8/24/12 - 8/27/12. EUT Type: Page 3 of 29 0Y1210031460-R1.A3L 10/04/12 - 10/11/12 Portable Camera © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 1 DEVICE UNDER TEST 1.1 Device Overview WCDMA/HSPA 850826.40 - 846.60 MHz WCDMA/HSPA 19001852.4 - 1907.6 MHz 2.4 GHz WLAN2412 - 2462 MHz 5.8 GHz WLAN5745 - 5825 MHz 5.2 GHz WLAN5180 - 5240 MHz 5.3 GHz WLAN5260 - 5320 MHz 5.5 GHz WLAN5500 - 5700 MHz Bluetooth2402 - 2480 MHz Band & ModeTx Frequency 1.2 EUT Antenna Locations Figure 1-1 EUT Antenna Locations Table 1-1 Sides for SAR Testing Mode Back Front Top Bottom Right Left WCDMA 850 Yes Yes No Yes No Yes WCDMA 1900 Yes Yes No Yes No Yes 2.4 GHz WLAN Yes Yes Yes No No Yes 5 GHz WLAN Yes Yes Yes No No Yes Note: Particular EUT edges were not required to be eval…

Text truncated - open the document above for the full version.

© 2012 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION

FCC ID: A3LEKGC100A FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 84 0Y1210031463.A3L 9/4 - 9/6/12, 9/20/12 Portable Camera © 2012 PCTEST Engineering Laboratory, Inc. REV 1.1U40 06/27/12 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 9/4 - 9/6/12, 9/20/12 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab, Columbia, MD, USA 443-742 , Republic of Korea Test Report Serial No.: 0Y1210031463.A3L FCC ID: A3LEKGC100A IC CERTIFICATION NO.: 649E-EKGC100 APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model(s): EK-GC100 EUT Type: Portable Camera FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 IC Specification(s): RSS-210 Issue 8 Test Procedure(s): ANSI C63.10-2009, KDB 789033 Max. Power (mW) Max. Power (dBm) 1205180 - 524015.111.79 2205260 - 532015.311.85 3205500 - 570016.412.16 1205180 - 524014.911.73 2205260 - 532015.011.76 3205500 - 570016.112.06 1405190 - 523014.211.52 2405270 - 531014.011.46 3405510 - 567012.510.96 Conducted Power Mode Tx Frequency (MHz) UNII Band 802.11n Channel Bandwidth (MHz) 802.11a 802.11n This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2009 and KDB789033. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 / IC RSS-210 802.11a/n (UNII) FCC ID: A3LEKGC100A FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 84 0Y1210031463.A3L 9/4 - 9/6/12, 9/20/12 Portable Camera © 2012 PCTEST Engineering Laboratory, Inc. REV 1.1U40 06/27/12 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ........................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION ..................................................................................................................... 5 2.2 DEVICE CAPABILITIES ............................................................................................................................. 5 2.3 TEST CONFIGURATION ........................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS .................................................................................. 5 2.5 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ..................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS ......................................................................................................... 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 26DB BANDWIDTH MEASUREMENT – 802.11A/N ................................................................................ 11 6.3 UNII OUTPUT POWER MEASUREMENT – 802.11A/N .......................................................................... 25 6.4 PEAK POWER SPECTRAL DENSITY – 802.11A/N ................................................................................ 27 6.5 PEAK EXCURSION RATIO – 802.11A/N ................................................................................................. 42 6.6 FREQUENCY STABILITY ........................................................................................................................ 57 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS .......................................................................... 60 6.8 RADIATED B…

Text truncated - open the document above for the full version.

FCC ID: A3LEKGC100A FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 27 of 84 0Y1210031463.A3L 9/4 - 9/6/12, 9/20/12 Portable Camera © 2012 PCTEST Engineering Laboratory, Inc. REV 1.1U40 06/27/12 6.4 Peak Power Spectral Density – 802.11a/n §15.407 (a)(1),(5) / RSS-210 [A9.2] The spectrum analyzer was connected to the antenna terminal while the EUT was operating in a continuous transmission mode at the appropriate center frequencies. Method SA-1, as defined in KDB 789033, was used to measure the power spectral density. The maximum achievable duty cycle was found to be 93.5%. A video trigger over 100 traces was used to ensure that average measurements were made only at times during which the transmitter was at its maximum power level. The minimum number of sweep points required to ensure that the bin-to-bin spacing is such that narrowband emissions are not lost is equal to 2 x Span / RBW = 2 x 20MHz / 1MHz = 40 sweep points. The maximum permissible peak power spectral density is 4dBm/MHz in the 5.15GHz – 5.25GHz band and 11dBm/MHz in the 5.25GHz – 5.35 GHz and 5.47 – 5.725GHz bands. Figure 6-3. Test Instrument & Measurement Setup FCC ID: A3LEKGC100A FCC Pt. 15.407 …

Text truncated - open the document above for the full version.
