A3LEKGC120Portable Camera with LTE, WLAN and Bluetooth

www.samsung.com User Manual EK-GC100 EK-GC120 2 About this manual This device provides high quality mobile communication and entertainment using Samsung’s high standards and technological expertise. This user manual is specially designed to detail the device’s functions and features. r
Please read this manual before using the device to ensure safe and proper use. r
Descriptions in this manual are based on the device’s default settings. r
Images and screenshots used in this manual may differ in appearance from the actual product. r
Content in this manual may differ from the final product, or from software provided by service providers or carriers, and is subject to change without prior notice. For the latest version of the manual, refer to the Samsung website, www.samsung.com. r
Available features and additional services may vary by device, software, or service provider. r
Applications and their functions may vary by country, region, or hardware specifications. Samsung is not liable for performance issues caused by third-party applications. r
Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or applications to work improperly. r
Software, sound sources, wallpapers, images, and other media provided with this device are licenced for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Samsung is not liable for such copyright infringement by the user. r
You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services. To avoid additional charges, select an appropriate data tariff plan. For details, contact your service provider. About this manual 3 Instructional icons Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to your device or other equipment Note: notes, usage tips, or additional information Copyright Copyright © 2012 Samsung Electronics This manual is protected under international copyright laws. No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. Trademarks r
SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics. r
The Android logo, Google ™ , Google Maps ™ , Google Mail ™ , YouTube ™ , Google Play ™ Store, and Google Talk ™ are trademarks of Google, Inc. r
Bluetooth ® is a registered trademark of Bluetooth SIG, Inc. worldwide. r
Windows Media Player ® is a registered trademark of Microsoft Corporation. r
HDMI, the HDMI logo and the term “High Definition Multimedia Interface” are trademarks or registered trademarks of HDMI Licensing LLC. r
Wi-Fi ® , the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. r
All other trademarks and copyrights are the property of their respective owners. About this manual 4 DivX ® , DivX Certified ® , and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under licence. ABOUT DIVX VIDEO DivX ® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified ® device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND This DivX Certified ® device must be registered in order to play purchased DivX Video-on- Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. DivX Certified ® to play DivX ® video up to HD 720p, including premium content. 5 Table of Contents Getting started 7 Device layout 8 Buttons 9 Package contents 10 Installing the SIM or USIM card and battery 13 Charging the battery 15 Inserting a memory card 17 Turning the device on and off 17 Holding the device 18 Locking and unlocking the device 18 Adjusting the volume 18 Switching to silent mode Basics 19 Indicator icons 20 Using the touch screen 22 Control motions 24 Notifications 25 Home screen 27 Using applications 27 Applications screen 29 Entering text 30 Connecting to a Wi-Fi network 31 Setting up accounts 32 Transferring files 34 Securing the device 35 Upgrading the device Media 36 Camera 46 Gallery 48 Photo Editor 51 Video Player 52 Video Maker 54 Music Player 55 YouTube 56 Instagram Communication 57 Contacts 60 Email 61 Google Mail 62 Talk 63 ChatON 64 Google+ 64 Messenger Web & network 65 Internet 66 Chrome 68 Bluetooth 69 AllShare Play Table of Contents 6 Settings 86 About Settings 86 Wi-Fi 87 Bluetooth 87 Share and transfer 88 More settings 89 Sound 90 Display 90 Lock screen 91 More settings 91 Data usage 91 Storage 92 Battery 92 Applications manager 92 Power 92 Add account 92 Cloud 93 Accessibility 93 Motion 94 Voice 95 Accessory 96 More settings Troubleshooting Application & media stores 70 Play Store 71 Samsung Apps 71 S Suggest 72 Game Hub 72 Play Books 72 Play Movies Utilities 73 Memo 74 S Planner 76 Dropbox 76 Clock 78 Calculator 79 Voice Recorder 80 S Voice 80 Google 81 Voice Search 81 Task manager 82 My Files 82 Downloads Travel & local 83 Maps 84 Local 85 Latitude 85 Navigation 7 Getting started Device layout Lens Flash Zoom button Shutter button AF-assist light Power button Flash release GPS antenna Main antenna Flap Tripod mount HDMI port Speaker Microphone Touch screen Headset jack Multipurpose jack Getting started 8 The microphone at the top of the device is active only when you use the voice search or take videos. r
Do not cover the antenna area with your hands or other objects. This may cau…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: November 1, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LEKGC120 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea November 7, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3L EKGC120 Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible on the bottom at the time of purchase . The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

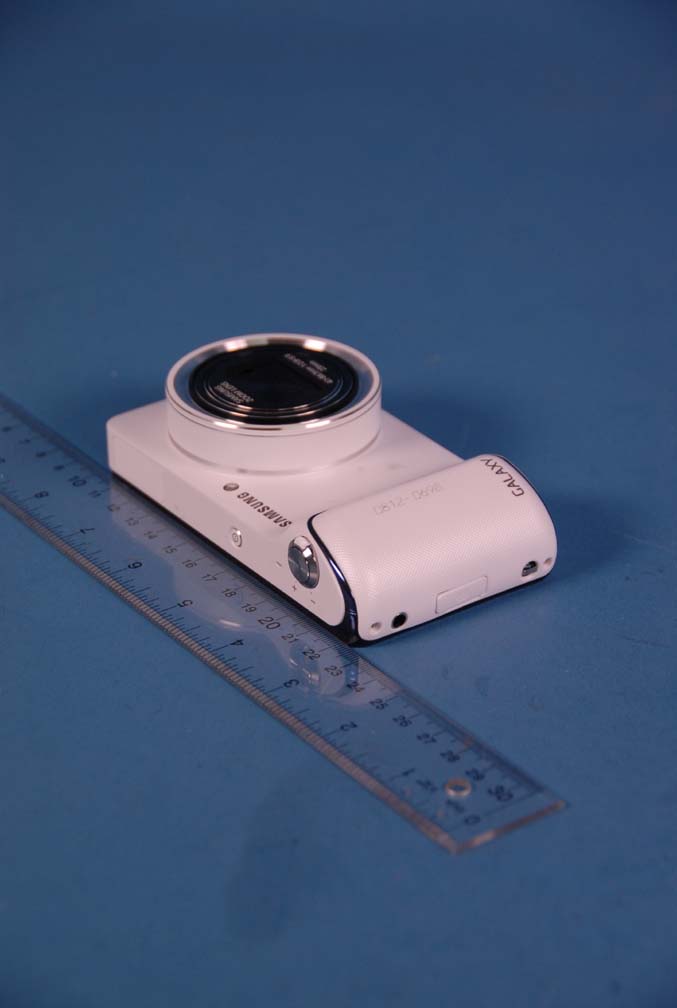

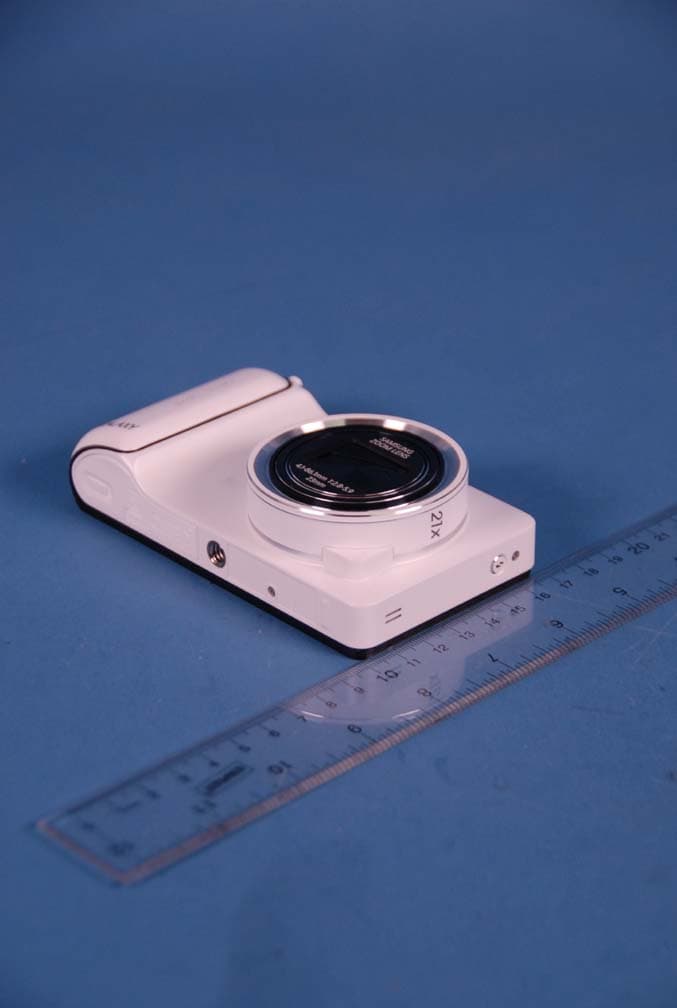

Samsung FCC ID: A3LEKGC120 Model: EK-GC120 External Photos EUT Type: Portable Camera Page 1 of 3 © 2012 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung FCC ID: A3LEKGC120 Model: EK-GC120 External Photos EUT Type: Portable Camera Page 2 of 3 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LEKGC120 Model: EK-GC120 External Photos EUT Type: Portable Camera Page 3 of 3 © 2012 PCTEST Engineering Laboratory Inc.

Label and Location Samsung Phone Model : EK-GC120 FCC ID : A3LEKGC120 Label Location Label is placed on bottom of the device

Samsung FCC ID: A3LEKGC120 Model: EK-GC120 Internal Photos EUT Type: Portable Camera Page 1 of 6 © 2012 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung FCC ID: A3LEKGC120 Model: EK-GC120 Internal Photos EUT Type: Portable Camera Page 2 of 6 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LEKGC120 Model: EK-GC120 Internal Photos EUT Type: Portable Camera Page 3 of 6 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LEKGC120 Model: EK-GC120 Internal Photos EUT Type: Portable Camera Page 4 of 6 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LEKGC120 Model: EK-GC120 Internal Photos EUT Type: Portable Camera Page 5 of 6 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LEKGC120 Model: EK-GC120 Internal Photos EUT Type: Portable Camera Page 6 of 6 © 2012 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: A3LEKGC120 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1210311555-R4.A3L 11/05/12 – 11/07/12 Portable Camera Page 1 of 33 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 11/05/12 - 11/07/12 416, Maetan 3-dong, Yeongtong-gu, Suwon-si Test Site/Location: Gyeonggi-do, 443-742 PCTEST Lab, Columbia, MD, USA Republic of Korea Document Serial No.: 0Y1210311555-R4.A3L F C C I D : A3 L E K G C1 2 0 AP P L I C AN T : S AMS UNG E LE CT RO NI CS CO ., LT D. DUT Type: Portable Camera Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model: EK-GC120 Hand SAR (W/kg) Body SAR (W/kg) 10 gram (0 mm) 1 gram (10 mm) LTE Band 13782 MHz23.211.661.05 2.4 GHz WLAN2412 - 2462 MHz17.110.740.30 5.8 GHz WLAN5745 - 5825 MHz14.061.420.59 5.2 GHz WLAN5180 - 5240 MHz13.740.410.27 5.3 GHz WLAN5260 - 5320 MHz13.560.550.29 5.5 GHz WLAN5500 - 5700 MHz13.961.090.56 Bluetooth2402 - 2480 MHz9.44 1.45 N/A Simultaneous SAR per KDB 690783 D01: Band & ModeTx Frequency Conducted Power [dBm] Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. Note: This revised Test Report (S/N: 0Y1210311555-R4.A3L) supersedes and replaces the previously issued test report on the same subject DUT for the same type of testing as indicated. Please discard or destroy the previously issued test report (S/N: 0Y1210311555-R3.A3L) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT Reviewed by: FCC ID: A3LEKGC120 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1210311555-R4.A3L 11/05/12 – 11/07/12 Portable Camera Page 2 of 33 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 T A B L E O F C O N T E N T S 1 DEVICE UNDER TEST ....................................................................................................................3 2 LTE CHECKLIST PER KDB 941225 D05 ........................................................................................5 3 INTRODUCTION ..............................................................................................................................6 4 SAR MEASUREMENT SETUP ........................................................................................................7 5 DOSIMETRIC ASSESSMENT .........................................................................................................9 6 FCC RF EXPOSURE LIMITS.........................................................................................................10 7 SAR TESTING PROCEDURES .....................................................................................................11 8 FCC MEASUREMENT PROCEDURES.........................................................................................12 9 RF CONDUCTED POWERS..........................................................................................................14 10 SYSTEM VERIFICATION...............................................................................................................18 11 SAR DATA SUMMARY ..................................................................................................................20 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS..........................................................25 13 EQUIPMENT LIST..........................................................................................................................28 14 MEASUREMENT UNCERTAINTIES .............................................................................................29 15 CONCLUSION................................................................................................................................31 16 REFERENCES ...............................................................................................................................32 Reviewed by: FCC ID: A3LEKGC120 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1210311555-R4.A3L 11/05/12 – 11/07/12 Portable Camera Page 3 of 33 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 1 D E V I C E U N D E R T E S T 1.1 Device Overview LTE Band 13782 MHz 2.4 GHz WLAN2412 - 2462 MHz 5.8 GHz WLAN5745 - 5825 MHz 5.2 GHz WLAN5180 - 5240 MHz 5.3 GHz WLAN5260 - 5320 MHz 5.5 GHz WLAN5500 - 5700 MHz Bluetooth2402 - 2480 MHz Band & ModeTx Frequency 1.2 DUT Antenna Locations Figure 1-1 DUT Antenna Locations Table 1-1 Sides for SAR Testing ModeBac kFron tTopB ottomRigh tLe ft LTE Ban d 1 3Ye sYe sN oYe sNoYe s 2 .4 GHz WLANYe sYe sYe sN oNoYe s 5 GH z WLANYe sYe sYe sN oNoYe s Note: Particular EUT edges were not required to be evaluated for SAR if the edges were greate…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LEKGC120 FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210311558.A3L Novemer 1-8, 2012 Portable Camera Page 1 of 78 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.5U40 11/08/12 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. Novemer 1-8, 2012 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab, Columbia, MD, USA 443-742 , Republic of Korea Test Report Serial No.: 0Y1210311558.A3L FCC ID: A3LEKGC120 APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model(s): EK-GC120 EUT Type: Portable Camera FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 IC Specification(s): RSS-210 Issue 8 Test Procedure(s): ANSI C63.10-2009, KDB 789033 v01r02 Max. Power (mW) Max. Power (dBm) 1205180 - 524024.15513.83 2205260 - 532023.55013.72 3205500 - 570025.35114.04 1205180 - 524020.27713.07 2205260 - 532019.54312.91 3205500 - 570020.79713.18 1405190 - 523021.18413.26 2405270 - 531021.33013.29 3405510 - 567018.57812.69 802.11n Channel Bandwidth (MHz) 802.11a 802.11n Conducted Power Mode Tx Frequency (MHz) UNII Band This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2009 and KDB 789033. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 / IC RSS-210 802.11a/n (UNII) Reviewed by: FCC ID: A3LEKGC120 FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210311558.A3L Novemer 1-8, 2012 Portable Camera Page 2 of 78 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.5U40 11/08/12 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 DEVICE CAPABILITIES ............................................................................................................................. 5 2.3 TEST CONFIGURATION ........................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.5 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS......................................................................................................... 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 26DB BANDWIDTH MEASUREMENT – 802.11A/N................................................................................ 11 6.3 UNII OUTPUT POWER MEASUREMENT – 802.11A/N .......................................................................... 25 6.4 PEAK POWER SPECTRAL DENSITY – 802.11A/N................................................................................ 27 6.5 PEAK EXCURSION RATIO – 802.11A/N................................................................................................. 42 6.6 FREQUENCY STABILITY ........................................................................................................................ 45 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 48 6.8 RADIATED BAND EDGE MEASUREMENTS (20MHZ BW) ....…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LEKGC120 FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210311558.A3L Novemer 1-8, 2012 Portable Camera Page 27 of 78 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.5U40 11/08/12 6.4 Peak Power Spectral Density – 802.11a/n §15.407 (a)(1),(5) / RSS-210 [A9.2] The spectrum analyzer was connected to the antenna terminal while the EUT was operating in a continuous transmission mode at the appropriate center frequencies. Method SA-1, as defined in KDB 789033, was used to measure the power spectral density. For 20MHz bandwidth signals, the maximum achievable duty cycle was found to be 93.5%. A video trigger was used to ensure that average measurements were made only at times during which the transmitter was at its maximum power level. The minimum number of sweep points required to ensure that the bin-to-bin spacing is such that narrowband emissions are not lost is equal to 2 x Span / RBW = 2 x 20MHz / 1MHz = 40 sweep points. For 40MHz bandwidth signals, the maximum achievable duty cycle was found to be 86%. A suitable video trigger level could not be found to satisfy the condition of continuous operation required for use of Method SA-1 per KDB 789033 so the analyzers’ gating function was used instead. The spectrum analyzer was set to use an internal “RF Burst” trigger which syncs the analyzer with an incoming pulse from the EUT. Once the analyzer is triggered on a pulse, the gate delay and gate length are set up to ensure average measurements are recorded only during times in which the transmitter is operating at its maximum power with no blanking intervals. The minimum number of sweep points required to ensure that the bin-to-bin spacing is such that narrowband emissions are not lost is equal to 2 x Span / RBW = 2 x 40MHz / 1MHz = 80 sweep points. The maximum permissible peak power spectral density is 4dBm/MHz in the 5.15GHz – 5.25GHz band and 11dBm/MHz in the 5.25GHz – 5.35 GHz and 5.47 – 5.725GHz bands. Figure 6-3. Test Instrument & Measurement Setup Reviewed by: FCC ID: A3LEKGC120 FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210311558.A3L Novemer 1-8, 2012 Portable Camera Page 28 of 78 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.5U40 11/08/12 518036a62.2394.0-1.76 520040a61.7964.0-2.20 524048a61.7814.0-2.22 518036 n (20MHz)6.5/7.2 (MCS0) 2.0184.0-1.98 520040 n (20MHz)6.5/7.2 (MCS0) 1.7194.0-2.28 524048 n (20MHz)6.5/7.2 (MCS0) 1.6534.0-2.35 519038 n (40MHz)13.5/15 (MCS0) -0.3394.0-4.34 523046 n (40MHz)13.5/15 (MCS0) -0.6794.0-4.68 526052a61.46511.0-9.54 528056a61.26811.0-9.73 532064a60.87011.0-10.13 526052 n (20MHz)6.5/7.2 (MCS0) 1.55611.0-9.44 528056 n (20MHz)6.5/7.2 (MCS0) 1.71211.0-9.29 532064 n (20MHz)6.5/7.2 (MCS0) 1.24611.0-9.75 527054 n (40MHz)13.5/15 (MCS0) -0.31211.0-11.31 531062 n (40MHz)13.5/15 (MCS0) -0.53711.0-11.54 5500100a61.79411.0-9.21 5580116a61.31211.0-9.69 5700140a61.19111.0-9.81 5500100 n (20MHz)6.5/7.2 (MCS0) 2.36511.0-8.64 5580116 n (20MHz)6.5/7.2 (MCS0) 1.68711.0-9.31 5700140 n (20MHz)6.5/7.2 (MCS0) 1.55111.0-9.45 5510102 n (40MHz)13.5/15 (MCS0) -0.82511.0-11.83 5550110 n (40MHz)13.5/15 (MCS0) -1.05011.0-12.05 5670134 n (40MHz)13.5/15 (MCS0) -1.57911.0-12.58 Band I Band II Band III Measured Power Density [dBm] Max Permissible Power Density [dBm/MHz] Margin [dB] Frequency [MHz] Channel No. Data Rate [Mbps] 802.11 Mode Table 6-6. Conducted Power Spectral Density Measurements Reviewed by: FCC ID: A3LEKGC120 FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210311558.A3L Novemer 1-8, 2012 Portable Camera Page 29 of 78 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.5U40 11/08/12 Plot 6-26. Peak Power Spectral Density Plot (802.11a (UNII Band 1) – Ch. 36) Plot 6-27. Peak Power Spectral Density Plot (802.11a (UNII Band 1) – Ch. 40) Reviewed by: FCC ID: A3LEKGC120 FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210311558.A3L Novemer 1-8, 2012 Portable Camera Page 30 of 78 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.5U40 11/08/12 Plot 6-28. Peak Power Spectral Density Plot (802.11a (UNII Band 1) – Ch. 48) Plot 6-29. Peak Power Spectral Density Plot (20MHz BW 802.11n (UNII Band 1) – Ch. 36) Reviewed by: FCC ID: A3LEKGC120 FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210311558.A3L Novemer 1-8, 2012 Portable Camera Page 31 of 78 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.5U40 11/08/12 Plot 6-30. Peak Power Spectral Density Plot (20MHz BW 802.11n (UNII Band 1) – Ch. 40) Plot 6-31. Peak Power Spectral Density Plot (20MHz BW 802.11n (UNII Band 1) – Ch. 48) Reviewed by: FCC ID: A3LEKGC120 FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210311558.A3L Novemer 1-8, 2012 Portable Camera Page 32 of 78 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.5U40 11/08/12 Plot 6-32. Peak Power Spectral Density Plot (40MHz BW 802.11n (UNII Band 1) – Ch. 38) Plot 6-33. Peak Power Spectral Density Plot (40MHz BW 802.11n (UNII Band 1) – Ch. 46) Reviewed by: FCC ID: A3LEKGC120 FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210311558.A3L Novemer 1-8, 2012 Portable Camera Page 33 of 78 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.5U40 11/08/12 Plot 6-34. Peak Power Spectral Density Plot (802.11a (UNII Band 2) – Ch. 52) Plot 6-35. Peak Power Spectral Density Plot (802.11a (UNII Band 2) – Ch. 56) Reviewed by: FCC ID: A3LEKGC120 FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210311558.A3L Novemer 1-8, 2012 Portable Camera Page 34 of 78 © 2012 PCTEST Engineering Lab…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LEKGC120 FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1210311559.A3L Novemer 1-8, 2012 Portable Camera Page 1 of 22 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.5DFS 9/14/12 Company Name: Date of Testing: Samsung Electronics Co., Ltd. Novemer 1-8, 2012 416 Maetan 3-Dong, Yeongtong-gu Test Site/Location: Suwon-si, Gyeonggi-do PCTEST Lab. Columbia, MD, USA 443-742 , Republic of Korea Test Report Serial No.: 0Y1210311559.A3L FCC ID: A3LEKGC120 COMPANY: Samsung Electronics Co., Ltd. Model(s): EK-GC120 EUT Type: Portable Camera Type of Device: Client Only Device, No Radar Detection Capability Frequency Range: 5260 – 5320 MHz (UNII-II Band) 5500 – 5700 MHz (UNII-III Band) Output Power: 23.550 mW (13.72 dBm) Conducted (802.11a UNII Band II) 25.351 mW (14.04 dBm) Conducted (802.11a UNII Band III) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407(UNII) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 06-96 Appendix B Compliance Measurement Procedures for Unlicensed-National Information Infrastructure Devices Operating in the 5.25 – 5.35 GHz and 5.47 – 5.725 GHz Bands Incorporating Dynamic Frequency Selection. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that include…

Text truncated - open the document above for the full version.
