A3LEKGC200Digital Camera

www.samsung.com User Manual EK-GC200 2 About this manual This device provides high quality mobile communication and entertainment using Samsung’s high standards and technological expertise. This user manual is specially designed to detail the device’s functions and features. r
Please read this manual before using the device to ensure safe and proper use. r
Descriptions are based on the device’s default settings. r
Images and screenshots may differ in appearance from the actual product. r
Content may differ from the final product, or from software provided by service providers or carriers, and is subject to change without prior notice. For the latest version of the manual, refer to the Samsung website, www.samsung.com. r
Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Applications related to the content may not work properly depending on the device’s specifications and the environment that it is used in. r
Available features and additional services may vary by device, software, or service provider. r
Applications and their functions may vary by country, region, or hardware specifications. Samsung is not liable for performance issues caused by applications from any provider other than Samsung. r
Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or applications to work improperly. r
Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. r
You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services. To avoid additional charges, select an appropriate data tariff plan. For details, contact your service provider. About this manual 3 r
Default applications that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an application provided with the device, contact a Samsung Service Centre. For user-installed applications, contact service providers. r
Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. Instructional icons Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to your device or other equipment Note: notes, usage tips, or additional information Copyright Copyright © 2013 Samsung Electronics This guide is protected under international copyright laws. No part of this guide may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. About this manual 4 Trademarks r
SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics. r
The Android logo, Google ™ , Google Maps ™ , Google Mail ™ , YouTube ™ , Google Play ™ Store, and Google Talk ™ are trademarks of Google, Inc. r
Bluetooth ® is a registered trademark of Bluetooth SIG, Inc. worldwide. r
Wi-Fi ® , Wi-Fi Protected Setup ™ , Wi-Fi Direct ™ , Wi-Fi CERTIFIED ™ , and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. r
All other trademarks and copyrights are the property of their respective owners. 5 Table of Contents Getting started 8 Device layout 9 Buttons 10 Package contents 11 Installing the SIM or USIM card and battery 14 Charging the battery 16 Inserting a memory card 18 Attaching a hand strap 19 Turning the device on and off 19 Holding the device 20 Locking and unlocking the device 20 Adjusting the volume 20 Switching to silent mode Basics 21 Indicator icons 22 Using the touch screen 25 Control motions 28 Notifications 28 Quick setting panel 29 Home screen 32 Locked screen 33 Using applications 34 Applications screen 35 Help 35 Entering text 37 Connecting to a Wi-Fi network 38 Setting up accounts 39 Transferring files 40 Securing the device 42 Upgrading the device Communication 43 Contacts 46 Email 48 Google Mail 49 Hangouts 49 Google+ 50 Messenger 50 ChatON Web & network 51 Internet 52 Chrome 53 Bluetooth 54 Screen Mirroring 55 Samsung Link 56 Group Play 57 NFC 58 S Beam 58 WatchON Table of Contents 6 92 Focus area 92 Face detection 93 Photo size 93 Quality 93 Auto contrast 93 Adjust image 94 Timer 94 OIS (anti-shake) 95 Video recording options 95 Sharing options 96 Camera settings Media 98 Gallery 101 Paper Artist 102 Video 103 Video Editor 104 Story Album 106 Music 108 YouTube 109 Flipboard 110 Photo Suggest Application & media stores 111 Play Store 112 Samsung Hub 112 Samsung Apps 113 Play Music Camera: Basic functions 60 Launching Camera 62 Taking photos 62 Taking videos 63 Viewing photos and videos 63 Using the zoom ring 64 Taking photos or videos with voice commands 65 Taking photos or videos with filter effects 65 Changing shooting options quickly 66 Reducing camera shake 66 Using face detection 67 Tips for taking clearer photos Camera: Shooting modes 71 Auto 72 Expert 74 Smart 85 My mode Camera: Shooting options and settings 86 Customising shooting options 86 EV (brightness) 87 ISO (sensitivity) 88 WB (light source) 89 Metering 90 Drive mode 91 Flash 91 Focus mode Table of Contents 7 Utilities 114 S Memo 117 S Planner 119 Dropbox 120 Cloud 121 Clock 123 Calculator 123 S Translator 124 Voice Recorder 125 S Voice 126 Google 127 Voice Search 127 My Files 128 Downloads 128 TripAdvisor Travel & local 129 Maps 130 Local 131 Navigation Sett…

Text truncated - open the document above for the full version.

Date: December 20th, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Charles. Kim (or Feel. Jeong) and of SGS Korea Co., Ltd and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Charles. Kim (or Feel. Jeong) of SGS Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a)comply with the relevant provisions of t he certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, in spection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which cert ification has been granted; d)do not use our product certification in such a manner as to bring the Certification Di vision into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or un authorized; e)upon suspension or cancellation of certification, discontinue use of all advertising m atter that contains any reference thereto and return any certification docume nts as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified st andards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a m isleading ma nner; h)ensure that any reference to our product certification in communication media such as docum ents, brochures or advertising, complies with the requirements of th e Certification Division ; i)kee p a record of all complaints made known to the us relating to the pro duct’s com pliance with requirements of the relevant standard and to make these record s avai lable to the Certification Division wh en requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certific ation; k)do cument the acti ons taken. Th is authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyu ng (Peter) Ra / General Manager Samsung Electronics Co., Ltd.

Date: December 20th, 2013 Feder al Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LEKGC200 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST 1Block Diagram 2Operational Descriptions Permanent 3Schematics 4External Photos 5Internal Photos 6Test-Setup Photos Short-Term 7User’s Manual The Applicant u nderstands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Sang Ky ung (Peter) Ra / General Manager Samsung Electronics Co., Ltd.

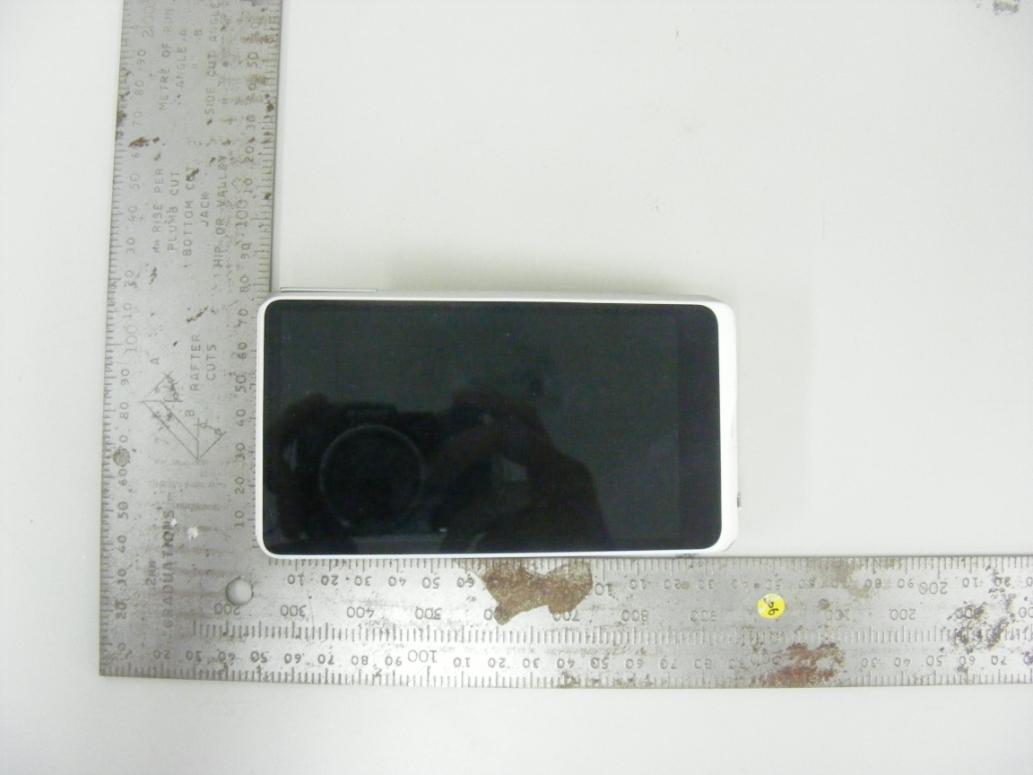

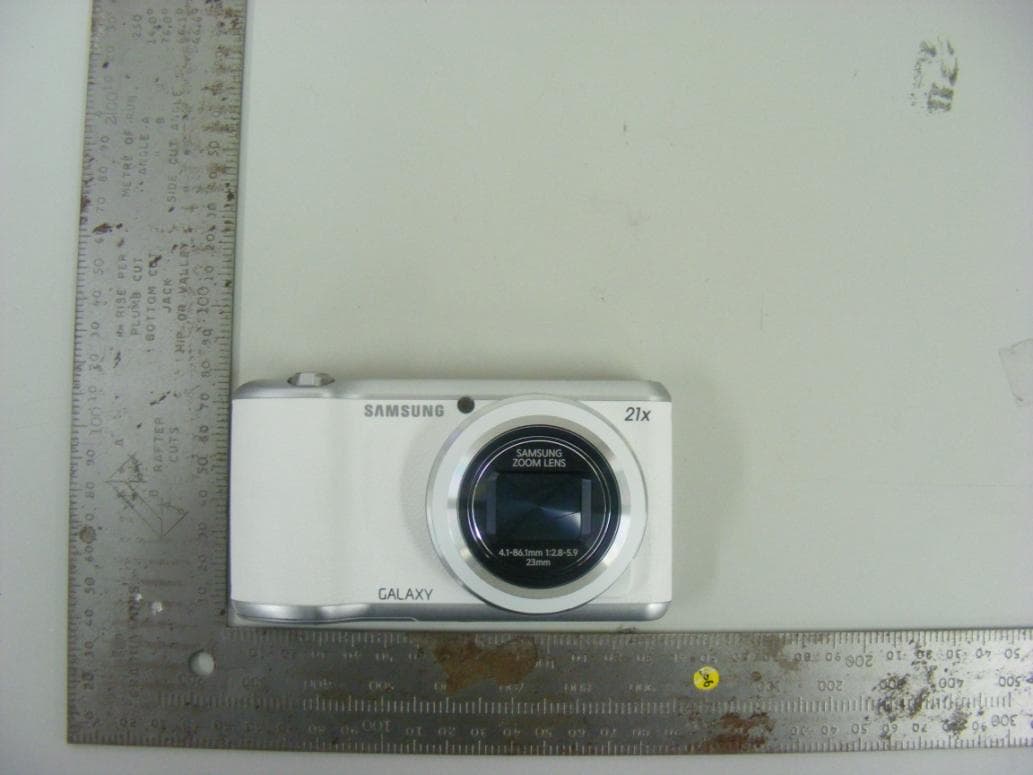

Model : EK-GC200 External photos of EUT Model : EK-GC200 Top view of EUT Bottom view of EUT Model : EK-GC200 Side view of EUT Model : EK-GC200 Front view of EUT Rear view of EUT Model : EK-GC200

FCC/IC Label 1.(1) FCC Label Drawing (2) FCC Label Location WB350F 2.(1) IC Label Drawing (2) IC Label Location

Model : EK-GC200 Internal photos of EUT Model : EK-GC200 Top view of EUT Model : EK-GC200 Top view of PCB Bottom view of PCB Model : EK-GC200 Top view of Lens Model : EK-GC200 Antenna

Report File No. : F690501/RF-SAR002141-A1 Date of Issue : 2013-12-25 Page : 1 / 95 éééé SAR TEST REPORT Equipment Under Test : Digital Camera Model No. : EK-GC200 Applicant : Samsung Electronics Co., Ltd. Address of Applicant : 129, Samsung-ro, Yeongtong-gu, Suwon-city, Gyeonggi-do, 443-742 Korea, Republic of FCC ID : A3LEKGC200 IC ID 649E-EKGC200 Device Category : Portable Device Exposure Category : General Population/Uncontrolled Exposure Date of Receipt : 2013-11-20 Date of Test(s) : 2013-12-12 ~ 2013-12-17 Date of Issue : 2013-12-25 Standards: FCC OET Bulletin 65 supplement C RSS-102 (Issue 4) IEEE 1528, 2003 ANSI/IEEE C95.1, C95.3 In the configuration tested, the EUT complied with the standards specified above. Remarks: Tested by : Minhyuk Han 2013-12-25 Approved by : Nicky You 2013-12-25 This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS Korea Co., Ltd. (Gunpo Laboratory) or testing done by SGS Korea Co., Ltd. (Gunpo Laboratory) in connection with distribution or use of the product described in this report must be approved by SGS Korea Co., Ltd. (Gunpo Laboratory) in writing. Report File No. : F690501/RF-SAR002141-A1 Date of Issue : 2013-12-25 Page : 2 / 95 éééé Contents 1. General Information 1.1 Testing Laboratory........................................................................................... 3 1.2 Details of Applicant.......................................................................................... 3 1.3 Version of Report............................................................................................. 3 1.4 Description of EUT(s)....................................................................................... 3 1.5 Nominal and Maximum Output Power Specifications................................................... 4 1.6 Test Environment............................................................................................. 4 1.7 Operation description........................................................................................ 4 1.8 Evaluation procedures....................................................................................... 4 1.9 SAR Measurement Procedures.............................................................................. 5 1.10 The SAR Measurement System............................................................................ 6 1.11 System Components.......................................................................................... 8 1.12 SAR System Verification.................................................................................... 10 1.13 Tissue Simulant Fluid for the Frequency Band.......................................................... 11 1.14 Test System Validation...................................................................................... 13 1.15 Test Standards and Limits................................................................................. 15 2. Instruments List.................................................................................... 15 3. Summary of Results................................................................................ 16 3.1 FCC Power Measurement Procedures............................................................... 16 3.2 Measured and Reported SAR...........................................................................16 3.3 RF Conducted Power.................................................................................... 16 3.4 Test Configuration.........................................................................................18 3.5 SAR Test Exclusions Applied...........................................................................19 3.6 SAR Data Summary.......................................................................................20 3.7 FCC Multi-TX SAR considerations...................................................................22 3.8 Repeated SAR Measurement............................................................................22 APPENDIX A. DASY4 SAR Report B. Uncertainty Analysis C. Calibration certificate Report File No. : F690501/RF-SAR002141-A1 Date of Issue : 2013-12-25 Page : 3 / 95 éééé 1. General Information 1.1 Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, 435-040, Korea Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 Homepage : All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx 1.2 Details of Manufacturer Manufacturer : Samsung Electronics Co., Ltd. Address : 129, Samsung-ro, Yeongtong-gu, Suwon-city, Gyeonggi-do, 443-742 Korea, Republic of Contact Person : Seungok-Ahn Phone No. : 82-31-277-4081 E-mail : [email protected] 1.3 Version of Report Version Number Date Revision 00 2013-12-19 Initial issue 01 2013-12-25 Revision 01 1.4 Description of EUT(s) EUT Type : Digital Camera Model : EK-GC200 Serial Number : GC200PV1-029 Mode of Operation : WLAN Duty Cycle : 1(WLAN) Body worn Accessory : None Tx Frequency Range : 2412 ~ 2462 (WLAN_11b/g/n) : 5180 ~ 5240 , 5260 ~ 5320 (WLAN_11a/n) : 5500 ~ 5700 , 5745 ~ 5825 (WLAN_11a/n) Battery Type : 3.7V d.c. (Lithum-ion Battery) Equipment Class Band Measured Conducted Power [m] Reported SAR 1g Body-Worn (W/kg) DTS 2.4 WLAN 12.25 1.367 NUII 5.2 WLAN 10.25 1.126 5.3 WLAN 9.92 0.721 5.5 WLAN 9.05 0.752 5.8 WLAN 9.16 0.747 Simultaneous SAR per KDB 6…

Text truncated - open the document above for the full version.

Report Number: F690501/RF-RTL007192 Page:2of69 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) INDEX Table of ContentsPage 1. General Information ---------------------------------------------------------------------------------3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ------7 3. 20㏈Bandwidth and 99% BW ------------------------------------------------------------------- 30 4. Maximum Peak Output Power -------------------------------------------------------------------42 5. Hopping Channel Separation ---------------------------------------------------------------------44 6. Number of Hopping Frequency ------------------------------------------------------------------47 7. Time of Occupancy(Dwell Time) -----------------------------------------------------------------51 8. Transmitter AC Power Line Conducted Emission -------------------------------------------64 9. Antenna Requirement ------------------------------------------------------------------------------69 Report Number: F690501/RF-RTL007192 Page:3of69 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory). - Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 (Lab) - Wireless Div. 1FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 (Chamber) All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No.:+82 31 428 5700 Fax No.:+82 31 427 2371 1.2. Details of Applicant Applicant:SAMSUNG ELECTRONICS CO., LTD. Address:129, Samsung-Ro, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, Korea Contact Person:Ahn, Seung-Ok Phone No.:+82 31 277 4081 1.3. Description of EUT Kind of Product SAMSUNG Digital Camera Model Name EK-GC200 Serial Number N/A Power Supply DC 3.7 V Frequency Range 2 402㎒~ 2 480㎒(BT, BT LE), 2 412㎒~ 2 462㎒(11b/g/n_HT20), 5 745㎒~ 5 825㎒(11a/n_HT20), 5 755㎒~ 5 795㎒(11n_HT40), 5 180㎒~ 5 240㎒(11a/n_HT20 – Non DFS), 5 190㎒~ 5 230㎒(11n_HT40 – Non DFS), 5 260㎒~ 5 320㎒(11a/n_HT20 – DFS), 5 270㎒~ 5 310㎒(11n_HT40 – DFS), 5 500㎒~ 5 700㎒(11a/n_HT20 – DFS), 5 510㎒~ 5 670㎒(11n_HT40 – DFS) Modulation Technique DSSS, OFDM, GFSK, π/4DQPSK, 8DPSK Number of Channels 11 channel (11b/g/n_HT20), 5 channel (11a/n_HT20), 2 channel (11n_HT40), 4 channel (11a/n_HT20–Non DFS), 2 channel (11n_HT40 – Non DFS), 15 channel (11a/n_HT20 – DFS), 7 channel (11n_HT40 – DFS), 79 channel (BT), 40 channel (BT LE) Antenna Type Internal type Antenna Gain 2 412㎒~ 2 462㎒: 2.59㏈i, 5 180㎒~ 5 320㎒: -0.37㏈i, 5 500㎒~ 5 700㎒: -1.15㏈i, 5 745㎒~ 5 825㎒: 0.18㏈i Report Number: F690501/RF-RTL007192 Page:4of69 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) 1.4. Declaration by the manufacturer - Adaptive Frequency Hopping is supported and use at least 20 channels 1.5. Information about the FHSS characteristics: 1.5.1. Pseudorandom Frequency Hopping Sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. 1.5.2. Equal Hopping Frequency Use All Bluetooth units participating in the piconet are time and hop-synchronized to the channel. 1.5.3. Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 1.5.4. System Receiver Input Bandwidth Each channel bandwidth is 1㎒ 1.5.5. Equipment Description 15.247(a)(1) that the rx input bandwidths shift frequencies in synchronization with the transmitted 15.247(g): In accordance with the Bluetooth Industry Standard, the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) system. 15.247(h): In accordance with the Bluetooth Industry Standard, the system does not coordinate it channels selection/ hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Report Number: F690501/RF-RTL007192 Page:5of69 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gu…

Text truncated - open the document above for the full version.

Test Setup Photographs Front Rear Right Edge EUT Photo Front Back Right Edge Left Edge To p Bottom Battery

Test setup photos of EUT A. The photo of Radiated Emission B. Transmitter AC Power Line Conducted Emission(BT) C. Transmitter AC Power Line Conducted Emission(WLAN)
