A3LEO-SB330Wireless Speaker

2013/10 Rev.1.0 Bluetooth speaker User manual www.samsung.com 2 Copyright Copyright © 2013 Samsung Electronics This guide is protected under international copyright laws. No part of this guide may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. • Please read this manual before using the device to ensure safe and proper use. • The illustrations in this user manual may differ from the actual device. Device specifications are subject to change without prior notice and this document may not have been updated to reflect these changes. • Bluetooth ® is a registered trademark of Bluetooth SIG, Inc. worldwide. 3 Device layout Front Status indicator [Play/Stop] button [Volume (-)] button [Volume (+)] button [Talk] button NFC antenna 4 Back [Pairing ( )] button [Power] switch Audio input jack Power connection jack • Check the product box for the wireless speaker, charger (USB power adapter, USB cable), 3.5 mm audio cable, and user manual. The items supplied with the device and available accessories may vary by region. • The status indicator is visible only when it is turned on. 5 Use only the battery charger supplied with the product. Using unapproved chargers may slow down the charging process or cause damage to the product. Charging the device This device has a built-in battery. Charge the battery completely before using the device for the first time or after it has not been used for an extended period. Connect the charger to the Bluetooth speaker and plug the power cord into the power outlet. 6 • To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The device should remain close to the electric socket while charging. • The socket-outlet shall be installed near the equipment and shall be easily accessible. • The status indicator turns red while the device is being charged. The status indicator turns blue when charging is complete. 7 • Battery run time is based on results of tests performed with factory default settings. • The battery charging time and run times may vary, depending on the usage environment. Charging time and standard run times (3,600 mAh) Charging time Approx. 2 hrs Standard run times Call time Approx. 15 hrs Play time Approx. 15 hrs Standby time Approx. 1,800 hrs 8 Charge level Indicator colour More than 80 % Blue 30–80 %Purple Less than 30 %Red Measuring the battery charge Press and hold the [Talk] and [Volume (-)] buttons simultaneously. The status indicator flashes 5 times in different colours, according the charge left in the battery. 9 • When the device is turned on, the status indicator flashes blue 4 times. • When the device is turned off, the status indicator turns blue and then flashes red before turning off. Turning the device on or off Slide the [Power] switch to turn the device on or off. When you turn on the device for the first time, it enters the Bluetooth pairing mode. 10 • The status indicator mode cannot be changed when the device is in the Bluetooth pairing mode. • The status indicator mode for turning the device on or off, alerting you to calls, entering the Bluetooth pairing mode, and alerting you to a low battery level cannot be disabled. Setting the status indicator When the device is turned on, the status indicator turns on or flashes in different colours, according to the status of the device. Press and hold the [Volume (+)] and [Volume (-)] buttons simultaneously to enable or disable the status indicator. • When the power is turned on, the status indicator flashes blue periodically. 11 When connecting for the first time, pair the wireless speaker with the other Bluetooth-enabled device. Keep the devices close to each other while pairing or using the wireless speaker. Instructions for Bluetooth connection or Bluetooth connection via NFC may vary by device. Refer to the device’s user manual for additional information. Connecting to other devices You can connect the wireless speaker to other Bluetooth-enabled devices, such as smartphones, tablets, or PCs. Also, if you have devices that support the near field communication (NFC) feature, you can control the Bluetooth feature to connect the devices to the wireless speaker. 12 2 On the Bluetooth-enabled device, access the Bluetooth setup mode and search for Bluetooth devices. 3 From the search results, select the product name. • When pairing is complete, the wireless speaker appears as “Connected” in the device list. Connecting via Bluetooth 1 Turn on the wireless speaker. Press and hold the [Pairing ( )] button for about 3 second. • The wireless speaker enters the Bluetooth pairing mode and the status indicator turns on blue. 13 Connecting via the NFC function 1 Enable the NFC feature on the other device. 2 Turn on the wireless speaker and bring the other device’s NFC antenna close to the NFC antenna on the wireless speaker. 14 Ending the Bluetooth connection To disconnect the wireless speaker, turn it off or disable the Bluetooth functionality on the Bluetooth- enabled device. You can also bring the NFC antennas together to end the Bluetooth connection between the devices. • If you are connecting a smartphone to the device, unlock the screen. The NFC feature may not work when the smartphone screen is locked. 3 Follow the on-screen directions to complete the connection. 15 Connecting via an audio cable You can connect your smartphone or a media player to the wireless speaker with an audio cable. End the Bluetooth connection between the product and any other device before making a connetion with the audio cable. 16 Playing audio Play audio from your smartphone, multimedia player, or PC. • Adjust the volume with the [Volume (+)/(-)] buttons. • A notification wil…

Text truncated - open the document above for the full version.

129, Samsun g‐Ro, Yeongtong‐Gu, Suwon‐City Gyeonggi‐Do, 443‐742, Korea December 13, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: I, the undersigned, hereby authorize Lab Manager Feel. Jeong (or Logan. Lee) and of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Feel. Jeong (or Logan. Lee) of SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize th at we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and res olution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)use certification only to indicate th e products are certified as being in conformity with specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; 129, Samsung‐Ro, Yeongtong‐Gu, Suwon‐City Gyeonggi‐Do, 443‐742, Korea i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Sang Kyung (Peter) Ra / General Manager S AMSUNG ELECTRONICS Co., Ltd.

129, Samsun g‐Ro, Yeongtong‐Gu, Suwon‐ City Gyeonggi‐Do, 443‐742, Korea December 13, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST OF CONFIDENTIALITY for FCC ID: A3LEO‐SB330 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Yang‐Hoon, Lim / Engineer SAMSUNG ELECTRONICS Co., Ltd.

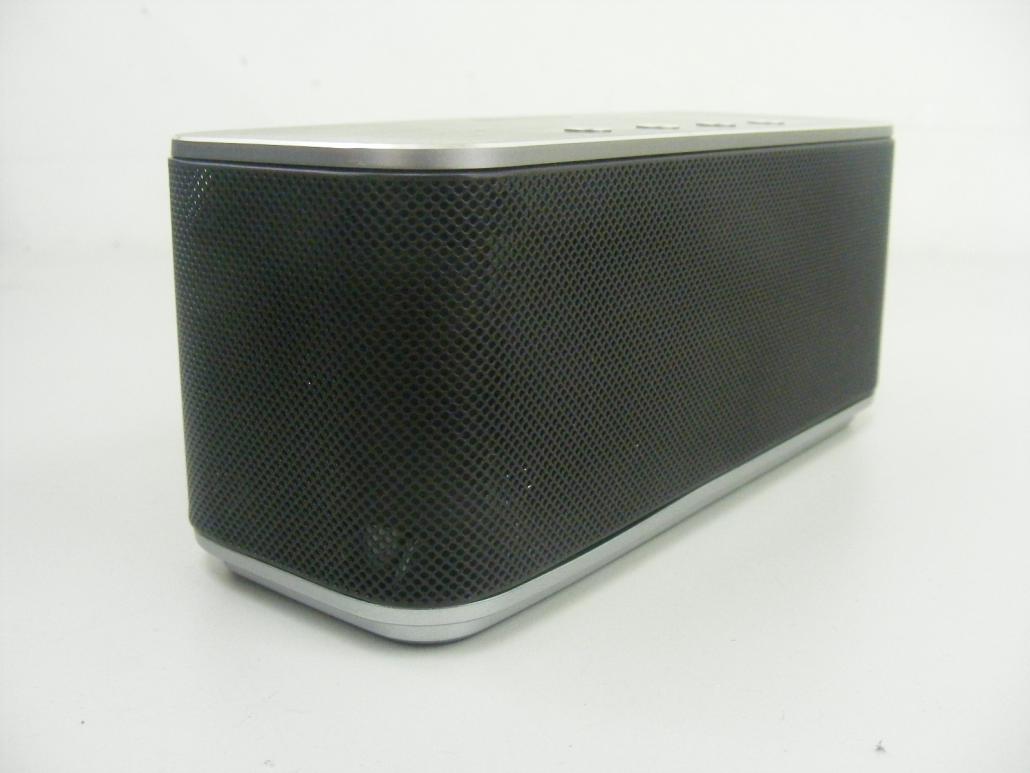

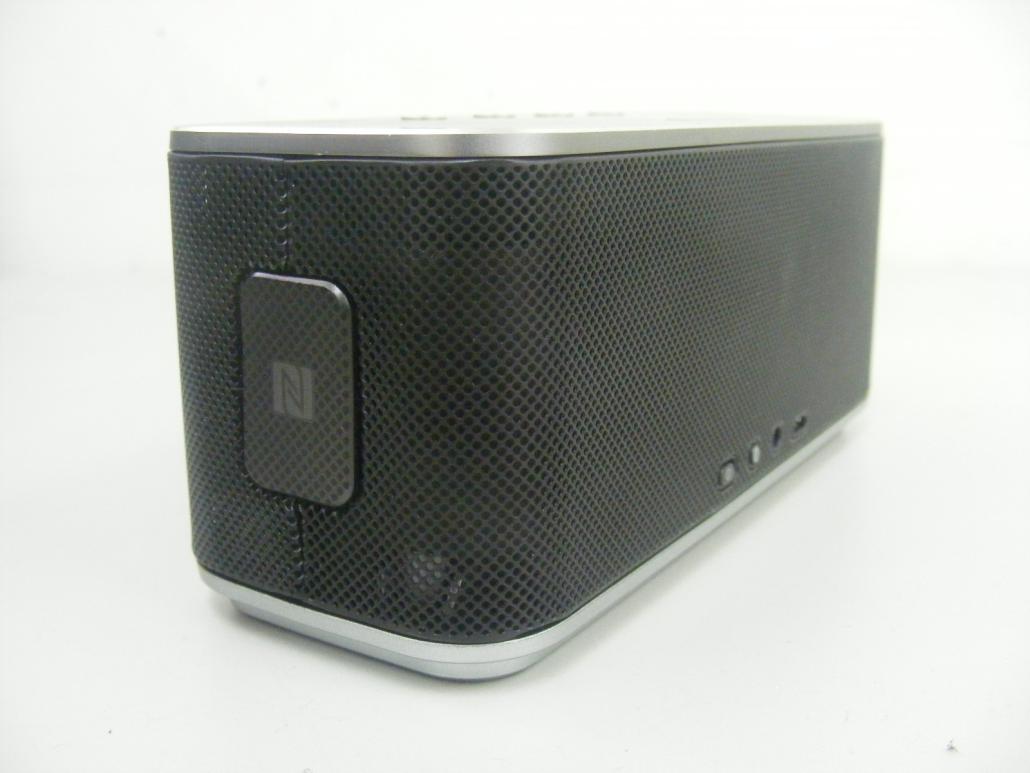

Model : EO-SB330 External photos of EUT Model : EO-SB330 Top view of EUT Bottom view of EUT Model : EO-SB330 Side view of EUT

Label Drawing, Location EO-SB330 Bottom view of EUT Model: EO -SB330 FCC ID: A3LEO-SB330 IC: 649E-EOSB330 Made in China MSIP-CMM-SEC-EOSB330

Model : EO-SB330 Internal photos of EUT Model : EO-SB330 Internal View of EUT Model : EO-SB330 Top view of Main PCB Bottom view of Main PCB Model : EO-SB330 Top view of Bluetooth Antenna Antenna

Report Number :F690501/RF-RTL007163Page:2of5 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea INDEX Table of ContentsPage 1. General Information --------------------------------------------------------------------------------3 2. RF Exposure Evaluation --------------------------------------------------------------------------4 Report Number :F690501/RF-RTL007163Page:3of5 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 (Lab) - 400-2, Gomae-dong, Giheoung-gu, Yongin-si, Gyeonggi-do, Korea, 446-901 (Chamber) All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+82 31 428 5700 FAX:+82 31 427 2371 1.2. Details of Applicant Applicant:SAMSUNG ELECTRONICS CO., LTD. Address:129, Samsung-Ro, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 433-742, Rep. of Korea Contact Person:Lim, Yang-Hoon Phone No.:+82 01 2412 1251 +82 31 301 7404 1.3. Description of EUT Kind of Product Wireless Speaker Model Name EO-SB330 Power Supply DC 3.70 V Frequency Range 2 402㎒~ 2 480㎒ Modulation Technique GFSK, π/4DQPSK, 8DPSK Number of Channels 79 Antenna Type Internal type Antenna Gain 1.49㏈i 1.4. Test report revision RevisionReport numberDescription 0F690501/RF-RTL007163Initial Report Number :F690501/RF-RTL007163Page:4of5 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in §1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in㎽/㎠ Pout = output power to antenna in㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in㎝ Pd the limit of MPE, 1㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength(V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational /Control Exposures 300 – 1 500----F/3006 1 500 – 100 000----56 (B) Limits for General Population/Uncontrol Exposures 300 – 1 500----F/15006 1 500 – 100 000----130 Report Number :F690501/RF-RTL007163Page:5of5 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 2.1.2. Test Result of RF Exposure Evaluation Test Item：RF Exposure Evaluation Data Test Mode：Normal Operation 2.1.3.Output Power into Antenna & RF Exposure Evaluation Distance FHSS: GFSK Channel Channel Frequency (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Duty Cycle (%) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) Low2 4021.821.4977.450.000 3301 Middle2 4410.881.4977.450.000 2661 High2 4801.041.4977.450.000 2761 FHSS: π/4DQPSK Channel Channel Frequency (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Duty Cycle (%) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) Low2 402-1.421.4977.450.000 1571 Middle2 441-2.281.4977.450.000 1281 High2 480-2.191.4977.450.000 1311 FHSS: 8DPSK Channel Channel Frequency (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Duty Cycle (%) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) Low2 402-1.411.4977.450.000 1571 Middle2 441-2.241.4977.450.000 1301 High2 480-2.151.4977.450.000 1321 Note : 1. The power density Pd (5th column) at a distance of 20㎝calculated from the friis transmission formula is far below the limit of 1㎽/㎠.

Report Number:F690501/RF-RTL007154Page:2of69 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) INDEX Table of ContentsPage 1. General Information ---------------------------------------------------------------------------------3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ------7 3. 20㏈Bandwidth and 99% BW ------------------------------------------------------------------- 30 4. Maximum Peak Output Power -------------------------------------------------------------------42 5. Hopping Channel Separation ---------------------------------------------------------------------44 6. Number of Hopping Frequency ------------------------------------------------------------------47 7. Time of Occupancy(Dwell Time) -----------------------------------------------------------------51 8. Transmitter AC Power Line Conducted Emission -------------------------------------------64 9. Antenna Requirement ------------------------------------------------------------------------------69 Report Number:F690501/RF-RTL007154Page:3of69 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory). - Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 (Lab) - 400-2, Gomae-dong, Giheoung-gu, Yongin-si, Gyeonggi-do, Korea, 446-901 (Chamber) All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No.:+82 31 428 5700 Fax No.:+82 31 427 2371 1.2. Details of Applicant Applicant:SAMSUNG ELECTRONICS CO., LTD. Address:129, Samsung-Ro, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 433-742, Rep. of Korea Contact Person:Lim, Yang-Hoon Phone No.:+82 01 2412 1251 Fax No.:+82 31 301 7404 1.3. Description of EUT Kind of Product Wireless Speaker Model Name EO-SB330 Power Supply DC 3.7 V Frequency Range 2 402㎒~ 2 480㎒ Modulation Technique GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channel Antenna Type Internal type Antenna Gain 2 402㎒~ 2 480㎒: 1.49㏈i Report Number:F690501/RF-RTL007154Page:4of69 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) 1.4. Declaration by the manufacturer - Adaptive Frequency Hopping is supported and use at least 20 channels 1.5. Information about the FHSS characteristics: 1.5.1. Pseudorandom Frequency Hopping Sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. 1.5.2. Equal Hopping Frequency Use All Bluetooth units participating in the piconet are time and hop-synchronized to the channel. 1.5.3. Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 1.5.4. System Receiver Input Bandwidth Each channel bandwidth is 1㎒ 1.5.5. Equipment Description 15.247(a)(1) that the rx input bandwidths shift frequencies in synchronization with the transmitted 15.247(g): In accordance with the Bluetooth Industry Standard, the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) system. 15.247(h): In accordance with the Bluetooth Industry Standard, the system does not coordinate it channels selection/ hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Report Number:F690501/RF-RTL007154Page:5of69 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) 1.6. Test Equipment List EquipmentManufacturerModelS/NCal DateCal IntervalCal Due. Signal GeneratorR&S SMR40100540 Jan. 08, 2013AnnualJan. 08, 2014 Signal GeneratorR&S SMJ 100A100882Jul. 03, 2013AnnualJul. 03, 2014 Spectrum Analyzer R&SFSV30101004Jul. 20, 2013AnnualJul. 20, 2014 Bluetooth TesterTESCOMTC-3000C3000C000296Jul. 02, 2013AnnualJul. 02, 2014 Directional Coupler KRYSTAR152613127445Jul. 02, 2013AnnualJul. 02, 2014 Band Rejection Filter Wainwright WR…

Text truncated - open the document above for the full version.

Model : EO-SB330 Test setup photo of EUT Model : EO-SB330 Photo of radiated spurious emission Model : EO-SB330 Photo of Transmitter AC Power Line Conducted Emission
