A3LEO-SG900Samsung Level Box mini

Printed in Korea E Type. XXXXXX 07/2014 Rev.1.0 EO-SG900 User manual www.samsung.com 2 Copyright Copyright © 2014 Samsung Electronics This guide is protected under international copyright laws. No part of this guide may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. • Please read this manual before using the device to ensure safe and proper use. • The illustrations in this user manual may differ from the actual device. Device specifications are subject to change without prior notice and this document may not have been updated to reflect these changes. • Bluetooth ® is a registered trademark of Bluetooth SIG, Inc. worldwide. 3 Device layout Front Status indicator [Play/Stop] button [Volume (-)] button [Volume (+)] button [Talk] button NFC antenna Microphone 4 Back [Pairing ( )] button [Power] switch Audio input jack Power connection jack • Check the product box for the wireless speaker, charger (USB power adapter, USB cable), 3.5 mm audio cable, and user manual. The items supplied with the device and available accessories may vary by region. • The status indicator is visible only when it is turned on. 5 Use only the battery charger supplied with the product. Using unapproved chargers may slow down the charging process or cause damage to the product. Charging the device This device has a built-in battery. Charge the battery completely before using the device for the first time or after it has not been used for an extended period. Connect the charger to the Bluetooth speaker and plug the power cord into the power outlet. 6 • The socket-outlet shall be installed near the equipment and shall be easily accessible. • The status indicator turns red while the device is being charged. The status indicator turns blue when charging is complete. • To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The device should remain close to the electric socket while charging. 7 • Battery run time is based on results of tests performed with factory default settings. • The battery charging time and run times may vary, depending on the usage environment. Charging time and standard run times (3,600 mAh) Charging time Approx. 2.5 hrs Standard run times Call time Approx. 15 hrs Play time Approx. 15 hrs Standby time Approx. 2,000 hrs 8 Charge level Indicator colour More than 80 % Blue 30–80 %Purple Less than 30 %Red Measuring the battery charge Press and hold the [Talk] and [Volume (-)] buttons simultaneously. The status indicator flashes 4 times in different colours, according to the charge left in the battery. 9 • When the device is turned on, the status indicator flashes blue 4 times. • When the device is turned off, the status indicator turns blue and then flashes red before turning off. Power on Power off Turning the device on or off Slide the [Power] switch to turn the device on or off. When you turn on the device for the first time, it enters the Bluetooth pairing mode. 10 When connecting for the first time, pair the wireless speaker with the other Bluetooth-enabled device. Keep the devices close to each other while pairing or using the wireless speaker. Instructions for Bluetooth connection or Bluetooth connection via NFC may vary by device. Refer to the device’s user manual for additional information. Connecting to other devices You can connect the wireless speaker to other Bluetooth-enabled devices, such as smartphones, tablets, or PCs. Also, if you have devices that support the near field communication (NFC) feature, you can control the Bluetooth feature to connect the devices to the wireless speaker. 11 2 On the Bluetooth-enabled device, access the Bluetooth setup mode and search for Bluetooth devices. 3 From the search results, select the product name. • When pairing is complete, the wireless speaker appears as “Connected” in the device list. Connecting via Bluetooth 1 Turn on the wireless speaker. Press and hold the [Pairing ( )] button for about 3 seconds. • The wireless speaker enters the Bluetooth pairing mode and the status indicator turns on blue. 12 Connecting via the NFC function 1 Enable the NFC feature on the other device. 2 Turn on the wireless speaker and bring the other device’s NFC antenna close to the NFC antenna on the wireless speaker. 13 Ending the Bluetooth connection To disconnect the wireless speaker, turn it off or disable the Bluetooth functionality on the Bluetooth- enabled device. You can also bring the NFC antennas together to end the Bluetooth connection between the devices. • If you are connecting a smartphone to the device, unlock the screen. The NFC feature may not work when the smartphone screen is locked. • End the Bluetooth connection between the product and any other device first. The NFC function is not available while another device is connected to the Bluetooth speaker. 14 Connecting via an audio cable You can connect your smartphone or a media player to the wireless speaker with an audio cable. End the Bluetooth connection between the product and any other device before making a connetion with the audio cable. 15 Playing audio Play audio from your smartphone, multimedia player, or PC. • Adjust the volume with the [Volume (+)/(-)] buttons. • A notification will sound when the speaker volume reaches its maximum value. If the sound is not loud enough even with the speaker volume set to maximum, adjust the volume of the connected device. Using the wireless speaker When the wireless speaker is connected to a Bluetooth or NFC- enabled device, you can play audio on the wireless speaker or use it as a speaker phone. While a device is connected to the Bluetooth speaker, you can press the [Talk] button to turn on the voice re…

Text truncated - open the document above for the full version.

129, Samsung‐Ro, Yeongtong‐Gu, Suwon‐ City Gyeonggi‐Do, 443‐742, Korea July 25, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: I, the undersigned, hereby authorize Lab Manager Feel. Jeong (or Logan. Lee) and of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Feel. Jeong (or Logan. Lee) of SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the sco pe for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; 129, Samsun g‐Ro, Yeongtong‐Gu, Suwon‐City Gyeonggi‐Do, 443‐742, Korea i) keep a record of all complaints made know n to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Sang Kyung (Peter) Ra / General Manager SAMSUNG ELECTRONICS Co., Ltd.

129, Samsun g‐Ro, Yeongtong‐Gu, Suwon‐City Gyeonggi‐Do, 443‐742, Korea July 25, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST OF CONFIDENTIALITY for FCC ID: A3LEO-SG900 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Sang Kyung (Peter) Ra / General Manager SAMSUNG ELECTRONICS Co., Ltd.

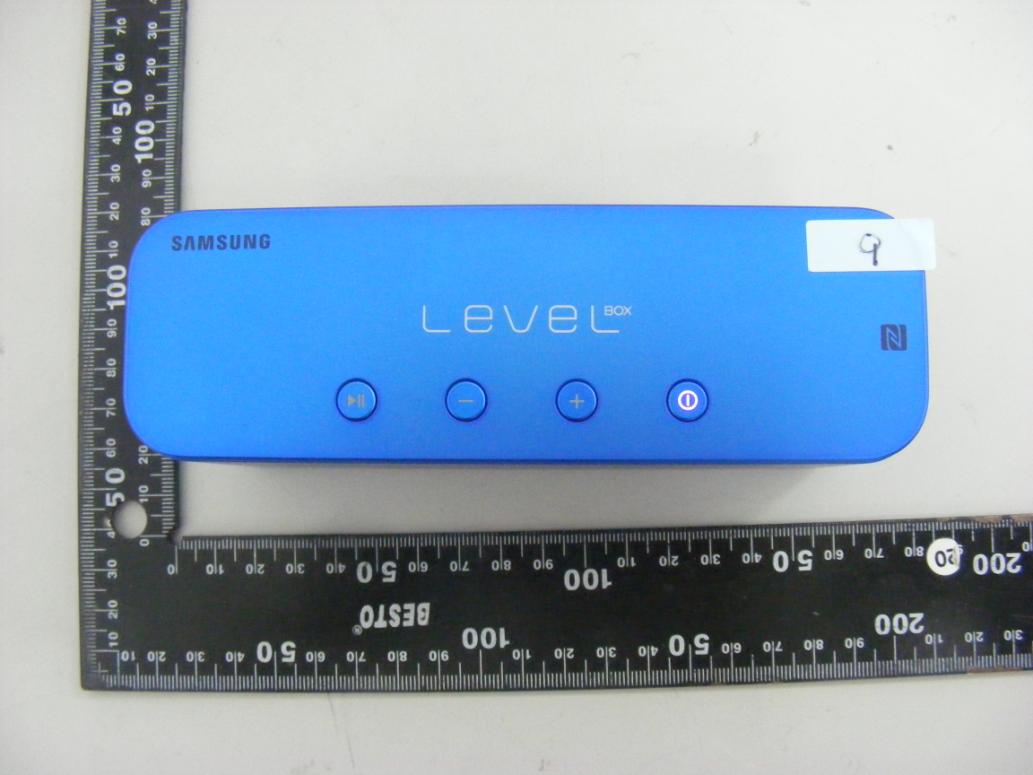

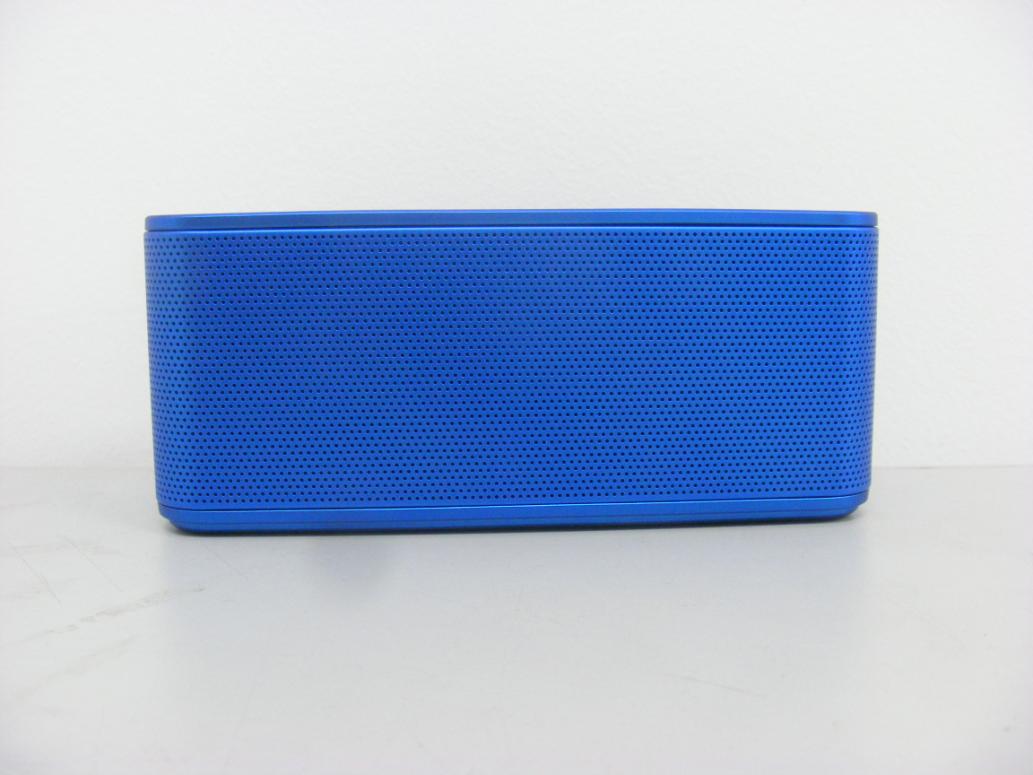

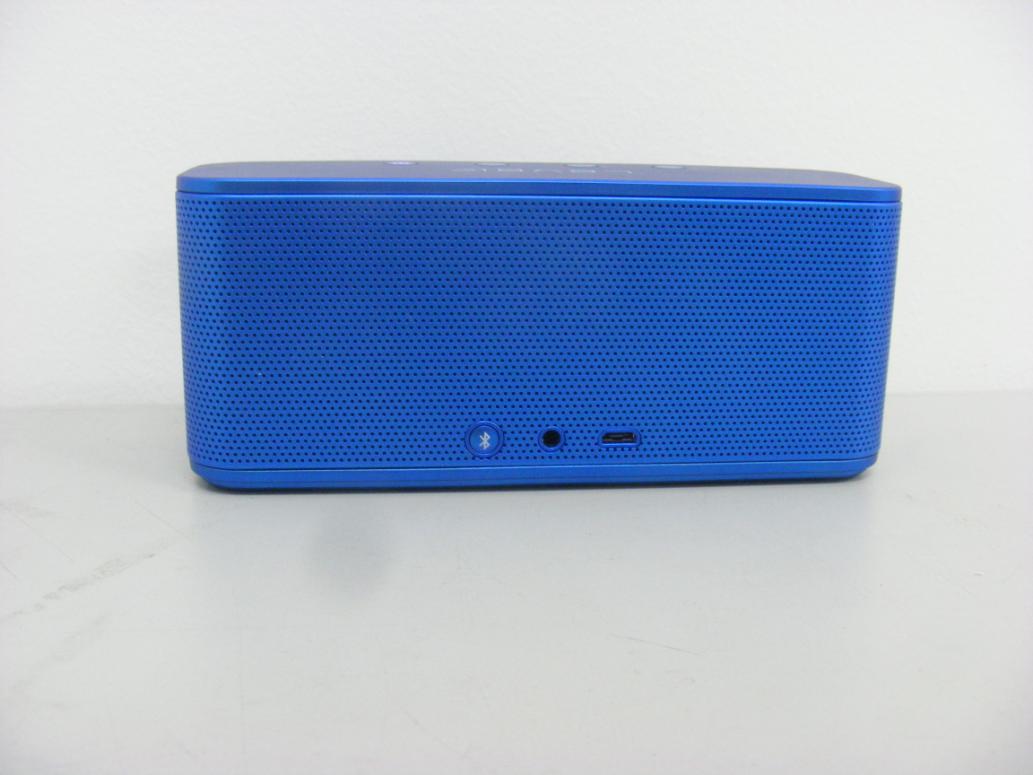

Model : EO-SG900 External photos of EUT Model : EO-SG900 Top view of EUT Bottom view of EUT Model : EO-SG900 Side view of EUT Model : EO-SG900

(2014.07.22) Samsung Level Box mini IC: 649E-EOSG900 Bottom view of EUT

Model : EO-SG900 Internal photos of EUT Model : EO-SG900 Top view of EUT Top view of Main PCB Model : EO-SG900 Bottom view of Main PCB Top view of Sub PCB Model : EO-SG900 Bottom view of Sub PCB Antenna FPCB Antenna

Report Number: F690501/RF-RTL007849-1 Page: 2 of 5 INDEX Table of Contents Page 1. General Information -------------------------------------------------------------------------------- 3 2. RF Exposure Evaluation -------------------------------------------------------------------------- 4 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) Report Number: F690501/RF-RTL007849-1 Page: 3 of 5 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 2FL, 10-2, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 428 5700 FAX : +82 31 427 2370 1.2. Details of Applicant Applicant : Samsung Electronics Co., Ltd. Address : 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Republic of Korea Contact Person : Nam, Seung-Su Phone No. : + 82 31 301 9286 1.3. Description of EUT Kind of Product Samsung Level Box mini Model Name EO-SG900 Power Supply DC 3.7 V Frequency Range 2 402 ㎒ ~ 2 480 ㎒ Modulation Technique GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channel Antenna Type Internal type Antenna Gain -4.71 ㏈i 1.4. Test report revision Revision Report number Date of Issue Description 0 F690501/RF-RTL007849 2014.07.23 Initial 1 F690501/RF-RTL007849-1 2014.07.28 Change model name The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) Report Number: F690501/RF-RTL007849-1 Page: 4 of 5 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in §1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in ㎝ Pd the limit of MPE, 1 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength(V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational /Control Exposures 300 – 1 500 -- -- F/300 6 1 500 – 100 000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300 – 1 500 -- -- F/1500 30 1 500 – 100 000 -- -- 1 30 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) Report Number: F690501/RF-RTL007849-1 Page: 5 of 5 2.1.2. Test Result of RF Exposure Evaluation Test Item ： RF Exposure Evaluation Data Test Mode ： Normal Operation 2.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Channel Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) LIMITS (㎽/㎠) Maximum tune up tolerance 4.00 -4.71 0.000 238 1 Note : 1. The power density Pd (5th column) at a distance of 20㎝ calculated from the friis transmission formula is far below the limit of 1 ㎽/㎠. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm)
