A3LEP-HN910IBUS CHARGER VEHICLE DOCK

Printed in Korea E type. 08/2014 A00396. Rev.1.0 www.samsung.com S Charger Vehicle Dock EB-HN910I Contents English ......................................................1 1 English This manual’s images and content may differ from the product. Unpack Vehicle dockSuction holder Dashboard padBall joint fastener Car adapterCharging cable English 2 Installing the Vehicle Dock 1 Put the ball joint through the ball joint fastener. 2 Insert the ball joint into the ball joint socket on the back of the vehicle dock. And lock the ball joint by screwing on the ball joint fastener. 3 English 3 Lock the ball joint by screwing on the ball join fastener. 4 Clean and dry the surface where the Vehicle dock will be mounted. Press the suction surface firmly to the window and latch the lever to attach the suction holder. 4 When mounting on the dashboard, press the suction surface firmly to the Dashboard pad and latch the lever to attach the suction holder. Remove the adhesive film from the Dashboard pad, and then press the pad firmly to the dashboard. • Carefully choose the installation location. The adhesive on the Dashboard pad is very strong and cannot be easily removed or relocated once attached. • Attach the Dashboard pad to a flat area of the dashboard. If the Dashboard pad cannot make full contact with the dashboard, it may not properly support the Vehicle dock. • Do not attach the Dashboard pad to a hot dashboard. Allow the dashboard to cool before installing the Vehicle dock. 5 Adjust the angle of the Vehicle dock. 5 English Using the device This Vehicle dock is suitable for 1016 mm ~1448 mm Samsung mobile devices. 1 Press the button on the back of the Vehicle dock to open the side grip arms. 2 Place the mobile device in the Vehicle dock and then press the side grip arms to hold your device. Be careful not to get your finger caught in the side grip arms. 6 3 Plug the car adapter into the accessory outlet in your vehicle. 4 Connect the large end of the charging cable with the car adapter. 5 Plug the small end of the charging cable into the charger jack of the Vehicle dock. When the Vehicle dock is connected to the electric socket, the indicator light flashes from red to green to orange, and then turns off. • Use only Samsung-approved chargers. Unauthorised chargers may damage your device or cause the battery to explode. • Start your vehicle before connecting the car adapter to the Vehicle dock. Temporary voltage surges during ignition may damage the Vehicle dock or the attached mobile device. 7 English Indicator lightDevice status Red → Green → Orange When connected to the power outlet Flashes orangeWhen not charging properly GreenWhen charging properly Flashes greenWhen using a charger under 2 A OffWhen in Idle mode The Vehicle dock’s indicator light flashes differently depending on its status. If the indicator light is not working properly, reconnect the charger to the Vehicle dock. 8 6 When your device is fully charged, unplug the charging cable from the Vehicle dock and the car adapter from the accessory outlet. • Check the mobile device’s battery status using the charging icon displayed on the screen. • The initial charging may not start when the Vehicle dock is left inside a vehicle with high temperature, and the indicator light flashes orange. • Do not place any other object between the mobile device and the Vehicle dock. The mobile device may not charge properly. • Charging a mobile device with the Vehicle dock in an area with a weak signal may cause a significant drop in reception. • The Vehicle dock is compatible with WPC certified devices. 9 English Do not place the Wireless Charging Cover solely on the Vehicle dock Doing so may overheat the device and cause a fire. It may also result in serious burn or device malfunction. 10 Safety information To prevent injury to yourself and others or damage to your device, read the safety information about your device before using the device Samsung cannot be held responsible for any injury or property damage caused by failure to comply with the safety cautions and regulations Do not use damaged power cords or plugs, or loose electrical sockets Do not touch the power cord with wet hands or disconnect the charger by pulling the cord Do not bend or damage the power cord Do not store your device with metal objects, such as coins, keys, and necklaces Your device may be scratched or may malfunction. Do not use your device for a while if the device is overheated Prolonged exposure of your skin to an overheated device may cause low temperature burn symptoms, such as red spots and pigmentation. Do not store your device near or in heaters, microwaves, hot cooking equipment, or high pressure containers Your device may overheat and cause a fire. 11 English Do not drop your device or cause impacts to your device • Store your device only on flat surfaces. • If your device falls, it may be damaged. Do not bite or suck the device • Doing so may damage the device or result in an explosion or fire. • Children or animals can choke on small parts. Do not use the device for anything other than its intended use Keep your device dry • Humidity and liquids may damage the parts or electronic circuits in your device. • If your device is wet, dry the device with a towel and take it to a service centre. Do not disassemble, modify, or repair your device • Doing so may cause electric shock. • Any changes or modifications to your device can void your manufacturer’s warranty. If your device needs servicing, take your device to a Samsung Service Centre. When cleaning your device, mind the following • Wipe your device or charger with a towel or an eraser. • Do not use chemicals or detergents. Doing so may discolour or corrode the outside the device or may result in electric shock or fire. 12 Do not mount your device in any location that interferes with safe operation of the vehicle, as this may lead to an accident • Install where the driver’s vision is not compromised • Install where …

Text truncated - open the document above for the full version.

129, Samsung‐Ro, Yeongtong‐Gu, Suwo n‐City Gyeonggi‐Do, 443‐742, Korea August 08 , 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: I, the undersigned, hereby authorize Lab Manager Feel. Jeong (or Logan. Lee) and of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Feel. Jeong (or Logan. Lee) of SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; 129, Samsung‐Ro, Yeongtong‐Gu, Suw on‐City Gyeonggi‐Do, 443‐742, Korea i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Chan Ho, Youn / General Manager Samsung Electronics North America INC. TEL: +1-973-808-6362 E-mail: [email protected]

129, Samsun g‐Ro, Yeongtong‐Gu, Suwon‐City Gyeonggi‐ Do, 443‐742, Korea August 08, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST OF CONFIDENTIALITY for FCC ID: A3LEP-HN910IBU To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Chan Ho, Youn / General Manager Samsun g Electronics North America INC. TEL: +1-973-808-6362 E-mail: [email protected]

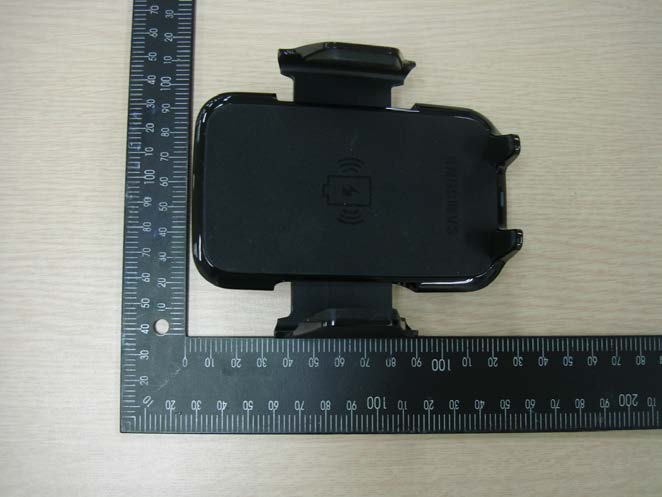

Model : EP-HN910IBU External photos of EUT Model : EP-HN910IBU Front view of EUT Rear view of EUT Model : EP-HN910IBU Top view of EUT Bottom view of EUT Model : EP-HN910IBU Side view of EUT Model : EP-HN910IBU External view of client device with receiver(Galaxy S5)

PRODUCT LABEL EP-HN910IBU Rear view of EUT

Model : EP-HN910IBU In ternal photos of EUT Model : EP-HN910IBU Internal view of EUT Model : EP-HN910IBU Top view of main board Bottom view of main board Loop Coil Antenna

Report Number : F690501/RF-RTL007865-1 Page: 2 of 13 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX TABLE OF CONTENTS Page 1. General Information ----------------------------------------------------------------------- 3 2. Test Result ----------------------------------------------------------------------------------- 7 Report Number : F690501/RF-RTL007865-1 Page: 3 of 13 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General information 1.1. Testing laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of applicant Applicant : Samsung Electronics Co., Ltd. Address : 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Republic of Korea Contact Person : Kim, Jae Man Phone No. : +82 31 301 6864 1.3. Description of EUT Kind of Product S CHARGER VEHICLE DOCK Model Name EP-HN910IBU Power Supply DC 5 V (Used DC 12 V Cigar jack adaptor) Frequency Range 115 ㎑ ~ 205 ㎑ Operating Conditions -20 °C ~ 60 °C Antenna Type Inductive loop coil antenna 1.4. Declarations by the manufacturer - Operation temperature: -20 °C ~ 60 °C 1.5. Test report revision Revision Report number Date of Issue Description 0 F690501/RF-RTL007865 2014.07.29 Initial 2 F690501/RF-RTL007865-1 2014.08.20 Deleted alternative Model Deleted internal photo (8 page) Report Number : F690501/RF-RTL007865-1 Page: 4 of 13 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.6. Test Equipment List Equipment Manufacturer Model S/N Cal Date Cal Interval Cal Due. Spectrum Analyzer R&S FSV30 100768 Mar. 27, 2014 Annual Mar. 27, 2015 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 1519 1519-039 Jul. 29, 2013 Biennial Jul. 29, 2015 DC Power Supply Agilent U8002A MY48490027 Jan. 03, 2014 Annual Jan. 03, 2015 E-Field Probe D.A.R.E!! Instruments RadiSense 4 13I00444SNO04 Apr. 29, 2014 Annual Apr. 29, 2015 B-Field Probe Narda BN 2300/90.10 J-0025 Jan. 28, 2014 Annual Jan. 28, 2015 Exposure Level Meter Narda ELT-400 J-0015 Jan. 28, 2014 Annual Jan. 28, 2015 Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. Mobile Test Unit R&S CMW500 144035 Mar. 03, 2014 Annual Mar. 03, 2015 1.7. Worst case of test configurations In order to check all kinds of possible configurations, EUT was evaluated with appropriate client and under each charging condition as below table. EUT configuration Charging current (㎃) Mobile phone Description Charging Mode 1) with resistive load 145 Maximum resistive load 350 Medium resistive load 645 Minimum resistive load Charging Mode 2) with client device (FCC ID : A3LSMG900V) SM-G900V Less than 1 % of battery SM-G900V Less than 50 % of battery SM-G900V 100 % full charging of battery 1) Test Jig was used during the test to satisfy each current status by using resistive loads. Output voltage = 5 V, Output current = 145 ㎃ / 350 ㎃ / 645 ㎃ - (Maximum load) 34.48 Ω = 5 V / 0.145 A - (Medium load) 14.29 Ω = 5 V / 0.350 A - (Minimum load) 7.75 Ω = 5 V / 0.645 A 2) WPC device with client device was investigated each battery status and compared in two operating configurations. Report Number : F690501/RF-RTL007865-1 Page: 5 of 13 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) Battery status during charging condition : - Less than 1 % of battery - Less than 50 % of battery - 100 % of battery Galaxy S5 (SM-G900V) Plot#1 – less than 1 % of battery Plot#2 – less than 50 % of battery Plot#3 – 100 % of battery Report Number : F690501/RF-RTL007865-1 Page: 6 of 13 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) Operating configurations : Galaxy S5 (SM-G900V) - While the client device was in airplane mode (Trace#1 “M1”) - While the client device was connected to an active data connection (Trace#2 “M2”) The device was tested under all modes and bands like 2G and 3G. In the result, GSM1 900 / GPRS / 1 TX was found in Low channel. - While the wireless charger is charging without the client device. (Trace#3 “M…

Text truncated - open the document above for the full version.

Report Number: F690501/RF-RTL007864-1 Page: 2 of 22 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX TABLE OF CONTENTS Page 1. General Information -------------------------------------------------------------------------- 3 2. Field Strength of Fundamental ------------------------------------------------------------ 8 3. Spurious Emission---------------------------------------------------------------------------- 12 4. Occupied Bandwidth & 20 ㏈ Bandwidth----------------------------------------------- 19 Report Number: F690501/RF-RTL007864-1 Page: 3 of 22 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of applicant Applicant : Samsung Electronics Co., Ltd. Address : 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Republic of Korea Contact Person : Kim, Jae Man Phone No. : +82 31 301 6864 1.3. Description of EUT Kind of Product S CHARGER VEHICLE DOCK Model Name EP-HN910IBU Power Supply DC 5 V (Used DC 12 V Cigar jack adaptor) Frequency Range 115 ㎑ ~ 205 ㎑ Operating Conditions -20 °C ~ 60 °C Maximum Field strength 88.20㏈㎶/m at 3 m / 8.20㏈㎶/m at 300 m Antenna Type Inductive loop coil antenna 1.4. Declarations by the manufacturer - Operation temperature: -20 °C ~ 60 °C - EUT used only DC power source from vehicle battery. So, AC power line conducted emissions does not apply for EUT. Report Number: F690501/RF-RTL007864-1 Page: 4 of 22 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal Date Cal Interval Cal Due. Spectrum Analyzer R&S FSV30 100768 Mar. 27, 2014 Annual Mar. 27, 2015 Signal Generator R&S SMBV100A 255834 Jun. 25, 2014 Annual Jun. 25, 2015 DC Power Supply Agilent U8002A MY48490027 Jan. 03, 2014 Annual Jan. 03, 2015 Mobile Test Unit R&S CMW500 144035 Mar. 03, 2014 Annual Mar. 03, 2015 Preamplifier H.P. 8447D 2944A07087 Jan. 06, 2014 Annual Jan. 06, 2015 Test Receiver R&S ESU26 100109 Mar. 04, 2014 Annual Mar. 04, 2015 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 1519 1519-039 Jul. 29, 2013 Biennial Jul. 29, 2015 Bilog Antenna Schwarzbeck Mess-Elektronik VULB9163 396 Jun. 07, 2013 Biennial Jun. 07, 2015 Antenna Master INN-CO MM4000 N/A N.C.R. N/A N.C.R. Turn Table INN-CO DS 1200 S N/A N.C.R. N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. 1.6. Sample calculation Where relevant, the following sample calculation is provided: Field strength level (㏈㎶/m) = Measured level (㏈㎶) + Antenna factor (㏈) + Cable loss (㏈) – amplifier gain (㏈) 1.7. Worst case of test configurations In order to check all kinds of possible configurations, EUT was evaluated with appropriate client and under each charging condition as below table. EUT configuration Charging current (㎃) Mobile phone Description Charging Mode 1) with resistive load 145 Maximum resistive load 350 Medium resistive load 645 Minimum resistive load Charging Mode 2) with client device (FCC ID : A3LSMG900V) SM-G900V Less than 1 % of battery SM-G900V Less than 50 % of battery SM-G900V 100 % full charging of battery 1) Test Jig was used during the test to satisfy each current status by using resistive loads. Output voltage = DC 5 V, Output current = 145 ㎃ / 350 ㎃ / 645 ㎃ - (Maximum load) 34.48 Ω = 5 V / 0.145 A Report Number: F690501/RF-RTL007864-1 Page: 5 of 22 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) - (Medium load) 14.29 Ω = 5 V / 0.350 A - (Minimum load) 7.75 Ω = 5 V / 0.645 A 2) PC device with client device was investigated each battery status and compared in two operating configurations. Battery status during charging condition - Less than 1 % of battery - Less than 50 % of battery - 100 % of battery Plot#1 – less than 1 % of battery Plot#2 – less than 50 % of battery Plot#3 – 100 % of battery Report Number: F690501/RF-RTL007864-1 Page: 6 of 22 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.0…

Text truncated - open the document above for the full version.

Test setup photos of EUT 1. Radiated Field strength Frequency range : 9 ㎑ ~ 30 ㎒ A. the photos of Field strength with Resistive load. Charging current(145 mA) Charging current(350 mA) Charging current(645 mA) B. the photos of Field strength with client device Client device(Galaxy S5) Frequency range : 30 ㎒ ~ 1 ㎓ A. the photos of Field strength with Resistive load. Charging current(145 mA) Charging current(350 mA) Charging current(645 mA) B. the photos of Field strength with client device Client device(Galaxy S5) C. the photos of E-field test with Resistive load. Charging current(145 mA) Charging current(350 mA) Charging current(645 mA) D. the photos of E-field test with client device Client device(Galaxy S5) E. the photos of H-field test with Resistive load. Charging current(145 mA) Charging current(350 mA) Charging current(645 mA) F. the photos of H-field test with client device Client device(Galaxy S5)

Report Number : F690501/RF-RTL007865-1 Page: 8 of 13 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 2.3. Equipment Approval Considerations. The EUT does comply with item 5.2 of KDB 680106 D01v02. a) Power transfer frequency is less that 1 ㎒. - The device operate in the frequency range from 115 ㎑ to 205 ㎑. b) Output power from each primary coil is less than 5 watts. - The maximum field strength of fundamental : 88.20 ㏈㎶/m at 3 m. The EIRP calculation is reference to KDB 789033. * EIRP[㏈m] = E[㏈㎶/m] + 20log(d[meters]) -104.77 -4.8 ㏈, d = 3 m * 88.20 ㏈㎶/m - 95.2 - 4.8 = -11.80 ㏈m EIRP. * The output power from primary coil is 0.066 1 ㎽. c) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. - The transfer system includes only single primary and secondary coils. d) Client device is inserted in or placed directly in contact with the transmitter. - Client device is placed directly in contact with the transmitter. Refer to following photo. e) The maximum coupling surface area of the transmit (charging) device: - The EUT coupling surface area : 7.045 cm(W) x 11.726 cm(H) = 82.61 cm 2 , 60 cm 2 < 82.61 cm 2 < 400 cm 2 f) Aggregate leakage fields at 10 cm surrounding the device from all simultaneous transmitting coils are demonstrated to be less than 30 % of the MPE limit. - The EUT field strength levels are 30 % x MPE limit < Level < MPE limit. Refer to following test results. 0.489 A/m < 0.72 A/m (max.) < 1.63 A/m.
