A3LEP-N5200WIRELESS CHARGER

English 1 2 Copyright © 2019 Samsung Electronics America, Inc. Other marks are the property of their respective owners. • Connect the charger to the wireless charger () and place the mobile device on the phone stand ( ) to charge it. • Visit www.samsung.com to view the user manual and the safety information. • Do not place foreign materials, such as metal objects, magnets, and magnetic stripe cards, between the mobile device and the wireless charger. • Your consumer rights are governed by the law of the country in which you purchased the product. Please contact your service provider for more information. FCC RF Radiation Exposure Statement This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. Samsung Mobile Products and Recycling Samsung cares for the environment and encourages its customers to properly dispose of Devices and Samsung accessories in accordance with local regulations. In some areas, disposal of these items in household or business trash may be prohibited. Dispose of other unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website: www.samsung.com/recycling or call, 1-800-SAMSUNG. Samsung Electronics America, Inc 85 Challenger Road, Ridgefield Park, New Jersey, 07660 Phone: 1-800-SAMSUNG (726-7864) Printed in Korea GHXX-XXXXXX Rev.1.0 USA Type 06/2019 QUICK START GUIDE EP-N5200 Wireless Charger GUÍA DE INICIO RÁPIDO EP-N5200 Wireless Charger Español (Castellano) 1 2 Copyright © 2019 Samsung Electronics America, Inc. Otras marcas son propiedad de sus respectivos propietarios. • Conecte el cargador con el cargador inalámbrico () y coloque el dispositivo móvil sobre la base del teléfono ( ) para cargarlo. • Visite www.samsung.com para ver el manual del usuario y la información sobre seguridad. • No coloque materiales extraños, como objetos metálicos, imanes ni tarjetas con banda magnética, entre el dispositivo móvil y el cargador inalámbrico. • Sus derechos como consumidor se encuentran regidos por la ley del país en el cual haya adquirido el producto. Para solicitar más información, comuníquese con su proveedor de servicios. Declaración de exposición a radiación por radiofrecuencia de la FCC Este equipo cumple con los límites de exposición a radiación por radiofrecuencia de la Comisión Federal de Comunicaciones (FCC) estipulados para un ambiente no controlado. Este dispositivo y su antena no deben colocarse ni funcionar en combinación con algún otro transmisor o antena. Este equipo deberá instalarse y utilizarse con una distancia mínima de 20 cm entre el radiador y el cuerpo. Productos Móviles de Samsung y reciclaje Samsung se preocupa por el medio ambiente y recomienda a sus clientes que reciclen los dispositivos y accesorios originales de Samsung de acuerdo con las regulaciones locales. En algunas áreas, la eliminación de estos artículos en la basura doméstica o comercial puede estar prohibida. Deseche otros componentes electrónicos no deseados a través de un reciclador aprobado. Para encontrar el lugar de reciclaje más cercano, visite: http://www.samsung.com/recycling o llame al 1-800-SAMSUNG. Samsung Electronics America, Inc 85 Challenger Road, Ridgefield Park, New Jersey, 07660 Teléfono: 1-800-SAMSUNG (726-7864) FCC Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Part 15.21 Any changes or modifications (including the antennas) to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence- exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) L’appareil ne doit pas produire de brouillage; (2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. FCC and IC RF Radiation Exposure Statement: This equipment complies with FCC and IC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. RF du FCC et IC d'exposition aux radiations: Cet équipement est conforme à l'exposition de FCC et IC rayonnements RF limites é-tablies pour un environnement non contrôlé. L’antenne pour ce transmetteur ne doit pas être même endroit avec d’autres émetteur sauf conformément à FCC et IC procédures de produits Multi-émetteur. Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps.

19 Chapin Rd., Building D Pine Brook, New Jersey, 07058, United States 20 May 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST FOR CONFIDENTIALITY FCC ID: A3LEP-N5200 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Jenni Chun / General Manager Samsung Electronics North America INC. TEL: +1-973-808-6362 E-mail: [email protected]

19 Chapin Rd., Building D Pine Brook, New Jersey, 07058, United States Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER FOR AUTHORIZATION FCC ID: A3LEP-N5200 To whom it may concern: I, the undersigned, hereby authorize Lab Manager Hyunchae, You and of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Hyunchae, You of SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; 20 May 2021 19 Chapin Rd., Building D Pine Brook, New Jersey, 07058, United States i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Jenni Chun/ General Manager Samsung Ele ctronics North America INC. TEL: +1-973-808-6362 E-mail: [email protected]

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Samsung Electronics Co., Ltd. Address 19 Chapin Rd., Building D, Pine Brook, New Jersey, 07058 Grantee Code A3L FCC ID A3LEP-N5200 Authorized Contact Name Jenni Chun Contact Email [email protected] Contact Phone 973-808-6375 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: May 20, 2021 Print Name: Jenni Chun Title: General Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

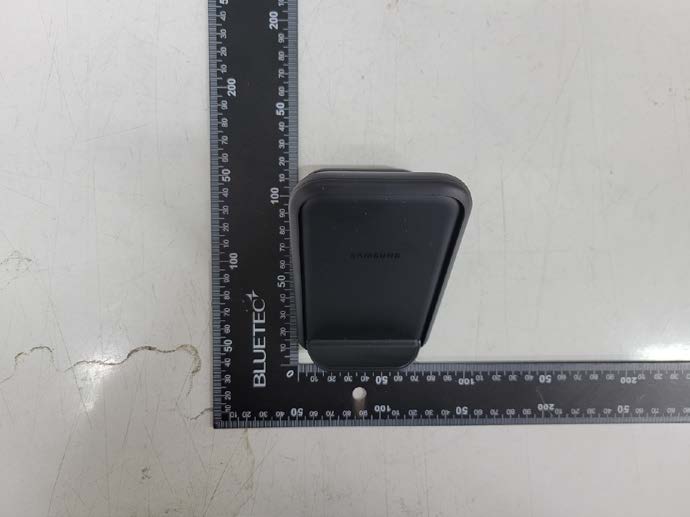

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

< 1:1 Artwork > S/N:제조시 14자리 인쇄 표기 < 1:1 Artwork > 3-R1.0 36.0 24.0 C2 WIRELESS CHARGER MODEL : EP-N5200 INPUT : FCC ID : A3LEP-N5200 S/N : MADE IN VIETNAM / FABRIQUÉ AU VIETNAM 9.0 V 2.77 A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB Top view of Sub PCB Bottom view of Sub PCB View of Antenna & Module Loop Coil Antenna Ant. 1 Ant. 2

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002125 Page: 2 of 11 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) INDEX Table of Contents 1. General Information -------------------------------------------------------------------------------------- 3 2. Test Result -------------------------------------------------------------------------------------------------- 6 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002125 Page: 3 of 11 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation Number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of Applicant Applicant : Samsung Electronics Co., Ltd. Address : 19 Chapin Rd., Building D, Pine Brook, New Jersey, United States, 07058 Contact Person : Chun, Jenni Phone No. : +1 973 808 6375 1.3. Details of Manufacturer Company : Samsung Electronics Co., Ltd. Address : Yen Phong 1 Industrial park, Yen Phong District Bac Ninh Province, VIETNAM 1.4. Description of EUT Kind of Product WIRELESS CHARGER Model Name EP-N5200 Power Supply DC 9.0 V Operation Mode 4.5 W, 7.5 W, 15 W Frequency Range 120.5 ㎑, 126.7 ~ 128.7 ㎑ Antenna Type Loop Coil Antenna Antenna Serial Number CW-20S903AA H/W Version 1.2 S/W Version_MCU 0427 S/W Version_Tx IC 0504 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002125 Page: 4 of 11 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Electric and Magnetic field Probe analyzer NARDA EHP 200AC 170WX91017 Nov. 16, 2020 Annual Nov. 16, 2021 Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. ▶ Support Equipment Description Manufacturer Model FCC ID Samsung Mobile Phone Samsung Electronics Co., Ltd. SM-N970U A3LSMN970U Samsung Mobile Phone Samsung Electronics Co., Ltd. SM-G981U A3LSMG981U C type USB Cable RFTECH Co., Ltd. EP-DG977 - Travel Adaptor HAEM VINA CO., LTD EP-TA800 - 1.6. Worst Case of Test Configurations Charging mode with client device Mode Description Model: SM-N970U FCC ID: A3LSMN970U Model: SM-G981U FCC ID: A3LSMG981U 4.5 W 7.5 W 15 W 1 % of battery 50 % of battery 99 % of battery (Ant. 1) (Ant. 2) 120.5 ㎑ (Ant. 1) (Ant. 2) 126.7 ~ 128.7 ㎑ (Ant. 1) (Ant. 2) 126.7 ~ 128.7 ㎑ (Ant. 1) (Ant. 2) 126.7 ~ 128.7 ㎑ SM-N970U (Normal) SM-N970U (Normal) SM-N970U (Fast) SM-G981U (Fast) Note; - The 4.5 W and 7.5 W modes are controlled by the software on the client device. - EUT was investigated with client device under normal charging condition as above then worst value was only reported. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002125 Page: 5 of 11 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.7. Measurement Uncertainty Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the apparatus: Parameter Uncertainty Electric Field ± 21.24 % Magnetic Field Mode A ± 18.66 % Mode B ± 21.76 % All measurement uncertainty values are shown with a coverage factor k=2 to indicate a 95 % level of confidence. 1.8. Test Report Revision Revision Report Number Date of Issue Description 0 F690501-RF-RTL002125 2021.05.14 Initial SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002125 Page: 6 of 11 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2. Test Result 2.1. Test Setup 2.1.1. Isotropic Probe Test Setup The measurement probe (EHP-200AC) is a regular hexahedron and supports 3-axis isotropic probe. A: Front of measurement probe B: Right of measurement probe C: Rear of measurement probe D: Left of measurement probe E: Top of measurement probe *Bottom of measurement probe is not used to measure RF exposure condition owing to connection with a stick. In order to demonstrate the probe perturbation is not affecting the measurements, - For one of the sides of EUT several measurements be made at various distances, starting further away and then moving closer.  Further away: measurement distance of EUT was confirmed until isotropic probe could not read fundamental level anymore (Not detected level).  Moving closer: measurement isotropic probe directly contacts with sides of EUT (0 cm)  When the worst level of EUT’s sides is found out, several measurements should be checked through various distance (1 cm step). - At 0 cm distance, measurement isotropic probe was investigated by rotating the probe through various angles for one of the EUT’s sides as below. Measurement Point A B C D E Direction Front Right Rear Left Top Measurement Point A to B B to C C to D D to A N/A Direction Front to Right Right to Rear Rear to Left Left to Front - Measurement Point A to E B to E C to E D to E N/A Direction Front to Top Right to Top Rear to Top Left to Top - - When the worst angle among all angles was found, RF exposure measurement should be adjusted from worst angle. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002125 Page: 7 of 11 RTT7081-0…

Text truncated - open the document above for the full version.

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002124 Page: 2 of 58 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) INDEX Table of Contents 1. General Information -------------------------------------------------------------------------------------- 3 2. Field Strength of Fundamental and Spurious Emission ----------------------------------------- 7 3. 20 ㏈ Bandwidth ----------------------------------------------------------------------------------------- 37 4. AC Power Line Conducted Emission ---------------------------------------------------------------- 41 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002124 Page: 3 of 58 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation Number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of Applicant Applicant : Samsung Electronics Co., Ltd. Address : 19 Chapin Rd., Building D, Pine Brook, New Jersey, United States, 07058 Contact Person : Chun, Jenni Phone No. : +1 973 808 6375 1.3. Details of Manufacturer Company : Samsung Electronics Co., Ltd. Address : Yen Phong 1 Industrial park, Yen Phong District Bac Ninh Province, VIETNAM 1.4. Description of EUT Kind of Product WIRELESS CHARGER Model Name EP-N5200 Power Supply DC 9.0 V Operation Mode 4.5 W, 7.5 W, 15 W Frequency Range 120.5 ㎑, 126.7 ~ 128.7 ㎑ Antenna Type Loop Coil Antenna Antenna Serial Number CW-20S903AA H/W Version 1.2 S/W Version_MCU 0427 S/W Version_Tx IC 0504 1.5. Declaration of Manufacturer - The EUT has 2 Loop coil antennas. - Antennas cannot operate at the same time. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002124 Page: 4 of 58 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.6. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Spectrum Analyzer R&S FSV30 103210 Dec. 07, 2020 Annual Dec. 07, 2021 Signal Generator R&S SMBV100A 255834 Jun. 03, 2020 Annual Jun. 03, 2021 Amplifier H . P. 8447F 2944A03909 Aug. 06, 2020 Annual Aug. 06, 2021 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 1519 1519-039 Aug. 22, 2019 Biennial Aug. 22, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB9163 01126 Dec. 22, 2020 Biennial Dec. 22, 2022 EMI Test Receiver R&S ESU26 100109 Feb. 19, 2021 Annual Feb. 19, 2022 Turn Table Innco systems GmbH DS 1200 S N/A N.C.R. N/A N.C.R. Controller Innco systems GmbH CONTROLLER CO3000-4P CO3000/963/3 8330516/L N.C.R. N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. Coaxial Cable RFONE MW X221-NMSNMS (4 m) J1023142 Dec. 01, 2020 Semi- annual Jun. 01, 2021 Coaxial Cable RFONE PL520-NMNM-10M (10 m) 20200324001 Dec. 01, 2020 Semi- annual Jun. 01, 2021 Test Receiver R&S ESCI 7 100911 Feb. 19, 2021 Annual Feb. 19, 2022 Two-Line V-Network R&S ENV216 100190 May 04, 2021 Annual May 04, 2022 Shield Room SY Corporation L × W × H (6.5 m × 3.5 m × 3.5 m) N/A N.C.R. N/A N.C.R. ▶ Support Equipment Description Manufacturer Model FCC ID Samsung Mobile Phone Samsung Electronics Co., Ltd. SM-N971U A3LSMN971U Samsung Mobile Phone Samsung Electronics Co., Ltd. SM-G981U A3LSMG981U C type USB Cable RFTECH Co., Ltd. EP-DG977 - Travel Adaptor HAEM VINA CO., LTD EP-TA800 - SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002124 Page: 5 of 58 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.7. Sample Calculation Where relevant, the following sample calculation is provided: Field strength level (㏈㎶/m) = Measured level (㏈㎶) + Antenna factor (㏈) + Cable loss (㏈) + (AMP (㏈)) 1.8. Worst Case of Test Configurations Charging mode with client device Mode Description Model: SM-N971U FCC ID: A3LSMN971U Model: SM-G981U FCC ID: A3LSMG981U 4.5 W 7.5 W 15 W 1 % of battery 50 % of battery 99 % of battery (Ant. 1) (Ant. 2) 120.5 ㎑ (Ant. 1) (Ant. 2) 126.7 ~ 128.7 ㎑ (Ant. 1) (Ant. 2) 126.7 ~ 128.7 ㎑ (Ant. 1) (Ant. 2) 126.7 ~ 128.7 ㎑ SM-N 971U (Normal) SM-N 971U (Normal) SM-N 971U (Fast) SM-G981U (Fast) Note; - The 4.5 W and 7.5 W modes are controlled by the software on the client device. - EUT was investigated with client device under normal charging condition as above then worst value were only reported. 1.9. Measurement Uncertainty Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the apparatus: Parameter Uncertainty 20 ㏈ Bandwidth ± 13.12 ㎑ AC Conducted Emission ± 3.45 ㏈ Radiated Disturbance, 9㎑ to 30㎒ H ± 3.66 ㏈ V ± 3.66 ㏈ Radiated Disturbance, below 1 ㎓ H ± 4.90 ㏈ V ± 4.82 ㏈ All measurement uncertainty values are shown with a coverage factor k=2 to indicate a 95 % level of confidence. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002124 Page: 6 of 58 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.10. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15 Subpart C Section Test Item(s) Result 15.209 Radiated Emission, Spurious Emission and Field Strength of Fundamental Complied 2.1049 20 ㏈ Bandwidth Complied 15.207 AC Power Line Conducted Emission Complied Note; D…

Text truncated - open the document above for the full version.

Test setup photo of EUT 1. Photos of Operating Mode 2. Photo of Radiated Spurious Emission Test (9 ㎑ ~ 30 ㎒) 3. Photo of Radiated Spurious Emission Test (30 ㎒ ~ 1 000 ㎒) 4. Photos of AC Power line emission Test 5. Photos of MPE Test SM-N970U T R AV E L ADAPTER Test PC Probe EUT
