A3LEPN3300WIRELESS CHARGER

QUICK START GUIDE EP-N3300 Wireless Charger Stand 2 English A B 3 English C 1 2 3 a Copyright © 2020 Samsung Electronics Co., Ltd. 4 • After detaching the stand from the wireless charger and connecting the charger to the wireless charger ( A ), you can lay the phone stand and charge the mobile device. ( B ) You can also keep the phone stand upright. Insert the stand to the space on the bottom of the back side and push it down while pressing a part. • Do not place foreign materials, such as metal objects, magnets, and magnetic stripe cards, between the mobile device and the wireless charger. • Use only the charger and cable supplied with the device. • Your device contains magnets, which may affect medical devices, such as pacemakers or implantable cardioverter defibrillators. If you are using any of these medical devices, keep your device a safe distance from them and consult with your physician before you use the device. • Visit www.samsung.com to view the user manual and the safety information. • Your consumer rights are governed by the law of the country in which you purchased the product. Please contact your service provider for more information. 5 English Correct disposal This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste. This product is India RoHS compliant. For information on Samsung’s environmental commitments and product-specific regulatory obligations, e.g. REACH, WEEE, Batteries, visit samsung.com/uk/aboutsamsung/ samsungelectronics/corporatecitizenship/data_corner.html Declaration of Conformity Samsung Electronics declares that this device complies with the essential requirements and relevant provisions of Directive 2014/53/EU. Go to www.samsung.com/mobile_doc to view the Declaration of Conformity. Band and mode Band and modeOutput power Wireless Charging 120.5 kHz, 125.7-129.7 kHz 24.92 dBμA/m at 10 m FCC Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Part 15.21 Any changes or modifications (including the antennas) to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence- exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) L’appareil ne doit pas produire de brouillage; (2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Cet équipement est conforme aux limites établies par Industrie Canada en matière d'exposition aux radiofréquences dans un environnement non contrôlé. Cet appareil et son antenne ne doivent pas être colocalisés ou fonctionner en conjonction avec tout autre antenne ou émetteur. Cet équipement doit être installé et utilisé avec une distance minimale de 20cm entre le radiateur et votre corps.

19 Chapin Rd., Building D Pine Brook, New Jersey, 07058, United States Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER FOR AUTHORIZATION FCC ID: A3LEPN3300 To whom it may concern: I, the undersigned, hereby authorize Lab Manager Hyunchae, You and of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Hyunchae, You of SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; 26 May 2020 19 Chapin Rd., Building D Pine Brook, New Jersey, 07058, United States i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Jenni Chun/ General Manager Samsung Ele ctronics North America INC. TEL: +1-973-808-6362 E-mail: [email protected]

19 Chapin Rd., Building D Pine Brook, New Jersey, 07058, United States 26 May 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST FOR CONFIDENTIALITY FCC ID: A3LEPN3300 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Jenni Chun / General Manager Samsung Electronics North America INC. TEL: +1-973-808-6362 E-mail: [email protected]

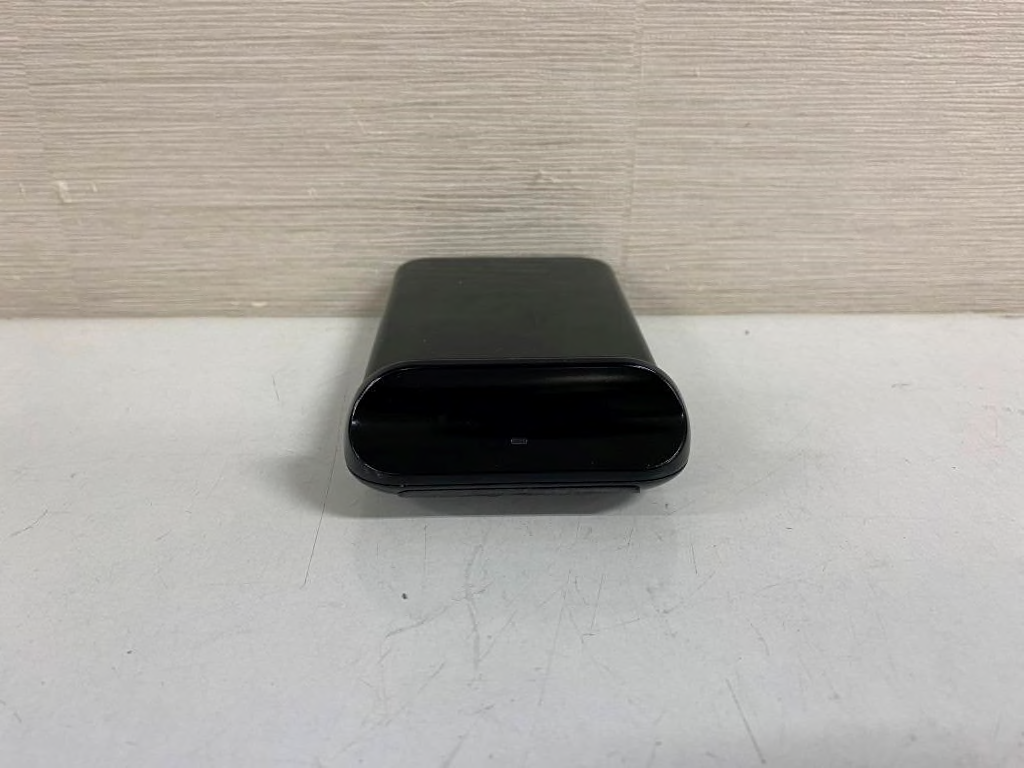

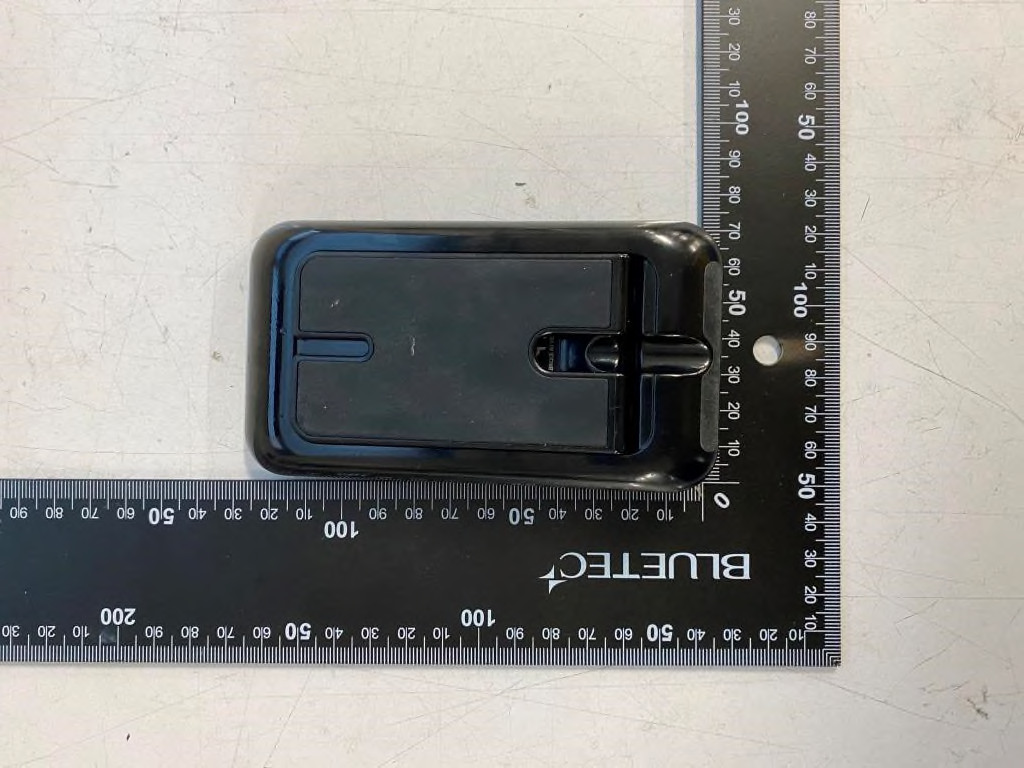

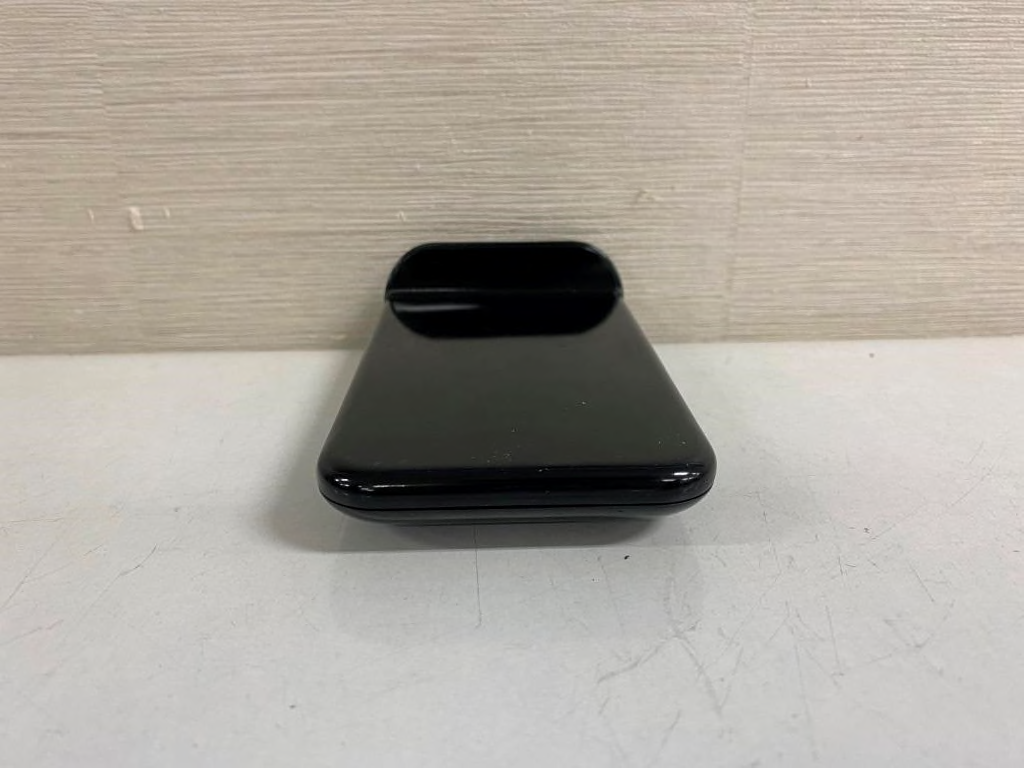

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

Label Information FCC ID: A3LEPN3300 IC: 649E-EPN3300 Model Name: EP-N3300 <Bottom of EUT>

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB Y2 (8MHz X’tal) Top view of Sub PCB Bottom view of Sub PCB View of Antenna Loop coil antenna (ANT1) Loop coil antenna (ANT2)

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000688 Page:2of9 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) INDEX Table of Contents 1. General Information --------------------------------------------------------------------------------------3 2. Test Result -------------------------------------------------------------------------------------------------5 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000688 Page:3of9 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No.: +82 31 688 0901 Fax No.: +82 31 688 0921 1.2. Details of Applicant Applicant:Samsung Electronics Co., Ltd. Address:19 Chapin Rd., Building D, Pine Brook, New Jersey, United States, 07058 Contact Person:Chun, Jenni Phone No.:+1 973 808 6375 1.3. Details of Manufacturer Company:Samsung Electronics Co., Ltd. Address:129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Republic of Korea 1.4. Description of EUT Kind of Product WIRELESS CHARGER Model Name EP-N3300 Power Supply DC 9.0 V Operation Mode 5 W, 7.5 W Frequency Range 5 W Ant. 1: 125.7㎑~ 129.7㎑ Ant. 2: 120.5㎑,125.7㎑~ 129.7㎑ 7.5 W Ant. 1: 125.7㎑~ 129.7㎑ Ant. 2: 125.7㎑~ 129.7㎑ Antenna Type Loop Coil Antenna 1.5. Declaration by the Manufacturer - The EUT has 2 loop coil antennas, and only one antenna can transmit at once. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000688 Page:4of9 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.6. Test Equipment List EquipmentManufacturerModelS/NCal. Date Cal. Interval Cal. Due E-Field Probe D.A.R.E!! Instruments RadiSense 413I00444SNO04Jun. 24, 2019AnnualJun. 24, 2020 Magnetic Field Sensor HIOKI34710850-B1Aug. 02, 2019AnnualAug. 02, 2020 Magnetic Field Hitester HIOKIFT3470-50140430999Aug. 02, 2019AnnualAug. 02, 2020 Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/AN.C.R.N/AN.C.R. ▶Support Equipment DescriptionManufacturerModelFCC ID Samsung Mobile PhoneSamsung Electronics Co., Ltd.SM-G973U1A3LSMG973U C type USB Cable Samsung Electronics Co., Ltd.EP-DR170BBE- TRAVEL ADAPTER RFTECHEP-TA200- 1.7. Test Report Revision RevisionReport NumberDate of IssueDescription 0F690501-RF-RTL0006882020.05.22Initial 1.8. Worst Case of Test Configurations In order to check all kinds of possible configurations, EUT was evaluated with appropriate client and under each charging condition as below table. Charging mode with client device ModeDescription Model: SM-G973U1 FCC ID: A3LSMG973U 5 W7.5 W 1 % of battery 50 % of battery 99 % of battery Ant. 1Ant. 2Ant. 1Ant. 2 125.7㎑~ 129.7㎑ 120.5㎑, 125.7㎑~ 129.7㎑ 125.7㎑~ 129.7㎑ 125.7㎑~ 129.7㎑ Note; - EUT was investigated with client device under normal charging condition as above then worst value was only reported. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000688 Page:5of9 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 2. Test Result 2.1. Test Setup 2.2. Measurement procedure a) The RF exposure test was performed in anechoic chamber. b) The measurement probe was placed at test distance (15㎝) which is between the edge of the charger and the geometric center of probe. c) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E, F) were completed. d) The EUT was measured according to the dictates of KDB 680106 D01 RF Exposure Wireless Charging Apps v03. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000688 Page:6of9 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 2.3. Equipment Approval Considerations item 5 b) of KDB 680106 D01 v03. (1) Power transfer frequency is less that 1㎒. - The device operates at a frequency 120.5㎑and 125.7 ~ 129.7㎑. (2) Output power from each primary coil is less than or equal to 15 watts. - Output power from primary coil: 7.5 watts. (3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. - The transfer system including a charging system with one primary coils is to detect and allow only between individual pairs of coils. (4) Client device is placed directly in contact with the transmitter. - Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). - Mobile exposure conditions only. (6) The aggregate H-field strengths at 15㎝surrounding the device and 20㎝above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50 % of the MPE limit. - Refer to following test results. The EUT H-Field Strength levels at 15㎝< 50 % of the MPE H-Field Strength limit 1.63 A/m 0.112 A/m (Max. at 15㎝) < 0.815 A/m SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000688 Page:7of9 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 2.4. Environmental evaluation and exposure li…

Text truncated - open the document above for the full version.

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000687 Page:2of52 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) INDEX Table of Contents 1. General Information --------------------------------------------------------------------------------------3 2. Field Strength of Fundamental and Spurious Emission -----------------------------------------7 3. 20㏈Bandwidth -----------------------------------------------------------------------------------------36 4. AC Power Line Conducted Emission ----------------------------------------------------------------41 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000687 Page:3of52 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No.: +82 31 688 0901 Fax No.: +82 31 688 0921 1.2. Details of Applicant Applicant:Samsung Electronics Co., Ltd. Address:19 Chapin Rd., Building D, Pine Brook, New Jersey, United States, 07058 Contact Person:Chun, Jenni Phone No.:+1 973 808 6362 1.3. Details of Manufacturer Company:Samsung Electronics Co., Ltd. Address:129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Republic of Korea 1.4. Description of EUT Kind of Product WIRELESS CHARGER Model Name EP-N3300 Power Supply DC 9.0 V Operation Mode 5 W, 7.5 W Frequency Range 5 W Ant. 1: 125.7㎑~ 129.7㎑ Ant. 2: 120.5㎑,125.7㎑~ 129.7㎑ 7.5 W Ant. 1: 125.7㎑~ 129.7㎑ Ant. 2: 125.7㎑~ 129.7㎑ Antenna Type Loop Coil Antenna 1.5. Declaration by the Manufacturer - The EUT has 2 loop coil antennas, and only one antenna can transmit at once. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000687 Page:4of52 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.6. Test Equipment List EquipmentManufacturerModelS/NCal. Date Cal. Interval Cal. Due Spectrum AnalyzerR&SFSV30103101Jun. 05, 2019 Annual Jun. 05, 2020 Signal GeneratorR&SSMBV100A259067 Jun. 10, 2019 Annual Jun. 10, 2020 AmplifierH.P.8447F2944A03909Aug. 07, 2019AnnualAug. 07, 2020 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 15191519-039Aug. 22, 2019BiennialAug. 22, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB9163396 Mar. 21, 2019 Biennial Mar. 21, 2021 Turn Table Innco systems GmbH DS 1200 SN/AN.C.R.N/AN.C.R. Controller Innco systems GmbH CONTROLLER CO3000-4P CO3000/963/38 330516/L N.C.R.N/AN.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/AN.C.R.N/AN.C.R. Coaxial CableRFONE PL520-NMNM-4M (4 m)20200324001May 06, 2020 Semi- annual Nov. 06, 2020 Coaxial CableRFONE PL520-NMNM-10M (10 m)20200324001May 06, 2020 Semi- annual Nov. 06, 2020 Test ReceiverR&S ESCI 7100911Feb. 19, 2020AnnualFeb. 19, 2021 Two-Line V-Network R&SENV216100190May 14, 2019AnnualMay 14, 2020 Shield RoomSY Corporation L × W × H (6.5 m × 3.5 m × 3.5 m) N/AN.C.R.N/AN.C.R. ▶Support Equipment DescriptionManufacturerModelFCC ID Samsung Mobile PhoneSamsung Electronics Co., Ltd.SM-G973U1A3LSMG973U C type USB Cable Samsung Electronics Co., Ltd.EP-DR170BBE- TRAVEL ADAPTERRFTECHEP-TA200- 1.7.Sample Calculation Where relevant, the following sample calculation is provided: Field strength level (㏈㎶/m) = Measured level (㏈㎶) + Antenna factor (㏈) + Cable loss (㏈) + (AMP (㏈)) SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000687 Page:5of52 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.8. Worst Case of Test Configurations Charging mode with client device ModeDescription Model: SM-G973U1 FCC ID: A3LSMG973U 5 W7.5 W 1 % of battery 50 % of battery 99 % of battery Ant. 1Ant. 2Ant. 1Ant. 2 125.7㎑~ 129.7㎑ 120.5㎑, 125.7㎑~ 129.7㎑ 125.7㎑~ 129.7㎑ 125.7㎑~ 129.7㎑ Note; EUT was investigated with client device under normal charging condition as above then worst value was only reported. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000687 Page:6of52 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.9. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15 Subpart C SectionTest Item(s)Result 15.209 Radiated Emission, Spurious Emission and Field Strength of Fundamental Complied 2.1049 20㏈Bandwidth Complied 15.207AC Power Line Conducted EmissionComplied Note; Due to the frequency range of the device is less than 1㎒, so we perform Middle frequency according to 15.31 requirement. 1.10. Measurement Uncertainty Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the apparatus: ParameterUncertainty 20㏈Bandwidth ±9.66㎑ AC Conducted Emission ±3.45㏈ Radiated Disturbance, 9㎑to 30㎒ ±3.59㏈ Radiated Disturbance, below 1㎓ ±5.88㏈ Uncertainty figures are valid to a confidence level of 95 %. 1.11. Test Report Revision RevisionReport NumberDate of IssueDescription 0F690501-RF-RTL0006872020.05.22Initial SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000687 Page:7of52 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 2. Field Strength of Fundamental and Spurious Emission 2.1. Test Setup The diagram below shows the test setup that is utilized to …

Text truncated - open the document above for the full version.

Test setup photo of EUT 1. Photos of Operating Mode – Ant.1 – Ant.2 2. Photo of Radiated Spurious Emission Test (9㎑~ 30㎒) 3. Photo of Radiated Spurious Emission Test (30㎒~ 1 000㎒) 4. Photos of AC Power line emission Test 5. Photos of MPE Test – E-Field – B-Field
