A3LEPPA510WIRELESS CHARGER

QUICK START GUIDE Wireless Charger 4 a b c Copyright © 2015 Samsung Electronics • Please read this manual before using the device to ensure safe and proper use. • Images may differ in appearance from the actual product. Content is subject to change without prior notice. You can access the full user manual for more information. Visit www.samsung.com to view device information, the user manual, and more. Device layout Wireless charging surface Indicator light Charging port Wireless charging cover and travel adaptor sold separately. English 5 English Using the wireless charger 1. Connect the travel adaptor to the wireless charger. Then, place a supported mobile device in the centre of the charging surface. 2. When the mobile device is fully charged, disconnect the travel adaptor from the wireless charger. Use only Samsung-approved travel adaptors (5 V/2 A). The travel adaptor should remain close to the electric socket and easily accessible while charging. Safety information Read all safety information before using the device to ensure safe and proper use. To view the full safety information, refer to the Samsung website. Use manufacturer-approved batteries, chargers, accessories, and supplies Do not touch the device with wet hands 6 Do not drop or cause an impact to the charger or the device Do not store your device in very hot or very cold areas. It is recommended to use your device at temperatures from 5°C to 35°C Prevent the multipurpose jack and the small end of the charger from contact with conductive materials, such as liquids, dust, metal powders, and pencil leads Do not allow children or animals to chew or suck the device Do not disassemble, modify, or repair your device Magnetic stripe cards, including credit cards, phone cards, passbooks, and boarding passes, may be damaged by magnetic fields Correct disposal This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste. This product is RoHS compliant. 7 FCC Warning Statement FCC Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC P art 15.21 Any changes or modifications (including the an tennas) to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. 8 IC Warning Statement This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. 9 Cet équipement est conforme aux limites établies par Industrie Canada en matière d'exposition aux radiofréquences dans un environnement non contrôlé. Cet appareil et son antenne ne doivent pas être colocalisés ou fonctionner en conjonction avec tout autre antenne ou émetteur. Cet équipement doit être installé et utilisé avec une distance minimale de 20cm entre le radiateur et votre corps. IC RF Radiation Exposure Statement This equipment complies with IC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co- located or operating in conjunction with any other antenna or transmitter. Déclaration d'Industrie Canada sur l'exposition aux radiofréquences

129, Samsung‐ro, Yeongtong‐gu, Suwon‐si Gyeonggi‐do, 443‐742, Korea Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER FOR AUTHORIZATION FCC ID: A3LEPPA510 To whom it may concern: I, the undersigned, hereby authorize Lab Ma nager Hyunchae, You (or Logan, Lee) and of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Hyunchae, You (or Logan. Lee) of SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; September 16, 2015 129, Samsung‐ro, Yeongtong‐gu, Suwon‐si Gyeonggi‐do, 443‐742, Korea i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Chan Ho, Youn / General Manager Samsung Electronics North America INC. TEL: +1-973-808-6362 E-mail: [email protected]

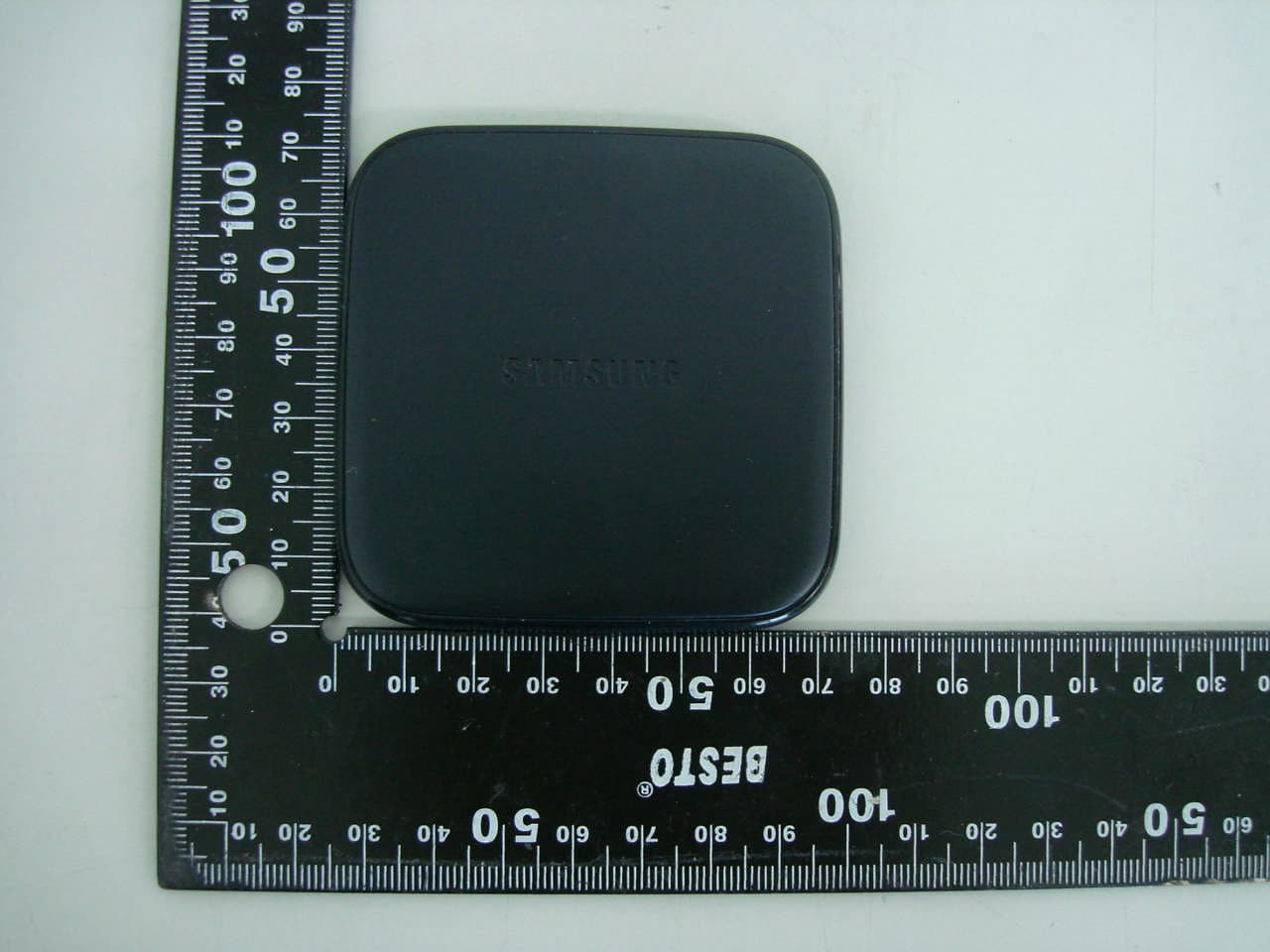

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT

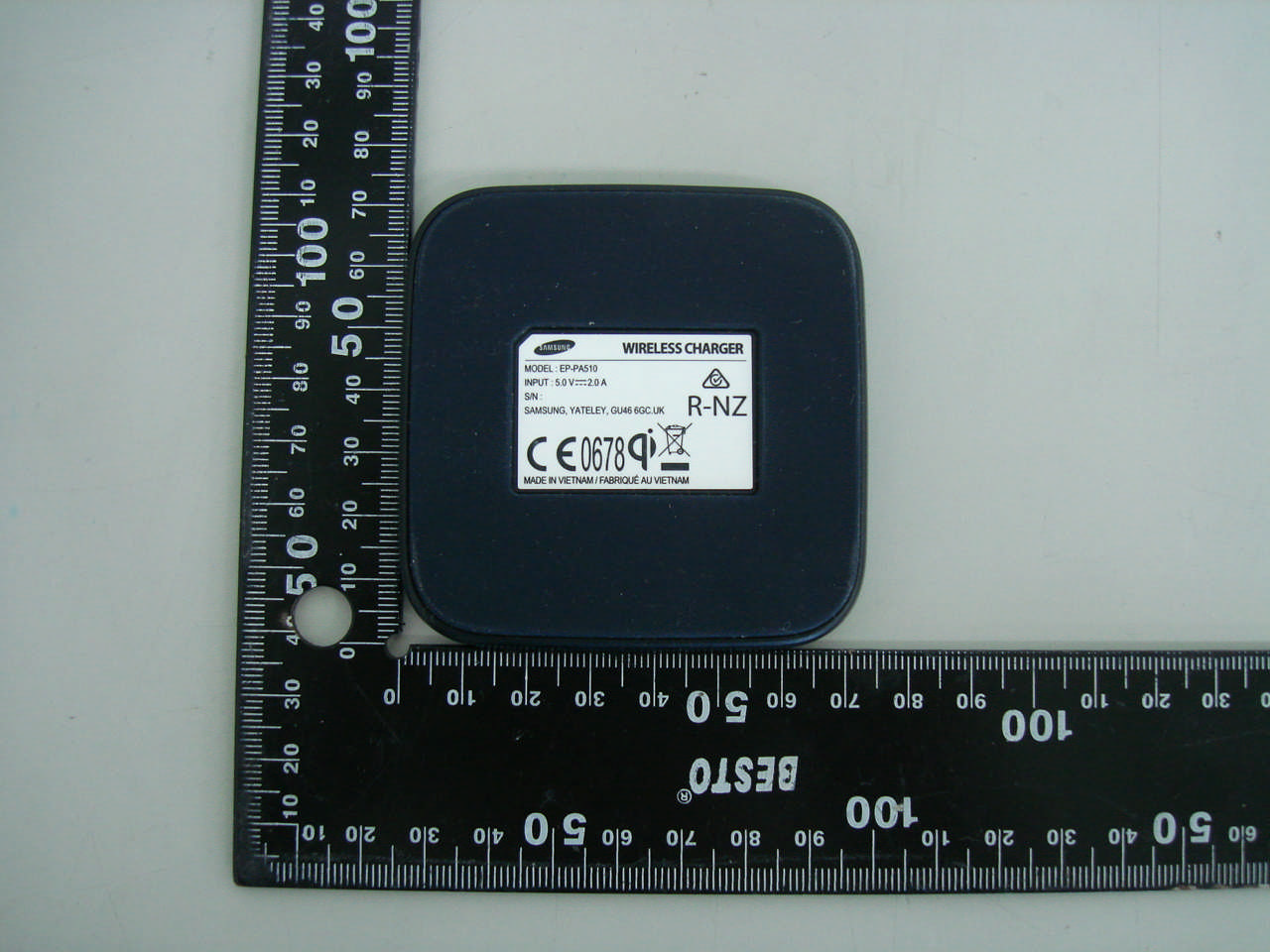

Label Format & Location MODEL: EP-PA510 FCC ID: A3LEPPA510 IC: 649E-EPPA510 Label Format WIRELESS CHARGER MODEL : EP-PA510 INPUT : 5.0 V 2.0 A FCC ID : A3LEPPA510 IC : 649E-EPPA510 S/N : MADE IN VIETNAM / FABRIQUÉ AU VIETNAM Rear view of EUT

Internal photos of EUT Internal view of EUT Top view of main board (with shielding can) Top view of main board (without shielding can) Bottom view of main board View of Antenna Loop Coil Antenna

Report Number :F690501/RF-RTL009128Page:2of9 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX TABLE OF CONTENTSPage 1. General Information -----------------------------------------------------------------------3 2. Test Result -----------------------------------------------------------------------------------5 Report Number :F690501/RF-RTL009128Page:3of9 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General information 1.1. Testing laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. :+82 31 688 0901 Fax No. :+82 31 688 0921 1.2. Details of applicant Applicant:Samsung Electronics Co., Ltd. Address:129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677 Republic of Korea Contact Person:Kim, Kyung-Won Phone No.:+82 31 301 0274 1.3. Description of EUT Kind of Product WIRELESS CHARGER Model Name EP-PA510 Power Supply DC 5.0 V Frequency Range 120㎑~ 190㎑ Operating Conditions -20°C~ 60°C Antenna Type Inductive loop coil antenna H/W Version REV0.1 S/W Version 0913 Report Number :F690501/RF-RTL009128Page:4of9 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.4. Test Equipment List EquipmentManufacturerModelS/NCal Date Cal Interval Cal Due. E-Field ProbeETS-LINDGRENHI-600500047870Mar. 11, 2015 Annual Mar. 11, 2016 Magnetic Field Sensor HIOKI0850-B13471Jul. 16, 2015AnnualJul. 16, 2016 Magnetic Field Hitester HIOKIFT3470-50140430999Jul. 16, 2015AnnualJul. 16, 2016 Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/AN.C.R.N/AN.C.R. 1.5. Test report revision RevisionReport numberDate of IssueDescription 0F690501/RF-RTL0091282015.09.14Initial 1.6. Worst case of test configurations In order to check all kinds of possible configurations, EUT was evaluated with appropriate client and under each charging condition as below table. EUT configurationDescription Charging Mode with client device (Galaxy S 6 : SM-G920A FCC ID : A3LSMG920A) Less than 1 % of battery Less than 50 % of battery 100 % full charging of battery Report Number :F690501/RF-RTL009128Page:5of9 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 2. Test Result 2.1. Test Setup 2.2. Measurement procedure a) The RF exposure test was performed in anechoic chamber. b) The measurement probe was placed at test distance (10㎝) which is between the edge of the charger and the geometric center of probe. c) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E, F) were completed. d) The EUT were measured according to the dictates of KDB 680106 D01v02. Report Number :F690501/RF-RTL009128Page:6of9 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 2.3.Equipment Approval Considerationsitem 5.2 of KDB 680106 D01v02. a) Power transfer frequency is less that 1㎒. - The device operates in the frequency range from 120㎑to 190㎑. b) Output power from each primary coil is less than 5 watts. - DC 5 V (Travel adapter output)Output power from each primary coil : 5 W (Max.) c) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. - The transfer system includes only single primary and secondary coils. Refer to a photo in the Internal photos. d) Client device is inserted in or placed directly in contact with the transmitter. - Client device is placed directly in contact with the transmitter. e) The maximum coupling surface area of the transmit (charging) device: - The EUT coupling surface area : 7.2 cm(W)x7.4 cm(H) = 53.28 cm 2 , 53.28 cm 2 < 60 cm 2 f) Aggregate leakage fields at 10 cm surrounding the device from all simultaneous transmitting coils are demonstrated to be less than 30 % of the MPE limit. - Refer to following test results. The EUT field strength levels < 30 % of the MPE limit 1.63 A/m 0.236 A/m (Max.) < 0.489 A/m Report Number :F690501/RF-RTL009128Page:7of9 …

Text truncated - open the document above for the full version.

Report Number :F690501/RF-RTL009129Page:2of19 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX TABLE OF CONTENTS Page 1. General Information --------------------------------------------------------------------------3 2. Field Strength of Fundamental and Spurious Emission -----------------------------6 3. 20㏈Bandwidth -----------------------------------------------------------------------------13 4. Transmitter AC Power Line Conducted Emission ------------------------------------15 Report Number :F690501/RF-RTL009129Page:3of19 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. :+82 31 688 0901 Fax No. :+82 31 688 0921 1.2. Details of applicant Applicant:Samsung Electronics Co., Ltd. Address:129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677 Republic of Korea Contact Person:Kim, Kyung-Won Phone No.:+82 31 301 0274 1.3. Description of EUT Kind of Product WIRELESS CHARGER Model Name EP-PA510 Power Supply DC 5.0 V Frequency Range 120㎑~ 190㎑ Operating Conditions -20°C~ 60°C Antenna Type Inductive loop coil antenna H/W Version REV0.1 S/W Version 0913 Report Number :F690501/RF-RTL009129Page:4of19 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.4. Test Equipment List EquipmentManufacturerModelS/NCal Date Cal Interval Cal Due. Spectrum Analyzer R&SFSV30100768Mar. 24, 2015 Annual Mar. 24, 2016 Signal Generator Agilent 8648D3847M00534 Mar. 23, 2015 Annual Mar. 23, 2016 DC Power Supply AgilentU8002AMY48490027Dec. 22, 2014 Annual Dec. 22, 2015 Test ReceiverR&SESU26100109Mar. 03, 2015 Annual Mar. 03, 2016 Test ReceiverR&S ESCI 7100911Dec. 24, 2014AnnualDec. 24, 2015 Loop AntennaR&SFMZB 15191519-039Aug. 19, 2015BiennialAug. 19, 2017 Two-Line V-Network R&SENV216100190Dec. 25, 2014AnnualDec. 25, 2015 Antenna MasterINN-COMM4000 N/AN.C.R.N/AN.C.R. Turn TableINN-CODS 1200 S N/AN.C.R.N/AN.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/AN.C.R.N/AN.C.R. Shield RoomSY Corporation L × W × H (6.5 m × 3.5 m × 3.5 m) N/AN.C.R.N/AN.C.R. 1.5.Sample calculation Where relevant, the following sample calculation is provided: Field strength level (㏈㎶/m) = Measured level (㏈㎶) + Antenna factor (㏈) + Cable loss (㏈) – amplifier gain (㏈) Report Number :F690501/RF-RTL009129Page:5of19 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.6. Worst case of test configurations In order to check all kinds of possible configurations, EUT was evaluated with appropriate client and under each charging condition as below table. EUT configurationDescription Charging Mode with client device (Galaxy S 6 : SM-G920A FCC ID : A3LSMG920A) Less than 1 % of battery Less than 50 % of battery 100 % full charging of battery 1.7. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15 Subpart C §15.209 Section in FCC Part 15 Subpart C Test ItemResult 15.209 15.209(a) Radiated emission, Spurious Emission and Field Strength of Fundamental Complied 2.1049 20㏈Bandwidth Complied 15.207 Transmitter AC Power Line Conducted Emission Complied 1.8. Test Report Revision RevisionReport numberDate of IssueDescription 0F690501/RF-RTL0091292015.09.14Initial Report Number :F690501/RF-RTL009129Page:6of19 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 2. Field Strength of Fundamental and Spurious Emission 2.1. Test Setup The diagram below shows the test setup that is utilized to make the measurements for emission from 9㎑to 30㎒Emissions. Report Number :F690501/RF-RTL009129Page:7of19 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 /…

Text truncated - open the document above for the full version.

Test setup photos of EUT 1. Radiated Field strength 1.1. Frequency range: 9㎑~ 30㎒ Client device (SM-G920A) 2.2. Test Setup Photo of MPE 2.2.1. 10㎝Distance between the edge of the EUT and the center of probe A. E-Field Probe Client device (SM-G920A) B. H-Field Probe Client device (SM-G920A) 3. AC Conducted power line emissions Client device (SM-G920A)
