A3LEPPG920AWIRELESS CHARGER

a b c Copyright © 2015 Samsung Electronics English • Please read this manual before using the device to ensure safe and proper use. • Images may differ in appearance from the actual product. Content is subject to change without prior notice. You can access the full user manual for more information. Visit www.samsung.com to view device information, the user manual, and more. Device layout Wireless charging surface Indicator light Charging port Wireless charging cover sold separately. Using the wireless charger 1. Connect the travel adapter to the wireless charger. Then, place a supported mobile device in the center of the charging surface. 2. When the mobile device is fully charged, disconnect the travel adapter from the wireless charger. Use only Samsung-approved travel adapters (5 V/2 A). The travel adapter should remain close to the electric socket and easily accessible while charging. Safety information Read all safety information before using the device to ensure safe and proper use. To view the full safety information, refer to the Samsung website. Use manufacturer-approved batteries, chargers, accessories, and supplies Do not touch the device with wet hands Do not drop or cause an impact to the charger or the device Do not store your device in very hot or very cold areas. It is recommended to use your device at temperatures from 5°C to 35°C Prevent the multipurpose jack and the small end of the charger from contact with conductive materials, such as liquids, dust, metal powders, and pencil leads Do not allow children or animals to chew or suck the device Do not disassemble, modify, or repair your device Magnetic stripe cards, including credit cards, phone cards, passbooks, and boarding passes, may be damaged by magnetic fields FCC Warning Statement FCC Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Part 15.21 Any changes or modifications (including the antennas) to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Recycling Direct To dispose electronics properly, follow the recycling process regulated in your area or go to Samsung website to find the nearest recycling location: www.samsung.com/recyclingdirect Or call, (877) 278 – 0799. Samsung Electronics America, Inc 85 Challenger Road, Ridgefield Park, New Jersey, 07660 Phone: 1-800-SAMSUNG (726-7864) QUICK START GUIDE EP-PG920A Printed in Korea GH68-44067A Rev.1.0 SEA Type 04/2015

129, Samsung‐Ro, Yeongtong‐Gu, Suwon‐si Gyeonggi‐Do, 443‐742, Korea Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: I, the undersigned, hereby authorize Lab Manager Hyunchae, You (or Logan, Lee) and of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Hyunchae, You (or Logan. Lee) of SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; June 10, 2015 129, Samsung‐Ro, Yeongtong‐Gu, Suwo n‐City Gyeonggi‐Do, 443‐742, Korea i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Chan Ho, Youn / General Manager Samsung Electronics North America INC. TEL: +1-973-808-6362 E-mail: [email protected]

129, Samsun g‐Ro, Yeongtong‐Gu, Suwon‐City Gyeonggi‐Do, 443‐742, Korea June 10, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST OF CONFIDENTIALITY for FCC ID: A3LEPPG920A To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Chan Ho, Youn / General Manager Samsung Electronics North America INC. TEL: +1-973-808-6362 E-mail: [email protected]

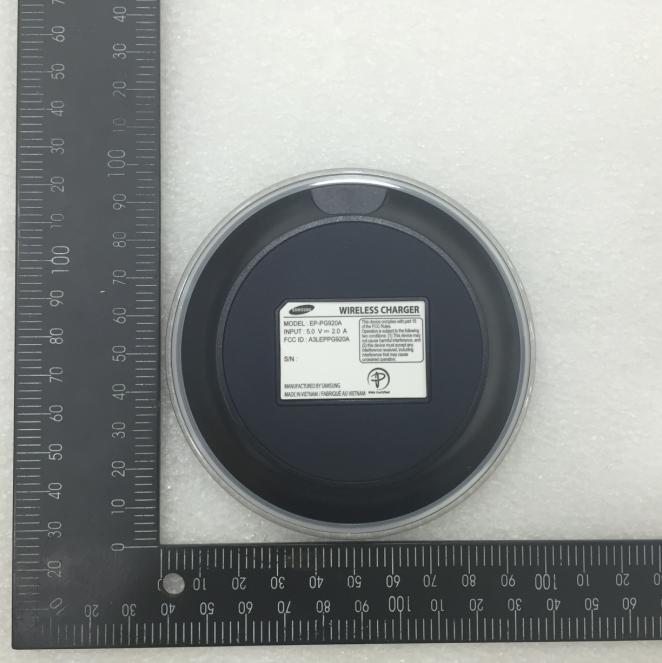

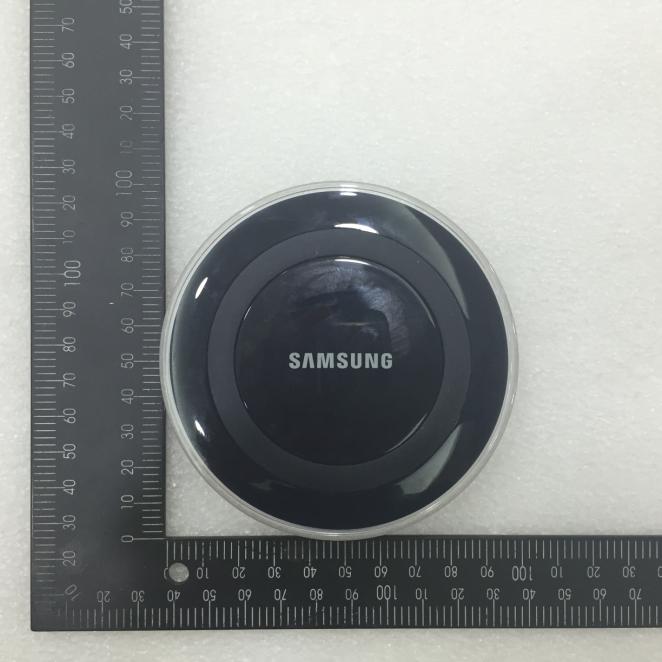

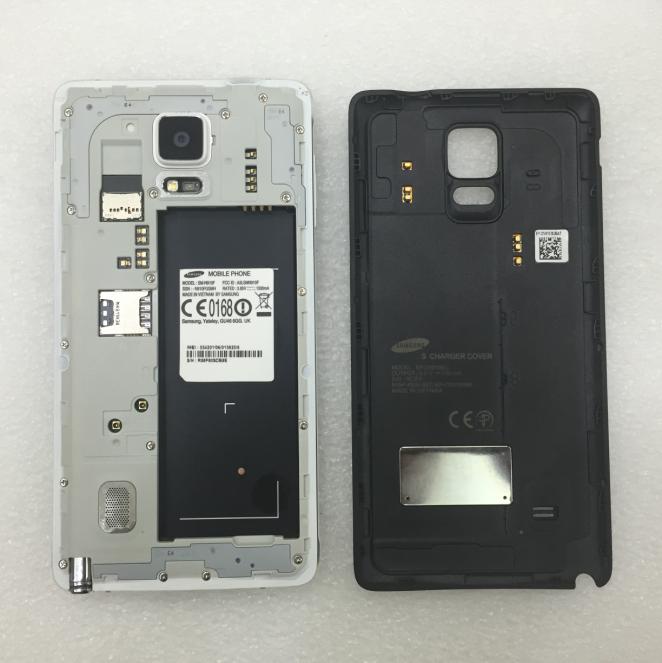

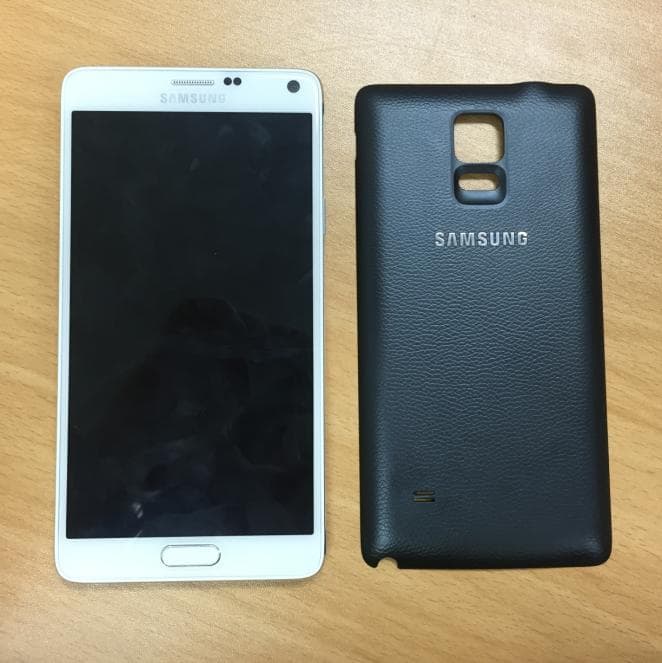

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT External view of client device with receiver (SM-N910F) Client device is placed directly in contact with the transmitter

Label Information FCC ID: A3LEPPG920A Rear view of EUT

Internal photos of EUT Internal view of EUT Loop coil Antenna Top view of main board with shielding can Top view of main board without shielding can Bottom view of main board

Report Number : F690501/RF-RTL008967-1 Page: 2 of 11 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX TABLE OF CONTENTS Page 1. General Information ----------------------------------------------------------------------- 3 2. Test Result ----------------------------------------------------------------------------------- 7 Report Number : F690501/RF-RTL008967-1 Page: 3 of 11 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General information 1.1. Testing laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of applicant Applicant : Samsung Electronics Co., Ltd. Address : 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Republic of Korea Contact Person : Kim, Ji-Hye Phone No. : +82 31 301 1817 1.3. Description of EUT Kind of Product WIRELESS CHARGER Model Name EP-PG920A Power Supply DC 5.0 V (Used AC 100 V ~ 240 V adaptor) Frequency Range 150 ㎑ ~ 200 ㎑ Operating Conditions -20 °C ~ 60 °C Antenna Type Inductive loop coil antenna 1.4. Declarations by the manufacturer - Operation temperature : -20 °C ~ 60 °C Report Number : F690501/RF-RTL008967-1 Page: 4 of 11 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal Date Cal Interval Cal Due. Spectrum Analyzer R&S FSV30 103210 Dec. 29, 2014 Annual Dec. 29, 2015 Loop Antenna R&S HFH2-Z2 100118 Jun. 04, 2015 Biennial Jun. 04, 2017 E-Field Probe ETS-LINDGREN HI-6005 00047870 Mar. 11, 2015 Annual Mar. 11, 2016 B-Field Probe Narda BN 2300/90.10 J-0025 Jan. 23, 2015 Annual Jan. 23, 2016 Exposure Level Meter Narda ELT-400 J-0015 Jan. 23, 2015 Annual Jan. 23, 2016 Mobile Test Unit R&S CMW500 144035 Mar. 03, 2015 Annual Mar. 03, 2016 Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. 1.6. Test report revision Revision Report number Date of Issue Description 0 F690501/RF-RTL008967 2015.07.28 Initial 1 F690501/RF-RTL008966-1 2015.08.03 Modified a plot for the worst case in each operating mode. Report Number : F690501/RF-RTL008967-1 Page: 5 of 11 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.7. Worst case of test configurations In order to check all kinds of possible configurations, EUT was evaluated with appropriate client and under each charging condition as below table. EUT configuration Description Charging Mode 2) with client device (FCC ID : A3LSMN910F) Less than 1 % of battery Less than 50 % of battery 100 % full charging of battery 1) PMA7 device with client device was investigated each battery status and compared in operating configurations. Battery status during charging condition : - Less than 1 % of battery - Less than 50 % of battery - 100 % of battery Galaxy Note4 (SM-N910F) Plot#1 – less than 1 % of battery Plot#2 – less than 50 % of battery Plot#3 – 100 % of battery Report Number : F690501/RF-RTL008967-1 Page: 6 of 11 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) Operating configurations : Galaxy Note4 (SM-N910F) - While the client device was in airplane mode (Trace#1 “M1”) - While the wireless charger is charging with the client device turned off. (Trace#2 “M2”) - While the wireless charger is charging without the client device. (Trace#3 “M3”) - While the client device was connected to an active data connection (Trace#4 “M4”) The device was tested under all modes and bands like 2G and 3G. In the result, Cellular GSM / GSM850 / 1 TX was found in Low channel. Plot – fundamental emission comparison - The level of Trace#4 was more than Trace#1, 2 and 3. so Trace#4 was selected. - Trace#4 as PCS GSM / GSM850 / 1 TX which was found in Low channel should be tested with the client device as a worst case. Report Number : F690501/RF-RTL008967-1 Page: 7 of 11 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permissi…

Text truncated - open the document above for the full version.

Report Number : F690501/RF-RTL008966-2 Page: 2 of 23 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX TABLE OF CONTENTS Page 1. General Information -------------------------------------------------------------------------- 3 2. Field Strength of Fundamental and Spurious Emission ----------------------------- 8 3. 20 ㏈ Bandwidth ----------------------------------------------------------------------------- 17 4. Transmitter AC Power Line Conducted Emission ------------------------------------ 19 Report Number : F690501/RF-RTL008966-2 Page: 3 of 23 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of applicant Applicant : Samsung Electronics Co., Ltd. Address : 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Republic of Korea Contact Person : Kim, Ji-Hye Phone No. : +82 31 301 1817 1.3. Description of EUT Kind of Product WIRELESS CHARGER Model Name EP-PG920A Power Supply DC 5.0 V (Used AC 100 V ~ 240 V adaptor) Frequency Range 150 ㎑ ~ 200 ㎑ Operating Conditions -20 °C ~ 60 °C Maximum Field strength 82.57 ㏈㎶/m at 3 m (2.57 ㏈㎶/m at 300 m) Antenna Type Inductive loop coil antenna 1.4. Declarations by the manufacturer - Operation temperature : -20 °C ~ 60 °C Report Number : F690501/RF-RTL008966-2 Page: 4 of 23 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal Date Cal Interval Cal Due. Spectrum Analyzer R&S FSV30 103210 Dec. 29, 2015 Annual Dec. 29, 2016 Signal Generator R&S SMBV100A 255834 Jun. 22, 2015 Annual Jun. 22, 2016 Mobile Test Unit R&S CMW500 144035 Mar. 03, 2015 Annual Mar. 03, 2016 Preamplifier H.P. 8447F 2944A03909 Aug. 27, 2014 Annual Aug. 27, 2015 Test Receiver R&S ESU26 100109 Mar. 03, 2015 Annual Mar. 03, 2016 Test Receiver R&S ESCI 7 100911 Dec. 24, 2014 Annual Dec. 24, 2015 Loop Antenna R&S HFH2-Z2 100118 Jun. 04, 2015 Biennial Jun. 04, 2017 Bilog Antenna Schwarzbeck Mess-Elektronik VULB9163 396 Jun. 18, 2015 Biennial Jun. 18, 2017 Two-Line V-Network R&S ENV216 100190 Dec. 25, 2014 Annual Dec. 25, 2015 Antenna Master INN-CO MM4000 N/A N.C.R. N/A N.C.R. Turn Table INN-CO DS 1200 S N/A N.C.R. N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. Shield Room SY Corporation L × W × H (6.5 m × 3.5 m × 3.5 m) N/A N.C.R. N/A N.C.R. 1.6. Sample calculation Where relevant, the following sample calculation is provided: Field strength level (㏈㎶/m) = Measured level (㏈㎶) + Antenna factor (㏈) + Cable loss (㏈) – amplifier gain (㏈) Report Number : F690501/RF-RTL008966-2 Page: 5 of 23 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.7. Worst case of test configurations In order to check all kinds of possible configurations, EUT was evaluated with appropriate client and under each charging condition as below table. EUT configuration Description Charging Mode with client device (FCC ID : A3LSMN910F) Less than 1 % of battery Less than 50 % of battery 100 % full charging of battery 1) PMA7 device with client device was investigated each battery status and compared in operating configurations. Battery status during charging condition : - Less than 1 % of battery - Less than 50 % of battery - 100 % of battery Galaxy Note4 (SM-N910F) Plot#1 – less than 1 % of battery Plot#2 – less than 50 % of battery Plot#3 – 100 % of battery Report Number : F690501/RF-RTL008966-2 Page: 6 of 23 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) Operating configurations : Galaxy Note4 (SM-N910F) - While the client device was in airplane mode (Trace#1 “M1”) - While the wireless charger is charging with the client device turned off. (Trace#2 “M2”) - While the wireless charger is charging without the client device. (Trace#3 “M3”) - While the client device was connected to an active data connection (Trace#4 “M4”) The d…

Text truncated - open the document above for the full version.

Test setup photos of EUT 1. Orthogonal planes of EUT - The testing was set in the one orthogonal plane and measured for each position (X). A. X- axis 2. Radiated Field strength Frequency range : 9 ㎑ ~ 30 ㎒ A. The photo of Field strength with client device Client device (SM-N910F) Frequency range : 30 ㎒ ~ 1 ㎓ A. The photo of Field strength with client device Client device (SM-N910F) B. The photo of E-field test with client device Client device (SM-N910F) C. The photo of H-field test with client device Client device (SM-N910F) D. AC Conducted power line emissions Client device (SM-N910F)
