A3LEPPG920IWWIRELESS CHARGER

a b c Copyright © 2015 Samsung Electronics English • Please read this manual before using the device to ensure safe and proper use. • Images may differ in appearance from the actual product. Content is subject to change without prior notice. You can access the full user manual for more information. Visit www.samsung.com to view device information, the user manual, and more. Device layout Wireless charging surface Indicator light Multipurpose jack Wireless charging cover and travel adapter sold separately. Using the wireless charger 1. Connect the wireless charger to the travel adapter and place a supported mobile device on the charger. If your mobile device does not support wireless charging, attach the wireless charging cover to your mobile device. 2. When the mobile device is fully charged, disconnect the travel adapter from the wireless charger. Use only Samsung-approved travel adapters (5 V/2 A). The travel adapter should remain close to the electric socket and easily accessible while charging. Safety information Read all safety information before using the device to ensure safe and proper use. To view the full safety information, refer to the Samsung website. Use manufacturer-approved batteries, chargers, accessories, and supplies Do not touch the device with wet hands Do not drop or cause an impact to the charger or the device Do not store your device in very hot or very cold areas. It is recommended to use your device at temperatures from 5°C to 35°C Prevent the multipurpose jack and the small end of the charger from contact with conductive materials, such as liquids, dust, metal powders, and pencil leads Do not allow children or animals to chew or suck the device Do not disassemble, modify, or repair your device Magnetic stripe cards, including credit cards, phone cards, passbooks, and boarding passes, may be damaged by magnetic fields FCC FCC Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Part 15.21 Any changes or modifications (including the antennas) to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Recycling Direct To dispose electronics properly, follow the recycling process regulated in your area or go to Samsung website to find the nearest recycling location: www.samsung.com/recyclingdirect Or call, (877) 278 - 0799. Samsung E lectronics A merica, I nc 85 Challenger Road, Ridgefield Park, New Jersey, 07660 Phone: 1-800-SAMSUNG (726-7864) QUICK START GUIDE Wireless Charger EP-PG920I Printed in Korea GH68-43435A Rev.1.0 B Type 02/2015

129, Samsung‐Ro, Yeongtong‐Gu, Suwon‐City Gyeonggi‐Do, 443‐742, Korea February 23 , 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: I, the undersigned, hereby authorize Lab Manager Hyunchae, You (or Logan, Lee) and of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Hyunchae, You (or Logan. Lee) of SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; 129, Samsung‐Ro, Yeongtong‐Gu, Suwo n‐City Gyeonggi‐Do, 443‐742, Korea i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Chan Ho, Youn / General Manager Samsung Electronics North America INC. TEL: +1-973-808-6362 E-mail: [email protected]

129, Samsun g‐Ro, Yeongtong‐Gu, Suwon‐City Gyeonggi‐Do, 443‐742, Korea February 23, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST OF CONFIDENTIALITY for FCC ID: A3LEPPG920IW To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Chan Ho, Youn / General Manager Samsung Electronics North America INC. TEL: +1-973-808-6362 E-mail: [email protected]

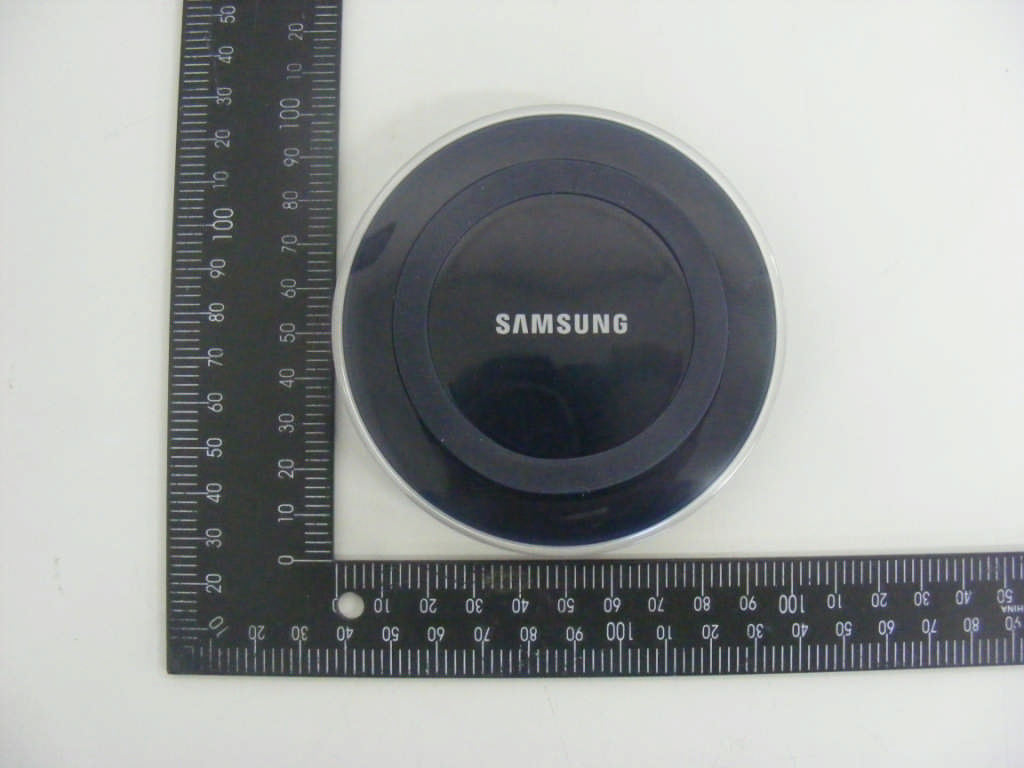

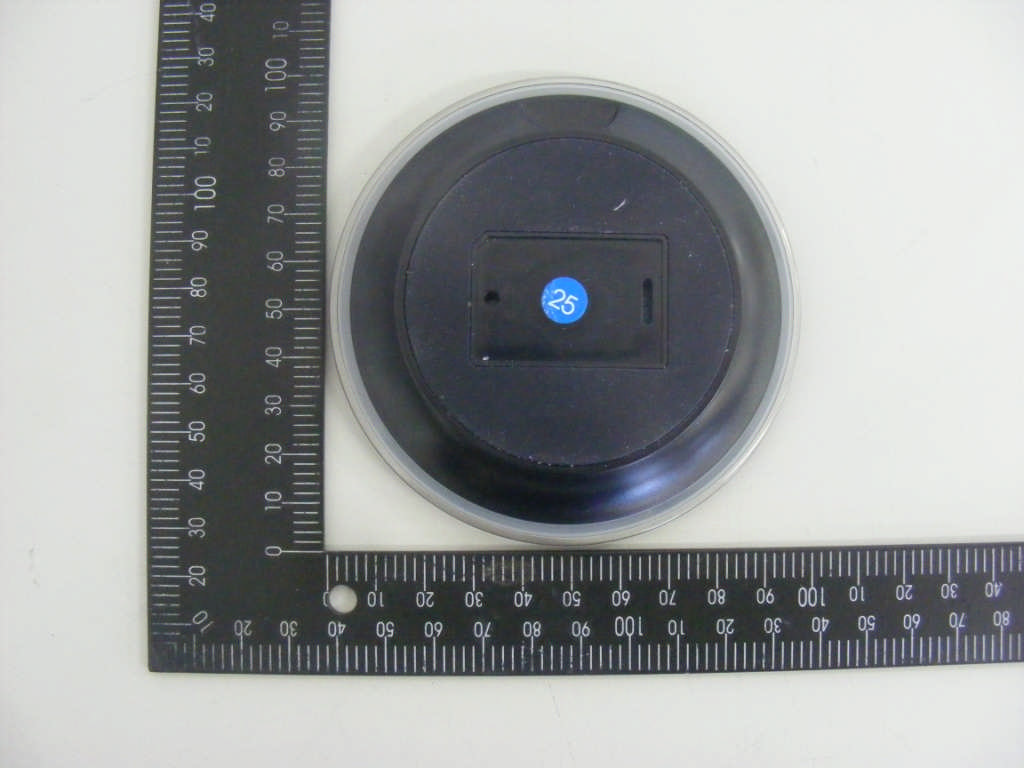

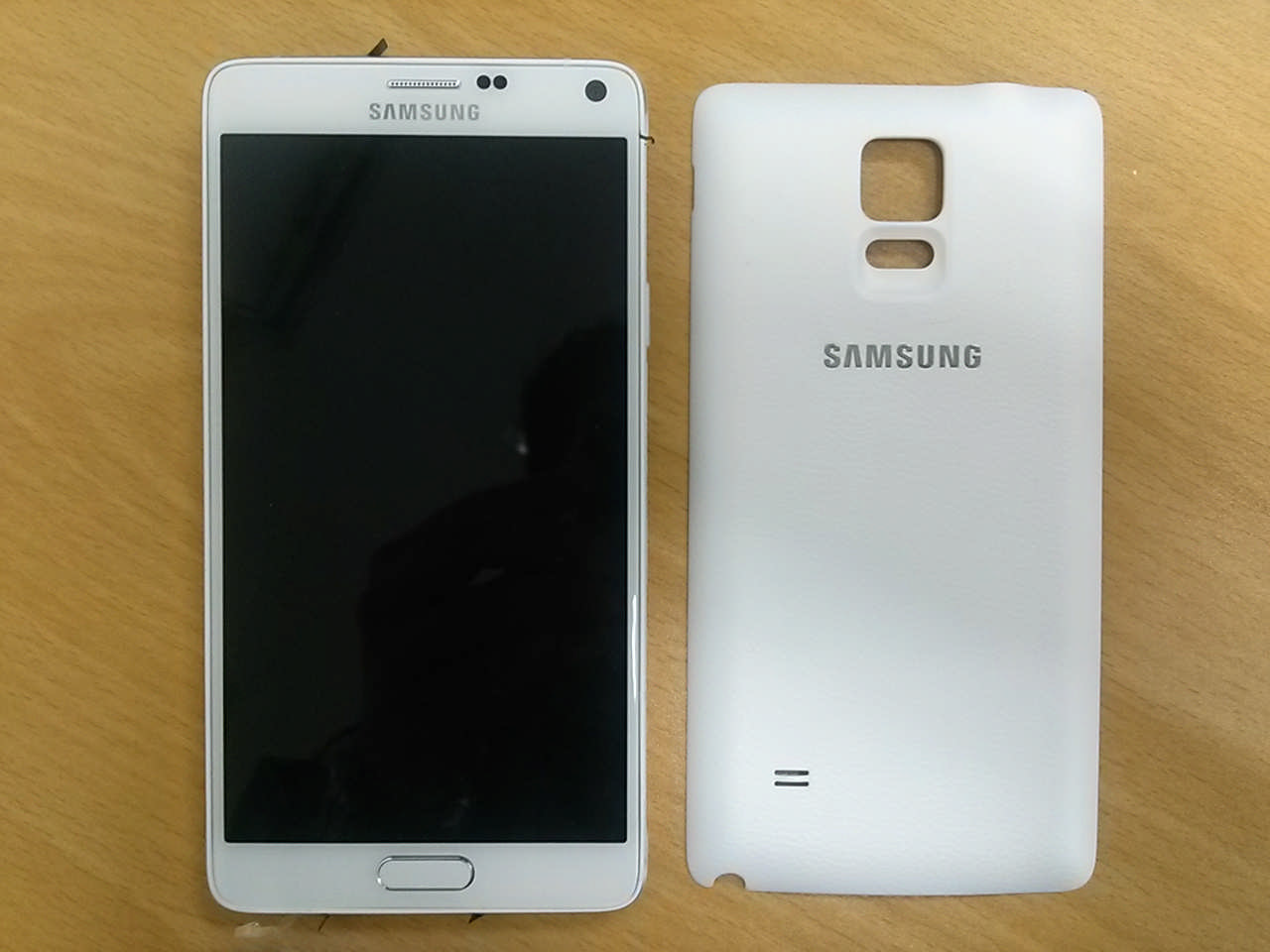

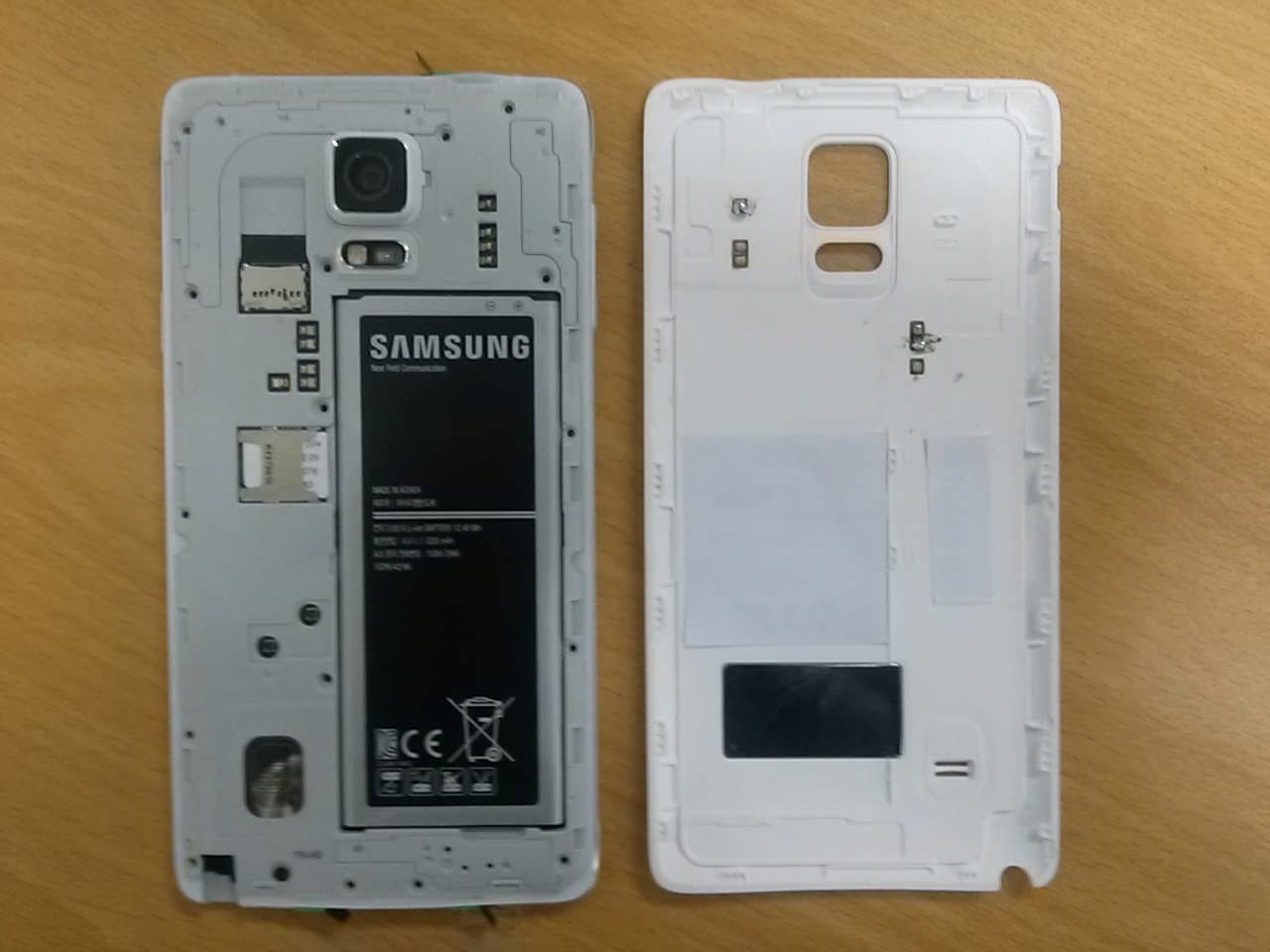

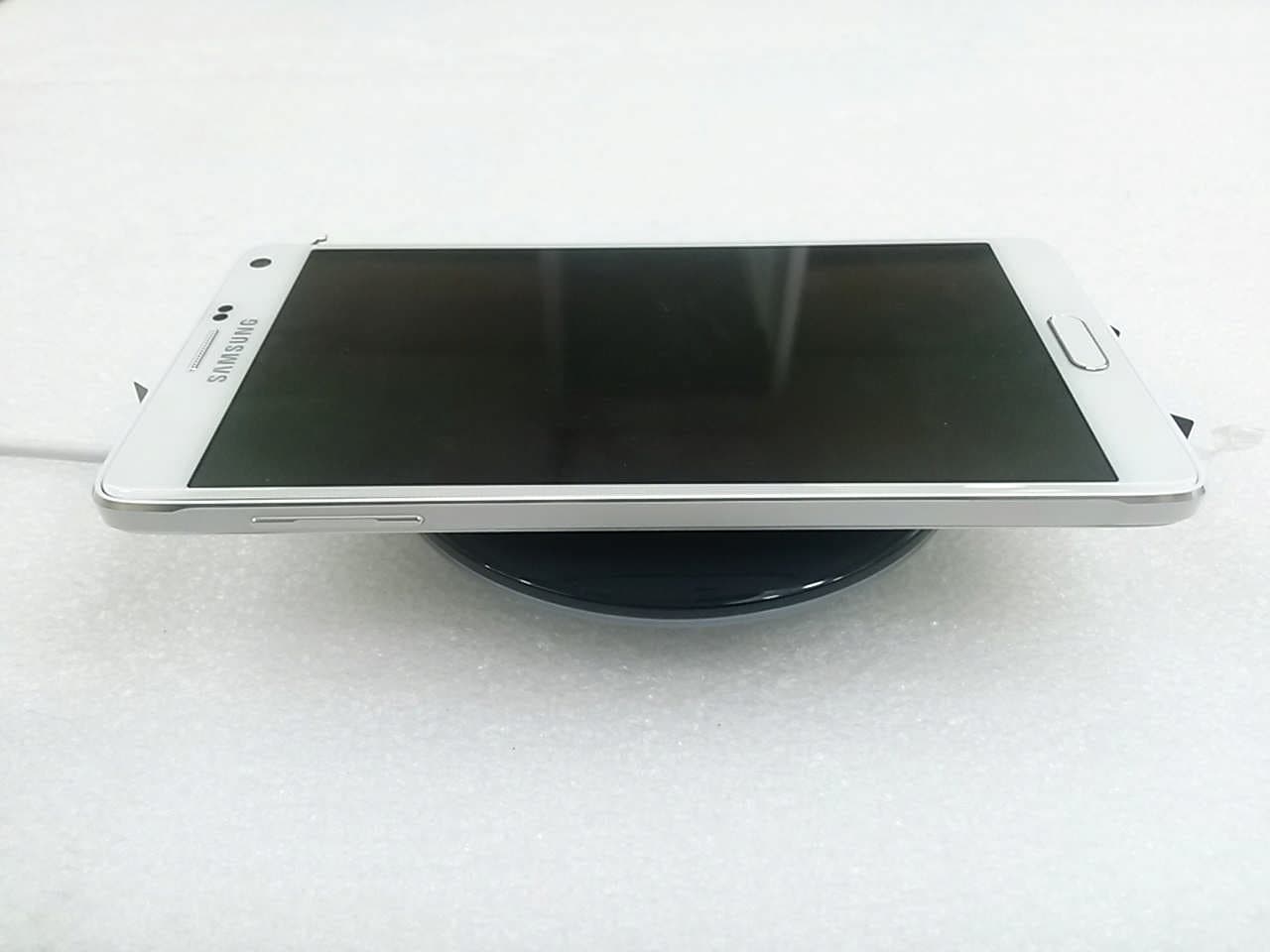

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT External view of client device with receiver (SM-N910V) Client device is placed directly in contact with the transmitter

Label Information FCC ID: A3LEPPG920IW Rear view of EUT

Internal photos of EUT Internal view of EUT Loop Coil Antenna Top view of main board with shielding can Top view of main board without shielding can Bottom view of main board

Report Number :F690501/RF-RTL008426 Page:2of13 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX TABLE OF CONTENTSPage 1. General Information -----------------------------------------------------------------------3 2. Test Result -----------------------------------------------------------------------------------7 Report Number :F690501/RF-RTL008426 Page:3of13 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General information 1.1. Testing laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. :+82 31 688 0901 Fax No. :+82 31 688 0921 1.2. Details of applicant Applicant:Samsung Electronics Co., Ltd. Address:129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Republic of Korea Contact Person:Lee, Woo-Ram Phone No.:+82 31 301 5379 1.3. Description of EUT Kind of Product WIRELESS CHARGER Model Name EP-PG920I Power Supply DC 5 V Frequency Range 115㎑~ 205㎑ Operating Conditions -20°C~ 60°C Antenna Type Inductive loop coil antenna 1.4. Declarations by the manufacturer - Operation temperature : -20°C~ 60°C Report Number :F690501/RF-RTL008426 Page:4of13 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.5. Test Equipment List EquipmentManufacturerModelS/NCal Date Cal Interval Cal Due. Spectrum Analyzer R&SFSV30100768Mar. 27, 2014 Annual Mar. 27, 2015 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 15191519-039Jul. 09, 2013BiennialJul. 09, 2015 E-Field Probe D.A.R.E!! Instruments RadiSense 413I00444SNO04Apr. 29, 2014 Annual Apr. 29, 2015 Magnetic Field Hitester HIOKIFT3470-50140430999Jul. 15, 2014AnnualJul. 15, 2015 Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/AN.C.R.N/AN.C.R. Mobile Test UnitR&SCMW500144035Mar. 03, 2014 Annual Mar. 03, 2015 1.6. Test report revision RevisionReport numberDate of IssueDescription 0F690501/RF-RTL0084262015.02.14Initial Report Number :F690501/RF-RTL008426 Page:5of13 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.7. Worst case of test configurations In order to check all kinds of possible configurations, EUT was evaluated with appropriate client and under each charging condition as below table. EUT configuration Charging current (㎃) Mobile phoneDescription Charging Mode 1) with resistive load 145Maximum resistive load 350Medium resistive load 645Minimum resistive load Charging Mode 2) with client device (FCC ID : A3LSMN910V) SM-N910VLess than 1 % of battery SM-N910VLess than 50 % of battery SM-N910V100 % full charging of battery 1) Test Jig was used during the test to satisfy each current status by using resistive loads. Output voltage = DC 5 V, Output current = 145㎃/ 350㎃/ 645㎃ - (Maximum load) 34.48 Ω = 5 V / 0.145 A - (Medium load) 14.29 Ω = 5 V / 0.350 A - (Minimum load) 7.75 Ω = 5 V / 0.645 A 2) WPC device with client device was investigated each battery status and compared in two operating configurations. Battery status during charging condition : -Less than 1 % of battery -Less than 50 % of battery -100 % of battery Galaxy Note4 (SM-N910V) Plot#1 – less than 1 % of batteryPlot#2 – less than 50 % of batteryPlot#3 – 100 % of battery Report Number :F690501/RF-RTL008426 Page:6of13 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) Operating configurations : Galaxy Note4 (SM-N910V) -While the client device was in airplane mode (Trace#1 “M1”) -While the client device was connected to an active data connection (Trace#2 “M2”) The device was tested under all modes and bands like 2G and 3G. In the result,PCS GSM / GPRS1900 / 1 TXwas found inHigh channel. -While the wireless charger is charging without the client device. (Trace#3 “M3”) -While the wireless charger is charging with the client device turned off. (Trace#4 “M4”) Plot – fundamental emission comparison -The level of Trace#2 was more than Trace#1, 3 and 4 so Trace#2 was selected. -Trace#2 asPCS GSM / GPRS1900 / 1 TXwhich was found inHigh channelshould be tested with the client device as a worst case. Report Number :F690501/RF-RTL008426 Page:7of13 The…

Text truncated - open the document above for the full version.

Report Number :F690501/RF-RTL008425 Page:2of42 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX TABLE OF CONTENTS Page 1. General Information --------------------------------------------------------------------------3 2. Field Strength of Fundamental ------------------------------------------------------------8 3. Spurious Emission----------------------------------------------------------------------------12 4. 20㏈Bandwidth -----------------------------------------------------------------------------20 5. Transmitter AC Power Line Conducted Emission ------------------------------------23 Report Number :F690501/RF-RTL008425 Page:3of42 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. :+82 31 688 0901 Fax No. :+82 31 688 0921 1.2. Details of applicant Applicant:Samsung Electronics Co., Ltd. Address:129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Republic of Korea Contact Person:Lee, Woo-Ram Phone No.:+82 31 301 5379 1.3. Description of EUT Kind of Product WIRELESS CHARGER Model Name EP-PG920I Power Supply DC 5 V Frequency Range 115㎑~ 205㎑ Operating Conditions -20°C~ 60°C Maximum Field strength 78.10㏈㎶/m at 3 m (-1.90㏈㎶/m at 300 m) Antenna Type Inductive loop coil antenna 1.4. Declarations by the manufacturer - Operation temperature : -20°C~ 60°C Report Number :F690501/RF-RTL008425 Page:4of42 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.5. Test Equipment List EquipmentManufacturerModelS/NCal DateCal IntervalCal Due. Spectrum Analyzer R&SFSV30100768Mar. 27, 2014 Annual Mar. 27, 2015 Signal Generator R&SSMBV100A255834Jun. 25, 2014 Annual Jun. 25, 2015 Mobile Test UnitR&SCMW500144035Mar. 03, 2014 Annual Mar. 03, 2015 PreamplifierH.P.8447F2944A03909Aug. 27, 2014AnnualAug. 27, 2015 Test ReceiverR&SESU26100109Mar. 04, 2014 Annual Mar. 04, 2015 Test ReceiverR&S ESCI 7100911Dec. 24, 2014AnnualDec. 24, 2015 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 15191519-039Jul. 29, 2013BiennialJul. 29, 2015 Bilog Antenna Schwarzbeck Mess-Elektronik VULB9163396Jun. 07, 2013BiennialJun. 07, 2015 Two-Line V-Network R&SENV216100190Dec. 25, 2014AnnualDec. 25, 2015 Antenna MasterINN-COMM4000 N/AN.C.R.N/AN.C.R. Turn TableINN-CODS 1200 S N/AN.C.R.N/AN.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/AN.C.R.N/AN.C.R. Shield RoomSY Corporation L × W × H (6.5 m × 3.5 m × 3.5 m) N/AN.C.R.N/AN.C.R. 1.6.Sample calculation Where relevant, the following sample calculation is provided: Field strength level (㏈㎶/m) = Measured level (㏈㎶) + Antenna factor (㏈) + Cable loss (㏈) – amplifier gain (㏈) Report Number :F690501/RF-RTL008425 Page:5of42 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.7. Worst case of test configurations In order to check all kinds of possible configurations, EUT was evaluated with appropriate client and under each charging condition as below table. EUT configuration Charging current (㎃) Mobile phoneDescription Charging Mode 1) with resistive load 145Maximum resistive load 350Medium resistive load 645Minimum resistive load Charging Mode 2) with client device (FCC ID : A3LSMN910V) SM-N910VLess than 1 % of battery SM-N910VLess than 50 % of battery SM-N910V100 % full charging of battery 1) Test Jig was used during the test to satisfy each current status by using resistive loads. Output voltage = DC 5 V, Output current = 145㎃/ 350㎃/ 645㎃ - (Maximum load) 34.48 Ω = 5 V / 0.145 A - (Medium load) 14.29 Ω = 5 V / 0.350 A - (Minimum load) 7.75 Ω = 5 V / 0.645 A 2) PC device with client device was investigated each battery status and compared in two operating configurations. Battery status during charging condition -Less than 1 % of battery -Less than 50 % of battery -100 % of battery Galaxy Note4 (SM-N910V) Plot#1 – less than 1 % of batteryPlot#2 – less than 50 % of batteryPlot#3 – 100 % of battery Report Number :F690501/RF-RTL008425 Page:6of42 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 …

Text truncated - open the document above for the full version.

Test setup photos of EUT 1. Orthogonal planes of EUT - The testing was set in the one orthogonal plane and measured for each position (X). A. X- axis 2. Radiated Field strength Frequency range : 9㎑~ 30㎒ A. The photos of Field strength with Resistive load. Charging current (145 mA) Charging current (350 mA) Charging current (645 mA) B. The photos of Field strength with client device Client device (SM-N910V) Frequency range : 30㎒~ 1㎓ A. The photos of Field strength with Resistive load. Charging current (145 mA) Charging current (350 mA) Charging current (645 mA) B. The photos of Field strength with client device Client device (SM-N910V) C. The photos of E-field test with Resistive load. Charging current (145 mA) Charging current (350 mA) Charging current (645 mA) D. The photos of E-field test with client device Client device (SM-N910V) E. The photos of H-field test with Resistive load. Charging current (145 mA) Charging current (350 mA) Charging current (645 mA) F. The photos of H-field test with client device Client device (SM-N910V) G. AC Conducted power line emissions Charging current (145 mA) Charging current (350 mA) Charging current (645 mA) Client device(SM-N910U)
