A3LET-MP900DS Action Mouse

GH68-XXXXXA Rev.1.0 English (EU). 12/2013 www.samsung.com S Action Mouse User Manual 4 Getting started Device layout Right button Left buttion S Action button Scroll wheel LED indicator Connect button Power switch Battery cover • Images may differ in appearance from the actual product. Content is subject to change without prior notice. Getting started 5 Turning the device on or off Slide the power switch to ON to turn on the device. When the device is turned on, the notification light flashes blue. TB D Slide the power switch to OFF to turn off the device. • The device is only compatible with some Samsung devices operated by Google Android. This user manual focuses on the features available after connecting the device to other device. • Some features may not be available depending on the connected device. Getting started 6 2 Replace the battery and be sure that the polarities (+/-) of the batteries are correct. Do not recharge the batteries (AA type) supplied with the product. 3 Replace the battery cover. To close the cover, attach the upper part of the battery cover and press firmly on each part in order. Changing the battery Replace the battery when the notification light flashes red. 1 Remove the battery cover. Put your fingernails in to the indentation at the end of the battery cover and pull out the cover. Be careful not to damage your fingernails when you remove the back cover. Getting started 7 1 Press and hold the Connect button for more than 3 seconds. The notification light flashes red and blue. 2 On the Bluetooth-enabled device, access the Bluetooth setup mode and search for Bluetooth devices. 3 From the search results, select the device name. When pairing is complete, the device's name appears in the device list. Connecting to other devices You can connect the device to other Bluetooth-enabled devices, such as smartphones or computers. You can connect to an other Bluetooth-enabled device only after disconnecting a previously connected device. Getting started 8 • If the mouse is not used for 10 minutes, the mouse hibernates. In this case, click a mouse button to wake it up. Then, you can use the mouse after a moment. • If the Bluetooth connection fails or the other device cannot search for the device, remove the device's information from the other device's list, and then try again. • If the mouse doesn’t work properly, restart the system, or try to pair both devices again. Using the device 9 Using the device Activating Quick Window You can create windows in various sizes on the connected device's screen and run many applications at the same time. 1 Press and hold the S Action button and create a window in the size you desire on the connected device's screen. Disconnecting from other devices You can connect to another device only after disconnecting a previously connected device. Press and hold the Connect button for more than 3 seconds. Using the device 10 Using the S Action features Opening a list of recently-used applications Press and hold the S Action button and drag the device to the right. TB D 2 Select one of the applications from the list of available applications appeared on the connected device. Using the device 11 Zooming in or out the current text or images Press and hold the S Action button and scroll the Scroll wheel up or down. Closing the running application Press and hold the S Action button and drag the device down. Using the device 12 Using the scroll wheel • Press to return to the Home screen. • Press and hold to launch Google search. • Press twice to launch S Voice. TB D Appendix 13 The wireless connection range may vary depending on the environment the device is used in. Appendix Specifications and features Dimensions (mm) 57.5 X 97.6 X 33.6 Weight (±1 g) 80.8 Operating Voltage 1.5 VDC Input Power 35 mW Input Voltage 1.5 VDC

129, Samsung‐Ro, Yeongtong‐Gu, Suwon‐City Gyeonggi‐Do, 443‐742, Korea December 19, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: I, the undersigned, hereby authorize Lab Manager Feel. Jeong (or Logan. Lee) and of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Feel. Jeong (or Logan. Lee) of SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; 129, Samsung‐Ro, Yeongtong‐Gu, Suwon‐City Gyeonggi‐Do, 443‐742, Korea i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Sang Kyung (Peter) Ra / General Manager S AMSUNG ELECTRONICS Co., Ltd.

129, Samsun g‐Ro, Yeongtong‐Gu, Suwon‐City Gyeonggi‐Do, 443‐742, Korea December 19, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST OF CONFIDENTIALITY for FCC ID: A3LET‐MP900D To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Sang Kyung (Peter) Ra / General Manager SAMSUNG ELECTRONICS Co., Ltd.

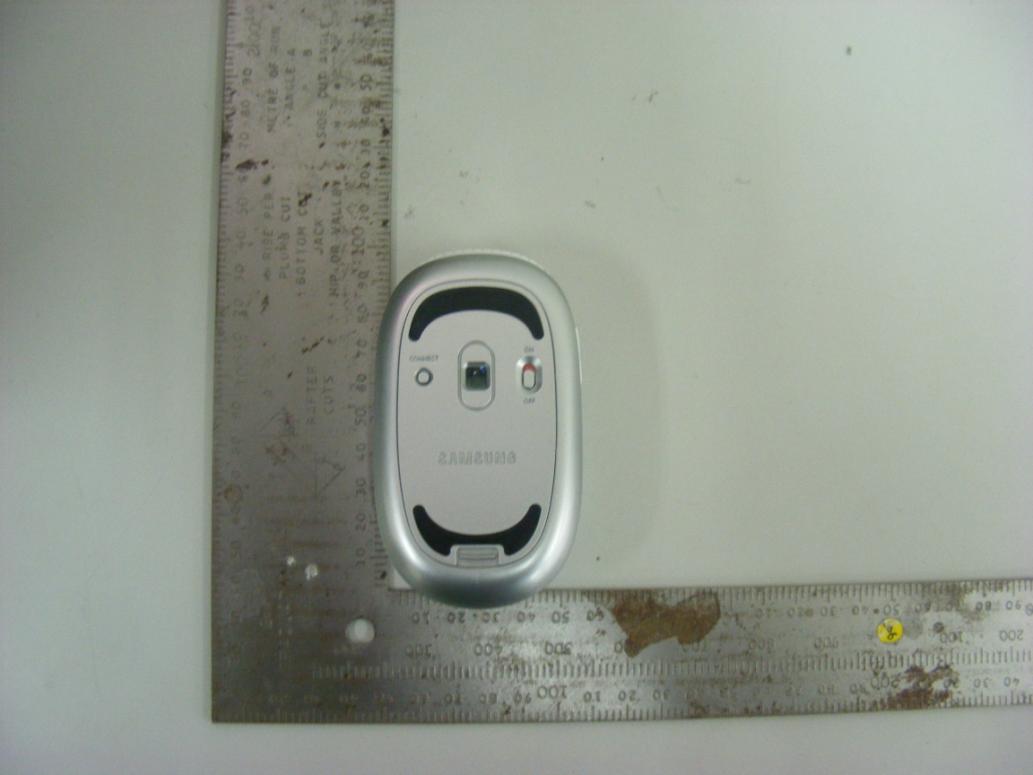

Model : ET-MP900D External photos of EUT Model : ET-MP900D Top view of EUT Bottom view of EUT Model : ET-MP900D Side view of EUT

Label Drawing, Location ET­MP900D Inside Battery Cover Label

Model : ET-MP900D Internal photos of EUT Model : ET-MP900D Top view of EUT Model : ET-MP900D Top view of PCB Bottom view of PCB PCB Antenna

FCC ID : A3LET-MP900D According to KDB 447498 D01 General RF Exposure Guidance v05, section 4.3.1 At 100 ㎒ to 6 ㎓ and for test separation distances ≤ 50 mm, the SAR test exclusion threshold is determined according to the following a) [(max. power of channel, including tune-up tolerance, ㎽) / (min. test separation distance, mm)] x [√f (GHz) ] ≤ 3.0 1. SAR test exclusion threshold Frequency : 2 441 ㎒ (min. separation distances = 5 mm) SAR test exclusion thresholds(5 mm) = (3 x 5) / √ 2.441 = 9.601 ㎽ Max. conducted power(㎽) SAR Test Exclusion Thresholds(5 mm) (㎽) 1.493 9.601 Calculation value : 1.493(㎽) / 5(mm) x √ 2.441 = 0.47 So, Calculation value ≤ 3.0 2. Conclusion : No SAR is required.

Report Number: F690501/RF-RTL007170 Page: 2 of 43 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) INDEX Table of Contents Page 1. General Information --------------------------------------------------------------------------------- 3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ------ 7 3. 20㏈ Bandwidth and 99% BW ------------------------------------------------------------------- 22 4. Maximum Peak Output Power ------------------------------------------------------------------- 28 5. Hopping Channel Separation --------------------------------------------------------------------- 30 6. Number of Hopping Frequency ------------------------------------------------------------------ 32 7. Time of Occupancy(Dwell Time) ----------------------------------------------------------------- 35 8. Antenna Requirement ------------------------------------------------------------------------------ 43 Report Number: F690501/RF-RTL007170 Page: 3 of 43 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 - 400-2, Gomae-dong, Giheoung-gu, Yongin-si, Gyeonggi-do, Korea, 446-901 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 428 5700 FAX : +82 31 427 2371 1.2. Details of Applicant Applicant : Samsung Electronics Co., Ltd. Address : 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Republic of Korea Contact Person : Ka, Tae-Hwan Phone No. : +82 31 301 9218 1.3. Description of EUT Kind of Product Vienna Android Gesture Mouse Model Name ET-MP900D Power Supply DC 1.5 V (AA battery) Frequency Range 2 402 ㎒ ~ 2 480 ㎒ Modulation Technique GFSK Number of Channels 79 Antenna Type Internal Type Antenna Gain 3.18 ㏈i 1.4. Declaration by the manufacturer - Adaptive Frequency Hopping is supported and use at least 20 channels - The EUT does not do anything at charging mode. Therefore, AC conducted emission test is not necessary (Vienna Android Gesture Mouse) - The modulation type of this Bluetooth device is only GFSK Report Number: F690501/RF-RTL007170 Page: 4 of 43 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) 1.5. Information about the FHSS characteristics: 1.5.1. Pseudorandom Frequency Hopping Sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. 1.5.2. Equal Hopping Frequency Use All Bluetooth units participating in the piconet are time and hop-synchronized to the channel. 1.5.3. System Receiver Input Bandwidth Each channel bandwidth is 1㎒ 1.5.4. Equipment Description 15.247(a)(1) that the rx input bandwidths shift frequencies in synchronization with the transmitted 15.247(g): In accordance with the Bluetooth Industry Standard, the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) system. 15.247(h): In accordance with the Bluetooth Industry Standard, the system does not coordinate it channels selection/ hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Report Number: F690501/RF-RTL007170 Page: 5 of 43 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) 1.6. Test Equipment List Equipment Manufacturer Model S/N Cal Date Cal Interval Cal Due. Signal Generator R&S SMR40 100540 Jan. 08, 2013 Annual Jan. 08, 2014 Signal Generator R&S SMJ 100A 100882 Jul. 03, 2013 Annual Jul. 03, 2014 Spectrum Analyzer R&S FSV30 101004 Jul. 20, 2013 Annual Jul. 20, 2014 Bluetooth Tester TESCOM TC-3000C 3000C000296 Jul. 02, 2013 Annual Jul. 02, 2014 Directional Coupler KRYTAR 152613 127445 Jul. 02, 2013 Annual Jul. 02, 2014 Band Rejection Filter Wainwright WRCT2402/2480- 2400/2483.5-30/20SS 22 Jul. 02, 2013 Annual Jul. 02, 2014 High Pass Filter Wainwright WHK3.0/18G-6SS 4 Jul. 02, 2013 Annual Jul. 02, 2014 High Pass Filter Wainwright WHK7.5/26.5G-6SS …

Text truncated - open the document above for the full version.

Test setup photos of EUT A. Photo of Radiated Spurious Emission Test (Below 1GHz) B. Photo of Radiated Spurious Emission Test (Above 1GHz)
