A3LGA46UO46-inch LCD TV Monitor

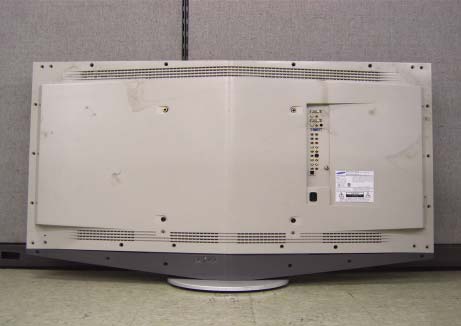

EUT Photographs [Label and Label position]

Project No. : LBE041161 Page 1 of 13 Project No. : LBE041161 Product :LCD TV MONITOR Model No. : GA46UO Date of test :May. 24 ~ 25, 2004 Issued Date :May. 27, 2004 Tested by: Tae Young,JANG / Test Engineer Reviewed by: No Cheon, PARK / Manager of EMC Lab. Authorized by: Kyu Baek, CHUNG / Chief of EMC Lab. SAMSUNG ELECTRONICS Co., Ltd. EMC Test Laborator y 416 Maetan-3 Dong, Yeongtong-Ku, Suwon City, Kyungki-Do,Korea, 442-742 Tel. : 81-31-200-2185 Fax. : 81-31-200-2189 This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC TEST REPORT Project No. : LBE041161 Page 2 of 13 Table of Contents 1. Introduction & Summary 1.1 Description of the EUT 1.2 Test facility 1.3 Test equipment 2. Test Set-up 2.1 Test mode 2.2 Justification 2.3 Test equipment setup 2.4 Tested System Details 2.5 System Block Diagram of Test Configuration 2.6 Test rule and Procedure 2.7 Test Summary 3. Test Results 3.1 AC POWERLINE CONDUCTED EMISSION MEASUREMENT 3.2 RADIATED EMISSION MEASUREMENT This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE041161 Page 3 of 13 1. Introduction & Summary 1.1 Description of the EUT Applicant Project Number Equipment Under Test Trade Name Model Number Variant Model Operating Frequency FCC ID Number Mains input 1.2 Test facility The EMI/EMS measurement facilities used to collect the tested data are located at 416 Maetan 3 Dong, Youngtong-Ku, Suwon City, Kyungki Do, Korea. The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR 16-1 & 16-2. SAMSUNG Electronics Co.,Ltd is accredited by Korea Laboratory Accreditation Scheme(KOLAS) which signed the International Laboratory Accreditation Cooperation (ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(s). Measured in Semi-anechoic chamber #1 that is FCC Registration Number 98856. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. GA46UO SAMSUNG SAMSUNG ELECTRONICS Co., Ltd. LBE041161 LCD TV MONITOR 60Hz A3LGA46UO 120V - Project No. : LBE041161 Page 4 of 13 1.3 Test equipment DescriptionModelManufacturerSerial No.Applied TEST RECEIVERESSR & S844861/005 o Spectrum AnalyzerE7405AAgilentMY42000109 o RF Relais MatrixPSUR & S861206/024 o LISNESH3-Z5R & S100261 o Test SoftwareEP5/CETOYOVersion : 2.0.860 o Test ReceiverESCS30R & S100104 o Secetrum AnalyzerE7405AAGILENTUS41110272 o RF SelectorNS4900TOYO0303-015 o Mast ControllerHD2000HDHD20000902027 o Bi-Log AntennaCBL6112BSCHAFFNER2766 o Preamp8447DAgilent2944A10430 o Test SoftwareEP5/RETOYOVersion : 2.0.860 o Antenna MastMA240HD240/620 o Turn TableDS412HD- o Test ReceiverESI26R & S100067 o TV Pattern Gen.PM5418PhilipsL0612437 o Matching PadRAMR & S860708/043 o Matching PadRAMR & S860175/025 o Power Divider11636AHP2512 o This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE041161 Page 5 of 13 2. Test Set-up 2.1 Test mode The EUT was tested in the following operating modes for the tests mention in this report: Description of Testing operating mode & Tested Resolution Measured each about 2 input(PC VIDEO INPUT mode & Digital Video Interface)of EUT. Further details of cabling and configuration are shown in the test system configuration. The EUT exercise program used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. 2.2 Justification The system was configured for testing in typical fashion use. Cable were attached to each of the available I/O Ports. The mode of operation utilized for testing was selected to best simulate typical EUT use. 2.3 Test equipment setup The explanation of measuring equipment setup when respective function is used in any frequency band is as following: DetectorResolutionVideo functionBandwidthBandwidth Quasi-Peak9kHz- Peak100kHz1MHz Quasi-Peak120kHz- Peak1MHz1MHz This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Operating ModeResolutionsRefresh ratesColors "H" Pattern display1920x108032bits Frequency Band [MHz] Equipment Horizontal F.: 80kHz Vertical F. : 75Hz EMI Test receiverAbove 1000 0.15 to 30EMI Test receiver Spectrum analyzer EMI Test receiver 30 to 1000 Project No. : LBE041161 Page 6 of 13 2.4 Tested System Details 1) Configuration of EUT and peripherals MarkItemModel No.Serial No.Manufacturer FCC ID A LCD TV MONITORGA46UO -SamsungEUT BPersonal ComputerM6050-SamsungDoC CPrinterML-1750PR1750-120V-018EpsonA3LML-1750 D PS/2 Keyboard7800K80100020GatewayDoC EPS/2 MouseSWB-4004BDF030605SamsungGJJSP65C0 FEarphone---- G Earphone---- * DOC : FCC Declaration of Conformity 2) Used Cable Description No.ItemLength[m]Shielded(Y/N) 1PS/2 Mouse Cable1.8N 2USB Keyboard Cable1.6N 3Video Cable(Analog)1.5Y 4Video Cable(Digital)1.5Y 5 AC Power Cable(Monitor) 1.8N 6AC Power Cable(PC)1.8N 7 AC Power Cable(Printer) 1.8N 8Printer Cable1.5Y 9ANT Cable1.2N 10 S-Video In Cable1.2N 11 RCA Cable1.2N 12 Earphone Cable1.2N This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Remark Project No. : LBE041161 Page 7 of 13 2.5 System Block Diagram of Test Configuration 2.6 Test rule and Procedure FCC Rule Part 15, Subpart B : Unintentional Radiators Test Procedure : ANSI C63.4-1992 2.7 Test Summary Result Pass Pass * N/A : Test not applicable This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. RADIATED EMISSIONANSI C63.4-1992 Test itemTest Procedure AC POWERLINE CONDUCTED EMISSION ANSI C63.4-1992 ED A B C 1 2 3 4 5 6 7 8 9 10 11 FG 12 Project No. : LBE041161 Page 8 of 13 3. Test Results 3.1 AC POWERLINE CONDUCTED EMISSION MEASUREMENT 3.1.1 Test Procedure Configurate the EUT System in accordance with ANSI C63.4-1992 …

Text truncated - open the document above for the full version.

Test Set up Photographs [AC POWERLINE CONDUCTED EMISSION MEASUREMENT] Test Set up Photographs [RADIATED EMISSION MEASUREMENT]
