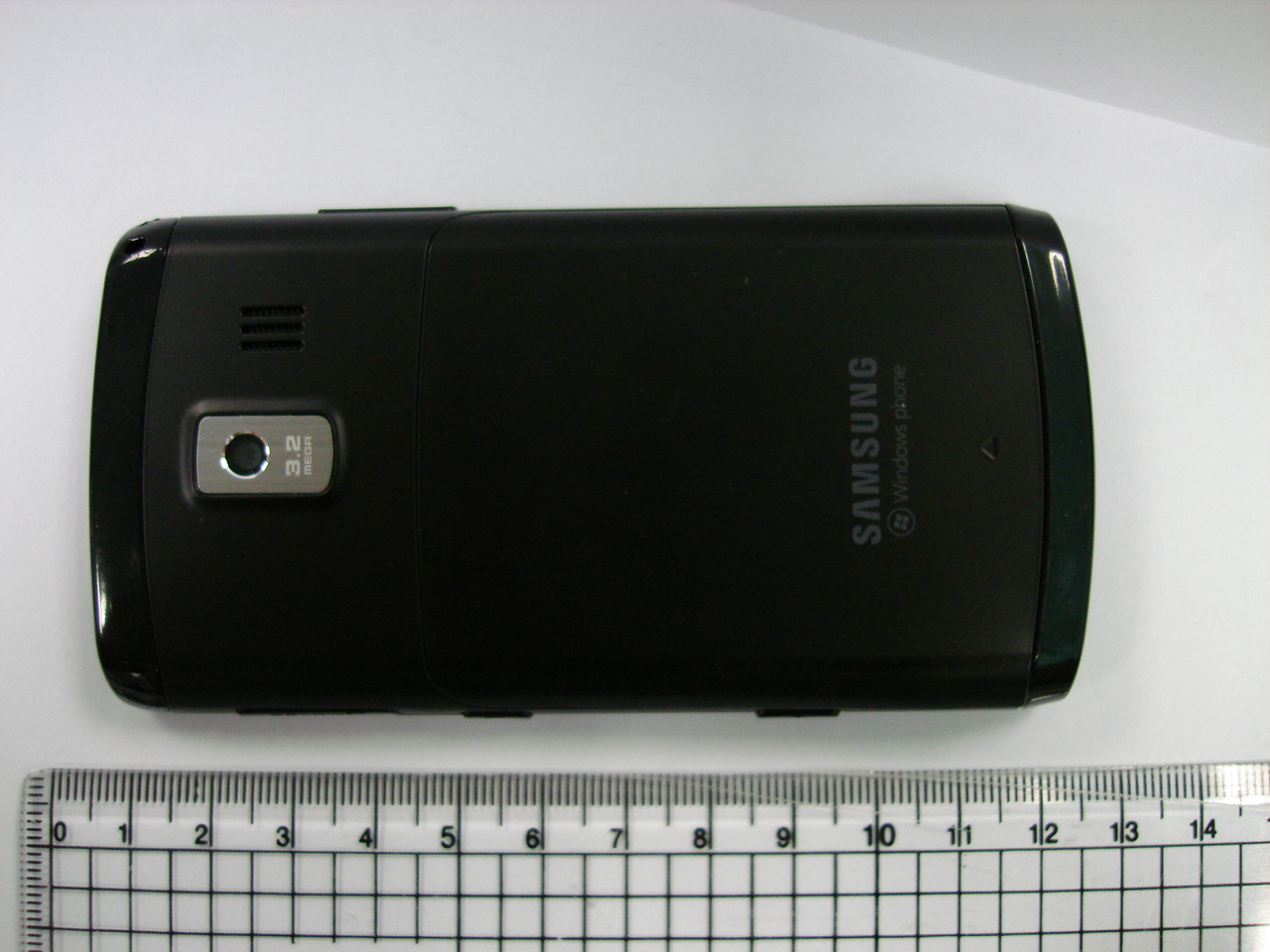

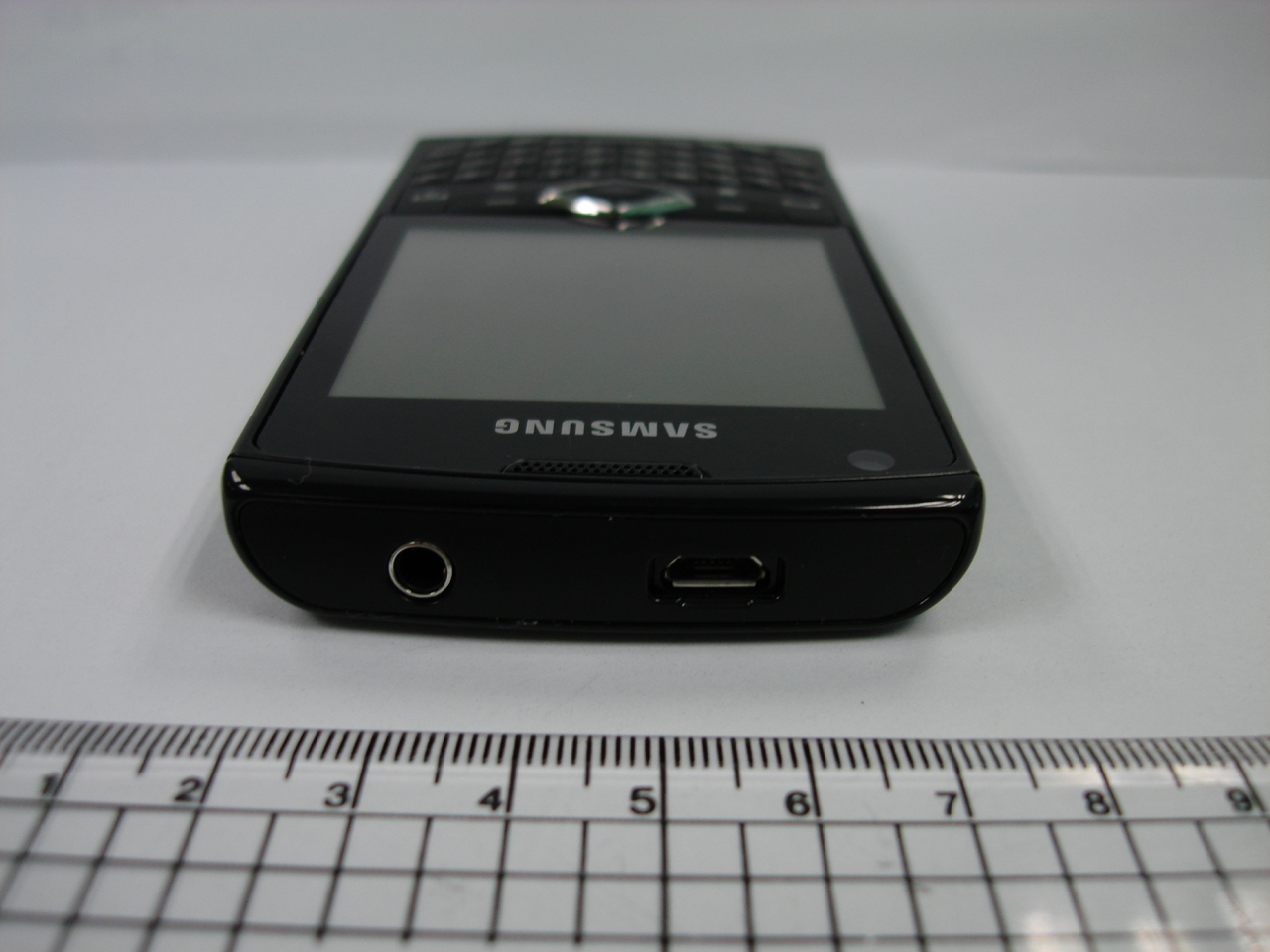

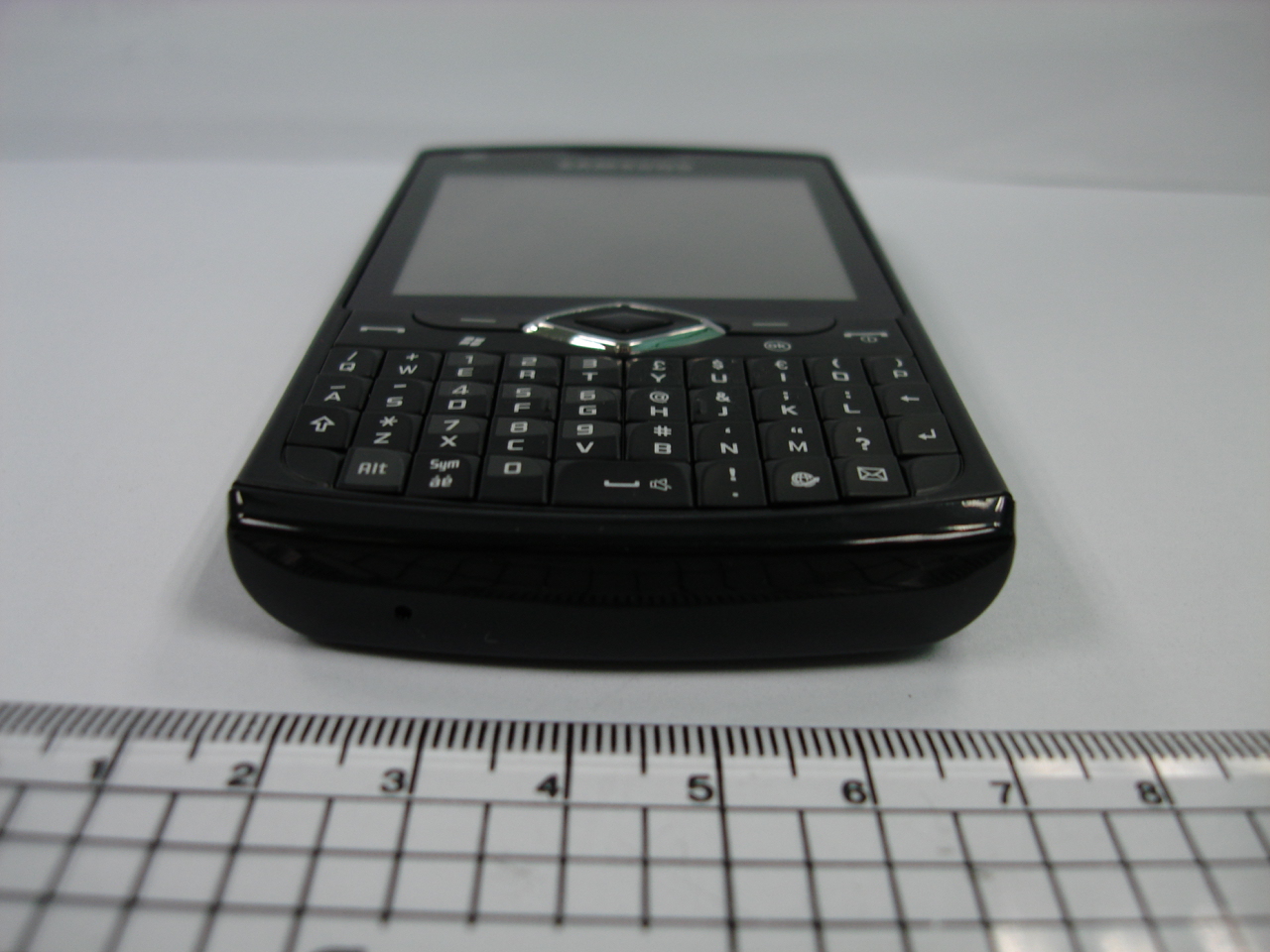

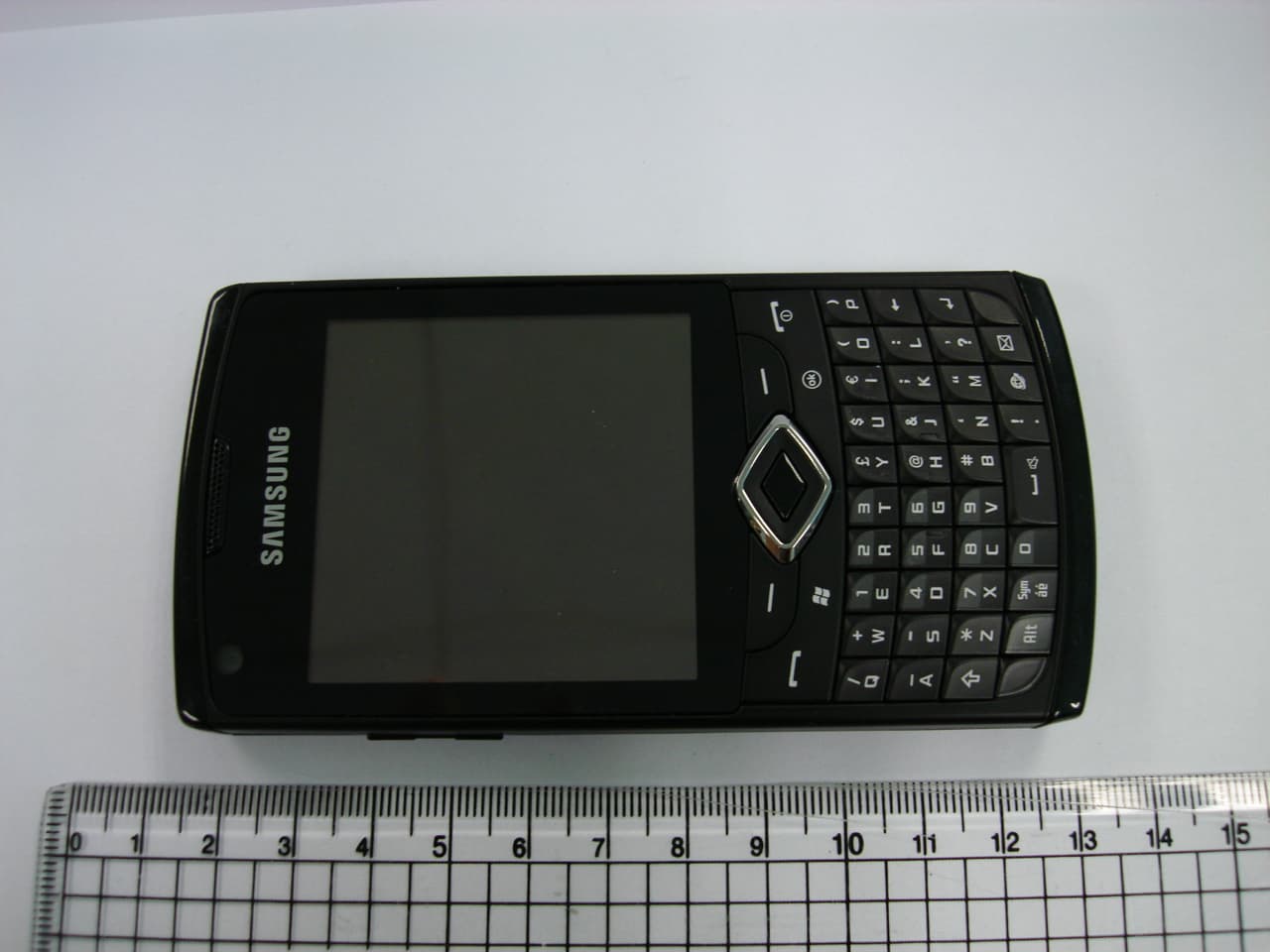

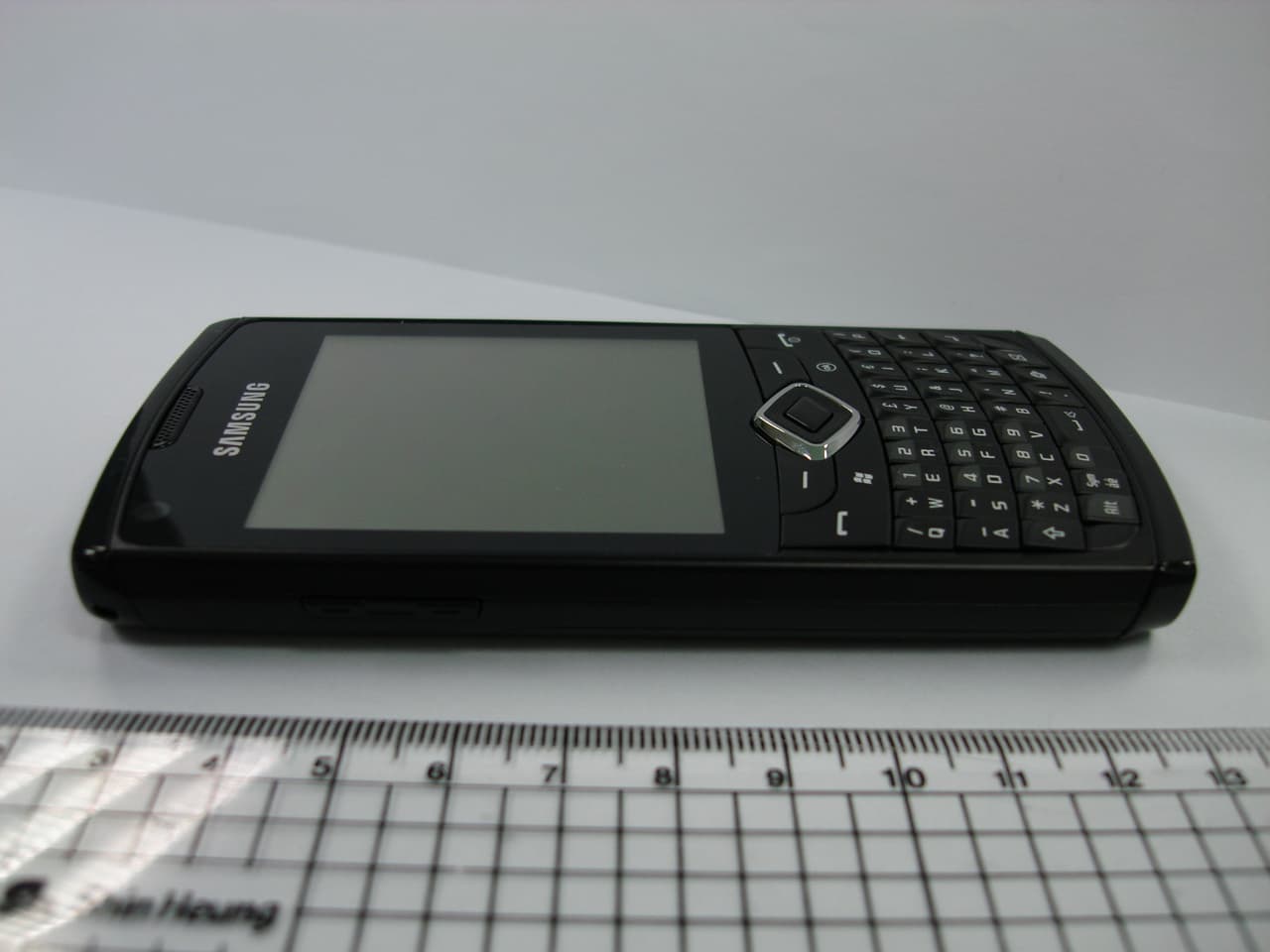

A3LGTB7350Cellular/PCS GSM Phone with WLAN and Bluetooth

63 Health and safety information Exposure to Radio Frequency (RF) SignalsCertification Information (SAR)Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. government. These FCC exposure limits are derived from the recommendations of two expert organizations, the National Counsel on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both cases, Memory status Check memory information for each items in the phone’s memory or on a memory card. Reset settings Reset the phone’s settings you have changed. Key management Manage the licence keys you have acquired to activate media files locked by DRM systems. Menu Description E840-2.fm Page 41 Monday, May 14, 2007 9:04 AM Health and safety information 64 the recommendations were developed by scientific and engin eering experts drawn from industry, government, and academia after extensive reviews of the scientific literature related to the biological effects of RF energy. The exposure limit set by the FCC for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR is a measure of the rate of absorption of RF energy by the human body expressed in units of watts per kilogram (W/kg). The FCC requires wireless phones to comply with a safety limit of 1.6 watts per kilogram (1.6 W/kg). The FCC exposure limit incorporates a substantial margin of safety to give additional protection to the public and to account for any variations in measurements.SAR tests are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at E840-2.fm Page 42 Monday, May 14, 2007 9:04 AM E840-2.fm Page 43 Monday, May 14, 2007 9:04 AM 6 5 For body worn operations, this model phone has been testde and meets the FCC exposure guidelines when used with a Samsung accessory designated for this product or when used with an accessroy that contains no metal and that positons the handset a minimum 1.5 cm from the body.Non-compliance with the above restrictions may result in violation of FCC RF exposure guidelines.SAR information on this and other model phones can be viewed on-line at www.fcc.gov/oet/fccid. This site uses the phone FCC ID number A3L GT B73 50 . Sometimes it ma y be necessary t o remove the battery pack to find the number. Once you have the FCC ID number for a particular phone, follow the instructions on the website and it should provide values for typical or maximum SAR for a particular phone. Additional product specific SAR information can also be obtained at www.fcc.gov/cgb/sar. 43 multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.Before a new model phone is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the exposure limit established by the FCC. Tests for each model phone are performed in positions and locations (e.g. at the ear and worn on the body) as required by the FCC. Health and safety information 6 6 Consumer Information on Wireless PhonesThe U.S. Food and Drug Administration (FDA) has published a series of Questions and Answers for consumers relating to radio frequency (RF) exposure from wireless phones. The FDA publication includes the following information:What kinds of phones are the subject of this update?The term wireless phone refers here to hand-held wireless phones with built-in antennas, often called “cell,” “mobile,” or “PCS” phones. These types of wireless phones can expose the user to measurable radio frequency energy (RF) because of the short distance between the phone and the user's head. These RF exposures are limited by Federal Communications Commission safety guidelines that were developed with the advice of FDA and other federal health and safety agencies. When the phone is located at greater distances from the user, the exposure to RF is drastically lower because a person's RF exposure decreases rapidly with increasing distance from the source. The so-called “cordless phones,” which have a base unit connected to the telephone wiring in a house, typically operate at far lower power levels, and thus produce RF exposures well within the FCC's compliance limits. Do wireless phones pose a health hazard?The available scientific evidence does not show that any health problems are associated with using wireless phones. There is no proof, however, that wireless phones are absolutely safe. Wireless phones emit low levels of radio frequency energy (RF) in the microwave range while being used. They E840-2.fm Page 44 Monday, May 14, 2007 9:04 AM 67 also emit very low levels of RF when in the stand-by mode. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological effects. Some studies have suggested that some biological effects may occur, but such findings have not been confirmed by additional research. In some cases, other researchers have had difficulty in reproducing those studies, or in determining the reason s for inconsistent results. What is FDA's role concerning the safety of wireless phones?Under the law, FDA does not review the safety of radiation-emitting consumer products such as wireless phones before they can be sold, as it does with new drugs or medical devices. However, the agency has authority to take act…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: June 18, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTB7350 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

안대근 김준섭 GT-B7350 GH68- MODEL : GT-B7350 SSN : -B7350GSMH RATED : 3.7 V 1500 mA MADE IN KOREA BY SAMS UNG IMEI : MOBILE PHONE FCC I D : A3LGTB7350 0168 45.0 44.0 4.0 7.0 MODEL : GT-B7350 SSN : -B7350GSMH RATED : 3.7 V 1500 mA MADE IN KOREA BY SAMSUNG IMEI : MOBILE PHONE FCC I D : A3LGTB7350 0168 The label is placed inside the battery compartment

Reviewed by: FCC ID: A3LGTB7350 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1006040969.A3L 06/07/10 - 06/09/10 850/1900 GSM/GPRS Phone with Bluetooth and WLAN Page 1 of 36 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.2M 5/14/2010 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 06/07/10 - 06/09/10 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1006040969.A3L F C C I D : A3 L G T B7 3 5 0 AP P L I C AN T : S AMS UNG E LE CT RO NI CS , CO . LT D. EUT Type: 850/1900 GSM/GPRS Phone with Bluetooth and WLAN Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Digital Transmission System (DTS) Model(s): GT-B7350 Tx Frequency: 824.20 - 848.80 MHz (GSM 850) 1850.20 - 1909.80 MHz (GSM 1900) 2412 - 2462 MHz (WLAN) Conducted Power: 32.94 dBm GSM 850 30.49 dBm GSM 1900 16.55 dBm WLAN 2.4GHz Max. SAR Measurement: 0.16 W/kg GSM 850 Head SAR 0.17 W/kg GSM 850 Body SAR 0.42 W/kg GSM 1900 Head SAR 0.43 W/kg GSM 1900 Body SAR 0.17 W/kg 2.4 GHz WLAN Head SAR 0.03 W/kg 2.4 GHz WLAN Body SAR Test Device Serial No.: Pre-Production [S/N: GH-117-A] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT Reviewed by: FCC ID: A3LGTB7350 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1006040969.A3L 06/07/10 - 06/09/10 850/1900 GSM/GPRS Phone with Bluetooth and WLAN Page 2 of 36 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.2M 5/14/2010 T A B L E O F C O N T E N T S 1 INTRODUCTION ..............................................................................................................................3 2 TEST SITE LOCATION ....................................................................................................................4 3 SAR MEASUREMENT SETUP ........................................................................................................5 4 DASY E-FIELD PROBE SYSTEM ...................................................................................................7 5 PROBE CALIBRATION PROCESS .................................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES.......................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS....................................................................10 8 DEFINITION OF REFERENCE POINTS .......................................................................................11 9 TEST CONFIGURATION POSITIONS ..........................................................................................12 10 RF EXPOSURE LIMITS .................................................................................................................16 11 MEASUREMENT UNCERTAINTIES .............................................................................................17 12 SYSTEM VERIFICATION...............................................................................................................18 13 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS..........................................................20 14 FCC 3G MEASUREMENT PROCEDURES ...................................................................................21 15 SAR DATA SUMMARY ..................................................................................................................24 16 EQUIPMENT LIST..........................................................................................................................29 17 CONCLUSION................................................................................................................................30 18 REFERENCES ...............................................................................................................................31 19 SAR TEST SETUP PHOTOGRAPHS ............................................................................................33 Reviewed by: FCC ID: A3LGTB7350 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1006040969.A3L 06/07/10 - 06/09/10 850/1900 GSM/GPRS Phone with Bluetooth and WLAN Page 3 of 36 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.2M 5/14/2010 1 I N T R O D U C T I O N The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Stan…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LGTB7350 FCC Pt. 15.247 WLAN 802.11b/g/n TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1006040970.A3L June 10, 2010 850/1900 GSM/GPRS Phone with Bluetooth, WLAN, and EDGE Rx. Page 1 of 43 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.1WBGNFI 04/19/2010 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. June 10, 2010 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1006040970.A3L FCC ID: A3LGTB7350 APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): GT-B7350 EUT Type: 850/1900 GSM/GPRS Phone with Bluetooth, WLAN, and EDGE Rx. Max. RF Output Power: 45.19 mW (16.55 dBm) Conducted (b), (18.78 dBm Peak) 21.98 mW (13.42 dBm) Conducted (g), (20.95 dBm Peak) 15.7 mW (11.96 dBm) Conducted (n), (20.01 dBm Peak) Frequency Range: 2412 - 2462 MHz (DSSS/OFDM) FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-210 Issue 7 Test Device Serial No.: FH-117-C This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is conducted. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 WLAN 802.11b/g/n Reviewed by: FCC ID: A3LGTB7350 FCC Pt. 15.247 WLAN 802.11b/g/n TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1006040970.A3L June 10, 2010 850/1900 GSM/GPRS Phone with Bluetooth, WLAN, and EDGE Rx. Page 2 of 43 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.1WBGNFI 04/19/2010 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.3 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 CONDUCTED EMISSIONS........................................................................................................................ 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11B/G/N.............................................................................. 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B...................................................................................... 17 6.4 OUTPUT POWER MEASUREMENT – 802.11G/N .................................................................................. 18 6.5 POWER SPECTRAL DENSITY (802.11B/G/N) ....................................................................................... 19 6.6 CONDUCTED EMISSIONS AT THE BAND EDGE.................................................................................. 25 6.7 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 28 6.8 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 31 6.9 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .................................................................. 35 6.10 LINE-CONDUCTED TEST DATA............................................................................................................. 37 7.0 CONCLUSION .........................................................…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LGTB7350 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1006040969.A3L 06/07/10 - 06/09/10 850/1900 GSM/GPRS Phone with Bluetooth and WLAN Page 33 of 36 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.2M 5/14/2010 19 SAR TEST SETUP PHOTOGRAPHS Reviewed by: FCC ID: A3LGTB7350 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1006040969.A3L 06/07/10 - 06/09/10 850/1900 GSM/GPRS Phone with Bluetooth and WLAN Page 34 of 36 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.2M 5/14/2010 Figure 19-1 SAR Test Setup Photo 1 Figure 19-2 SAR Test Setup Photo 2 Reviewed by: FCC ID: A3LGTB7350 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1006040969.A3L 06/07/10 - 06/09/10 850/1900 GSM/GPRS Phone with Bluetooth and WLAN Page 35 of 36 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.2M 5/14/2010 Figure 19-3 SAR Test Setup Photo 3 Figure 19-4 SAR Test Setup Photo 4 Reviewed by: FCC ID: A3LGTB7350 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1006040969.A3L 06/07/10 - 06/09/10 850/1900 GSM/GPRS Phone with Bluetooth and WLAN Page 36 of 36 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.2M 5/14/2010 Figure 19-5 SAR Test Setup Photo 5 Figure 19-6 SAR Test Setup Photo 6

Reviewed by: FCC ID: A3LGTB7350 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1006040969.A3L 06/07/10 - 06/09/10 850/1900 GSM/GPRS Phone with Bluetooth and WLAN Page 33 of 36 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.2M 5/14/2010 19 SAR TEST SETUP PHOTOGRAPHS Reviewed by: FCC ID: A3LGTB7350 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1006040969.A3L 06/07/10 - 06/09/10 850/1900 GSM/GPRS Phone with Bluetooth and WLAN Page 34 of 36 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.2M 5/14/2010 Figure 19-1 SAR Test Setup Photo 1 Figure 19-2 SAR Test Setup Photo 2 Reviewed by: FCC ID: A3LGTB7350 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1006040969.A3L 06/07/10 - 06/09/10 850/1900 GSM/GPRS Phone with Bluetooth and WLAN Page 35 of 36 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.2M 5/14/2010 Figure 19-3 SAR Test Setup Photo 3 Figure 19-4 SAR Test Setup Photo 4 Reviewed by: FCC ID: A3LGTB7350 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1006040969.A3L 06/07/10 - 06/09/10 850/1900 GSM/GPRS Phone with Bluetooth and WLAN Page 36 of 36 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.2M 5/14/2010 Figure 19-5 SAR Test Setup Photo 5 Figure 19-6 SAR Test Setup Photo 6
