A3LGTB9062PCS GSM/EDGE Phone with WLAN and Bluetooth

Printed in Korea GH68-xxxxxA English (CHN). 12/2011. Rev. 1.0www.samsung.com/cn To install Kies (PC Sync) Download the latest version of Kies from the 1. Samsung website (www.samsung.com/kies) and install it on your PC. Using a USB cable, connect your device to your PC. 2. Double-click the Samsung Kies icon on your PC to 3. launch Samsung Kies. Refer to the Kies help for more information. GT-B9062 user manual                                                               Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks.  Safety precautions  Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or permanent battery damage. Never use a damaged charger or battery. Handle your phone carefully and sensibly Do not allow your phone to get wet—liquids can cause serious damage. Do not handle your phone with wet hands. Water damage to your phone can void your manufacturer’s warranty.  Avoid using or storing your phone in dusty, dirty areas to prevent damage to moving parts.  Your phone is a complex electronic device— protect it from impacts and rough handling to avoid serious damage.  Do not paint your phone, as paint can clog moving parts and prevent proper operation.  Avoid using the phone’s camera flash or light close to the eyes of children or animals.  Your phone and memory cards may be damaged by exposure to magnetic fields. Do not use carrying cases or accessories with magnetic closures or allow your phone to come in contact with magnetic fields for extended periods of time. Avoid interference with other electronic devices Your phone emits radio frequency (RF) signals that may interfere with unshielded or improperly shielded electronic equipment, such as pacemakers, hearing aids, medical devices, and other electronic devices in homes or vehicles. Consult the manufacturers of your electronic devices to solve any interference problems you experience.  Important usage information Use your phone in the normal position Avoid contact with your phone’s internal antenna. Allow only qualified personnel to service your phone Allowing unqualified personnel to service your phone may result in damage to your phone and will void your warranty. Ensure maximum battery and charger life  Avoid charging batteries for more than a week, as overcharging may shorten battery life.  Over time, unused batteries will discharge and must be recharged before use.  Disconnect chargers from power sources wh…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: January 18, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTB9062 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea Federal Communicat ions Commission 7435 Oakland Mills Road Colum bia, MD 21046 Gentlemen: We hereby provide the label statement letter for the above-mentioned phone by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the phone will be marketed without the battery installed. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

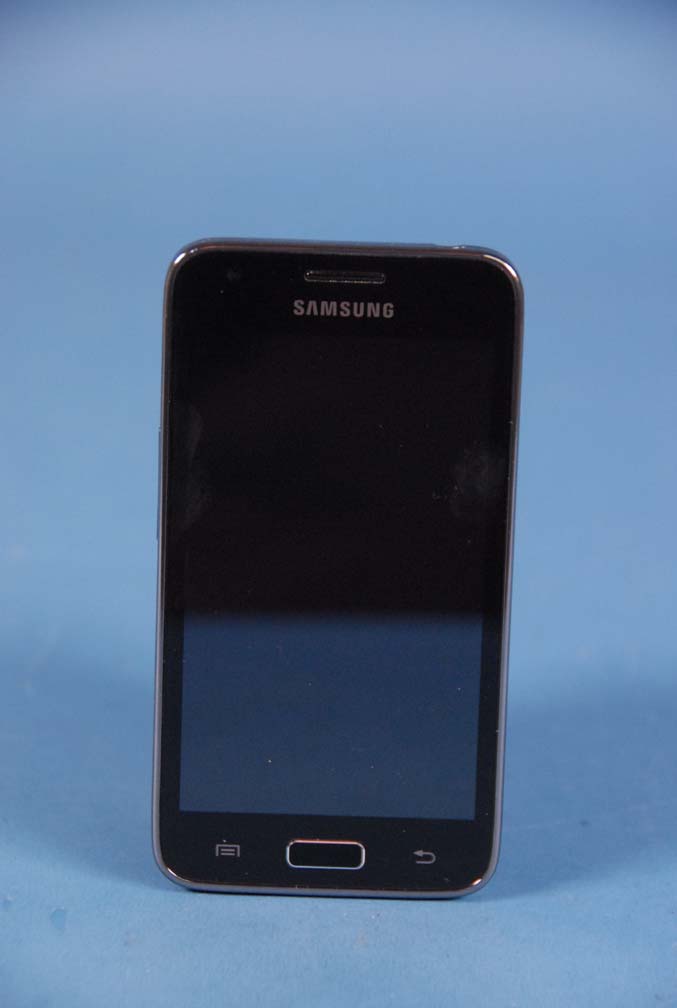

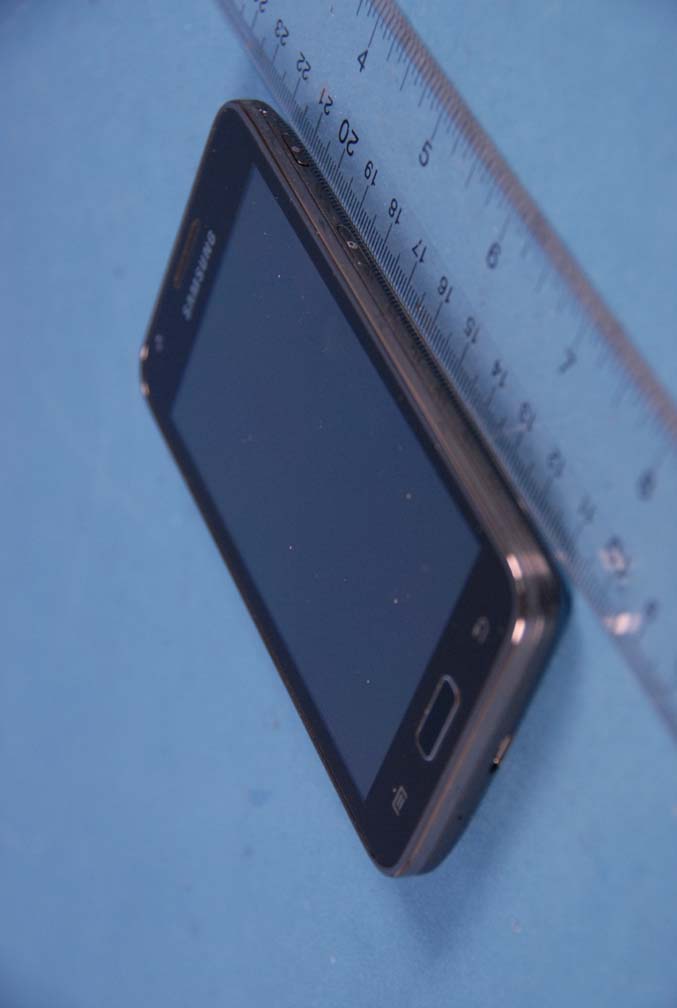

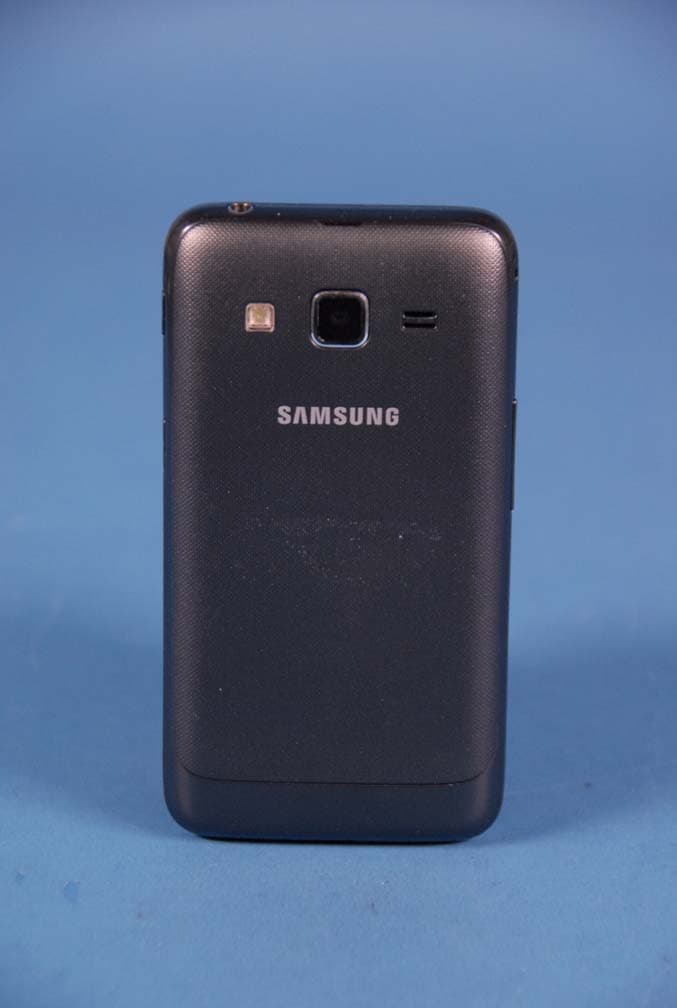

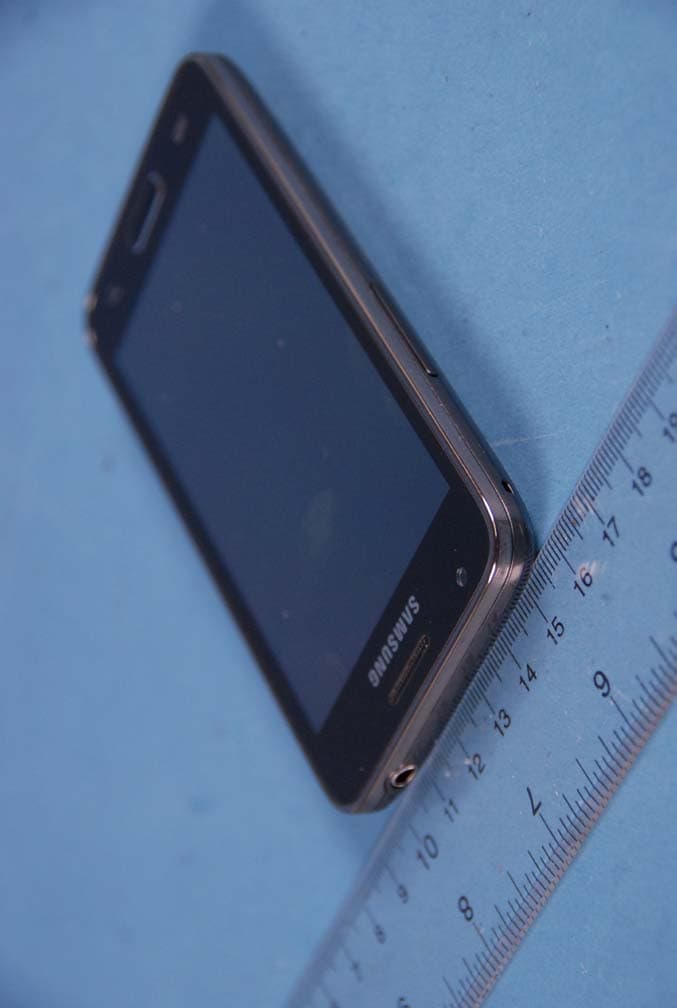

Samsung Electronics, Co. Ltd. FCC ID: A3LGTB9062 Model: GT-B9062 External Photos EUT Type: Portable Handset Page 1 of 4 © 2012 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung Electronics, Co. Ltd. FCC ID: A3LGTB9062 Model: GT-B9062 External Photos EUT Type: Portable Handset Page 2 of 4 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTB9062 Model: GT-B9062 External Photos EUT Type: Portable Handset Page 3 of 4 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTB9062 Model: GT-B9062 External Photos EUT Type: Portable Handset Page 4 of 4 © 2012 PCTEST Engineering Laboratory Inc.

Label and Location Samsung Phone Model: GT-B9062 FCC ID: A3LGTB9062 Label: Location: Top Back plate of GT-B9062 Bottom Label is placed inside of the battery compartment. MODEL : GT-B9062 RATED : 3.7 V 1000 mA SSN : -B9062GSMH FCC ID : A3LGTB9062 MADE IN KOREA BY SAMSUNG ; MOBILE PHONE MODEL : GT-B9062 RATED : 3.7 V 1000 mA SSN : -B9062GSMH FCC ID : A3LGTB9062 MADE IN KOREA BY SAMSUNG ; MOBILE PHONE

Samsung Electronics, Co. Ltd. FCC ID: A3LGTB9062 Model: GT-B9062 Internal Photos EUT Type: Portable Handset Page 1 of 7 © 2012 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung Electronics, Co. Ltd. FCC ID: A3LGTB9062 Model: GT-B9062 Internal Photos EUT Type: Portable Handset Page 2 of 7 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTB9062 Model: GT-B9062 Internal Photos EUT Type: Portable Handset Page 3 of 7 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTB9062 Model: GT-B9062 Internal Photos EUT Type: Portable Handset Page 4 of 7 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTB9062 Model: GT-B9062 Internal Photos EUT Type: Portable Handset Page 5 of 7 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTB9062 Model: GT-B9062 Internal Photos EUT Type: Portable Handset Page 6 of 7 © 2012 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTB9062 Model: GT-B9062 Internal Photos EUT Type: Portable Handset Page 7 of 7 © 2012 PCTEST Engineering Laboratory Inc.

FCC ID: A3LGTB9062 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 37 0Y1201060032.A3L 01/09/12 - 01/17/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 10M 01/09/2012 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 01/09/12 - 01/17/12 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1201060032.A3L FCC ID: A3LGTB9062 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] GT-B9062 Test Device Serial No.: Pre-Production [S/N: FI-329-A] 1 gm Head (W/kg) 1 gm Body-Worn (W/kg) 1 gm Hotspot (W/kg) GSM/GPRS/EDGE 19001850.20 - 1909.80 MHz29.750.490.660.66 2.4 GHz WLAN2412 - 2462 MHz14.280.000.000.00 Bluetooth2402 - 2480 MHz4.90 0.520.880.88 SAR Band & ModeTx Frequency Conducted Power [dBm] N/A Simultaneous SAR per KDB 690783 D01: Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all capabilities. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: A3LGTB9062 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 37 0Y1201060032.A3L 01/09/12 - 01/17/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 10M 01/09/2012 TABLE OF CONTENTS 1 EQUIPMENT UNDER TEST ............................................................................................................3 2 INTRODUCTION ..............................................................................................................................5 3 TEST SITE LOCATION ....................................................................................................................6 4 SAR MEASUREMENT SETUP ........................................................................................................7 5 DASY E-FIELD PROBE SYSTEM ...................................................................................................9 6 PHANTOM AND EQUIVALENT TISSUES .................................................................................... 10 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 11 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 12 9 TEST CONFIGURATION POSITIONS ......................................................................................... 13 10 FCC RF EXPOSURE LIMITS ........................................................................................................ 16 11 FCC MEASUREMENT PROCEDURES ........................................................................................ 17 12 RF CONDUCTED POWERS ......................................................................................................... 18 13 FCC PERSONAL WIRELESS ROUTER CONFIGURATIONS ..................................................... 22 14 SYSTEM VERIFICATION .............................................................................................................. 23 15 SAR DATA SUMMARY ................................................................................................................. 25 16 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 29 17 EQUIPMENT LIST ......................................................................................................................... 33 18 MEASUREMENT UNCERTAINTIES ............................................................................................ 34 19 CONCLUSION ............................................................................................................................... 35 20 REFERENCES .............................................................................................................................. 36 FCC ID: A3LGTB9062 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 3 of 37 0Y1201060032.A3L 01/09/12 - 01/17/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 10M 01/09/2012 1 EQUIPMENT UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 1900, Master Antenna1850.20 - 1909.80 MHz GSM/GPRS/EDGE 1900, Slave Antenna1850.20 - 1909.80 MHz 2.4 GHz WLAN2412 - 2462 MHz Bluetooth2402 - 2480 MHz Band & ModeTx Frequency 1.2 EUT Antenna Locations Figure 1-1 EUT Antenna Locations 1.3 Simultaneous Transmission Capabilities Simultaneous transmissions according to KDB 648474, except for transmissions during network hand- offs, with maximum hand-off duration less than 30 seconds, transmitters are considered to be tran…

Text truncated - open the document above for the full version.

Report Number :F690501/RF-RTL005247-1Page:2of47 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.kr.sgs.com/ee Table of contents 1. General information ------------------------------------------------------------------------------------3 2. Transmitter radiated spurious emissions and conducted spurious emission------6 3. 6㏈Bandwidth measurement --------------------------------------------------------------------- 25 4. Maximum peak output power -----------------------------------------------------------------------32 5. Power spectral density --------------------------------------------------------------------------------35 6. Transmitter AC Power line conducted emission----------------------------------------------42 7. Antenna requirement ----------------------------------------------------------------------------------47 Report Number :F690501/RF-RTL005247-1Page:3of47 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.kr.sgs.com/ee 1. General information 1.1. Testing laboratory SGS Korea Co., Ltd.(Gunpo Laboratory) -413-15, Gomae-Dong Giheung-Gu, Yongin-Si, Gyeonggi-Do, South Korea. -Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 www.kr.sgs.com/ee Phone No.:+82 +31 428 5700 Fax No.:+82 +31 427 2371 1.2 Details of applicant Applicant:SAMSUNG ELECTRONICS CO., LTD. Address:416, Maetan3-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea Contact Person:Lee, wontaek Phone No.:+82 +10 7260 8949 1.3 Description of EUT Kind of Product SAMSUNG Mobile Phone Model Name GT-B9062 Serial Number N/A Power Supply DC 3.7 V (Li-Ion Battery) Frequency Range 2 412㎒~ 2 462㎒(11b/g/n-HT20) Modulation Technique DSSS, OFDM Number of Channels 11 Antenna Type Fixed type Antenna Gain -0.69㏈i 1.4. Declaration by the manufacturer - WLAN & BT do not transmit simultaneously Report Number :F690501/RF-RTL005247-1Page:4of47 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.kr.sgs.com/ee 1.5. Test equipment list EquipmentManufacturerModelS/NCal Due. Signal GeneratorR & S SMR40100272 Jul. 15, 2012 Signal GeneratorAgilent 8648D3847M00534Apr. 01, 2012 Spectrum AnalyzerR & SFSV30100955Apr. 01, 2012 Power SensorR & SNRP-Z81101341Sep. 29, 2012 AttenuatorMini-CircuitsBW-N20W5+0950-5Mar. 30, 2012 Low Pass FilterMini-Circuits NLP-1200+ V9500401023-3Aug. 22, 2012 High Pass FilterWainwrightWHKX3.0/18G-6SS 4Sep. 14, 2012 High Pass FilterWainwrightWHNX7.5/26.5G-6SS 11Sep. 15, 2012 DC power SupplyAgilentU8002AMY50020026Apr. 01, 2012 PreamplifierH.P.8447D1726A01265Sep. 27, 2012 PreamplifierR & SSCU-1810070Aug. 09, 2012 Preamplifier SCHWARZBECK MESSELEKTRONIK JS44-18004000-35-8P1546891Jul. 04, 2012 Test ReceiverR & SESU40100075Feb. 13, 2012 Bilog Antenna SCHWARZBECK MESSELEKTRONIK VULB91639163-437Aug. 02, 2012 Horn AntennaR & SHF907 100208Jun. 08, 2012 Horn Antenna SCHWARZBECK MESSELEKTRONIK BBHA9170BBHA9170431Mar. 17, 2012 Antenna MasterINNCOMA4000-EP N/AN.C.R. Turn TableINNCODT-3000S N/AN.C.R. Anechoic Chamber SY Corporation L × W × H (21.5 m × 13.0 m × 9.0 m) N/AN.C.R. EMI Test ReceiverR & SESCI7100778Jul. 25, 2012 2-Line V-NetworkR & SENV216101180May. 25, 2012 Report Number :F690501/RF-RTL005247-1Page:5of47 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.kr.sgs.com/ee 1.6. Summary of test result The EUT has been tested according to the following specifications: Applied standard : FCC Part15 subpart C Standard sectionTest ItemResult 15.205(a) 15.209(a) 15.247(d) Transmitter radiated spurious emissions and Conducted spurious emission Complied 15.247(a)(2) 6㏈Bandwidth Complied 15.247(b)(3)Maximum peak output powerComplied 15.247(e)Power spectral densityComplied 15.207Transmitter AC power line conducted emissionComplied 1.7. Description of test mode 802.11 b mode: We found out the test mode with the highest power level after we analyze all the data rates. 1 Mbps data rate is chose (worst case) as a representative. 802.11 g mode: We found out the test mode with the highest power level after we analyze all the data rates. 6 Mbps data rate is chose (worst case) as a representative. 802.11 n-HT20 mode: We found out the test mode with the highest power level after we analyze all the data rates. MCS0 Mbps data rate is chose (worst case) as a representative. 1.8. Test report revision RevisionReport numberDescription 0F690501/RF-RTL005247Initial 1F690501/RF-RTL005247-1 Test result for 6 dB bandwidth(802.11n, high channel) has been revised. Report Number :F690501/RF-RTL005247-1Page:6of47 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.kr.sgs.com/ee 2. Transmitter …

Text truncated - open the document above for the full version.

FCC ID: A3LGTB9062 Test setup photo of EUT FCC ID: A3LGTB9062 Photo of Spurious Emission Test FCC ID: A3LGTB9062 Photos of AC Power line conducted emission test.

FCC ID: A3LGTB9062 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page D1 of D7 01/09/12 - 01/17/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 10M 01/09/2012 APPENDIX D: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LGTB9062 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page D2 of D7 01/09/12 - 01/17/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 10M 01/09/2012 SAR Test Setup Photo 1 – Right Touch SAR Test Setup Photo 2 – Right Tilt FCC ID: A3LGTB9062 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page D3 of D7 01/09/12 - 01/17/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 10M 01/09/2012 SAR Test Setup Photo 3 – Left Touch SAR Test Setup Photo 4 – Left Tilt FCC ID: A3LGTB9062 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page D4 of D7 01/09/12 - 01/17/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 10M 01/09/2012 SAR Test Setup Photo 5 – Back at 1.0 cm SAR Test Setup Photo 6 – Front at 1.0 cm
