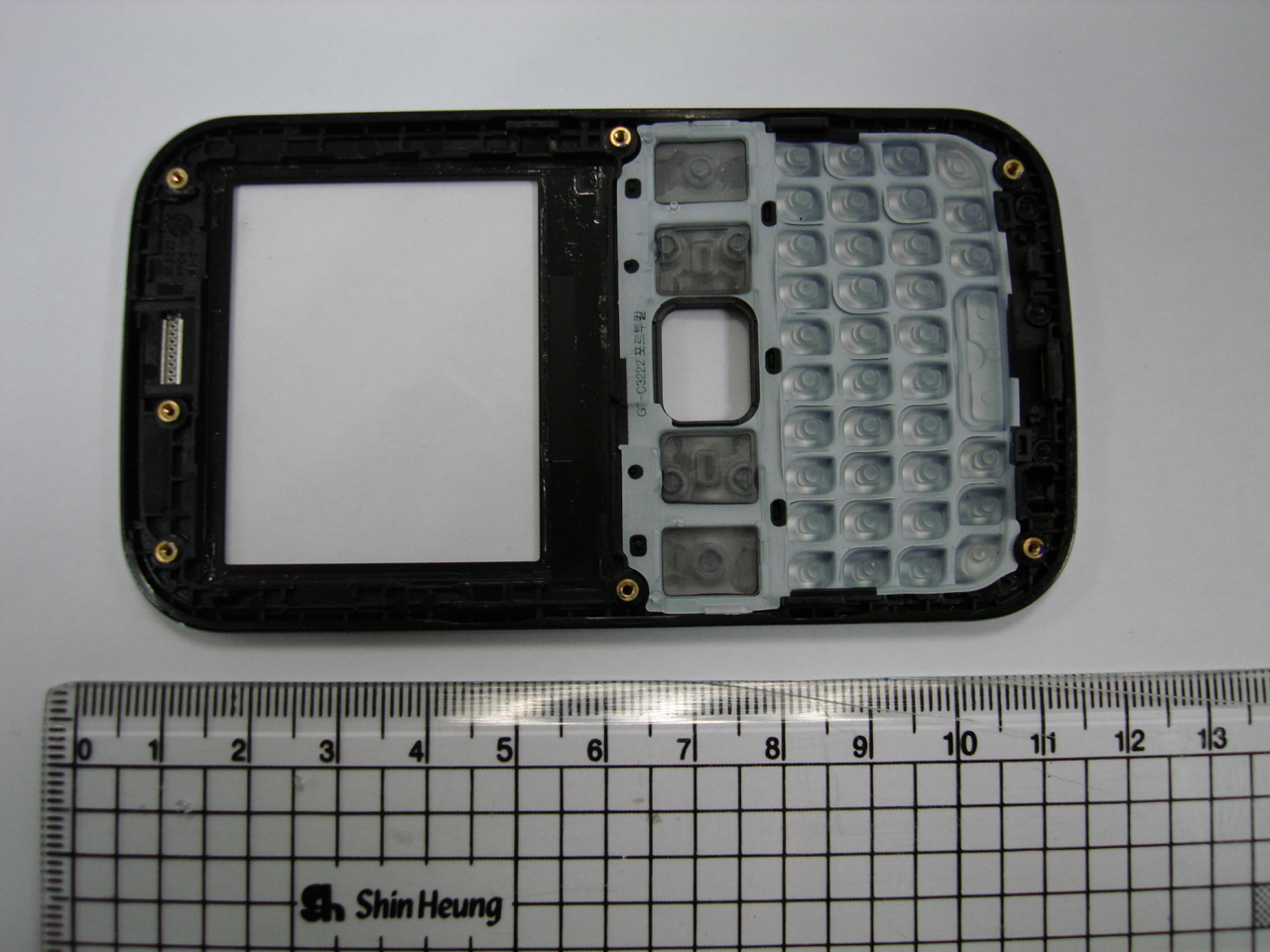

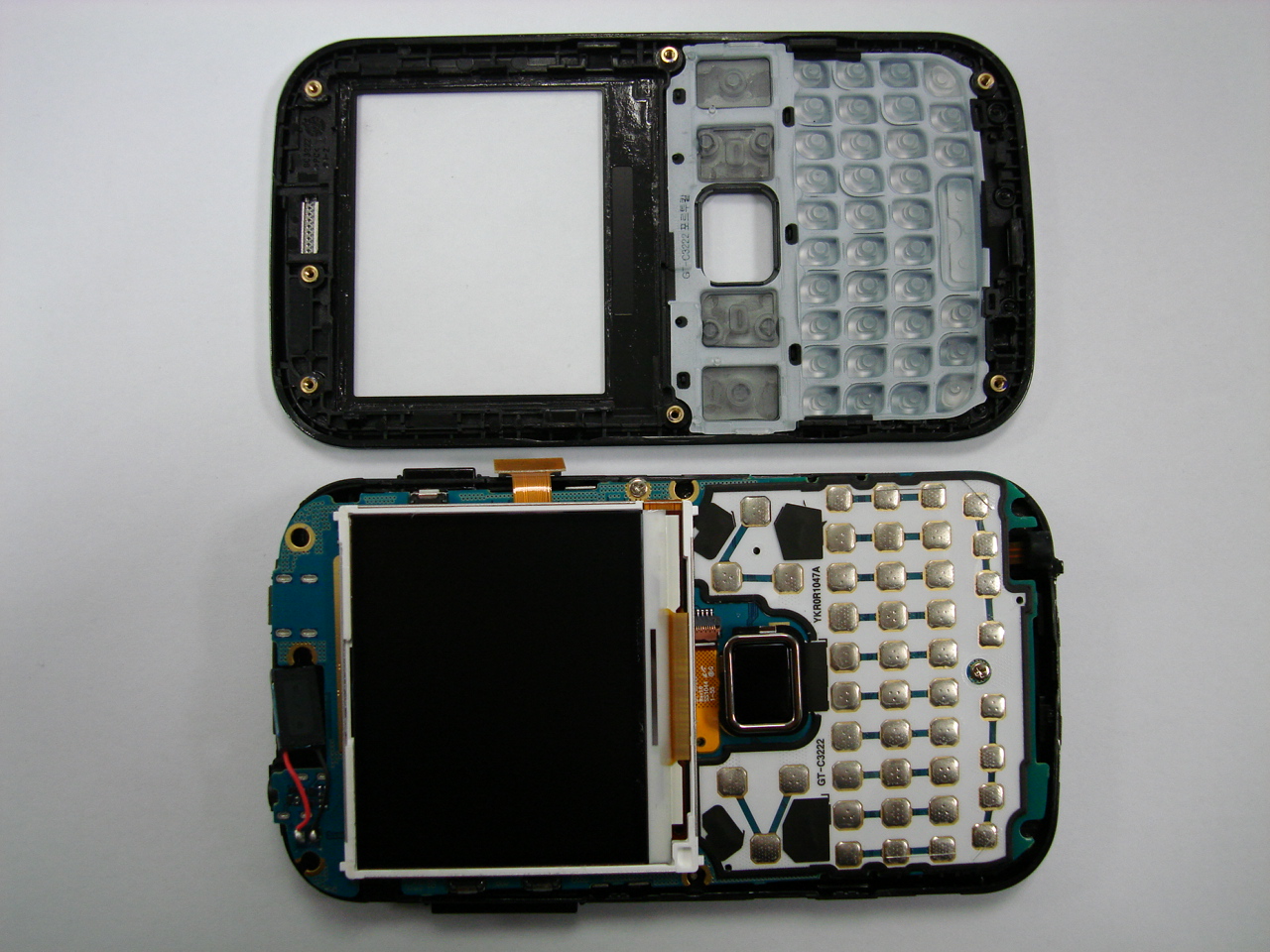

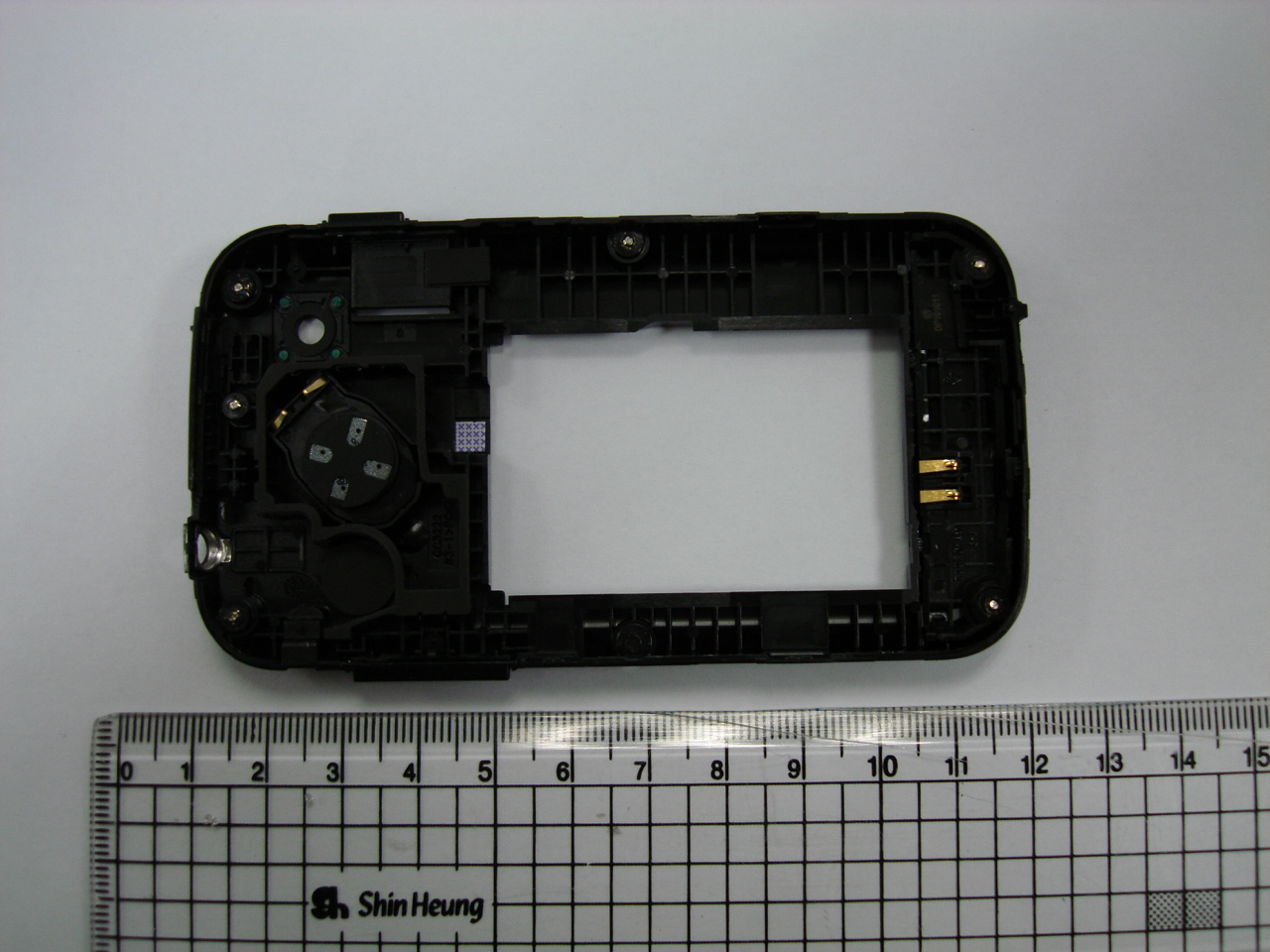

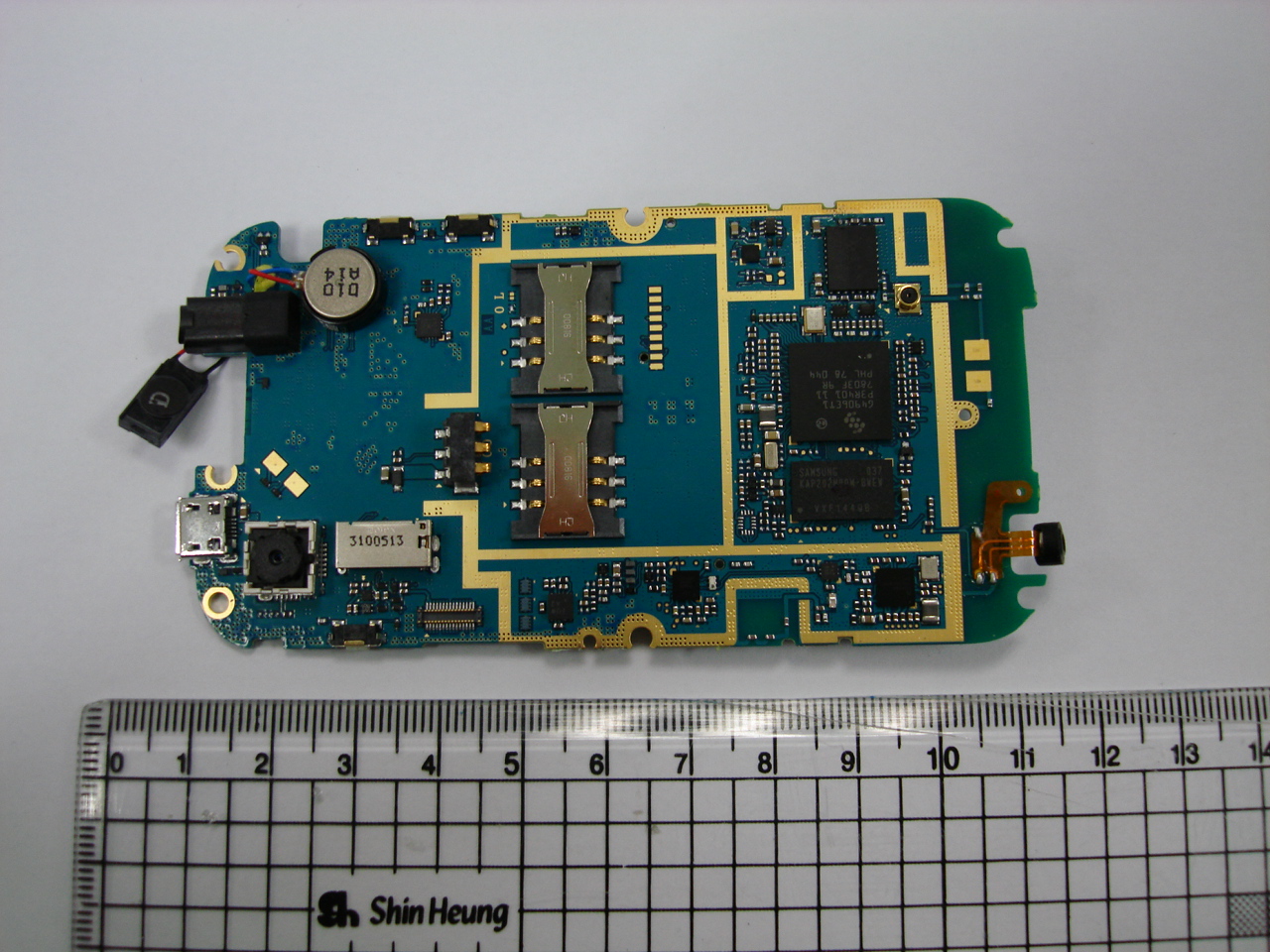

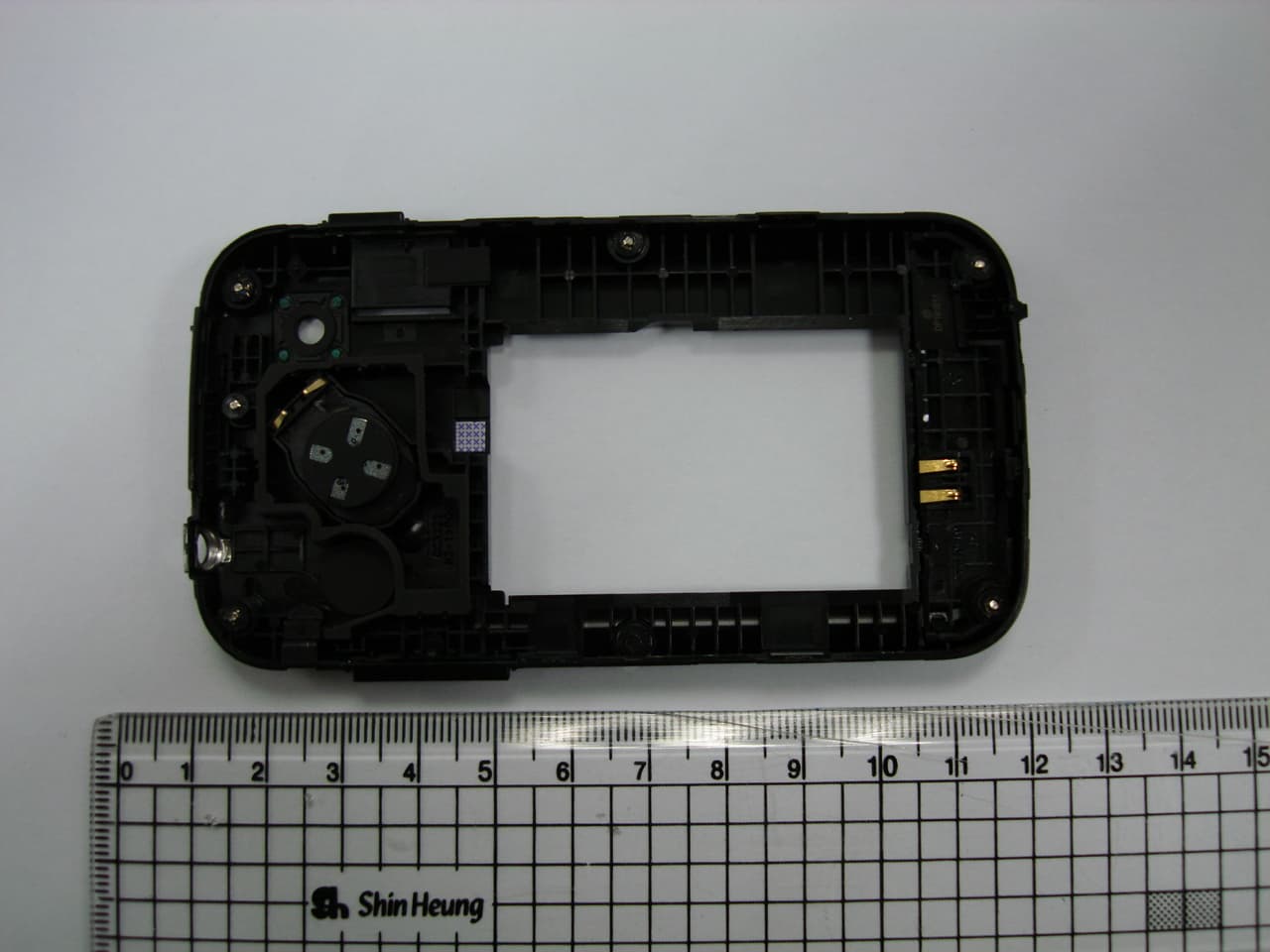

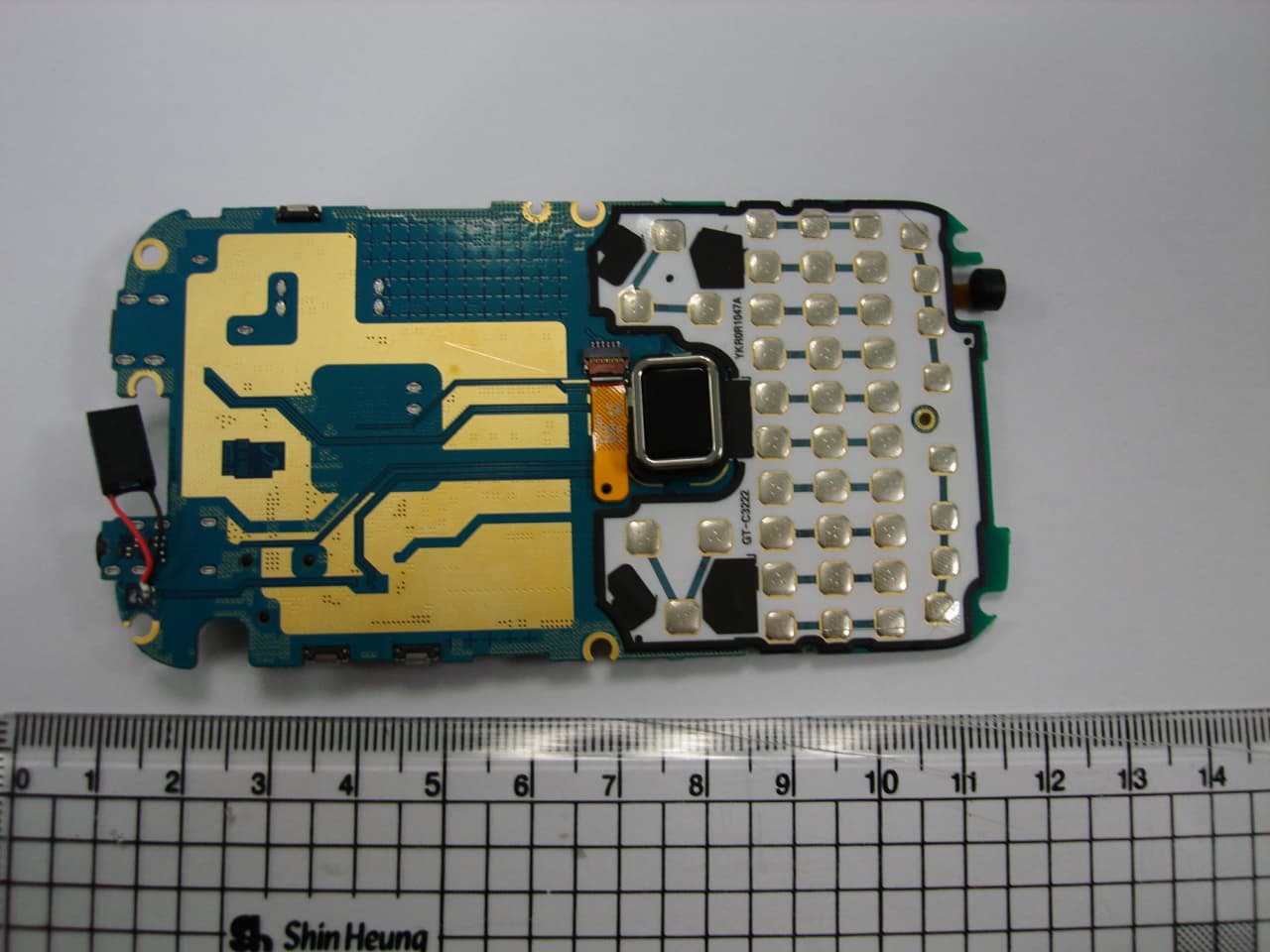

A3LGTC3222W850/1900 GSM/GPRS PHONE WITH BLUETOOTH AND WLAN

9. User Manual User manual GT-C3222W using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone,” “ 오류! 참조 원본을 찾을 수 없습니다.,” and “오류! 참조 원본을 찾을 수 없습니다. .” Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information  Refer to—pages with related information; for example:  p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [ ](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Listening to a headset at high volumes can damage your hearing. Use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or permanent battery damage. Never use a damaged charger or …

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea 2 , 2010 Federal Communicat ions Commission 7435 Oakland Mills Road Colum bia, MD 21046 SUBJECT : Label Statement FCC ID : A3L Gentleme n: We hereby provide the label statement letter for the above-mentioned phone by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FC C ID label page will be readily visible at the time of purchase because the phone will be marketed without the battery installed. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

Date: February 9, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A3LGTC3222W To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Sc hematic Diagram Block Diagram Theory of Operation Parts List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until : 180 days. Ext ernal Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 310-900-5250 FAX: 310-537-5500 E-mail: [email protected]

2. Sample Label GH68-00000A 101206101206101206 LABEL-MAIN GT-C3222W (SER) Tae Hun KimKyeong Hwan JoJune Sop Kim Technical Description 1. Use ‘AI / PDF’ provided by ‘SAMSUNG’ for letter and contents 2. Background color is ‘WHITE’, letter color is ‘BLACK’ (reverse for SAMSUNG LOGO) 3. Back side should be attached to release paper once adhesive is applied. 4. No letter should be blur/smeared 5. The production must be proceed after the approval of R&D Group 6. The product must be within approved sample's specification tolerance. 7. The product must be finished in a ROLL 8. Release paper must be unifiedn for material and color(blue) 9. Do not contain any substances which are specified in (OQA-2049). Vendor HSINS MOBILE PHONE MODEL : GT-C3222W FCC ID : A3LGTC3222W SSN : -C3222WGSMH RATED : 3.7 V 800 mA MADE IN KOREA BY SAMSUNG ; 30 17 8 Semi transparency OPP laminating + UVP Coating OPP Laminating 16 Adhesive 8 WHITE POLYPROPYLENE 80 Adhesive 25 (0.13T±0.01) AB57

3. FCC ID Label Location ※ The label is placed inside the battery compartment

Date/Time: 2/5/2011 12:51:06 PM, Date/Time: 2/5/2011 12:58:44 PM, Date/Time: 2/5/2011 1:26:37 PM Test Laboratory: UL CCS Body worn DUT: Samsung; Type: NA; Serial: NA Communication System: 802.11b/g 2.4GHz; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.916 mho/m; ε r = 51.132; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(7.58, 7.58, 7.58); Calibrated: 2/23/2010 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1239; Calibrated: 11/17/2010 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: xxxx - Measurement SW: DASY52, Version 52.6 (1);SEMCAD X Version 14.4.2 (2595) Face up/11b_M-ch/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.078 mW/g Face up/11b_M-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 6.344 V/m; Power Drift = 0.0061 dB Peak SAR (extrapolated) = 0.122 W/kg SAR(1 g) = 0.065 mW/g; SAR(10 g) = 0.034 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.086 mW/g Face up/11b_M-ch/Zoom Scan (7x7x9)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 6.344 V/m; Power Drift = 0.0061 dB Peak SAR (extrapolated) = 0.161 W/kg SAR(1 g) = 0.055 mW/g; SAR(10 g) = 0.028 mW/g Info: Interpolated medium parameters used for SAR evaluation. Date/Time: 2/5/2011 1:47:25 PM Test Laboratory: UL CCS Body worn DUT: Samsung; Type: NA; Serial: NA Communication System: 802.11b/g 2.4GHz; Frequency: 2437 MHz;Duty Cycle: 1:1 Face up/11b_M-ch/Z Scan (1x1x29): Measurement grid: dx=20mm, dy=20mm, dz=3.5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.086 mW/g Date/Time: 2/5/2011 6:30:52 PM, Date/Time: 2/5/2011 6:40:44 PM, Date/Time: 2/5/2011 6:58:41 PM Test Laboratory: UL CCS Body worn DUT: Samsung; Type: NA; Serial: NA Communication System: 802.11b/g 2.4GHz; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.916 mho/m; ε r = 51.132; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(7.58, 7.58, 7.58); Calibrated: 2/23/2010 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1239; Calibrated: 11/17/2010 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: xxxx - Measurement SW: DASY52, Version 52.6 (1);SEMCAD X Version 14.4.2 (2595) Face up/11b_w Headset/Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.038 mW/g Face up/11b_w Headset/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 4.504 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.215 W/kg SAR(1 g) = 0.026 mW/g; SAR(10 g) = 0.00688 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.033 mW/g Face up/11b_w Headset/Zoom Scan (7x7x9)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 4.504 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.093 W/kg SAR(1 g) = 0.031 mW/g; SAR(10 g) = 0.015 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.039 mW/g Date/Time: 2/5/2011 4:13:27 PM, Date/Time: 2/5/2011 4:24:59 PM, Date/Time: 2/5/2011 4:42:57 PM Test Laboratory: UL CCS Body worn DUT: Samsung; Type: NA; Serial: NA Communication System: 802.11b/g 2.4GHz; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.916 mho/m; ε r = 51.132; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(7.58, 7.58, 7.58); Calibrated: 2/23/2010 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1239; Calibrated: 11/17/2010 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: xxxx - Measurement SW: DASY52, Version 52.6 (1);SEMCAD X Version 14.4.2 (2595) Face down/11b_M-ch 2/Area Scan (9x12x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.040 mW/g Face down/11b_M-ch 2/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 4.546 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.062 W/kg SAR(1 g) = 0.031 mW/g; SAR(10 g) = 0.014 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.042 mW/g Face down/11b_M-ch 2/Zoom Scan (7x7x9)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 4.546 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.057 W/kg SAR(1 g) = 0.029 mW/g; SAR(10 g) = 0.016 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.039 mW/g

Date/Time: 2/7/2011 12:09:12 AM Test Laboratory: UL CCS GSM850_Left Hand Side_Low_Channel DUT: Samsung; Type: NA; Serial: NA Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:8.00018 Medium parameters used: f = 825 MHz; σ = 0.884 mho/m; ε r = 42.351; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(10.13, 10.13, 10.13); Calibrated: 2/23/2010 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1239; Calibrated: 11/17/2010 - Phantom: SAM with CRP; Type: SAM; Serial: 1602 - Measurement SW: DASY52, Version 52.6 (1);SEMCAD X Version 14.4.2 (2595) LHS/Touch_L-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.863 mW/g LHS/Touch_L-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 31.309 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 1.041 W/kg SAR(1 g) = 0.801 mW/g; SAR(10 g) = 0.592 mW/g Maximum value of SAR (measured) = 0.909 mW/g 0 dB = 0.910mW/g Date/Time: 2/6/2011 11:38:19 PM Test Laboratory: UL CCS GSM850_Left Hand Side_Middle_Channel DUT: Samsung; Type: NA; Serial: NA Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.00018 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.895 mho/m; ε r = 42.215; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(10.13, 10.13, 10.13); Calibrated: 2/23/2010 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1239; Calibrated: 11/17/2010 - Phantom: SAM with CRP; Type: SAM; Serial: 1602 - Measurement SW: DASY52, Version 52.6 (1);SEMCAD X Version 14.4.2 (2595) LHS/Touch_M-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.879 mW/g LHS/Touch_M-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 31.488 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 1.051 W/kg SAR(1 g) = 0.821 mW/g; SAR(10 g) = 0.606 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.932 mW/g 0 dB = 0.930mW/g Date/Time: 2/6/2011 11:56:28 PM Test Laboratory: UL CCS GSM850_Left Hand Side_Middle_Channel DUT: Samsung; Type: NA; Serial: NA Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.00018 LHS/Touch_M-ch/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.092 mW/g Date/Time: 2/7/2011 12:37:38 AM Test Laboratory: UL CCS GSM850_Left Hand Side_High_Channel DUT: Samsung; Type: NA; Serial: NA Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:8.00018 Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.906 mho/m; ε r = 42.073; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(10.13, 10.13, 10.13); Calibrated: 2/23/2010 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1239; Calibrated: 11/17/2010 - Phantom: SAM with CRP; Type: SAM; Serial: 1602 - Measurement SW: DASY52, Version 52.6 (1);SEMCAD X Version 14.4.2 (2595) LHS/Touch_H-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.883 mW/g LHS/Touch_H-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 31.323 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 1.032 W/kg SAR(1 g) = 0.817 mW/g; SAR(10 g) = 0.604 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.917 mW/g 0 dB = 0.920mW/g Date/Time: 2/7/2011 1:07:30 AM Test Laboratory: UL CCS GSM850_Left Hand Side_Middle_Channel Tilt DUT: Samsung; Type: NA; Serial: NA Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.00018 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.895 mho/m; ε r = 42.215; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY5 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV3 - SN3531; ConvF(10.13, 10.13, 10.13); Calibrated: 2/23/2010 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1239; Calibrated: 11/17/2010 - Phantom: SAM with CRP; Type: SAM; Serial: 1602 - Measurement SW: DASY52, Version 52.6 (1);SEMCAD X Version 14.4.2 (2595) LHS/Tilt_M-ch/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.486 mW/g LHS/Tilt_M-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 23.429 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.550 W/kg SAR(1 g) = 0.427 mW/g; SAR(10 g) = 0.320 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.485 mW/g 0 dB = 0.480mW/g Date/Time: 2/7/2011 1:39:36 AM Test Laboratory: UL CCS GSM850_Right Hand Side_Middle_Channel DUT: Samsung; Type: NA; Serial: NA Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.00018 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.895 mho/m; ε r = 42.215; ρ = 1000 kg/m 3 Phantom section: Right Secti…

Text truncated - open the document above for the full version.

Date/Time: 2/4/2011 11:50:53 AM Test Laboratory: Compliance Certification Services (UL CCS) GSM1900_Left Hand Side DUT: Samsung; Type: NA; Serial: NA Communication System: PCS1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.39 mho/m; ε r = 40; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3749; ConvF(7.36, 7.36, 7.36); Calibrated: 12/13/2010 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 7/21/2010 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Touch_L-ch/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.25 mW/g Touch_L-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 30.6 V/m; Power Drift = -0.015 dB Peak SAR (extrapolated) = 1.66 W/kg SAR(1 g) = 1.13 mW/g; SAR(10 g) = 0.688 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.33 mW/g Date/Time: 2/4/2011 12:11:36 PM Test Laboratory: Compliance Certification Services (UL CCS) GSM1900_Left Hand Side DUT: Samsung; Type: NA; Serial: NA Communication System: PCS1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8 Touch_L-ch/Z Scan (1x1x34): Measurement grid: dx=20mm, dy=20mm, dz=3mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.867 mW/g Date/Time: 2/4/2011 11:06:29 AM Test Laboratory: Compliance Certification Services (UL CCS) GSM1900_Left Hand Side DUT: Samsung; Type: NA; Serial: NA Communication System: PCS1900; Frequency: 1880 MHz;Duty Cycle: 1:8 Medium parameters used: f = 1880 MHz; σ = 1.42 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3749; ConvF(7.36, 7.36, 7.36); Calibrated: 12/13/2010 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 7/21/2010 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Touch_M-ch/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.942 mW/g Touch_M-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 26.2 V/m; Power Drift = 0.037 dB Peak SAR (extrapolated) = 1.22 W/kg SAR(1 g) = 0.840 mW/g; SAR(10 g) = 0.509 mW/g Maximum value of SAR (measured) = 0.978 mW/g Date/Time: 2/4/2011 11:30:08 AM Test Laboratory: Compliance Certification Services (UL CCS) GSM1900_Left Hand Side DUT: Samsung; Type: NA; Serial: NA Communication System: PCS1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8 Medium parameters used: f = 1910 MHz; σ = 1.45 mho/m; ε r = 39.8; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3749; ConvF(7.36, 7.36, 7.36); Calibrated: 12/13/2010 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 7/21/2010 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Touch_H-ch/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.758 mW/g Touch_H-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 23.2 V/m; Power Drift = 0.056 dB Peak SAR (extrapolated) = 0.990 W/kg SAR(1 g) = 0.675 mW/g; SAR(10 g) = 0.405 mW/g Maximum value of SAR (measured) = 0.793 mW/g Date/Time: 2/4/2011 12:14:10 PM Test Laboratory: Compliance Certification Services (UL CCS) GSM1900_Left Hand Side DUT: Samsung; Type: NA; Serial: NA Communication System: PCS1900; Frequency: 1880 MHz;Duty Cycle: 1:8 Medium parameters used: f = 1880 MHz; σ = 1.42 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom section: Left Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3749; ConvF(7.36, 7.36, 7.36); Calibrated: 12/13/2010 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 7/21/2010 - Phantom: SAM 2 (Twin); Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Tilt_M-ch/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.143 mW/g Tilt_M-ch/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm Reference Value = 10.1 V/m; Power Drift = 0.043 dB Peak SAR (extrapolated) = 0.220 W/kg SAR(1 g) = 0.133 mW/g; SAR(10 g) = 0.075 mW/g Maximum value of SAR (measured) = 0.165 mW/g Date/Time: 2/4/2011 12:40:23 PM Test Laboratory: Compliance Certification Services (UL CCS) GSM1900_Right Hand Side DUT: Samsung; Type: NA; Serial: NA Communication System: PCS1900; Frequency: 1880 MHz;Duty Cycle: 1:8 Medium parameters used: f = 1880 MHz; σ = 1.42 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom section: Right Section Room Ambient Temperature: 24.0 deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3749; ConvF(7.36, 7.36, 7.36); Calibrated: 12/13/2010 - Sensor-Surface: 3mm (Mechanic…

Text truncated - open the document above for the full version.

FCC OET BULLETIN 65 SUPPLEMENT C 01-01 IEEE STD 1528:2003 SAR EVALUATION REPORT For 850/1900 GSM/GPRS PHONE WITH BLUETOOTH AND WLAN MODEL: GT-C3222W FCC ID: A3LGTC3222W REPORT NUMBER: 11I13659-2A ISSUE DATE: February 16, 2011 Prepared for SAMSUNG ELECTRONICS CO., LTD. 416, MAETAN 3-DONG, YEONGTONG-GU SUWON-CITY, GYEONGGI-DO 443-742, SOUTH KOREA Prepared by COMPLIANCE CERTIFICATION SERVICES (UL CCS) 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 11I13659-2A DATE: February 16, 2011 FCC ID: A3LGTC3222W Page 2 of 48 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4031B-0810 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Revision History Rev. Issue Date Revisions Revised By -- February 10, 2011 Initial Issue -- A February 16, 2011 Updated model number from “GT-3222W” to “GT- C3222W” Sunny Shih REPORT NO: 11I13659-2A DATE: February 16, 2011 FCC ID: A3LGTC3222W Page 3 of 48 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4031B-0810 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.................................................................................................. 5 2. TEST METHODOLOGY ...................................................................................................................... 6 3. FACILITIES AND ACCREDITATION.................................................................................................. 6 4. CALIBRATION AND UNCERTAINTY................................................................................................. 7 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 7 4.2. MEASUREMENT UNCERTAINTY .............................................................................................. 8 5. EQUIPMENT UNDER TEST ............................................................................................................... 9 6. SYSTEM SPECIFICATIONS ............................................................................................................. 10 7. COMPOSITION OF INGREDIENTS FOR TISSUE SIMULATING LIQUIDS .................................... 11 8. LIQUID PARAMETERS CHECK....................................................................................................... 12 8.1. LIQUID CHECK RESULTS FOR 835 MHZ ............................................................................... 13 8.2. LIQUID CHECK RESULTS FOR 1900 MHz…

Text truncated - open the document above for the full version.
