June 13, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A3L GTC3592 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 310-900-5250 FAX: 310-537-5500 E-mail: [email protected]

Date: April 1, 2013 UL LLC Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL LLC to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL LLC on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL LLC as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyung (Peter), RA Head of QA Lab (General Manager) Samsung Electronics America, Inc 19 Chapin Rd, Bldg. D, Pine Brook, NJ 07058

SAMSUNG ELECTRONICS CO., LTD 129,Samsung-ro,Yeongtong-gu Suwon-city,Gyeonggi-do, 443-742 Korea June 13, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LG TC3592 Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the device will be marketed without the battery installed. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

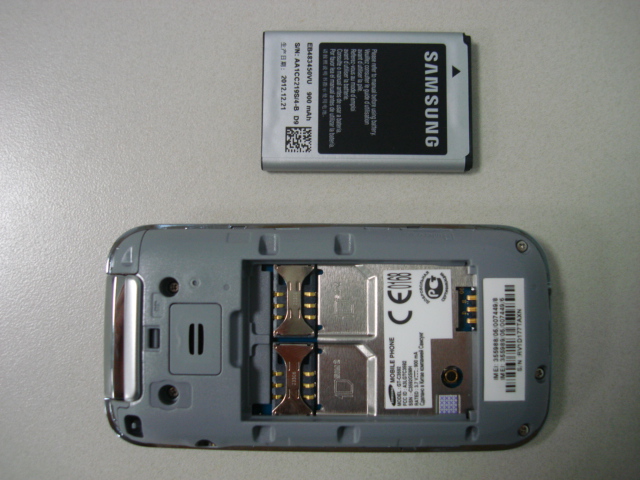

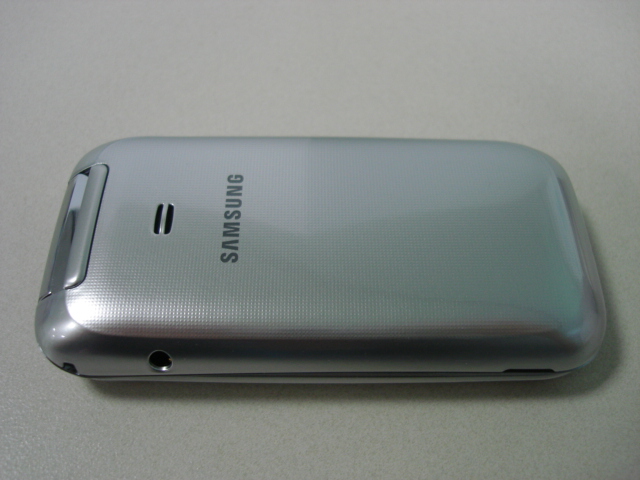

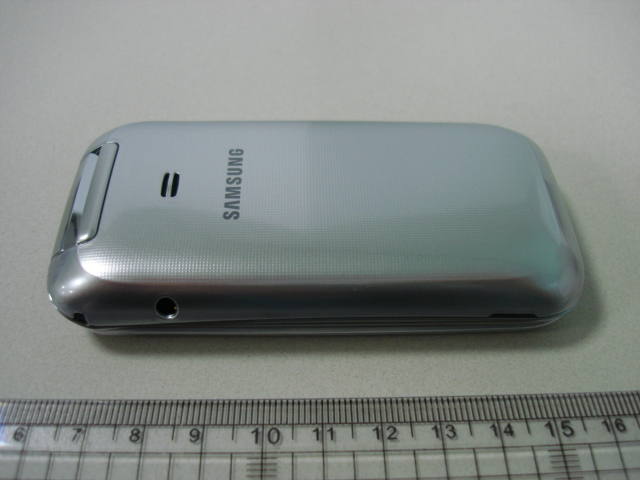

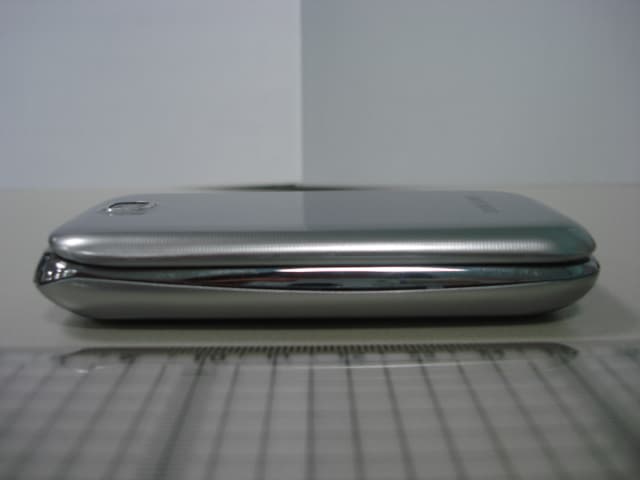

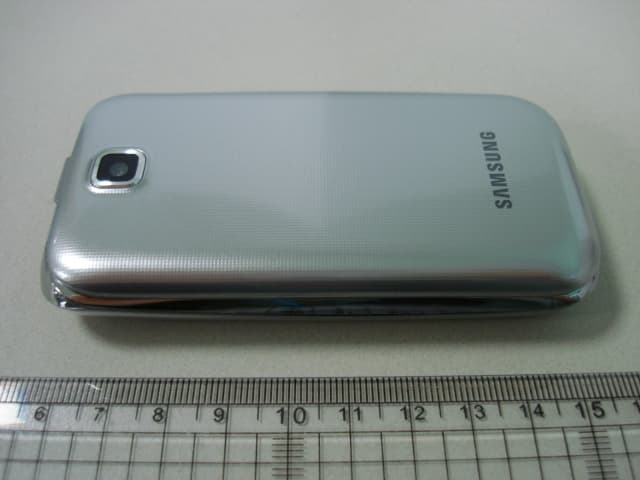

Label and Location Samsung Phone Model: GT-C3592 FCC ID: A3LGTC3592 Label: Location: Top Back plate of device Bottom Phone: Label is placed inside of the battery compartment. Label IMEI

FCC OET BULLETIN 65 SUPPLEMENT C 01-01 IEEE Std 1528-2003 and IEEE Std 1528a-2005 SAR EVALUATION REPORT For GSM Phone with BT Model: GT-C3592 and GT-C3590 FCC ID: A3LGTC3592 Report Number: 13I15211-5B Issue Date: 7/11/2013 Prepared for Samsung Electronics Co., Ltd. 416, Maetan 3-Dong, Yeongtong-Gu Suwon-City, GyeonGggi-Do 443-742, South Korea Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 Report No.: 13I15211-5B Issue Date: 7/11/2013 FCC ID: A3LGTC3592 Page 2 of 37 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 6/20/2013 Initial Issue -- A 6/28/2013 Made the following modifications: 1. Updated RF output powers for GPRS mode & output power tolerance tables 2. Additional testing for Body-worn Accessory for GPRS mode Kenneth Mak B 7/11/2013 Made the following modification: 1. Sec. 9.3.& 12.3.: updated Bluetooth maximum tune-up tolerance limit 2. Sec. 14.1.: updated Sum of the SAR tables 3. Updated setup photos of Body-worn accessory exposure conditions. Kenneth Mak Report No.: 13I15211-5B Issue Date: 7/11/2013 FCC ID: A3LGTC3592 Page 3 of 37 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Table of Contents 1. Attestation of Test Results ............................................................................................................. 5 2. Test Methodology ........................................................................................................................... 6 3. Facilities and Accreditation ........................................................................................................... 6 4. Calibration and Uncertainty ........................................................................................................... 7 4.1. Measuring Instrument Calibration .............................................................................................. 7 4.2. Measurement Uncertainty .......................................................................................................... 8 5. Measurement System Description and Setup ............................................................................... 9 6. SAR Measurement Procedure ...................................................................................................... 10 6.1. Normal SAR Measurement Procedure ..................................................................................... 10 6.2. Volume Scan Procedures ........................................................................................................ 12 7. Device Under Test ......................................................................................................................... 13 7.1. General Information ................................................................................................................. 13 7.2. Wireless Technologies ............................................................................................................. 14 7.3. Simultaneous Transmission Condition ..................................................................................... 14 8. RF Exposure Conditions .............................................................................................................. 15 8.1. Head Exposure Conditions ...................................................................................................... 15 8.2. Body-worn Accessory Exposure Conditions ............................................................................. 15 9. RF Output Power Measurement ................................................................................................... 16 9.1. GSM850 .................................................................................................................................. 16 9.2. GSM1900 ................................................................................................................................ 17 9.3. Bluetooth ................................................................................................................................. 18 10. Tissue Dielectric Properties ..................................................................................................... 19 10.1. Composition of Ingredients for the Tissue Material Used in the SAR Tests .......................... 20 10.2. Tissue Dielectric Parameter Check Results .......................................................................... 21 11. System Performance Check ..................................................................................................... 22 11.1. System Performance Check Measurement Conditions ......................................................... 22 11.2. Reference SAR Values for System Performance Check....................................................... 22 11.3. System Performance Check Results .................................................................................... 23 12. SAR Test Results ...................................................................................................................... 24 12.1. Head Exposure Conditions (Measured using Flat Phantom) ................................................ 24 12.1.1. Justification for using Flat Phantom Measuring Head SAR ............................................ 25 Report No.: 13I15211-5B Issue Date: 7/11/2013 FCC ID: A3LGTC3592 Page 4 of 37 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) …

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Verification Services Inc. SAR Lab B Date: 6/6/2013 20130606_SystemPerformanceCheck-D1900V2 SN 5d163 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1900 MHz; σ = 1.537 S/m; ε r = 51.462; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE3 Sn427; Calibrated: 1/9/2013 - Probe: EX3DV4 - SN3751; ConvF(6.95, 6.95, 6.95); Calibrated: 11/15/2012; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1120 Body/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 59.515 V/m; Power Drift = 0.11 dB Fast SAR: SAR(1 g) = 4.09 W/kg; SAR(10 g) = 2.06 W/kg Maximum value of SAR (interpolated) = 5.43 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 59.515 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 7.39 W/kg SAR(1 g) = 4.06 W/kg; SAR(10 g) = 2.11 W/kg Maximum value of SAR (measured) = 5.48 W/kg 0 dB = 5.48 W/kg = 7.39 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc. SAR Lab B Date: 6/6/2013 20130606_SystemPerformanceCheck-D1900V2 SN 5d163 Frequency: 1900 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 5.29 W/kg Plot No. 3 Test Laboratory: UL CCS SAR Lab D Date: 6/6/2013 20130606_SystemPerformanceCheck-D835V2 SN 4d142 Frequency: 835 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 835 MHz; σ = 1.015 S/m; ε r = 54.059; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1257; Calibrated: 8/28/2012 - Probe: EX3DV4 - SN3686; ConvF(9.04, 9.04, 9.04); Calibrated: 3/11/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI A v5.0; Type: QDOVA002AA; Serial: TP:xxxx Body/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 34.275 V/m; Power Drift = 0.01 dB Fast SAR: SAR(1 g) = 1.03 W/kg; SAR(10 g) = 0.695 W/kg Maximum value of SAR (interpolated) = 1.23 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.275 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 1.51 W/kg SAR(1 g) = 1.02 W/kg; SAR(10 g) = 0.671 W/kg Maximum value of SAR (measured) = 1.24 W/kg 0 dB = 1.24 W/kg = 0.93 dBW/kg Plot No. 4 Test Laboratory: UL CCS SAR Lab D Date: 6/6/2013 20130606_SystemPerformanceCheck-D835V2 SN 4d142 Frequency: 835 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 1.17 W/kg Plot No. 5 Test Laboratory: UL CCS Date: 6/27/2013 20130627_SystemPerformanceCheck-D1900V2 SN 5d163 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1900 MHz; σ = 1.519 S/m; ε r = 51.392; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1359; Calibrated: 2/8/2013 - Probe: EX3DV4 - SN3773; ConvF(6.93, 6.93, 6.93); Calibrated: 4/26/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v4.0; Type: QDOVA001BB; Serial: TP:xxxx Body/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 59.569 V/m; Power Drift = 0.01 dB Fast SAR: SAR(1 g) = 3.99 W/kg; SAR(10 g) = 2 W/kg Maximum value of SAR (interpolated) = 5.36 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 59.569 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 7.11 W/kg SAR(1 g) = 4 W/kg; SAR(10 g) = 2.11 W/kg Maximum value of SAR (measured) = 5.38 W/kg 0 dB = 5.38 W/kg = 7.31 dBW/kg Plot No. 6 Test Laboratory: UL CCS Date: 6/27/2013 20130627_SystemPerformanceCheck-D1900V2 SN 5d163 Frequency: 1900 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 5.25 W/kg Plot No. 7 Test Laboratory: UL CCS Date: 6/27/2013 20130627_SystemPerformanceCheck-D835V2 SN 4d002 Frequency: 835 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 835 MHz; σ = 1.015 S/m; ε r = 53.272; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1359; Calibrated: 2/8/2013 - Probe: EX3DV4 - SN3773; ConvF(8.78, 8.78, 8.78); Calibrated: 4/26/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:xxxx Body/Pin=100 mW 2/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 33.788 V/m; Power Drift = 0.05 dB Fast SAR: SAR(1 g) = 0.990 W/kg; SAR(10 g) = 0.664 W/kg Maximum value of SAR (interpolated) = 1.18 W/kg Body/Pin=100 mW 2/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 33.788 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 1.43 W/kg SAR(1 g) = 0.972 W/kg; SAR(10 g) = 0.644 W/kg Maximum value of SAR (measured) = 1.18 W/kg 0 dB = 1.18 W/kg = 0.72 dBW/kg Plot No. 8 Test Laboratory: UL CCS Date: 6/27/2013 20130627_SystemPerformanceCheck-D835V2 SN 4d002 Frequency: 835 MHz; Duty Cycle: 1:1 Body/Pin=100 mW 2/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 1.13 W/kg

Plot No. 1 Test Laboratory: UL CCS SAR Lab D Date: 6/8/2013 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.931 S/m; ε r = 41.918; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1360; Calibrated: 2/7/2013 - Probe: EX3DV4 - SN3686; ConvF(9.13, 9.13, 9.13); Calibrated: 3/11/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM v5.0 ; Type: QD000P40CD; Serial: TP:xxxx Flat/Flat_GSM Voice_ch 190/Area Scan (8x15x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.184 W/kg Flat/Flat_GSM Voice_ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.873 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.249 W/kg SAR(1 g) = 0.170 W/kg; SAR(10 g) = 0.114 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.204 W/kg 0 dB = 0.204 W/kg = -6.90 dBW/kg Plot No. 2 Test Laboratory: UL CCS SAR Lab D Date: 6/8/2013 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 1.016 S/m; ε r = 54.048; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1360; Calibrated: 2/7/2013 - Probe: EX3DV4 - SN3686; ConvF(9.04, 9.04, 9.04); Calibrated: 3/11/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI A v5.0; Type: QDOVA002AA; Serial: TP:xxxx Rear/ GSM Voice_ch 190/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.369 W/kg Rear/ GSM Voice_ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.646 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.466 W/kg SAR(1 g) = 0.332 W/kg; SAR(10 g) = 0.228 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.391 W/kg 0 dB = 0.391 W/kg = -4.08 dBW/kg Plot No. 3 Test Laboratory: UL Verification Services Inc. SAR Lab B Date: 6/9/2013 GSM1900 Frequency: 1880 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.428 S/m; ε r = 39.349; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE3 Sn427; Calibrated: 1/9/2013 - Probe: EX3DV4 - SN3751; ConvF(7.18, 7.18, 7.18); Calibrated: 11/15/2012; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1629 Flat/Touch_GSM Voice_ch 661/Area Scan (8x15x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.545 W/kg Flat/Touch_GSM Voice_ch 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.554 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.777 W/kg SAR(1 g) = 0.417 W/kg; SAR(10 g) = 0.225 W/kg Maximum value of SAR (measured) = 0.546 W/kg 0 dB = 0.546 W/kg = -2.63 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc. SAR Lab B Date: 6/9/2013 GSM1900 Frequency: 1880 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.517 S/m; ε r = 51.52; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE3 Sn427; Calibrated: 1/9/2013 - Probe: EX3DV4 - SN3751; ConvF(6.95, 6.95, 6.95); Calibrated: 11/15/2012; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1120 Rear/ GSM Voice_ch 661/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.504 W/kg Rear/ GSM Voice_ch 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.951 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.709 W/kg SAR(1 g) = 0.410 W/kg; SAR(10 g) = 0.230 W/kg Maximum value of SAR (measured) = 0.530 W/kg Rear/ GSM Voice_ch 661/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.951 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.645 W/kg SAR(1 g) = 0.365 W/kg; SAR(10 g) = 0.202 W/kg Maximum value of SAR (measured) = 0.498 W/kg 0 dB = 0.498 W/kg = -3.03 dBW/kg Plot No. 5 Test Laboratory: UL Verification Services Inc. SAR Lab 2 Date: 6/27/2013 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:1.99986; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.995 S/m; ε r = 53.129; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1359; Calibrated: 08.02.2013 - Probe: EX3DV4 - SN3773; ConvF(8.78, 8.78, 8.78); Calibrated: 26.04.2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0; Type: QDOVA002AA; Serial: TP:xxxx Rear/GPRS 4 slots_ch 190/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.818 W/kg Rear/GPRS 4 slots_ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 29.723 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.982 W/kg SAR(1 g) = 0.716 W/kg; SAR(10 g) = 0.502 W/kg Info: Interpolated medium parameters use…

Text truncated - open the document above for the full version.

FCC CFR47 PART 22 SUBPART H FCC CFR47 PART 24 SUBPART E CERTIFICATION TEST REPORT FOR GT-C3592,GT-C3590~BT3.0 + HS +GSM 850/1900MHz Feature phone MODEL NUMBER: GT-C3592/GT-C3590 FCC ID: A3LGTC3592 REPORT NUMBER: 13I15211-1, REVISION A ISSUE DATE: June 27, 2013 Prepared for SAMSUNG ELECTRONICS CO., LTD. 416, MAETAN 3-DONG, YEONGTONG-GU SUWON-CITY, GYEONGGI-DO 443-742, SOUTH KOREA Prepared by UL VERFICIATION SERVICES LLC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO:13I15211-1A DATE: June 27, 2013 EUT: GSM850/1900 Feature phone with BT3.0 FCC ID:A3LGTC3592 Page 2 of 36 UL CCS FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL.CCS. Revision History Rev. Issue Date Revisions Revised By --- 6/17/13 Initial Issue P. Kim A 6/27/13 Updated Power values P. Kim REPORT NO:13I15211-1A DATE: June 27, 2013 EUT: GSM850/1900 Feature phone with BT3.0 FCC ID:A3LGTC3592 Page 3 of 36 UL CCS FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL.CCS. TABLE OF CONTENTS 2. ATTESTATION OF TEST RESULTS ................................................................................. 4 3. TEST METHODOLOGY ..................................................................................................... 5 4. FACILITIES AND ACCREDITATION ................................................................................. 5 5. CALIBRATION AND UNCERTAINTY ................................................................................ 5 5.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 5 5.2. SAMPLE CALCULATION ............................................................................................ 5 5.3. MEASUREMENT UNCERTAINTY ............................................................................... 5 6. EQUIPMENT UNDER TEST ............................................................................................... 6 6.1. DESCRIPTION OF EUT .............................................................................................. 6 6.2. MAXIMUM OUTPUT POWER...................................................................................... 6 6.3. SOFTWARE AND FIRMWARE .................................................................................... 6 6.4. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 6 6.5. WORST-CASE CONFIGURATION AND MODE .......................................................... 7 6.6. DESCRIPTION OF TEST SETUP ................................................................................ 7 TEST AND MEASUREMENT EQUIPMENT .............................................................................. 9 7. RF POWER OUTPUT VERIFICATION ..............................................................................10 7.1. GPRS MODE ..............................................................................................................10 8. CONDUCTED TEST RESULTS ........................................................................................12 8.1. OCCUPIED BANDWIDTH ..........................................................................................12 GPRS MODE .......................................................................................................13 8.2. BAND EDGE ...............................................................................................................17 GPRS MODE .......................................................................................................18 8.3. OUT OF BAND EMISSIONS .......................................................................................20 GPRS MODE .......................................................................................................21 9. FREQUENCY STABILITY .................................................................................................25 10. RADIATED TEST RESULTS .............................................................................................27 10.1. RADIATED POWER (ERP & EIRP) .........................................................................27 10.2. FIELD STRENGTH OF SPURIOUS RADIATION ....................................................31 11. SETUP PHOTOS ...............................................................................................................34 REPORT NO:13I15211-1A DATE: June 27, 2013 EUT: GSM850/1900 Feature phone with BT3.0 FCC ID:A3LGTC3592 Page 4 of 36 UL CCS FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL.CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: SAMSUNG ELECTRONICS CO., LTD. 416, MAETAN 3-DONG, YEONGTONG-GU SUWON-CITY, GYEONGGI-DO 443-742, SOUTH KOREA EUT DESCRIPTION: GSM850/1900 Phone MODEL: GT-C3592 SERIAL NUMBER: 3598805006975301(Rad) / 35598805006978701 (Cond) DATE TESTED: June 1, 2013 – June 12, 2013 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 22H AND 24E PASS UL CCS tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL CCS based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be …

Text truncated - open the document above for the full version.

REPORT NO:13I15211-1A DATE: June 27, 2013 EUT: GSM850/1900 Feature phone with BT3.0 FCC ID:A3LGTC3592 Page 34 of 36 UL CCS FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL.CCS. 10. SETUP PHOTOS ANTENNA PORT CO…
