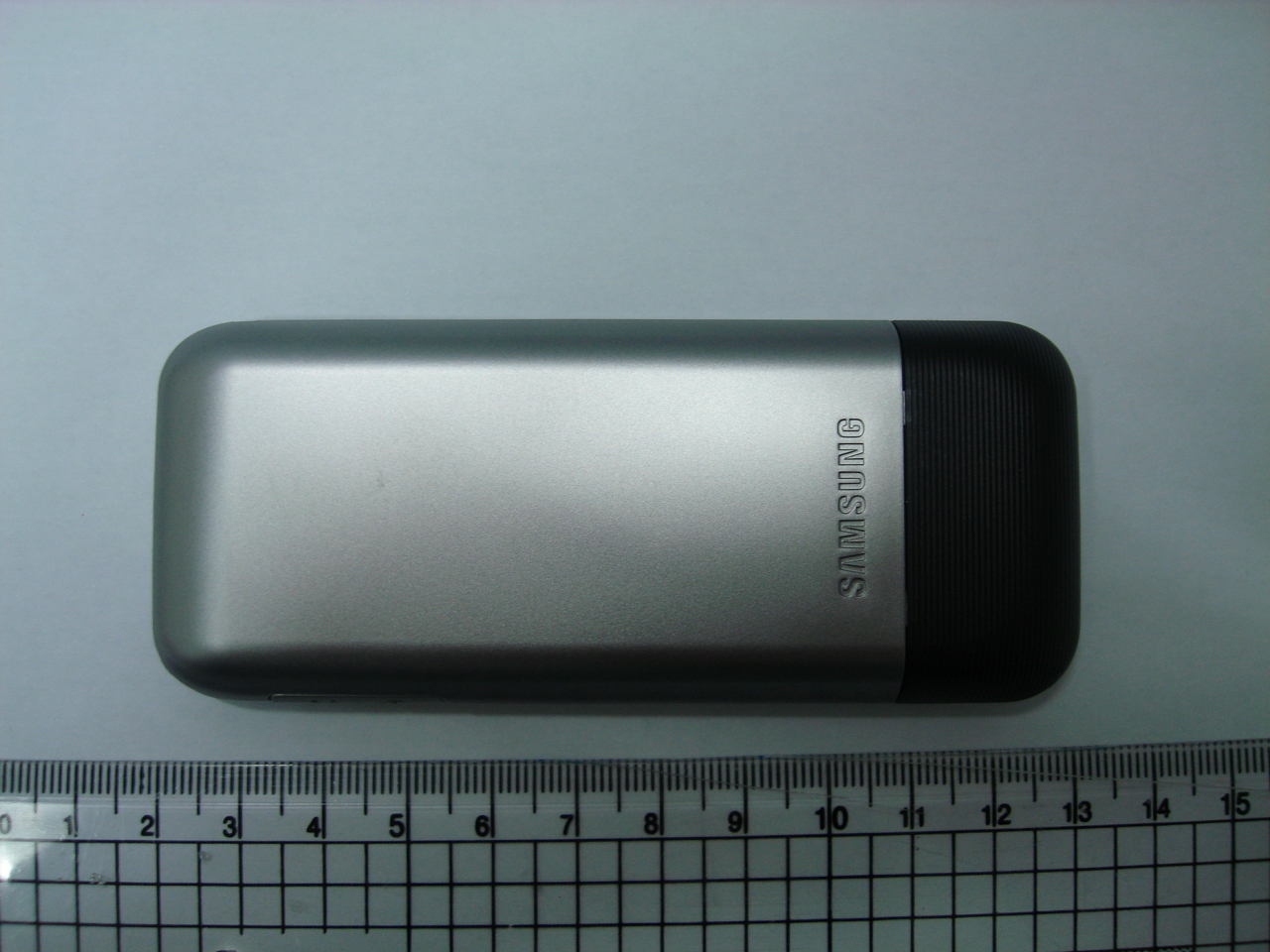

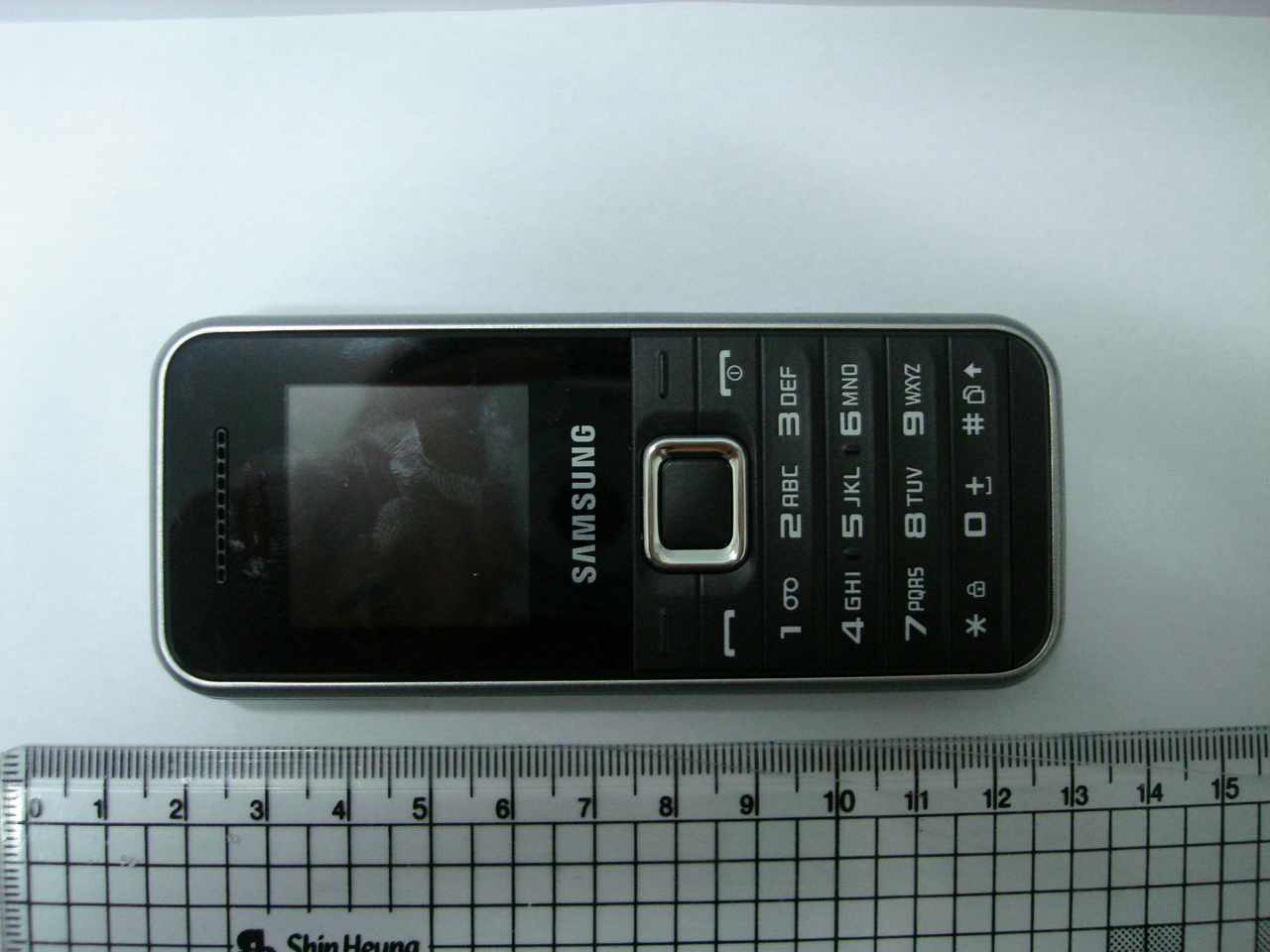

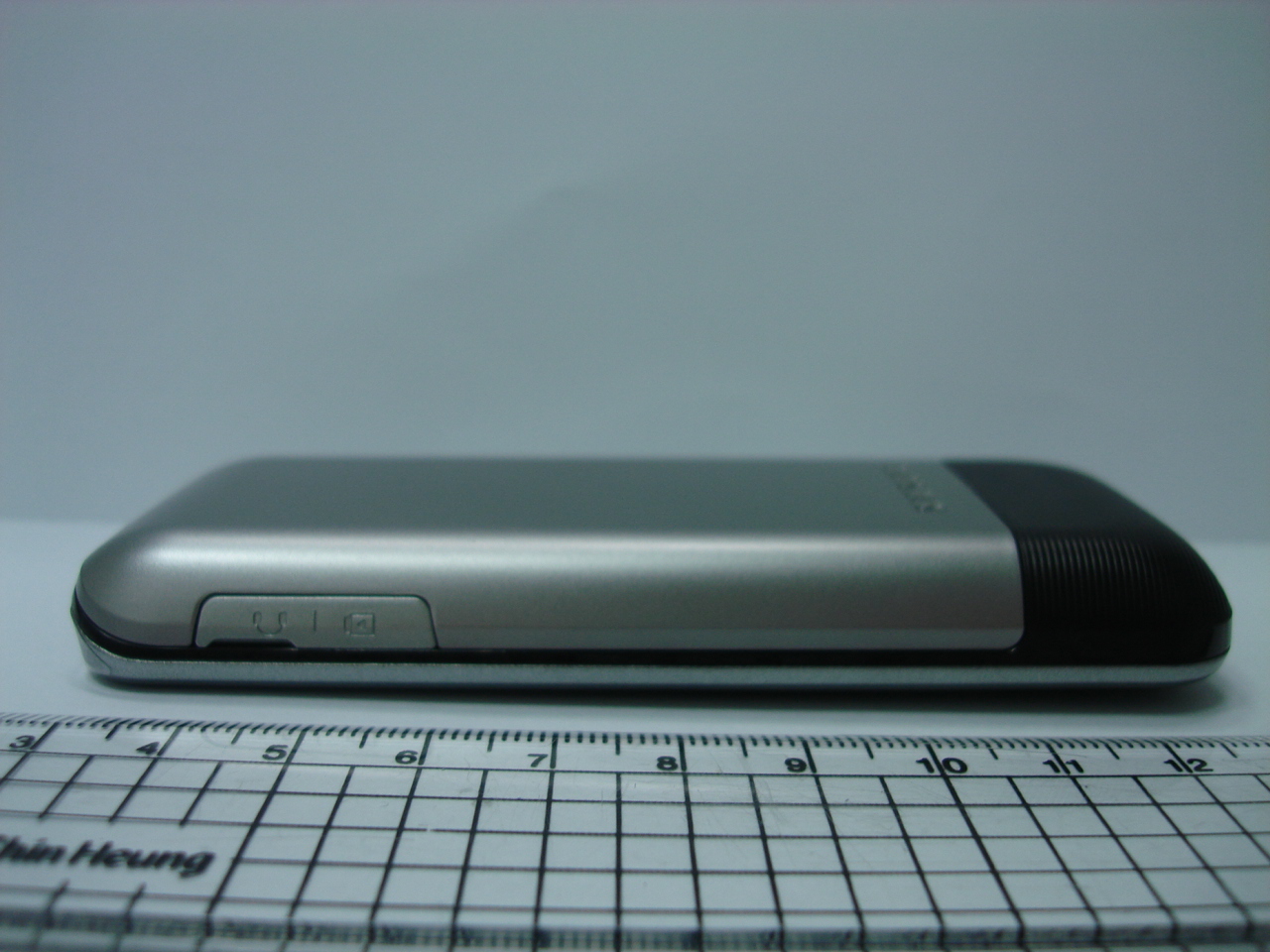

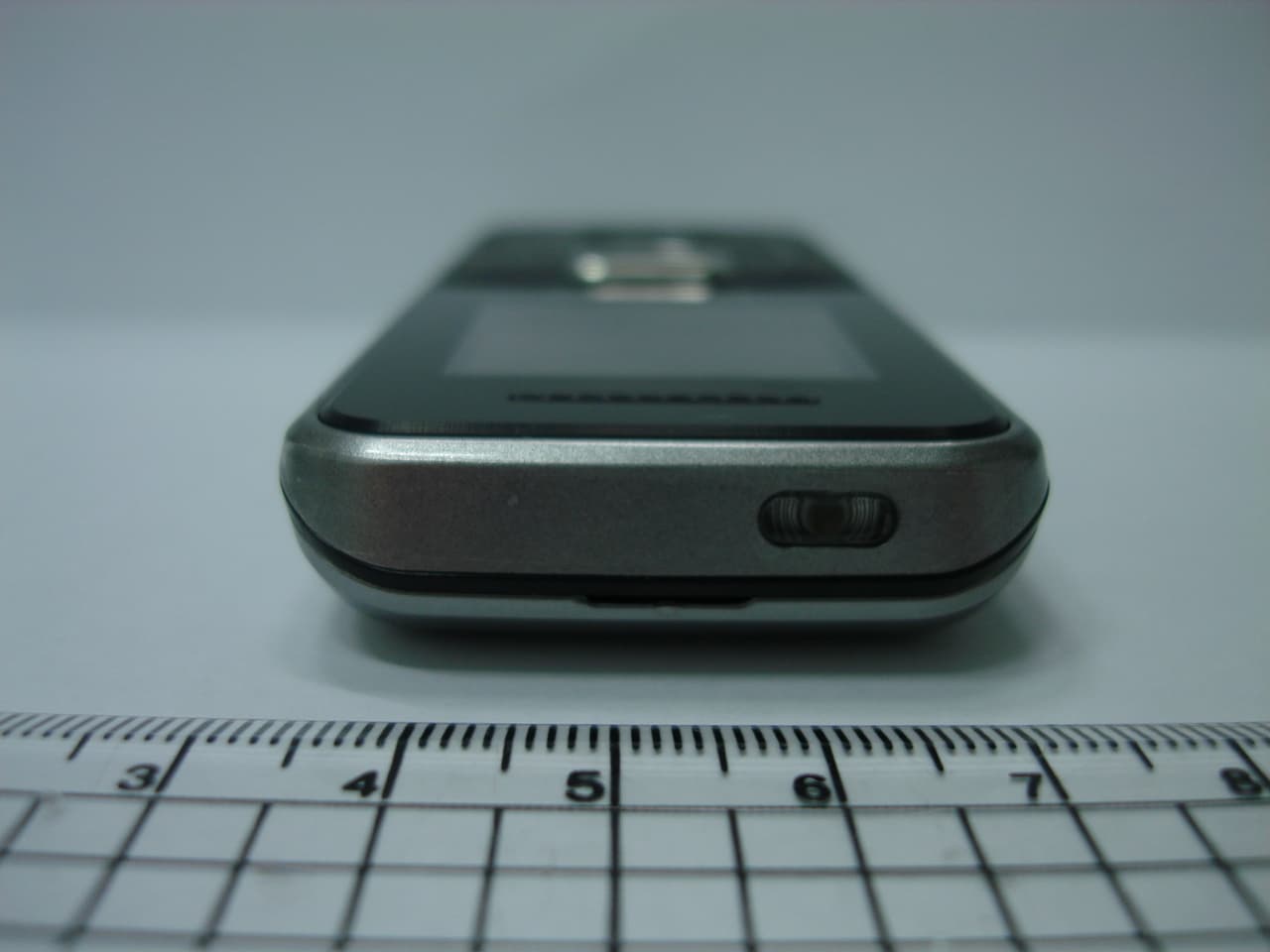

A3LGTE1182L850/1900 GSM Phone

User manual GT -E1182L -Draft Version- Using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “Introducing your mobile phone,” Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information  Refer to—pages with related information; for example:  p. 12 (represents “see page 12”)  Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages  Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting Safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or permanent battery dam…

Text truncated - open the document above for the full version.

Date: February 9, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of UL CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of UL CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 310-900-5250 FAX: 310-537-5500 E-mail: [email protected] REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Date: May 3, 20 11 Federal C ommunications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A3LGT E1182L To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. (Delete any of items which is not applicable to your device) Schematic Diagram Block Diagram Operation description Parts Li st Tune-Up Procedure Antenna Spec Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until (please enter the product announcement date here): 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 310-900-5250 FAX: 310-537-5500 E-mail: [email protected]

LABEL(R)-MAIN-LTN 5.0 GT-E1182L -E1182LGSMH A3LGTE1182L GT-E1182L 11-03-14 11-03-14 11-03-14

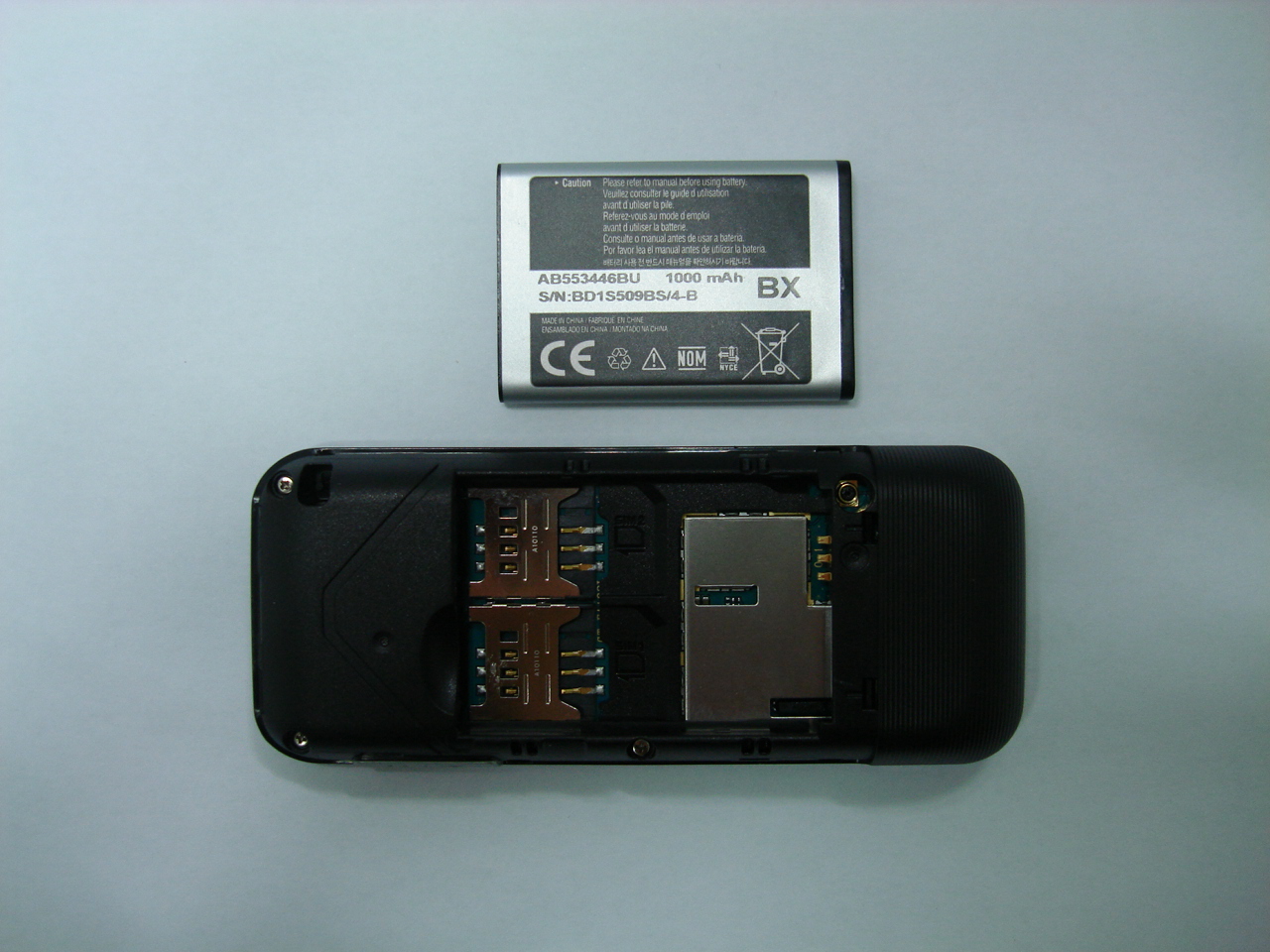

The label is placed inside the battery compartment 5.0 GT-E1182L -E1182LGSMH A3LGTE1182L

FCC ID: A3LGTE1182LReport Number: FI-099-S1 Page : 1 of 28 SAMSUNG Electronics C0. LTD EUT Type: 850/1900 GSM Phone Issue Date : Apr.26, 2011 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 TEST REPORT ON SAR Model Tested: GT-E1182L FCC ID (Requested): A3LGTE1182L Job No: FI-099 Report No: FI-099-S1 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By JO LEE - Test Engineer Authorized By JD JANG - Technical Manager FCC ID: A3LGTE1182LReport Number: FI-099-S1 Page : 2 of 28 SAMSUNG Electronics C0. LTD EUT Type: 850/1900 GSM Phone Issue Date : Apr.26, 2011 Contents 1. GENERAL INFORMATION .............................................................................. 3 2. DESCRIPTION OF DEVICE ............................................................................ 3 3. DESCRIPTION OF TEST EQUIPMENT .......................................................... 4 3.1 SAR Measurement Setup ............................................................................................................... 4 3.2 E-field Probe ................................................................................................................................... 5 3.3 Phantom .......................................................................................................................................... 7 3.4 Brain Simulating Mixture Characterization .................................................................................... 9 3.5 Device Holder for Transmitters ........................................................................................................ 9 3.6 Equipment Calibration ................................................................................................................... 10 4. SAR MEASUREMENT PROCEDURE ........................................................... 11 5. DESCRIPTION OF TEST POSITION ............................................................ 12 5.1 SAM Phantom Shape.................................................................................................................... 12 5.2 “cheek” Position ............................................................................................................................ 12 5.3 “tilted” Position .............................................................................................................................. 14 5.4 Body Holster/Belt Clip Configurations ........................................................................................... 15 6. MEASUREMENT UNCERTAINTY ................................................................. 17 7. SYSTEM VERIFICATION ............................................................................... 19 7.1 Tissue Verification ......................................................................................................................... 19 7.2 Test System Validation .................................................................................................................. 19 8. SAR MEASUREMENT RESULTS .................................................................. 20 8.1 GSM850 Head SAR Results ......................................................................................................... 22 8.2 GSM850 Body SAR Results(Without Holster) ............................................................................... 23 8.3 GSM1900 Head SAR Results ....................................................................................................... 24 8.4 GSM1900 Body SAR Results(Without Holster) ............................................................................. 25 9. CONCLUSION ............................................................................................... 26 10. REFERENCES ............................................................................................. 27 APPENDIX A SAR Definition ........................................................................... 29 APPENDIX B Probe Calibration Process ........................................................ 30 APPENDIX C ANSI/IEEE C95.1 – 1992 RF EXPOSURE LIMITS .................. 31 APPENDIX D The Validation Measurements..........................................32 APPENDIX E Plots of The SAR Measurements.......................................37 APPENDIX F Probe Calibration .......................................................................52 APPENDIX G Calibration of The Validation Dipole ......................................... 64 FCC ID: A3LGTE1182LReport Number: FI-099-S1 Page : 3 of 28 SAMSUNG Electronics C0. LTD EUT Type: 850/1900 GSM Phone Issue Date : Apr.26, 2011 1. GENERAL INFORMATION Test Dates : Apr.14, 2011 Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Address : 416 Maetan3-Dong, Suwon City, Korea Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Test Sample : 850/1900 GSM Phone Model Number : GT-E1182L Serial Number : Identical prototype (S/N : # FI-099-C) Tx Freq. Range : 824.2 ~ 848.8 MHz (GSM850) 1850.20 ~ 1909.80 MHz (GSM1900) Rx Freq. Range : 869.2 ~ 893.8 MHz (GSM850) 1930.20 ~ 1989.80 MHz (GSM1900) Antenna Manufacturer : PARTRON Model No.: AIGTE1182L GPRS Not Supported Antenna Dimensions : 40.54X16.56X6.32(mm) DTM Multislots N/A Dual SIM Support FCC ID: A3LGTE1182LReport Number: FI-099-S1 Page : 4 of 28 SAMSUNG Electronics C0. LTD EUT Type: 850/1900 GSM Phone Issue Date : Apr.26, 2011 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 (or DASY5) automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system …

Text truncated - open the document above for the full version.

APPENDIX F Probe Calibration APPENDIX G Calibration of The Validation Dipole

Report Number: F690501/RF-RTL004621 Page: 2 of 31 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee INDEX TABLE OF CONTENTS Page 1. General Information ---------------------------------------------------------------------------------------3 2. RF radiated output power & spurious radiated emission ----------------------------------------6 3. Conducted Output Power ------------------------------------------------------------------------------- 12 4. Occupied Bandwidth 99 % ------------------------------------------------------------------------------14 5. Spurious Emissions At Antenna Terminal----------------------------------------------------------- 20 6. Band Edge --------------------------------------------------------------------------------------------------25 7. Frequency Stability --------------------------------------------------------------------------------------- 29 Report Number: F690501/RF-RTL004621 Page: 3 of 31 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 1. General information 1.1. Testing laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 705, Dongchun-Dong Sooji-Gu, Yongin-Shi, Kyungki-Do, South Korea. - Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 www.kr.sgs.com/ee Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 1.2. Details of applicant Applicant :SAMSUNG ELECTRONICS CO., LTD. Address :416, Maetan3-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea Contact Person : Lee, Jun Whan Phone No. : +82 +10 3210 0560 1.3. Description of EUT Kind of Product 850/1900 GSM Phone Model Name GT-E1182L Serial Number N/A Power Supply DC 3.7 V (Li-Ion Battery) Rated Power GSM850 : 32 dBm GSM1900 : 29 dBm ERP & EIRP Power GSM850 : 32.66 dBm (ERP) GSM1900 : 29.14 dBm (EIRP) Frequency Range GSM850 : 824.2 ㎒ ~ 848.8 ㎒ GSM1900 : 1 850.2 ㎒ ~ 1 909.8 ㎒ Emission Designator 252KGXW (GSM850) 254KGXW (GSM1900) Report Number: F690501/RF-RTL004621 Page: 4 of 31 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 1.4. Test equipment list Equipment Manufacturer Model Cal Due. Signal Generator Agilent E4438C Mar. 31, 2012 Signal Generator Rohde & Schwarz SMR40 Jul. 18, 2011 Spectrum Analyzer Rohde & Schwarz FSV30 Mar. 31, 2012 Spectrum Analyzer Agilent E4440A Mar. 31, 2012 Mobile Test Unit Rohde & Schwarz CMU200 May. 25, 2011 Directional Coupler KRYTAR 152661 Jun. 01, 2011 High Pass Filter Wainwright WHK3.0/18G-10SS Sep. 29, 2011 Band Reject Filter Wainwright WRCG824/849-814/85 960/10SS Apr. 01, 2012 DC power Supply Agilent U8002A Jan. 05, 2012 Preamplifier H.P. 8447F Jul. 05, 2011 Preamplifier Rohde & Schwarz 8449B Mar. 31, 2012 Test Receiver Rohde & Schwarz ESU26 Feb. 21, 2012 Bilog Antenna SCHWARZBECK MESSELEKTRONIK 396 Jul. 22, 2011 Horn Antenna Rohde & Schwarz HF 906 Oct. 08, 2011 Horn Antenna SCHWARZBECK BBHA 9120D Nov. 09, 2011 Dipole Antenna SCHWARZBECK VHAP/UHAP Oct. 10, 2011 Dipole Antenna SCHWARZBECK VHAP/UHAP Apr. 08, 2012 Antenna Master EMCO 1050 N.C.R. Turn Table Daeil EMC DI-1500 N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N.C.R. Report Number: F690501/RF-RTL004621 Page: 5 of 31 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 1.5. Summary of test results The EUT has been tested according to the following specifications: APPLIED STANDARD : FCC Part 22, 24, 27 Section in FCC part Test Item Result §2.1046 §22.913(a) §24.232(b) RF Radiated Output Power Complied §2.1053 §22.917(a) §24.238(a) Spurious Radiated Emission Complied §2.1046(a) Conducted Output Power Complied §2.1049(h) (i) Occupied Bandwidth Complied §2.1051 §22.917(a) §24.238(a) Spurious Emission at Antenna Terminal Complied §2.1055 §22.355 §24.235 Frequency Stability Complied §22.917(a) §24.238(a) Band Edge Complied 1.6. Test report revision Revision Report number Description 0 F690501/RF-RTL004621 Initial Report Number: F690501/RF-RTL004621 Page: 6 of 31 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 2. RF radiated output power & spurious radiated emission 2.1. Test setup The diagram below shows the test setup that is utilized to make the measurements for emission from 30 ㎒ to 1 ㎓ Emissions. The diagram below shows the test setup that is utilized to make the measurements for emission from 1 ㎓ to 18 ㎓ Emissions. Report Number: F690501/RF-RTL004621 Page: 7 of 31 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permiss…

Text truncated - open the document above for the full version.

Test setup photos of EUT Photo of Field Strength & Spurious Emission Test

Test Setup Photographs © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTE1182L 850/1900 GSM Phone © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTE1182L 850/1900 GSM Phone © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTE1182L 850/1900 GSM Phone © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTE1182L 850/1900 GSM Phone © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTE1182L 850/1900 GSM Phone © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTE1182L 850/1900 GSM Phone © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTE1182L 850/1900 GSM Phone © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTE1182L 850/1900 GSM Phone © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTE1182L 850/1900 GSM Phone © 2011 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTE1182L 850/1900 GSM Phone
