A3LGTI8520Cellular/PCS GSM/EDGE PCS WCDMA Phone with WLAN and Bluetooth

           8VHUPDQXDO                   k™ˆ›   using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone,” “ 꿙ꌍ 뗭눥 낅ꚭ냹뗳냹 ꯍ 꽻걪鱽鲙,” and “꿙ꌍ 뗭눥 낅ꚭ냹 뗳냹ꯍ 꽻걪鱽鲙 .”  Instructional icons Before you start, familiarise yourself with the icons you will see in this manual:  Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information XRefer to—pages with related information; for example: X p. 12 (represents “see page 12”) ÕFollowed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ]Square brackets—phone keys; for example: [](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey)  Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  z Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide z Java™ is a trademark of Sun Microsystems, Inc.   z Windows Media Player ® is a registered trademark of Microsoft Corporation.  contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting    safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone.  Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Listening to a headset at high volumes can damage your hearing. Use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care z Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone. z Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones. z Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated. z Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance.   Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks.  Safety precautions  Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: June 11, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTI8520 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

From: DuckSu Kim Sent: Tuesday, June 15, 2010 1:56 AM To: PCTEST TCB/CB; 함재준 Cc: 장우태; 장왈운; 김성연; PCTEST - Gregory Czumak; PCTEST - Randy Ortanez; PCTEST - Channy Park; PCTEST - Mia Park; 전자메일 Subject: Re: Questions Regarding FCC ID: A3LGTI8520 Page 1 of 3Samsung Enterprise Portal mySingle 6/15/2010 Dear PCTEST TCB, Please find revised operation description, user manual and BT/WiFi document. Regarding the HSUPA reduction power, we got the comfirm from engineer as below. We'd appreciate it if you would issue FCC grants as soon as possible. Best Regards, Ducksu Kim. ------- Original Message ------- Sender : PCTEST TCB/CB<[email protected]> [email protected] Date : 2010-06-12 12:50 (GMT+09:00) Title : Questions Regarding FCC ID: A3LGTI8520 To: Mr. Geoffrey Ham / Samsung Electronics Co., Ltd. From: Mr. Gregory Czumak / PCTEST TCB RE: FCC ID: A3LGTI8520 Applicant: Samsung Electronics Co., Ltd. According to 3GPP 25.101 6.2.2, the maximum output power is allowed to be reduced. CM = 1 for βc/βd =12/15, βhs/βc=24/15. For all other combinations of DPDCH, DPCCH, HS-DPCCH, E-DPDCH and E-DPCCH the MPR is based difference. MPR is used to address linearity problems in HSUPA that has high peak-to-average ratios (P A saturate the DAC. Thus it experiences a reduced power output to the RF chip according to the Cubic Metr When E-DPDCH channels are present, the beta gains on those channels are reduced first to try to get th e allowed limit. If the beta gains are lowered as far as possible, then a limit is applied at the maximum allowe The software recalculates the cubic metric when the beta gains on the E-DPDCH are reduced. The cubic metric will get lower each time this is done. However, there is no reported reduction of maximum output p o mode since the device also increases the gain of the PA. Therefore the DUT output power is the same as there is no MPR in the device. Correspondence Reference Number: A3L00664 Confirmation Number: 1Y1006010664-67 Date of Original Email: June 11, 2010 Subject: Request for additional information In regards to your recent TCB application referenced above, we kindly request that you provide the following additional information. 1. On page 8/31 of the User’s Manual, the last sentence refers to the max measured SAR levels. Please either remove this sentence, or else add the measured max SAR levels. 2. Page 1 of the BT/WiFi document lists the max antenna gain as -4.77 dBi, but p.102 lists the max peak antenna gain as 0.44 dBi. Please revise the table on p.1. 3. The DTS and DSS block diagrams lack sufficient detail of the RF sections of these transmitters. Please submit a DSS and a DTS block diagram that provides more detail (please see the example block diagrams sent with the RT email for A3LSGHI897). 4. Page 1 of the Operational Description lists GPRS Class 11, but the SAR report contains 4-slot power data. Please reconcile. The item indicated above must be submitted before processing can continue on the above referenced application. Sincerely, Gregory Czumak Senior Certification Engineer Quality Manager PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 410-290-6652 410-290-6654 (Fax) [email protected] This communication and its attachments contain information from PCTEST Engineering Laboratory, Inc., and is intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notify the sender immediately if you receive this communication in error, and delete it from your computer system. Usage of PCTEST email addresses for non-business related activities is strictly prohibited. No warranty is made that the e-mail or attachment(s) are free from computer virus or other defect. Thank you. Page 2 of 3Samsung Enterprise Portal mySingle 6/15/2010 Page 3 of 3Samsung Enterprise Portal mySingle 6/15/2010

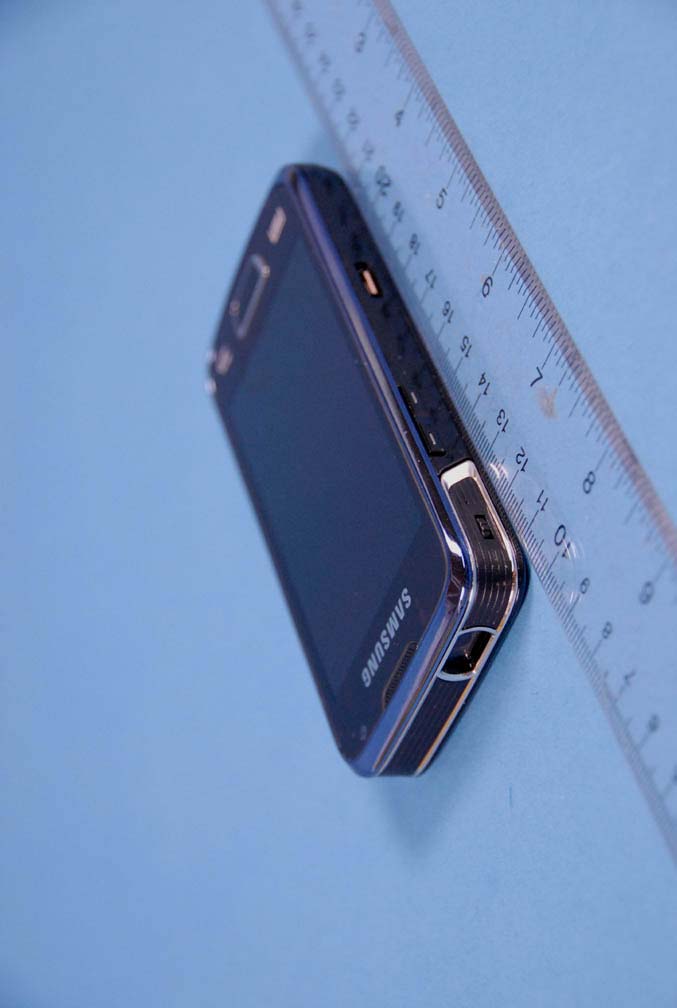

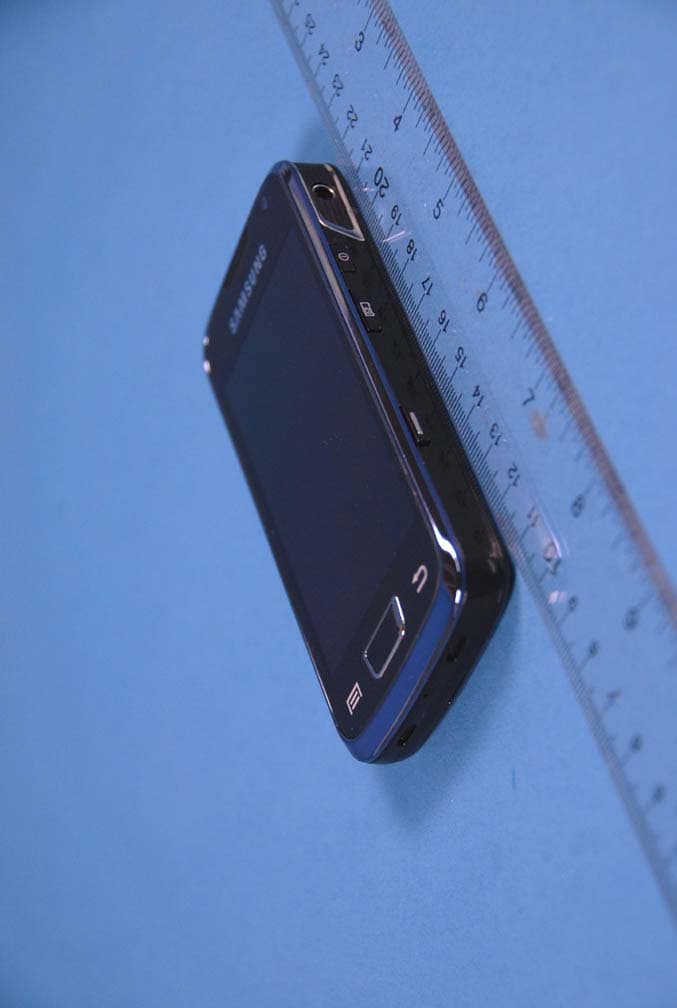

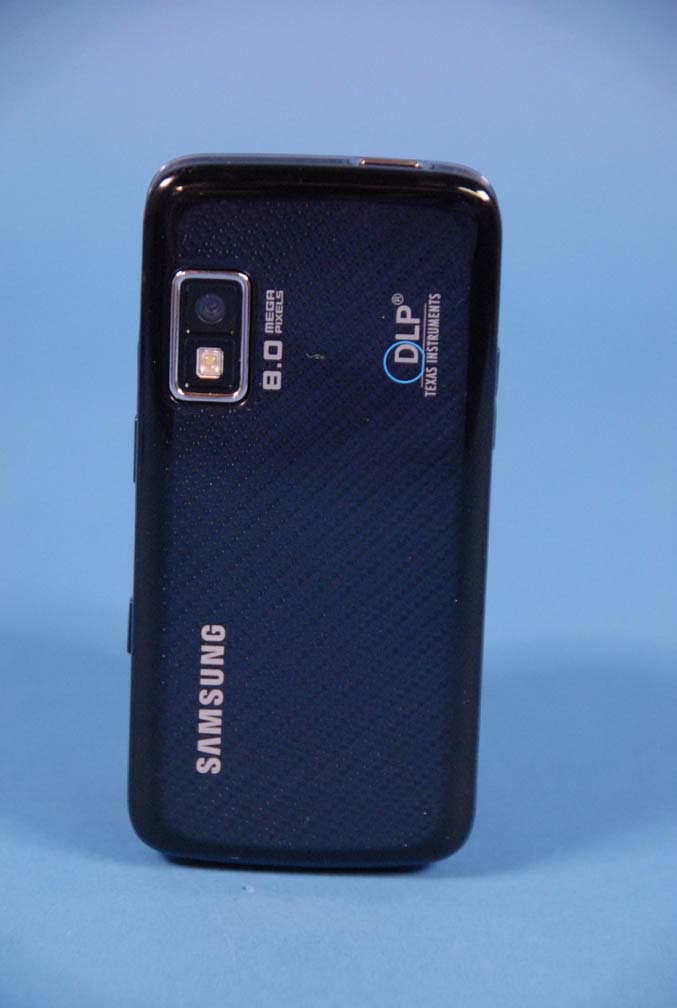

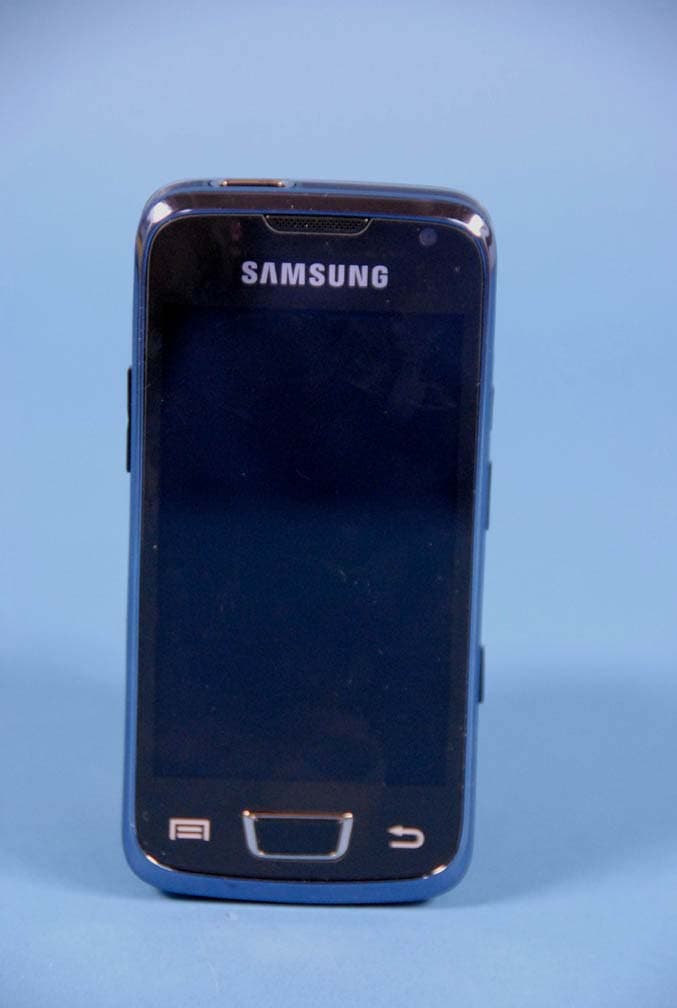

SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LGTI8520 Model: GT-I8520 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 1900 WCDMA/HSPA Phone with BT and WLAN Page 1 of 4 © 2010 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LGTI8520 Model: GT-I8520 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 1900 WCDMA/HSPA Phone with BT and WLAN Page 2 of 4 © 2010 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LGTI8520 Model: GT-I8520 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 1900 WCDMA/HSPA Phone with BT and WLAN Page 3 of 4 © 2010 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LGTI8520 Model: GT-I8520 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 1900 WCDMA/HSPA Phone with BT and WLAN Page 4 of 4 © 2010 PCTEST Engineering Laboratory Inc.

100218100218100218 LABEL-MAIN SKD GT-I8520 EU P.P+OPP T=0.08mm Hong Mun KiJo Kyeong HwanKim June Sop Technical Description 1. Use ‘FILM’ provided by ‘SAMSUNG’ for letter and contents 2. Background color is ‘WHITE’, letter color is ‘BLACK’ (reverse for SAMSUNG LOGO) 3. Back side should be attached to release paper once adhesive is applied. 4. No letter should be blur/smeared 5. The production must be proceed after the approval of R&D Group 6. The product must be within approved sample's specification tolerance. 7. The product must be finished in a ROLL 8. Release paper must be unifiedn for material and color(blue) < 1:1 Artwork > Vendor HANSUNG P&I MOBILE PHONE MODEL : GT-I8520 FCC ID : A3LGTI8520 SSN : -I8520GSMH RATED : 3.7 V ; 1000 mA MADE IN KOREA BY SAMSUNG IMEI: 0168 MOBILE PHONE MODEL : GT-I8520 FCC ID : A3LGTI8520 SSN : -I8520GSMH RATED : 3.7 V ; 1000 mA MADE IN KOREA BY SAMSUNG IMEI: 0168 MOBILE PHONE MODEL : GT-I8520 FCC ID : A3LGTI8520 SSN : -I8520GSMH RATED : 3.7 V ; 1000 mA MADE IN KOREA BY SAMSUNG IMEI : WX]_ The label is placed inside the battery compartment

SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LGTI8520 Model: GT-I8520 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 1900 WCDMA/HSPA Phone with BT and WLAN Page 1 of 12 © 2010 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LGTI8520 Model: GT-I8520 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 1900 WCDMA/HSPA Phone with BT and WLAN Page 2 of 12 © 2010 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LGTI8520 Model: GT-I8520 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 1900 WCDMA/HSPA Phone with BT and WLAN Page 3 of 12 © 2010 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LGTI8520 Model: GT-I8520 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 1900 WCDMA/HSPA Phone with BT and WLAN Page 4 of 12 © 2010 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LGTI8520 Model: GT-I8520 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 1900 WCDMA/HSPA Phone with BT and WLAN Page 5 of 12 © 2010 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LGTI8520 Model: GT-I8520 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 1900 WCDMA/HSPA Phone with BT and WLAN Page 6 of 12 © 2010 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LGTI8520 Model: GT-I8520 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 1900 WCDMA/HSPA Phone with BT and WLAN Page 7 of 12 © 2010 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LGTI8520 Model: GT-I8520 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 1900 WCDMA/HSPA Phone with BT and WLAN Page 8 of 12 © 2010 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LGTI8520 Model: GT-I8520 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 1900 WCDMA/HSPA Phone with BT and WLAN Page 9 of 12 © 2010 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LGTI8520 Model: GT-I8520 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 1900 WCDMA/HSPA Phone with BT and WLAN Page 10 of 12 © 2010 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LGTI8520 Model: GT-I8520 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 1900 WCDMA/HSPA Phone with BT and WLAN Page 11 of 12 © 2010 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LGTI8520 Model: GT-I8520 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 1900 WCDMA/HSPA Phone with BT and WLAN Page 12 of 12 © 2010 PCTEST Engineering Laboratory Inc.

FCC ID: A3LGTI8520 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 39 0Y1006010942.A3L 06/01/10 - 06/02/10 850/1900 GSM/GPRS/EDGE and WCDMA/HSPA 1900 Phone with Bluetooth and WLAN © 2010 PCTEST Engineering Laboratory, Inc. REV 8.2M 5/14/2010 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 06/01/10 - 06/02/10 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1006010942.A3L FCC ID: A3LGTI8520 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: 850/1900 GSM/GPRS/EDGE and WCDMA/HSPA 1900 Phone with Bluetooth and WLAN Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Digital Transmission System (DTS) Model(s): GT-I8520 Tx Frequency: 824.20 - 848.80 MHz (GSM 850) 1850.20 - 1909.80 MHz (GSM 1900) 1852.4 - 1907.6 MHz (UMTS II) 2412 - 2462 MHz (WLAN) Conducted Power: 32.72 dBm GSM 850 29.95 dBm GSM 1900 23.25 dBm UMTS II 16.40 dBm 2.4 GHz WLAN Max. SAR Measurement: 0.13 W/kg GSM 850 Head SAR 0.28 W/kg GSM 850 Body SAR 0.29 W/kg GSM 1900 Head SAR 0.24 W/kg GSM 1900 Body SAR 0.72 W/kg UMTS II Head SAR 0.50 W/kg UMTS II Body SAR 0.02 W/kg 2.4 GHz WLAN Head SAR 0.01 W/kg 2.4 GHz WLAN Body SAR Test Device Serial No.: Pre-Production [S/N: FH-107-A] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: A3LGTI8520 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 39 0Y1006010942.A3L 06/01/10 - 06/02/10 850/1900 GSM/GPRS/EDGE and WCDMA/HSPA 1900 Phone with Bluetooth and WLAN © 2010 PCTEST Engineering Laboratory, Inc. REV 8.2M 5/14/2010 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES ...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 RF EXPOSURE LIMITS ................................................................................................................ 16 11 MEASUREMENT UNCERTAINTIES ............................................................................................ 17 12 SYSTEM VERIFICATION .............................................................................................................. 18 13 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 20 14 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 21 15 SAR DATA SUMMARY ................................................................................................................. 26 16 EQUIPMENT LIST ......................................................................................................................... 32 17 CONCLUSION ............................................................................................................................... 33 18 REFERENCES .............................................................................................................................. 34 19 SAR TEST SETUP PHOTOGRAPHS ........................................................................................... 36 FCC ID: A3LGTI8520 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 3 of 39 0Y1006010942.A3L 06/01/10 - 06/02/10 850/1900 GSM/GPRS/EDGE and WCDMA/HSPA 1900 Phone with Bluetooth and WLAN © 2010 PCTEST Engineering Laboratory, Inc. REV 8.2M 5/14/2010 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are …

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LGTI8520 FCC Pt. 22/24 GSM/EDGE/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1006010943.A3L June 2 - 3, 2010 850/1900 GSM/GPRS/EDGE and 1900 WCDMA/HSPA Phone with BT and WLAN Page 1 of 47 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.2GWCFI 04/19/2010 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. June 2 - 3, 2010 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0Y1006010943.A3L FCC ID: A3LGTI8520 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) IC Specification(s): RSS-132 Issue 2; RSS-133 Issue 5 EUT Type: 850/1900 GSM/GPRS/EDGE and 1900 WCDMA/HSPA Phone with BT and WLAN Model(s): GT-I8520 Tx Frequency Range: 824.20 - 848.80MHz (Cell. GSM) / 1850.20 - 1909.80MHz (PCS GSM) 826.40 - 846.60MHz (Cell. WCDMA) / 1852.4 - 1907.6MHz (PCS WCDMA) Max. RF Output Power: 0.238 W ERP Cell. GSM (23.76 dBm) / 1.062 W EIRP PCS GSM (30.26 dBm) 0.11 W ERP EDGE850 (20.43 dBm) / 0.424 W EIRP EDGE1900 (26.27 dBm) 0.234 W EIRP PCS WCDMA (23.69 dBm) Emission Designator(s): 245KGXW (Cellular GSM), 245KGXW (PCS GSM), 238KG7W (EDGE850), 245KG7W (EDGE1900), 4M18F9W (PCS WCDMA) Test Device Serial No.: identical prototype [S/N: FH-107-C] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. This device also contains functions that are not operational in U.S. territories. This report is applicable only to U.S. operations. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 / IC RSS-132/RSS-133 Reviewed by: FCC ID: A3LGTI8520 FCC Pt. 22/24 GSM/EDGE/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1006010943.A3L June 2 - 3, 2010 850/1900 GSM/GPRS/EDGE and 1900 WCDMA/HSPA Phone with BT and WLAN Page 2 of 47 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.2GWCFI 04/19/2010 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT............................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.3 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................... 6 3.2 OCCUPIED BANDWIDTH ................................................................................................................... 6 3.3 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS................................................................................... 7 3.5 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 7 3.6 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.8 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 8 3.9 PEAK-AVERAGE RATIO ..................................................................................................................... 8 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 8 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 5.0 SAMPLE CALCULATIONS ............................................................................................................10 6.0 TEST RESULTS .............................................................................................................................11 6.1 SUMMARY......................................................................................................................................... 11 6…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LGTI8520 Model: GT-I8520 Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 1900 WCDMA/HSPA Phone with BT and WLAN Page 1 of 2 © 2010 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LGTI8520 Model: GT-I8520 Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 1900 WCDMA/HSPA Phone with BT and WLAN Page 2 of 2 © 2010 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: A3LGTI8520 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1006010942.A3L 06/01/10 - 06/02/10 850/1900 GSM/GPRS/EDGE and WCDMA/HSPA 1900 Phone with Bluetooth and WLAN Page 35 of 38 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.2M 5/14/2010 19 SAR TEST SETUP PHOTOGRAPHS Reviewed by: FCC ID: A3LGTI8520 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1006010942.A3L 06/01/10 - 06/02/10 850/1900 GSM/GPRS/EDGE and WCDMA/HSPA 1900 Phone with Bluetooth and WLAN Page 36 of 38 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.2M 5/14/2010 Figure 19-1 SAR Test Setup Photo 1 Figure 19-2 SAR Test Setup Photo 2 Reviewed by: FCC ID: A3LGTI8520 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1006010942.A3L 06/01/10 - 06/02/10 850/1900 GSM/GPRS/EDGE and WCDMA/HSPA 1900 Phone with Bluetooth and WLAN Page 37 of 38 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.2M 5/14/2010 Figure 19-3 SAR Test Setup Photo 3 Figure 19-4 SAR Test Setup Photo 4 Reviewed by: FCC ID: A3LGTI8520 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1006010942.A3L 06/01/10 - 06/02/10 850/1900 GSM/GPRS/EDGE and WCDMA/HSPA 1900 Phone with Bluetooth and WLAN Page 38 of 38 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.2M 5/14/2010 Figure 19…

Text truncated - open the document above for the full version.
