A3LGTI9000Cellular/PCS GSM/EDGE and PCS WCDMA Phone with WLAN and Bluetooth

Samsung Electronics Co Ltd
Cellular/PCS GSM/EDGE and PCS WCDMA Phone with WLAN and Bluetooth - FCC ID A3LGTI9000 - Samsung Electronics Co Ltd
Click to zoom

Application Details

Equipment Class
PCE - PCS Licensed Transmitter held to ear
Date of Grant
Apr 07, 2010
Application Purpose
Original Equipment
Date of Application
Apr 07, 2010
Equipment Note
Cellular/PCS GSM/EDGE and PCS WCDMA Phone with WLAN and Bluetooth
Frequency Range
1852.40000000 - 1907.60000000
Company
Samsung Electronics Co Ltd
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

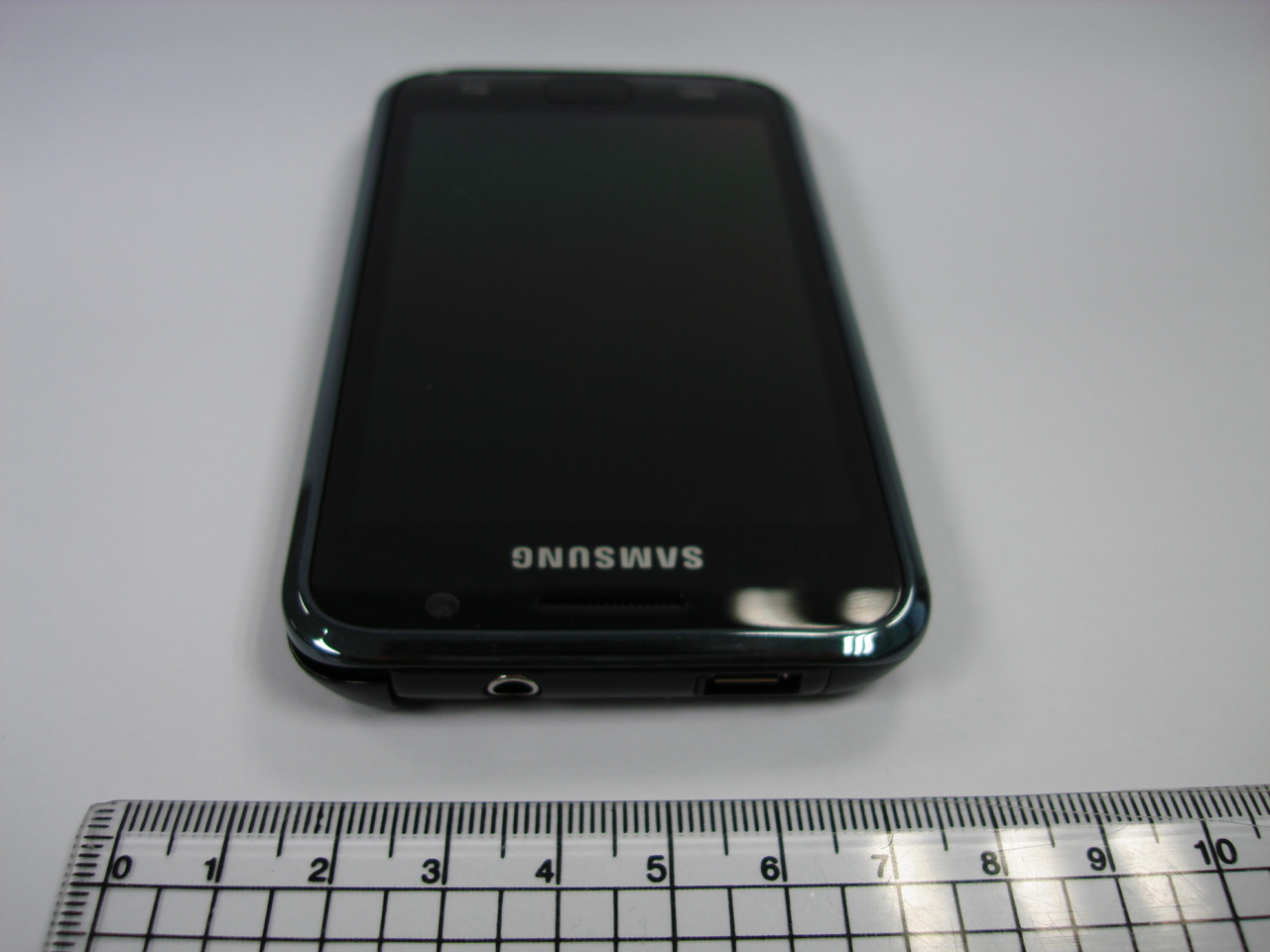

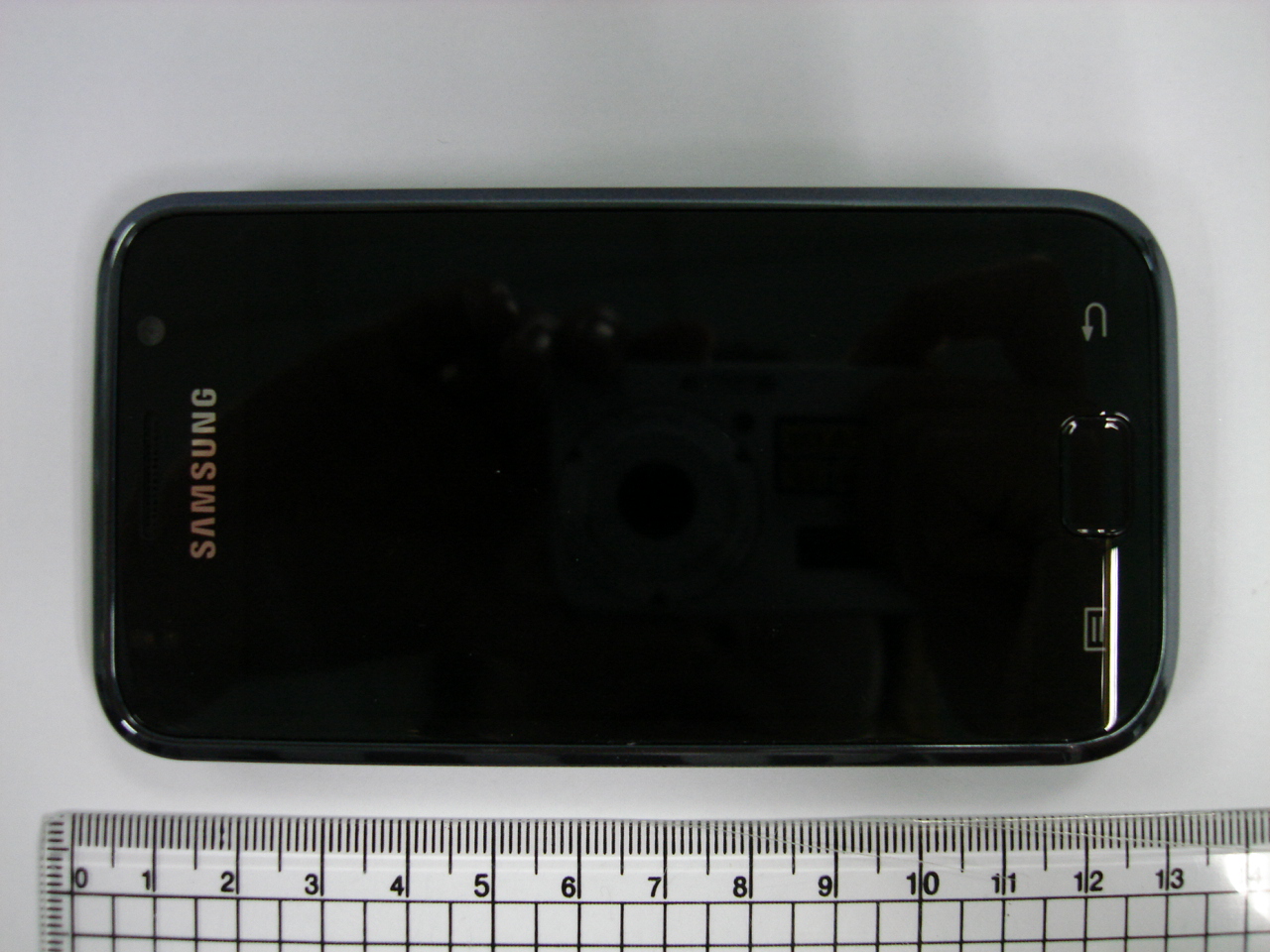

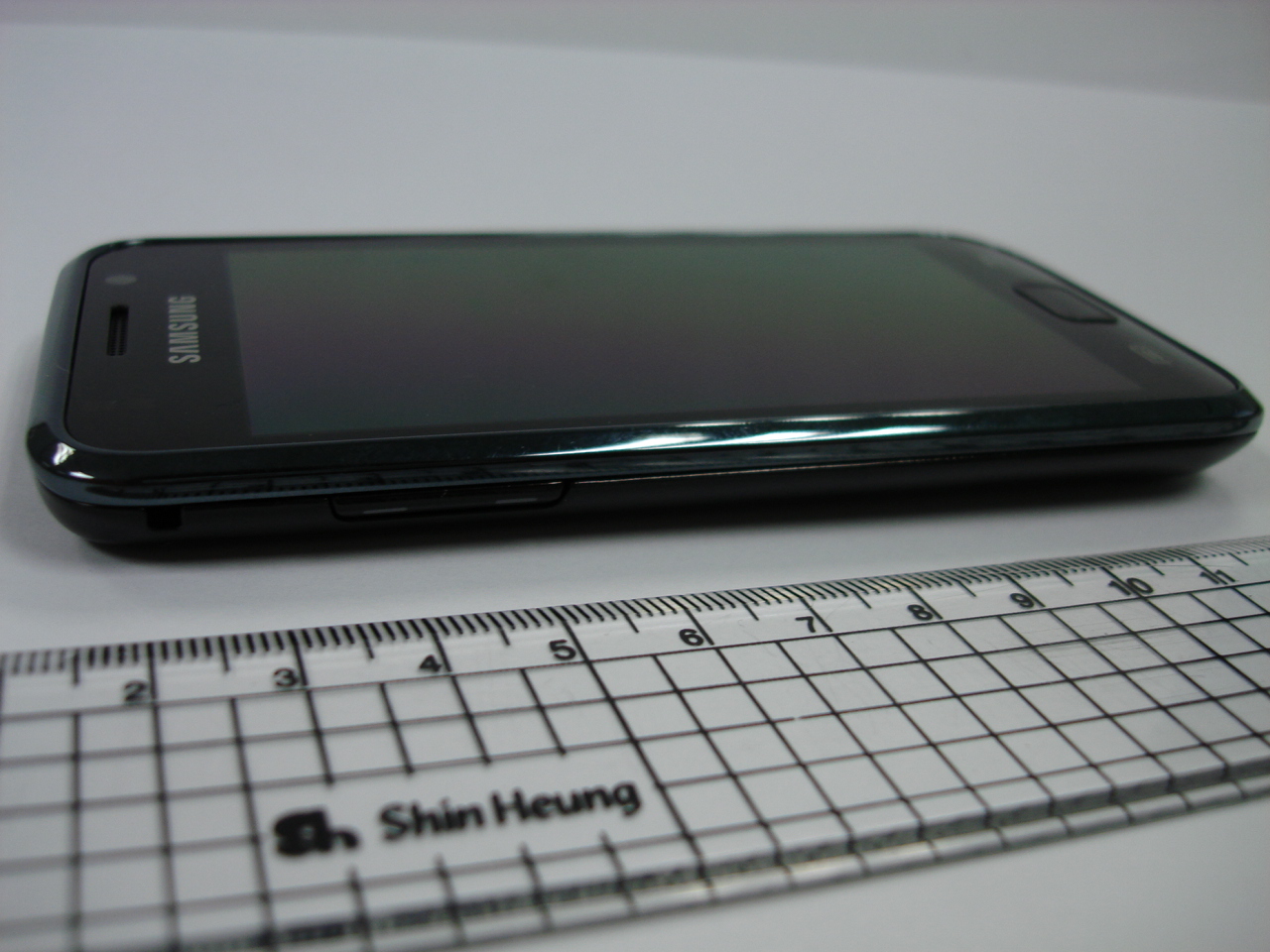

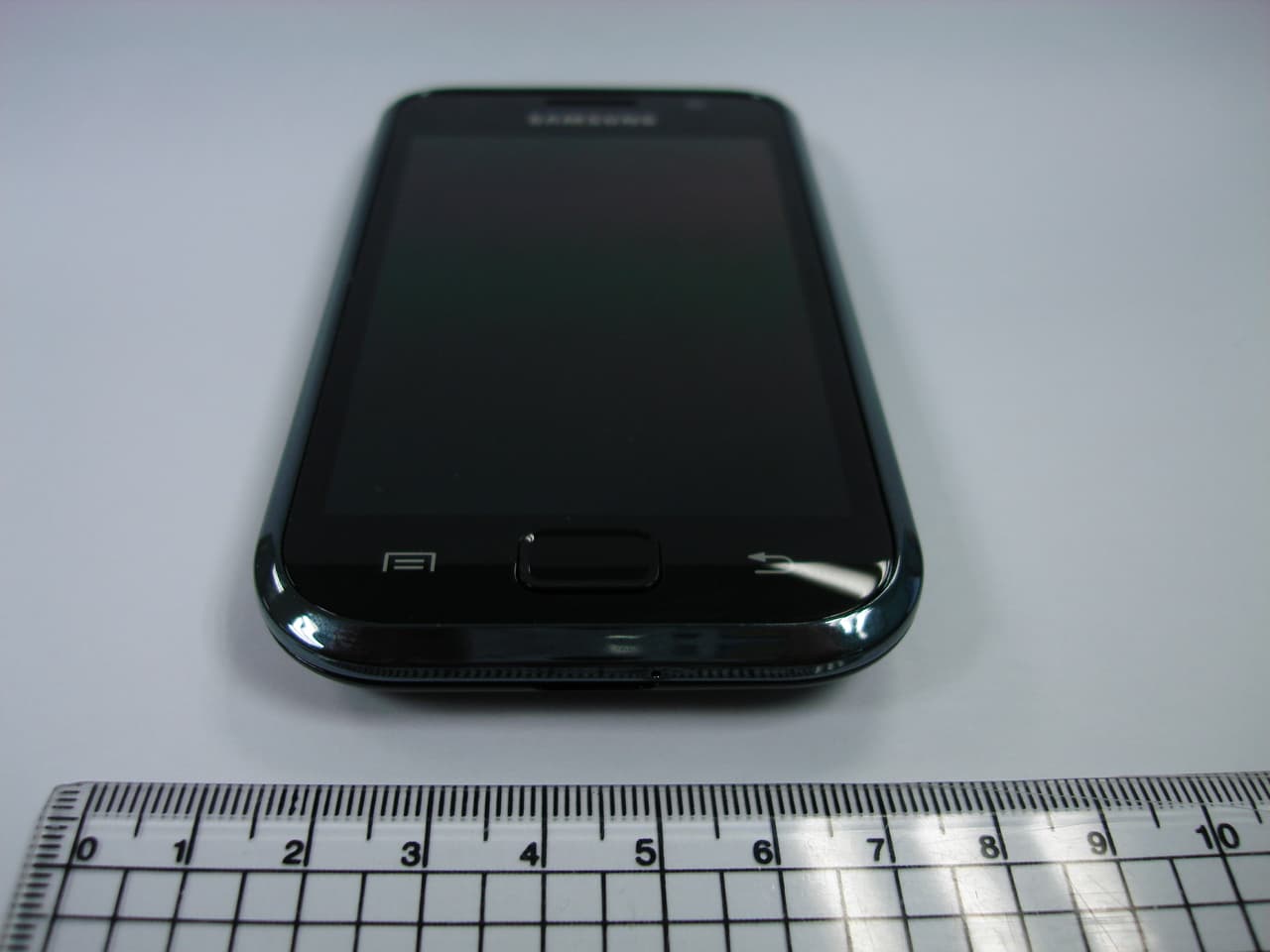

External Photos

↗

ID Label/Location Info

↗

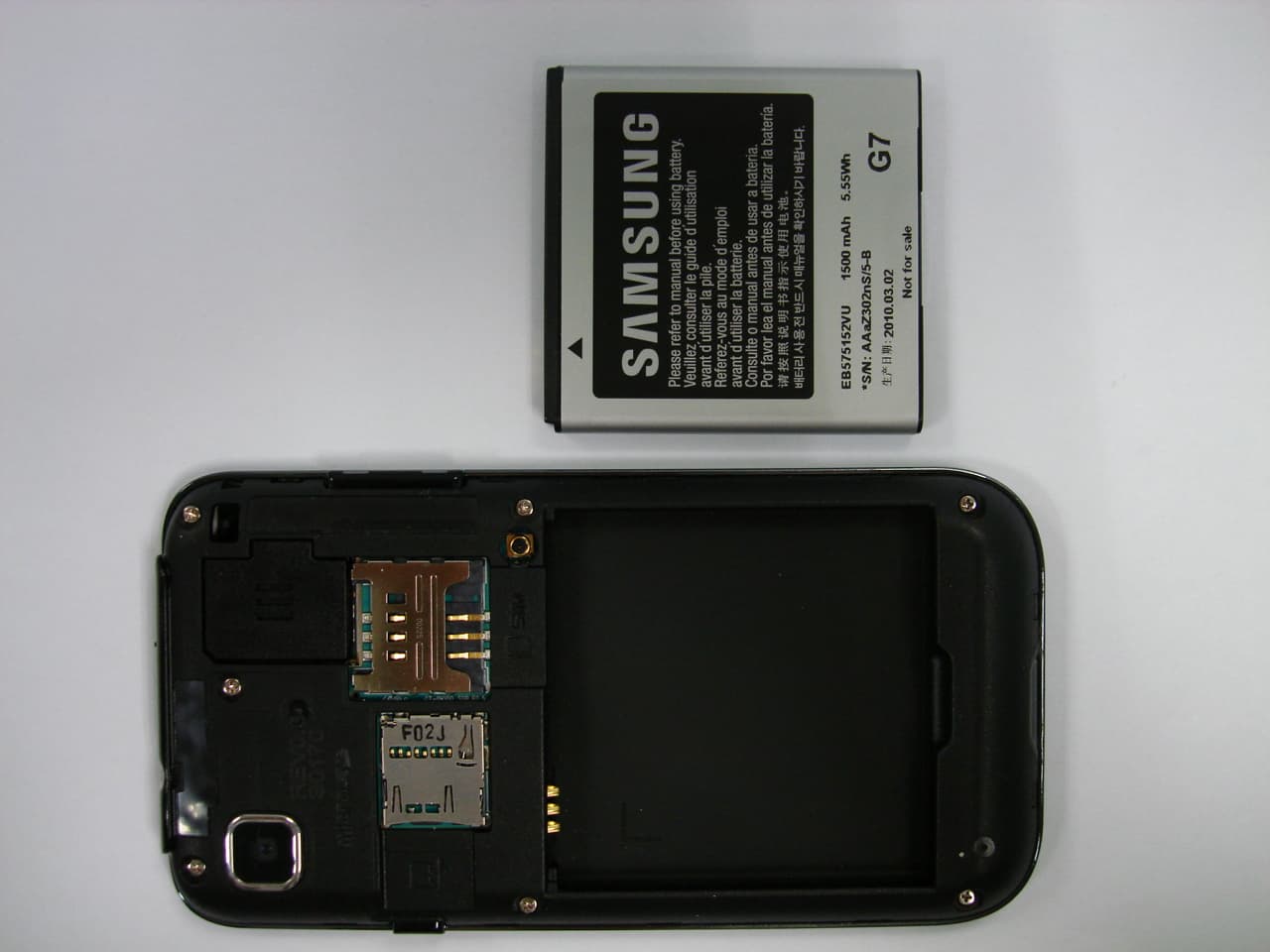

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User manual GT-I9000 Draft 3 2009-11-30 Only for Marketing using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone,” “ 오류! 참조 원본을 찾을 수 없습니다.,” and “오류! 참조 원본을 찾을 수 없습니다. .” Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information  Refer to—pages with related information; for example:  p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - …

Text truncated - open the document above for the full version.

Cover Letter(s)

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: April 7, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTI9000 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

ID Label/Location Info

윤준상 100201100201100201 조경환김준섭 GT-I9000 GH68-00000A WHITE MODEL: GT-I9000 SSN: -I9000GSMH RATED: 3.7 V ;1000 mA MOBILE PHONE FCC ID: A3LGTI9000 MADE IN KOREA BY SAMSUNG 5.0 39.0 MODEL: GT-I9000 SSN: -I9000GSMH RATED: 3.7 V ;1000 mA MOBILE PHONE FCC ID: A3LGTI9000 MADE IN KOREA BY SAMSUNG

RF Exposure Info

of 48 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 +82-31-301-4761 TEST REPORT ON SAR Model Tested: GT-I9000 FCC ID (Requested): A3LGTI9000 Job No: FH-054 Report No: FH-054-S1 Date issued: Apr.08, 2010 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By JR LEE - Test Engineer Authorized By JD JANG - Technical Manager Report Number: FH-054-S1 2 of 48 Contents 1. GENERAL INFORMATION............................................................................................................. 4 2. DESCRIPTION OF DEVICE ........................................................................................................... 4 3. DESCRIPTION OF TEST EQUIPMENT ......................................................................................... 5 3.1 SAR Measurement Setup ......................................................................................................5 3.2 E-field Probe .......................................................................................................................... 6 3.3 Phantom ............................................................................................................................... 10 3.4 Brain & Muscle Simulating Mixture Characterization ............................................................11 3.5 Device Holder for Transmitters ............................................................................................ 12 3.6 Validation Dipole .................................................................................................................. 12 3.7 Equipment Calibration.......................................................................................................... 13 4. SAR MEASUREMENT PROCEDURE ......................................................................................... 14 5. DESCRIPTION OF TEST POSITION ........................................................................................... 15 5.1 SAM Phantom Shape...........................................................................................................15 5.2 Cheek/Touch Position .......................................................................................................... 15 5.3 EAR/Tilt 15° Position ............................................................................................................ 17 5.4 Body Holster/Belt Clip Configurations.................................................................................. 18 6. MEASUREMENT UNCERTAINTY................................................................................................ 20 7. SYSTEM VERIFICATION ............................................................................................................. 23 7.1 Tissue Verification ................................................................................................................ 23 7.2 Test System Validation ......................................................................................................... 23 8. SAR MEASUREMENT RESULTS ................................................................................................ 24 8.1 Measurement Results(GSM850 Right Head SAR - Touch) ................................................. 26 8.2 Measurement Results(GSM850 Right Head SAR - Tilt) ...................................................... 27 8.3 Measurement Results(GSM850 Left Head SAR - Touch).................................................... 28 8.4 Measurement Results(GSM850 Left Head SAR - Tilt)......................................................... 29 8.5 Measurement Results(GSM850 Body SAR without Holster) ............................................... 30 8.6 Measurement Results(GSM1900 Right Head SAR - Touch) ............................................... 31 8.7 Measurement Results(GSM1900 Right Head SAR - Tilt) .................................................... 32 8.8 Measurement Results(GSM1900 Left Head SAR - Touch).................................................. 33 8.9 Measurement Results(GSM1900 Left Head SAR - Tilt)....................................................... 34 8.10 Measurement Results(GSM1900 Body SAR without Holster)........................................... 35 8.11 Measurement Results(WCDMA1900 Right Head SAR - Touch) ....................................... 36 8.12 Measurement Results(WCDMA1900 Right Head SAR - Tilt) ............................................ 37 8.13 Measurement Results(WCDMA1900 Left Head SAR - Touch).......................................... 38 8.14 Measurement Results(WCDMA1900 Left Head SAR - Tilt)............................................... 39 8.15 Measurement Results(WCDMA1900 Body SAR without Holster) ..................................... 40 8.16 Measurement Results(WLAN Right Head SAR - Touch) ................................................... 41 8.17 Measurement Results(WLAN Right Head SAR - Tilt) ........................................................ 42 Report Number: FH-054-S1 3 of 48 8.18 Measurement Results(WLAN Left Head SAR - Touch) ..................................................... 43 8.19 Measurement Results(WLAN Left Head SAR - Tilt) .......................................................... 44 8.20 Measurement Results(WLAN Body SAR without Holster)................................................. 45 9. CONCLUSION .............................................................................................................................. 46 10. REFERENCES ............................................................................................................................ 47 Report Number: FH-054-S1 4 of 48 1. GENERAL INFORMATION Te s t S a m p l e : Dual-Band GSM/ EDGE and WCDMA Phone with Bluetooth and WLAN Model Number : GT-I9000 Serial Number : Identical pro…

Text truncated - open the document above for the full version.

Test Report

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 22 & 24 SUBPART CERTIFICATION REPORT Model Tested : GT-I9000 FCC ID(Requested) : A3LGTI9000 Report No : FH-054-R1 Job No : FH-054 Date issued : April 3, 2010 - Abstract - All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part22, Part24. Prepared By KJ KWON – Test Engineer Authorized By WT JANG – Technical Manager Report Number : FH-054-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC CERTIFICATION INFORMATION.............................................................................3 1.1. §2.1033 General Information..................................................................................3 2. INTRODUCTION....................................................................................................................4 2.1. General.......................................................................................................................4 3. MEASURING INSTRUMENT CALIBRATION..................................................................5 4. TEST EQUIPMENT LIST......................................................................................................6 5. DESCRIPTION OF TESTS..................................................................................................7 5.1. Effective Radiated Power / Equivalent Isotropic Radiated Power....................7 5.2. Radiated Spurious & Harmonic Emission.............................................................8 5.3. Peak-Average Ratio.................................................................................................9 5.4. Occupied Bandwidth..............................................................................................10 5.5. Spurious and Harmonic Emission at Antenna Terminal....................................10 5.5.1. Occupied Bandwidth Emission Limits....................................................10 5.5.2. Conducted Spurious Emission................................................................12 5.6. Frequency Stability / Temperature Variation.......................................................13 6. TEST DATA...........................................................................................................................14 6.1. Conducted Output Power......................................................................................14 6.2. Effective Radiated Power (E.R.P.).......................................................................15 6.3. Equivalent Isotropic Radiated Power (E.I.R.P.)..................................................16 6.4. GSM850 Radiated Spurious & Harmonic measurement..................................17 6.5. GSM1900 Radiated Spurious & Harmonic measurement................................18 6.6. GSM850 Radiated Spurious & Harmonic Conversion Table...........................19 6.7. GSM1900 Radiated Spurious & Harmonic Conversion Table.........................20 6.8. Frequency Stability.................................................................................................21 6.8.1. GSM850 Frequency Stability Table........................................................21 6.8.2. GSM850 Frequency Stability Graph.......................................................22 6.8.3. GSM1900 Frequency Stability Table......................................................24 6.8.4. GSM1900 Frequency Stability Graph.....................................................25 7. CONCLUSION......................................................................................................................27 8. TEST PLOTS........................................................................................................................28 Report Number : FH-054-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1. §2.1033 General Information • Applicant Name : SAMSUNG ELECTRONICS CO., LTD. • Address : 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 • FCC ID : A3LGTI9000 • Model : GT-I9000 • Quantity : Quantity production is planned • Emission Designators : 247KGXW(GSM850), 255KG7W(GSM850 EDGE) 245KGXW(GSM1900), 249KG7W(GSM1900 EDGE) • Tx Freq. Range : 824.2 - 848.8MHz (GSM850) 1850.2MHz - 1909.8MHz (GSM1900) • Rx Freq. Range : 869.2 - 893.8 MHz (GSM850) 1930.2MHz - 1989.8MHz (GSM1900) • Max. Power Rating : 0.307 W ERP GSM850 (24.87 dBm) 0.944 W EIRP GSM1900 (29.75 dBm) 0.108 W ERP GSM850 EDGE(20.34 dBm) 0.604 W EIRP GSM1900 EDGE(27.81 dBm) • FCC Classification(s) : PCS Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type : 850/1900 GSM/EDGE/GPRS and 1900 WCDMA Phone with Bluetooth, WLAN and HSPA • Frequency Tolerance : ±0.00025% (2.5ppm) • FCC Rule Part(s) : §24(E), §22(H), §2. • Dates of Test : April 1-2, 2010 • Place of Test : SAMSUNG Lab, • Test Report S/N : FH-054-R1 Report Number : FH-054-R1 2. INTRODUCTION 2.1. General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a Non-conducted turntable 3- meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still …

Text truncated - open the document above for the full version.

Test Report

Report Number : FH-054-R2 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 24 SUBPART CERTIFICATION REPORT Model Tested: GT-I9000 FCC ID (Requested): A3LGTI9000 Report No: FH-054-R2 Job No: FH-054 Date issued: April 7 , 2010 - Abstract – All measurement reported here in accordance with FCC Rules, 47CFR Part2, Part24 Prepared By KJ KWON – Test Engineer Authorized By WT JANG – Technical Manager © Copyright SAMSUNG Electronics 2010 Report Number : FH-054-R2 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information.................................................................................................3 2. INTRODUCTION..........................................................................................................................4 3. MEASURING INSTRUMENT CALIBRATION.........................................................................5 4. TEST EQUIPMENT LIST............................................................................................................6 5. FCC 3G MEASUREMENT PROCEDURES.............................................................................7 5.4.1 Occupied Bandwidth Emission Limits...................................................................11 5.4.2 Conducted Spurious Emission...............................................................................13 6. TEST DATA.................................................................................................................................15 6.5.1 PCS WCDMA Frequency Stability Table..............................................................19 6.5.2 PCS WCDMA Frequency Stability Graph.............................................................20 7. SAMPLE CALCULATION.........................................................................................................22 8. CONCLUSION............................................................................................................................23 9. TEST PLOT.................................................................................................................................24 Report Number : FH-054-R2 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1 §2.1033 General Information • Applicant Name: SAMSUNG ELECTRONICS CO., LTD. • Address: 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 • FCC ID: • Model: A3LGTI9000 GT-I9000 • Quantity: Quantity production is planned • Emission Designators: 4M16F9W(PCS WCDMA) • Tx Freq. Range: 1852.4 - 1907.6 MHz (PCS WCDMA) • Rx Freq. Range: 1932.4 - 1987.6 MHz (PCS WCDMA) • Max. Power Rating: 0.151 W PCS WCDMA(21.78dBm) • FCC Classification(s): PCS Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: 850/1900 GSM/EDGE/GPRS and 1900 WCDMA Phone with Bluetooth, WLAN and HSPA • Modulation(s): WCDMA • Frequency Tolerance: ±0.00025% (2.5ppm) • FCC Rule Part(s): §24(E), §2. • Dates of Test: April 1-2, 2010 • Place of Test: SAMSUNG Lab, • Test Report S/N: FH-054-R2 Report Number : FH-054-R2 2. INTRODUCTION 2.1 General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on the rotating device at the same height and at a distance of 3-meters from the receive antenna. The rotating device which can rotate horizontal axis was mounted on the turn unit to facilitate rotation around a vertical axis. The measurement was made for each horizontal/vertical position combination with receive antenna horizontally polarized. This measurement was repeated with receive antenna vertically polarized. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Figure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FH-054-R2 3. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. - End of page - Report Number : FH-054-R2 4. TEST EQUIPMENT LIST Name Of Equipment Model Serial No. Due Date Spectrum Analyzer ESI26 836119/010 2010-10-20 E4440A(3Hz~26.5GHz) MY46187454 2011-03-08 E4440A(3Hz~26.5GHz) MY41000236 2010-04-14 Network Analyzer 8753E JP38160590 2010-06-19 Pre-Amplifier 8449B 3008A00691 2010-12-15 Communication test set 8960 MY47510060 2011-03-08 8960 GB42230535 2010-12-18 Controller CO2000 CO2000/424 Not Required Turn Unit CT0800 CT0800/057 Not Required Rotating Device DE3600-RH-PR DE3600-RH- PR/050 Not Required Antenna Master MA4000 MA4000/204 Not Required Horn Antenna HF906 360306/011 2010-06-13 Dipole Antenna UHA 9105 9105-2412 2011-10-06 UHA 9105 9105-2413 2010-06-13 Power Supply E3640A MY40003594 2010-06-19 E3640A MY40003595 2010-06-19 E3632A MY40022438 2011-03-05 Divider 11636B 51946 2011-06-25 11636B 51942 2011-07-09 11636B 56918 2011-08-31 High Pass Filter WHK/3.0/18G-10SS 492 Not Required W…

Text truncated - open the document above for the full version.

Test Setup Photos

SAMSUNG FCC ID: A3LGTI9000 850/1900 GSM/EDGE/GPRS and 1900 WCDMA Phone with Bluetooth and WLAN

Test Setup Photos

© 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTI9000 Dual-Band GSM/ EDGE and WCDMA Phone with Bluetooth and WLAN © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTI9000 Dual-Band GSM/ EDGE and WCDMA Phone with Bluetooth and WLAN © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTI9000 Dual-Band GSM/ EDGE and WCDMA Phone with Bluetooth and WLAN © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTI9000 Dual-Band GSM/ EDGE and WCDMA Phone with Bluetooth and WLAN © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTI9000 Dual-Band GSM/ EDGE and WCDMA Phone with Bluetooth and WLAN © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTI9000 Dual-Band GSM/ EDGE and WCDMA Phone with Bluetooth and WLAN © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTI9000 Dual-Band GSM/ EDGE and WCDMA Phone with Bluetooth and WLAN © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTI9000 Dual-Band GSM/ EDGE and WCDMA Phone with Bluetooth and WLAN

Contact Information

Applicant

Jenni Chun(General Manager)
[email protected]973-808-6375Fax: 973-808-6361

Technical Contact

PCTEST Engineering Lab., Inc.Randy Ortanez
[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Test Firm

Samsung Electronics Co., Ltd. Global CS CenterPark No cheon
[email protected]82-31-277-7750Fax: 82-31-277-7753

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
524E1.85 GHz - 1.91 GHz151.00 mW4M16F9W2.5 ppm
Confidentiality
Long Term
Grant Notes
Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operation is based on a separation distance of 1.5 cm between the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters not listed in this filing may not contain metallic components. The highest reported SAR values are: Part 22 - Head: 0.13 W/kg; Body-worn: 0.42 W/kg; Part 24 - Head: 0.33 W/kg; Body-worn: 0.39 W/kg. This device also contains functions that are not operational in U.S. Territories. This filing is only applicable for US operations.
