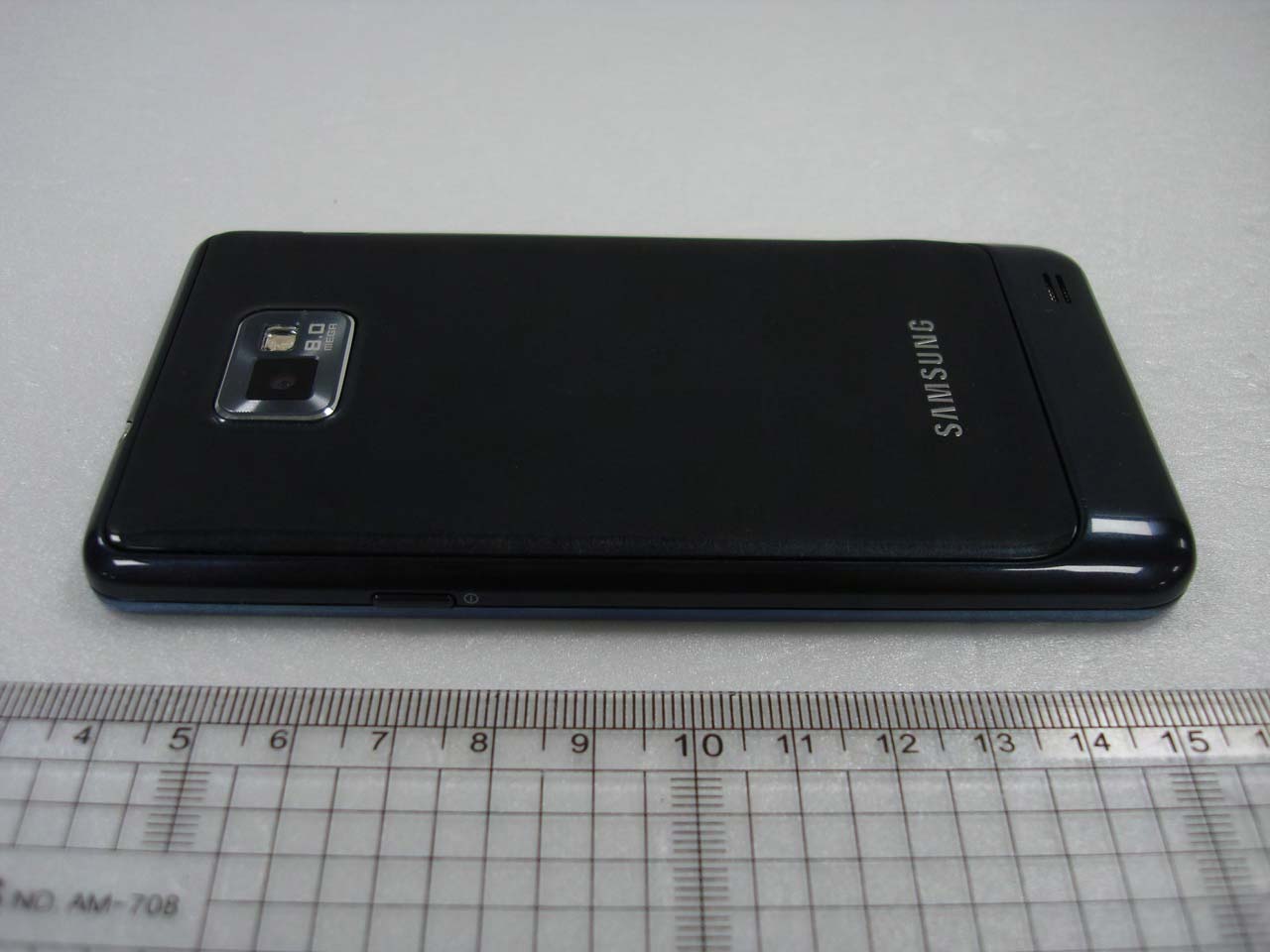

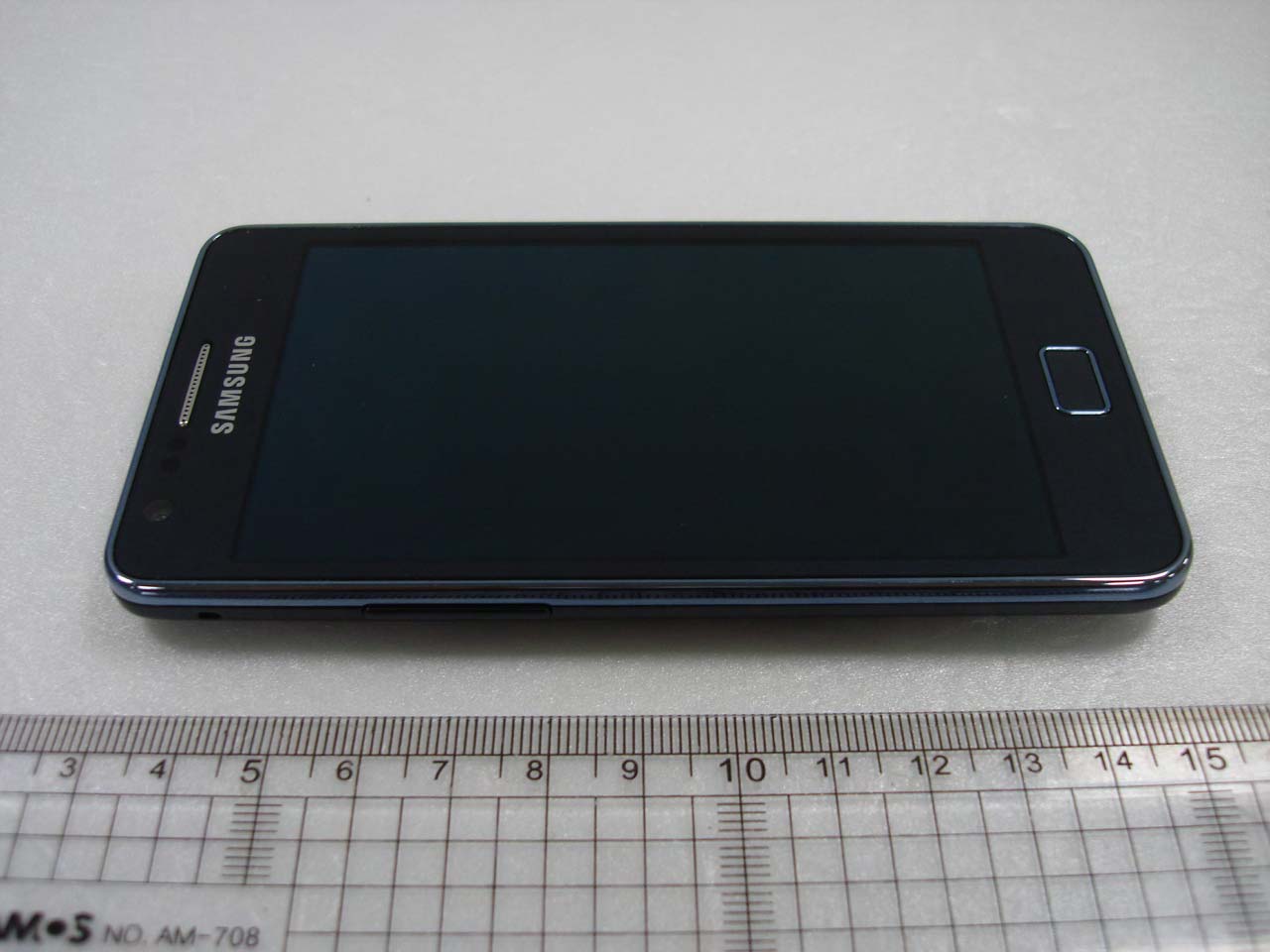

A3LGTI9105Mobile Phone

9. Usermanual User manual GT-I9105 Draft 6.1 2012-07-20 Only for Approval using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information Refer to—pages with related information; for example: p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [ ](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to tempo…

Text truncated - open the document above for the full version.

Decem Federa 7435 O Columb Subje c FCC ID TCB Q The fol include RESPO This is device control that w o than th There a permit descri b mber 26, al Commun Oakland Mi bia MD 21 ct: Attestati D: A3LGTI9105 QUESTION llowing from ed: a. A Cov e ers will maste r ad‐ho b. A ch a ve sca c. A des c ed to e r or an d. An att e figurati ONSE FRO to attest th operating s as desc r ould allow t hose descr are no use the user to bed in this , 2012 nications C ills Road 046 ion Letter S: m KDB 84 er Letter At l not initiate er. This incl oc peer‐to‐ annel/frequ nning or pa cription tha ensure that installer. estation tha on control OM THE A hat the dev in the 5GH ribed in KD them to op ibed below er-selectab o configure application Commissio to respond 8637 for c ttachment e any trans ludes restr peer mode uency plan assive sca t discusse t proper op at the devic as discuss APPLICANT vice compl Hz NII\LEL DB# 59428 perate the 8 w. ble country e the devic n. n to TCB Q lient devic e stating tha smission o riction on tr es. for the de v anning. s how the perations m ce complie sed in KDB T: ies with th LAN band, 80. The end 802.11 tra code or r e ce to opera uestions es operatin at the clien on DFS freq ransmissio vice showi software a modes cann es with the B # 594280 e requirem including t d user has nsceiver o egulatory d ate at powe ng in the 5 nt software quencies w ons for bea ng the cha and / or ha not be mod requireme 0. ments of KD the softwar no access on channels domain set er levels or GHz band and asso c without init acons and annels that rdware is i dified by a ents for sof DB 848637 re configur s to feature s or in mod tings that w r on chann s were not ciated driv iation by a support fo t have acti mplement n end use ftware con 7 for client ration es/controls des other would els not t s The device operates in passive or active scanning modes for each channel as described in the following section. The system does not support ad-hoc mode (including WiFi Direct modes) except where identified. Mode Channel Frequency (MHz) Scanning method (Passive/Active) Ad-Hoc support or AP mode 802.11bgn 1-11 2412-2462 Active Yes (AP support as wireless hot spot when configured with WWAN module) 802.11bgn 12, 13 2467-2472 Passive Channels not supported on North American SKUs 802.11an 36-48 5180-5240 Active Only Wi-Fi Direct and P2P 52-64 5260-5320 Passive Not supported 100-140 5500-5700 Passive Not supported 149-165 5745-5825 Active Only Wi-Fi Direct and P2P Best Regards Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 310-900-5250 FAX: 310-537-5500 E-mail: [email protected]

January 19, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 FCC ID: A3LGTI9105 We attest that the difference of A3LGTI9105 from A3LGTI9105P is only NFC chipset is removed. The only difference between the GT-I9105 and the GT-I9105P is: 1. H/W - NFC Chipset(BCM20793 and RLC) is removed from A3LGTI9105P - GT-I9105 and GT-I9105P use same PCB - NFC Antenna which is inside of battery pack of GT-I9105P is removed. 2. S/W - NFC S/W function(Menu) is removed from A3LGTI9105P Best Regards Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 310-900-5250 FAX: 310-537-5500 E-mail: [email protected]

December 21, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A3LGTI9105 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 310-900-5250 FAX: 310-537-5500 E-mail: [email protected]

416, Maetan-3 Dong , Yeongtong-Gu, Suwon-City, Gyeonggi-Do 443-742 South Korea Date: 04/09/2012 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, NAME: Sang Kyung(Peter), Ra TITLE: Head of QA Lab (General Manager) Applicant: Samsung Electronics America, Inc Address: 19 Chapin Rd, Building D. Pine Brook, NJ 07058

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea Dece mber 26, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3L GTI9105 Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the device will be marketed without the battery installed. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

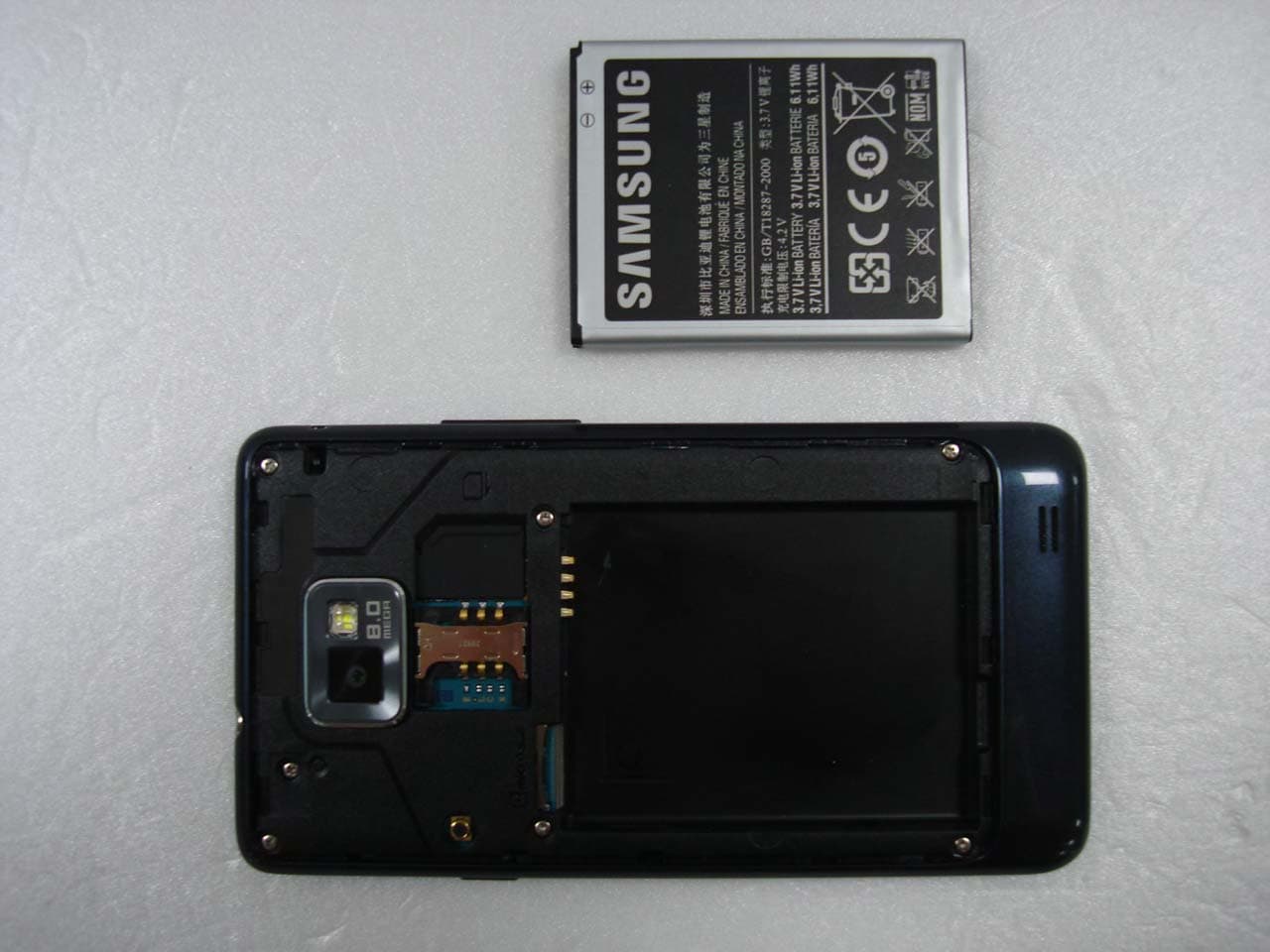

2, 3. Label and Location Label and Location Samsung Phone Model: GT-I9105 FCC ID: A3LGTI9105 Label: Location: Top Back plate of device Bottom Label is placed inside of the battery compartment. Label

Test report No. : 33BE0179-HO-J-R1 Page : 1 of 339 FCC ID : A3LGTI9105 Issued date : January 17, 2013 Revised date : February 1, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 13-EM-F0429 SAR TEST REPORT Test Report No. : 33BE0179-HO-J-R1 Applicant :SAMSUNG ELECTRONICS CO., LTD. Type of Equipment :Smart phone with GSM/GPRS/EDGE850/1900 and WCDMA850/1900, BT(EDR, LE), 802.11a/b/g/n(mobile hot spot) Model No. :GT-I9105 FCC ID :A3LGTI9105 Test regulation :FCC47CFR 2.1093 FCC OET Bulletin 65, Supplement C (Edition 01-01) Test Result :Complied Reported SAR(1g) Value FCC Part 22H Head : 0.058 W/kg Body : 0.798 W/kg FCC Part 24E Head : 0.382 W/kg Body : 1.11 W/kg FCC Part15.247 Head : 0.143 W/kg Body : 0.098 W/kg FCC Part15.407 Head : 0.031 W/kg Body : 0.120W/kg The highest reported SAR(1g) Value for the device is 1.11 W/kg. Simultaneous transmission test was excluded. The highest sum of SAR(1g) for the simultaneous transmitting antennas Value for the device is 1.35 W/kg. 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. 6 This report is a revised version of 33BE0179-HO-J. 33BE0179-HO-J is replaced with this report. Date of test: October 31, 2012 to January 14, 2013 Representative test engineer: Hisayoshi Sato Engineer of WiSE Japan, UL Verification Service Approved by : Takahiro Hatakeda Leader of WiSE Japan, UL Verification Service NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/m ark1/index.jsp#nvlap Test report No. : 33BE0179-HO-J-R1 Page : 2 of 339 FCC ID : A3LGTI9105 Issued date : January 17, 2013 Revised date : February 1, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ................................................................................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ..................................................................................................................................................... 3 2.1 Identification of E.U.T. ...................................................................................................................................................................................................................................... 3 2.2 Product description ............................................................................................................................................................................................................................................. 4 SECTION 3 : Test standard information ............................................................................................................................................................ 6 3.1 Test Specification ............................................................................................................................................................................................................................................... 6 3.2 Procedure ............................................................................................................................................................................................................................................................ 6 3.3 Exposure limit .................................................................................................................................................................................................................................................... 7 3.4 Test Location ...................................................................................................................................................................................................................................................... 7 SECTION 4 : Test result ....................................................................................................................................................................................... 8 4.1 Stand-alone SAR result ...................................................................................................................................................................................................................................... 8 4.2 Simultaneous transmission SAR result .............................................................................................................................................................................................................. 10 SECTION 5 : Description of the operating mode .............................................................................................................................................. 11 5.1 Output power operating modes .......................................................................................................................................................................................................................... 11 5.2 Output power measurement results .....................................................................…

Text truncated - open the document above for the full version.

Test report No. : 33BE0179-HO-J-R1 Page : 112 of 339 FCC ID : A3LGTI9105 Issued date : January 17, 2013 Revised date : February 1, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 vii) WCDMA II Head GT-I9105P WCDMA II 12.2k RMC Left cheek 1880MHz Communication System: WCDMA Bnad II; Communication System Band: WCDMA II; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.469 mho/m; ε r = 38.499; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration Probe: EX3DV4 - SN3825; ConvF(8.43, 8.43, 8.43); Calibrated: 2011/12/16; Sensor-Surface: 2mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2mm (Mechanical Surface Detection) Electronics: DAE4 Sn509; Calibrated: 2012/07/13 Phantom: SAM with CRP; Type: SAM; Measurement SW: DASY52, Version 52.8 (3); Area Scan (61x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.385 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 1.453 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 0.436 W/kg SAR(1 g) = 0.276 W/kg; SAR(10 g) = 0.166 W/kg Maximum value of SAR (measured) = 0.354 W/kg Date: 2012/11/01 Ambient Temp. : 24.0 degree.C. Liquid Temp.; 23.5 degree.C. Test report No. : 33BE0179-HO-J-R1 Page : 113 of 339 FCC ID : A3LGTI9105 Issued date : January 17, 2013 Revised date : February 1, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 GT-I9105P WCDMA II 12.2k RMC Left tilt 1880MHz Communication System: WCDMA Bnad II; Communication System Band: WCDMA II; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.469 mho/m; ε r = 38.499; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration Probe: EX3DV4 - SN3825; ConvF(8.43, 8.43, 8.43); Calibrated: 2011/12/16; Sensor-Surface: 2mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2mm (Mechanical Surface Detection) Electronics: DAE4 Sn509; Calibrated: 2012/07/13 Phantom: SAM with CRP; Type: SAM; Measurement SW: DASY52, Version 52.8 (3); Area Scan (61x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.124 W/kg Area Scan 2 (61x21x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0903 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 1.467 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 0.0980 W/kg SAR(1 g) = 0.065 W/kg; SAR(10 g) = 0.036 W/kg Maximum value of SAR (measured) = 0.0836 W/kg Date: 2012/11/01 Ambient Temp. : 24.0 degree.C. Liquid Temp.; 23.5 degree.C. Test report No. : 33BE0179-HO-J-R1 Page : 114 of 339 FCC ID : A3LGTI9105 Issued date : January 17, 2013 Revised date : February 1, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 GT-I9105P WCDMA II 12.2k RMC Right cheek 1880MHz Communication System: WCDMA Bnad II; Communication System Band: WCDMA II; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.469 mho/m; ε r = 38.499; ρ = 1000 kg/m 3 Phantom section: Right Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration Probe: EX3DV4 - SN3825; ConvF(8.43, 8.43, 8.43); Calibrated: 2011/12/16; Sensor-Surface: 2mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2mm (Mechanical Surface Detection) Electronics: DAE4 Sn509; Calibrated: 2012/07/13 Phantom: SAM with CRP; Type: SAM; Measurement SW: DASY52, Version 52.8 (3); Area Scan (61x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.304 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.671 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 0.397 W/kg SAR(1 g) = 0.242 W/kg; SAR(10 g) = 0.138 W/kg Maximum value of SAR (measured) = 0.325 W/kg Date: 2012/11/01 Ambient Temp. : 24.0 degree.C. Liquid Temp.; 23.5 degree.C. Test report No. : 33BE0179-HO-J-R1 Page : 115 of 339 FCC ID : A3LGTI9105 Issued date : January 17, 2013 Revised date : February 1, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 GT-I9105P WCDMA II 12.2k RMC Right tilt 1880MHz Communication System: WCDMA Bnad II; Communication System Band: WCDMA II; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.469 mho/m; ε r = 38.499; ρ = 1000 kg/m 3 Phantom section: Right Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration Probe: EX3DV4 - SN3825; ConvF(8.43, 8.43, 8.43); Calibrated: 2011/12/16; Sensor-Surface: 2mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2mm (Mechanical Surface Detection) Electronics: DAE4 Sn509; Calibrated: 2012/07/13 Phantom: SAM with CRP; Type: SAM; Measurement SW: DASY52, Version 52.8 (3); Area Scan (61x91x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0639 W/kg Area Scan 2 (61x21x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0570 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.687 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 0.0700 W/kg SAR(1 g) = 0.041 W/kg; SAR(10 g) = 0.021 W/kg Maximum value of SAR (measured) = 0.0556 W/kg Date: 2012/11/01 Ambient Temp. : 24.0 degree.C. Liquid Temp.; 23.5 degree.C. Test report No. : 33BE0179-HO-J-R1 Page : 116 of 339 FCC ID : A3LGTI9105 Issued date : January 17, 2013 Revised date : February 1, 2013 U…

Text truncated - open the document above for the full version.

Test report No. : 33BE0179-HO-J-R1 Page : 176 of 339 FCC ID : A3LGTI9105 Issued date : January 17, 2013 Revised date : February 1, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 2 : System Validation 1. System validation result System validation result for 900MHz Simulated Tissue Liquid Parameter confirmation Date Ambient Temp. [deg.c] Relative Humidity [%] Liquid type Liquid Temp. [deg.c] Measured Frequency [MHz] Parameters Target Value*1 Measured Deviation [%] Limit [%] εr 41.540.3-2.9+/-5 σ [mho/m] 0.970.93-3.7+/-5 εr 41.540.4-2.6+/-5 σ [mho/m] 0.970.94-3.3+/-5 εr: Relative Permittivity / σ : Coductivity *1 The Target value is a parameter defined in FCC OET 65. 31-Jan24.038 HSL 900 23.5900 55900 DIELECTRIC PARAMETERS MEASUREMENT RESULTS 9-Nov23.5 HSL 900 24.0 System validation result (for IEEE1528) Forward Power 250mWConversion 1WDeviationLimit MeasuredCalculatio n[%][%] 9-Nov900.002.7911.1610.803.3+/-10 31-Jan900.002.8511.4010.805.6+/-10 *2 The taget value is the parameter defined in IEEE 1528. SYSTEM VALIDATION Date SAR 1g [W/kg] Target 1W *2 Frequency [MHz] Test report No. : 33BE0179-HO-J-R1 Page : 177 of 339 FCC ID : A3LGTI9105 Issued date : January 17, 2013 Revised date : February 1, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 HEAD 900MHz System Validation DATA / Dipole 900MHz / Forward Conducted Power : 250mW Communication System: CW; Communication System Band: D900 (900.0 MHz); Frequency: 900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 900 MHz; σ = 0.934 mho/m; ε r = 40.294; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration Probe: EX3DV4 - SN3825; ConvF(9.22, 9.22, 9.22); Calibrated: 2011/12/16 Sensor-Surface: 2mm (Mechanical Surface Detection), Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn509; Calibrated: 2012/07/13 Phantom: SAM with CRP; Type: SAM; Measurement SW: DASY52, Version 52.8 (0); Area Scan (51x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 3.625 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 57.312 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 4.2110 SAR(1 g) = 2.79 mW/g; SAR(10 g) = 1.8 mW/g Maximum value of SAR (measured) = 3.019 mW/g Date: 2012/11/09 Ambient Temp. : 24.0 degree.C. Liquid Temp.; 23.5 degree.C. Test report No. : 33BE0179-HO-J-R1 Page : 178 of 339 FCC ID : A3LGTI9105 Issued date : January 17, 2013 Revised date : Febr…
