A3LGTN5110Portable Tablet Computer with WLAN and Bluetooth

www.samsung.com User Manual GT-N5110 2 About this manual This device provides high quality mobile communication and entertainment using Samsung’s high standards and technological expertise. This user manual is specially designed to detail the device’s functions and features. r
Please read this manual before using the device to ensure safe and proper use. r
Descriptions are based on the device’s default settings. r
Images and screenshots may differ in appearance from the actual product. r
Content may differ from the final product, or from software provided by service providers or carriers, and is subject to change without prior notice. For the latest version of the manual, refer to the Samsung website, www.samsung.com. r
Available features and additional services may vary by device, software, or service provider. r
Applications and their functions may vary by country, region, or hardware specifications. Samsung is not liable for performance issues caused by applications from any provider other than Samsung. r
Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or applications to work improperly. r
Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. r
You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services. To avoid additional charges, select an appropriate data tariff plan. For details, contact your service provider. About this manual 3 r
Default applications that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an application provided with the device, contact a Samsung Service Centre. For user-installed applications, contact service providers. r
Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. Instructional icons Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to your device or other equipment Note: notes, usage tips, or additional information Copyright Copyright © 2013 Samsung Electronics This guide is protected under international copyright laws. No part of this guide may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. About this manual 4 Trademarks r
SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics. r
The Android logo, Google ™ , Google Maps ™ , Google Mail ™ , YouTube ™ , Google Play ™ Store, and Google Talk ™ are trademarks of Google, Inc. r
Bluetooth ® is a registered trademark of Bluetooth SIG, Inc. worldwide. r
Wi-Fi ® , Wi-Fi Protected Setup ™ , Wi-Fi Direct ™ , Wi-Fi CERTIFIED ™ , and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. r
All other trademarks and copyrights are the property of their respective owners. DivX ® , DivX Certified ® , and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under licence. ABOUT DIVX VIDEO DivX ® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified ® device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND This DivX Certified ® device must be registered in order to play purchased DivX Video-on- Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. DivX Certified ® to play DivX ® video up to HD 720p, including premium content. 5 Table of Contents Getting started 8 Device layout 9 Buttons 10 S Pen 10 Package contents 11 Charging the battery 14 Inserting a memory card 16 Turning the device on and off 16 Holding the device 17 Locking and unlocking the device 17 Adjusting the volume 17 Switching to silent mode Basics 18 Indicator icons 19 Using the touch screen 22 Control motions 24 Page Buddy 24 Activating Multi Window 25 Using the S Pen 30 S Pen Air View 30 Quick Command 31 Notifications 32 Home screen 34 Using widgets 34 Using applications 35 Applications screen 36 Help 36 Entering text 38 Connecting to a Wi-Fi network 39 Setting up accounts 40 Transferring files 41 Securing the device 43 Upgrading the device Communication 44 Contacts 47 Email 49 Google Mail 50 Talk 51 Google+ 51 Messenger 52 ChatON Web & network 53 Internet 54 Chrome 55 Bluetooth 56 AllShare Cast 57 AllShare Play 58 Group Play 58 Smart Remote Table of Contents 6 95 S Voice 96 Google 97 Voice Search 97 My Files 98 Downloads Travel & local 99 Maps 100 Local 101 Navigation Settings 102 About Settings 102 Wi-Fi 103 Bluetooth 103 Data usage 103 More settings 104 Home screen mode 104 Blocking mode 105 Sound 105 Display 106 Storage 107 Power saving mode 107 Battery 107 Application manager 107 Location services 108 Lock screen 109 Security 110 Language and input 112 Cloud 113 Backup and reset 113 Add account Media 60 Music Player 61 Camera 68 Gallery 71 Paper Artist 72 PS Touch 73 Video Player 74 YouTube 76 Flipboard Application & media stores 77 Play Store 78 Samsung Apps 78 Game Hub 79 Music Hub 80 Play Books 80 Play Movies 80 Play Music 81 Readers Hub 81 Video Hub 81 Learning Hub Utilities 82 S Note…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: January 17, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTN5110 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram PERMANENT 2 Operational Description 3 External Photos 4 Internal Photos 5 Test-Setup Photos SHORT-TERM 6 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

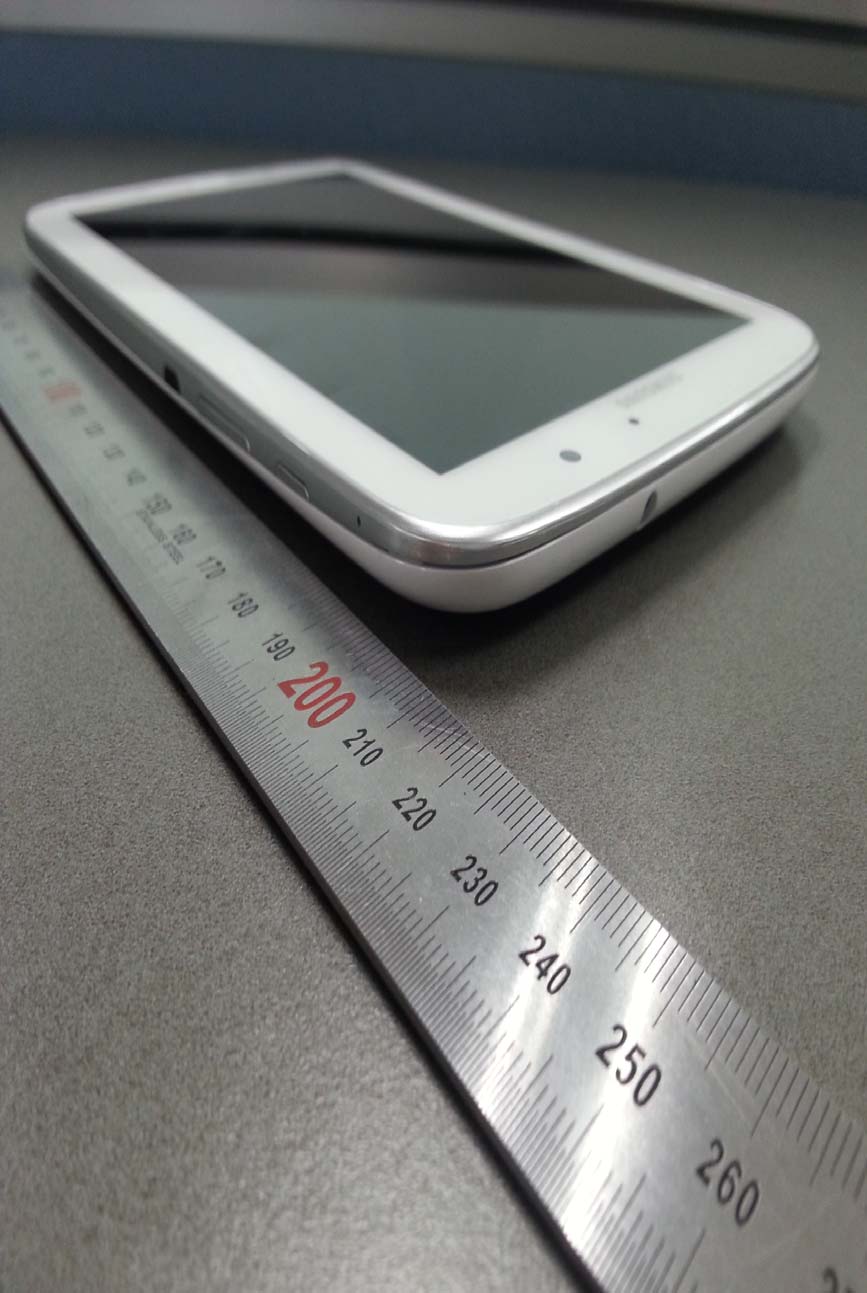

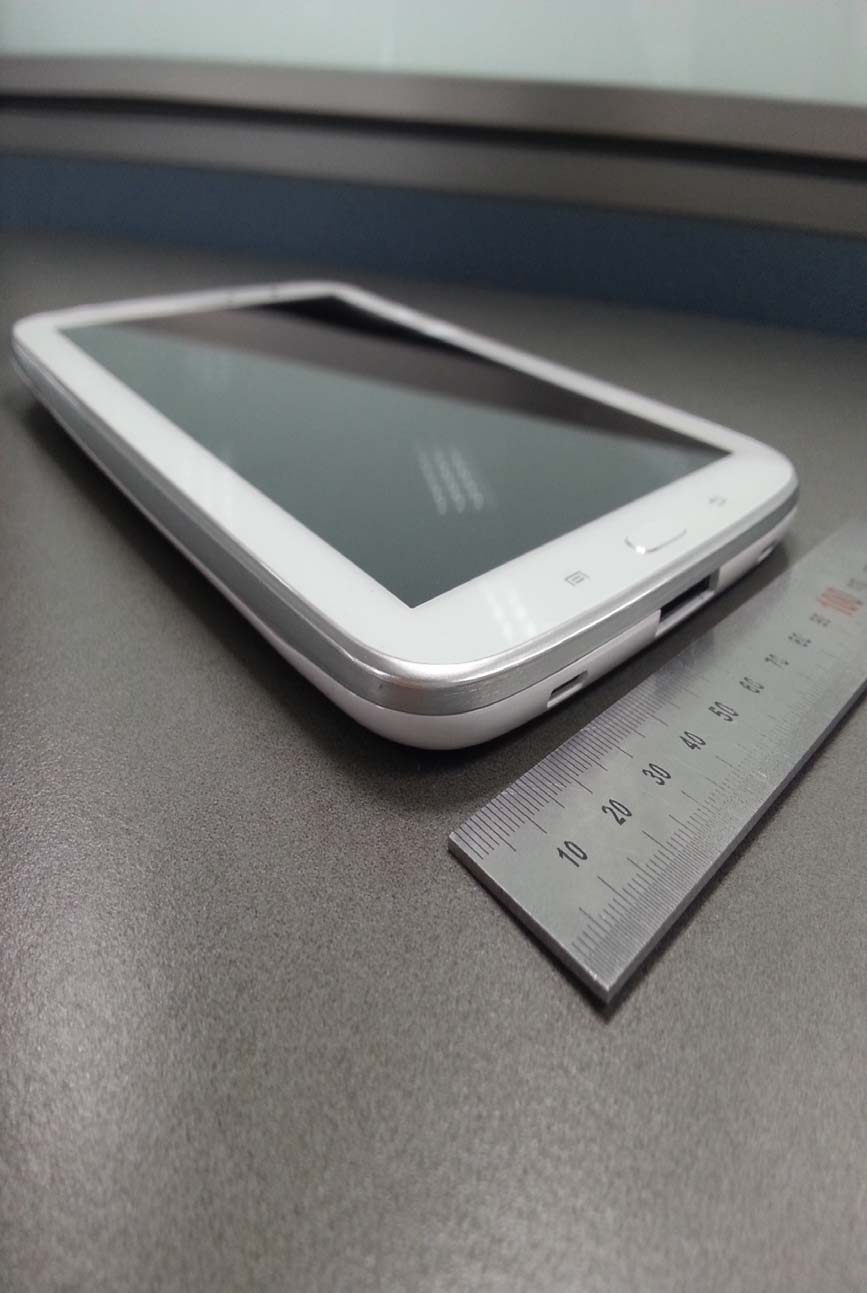

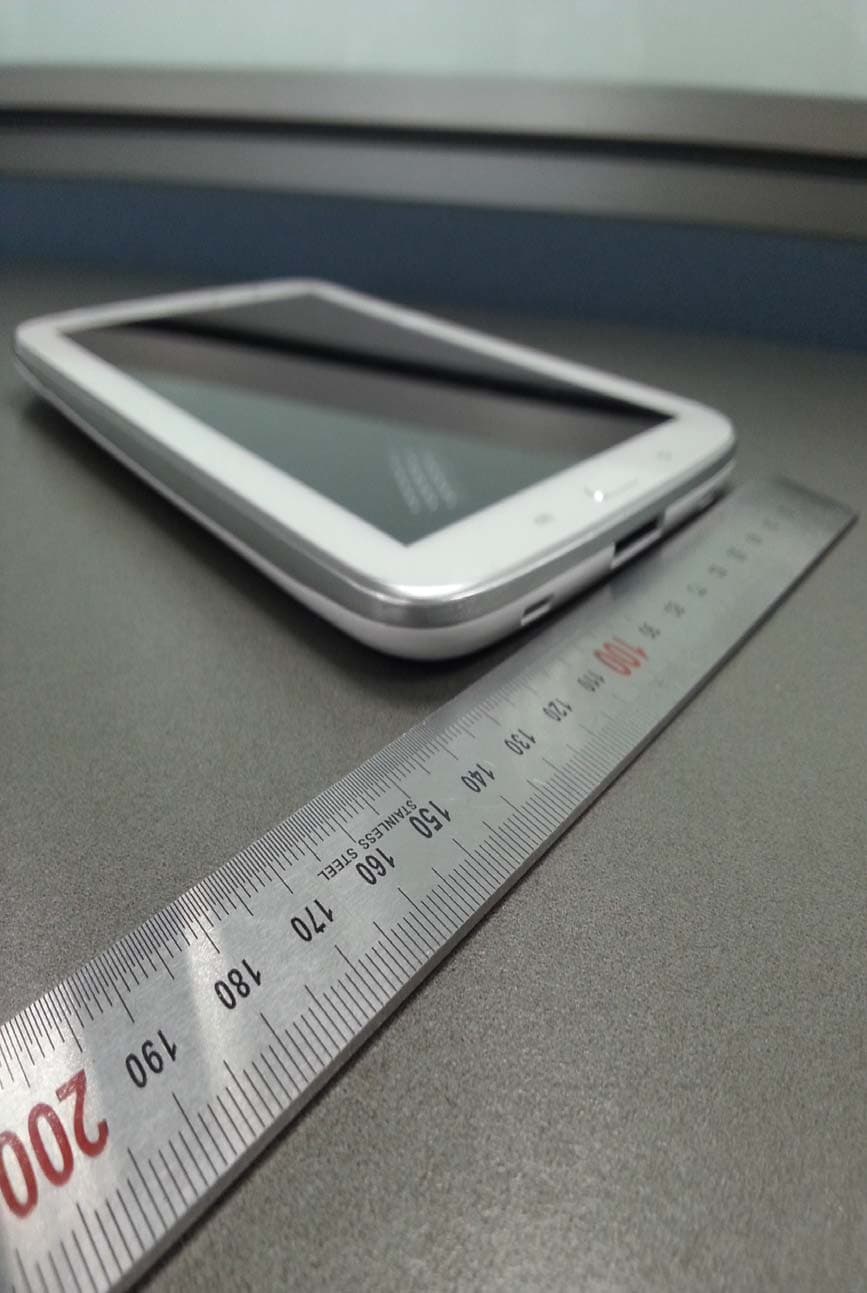

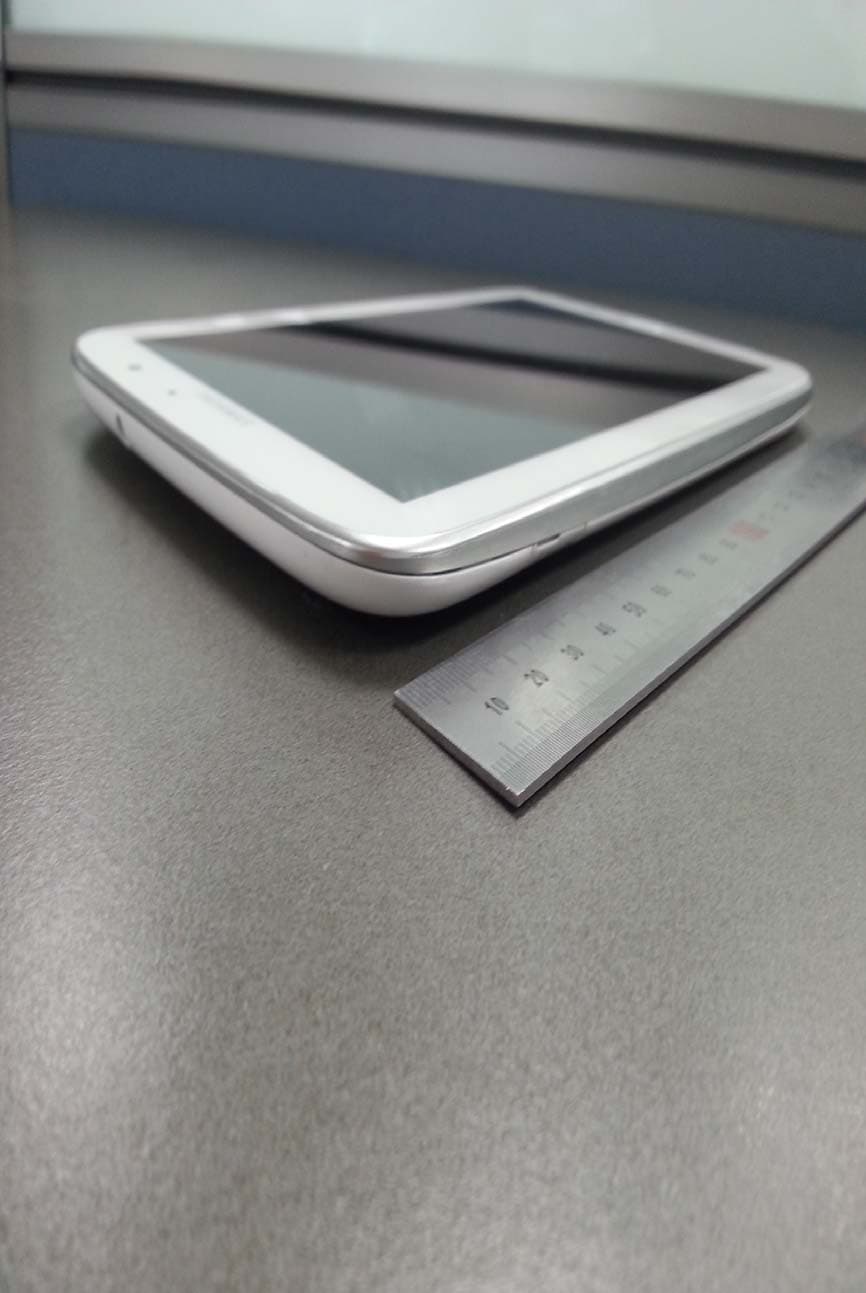

SAMSUNG ELECTRONICS FCC ID: A3LGTN5110 Model: GT-N5110 External Photos EUT Type: Portable Tablet Page 1 of 6 © 2013 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS SAMSUNG ELECTRONICS FCC ID: A3LGTN5110 Model: GT-N5110 External Photos EUT Type: Portable Tablet Page 2 of 6 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LGTN5110 Model: GT-N5110 External Photos EUT Type: Portable Tablet Page 3 of 6 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LGTN5110 Model: GT-N5110 External Photos EUT Type: Portable Tablet Page 4 of 6 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LGTN5110 Model: GT-N5110 External Photos EUT Type: Portable Tablet Page 5 of 6 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LGTN5110 Model: GT-N5110 External Photos EUT Type: Portable Tablet Page 6 of 6 © 2013 PCTEST Engineering Laboratory Inc.

Label and Location Samsung EUT Model: GT-N5110 FCC ID: A3LGTN5110 Label Location: Top Back of EUT Bottom FCC ID is printed on bottom of the EUT

SAMSUNG ELECTRONICS FCC ID: A3LGTN5110 Model: GT-N5110 Internal Photos EUT Type: Portable Tablet Page 1 of 7 © 2013 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS SAMSUNG ELECTRONICS FCC ID: A3LGTN5110 Model: GT-N5110 Internal Photos EUT Type: Portable Tablet Page 2 of 7 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LGTN5110 Model: GT-N5110 Internal Photos EUT Type: Portable Tablet Page 3 of 7 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LGTN5110 Model: GT-N5110 Internal Photos EUT Type: Portable Tablet Page 4 of 7 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LGTN5110 Model: GT-N5110 Internal Photos EUT Type: Portable Tablet Page 5 of 7 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LGTN5110 Model: GT-N5110 Internal Photos EUT Type: Portable Tablet Page 6 of 7 © 2013 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS FCC ID: A3LGTN5110 Model: GT-N5110 Internal Photos EUT Type: Portable Tablet Page 7 of 7 © 2013 PCTEST Engineering Laboratory Inc.

-1/13- E E E M M M C C C T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T Project No. LBE20130623 Issue No. 1 Applicant Name of organization Samsung Electronics Co., Ltd. Address (Maetan-dong) 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-742, Republic of Korea Date of application December 28, 2012 EUT Type of device Class B personal computers and peripherals All other devices Equipment authorization Declaration of Conformity Certification Verification FCC ID A3LGTN5110 Kind of product BT/Wi-Fi Portable Device Model No. GT-N5110 Variant Model No. Refer to clause 4.6 Manufacturer SAMSUNG ELECTRONICS CO., LTD. 94-1, Imsu-dong, Gumi-si, Gyengsangbuk-do, 730-722, Republic of Korea Applied Standards FCC Part 15, Subpart B, Class B / ANSI C63.4-2003 Test Period January 3, 2013 ~ January 4, 2013 Issue date January 24, 2013 Test result : Complied The equipment under test has found to be compliant with the applied standards. (Refer to the attached test result for more detail.) Tested by : Jong-Sup Jeong Reviewed by : Tae-Young Jang The test results in this report only apply to the tested sample. This report must not be reproduced, except in full, without written permission from CS & Environment center. (Maetan-dong) 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-so, 443-742, Republic of Korea Tel: 82 31 279 1750, Fax: 82 31 279 1745 Project No. : LBE20130623 BT/Wi-Fi Portable Device : GT-N5110 -2/13- This report must not be reproduced, except in full, without written permission from CS & Environment center. Form No.: SRA-TRF-46/0 Table of contents 1. Report Information 1.1 Revision history ------------------------------------------------------------------------------------------------------------------ 3 2. Summary of test results 2.1 Emission ------------------------------------------------------------------------------------------------------------------------------- 3 3. General Information 3.1 Test facility ---------------------------------------------------------------------------------------------------------------------------- 3 4. Test Configuration 4.1 Test Peripherals ----------------------------------------------------------------------------------------------------------------- 4 4.2 EUT operating mode -------------------------------------------------------------------------------------------------------- 4 4.3 Details of Sampling ----------------------------------------------------------------------------------------------------------- 4 4.4 Used cable description ---------------------------------------------------------------------------------------------------- 5 4.5 Test arrangement -------------------------------------------------------------------------------------------------------------- 5 4.6 EUT Description ----------------------------------------------------------------------------------------------------------------- 6 4.7 Clock Frequencies ------------------------------------------------------------------------------------------------------------ 6 4.8 Test configuration and condition ---------------------------------------------------------------------------------- 6 4.9 Measurement uncertainty ---------------------------------------------------------------------------------------------- 7 5. Result of individual tests 5.1 Conducted disturbance --------------------------------------------------------------------------------------------------- 8 5.2 Radiated disturbance ------------------------------------------------------------------------------------------------------- 10 Project No. : LBE20130623 BT/Wi-Fi Portable Device : GT-N5110 -3/13- This report must not be reproduced, except in full, without written permission from CS & Environment center. Form No.: SRA-TRF-46/0 1. Report Information 1.1 Revision history No. Revised detailed information Issue 0 - LBE20126284 (SAMSUNG) Issue 1 - LBE20130623 (SAMSUNG), Correction of the EUT description and radiated disturbance. Added additional explanations for test peripherals and conducted disturbance. 2. Summary of test results 1.1 Emission The EUT has been tested according to the following specifications: Applied Test type Applied standard Result Conducted Disturbance (Mains port) FCC Part 15 Subpart B / ANSI C63.4-2003 (Class B) Complied Radiated Disturbance Complied 3. General Information 3.1 Test facility The CS & Environment center is located on Samsung Electronics Co., Ltd. at (Maetan-dong) 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Republic of Korea. All testing are performed in Semi-anechoic chambers conforming to the site attenuation characteristics defined by ANSI C63.4, CISPR 22, 16-1 and 16-2. and Shielded rooms. The CS & Environment center is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:2005. Project No. : LBE20130623 BT/Wi-Fi Portable Device : GT-N5110 -4/13- This report must not be reproduced, except in full, without written permission from CS & Environment center. Form No.: SRA-TRF-46/0 4. Test Setup configuration 4.1 Test Peripherals The cables used for these peripherals are either permanently attached by the peripheral manufacturer or coupled with an assigned cable as defined below. The following is a listing of the EUT and peripherals utilized during the performance of EMC test: Mark Description Model No. Serial No. Manufacturer / Trademark FCC ID / DoC A BT/Wi-Fi Portable Device GT-N5110 R32CC0287NP SAMSUNG A3LGTN5110 B Headset EHS64AVFWE - SAMSUNG - C Data Cable ECB-DP4AWE - SAMSUNG - D HDMI Adapter EPL-NPHPBE RT1C829AS E SAMSUNG - E Ferrite Core ZCAT1325-0530A - TDK - F microSD Card 16GB - SANDISK - G Travel Adapter ETA-U90EWE RT1CB02aS/B-E SAMSUNG - H Desk-Top Computer HP Compaq dx2200 Microtower CNG7060LW0 HP DoC I LED TV Monitor T23B550EW ZV6TH3EC200052E SAMSUNG DoC J Mouse N3+Optical K034729902 HP DoC K Keyboard SDM8500P 8M000131 SAMSUNG DoC L Gigabit Switch 8 3CGSU08 AB/9XRQAC0024825 3COM DoC M Power Supply PW150 KA1203N03 AUL…
