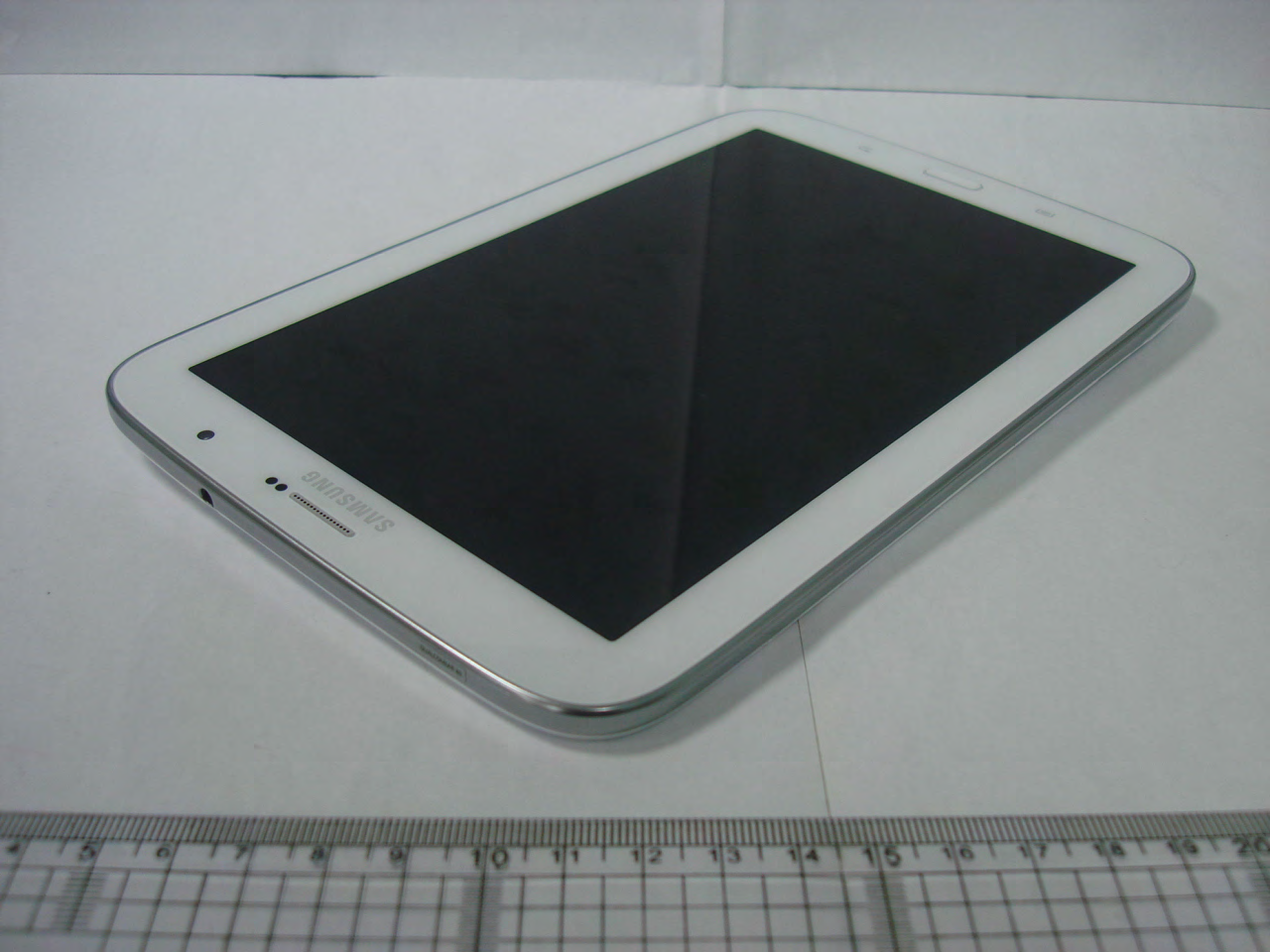

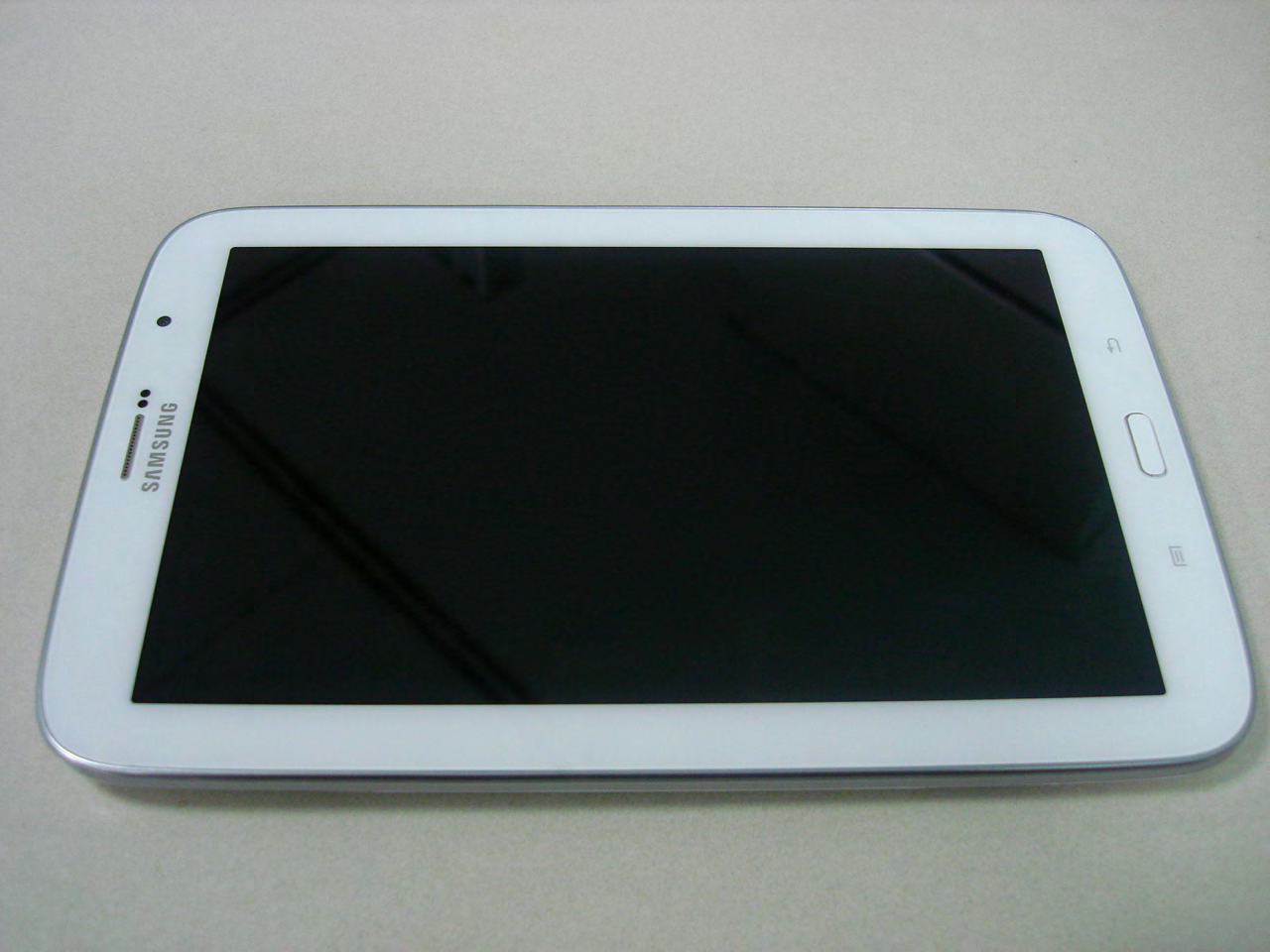

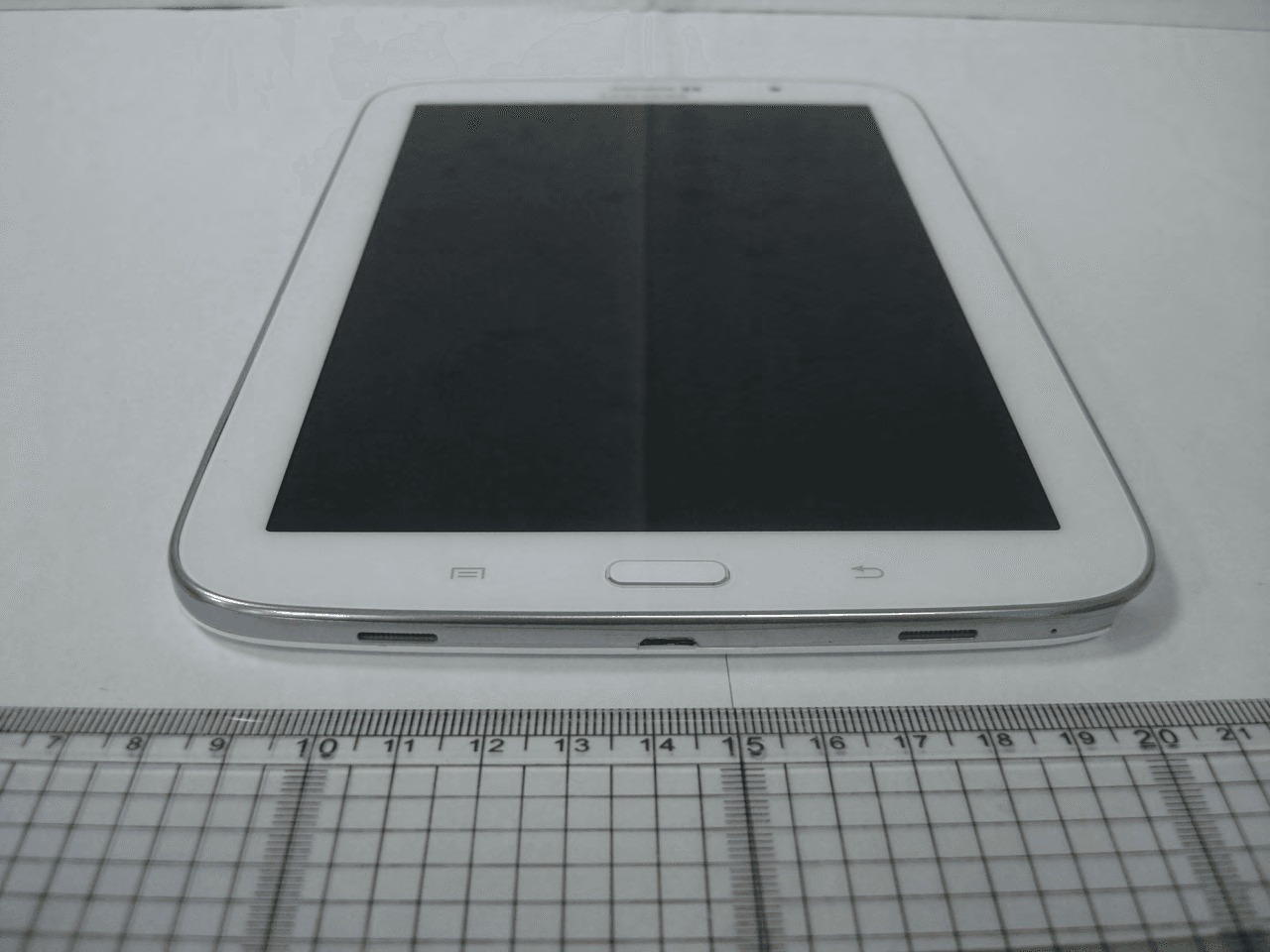

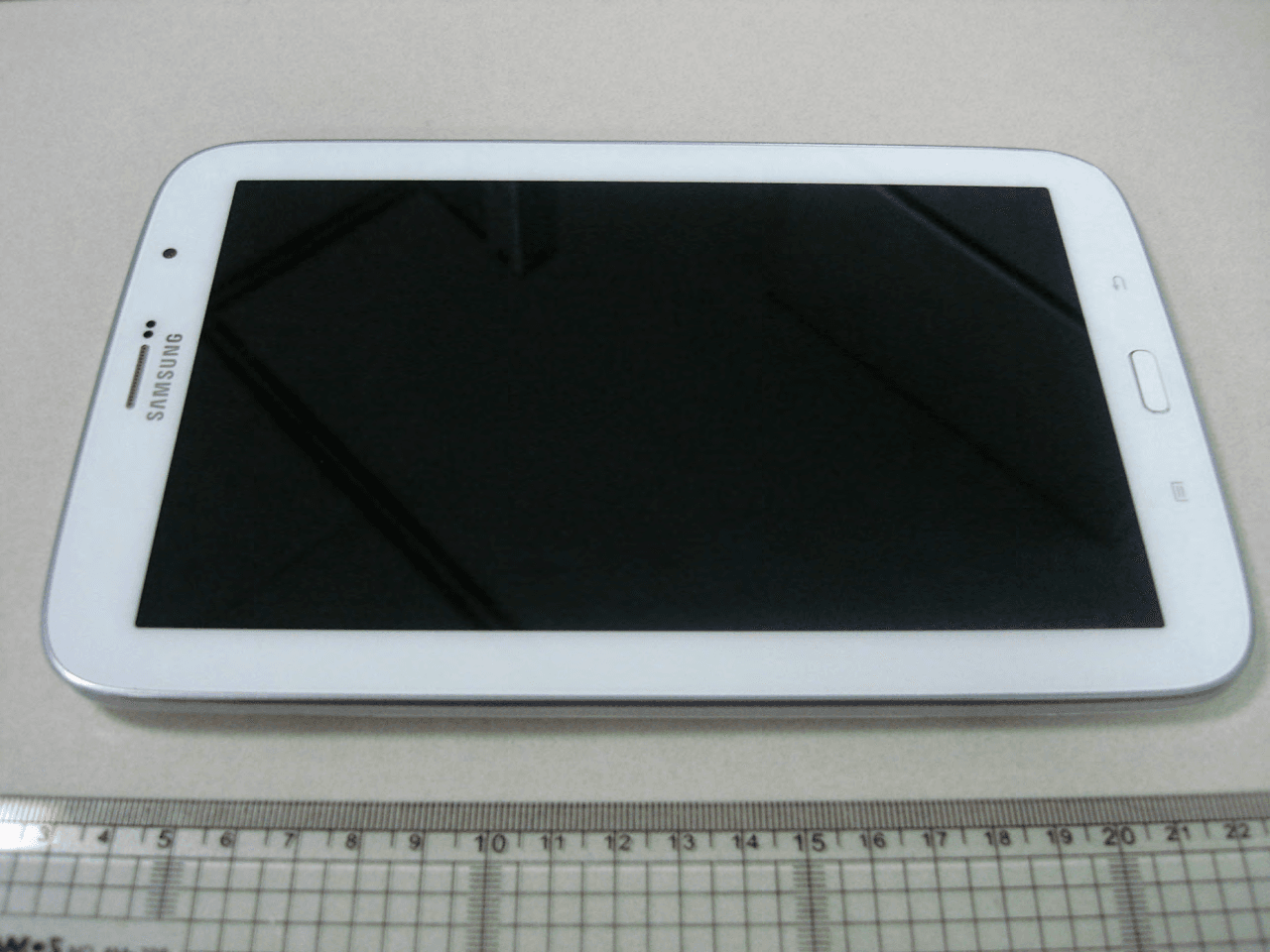

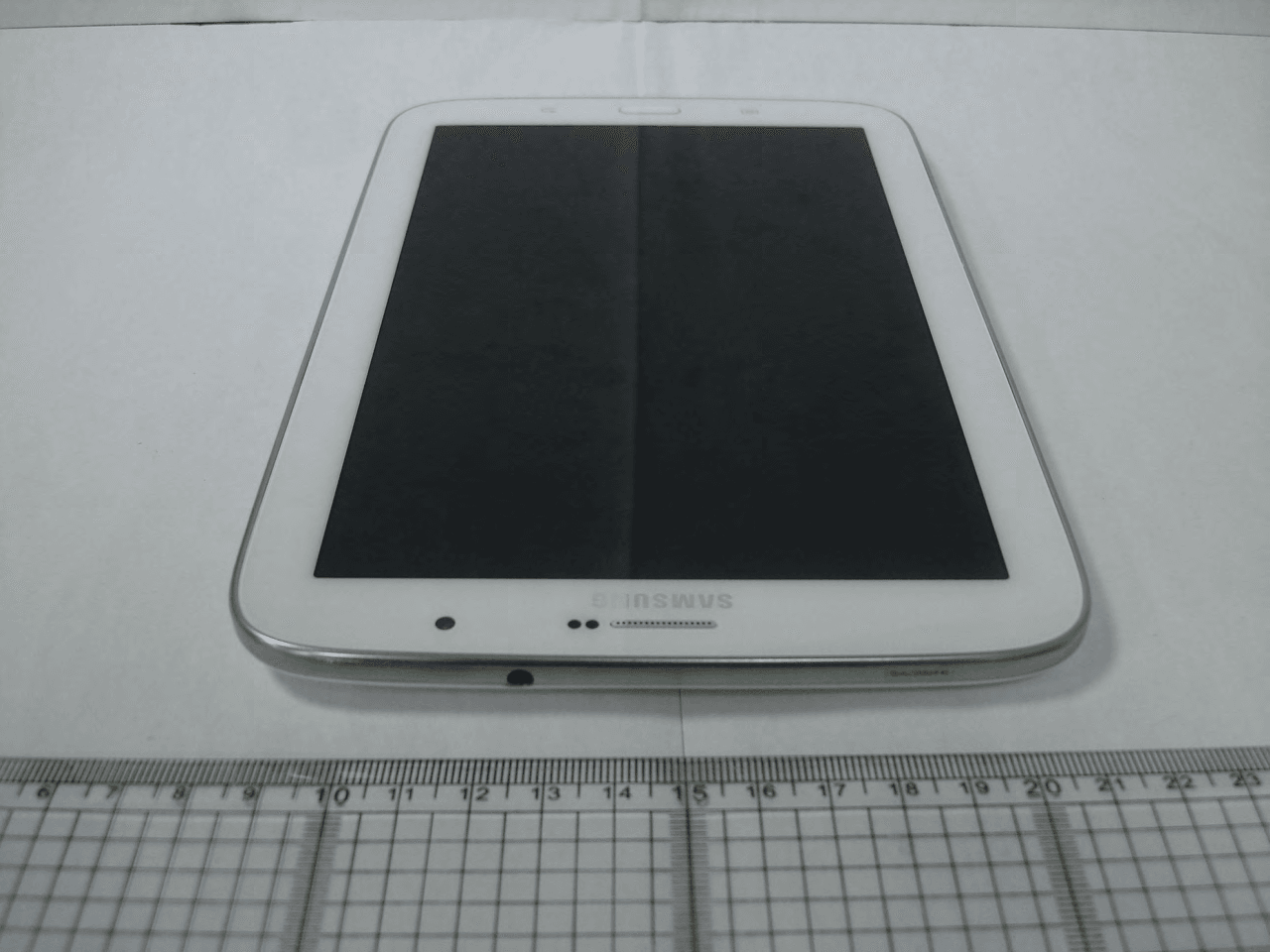

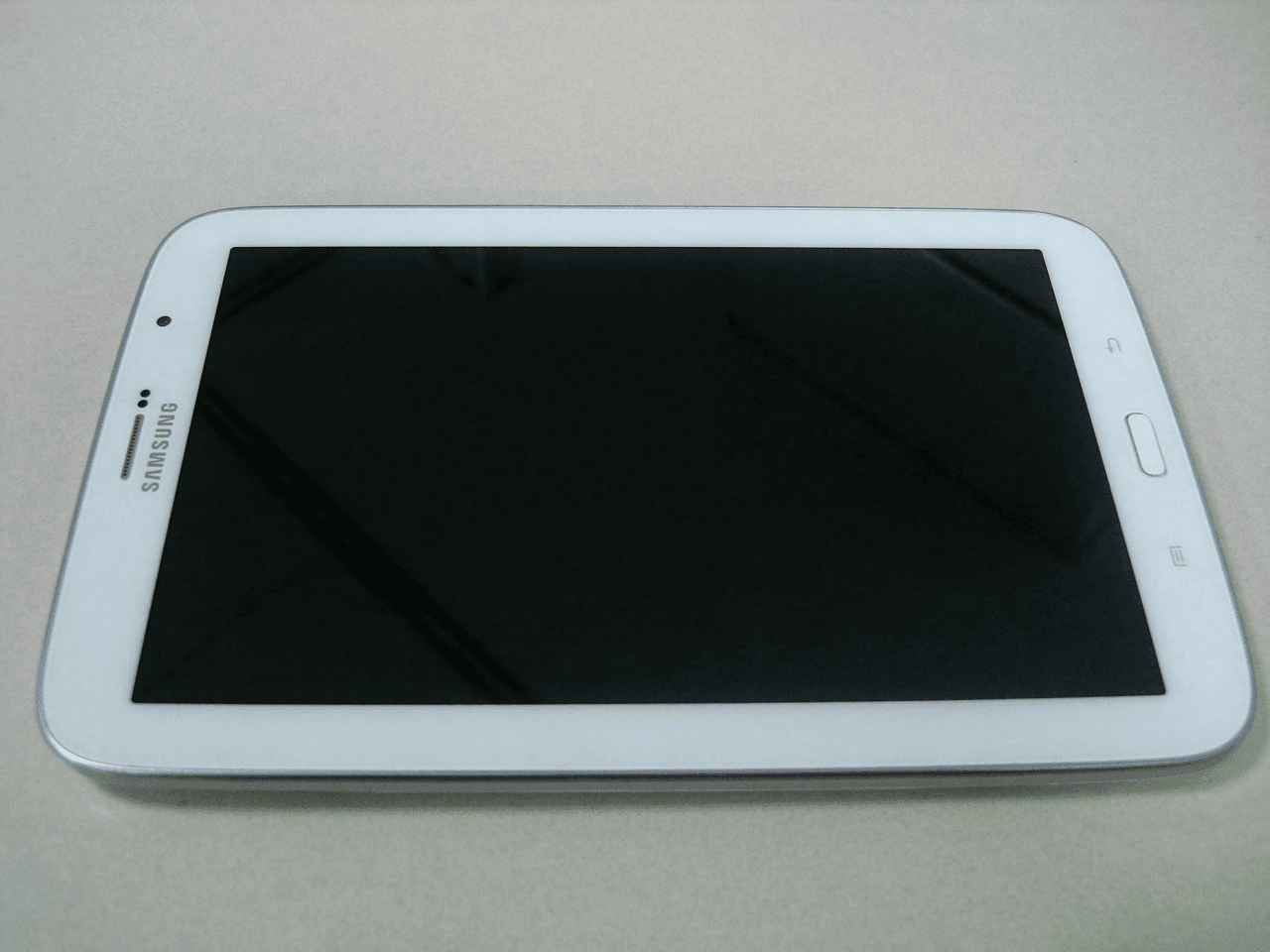

A3LGTN5120Multi-band GSM/EDGE/WCDMA Tablet with WLAN and Bluetooth

www.samsung.com User Manual GT-N5120 2 About this manual This device provides high quality mobile communication and entertainment using Samsung’s high standards and technological expertise. This user manual is specially designed to detail the device’s functions and features. • Please read this manual before using the device to ensure safe and proper use. • Descriptions are based on the device’s default settings. • Images and screenshots may differ in appearance from the actual product. • Content may differ from the final product, or from software provided by service providers or carriers, and is subject to change without prior notice. For the latest version of the manual, refer to the Samsung website, www.samsung.com. • Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Applications related to the content may not work properly depending on the device’s specifications and the environment that it is used in. • Available features and additional services may vary by device, software, or service provider. • Applications and their functions may vary by country, region, or hardware specifications. Samsung is not liable for performance issues caused by applications from any provider other than Samsung. • Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or applications to work improperly. • Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. • You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services. To avoid additional charges, select an appropriate data tariff plan. For details, contact your service provider. About this manual 3 • Default applications that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an application provided with the device, contact a Samsung Service Centre. For user-installed applications, contact service providers. • Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. Instructional icons Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to your device or other equipment Note: notes, usage tips, or additional information Copyright Copyright © 2013 Samsung Electronics This guide is protected under international copyright laws. No part of this guide may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. About this manual 4 Trademarks • SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics. • The Android logo, Google ™ , Google Maps ™ , Google Mail ™ , YouTube ™ , Google Play ™ Store, and Google Talk ™ are trademarks of Google, Inc. • Bluetooth ® is a registered trademark of Bluetooth SIG, Inc. worldwide. • Wi-Fi ® , Wi-Fi Protected Setup ™ , Wi-Fi Direct ™ , Wi-Fi CERTIFIED ™ , and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. • All other trademarks and copyrights are the property of their respective owners. DivX ® , DivX Certified ® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under licence. ABOUT DIVX VIDEO DivX ® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified ® device that has passed rigorous testing to verify that it plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND This DivX Certified ® device must be registered in order to play purchased DivX Video-on- Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. DivX Certified ® to play DivX ® video up to HD 720p, including premium content. 5 Table of Contents Getting started 8 Device layout 9 Butt ons 10 S Pen 10 Package contents 11 Installing the SIM or USIM car d 12 Charg ing the battery 15 Inserting a memory card 17 Turning the device on and off 17 Holding the device 18 Locking and unlocking the device 18 Adjusting the v olume 18 Switching to silent mode Basics 19 Indicator icons 20 Using the touch screen 23 Con trol motions 25 Page Buddy 25 Ac tivating Multi Window 26 Using the S P en 30 S Pen Air View 31 Quick Command 32 Notifica tions 33 Home screen 35 Using widgets 35 Using applications 36 Applications screen 37 Help 37 Ent ering text 39 Connecting to a Wi-Fi network 40 Setting up accounts 41 Tr ansferring files 42 Securing the device 44 Upgrading the device Communication 45 Phone 51 C ontacts 55 Messaging 56 Email 58 Google Mail 59 Talk 60 Google+ 60 Messenger 61 ChatON Web & network 62 Internet 63 Chr ome 64 Bluet ooth 65 AllShar e Cast 66 AllShar e Play Table of Contents 6 101 Dropbox 101 Alarm 102 Wor ld Clock 103 Calculator 103 S Voice 104 G oogle 105 Voice Search 105 My F iles 106 D ownloads Travel & local 107 Maps 108 Local 109 Navigation Settings 110 About Settings 110 Wi-Fi 111 Bluetooth 111 Data usage 112 More settings 113 Home screen mode 113 Blocking mode 114 S ound 114 Displa y 115 Storage 116 Power saving mode 116 Battery 116 Application manager 116 Loca tion services 11…

Text truncated - open the document above for the full version.

Media 81 Video Player Use this application to play video files. Tap Video Player on the Applications screen. • Avoid locking the device’s screen while playing a DivX Video-On-Demand. Each time you lock the screen while playing a DivX Video-On-Demand, one of your available rental counts is lost. • Some file formats are not supported depending on the device's software. • Some files may not play properly depending on how they are encoded. Playing videos Select a video to play. Change screen ratio. Move forwards or backwards by dragging the bar. Adjust the volume. Mute the sound. Restart the current video or skip to the previous video. Tap and hold to move backwards quickly. Skip to the next video. Tap and hold to move forwards quickly. Reduce the size of the video screen. Insert a bookmark. Pause and resume playback. Select a sound effect. Media 82 Deleting videos Tap → Delete, select videos by ticking, and then tap Delete. Sharing videos Tap → Share via, select a sharing method, select videos by ticking, and then tap Share. Using Popup Video player Use this feature to use other applications without closing the video player. While watching videos, tap to use the pop-up player. Spread two fingers apart on the screen to enlarge the player or pinch to reduce it. To move the player, drag the player to another location. YouTube Use this application to watch videos from the YouTube website. Tap YouTube on the Applications screen. This application may not be available depending on the region or service provider. Media 83 Watching videos Tap , and then enter a keyword. Select one of the returned search results to watch a video. Rotate the device to landscape orientation to display full screen. Pause or resume playback. Move forwards or backwards by dragging the bar. Change display quality. Add the video to the playlist. Rotate the screen to portrait orientation. Send the URL to others. Search for videos. Sharing videos Select the video to view, tap , and then select a sharing method. Uploading videos Select your account, tap , select a video, enter information for the video, and then tap UPLOAD. Media 84 Flipboard Use this application to access your personalised magazines. Tap Flipboard on the Applications screen. This application may not be available depending on the region or service provider. To start your Flipboard, flick left on the greeting page, tap Get Started, select news topics, and then tap Build Your Flipboard. Select a cover story or a topic, flick through the Flipboard pages, and then select an article to read. While reading an article, use the following icons: • : Go to the previous page. • : View others’ comments about the article. • : Share the article via Twitter. • : Share the article with others. • : Add the article to the favourites list in Twitter. 85 Application & media stores Play Store Use this application to purchase and download applications and games that are able to run on the device. Tap Play Store on the Applications screen. This application may not be available depending on the region or service provider. Installing applications Browse applications by category, or tap to search with a keyword. Select an application to view information. To download it, tap Install. If there is a charge for the application, tap the price, and follow on-screen instructions to complete the purchase process. • When a new version is available for any installed application, an update icon appears at the top of the screen to alert you to the update. Open the notifications panel and tap the icon to update the application. • To install applications that you downloaded from other sources, on the Applications screen, tap Settings → Security → Unknown sources. Uninstalling applications Uninstall the applications purchased from Play Store. Tap , select an application to delete in the list of installed applications, and then tap Uninstall. Application & media stores 86 Samsung Apps Use this application to purchase and download dedicated Samsung applications. For more information, visit www.samsungapps.com. Tap Samsung Apps on the Applications screen. This application may not be available depending on the region or service provider. Installing applications Browse applications by category. Tap to select a category. To search for an application, tap at the top of the screen, and then enter a keyword in the search field. Select an application to view information. To download it, tap Get or Buy. When a new version is available for any installed application, an update icon appears at the top of the screen to alert you to the update. Open the notifications panel and tap the icon to update the application. Game Hub Use this application to access games. Tap Game Hub on the Applications screen. This application may not be available depending on the region or service provider. Scroll left or right and select a game to download from Samsung Apps. Application & media stores 87 Music Hub Use this application to play music and purchase songs or albums from the Music Hub catalogue. Subscribe to the Music Hub premium service to: • sync your personal music collection to the cloud storage server, • stream full-length songs from the Music Hub catalogue, • discover music by receiving customised recommendations, and • listen to your personal radio To get more details, tap → Help. Tap Music Hub on the Applications screen. • This application may not be available depending on the region or service provider. • Some features may be labelled differently depending on the subscription terms. • Some features including streaming services may not be available depending on the region or service provider. MY MUSIC This provides all music on your computer that has Music Hub installed. You can create new playlists and sync with your computer automatically. To play music, select a music category and then select a song to play. CATALOG This provides a music catalogue to browse and stream music. To stream music, select a music category, …

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: April 8, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTN5120 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

Label and Location Samsung Phone Model: GT-N5120 FCC ID: A3LGTN5120 Label: Location: Top Back of device Bottom FCC ID is printed on bottom of the device

FCC ID:A3LGTN5120 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 51 0Y1302010145.A3L 03/11/13 - 03/19/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 03/11/13 - 03/19/13 129, Samsung-ro, Maetan Dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do, 443-742, Republic of Korea Document Serial No.: 0Y1302010145.A3L FCC ID: A3LGTN5120 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): GT-N5120 1 gm Head (W/kg) 1 gm Body (W/kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz29.730.330.71 PCEUMTS 850826.40 - 846.60 MHz22.670.410.67 PCEGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz27.160.591.07 DTS2.4 GHz WLAN2412 - 2462 MHz11.220.150.84 DTSBluetooth LE2402 - 2480 MHz7.89 DTS5.8 GHz WLAN5745 - 5825 MHz7.950.270.98 UNII5.2 GHz WLAN5180 - 5240 MHz7.520.260.68 UNII5.3 GHz WLAN5260 - 5320 MHz7.710.280.87 UNII5.5 GHz WLAN5500 - 5700 MHz8.050.221.08 DSSBluetooth2402 - 2480 MHz10.80N/A0.10 0.641.56 SAR Band & ModeTx Frequency Measured Conducted Power [dBm] N/A Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID:A3LGTN5120 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 51 0Y1302010145.A3L 03/11/13 - 03/19/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 INTRODUCTION ............................................................................................................................. 8 3 DOSIMETRIC ASSESSMENT ........................................................................................................ 9 4 DEFINITION OF REFERENCE POINTS ...................................................................................... 10 5 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 11 6 RF EXPOSURE LIMITS ................................................................................................................ 13 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 14 8 RF CONDUCTED POWERS ......................................................................................................... 17 9 SYSTEM VERIFICATION .............................................................................................................. 24 10 SAR DATA SUMMARY ................................................................................................................. 26 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 32 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 45 13 EQUIPMENT LIST ......................................................................................................................... 46 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 47 15 CONCLUSION ............................................................................................................................... 49 16 REFERENCES .............................................................................................................................. 50 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS APPENDIX G: SENSOR TRIGGERING DATA SUMMARY FCC ID:A3LGTN5120 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 51 0Y1302010145.A3L 03/11/13 - 03/19/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz 2.4 GHz WLANData2412 - 2462 MHz Bluetooth LEData2402 - 2480 MHz 5.8 GHz WLANData5745 - 5825 MHz 5.2 GHz WLANData5180 - 5240 MHz 5.3 GHz WLANData5260 - 5320 MHz 5.5 GHz WLANData5500 - 5700 MHz BluetoothData2402 - 2480 MHz Operating ModesBand & ModeTx Frequency 1.2 Power Reduction for SAR This device uses two proximity sensors for SAR compliance. One IR sensor is activated when the device is held to the ear in voice and data operations, while the capacitive grip sensor is activated when used in close proximity to the user’s body. Both the proximity sensors trigger power reduction for all voi…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LGTN5120 FCC Pt. 22, 24 GSM/ EDGE/ WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1302010146.A3L March 18-25, 2013 Portable Tablet Computer Page 1 of 48 © 2013 PCTEST Engineering Laboratory, Inc. V 2.8 01/16/2013 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. March 18-25, 2013 129, Samsung-ro, Yeongtong-gu Test Site/Location: Suwon-city, Gyeonggi-do, 443-803 PCTEST Lab., Columbia, MD, USA Republic of Korea Test Report Serial No.: 0Y1302010146.A3L FCC ID: A3LGTN5120 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. Application Type: Certification Model(s): GT-N5120 EUT Type: Portable Tablet Computer FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2 §22(H) §24(E) Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 Test Device Serial No.: identical prototype [S/N: 77,72,75] Max. Power (W) Max. Power (dBm) GSM850824.2 - 848.8244KGXW0.40126.03 EDGE850824.2 - 848.8242KG7W0.13621.35 GSM19001850.2 - 1909.8247KGXW1.12730.52 EDGE19001850.2 - 1909.8240KG7W0.32525.12 WCDMA850826.4 - 846.64M16F9W0.04916.91 ERP/EIRP Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22, 24 Reviewed by: FCC ID: A3LGTN5120 FCC Pt. 22, 24 GSM/ EDGE/ WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1302010146.A3L March 18-25, 2013 Portable Tablet Computer Page 2 of 48 © 2013 PCTEST Engineering Laboratory, Inc. V 2.8 01/16/2013 TABLE OF CONTENTS FCC PART 22, 24 MEASUREMENT REPORT............................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 EVALUATION PROCEDURE.............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.5 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.6 OCCUPIED BANDWIDTH ................................................................................................................... 7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.8 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 7 3.9 PEAK-AVERAGE RATIO ..................................................................................................................... 8 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 9 4.0 TEST EQUIPMENT CALIBRATION DATA ....................................................................................10 5.0 SAMPLE CALCULATIONS ............................................................................................................11 6.0 TEST RESULTS .............................................................................................................................12 6.1 SUMMARY......................................................................................................................................... 12 6.2 CELLULAR EFFECTIVE RADIATED POWER (ERP)....................................................................... 13 6.3 PCS EFFECTIVE RADIATED POWER (EIRP).................................................................................. 14 6.4 CELLULAR GSM RADIATED MEASUREMENTS ............................................................................. 15 6.5 CELLULAR WCDMA RADIATED MEASUREMENTS....................................................................... 18 6.6 PCS GSM RADIATED MEASUREMENTS .............................................…

Text truncated - open the document above for the full version.

Samsung FCC ID: A3LGTN5120 Model: GT-N5120 Test Set-Up Photos EUT Type: Portable Tablet computer Page 1 of 2 © 2013 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung FCC ID: A3LGTN5120 Model: GT-N5120 Test Set-Up Photos EUT Type: Portable Tablet computer Page 2 of 2 © 2013 PCTEST Engineering Laboratory Inc.

FCC IDA3LGTN5120 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 7 03/11/13 - 03/19/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC IDA3LGTN5120 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 2 of 7 03/11/13 - 03/19/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 SAR Test Setup Photo 1 – Right Cheek SAR Test Setup Photo 2 – Right Tilt FCC IDA3LGTN5120 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 3 of 7 03/11/13 - 03/19/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 SAR Test Setup Photo 3 – Left Cheek SAR Test Setup Photo 4 – Left Tilt FCC IDA3LGTN5120 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 4 of 7 03/11/13 - 03/19/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 SAR Test Setup Photo 5 – Back Side at 0.0 cm SAR Test Setup Photo 6 – Back Side at 0.8 cm FCC IDA3LGTN5120 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 5 of 7 03/11/13 - 03/19/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 SAR Test Setup Photo 7 – Top Edge at 0.0 cm SAR Test Setup Photo 8 – Top Edge at 0.7 cm FCC IDA3LGTN5120 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 6 of 7 03/11/13 - 03/19/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 SAR Test Setup Photo 9 – Right Edge at 0.0 cm SAR Test Setup Photo 10 – Left Edge at 0.0 cm FCC IDA3LGTN5120 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 7 of 7 03/11/13 - 03/19/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.2 M 12/17/2012 Vertical Reference Line Horizontal Reference Line SAR Test Setup Photo 11 – DUT Reference Lines
