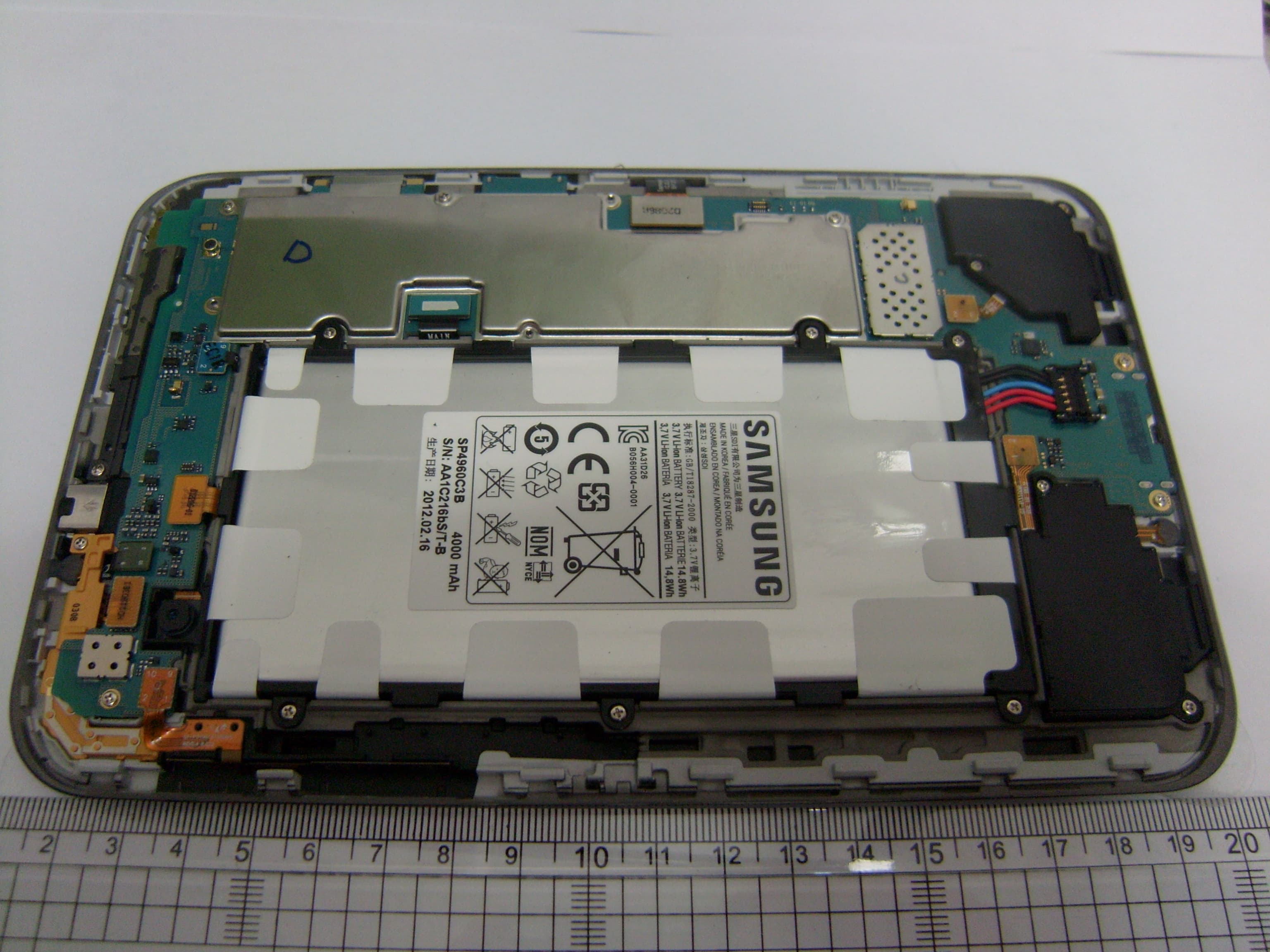

A3LGTP3100BTablet with GSM/GPRS/EDGE/WCDMA,802.11bgn,BT3.0

Some of the contents in this manual may differ from your device depending on the software of the device or your service provider. www.samsung.com English (EU). 11/2011. Rev. 1.0 To install Kies (PC Sync) Download the latest version of Kies from the 1. Samsung website ( www.samsung.com/kies) and install it on your PC. Using a USB cable, connect your device to your PC. 2. Samsung Kies will launch automatically. Refer to the Kies help for more information. GT-P6200 quick start guide View the electronic version of the user manual For more information, refer to the user manual at www.samsung.com. The manual is available as an Adobe Acrobat file (.pdf). If you do not have Adobe Reader, you can download the free program at www.adobe.com. *73% Using this manual 2 Using this manual Congratulations on your purchase of the Samsung mobile device. This powerful, “go anywhere” device, puts the best of the web and mobile computing at your fingertips in a lightweight, highly versatile platform that fits your active lifestyle. Built on the Google Android operating system, the Samsung mobile device gives you access to thousands of useful and entertaining applications to enrich your mobile web experience. With integrated wireless access and a responsive touch screen, you can read books and newspapers on the go; stay up-to-date on the latest news, sports, and weather; manage your multimedia and business files; and browse the web for maps, business locations, and more. Read me first Please read all safety precautions and this manual carefully ● before using your device to ensure safe and proper use. The descriptions in this manual are based on the default ● settings of your device. Images and screenshots used in this user manual may differ ● in appearance from the actual product. Content in this user manual may differ from the product, ● or from software provided by service providers or carriers, and is subject to change without prior notice. Refer to www.samsung.com for the latest version of the user manual. Available features and additional services may vary by ● device, software, or service provider. Using this manual 3 Formatting and delivery of this user manual is based ● on Google Android operating systems and may vary depending on the user’s operating system. Applications and their functions may vary by country, ● region, or hardware specifications. Samsung is not liable for performance issues caused by third-party applications. Samsung is not liable for performance issues or ● incompatibilities caused by user editing of registry settings. You may upgrade your mobile device’s software by ● accessing www.samsung.com. Software, sound sources, wallpapers, images, and other ● contents provided in this device are licenced for limited use between Samsung and their respective owners. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Samsung is not liable for such copyright infringement by the user. Please keep this manual for future reference. ● Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your device or other equipment Note—notes, usage tips, or additional information Using this manual 4 ► Refer to—pages with related information; for example: ► p. 12 (represents “see page 12”) → Followed by—the order of options or menus you must select to perform a step; for example: Open the application list and select Settings → Wireless and networks (represents Settings, followed by Wireless and networks) [] Square brackets—device keys; for example: [ ] (represents the Power/Reset/Lock key) Copyright Copyright © 2011 Samsung Electronics This user manual is protected under international copyright laws. No part of this user manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. Trademarks SAMSUNG and the SAMSUNG logo are registered ● trademarks of Samsung Electronics. The Android logo, Google Search ● ™ , Google Maps ™ , Google Mail ™ , YouTube ™ , Android Market ™ , and Google Talk ™ are trademarks of Google, Inc. Using this manual 5 Bluetooth ● ® is a registered trademark of the Bluetooth SIG, Inc. worldwide. Oracle and Java are registered trademarks of Oracle and/ ● or its affiliates. Other names may be trademarks of their respective owners. Windows Media Player ● ® is a registered trademark of Microsoft Corporation. Wi-Fi ● ® , the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. DivX ● ® , DivX Certified ® , and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under licence. All other trademarks and copyrights are the property of ● their respective owners. Using this manual 6 ABOUT DIVX VIDEO DivX ® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified ® device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX videos. DivX Certified ® to play DivX ® video up to HD 720p, including premium content ABOUT DIVX VIDEO-ON-DEMAND This DivX Certified ® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. Contents 7 Assembling ............................................................. 11 Unpack .................................................................................... 11 Install the SIM or USIM card ............................................... 12 Charge the battery ...…

Text truncated - open the document above for the full version.

Date: , 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: The rationale for the inclusion of head SAR tests for a tablet device. FCC ID: A3LGTP310 To Whom It May Concern: This portable tablet device allows for the use of next to head operation. It has a receiver which is located on the front-top edge of the device for supporting the voice and VoIP call mode. The measurement results show you that this device is designed not to exceed the limits for exposure to radio waves (radio frequency electromagnetic field energy) recommended by FCC guidelines. And for your information, two speakers and one microphone are located on the front-bottom side of the device. If you require additional information please contact the undersigned. Best Regards, Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 310-900-5250 FAX: 310-537-5500 E-mail: [email protected]

Date: February 9, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of UL CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of UL CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 310-900-5250 FAX: 310-537-5500 E-mail: [email protected] REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: April 4, 2012 FCC ID: A3LGTP3100B We, Samsung Electronics Co., Ltd., declare on our sole responsibility that the product Basic Additional Model GT-P3100 Model GT-P3100B HW version : REV1.0 HW version : REV1.0 SW version : P3100.006 SW version : P3100.006 The only difference between the GT-P3100B and the GT-P3100 is: 1. H/W - Main Ant for GSM850/PCS/WCDMA850/WCDMA1900 changed. - All of H/W are same without Main Antenna. 2. S/W - All of the S/W features of GT-P3100B are the same as GT-P3100 Should you have any further concerns, please let me know. Sang Kyung (Peter), Ra General Manager Samsung Electronics CO. LTD TEL: +1-310-900-5250 E-mail: [email protected]

Date: A Federa l 7435 O Colum b Subjec t FCC I D To Wh o Pursua n 0.457, 0 confide Schem a Block D Operat Antenn Parts L Above m as propr docume the mar In addi t Commi the imp remains the com 180 da Extern Intern a Test Se User M April 12, 201 l Communic akland Mill bia MD 210 t: Req D: A3L om It May C nt to the pro 0.459), we a ential docum atics Diagram tional Desc na Specifica List mentioned d rietary infor ents might b rket. tional to abo ission’s poli portation rul s confidenti mmission to ays al Photos al Photos etup Photos Manual 12 cations Com ls Road 046 quest for Co LGTP0 Concern: ovisions of S are requestin ment from pu ription ation document c rmation in o be harmful t ove mention icy, in order les in 47 CF ial until the grant short s mmission onfidentialit 0 Sections 0.4 ng the Com ublic disclo contains det operation of to our comp ned docume r to comply FR §2.1204, actual mark -term confid ty 457 and 0.45 mmission to osure indefin ailed system f the equipm pany and wo ents, pursua y with the m , while ensu keting of ne dentiality re 59 of the Co withhold th nitely. m and equip ment. The p ould give co ant to Public marketing reg uring that bu ewly authori equest on th ommission’ he following pment descr public disclo ompetitor an c Notice DA gulations in usiness sens ized device he following ’s rules (47 g attachmen ription are c osure of abo n unfair adv A 04-1705 o n 47 CFR §2 sitive inform s. We are r g attachmen CFR §§ nts as considered ove vantage in of the 2.803 and mation requesting nts until It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 310-900-5250 FAX: 310-537-5500 E-mail: [email protected]

Label an S F Label: Location o Tablet: F nd Location amsung Pho CC ID: n Back plate f GT-P310 FCC ID is pr n one Model: Top Bottom inted on the GT-P31 A3LGT bottom of d 100B TP3100B device

FCC OET BULLETIN 65 SUPPLEMENT C 01-01 IEEE Std 1528-2003 SAR EVALUATION REPORT For Tablet with GSM/GPRS/EDGE/WCDMA, 802.11bgn, BT3.0 Model: GT-P3100B FCC ID: A3LGTP3100B Report number: 12I14351-2A Issue Date: 4/20/2012 Prepared for Samsung Electronics Co., LTD 416, Maetan 3-Dong, Yeongtong-Gu Suwon-City, GyeonGggi-Do 443-742, South Korea Prepared for COMPLIANCE CERTIFICATION SERVICES (UL CCS) 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 Report No.: 12I14351-2A Issue Date: 4/20/2012 FCC ID: A3LGTP3100B Page 2 of 81 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Revision History Rev. Issue Date Revisions Revised By -- 4/13/2012 Initial Issue -- A 4/20/2012 Corrected section 7.3 to indicate that hotspot mode is supported. Updated note in 7.2 to clarify hotspot test rationale Corrected section 13 GSM head SAR results to indicate voice mode Added a note in section 13 to explain the differences in SAR values between A3LGTP3100B and A3LGTP3100 Dave Weaver Report No.: 12I14351-2A Issue Date: 4/20/2012 FCC ID: A3LGTP3100B Page 3 of 81 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Table of Contents 1. Attestation of Test Results ............................................................................................................. 6 2. Test Methodology ........................................................................................................................... 7 3. Facilities and Accreditation ........................................................................................................... 7 4. Calibration and Uncertainty ........................................................................................................... 8 4.1. Measuring Instrument Calibration .............................................................................................. 8 4.2. Measurement Uncertainty .......................................................................................................... 9 5. Measurement System Description and Setup ............................................................................. 10 6. SAR Measurement Procedures .................................................................................................... 11 6.1. Normal SAR Measurement Procedure ..................................................................................... 11 6.2. Volume Scan Procedures ........................................................................................................ 12 7. Device Under Test ......................................................................................................................... 13 7.1. Band and Air Interlaces ............................................................................................................ 13 7.2. Simultaneous Transmission Conditions ................................................................................... 13 7.3. Hotspot (Wireless router) Exposure Condition ......................................................................... 13 7.4. Power Sensor .......................................................................................................................... 14 7.5. Power Reduction Implementation ............................................................................................ 14 7.6. Summary Table of Power Reduction dB Levels per Mode & Band ........................................... 15 7.7. Sensor Coverage Area ............................................................................................................ 21 7.7.1. Edge Coverage ................................................................................................................. 21 7.7.2. Vertex Coverage / Top Left Corner ................................................................................... 22 7.8. Targeted Power Reduction Levels ........................................................................................... 23 8. Summary of Test Configurations ................................................................................................. 24 8.1. Exposure Conditions for WWAN .............................................................................................. 24 8.2. Exposure Conditions for WiFi ................................................................................................... 24 9. RF Output Power Measurement ................................................................................................... 25 9.1. GSM850 .................................................................................................................................. 25 9.2. GSM1900 ................................................................................................................................ 26 9.3. W-CDMA (UMTS) Band V........................................................................................................ 27 9.4. W-CDMA (UMTS) Band II ........................................................................................................ 31 9.5. Wi-Fi 802.11bgn ...................................................................................................................... 35 9.6. Bluetooth ................................................................................................................................. 35 10. Tissue Dielectric Property ........................................................................................................ 36 Report No.: 12I14351-2A Issue Date: 4/20/2012 FCC ID: A3LGTP3100B Page 4 of 81 COMPLIANCE CERTIFICATION …

Text truncated - open the document above for the full version.

Test Laboratory: UL CCS SAR Lab B Date: 3/22/2012 20120322_SystemPerformanceCheck-D2450V2 SN 748 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 1.99 mho/m; ε r = 51.214; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE4 Sn1259; Calibrated: 2/13/2012 - Probe: EX3DV3 - SN3531; ConvF(7.44, 7.44, 7.44); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (B); Type: QDOVA001BB; Serial: 1118 Body/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 4.609 mW/g Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 59.223 V/m; Power Drift = 0.0073 dB Peak SAR (extrapolated) = 10.7020 SAR(1 g) = 5.17 mW/g; SAR(10 g) = 2.4 mW/g Maximum value of SAR (measured) = 7.329 mW/g 0 dB = 7.330mW/g = 17.30 dB mW/g Test Laboratory: UL CCS SAR Lab B Date: 3/22/2012 20120322_SystemPerformanceCheck-D2450V2 SN 748 Frequency: 2450 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 4.304 mW/g Test Laboratory: UL CCS SAR Lab B Date: 3/22/2012 20120322_SystemPerformanceCheck-D2450V2 SN 748 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 1.79 mho/m; ε r = 38.191; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE4 Sn1259; Calibrated: 2/13/2012 - Probe: EX3DV3 - SN3531; ConvF(7.4, 7.4, 7.4); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1120 Head/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 6.669 mW/g Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 67.262 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 11.6050 SAR(1 g) = 5.57 mW/g; SAR(10 g) = 2.58 mW/g Maximum value of SAR (measured) = 7.948 mW/g 0 dB = 7.950mW/g = 18.01 dB mW/g Test Laboratory: UL CCS SAR Lab B Date: 3/22/2012 20120322_SystemPerformanceCheck-D2450V2 SN 748 Frequency: 2450 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 3.924 mW/g Test Laboratory: UL CCS SAR Lab B Date: 3/23/2012 20120323_SystemPerformanceCheck-D1900V2 SN 5d043 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1900 MHz; σ = 1.515 mho/m; ε r = 53.547; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE4 Sn1259; Calibrated: 2/13/2012 - Probe: EX3DV3 - SN3531; ConvF(7.91, 7.91, 7.91); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1120 Body/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 5.342 mW/g Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 61.921 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 7.8180 SAR(1 g) = 4.34 mW/g; SAR(10 g) = 2.28 mW/g Maximum value of SAR (measured) = 5.782 mW/g 0 dB = 5.780mW/g = 15.24 dB mW/g Test Laboratory: UL CCS SAR Lab B Date: 3/23/2012 20120323_SystemPerformanceCheck-D1900V2 SN 5d043 Frequency: 1900 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 3.325 mW/g Test Laboratory: UL CCS SAR Lab B Date: 3/23/2012 20120323_SystemPerformanceCheck-D1900V2 SN 5d043 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1900 MHz; σ = 1.394 mho/m; ε r = 39.834; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE4 Sn1259; Calibrated: 2/13/2012 - Probe: EX3DV3 - SN3531; ConvF(8.53, 8.53, 8.53); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1629 Head/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 4.104 mW/g Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 62.573 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 7.4630 SAR(1 g) = 4.05 mW/g; SAR(10 g) = 2.13 mW/g Maximum value of SAR (measured) = 5.461 mW/g 0 dB = 5.460mW/g = 14.74 dB mW/g Test Laboratory: UL CCS SAR Lab B Date: 3/23/2012 20120323_SystemPerformanceCheck-D1900V2 SN 5d043 Frequency: 1900 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 3.041 mW/g Test Laboratory: UL CCS SAR Lab B Date: 3/26/2012 20120326_SystemPerformanceCheck-D835V2 SN 4d117 Frequency: 835 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 835 MHz; σ = 0.99 mho/m; ε r = 55.857; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE4 Sn1259; Calibrated: 2/13/2012 - Probe: EX3DV3 - SN3531; ConvF(10, 10, 10); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (B); Type: QDOVA001BB; Serial: 1118 Body/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.099 mW/g Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.632 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 1.4930 SAR(1 g) = 1.02 mW/g; SAR(10 g) = 0.674 mW/g Maximum value of SAR (measured) = 1.235 mW/g 0 dB = 1.230mW/g = 1.80 dB mW/g Test Laboratory: UL CCS SAR Lab B Date: 3/26/2012 20120326_SystemPerformanceCheck-D835V2 SN 4d117 Frequency: 835 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 0.837 mW/g Test Laboratory: UL CCS …

Text truncated - open the document above for the full version.

Test Laboratory: UL CCS SAR Lab B Date: 3/27/2012 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:8.30042; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.892 mho/m; ε r = 42.8; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE4 Sn1259; Calibrated: 2/13/2012 - Probe: EX3DV3 - SN3531; ConvF(9.81, 9.81, 9.81); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1629 Left/Touch_Ch 190/Area Scan (10x13x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.294 mW/g Left/Touch_Ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.934 V/m; Power Drift = -0.0036 dB Peak SAR (extrapolated) = 0.3880 SAR(1 g) = 0.261 mW/g; SAR(10 g) = 0.178 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.314 mW/g 0 dB = 0.310mW/g = -10.17 dB mW/g Test Laboratory: UL CCS SAR Lab B Date: 3/27/2012 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:8.30042; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.892 mho/m; ε r = 42.8; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE4 Sn1259; Calibrated: 2/13/2012 - Probe: EX3DV3 - SN3531; ConvF(9.81, 9.81, 9.81); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1629 Left/Tilt_Ch 190/Area Scan (10x13x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.371 mW/g Left/Tilt_Ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.588 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.4610 SAR(1 g) = 0.316 mW/g; SAR(10 g) = 0.210 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.380 mW/g 0 dB = 0.380mW/g = -8.40 dB mW/g Test Laboratory: UL CCS SAR Lab B Date: 3/27/2012 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:8.30042; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.892 mho/m; ε r = 42.8; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE4 Sn1259; Calibrated: 2/13/2012 - Probe: EX3DV3 - SN3531; ConvF(9.81, 9.81, 9.81); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1629 Right/Touch_Ch 190/Area Scan (10x13x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.647 mW/g Right/Touch_Ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.843 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.8570 SAR(1 g) = 0.504 mW/g; SAR(10 g) = 0.307 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.616 mW/g 0 dB = 0.620mW/g = -4.15 dB mW/g Test Laboratory: UL CCS SAR Lab B Date: 3/27/2012 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:8.30042 Right/Touch_Ch 190/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.631 mW/g Test Laboratory: UL CCS SAR Lab B Date: 3/27/2012 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:8.30042; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.892 mho/m; ε r = 42.8; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE4 Sn1259; Calibrated: 2/13/2012 - Probe: EX3DV3 - SN3531; ConvF(9.81, 9.81, 9.81); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1629 Right/Tilt_Ch 190/Area Scan (10x13x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.539 mW/g Right/Tilt_Ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 24.817 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 0.8280 SAR(1 g) = 0.476 mW/g; SAR(10 g) = 0.288 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.583 mW/g 0 dB = 0.580mW/g = -4.73 dB mW/g Test Laboratory: UL CCS SAR Lab B Date: 3/26/2012 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:2.60016; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.992 mho/m; ε r = 55.844; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE4 Sn1259; C…

Text truncated - open the document above for the full version.
