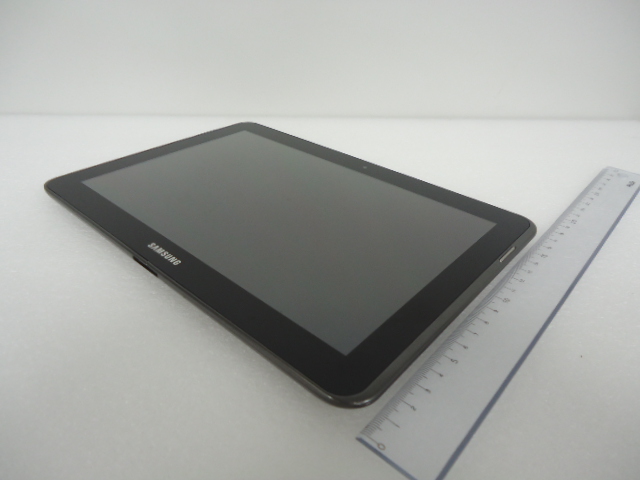

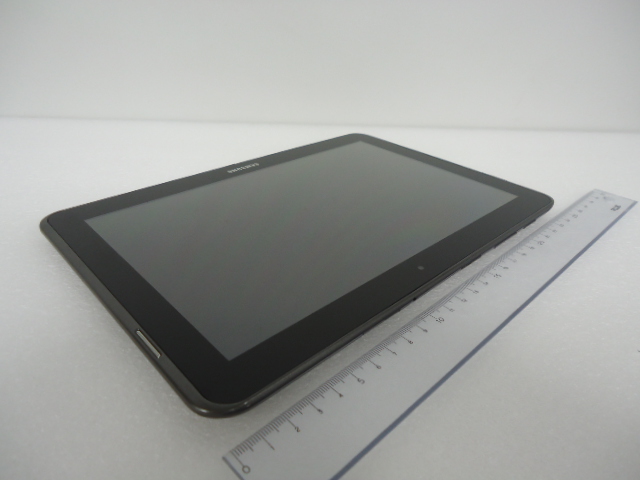

A3LGTP5100TABLET with GSM/GPRS/EDGE/WCDMA, 802.11bgn, BT3.0

View the electronic version of the user manual For more information, refer to the user manual at www.samsung.com. The manual is available as an Adobe Acrobat file (.pdf ). If you do not have Adobe Reader, you can download the free program at www.adobe.com. GT-P5100 Using this manual 2 Using this manual Congratulations on your purchase of the Samsung mobile device. This powerful, “go anywhere” device, puts the best of the web and mobile computing at your fingertips in a lightweight, highly versatile platform that fits your active lifestyle. Built on the Google Android operating system, the Samsung mobile device gives you access to thousands of useful and entertaining applications to enrich your mobile web experience. With integrated wireless access and a responsive touch screen, you can read books and newspapers on the go; stay up-to-date on the latest news, sports, and weather; manage your multimedia and business files; and browse the web for maps, business locations, and more. Read me first Please read all safety precautions and this manual carefully ● before using your device to ensure safe and proper use. The descriptions in this manual are based on the default ● settings of your device. Images and screenshots used in this user manual may differ ● in appearance from the actual product. Content in this user manual may differ from the product, ● or from software provided by service providers or carriers, and is subject to change without prior notice. Refer to www.samsung.com for the latest version of the user manual. Available features and additional services may vary by ● device, software, or service provider. Using this manual 3 Formatting and delivery of this user manual is based ● on Google Android operating systems and may vary depending on the user’s operating system. Applications and their functions may vary by country, ● region, or hardware specifications. Samsung is not liable for performance issues caused by third-party applications. Samsung is not liable for performance issues or ● incompatibilities caused by user editing of registry settings. You may upgrade your mobile device’s software by ● accessing www.samsung.com. Software, sound sources, wallpapers, images, and other ● contents provided in this device are licenced for limited use between Samsung and their respective owners. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Samsung is not liable for such copyright infringement by the user. Please keep this manual for future reference. ● Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your device or other equipment Note—notes, usage tips, or additional information Using this manual 4 ► Refer to—pages with related information; for example: ► p. 12 (represents “see page 12”) → Followed by—the order of options or menus you must select to perform a step; for example: Open the application list and select Settings → Wireless and networks (represents Settings, followed by Wireless and networks) [] Square brackets—device keys; for example: [ ] (represents the Power/Reset/Lock key) Copyright Copyright © 2011 Samsung Electronics This user manual is protected under international copyright laws. No part of this user manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. Trademarks SAMSUNG and the SAMSUNG logo are registered ● trademarks of Samsung Electronics. The Android logo, Google Search ● ™ , Google Maps ™ , Google Mail ™ , YouTube ™ , Android Market ™ , and Google Talk ™ are trademarks of Google, Inc. Using this manual 5 Bluetooth ● ® is a registered trademark of the Bluetooth SIG, Inc. worldwide. Oracle and Java are registered trademarks of Oracle and/ ● or its affiliates. Other names may be trademarks of their respective owners. Windows Media Player ● ® is a registered trademark of Microsoft Corporation. Wi-Fi ● ® , the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. DivX ● ® , DivX Certified ® , and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under licence. All other trademarks and copyrights are the property of ● their respective owners. Using this manual 6 ABOUT DIVX VIDEO DivX ® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified ® device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX videos. DivX Certified ® to play DivX ® video up to HD 720p, including premium content ABOUT DIVX VIDEO-ON-DEMAND This DivX Certified ® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. Contents 7 Assembling ............................................................. 11 Unpack .................................................................................... 11 Install the SIM or USIM card ............................................... 12 Charge the battery ............................................................... 12 Insert a memory card (optional) ....................................... 14 Getting started ....................................................... 17 Turn your device on and off ............................................... 17 Get to know your device ..................................................... 18 Use the touch screen ........................................................... 23 Get to know the Home screen…

Text truncated - open the document above for the full version.

Date: Feb Federal C 7435 Oak Columbi Subject: FCC ID: To Who m Pursuant 0.457, 0. 4 confident Schemat Block Di Operatio Antenna Parts Lis Tune up Above m as propri docume n the mark In additio Commiss the impo remains c the comm 180 day Externa l Internal Test Set u User Ma bruary 7, 20 Communicat kland Mills R a MD 21046 Reque A3LG m It May Co to the provi 459), we are tial documen tics iagram onal Descrip a Specificati st p procedure mentioned do etary inform nts might be et. onal to abov sion’s policy rtation rules confidential mission to gr ys l Photos Photos up Photos anual 12 tions Comm Road 6 est for Confi GTP5100 oncern: isions of Sec e requesting nt from publ ption ion ocument cont mation in ope harmful to o e mentioned y, in order to in 47 CFR until the act rant short-ter ission identiality ctions 0.457 the Commis lic disclosure tains detaile eration of the our company d documents o comply wit §2.1204, wh tual marketin rm confident and 0.459 o ssion to with e indefinitely d system and e equipment y and would , pursuant t o th the marke hile ensuring ng of newly tiality reque f the Comm hhold the fol y. d equipmen t . The public give compe o Public Not eting regulati g that busines authorized d st on the fol mission’s rule lowing attac t description c disclosure etitor an unfa tice DA 04-1 ions in 47 C ss sensitive i devices. We llowing attac es (47 CFR § chments as n are conside of above air advantage 1705 of the CFR §2.803 a information e are request chments unti §§ ered e in and ting il It is our u correspon and such authoriza Best Reg Sang K Samsun TEL: 310 FAX: 31 E-mail: understandin ndence durin information ation is issue gards Kyung (Pet ng Electro 0-900-5250 10-537-550 raaaa@sa ng that all m ng certificati n will be ava ed. ter), Ra/ G nics CO. L 0 0 amsung.co easurement ion review p ailable for pu General Ma TD om test reports, process canno ublic review anager FCC ID la b ot be granted once the gra bel format an d as confide ant of equipm nd ential docum ment ments

Date: February 9, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of UL CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of UL CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 310-900-5250 FAX: 310-537-5500 E-mail: [email protected] REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Label and Location Samsung Phone Model: GT-P5100 FCC ID: A3LGTP5100 Label: Location: Top Back of device Bottom FCC ID is printed on bottom of the back side.

Test report No. : 32FE0253-HO-G-R2 Page : 120 of 145 FCC ID : A3LGTP5100 Issued date : February 27, 2012 Revised date : March 15, 2012 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 3 : System specifications 1. Configuration and peripherals The DASY5 system for performing compliance tests consist of the following items: a) A standard high precision 6-axis robot (Stäubli RX family) with controller and software. An arm extension for accommodating the data acquisition electronics (DAE). b) An isotropic field probe optimized and calibrated for the targeted measurement. c) A data acquisition electronic (DAE), which performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. The unit is battery powered with standard or rechargeable batteries. The signal is optically transmitted to the EOC. d) The Electro-optical converter (EOC) performs the conversion between optical and electrical of the signals for the digital communication to the DAE and for the analog signal from the optical surface detection. The EOC is connected to the measurement server. e) The function of the measurement server is to perform the time critical tasks such as signal filtering, control of the robot operation and fast movement interrupts. f) The Light Beam used is for probe alignment. This improves the (absolute) accuracy of the probe positioning. g) A computer running WinXP and the DASY5 software. h) Remote control with teaches pendant and additional circuitry for robot safety such as warning lamps, etc. i) The phantom, the device holder and other accessories according to the targeted measurement. Test report No. : 32FE0253-HO-G-R2 Page : 121 of 145 FCC ID : A3LGTP5100 Issued date : February 27, 2012 Revised date : March 15, 2012 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 2. Specifications a)Robot TX60L Number of Axes : 6 Nominal Load : 2 kg Maximum Load : 5kg Reach : 920mm Repeatability : +/-0.03mm Control Unit : CS8c Programming Language : VAL3 Weight : 52.2kg Manuafacture : Stäubli Robotics b)E-Field Probe Model : EX3DV4 Serial No. : 3825 Construction : Symmetrical design with triangular core Built-in shielding against static charges PEEK enclosure material (resistant to organic solvents, e.g., glycol ether) Frequency : 10 MHz to > 6 GHz Linearity: ± 0.2 dB (30 MHz to 6 GHz) Directivity : +/-0.3 dB in HSL (rotation around probe axis) +/-0.5 dB in tissue material (rotation normal probe axis) Dynamic Range : 10uW/g to > 100 mW/g;Linearity +/-0.2 dB(noise: typically < 1uW/g) Dimensions : Overall length: 337 mm (Tip: 20 mm) Tip diameter: 2.5mm (Body: 12 mm) Typical distance from probe tip to dipole centers: 1 mm Application : Highprecision dosimetric measurement in any exposure scenario (e.g., very strong gradient fields).Only probe which enables compliance testing for frequencies up to 6GHz with precision of better 30%. Manufacture : Schimid & Partner Engineering AG Model : ET3DV6 Serial No. : 1685 Construction : Symmetrical design with triangular core Built-in shielding against static charges PEEK enclosure material (resistant to organic solvents, e.g., glycol ether) Frequency : 10 MHz to 2.3 GHz Linearity: ± 0.2 dB (30 MHz to 2.3 GHz) Directivity : +/-0.2 dB in HSL (rotation around probe axis) +/-0.4 dB in tissue material (rotation normal probe axis) Dynamic Range : 5 μW/g to > 100 mW/g; Linearity: ± 0.2 dB Optical Surface Detection : ± 0.2 mm repeatability in air and clear liquids over diffuse reflecting surfaces Dimensions : Overall length: 337 mm (Tip: 16 mm) Tip diameter: 6.8 mm (Body: 12 mm) Distance from probe tip to dipole centers: 2.7 mm Application : General dosimetric measurements up to 2.3 GHz Compliance tests of mobile phones Fast automatic scanning in arbitrary phantoms Manufacture : Schimid & Partner Engineering AG EX3DV4 E-field Probe ET3DV6 E-field Probe Test report No. : 32FE0253-HO-G-R2 Page : 122 of 145 FCC ID : A3LGTP5100 Issued date : February 27, 2012 Revised date : March 15, 2012 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 c)Data Acquisition Electronic (DAE4) Features : Signal amplifier, multiplexer, A/D converter and control logic Serial optical link for communication with DASY5 embedded system (fully remote controlled) Two step probe touch detector for mechanical surface detection and emergency robot stop Measurement Range : -100 to +300 mV (16 bit resolution and two range settings: 4mV, 400mV) Input Offset voltage : < 5 μV (with auto zero) Input Resistance : 200 MΩ Input Bias Current : < 50 fA Battery Power : > 10 h of operation (with two 9.6 V NiMH accus) Dimension : 60 x 60 x 68 mm Manufacture : Schimid & Partner Engineering AG d)Electro-Optic Converter (EOC) Version : EOC 61 Descrption : for TX60 robot arm, including proximity sensor Manufacture : Schimid & Partner Engineering AG e)DASY5 Measurement server Features : Intel ULV Celeron 400MHz 128MB chip disk and 128MB RAM 16 Bit A/D converter for surface detection system Vacuum Fluorescent Display Robot Interface Serial link to DAE (with watchdog supervision) Door contact port (Possibility to connect a light curtain) Emergency stop port (to connect the remote control) Signal lamps port Light beam port Three Ethernet connection ports Two USB 2.0 Ports Two serial links Expansion port for future applications Dimensions (L x W x H) : 440 x 241 x 89 mm Manufacture : Schimid & Partner Engineering AG f) Light Beam Switches Version : LB5 Dimensions (L x H) : 110 x 80 mm Thickness : 12 mm Beam-length : 80 mm Manufacture : Schimid & Partner Engineering AG g)Software Item : Dosimetric Assesment System DASY5 Type No. : SD 000 401A, SD 000 402A Software version No. : DASY52,…

Text truncated - open the document above for the full version.

Test report No. : 32FE0253-HO-Q-R3 Page : 1 of 145 FCC ID : A3LGTP5100 Issued date : February 27, 2012 Revised date : March 27, 2012 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 13-EM-F0429 SAR TEST REPORT Test Report No. : 32FE0253-HO-Q-R3 Applicant :SAMSUNG ELECTRONICS CO., LTD. Type of Equipment :GPRS850/1900, EDGE850/1900, WCDMA2, WCDMA5 Tablet with 802.11bgn, BT3.0+EDR Model No. :GT-P5100 FCC ID :A3LGTP5100 Test regulation :FCC47CFR 2.1093 FCC OET Bulletin 65, Supplement C (Edition 01-01) Test Result :Complied FCC Part 22H Body : 0.833W/kg FCC Part 24E Body : 1.15W/kg FCC Part 15C Body : 0.509W/kg 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. 6. This report is a revised version of 32FE0253-HO-Q-R2. 32FE0253-HO-Q-R2 is replaced with this report. Date of test: February 8 to 16, 2012 Representative test engineer: Hisayoshi Sato Engineer of WiSE Japan, UL Verification Service Approved by : Takahiro Hatakeda Leader of WiSE Japan UL Verification Service NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/ma rk1/index.jsp#nvlap Test report No. : 32FE0253-HO-Q-R3 Page : 2 of 145 FCC ID : A3LGTP5100 Issued date : February 27, 2012 Revised date : March 27, 2012 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 1: Customer information .............................................................................................................................................................. 3 SECTION 2: Equipment under test (E.U.T.) ................................................................................................................................................ 3 2.1 Identification of E.U.T. ....................................................................................................................................... 3 2.2 Product description ............................................................................................................................................. 4 SECTION 3 : Test standard information ...................................................................................................................................................... 5 3.1 Test Specification ............................................................................................................................................... 5 3.2 Procedure ............................................................................................................................................................ 5 3.3 Exposure limit..................................................................................................................................................... 6 3.4 Test Location ...................................................................................................................................................... 6 SECTION 4 : Test result ................................................................................................................................................................................. 7 4.1 Stand-alone SAR result....................................................................................................................................... 7 4.2 Simultaneous transmission SAR result ............................................................................................................... 7 SECTION 5 : Description of the operating mode ......................................................................................................................................... 9 5.1 Output power operating modes ........................................................................................................................... 9 5.2 Output power measurement results ..................................................................................................................... 10 5.3 Detail for Power Reduction and sensor recognition distance ............................................................................. 20 5.4 SAR testing operating modes.............................................................................................................................. 20 5.5 Confirmation before SAR testing ....................................................................................................................... 22 5.6 Confirmation after SAR testing .......................................................................................................................... 22 SECTION6 : Description of the Body ............................................................................................................................................................ 23 6.1 Specification of sensor ........................................................................................................................................ 23 6.2 Description of the Body setup ............................................................................................................................ 23 SECTION 7 : Test surrounding ........................................................…

Text truncated - open the document above for the full version.

Test report No. : 32FE0253-HO-Q-R3 Page : 37 of 145 FCC ID : A3LGTP5100 Issued date : February 27, 2012 Revised date : March 27, 2012 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 1 : SAR Measurement data 1. Evaluation procedure The evaluation was performed with the following procedure: Step 1: Measurement of the E-field at a fixed location above the ear point or central position of flat phantom was used as a reference value for assessing the power drop. Step 2: The SAR distribution at the exposed side of head or body position was measured at a distance of each device from the inner surface of the shell. The area covered the entire dimension of the antenna of EUT and the horizontal grid spacing was 15 mm x 15 mm for below 3GHz. (or 10mm x 10mm for above 3GHz.). Based on these data, the area of the maximum absorption was determined by spline interpolation. Step 3: Around this point found in the Step 2 (area scan), a volume of 30mm x 30mm x 30mm or more was assessed by measuring 7 x 7 x 7 points at least for below 3GHz and a volume of 28 mm x 28mm x 22.5mm or more was assessed by measuring 8 x 8 x 10 points at least for 5GHz band. And for any secondary peaks found in the Step2 which are within 2dB of maximum peak and not with this Step3 (Zoom scan) is repeated. On the basis of this data set, the spatial peak SAR value was evaluated under the following procedure: (1). The data at the surface were extrapolated, since the center of the dipoles is 1mm(EX3DV3) away from the tip of the probe and the distance between the surface and the lowest measuring point is 1.3 mm. The extrapolation was based on a least square algorithm [4]. A polynomial of the fourth order was calculated through the points in z-axes. This polynomial was then used to evaluate the points between the surface and the probe tip. (2). The maximum interpolated value was searched with a straightforward algorithm. Around this maximum the SAR values averaged over the spatial volumes (1 g or 10 g) were computed by the 3D-Spline interpolation algorithm. The 3D-Spline is composed of three one-dimensional splines with the “Not a knot"-condition (in x, y and z-directions) [4], [5]. The volume was integrated with the trapezoidal-algorithm. One thousand points (10 x 10 x 10) were interpolated to calculate the average. (3). All neighboring volumes were evaluated until no neighboring volume with a higher average value was found. Step 4: Re-measurement of the E-field at the same location as in Step 1. Test report No. : 32FE0253-HO-Q-R3 Page : 38 of 145 FCC ID : A3LGTP5100 Issued date : February 27, 2012 Revised date : March 27, 2012 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 2. Measurement data i) GSM850 Body GT-P5100 GSM850 GPRS 4slots Rear 7mm 848.8MHz Communication System: GSM850; Communication System Band: Exported from older format (data unavailable - please correct).; Frequency: 848.8 MHz;Duty Cycle: 1:2.09894 Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.978 mho/m; ε r = 53.037; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration Probe: EX3DV4 - SN3825; ConvF(9.61, 9.61, 9.61); Calibrated: 2011/12/16 Sensor-Surface: 2mm (Mechanical Surface Detection) Electronics: DAE4 Sn509; Calibrated: 2011/07/20 Phantom: ELI 4.0; Type: QDOVA001BA; Measurement SW: DASY52, Version 52.8 (0); Area Scan (81x121x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.617 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.644 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.7250 SAR(1 g) = 0.443 mW/g; SAR(10 g) = 0.267 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.588 mW/g Date: 2012/02/15 Ambient Temp. : 24.0 degree.C. Liquid Temp.; 23.5 degree.C. Test report No. : 32FE0253-HO-Q-R3 Page : 39 of 145 FCC ID : A3LGTP5100 Issued date : February 27, 2012 Revised date : March 27, 2012 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 GT-P5100 GSM850 GPRS 4slots Rear 0mm 848.8MHz Communication System: GSM850; Communication System Band: Exported from older format (data unavailable - please correct).; Frequency: 848.8 MHz;Duty Cycle: 1:2.09894 Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.978 mho/m; ε r = 53.037; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration Probe: EX3DV4 - SN3825; ConvF(9.61, 9.61, 9.61); Calibrated: 2011/12/16 Sensor-Surface: 2mm (Mechanical Surface Detection) Electronics: DAE4 Sn509; Calibrated: 2011/07/20 Phantom: ELI 4.0; Type: QDOVA001BA; Measurement SW: DASY52, Version 52.8 (0); Area Scan (81x121x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 1.166 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.749 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 1.6090 SAR(1 g) = 0.833 mW/g; SAR(10 g) = 0.447 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.211 mW/g Date: 2012/02/15 Ambient Temp. : 24.0 degree.C. Liquid Temp.; 23.5 degree.C. Test report No. : 32FE0253-HO-Q-R3 Page : 40 of 145 FCC ID : A3LGTP5100 Issued date : February 27, 2012 Revised date : March 27, 2012 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Z Scan at Maximum BODY SAR position in GSM850 band GT-P5100 GSM850 GPRS 4slots Rear 0mm 848.8MHz Communicati…

Text truncated - open the document above for the full version.

Test report No. : 32FE0253-HO-Q-R3 Page : 77 of 145 FCC ID : A3LGTP5100 Issued date : February 27, 2012 Revised date : March 27, 2012 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 2 : System Validation System validation result for Body 900MHz Simulated Tissue Liquid Parameter confirmation Date Ambient Temp. [deg.c] Relative Humidity [%] Liquid type Liquid Temp. [deg.c] Measured Frequency [MHz] Parameters Target Value*1 Measured Deviation [%] Limit [%] εr 55.052.5-4.5+/-5 σ [mho/m] 1.051.03-1.8+/-5 εr 55.052.5-4.5+/-5 σ [mho/m] …

Text truncated - open the document above for the full version.
