A3LGTP5200Portable Tablet PC with Multi-band UMTS/GSM/EDGE, WLAN and Bluetooth

www.samsung.com User Manual GT-P5200 2 About this manual This device provides high quality mobile communication and entertainment using Samsung’s high standards and technological expertise. This user manual is specially designed to detail the device’s functions and features. • Please read this manual before using the device to ensure safe and proper use. • Descriptions are based on the device’s default settings. • Images and screenshots may differ in appearance from the actual product. • Content may differ from the final product, or from software provided by service providers or carriers, and is subject to change without prior notice. For the latest version of the manual, refer to the Samsung website, www.samsung.com. • Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Applications related to the content may not work properly depending on the device’s specifications and the environment that it is used in. • Available features and additional services may vary by device, software, or service provider. • Applications and their functions may vary by country, region, or hardware specifications. Samsung is not liable for performance issues caused by applications from any provider other than Samsung. • Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or applications to work improperly. • Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. • You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services. To avoid additional charges, select an appropriate data tariff plan. For details, contact your service provider. About this manual 3 • Default applications that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an application provided with the device, contact a Samsung Service Centre. For user-installed applications, contact service providers. • Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. Instructional icons Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to your device or other equipment Note: notes, usage tips, or additional information Copyright Copyright © 2013 Samsung Electronics This guide is protected under international copyright laws. No part of this guide may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. About this manual 4 Trademarks • SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics. • The Android logo, Google ™ , Google Maps ™ , Google Mail ™ , YouTube ™ , Google Play ™ Store, and Google Talk ™ are trademarks of Google, Inc. • Bluetooth ® is a registered trademark of Bluetooth SIG, Inc. worldwide. • Wi-Fi ® , Wi-Fi Protected Setup ™ , Wi-Fi Direct ™ , Wi-Fi CERTIFIED ™ , and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. • All other trademarks and copyrights are the property of their respective owners. DivX ® , DivX Certified ® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under licence. ABOUT DIVX VIDEO DivX ® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified ® device that has passed rigorous testing to verify that it plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND This DivX Certified ® device must be registered in order to play purchased DivX Video-on- Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. DivX Certified ® to play DivX ® video up to HD 720p, including premium content. 5 Table of Contents Getting started 7 Device layout 8 Buttons 9 Package contents 10 Installing the SIM or USIM card 11 Char ging the battery 13 I nserting a memory card 15 Turning the device on and off 15 Holding the device 16 L ocking and unlocking the device 16 Adjusting the volume 16 S witching to silent mode Basics 17 Indicator icons 18 Using the touch screen 21 Rotating the screen 21 Notifications 22 Quick setting panel 22 Home scr een 25 Using applications 26 A pplications screen 27 Help 27 Entering text 29 C onnecting to a Wi-Fi network 30 Setting up accounts 31 T ransferring files 32 Securing the device 34 Upg rading the device Communication 35 Phone 40 Contacts 44 Messaging 45 Email 47 Google Mail 48 Talk 49 Google+ 49 ChatON 50 Messenger Web & network 51 Internet 52 Chrome 53 Bluetooth 54 Smart Remote Media 56 Music Player 57 Camera Table of Contents 6 Travel & local 87 Maps 88 Local 89 Navigation Settings 90 About Settings 90 Wi-Fi 91 Bluetooth 91 Data usage 92 More settings 93 Block ing mode 94 Sound 94 Display 95 Storage 96 Power saving mode 96 Battery 96 Application manager 96 Location services 97 Lock screen 97 Security 99 Language and input 101 Back up and reset 101 A dd account 101 V oice control 102 Accessory 102 Da te and time 103 Accessibility 104 Developer options 106 About device Troubleshooting 64 Gallery 66 Paper Artist 67 V ideo Pl…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: May 21, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTP5200 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 Parts List & Tune-Up Procedure SHORT-TERM 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

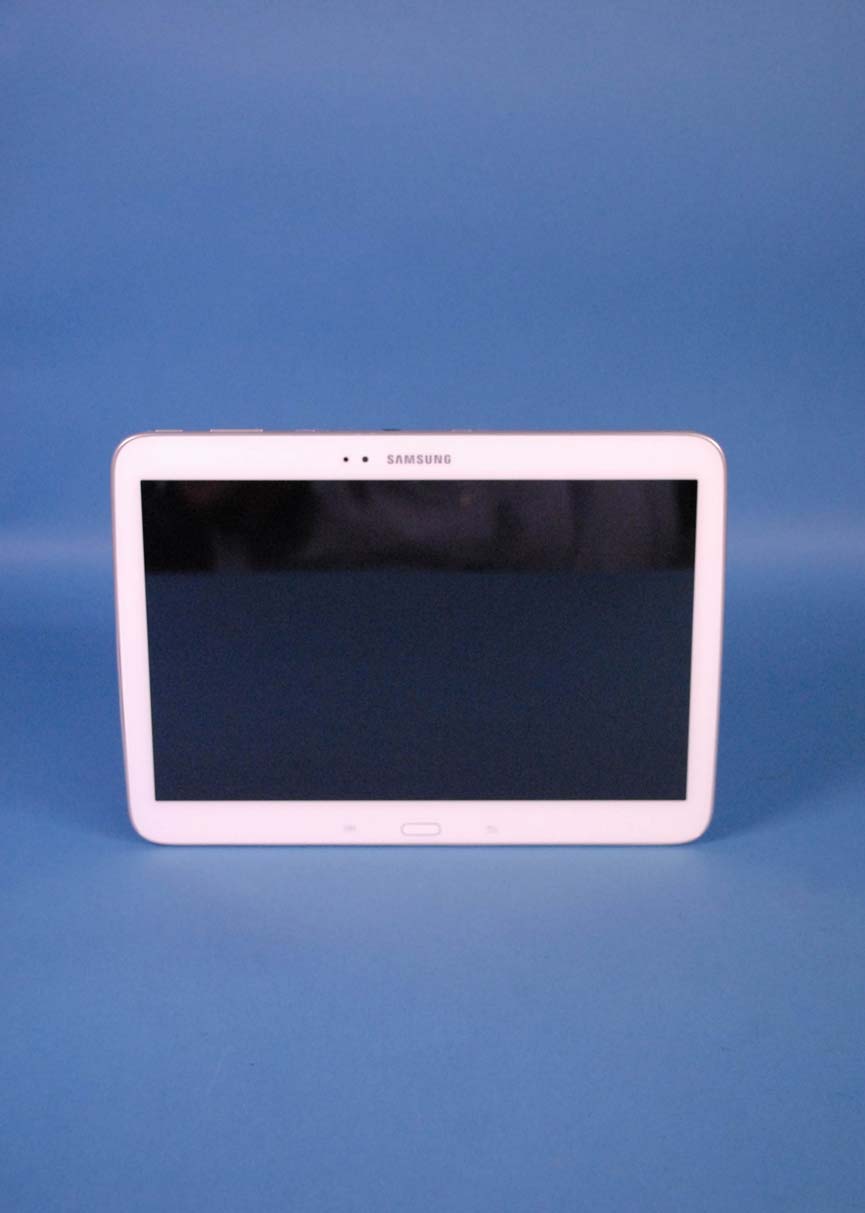

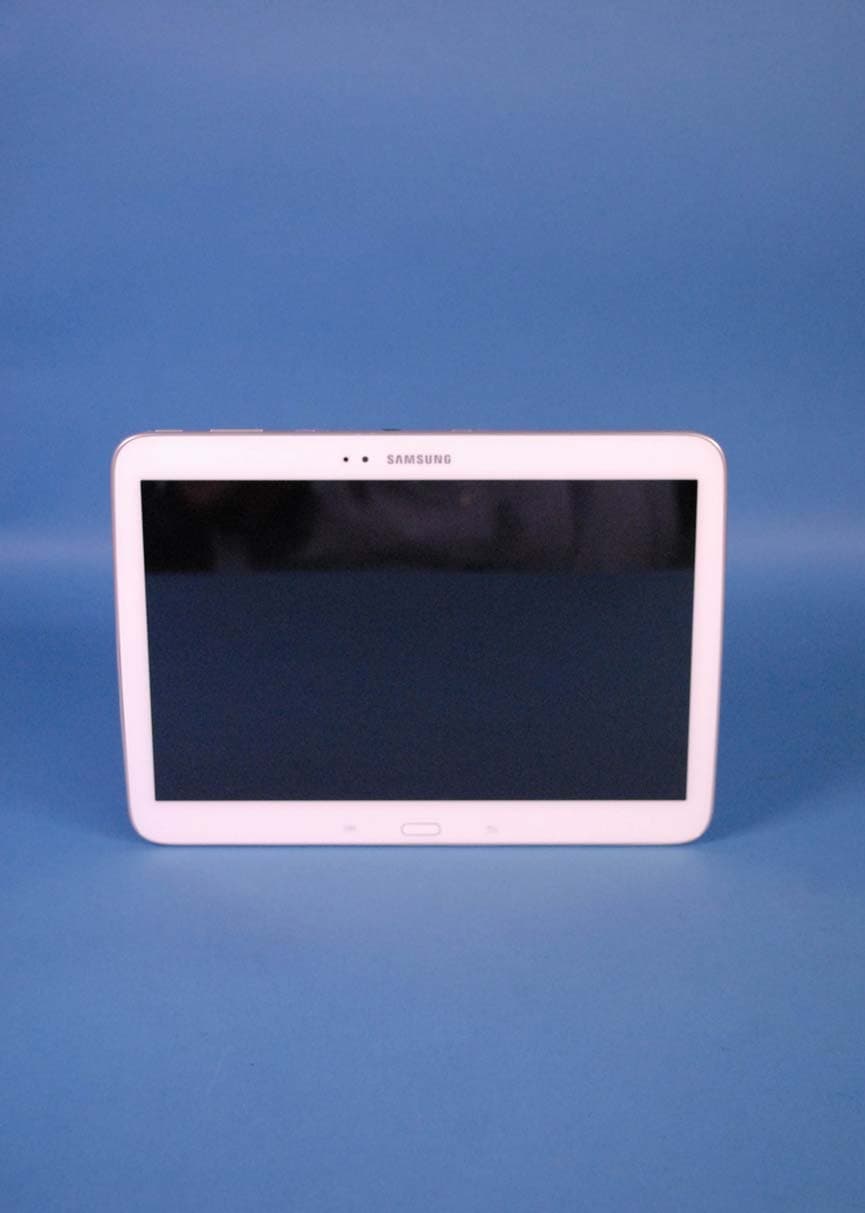

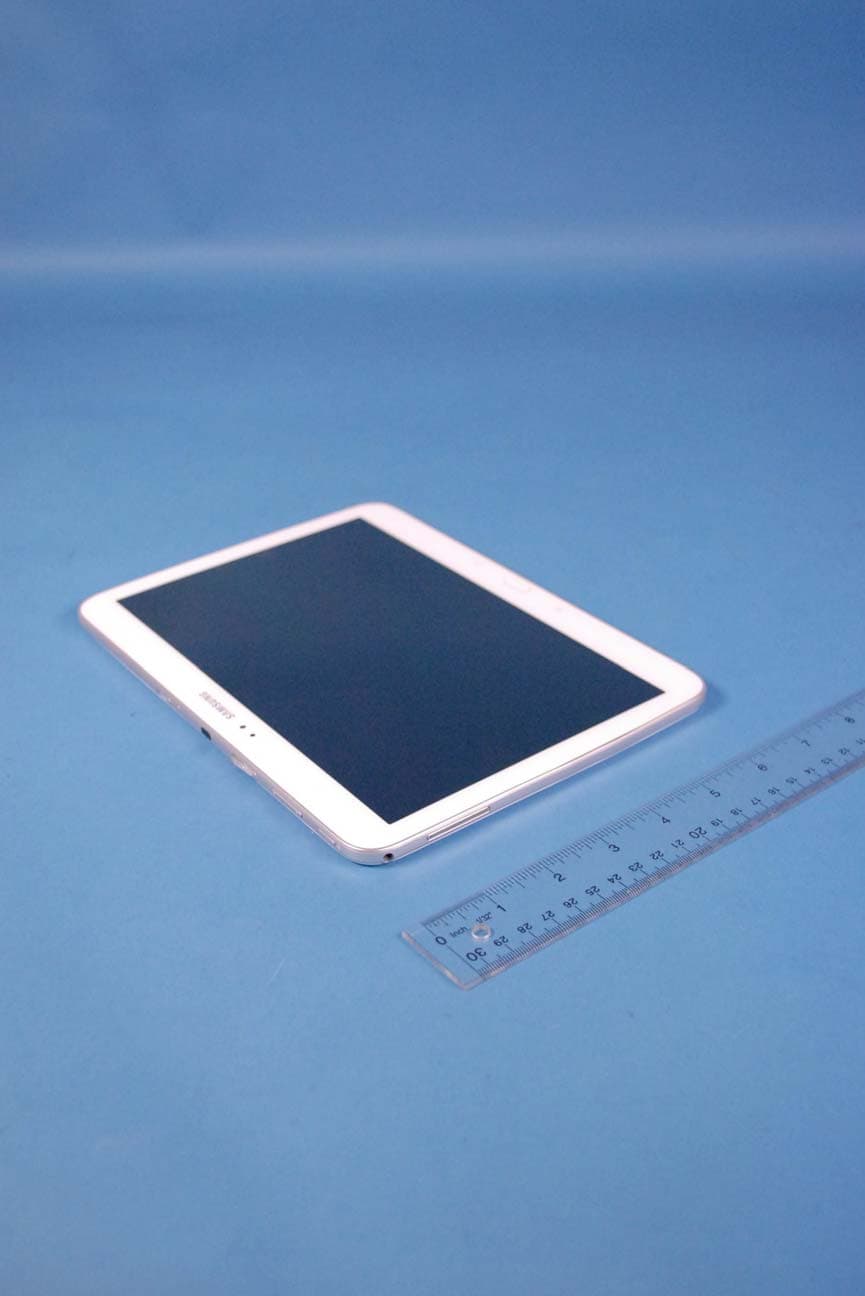

Samsung FCC ID: A3LGTP5200 Model: GT-P5200 External Photos EUT Type: Portable Tablet Page 1 of 4 © 2013 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung FCC ID: A3LGTP5200 Model: GT-P5200 External Photos EUT Type: Portable Tablet Page 2 of 4 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP5200 Model: GT-P5200 External Photos EUT Type: Portable Tablet Page 3 of 4 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP5200 Model: GT-P5200 External Photos EUT Type: Portable Tablet Page 4 of 4 © 2013 PCTEST Engineering Laboratory Inc.

Label and Location Samsung EUT Model:GT-P5200 FCC ID:A3LGTP5200 Label Location Top Back of EUT Bottom FCC ID is printed on bottom of the EUT

Samsung FCC ID: A3LGTP5200 Model: GT-P5200 Internal Photos EUT Type: Portable Tablet Page 1 of 6 © 2013 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung FCC ID: A3LGTP5200 Model: GT-P5200 Internal Photos EUT Type: Portable Tablet Page 2 of 6 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP5200 Model: GT-P5200 Internal Photos EUT Type: Portable Tablet Page 3 of 6 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP5200 Model: GT-P5200 Internal Photos EUT Type: Portable Tablet Page 4 of 6 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP5200 Model: GT-P5200 Internal Photos EUT Type: Portable Tablet Page 5 of 6 © 2013 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP5200 Model: GT-P5200 Internal Photos EUT Type: Portable Tablet Page 6 of 6 © 2013 PCTEST Engineering Laboratory Inc.

FCC ID: A3LGTP5200 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 46 0Y1304220693.A3L 04/22/13 - 05/07/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 04/22/13 - 05/07/13 129, Samsung-ro, Maetan Dong Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Republic of Korea Document Serial No.: 0Y1304220693.A3L FCC ID: A3LGTP5200 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): GT-P5200 SAR 1 gm Body SAR (W/kg) PCBGSM/GPRS/EDGE 850824.20 - 848.80 MHz29.511.03 PCBUMTS 850826.40 - 846.60 MHz22.530.86 PCBGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz28.740.93 PCBUMTS 19001852.4 - 1907.6 MHz23.100.97 DTS2.4 GHz WLAN2412 - 2462 MHz12.050.83 DTSBluetooth LE2402 - 2480 MHz6.85N/A DTS5.8 GHz WLAN5745 - 5825 MHz11.040.59 NII5.2 GHz WLAN5180 - 5240 MHz11.030.68 NII5.3 GHz WLAN5260 - 5320 MHz10.960.56 NII5.5 GHz WLAN5500 - 5700 MHz10.720.50 DSSBluetooth2402 - 2480 MHz10.380.25 1.54 Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class Band & ModeTx Frequency Measured Conducted Power [dBm] Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LGTP5200 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 46 0Y1304220693.A3L 04/22/13 - 05/07/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 INTRODUCTION ..............................................................................................................................7 3 DOSIMETRIC ASSESSMENT .........................................................................................................8 4 RF EXPOSURE LIMITS ...................................................................................................................9 5 SAR TESTING PROCEDURES .................................................................................................... 10 6 FCC MEASUREMENT PROCEDURES ........................................................................................ 11 7 RF CONDUCTED POWERS ......................................................................................................... 14 8 SYSTEM VERIFICATION .............................................................................................................. 21 9 SAR DATA SUMMARY ................................................................................................................. 23 10 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 26 11 SAR MEASUREMENT VARIABILITY ........................................................................................... 40 12 EQUIPMENT LIST ......................................................................................................................... 41 13 MEASUREMENT UNCERTAINTIES ............................................................................................ 42 14 CONCLUSION ............................................................................................................................... 44 15 REFERENCES .............................................................................................................................. 45 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LGTP5200 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 46 0Y1304220693.A3L 04/22/13 - 05/07/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz 2.4 GHz WLANData2412 - 2462 MHz 5.8 GHz WLANData5745 - 5825 MHz 5.2 GHz WLANData5180 - 5240 MHz 5.3 GHz WLANData5260 - 5320 MHz 5.5 GHz WLANData5500 - 5700 MHz BluetoothData2402 - 2480 MHz Band & ModeTx Frequency Operating Modes 1.2 Power Reduction for SAR This device uses a proximity sensor for SAR compliance. The capacitive grip sensor is activated when used in close proximity to the user’s body. The proximity sensor triggers power reduction for all voice and data modes. The capacitive sensor is only applicable for tablet operations. There are no body worn accessories for this device. Since the device is a full tablet size, the Body SAR was evaluated per FCC KDB Publication 616217 D04v01 for full size…

Text truncated - open the document above for the full version.

FCC ID: A3LGTP5200 FCC Pt. 22 & 24 GSM / EDGE / WCMDA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 57 0Y1304220694.A3L 4/29 - 5/1/2013 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. V 2.9 04/15/2013 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 4/29 - 5/1/2013 129, Samsung-ro, Yeongtong-gu Test Site/Location: Suwon-city, Gyeonggi-do, 443-803 PCTEST Lab., Columbia, MD, USA Republic of Korea Test Report Serial No.: 0Y1304220694.A3L FCC ID: A3LGTP5200 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. Application Type: Certification Model(s): GT-P5200 EUT Type: Portable Tablet FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2 §22(H) §24(E) Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 Test Device Serial No.: identical prototype [S/N: R31D11M93RW] Max. Power (W ) Max. Power (dBm) GSM850824.2 - 848.8246KGXW0.58127.64 EDGE850824.2 - 848.8257KG7W0.18022.55 GSM19001850.2 - 1909.8247KGXW1.42631.54 EDGE19001850.2 - 1909.8250KG7W0.60427.81 WCDMA850826.4 - 846.64M06F9W0.05917.73 WCDMA19001852.4 - 1907.64M09F9W0.33825.28 ERP/EIRP Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 FCC ID: A3LGTP5200 FCC Pt. 22 & 24 GSM / EDGE / WCMDA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 57 0Y1304220694.A3L 4/29 - 5/1/2013 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. V 2.9 04/15/2013 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT .......................................................................................... 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION ..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 EVALUATION PROCEDURE .............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS ....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.5 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.6 OCCUPIED BANDWIDTH ................................................................................................................... 7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL .............................................. 7 3.8 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 7 3.9 PEAK-AVERAGE RATIO ..................................................................................................................... 8 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 8 4.0 TEST EQUIPMENT CALIBRATION DATA .................................................................................... 10 5.0 SAMPLE CALCULATIONS ............................................................................................................ 11 6.0 TEST RESULTS ............................................................................................................................. 12 6.1 SUMMARY ......................................................................................................................................... 12 6.2 CELLULAR EFFECTIVE RADIATED POWER (ERP) ....................................................................... 13 6.3 PCS EFFECTIVE RADIATED POWER (EIRP) .................................................................................. 14 6.4 CELLULAR GSM RADIATED MEASUREMENTS ............................................................................. 15 6.5 CELLULAR WCDMA RADIATED MEASUREMENTS ....................................................................... 18 6.6 PCS GSM RADIATED …

Text truncated - open the document above for the full version.

Samsung FCC ID: A3LGTP5200 Model: GT-P5200 Test Set-Up Photos EUT Type: Portable Tablet Page 1 of 2 © 2013 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung FCC ID: A3LGTP5200 Model: GT-P5200 Test Set-Up Photos EUT Type: Portable Tablet Page 2 of 2 © 2013 PCTEST Engineering Laboratory Inc.

FCC IDA3LGTP5200 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 4 04/22/13 - 05/07/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC IDA3LGTP5200 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 2 of 4 04/22/13 - 05/07/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup Photo 1: Back at 0.0 cm SAR Test Setup Photo 2: Back at 1.4 cm FCC IDA3LGTP5200 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 3 of 4 04/22/13 - 05/07/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup Photo 3: Top at 0.0 cm SAR Test Setup Photo 4: Top at 1.2 cm FCC IDA3LGTP5200 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 4 of 4 04/22/13 - 05/07/13 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 12.4 M 03/25/2013 SAR Test Setup Photo 5: Right at 0.0 cm SAR Test Setup Photo 6: Left at 0.0 cm
