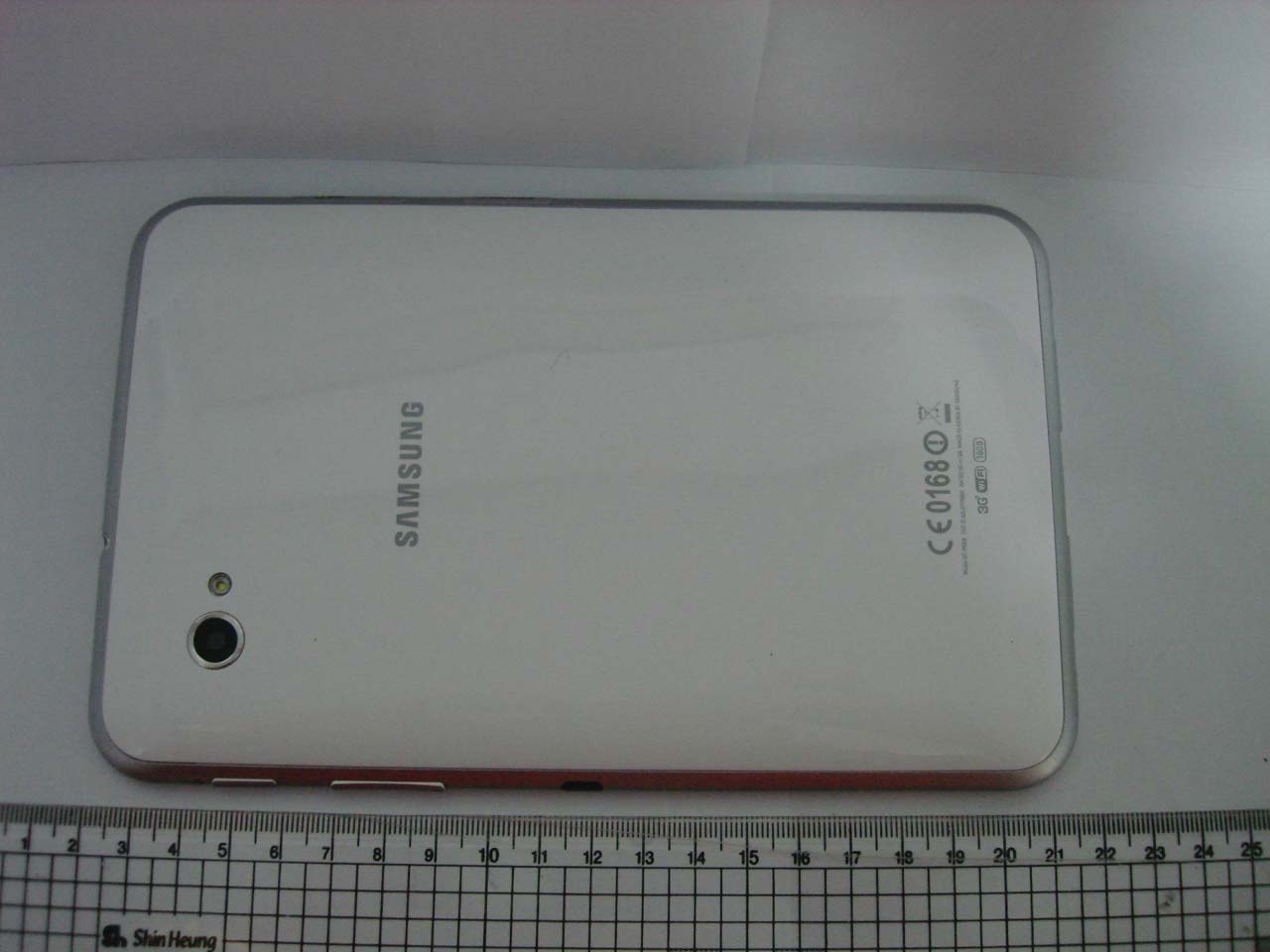

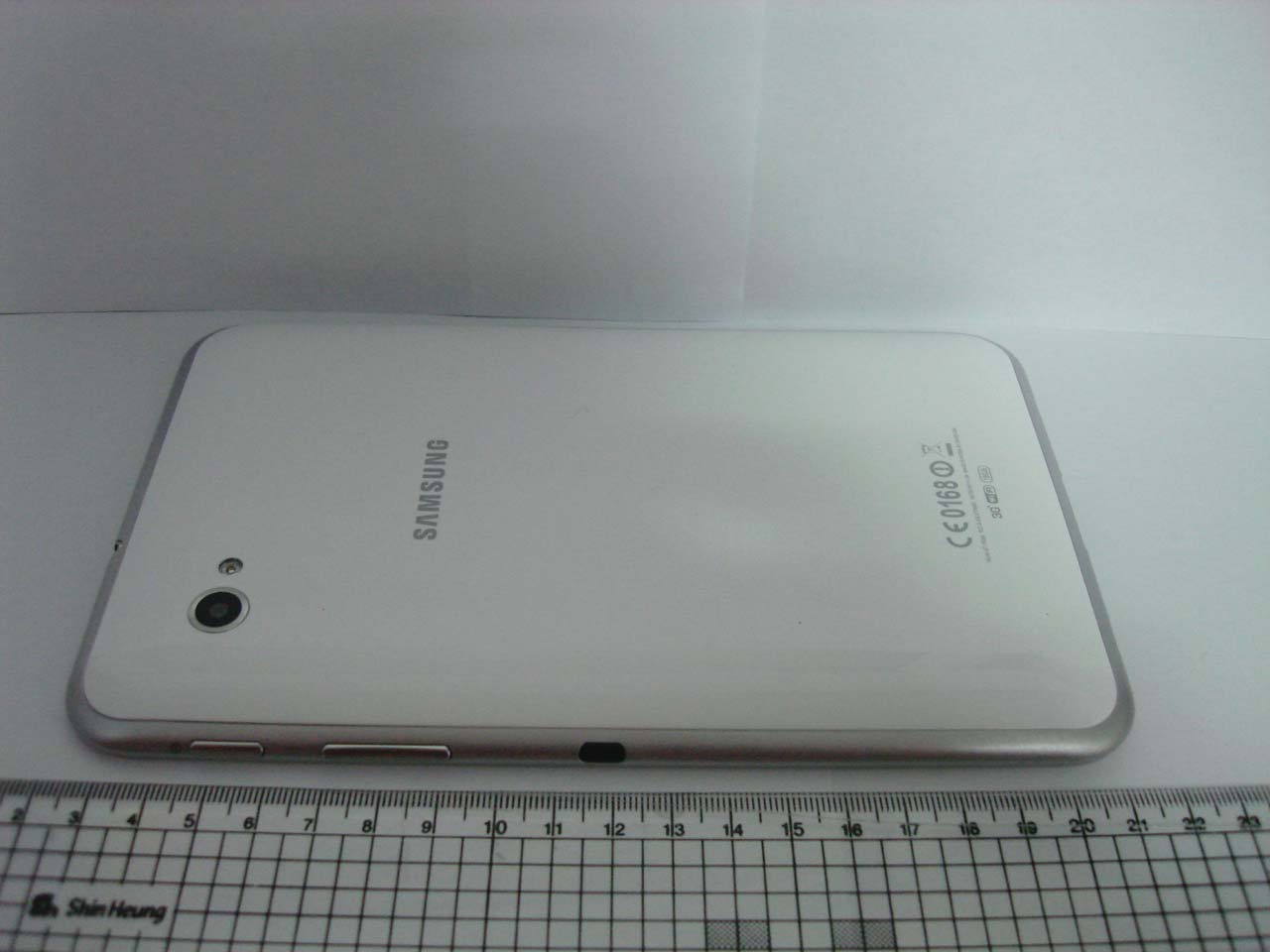

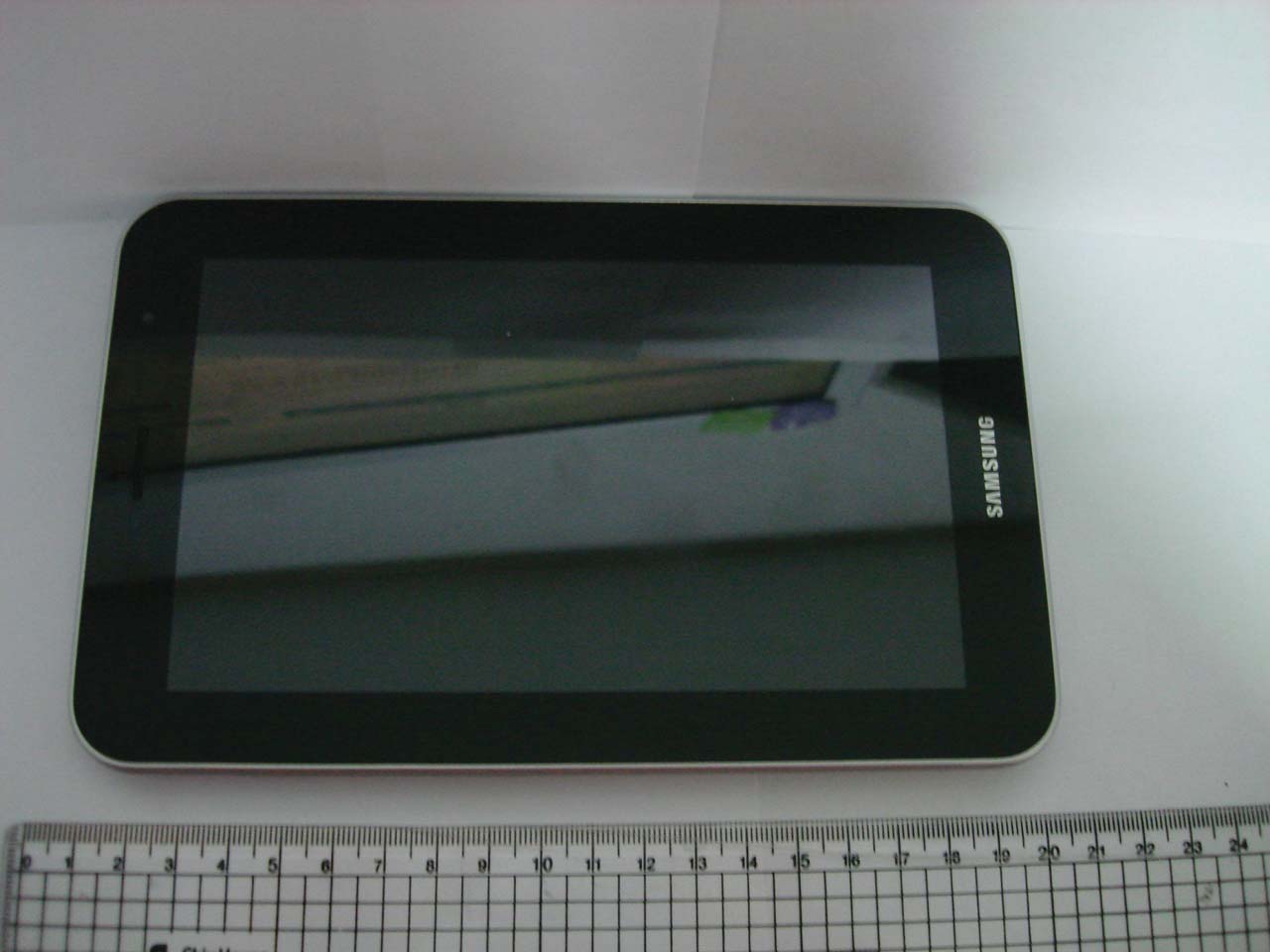

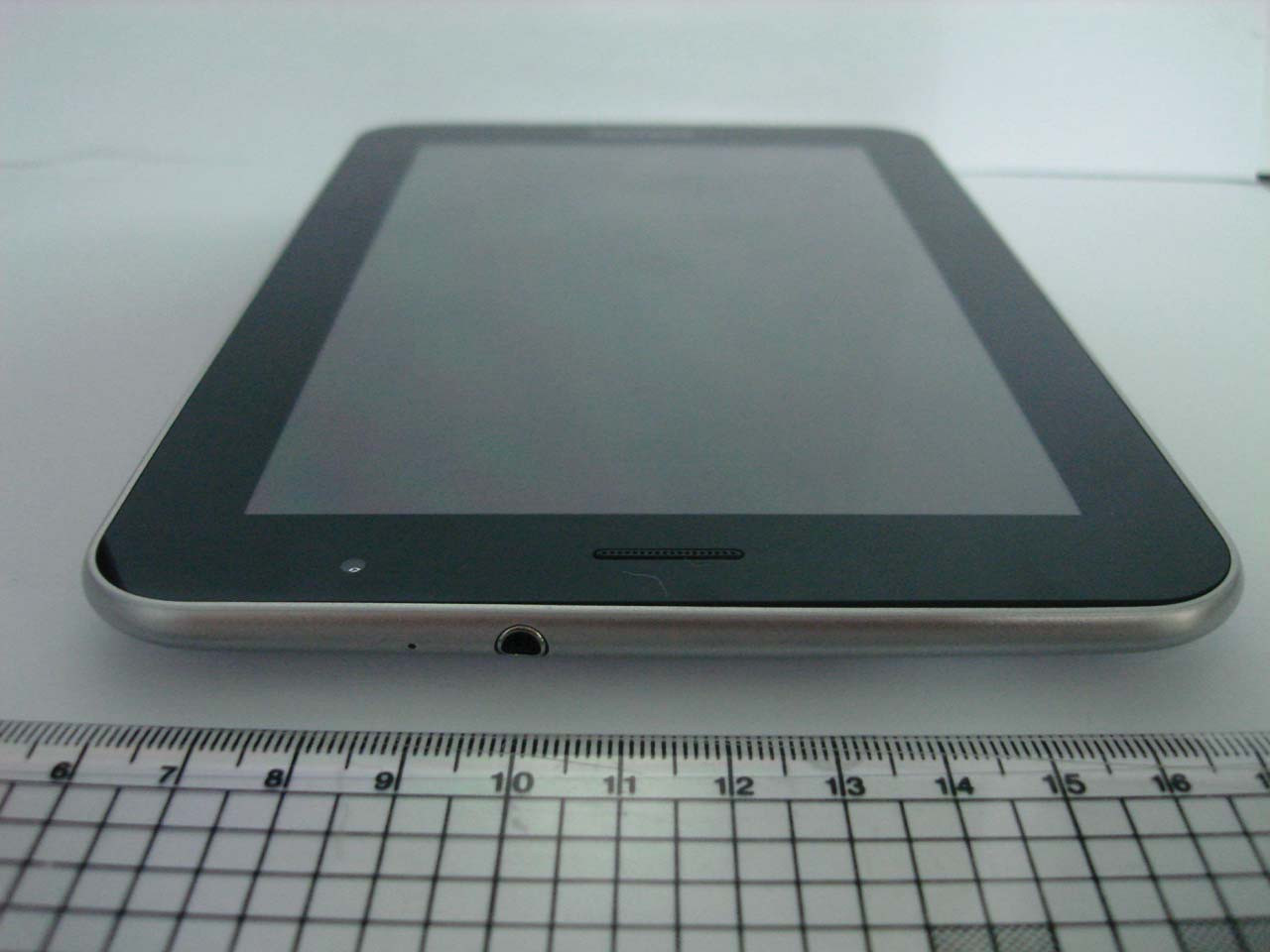

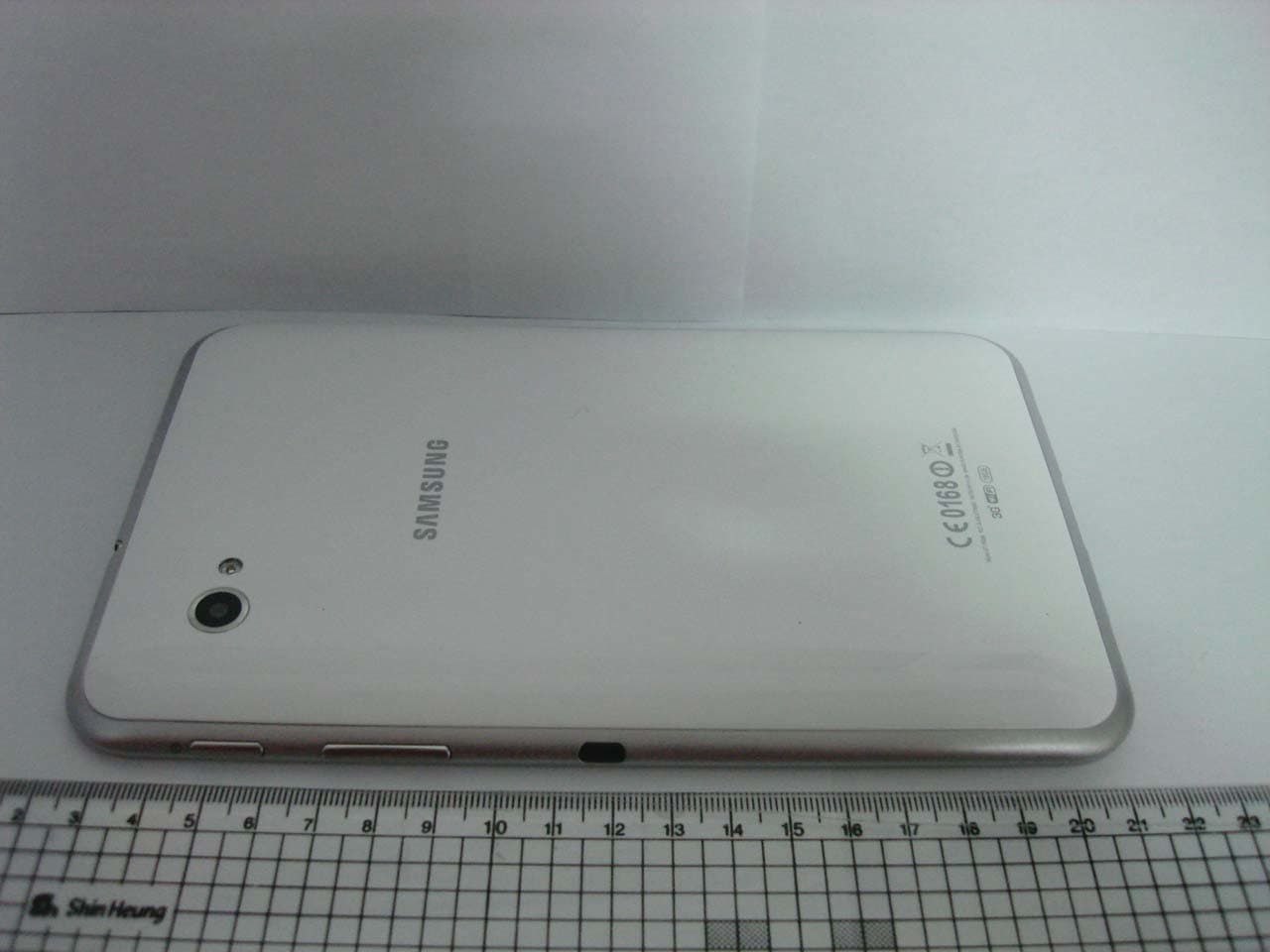

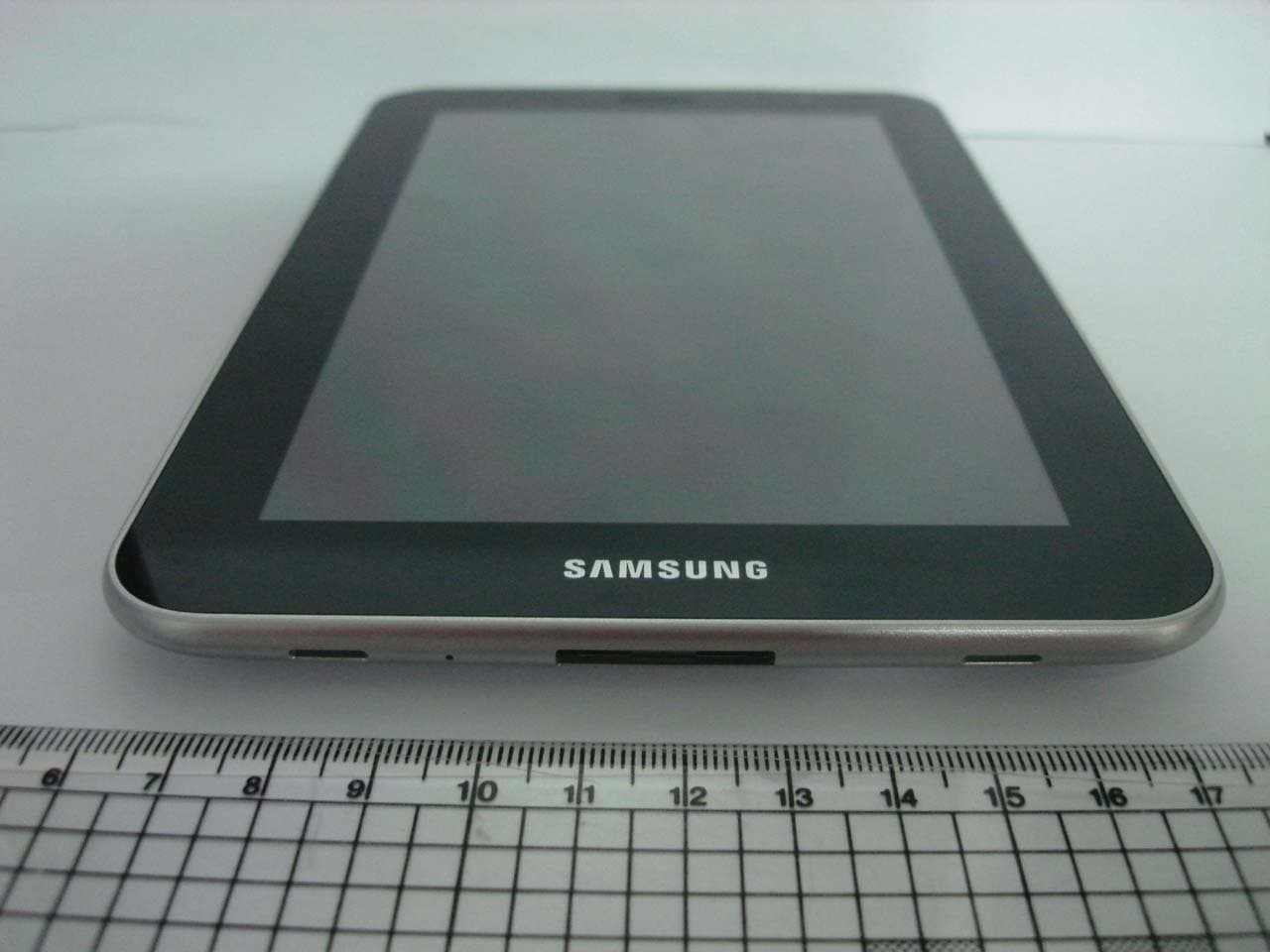

A3LGTP6200LTablet with 802.11abgn, BT3.0

Some of the contents in this manual may differ from your device depending on the software of the device or your service provider. www.samsung.com English (LTN). 10/2011. Rev. 1.0 To install Kies (PC Sync) Download the latest version of Kies from the 1. Samsung website (www.samsung.com/kies) and install it on your PC. Using a USB cable, connect your device to your PC. 2. Samsung Kies will launch automatically. Refer to the Kies help for more information. GT-P6200L user manual Using this manual 2 Using this manual Congratulations on your purchase of the Samsung mobile device. This powerful, “go anywhere” device, puts the best of the web and mobile computing at your fingertips in a lightweight, highly versatile platform that fits your active lifestyle. Built on the Google Android operating system, the Samsung mobile device gives you access to thousands of useful and entertaining applications to enrich your mobile web experience. With integrated wireless access and a responsive touch screen, you can read books and newspapers on the go; stay up-to-date on the latest news, sports, and weather; manage your multimedia and business files; and browse the web for maps, business locations, and more. Read me first Please read all safety precautions and this manual carefully ● before using your device to ensure safe and proper use. The descriptions in this manual are based on the default ● settings of your device. Images and screenshots used in this user manual may differ ● in appearance from the actual product. Content in this user manual may differ from the product, or ● from software provided by service providers or carriers, and is subject to change without prior notice. Refer to www.samsung.com for the latest version of the user manual. Available features and additional services may vary by ● device, software, or service provider. Using this manual 3 Formatting and delivery of this user manual is based ● on Google Android operating systems and may vary depending on the user’s operating system. Applications and their functions may vary by country, ● region, or hardware specifications. Samsung is not liable for performance issues caused by third-party applications. Samsung is not liable for performance issues or ● incompatibilities caused by user editing of registry settings. You may upgrade your mobile device’s software by ● accessing www.samsung.com. Software, sound sources, wallpapers, images, and other ● contents provided in this device are licenced for limited use between Samsung and their respective owners. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Samsung is not liable for such copyright infringement by the user. Please keep this manual for future reference. ● Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your device or other equipment Note—notes, usage tips, or additional information Using this manual 4 ► Refer to—pages with related information; for example: ► p. 12 (represents “see page 12”) → Followed by—the order of options or menus you must select to perform a step; for example: Open the application list and select Settings → Wireless and networks (represents Settings, followed by Wireless and networks) []Square brackets—device keys; for example: [ ] (represents the Power/Reset/Lock key) Copyright Copyright © 2011 Samsung Electronics This user manual is protected under international copyright laws. No part of this user manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. Trademarks SAMSUNG and the SAMSUNG logo are registered ● trademarks of Samsung Electronics. The Android logo, Google Search ● ™ , Google Maps ™ , Google Mail ™ , YouTube ™ , Android Market ™ , and Google Talk ™ are trademarks of Google, Inc. Using this manual 5 Bluetooth ● ® is a registered trademark of the Bluetooth SIG, Inc. worldwide. Oracle and Java are registered trademarks of Oracle and/ ● or its affiliates. Other names may be trademarks of their respective owners. Windows Media Player ● ® is a registered trademark of Microsoft Corporation. Wi-Fi ● ® , the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. DivX ● ® , DivX Certified ® , and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under licence. All other trademarks and copyrights are the property of ● their respective owners. Using this manual 6 ABOUT DIVX VIDEO DivX ® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified ® device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX videos. DivX Certified ® to play DivX ® video up to HD 720p, including premium content ABOUT DIVX VIDEO-ON-DEMAND This DivX Certified ® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. Contents 7 Assembling ............................................................. 11 Unpack .................................................................................... 11 Install the SIM or USIM card ............................................... 12 Charge the battery ............................................................... 12 Insert a memory card (optional) ....................................... 14 Getting started ....................................................... 17 Turn your device on and off ..............................…

Text truncated - open the document above for the full version.

Date: November 14, 2011 Federal Comm unications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Aliza Zaffar/Application Examiner of UL CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL CCS on our behalf shall have the same effect as acts of our own. I, t h e u ndersigned, hereby cert ify that we are not subj ect to a denial of federal benefits, that includes FCC b enefits, pursuant to Section 5301 of the Anti-Drug Abuse Act o f 1988, 21 U.S.C. 853(a). In authorizing UL CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 310-900-5250 FAX: 310-537-5500 E-mail: [email protected] REMARK: 1. This aut horization letter wi ll be sent along wi th yo ur application wh en fi ling wi th t he Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Date: October 18, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A3LGTP6200 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 310-900-5250 FAX: 310-537-5500 E-mail: [email protected]

SAMSUNG Electronics America INC. Federal Communications Commission Date: May 19, 2011 Authorization and Evaluation Division 7435 Oakland Mills Road AGENT AUTHORIZATION LETTER To whom it may concern, We, the undersigned, Samsung Electronics Co., Ltd. hereby authorize the following to act on our behalf, as our agent, in all matters relating to all processes required according to FCC Part 15B and 15C for Samsung Electronics Co., Ltd. products (Grantee Code : A3L): John SC Lee If you have any questions regarding the authorization, please do not hesitate to contact us. Sincerely Yours, ____________________________________________ Sang Kyung, Ra/General Manager American QA Lab SAMSUNG Electronics America INC. E-mail : [email protected] Telephone : 310-900-5250

{ŒG“ˆ‰Œ“GšG—“ˆŠŒ‹G–•G›ŒG‰–››–”G–G›ŒG‹ŒŠŒ

Test report No. : 32BE0278-HO-R-R4 Page : 1 of 184 FCC ID : A3LGTP6200L Issued date : October 18, 2011 Revised date : November 18, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 13-EM-F0429 SAR TEST REPORT Test Report No. : 32BE0278-HO-R-R4 Applicant :SAMSUNG ELECTRONICS CO., LTD. Type of Equipment :Cellular/PCS GSM/GPRS/EDGE, Cellular /PCS WCDMA Tablet with 802.11abgn, BT3.0 Model No. :GT-P6200L FCC ID :A3LGTP6200L Test regulation :FCC47CFR 2.1093 FCC OET Bulletin 65, Supplement C (Edition 01-01) Test Result :Complied FCC Part 15.247 Head : 0.073W/kg (5.8GHz) Body : 0.890W/kg (2.4GHz) FCC Part 15.407 Head : 0.048W/kg (5.6GHz) Body: : 0.678W/kg (5.6GHz) 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. 6. This report is a revised version of 32BE0278-HO-R . 32BE0278-HO-R is replaced with this report. Date of test: October 2 to November 6, 2011 Representative test engineer: Miyo Kishimoto Engineer of WiSE Japan, UL Verification Service Approved by : Mitsuru Fujimura Leader of WiSE Japan UL Verification Service NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/m ark1/index.jsp#nvlap Test report No. : 32BE0278-HO-R-R4 Page : 2 of 184 FCC ID : A3LGTP6200L Issued date : October 18, 2011 Revised date : November 18, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 1: Customer information ................................................................................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ..................................................................................................................................................... 3 2.1 Identification of E.U.T. ....................................................................................................................................... 3 2.2 Product description ............................................................................................................................................. 4 SECTION 3 : Test standard information ........................................................................................................................................................... 6 3.1 Test Specification ............................................................................................................................................... 6 3.2 Procedure ............................................................................................................................................................ 6 3.3 Exposure limit .................................................................................................................................................... 7 3.4 Test Location ...................................................................................................................................................... 7 SECTION 4 : Test result ....................................................................................................................................................................................... 8 4.1 Stand-alone SAR result....................................................................................................................................... 8 4.2 Simultaneous transmission SAR result ............................................................................................................... 8 SECTION 5 : Description of the operating mode .............................................................................................................................................. 10 5.1 Output power operating modes ........................................................................................................................... 10 5.2 SAR testing operating modes ............................................................................................................................. 11 5.3 Confirmation before SAR testing ....................................................................................................................... 24 5.4 Confirmation after SAR testing .......................................................................................................................... 24 SECTION6 : Description of the Head/Body setup ............................................................................................................................................. 25 6.1 Specification of sensor ........................................................................................................................................ 25 6.2 Power reduction implementation ........................................................................................................................ 25 6.3 Test position for Head setup ............................................................................................................................... 26 6.4 Description of the Body setup .............................................................................................................…

Text truncated - open the document above for the full version.

Test report No. : 32BE0278-HO-R-R4 Page : 44 of 184 FCC ID : A3LGTP6200L Issued date : October 18, 2011 Revised date : November 18, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 1 : SAR Measurement data 1. Evaluation procedure The evaluation was performed with the following procedure: Step 1: Measurement of the E-field at a fixed location above the ear point or central position of flat phantom was used as a reference value for assessing the power drop. Step 2: The SAR distribution at the exposed side of head or body position was measured at a distance of each device from the inner surface of the shell. The area covered the entire dimension of the antenna of EUT and the horizontal grid spacing was 15 mm x 15 mm for 2.4GHz band and 10mm x 10mm for 5GHz band. Based on these data, the area of the maximum absorption was determined by spline interpolation. Step 3: Around this point found in the Step 2 (area scan) , a volume of 30mm x 30mm x 30mm or more was assessed by measuring 7 x 7 x 7 points for 2.4GHz band., and a volume of 28mm x 28mm x 22.5mm or more was assessed by measuring 8 x 8 x 10 points for 5GHz band. And for any secondary peaks found in the Step2 which are within 2dB of maximum peak and not with this Step3 (Zoom scan) is repeated. On the basis of this data set, the spatial peak SAR value was evaluated under the following procedure: (1). The data at the surface were extrapolated, since the center of the dipoles is 1mm(EX3DV3) away from the tip of the probe and the distance between the surface and the lowest measuring point is 1.3 mm. The extrapolation was based on a least square algorithm [4]. A polynomial of the fourth order was calculated through the points in z-axes. This polynomial was then used to evaluate the points between the surface and the probe tip. (2). The maximum interpolated value was searched with a straightforward algorithm. Around this maximum the SAR values averaged over the spatial volumes (1 g or 10 g) were computed by the 3D-Spline interpolation algorithm. The 3D-Spline is composed of three one-dimensional splines with the “Not a knot"-condition (in x, y and z-directions) [4], [5]. The volume was integrated with the trapezoidal-algorithm. One thousand points (10 x 10 x 10) were interpolated to calculate the average. (3). All neighboring volumes were evaluated until no neighboring volume with a higher average value was found. Step 4: Re-measurement of the E-field at the same location as in Step 1. Test report No. : 32BE0278-HO-R-R4 Page : 45 of 184 FCC ID : A3LGTP6200L Issued date : October 18, 2011 Revised date : November 18, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 2. Measurement data i) WLAN (2.4GHz) Head GT-6200L 11b 1Mbps 2412MHz Area Scan Communication System: WLAN 11a/b/g/n ; Communication System Band: WLAN 11b/g/n; Frequency: 2450 MHz;Duty Cycle: 1:1 Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration Probe: EX3DV3 - SN3507; ConvF(7.88, 7.88, 7.88); Calibrated: 2011/03/16 Sensor-Surface: 2mm (Mechanical Surface Detection) Electronics: DAE4 Sn509; Calibrated: 2011/07/20 Phantom: SAM with CRP; Type: SAM; Measurement SW: DASY52, Version 52.6 (1); Left Cheek Right Cheek Left Tilt Right Tilt Test report No. : 32BE0278-HO-R-R4 Page : 46 of 184 FCC ID : A3LGTP6200L Issued date : October 18, 2011 Revised date : November 18, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 GT-P6200L Front (ERP 5mm and Bottom edge 10mm) 11b 2412MHz 1Mbps Communication System: WLAN 11a/b/g/n ; Communication System Band: WLAN 11b/g/n; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.89 mho/m; ε r = 38; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration Probe: EX3DV3 - SN3507; ConvF(7.88, 7.88, 7.88); Calibrated: 2011/03/16 Sensor-Surface: 2mm (Mechanical Surface Detection) Electronics: DAE4 Sn509; Calibrated: 2011/07/20 Phantom: ELI 4.0; Type: QDOVA001BA; Measurement SW: DASY52, Version 52.6 (1); Area Scan (61x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.167 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.116 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.118 W/kg SAR(1 g) = 0.057 mW/g; SAR(10 g) = 0.029 mW/g Maximum value of SAR (measured) = 0.082 mW/g Date: 2011/10/07 Ambient Temp. : 24.0 degree.C. Liquid Temp.; 23.5 degree.C. Test report No. : 32BE0278-HO-R-R4 Page : 47 of 184 FCC ID : A3LGTP6200L Issued date : October 18, 2011 Revised date : November 18, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 GT-P6200L Front (ERP 5mm and Bottom edge 10mm) 11b 2412MHz 1Mbps Communication System: WLAN 11a/b/g/n ; Communication System Band: WLAN 11b/g/n; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.89 mho/m; ε r = 38; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration Probe: EX3DV3 - SN3507; ConvF(7.88, 7.88, 7.88); Calibrated: 2011/03/16 Sensor-Surface: 2mm (Mechanical Surface Detection) Electronics: DAE4 Sn509; Calibrated: 2011/07/20 Phantom: ELI 4.0; Type: QDOVA001BA; Measurement SW: DASY52, Version 52.6 (1); Z Scan (1x1x31): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 0.080 mW/g Date: 2011/10/07 Ambient Temp. : 24.0 degree.C. Liquid Temp.; 23.5 degree.C. Test report No. : 32BE0278-HO-R-R4 Page : 48 of 184 FCC ID : A3LGTP6200L Issued date : October 18, 2011 Revised date : November 18, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-…

Text truncated - open the document above for the full version.

Test report No. : 32BE0278-HO-R-R4 Page : 96 of 184 FCC ID : A3LGTP6200L Issued date : October 18, 2011 Revised date : November 18, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 2 : System Validation 1. Validation uncertainty The uncertainty budget has been determined for the DASY5 measurement system according to the SPEAG documents[2] and is given in the following Table. <300MHz-6GHz> Error Description Uncertainty value ± % Probability distribution divisor (ci) 1g Standard Uncertainty (1g) vi or veff Measurement System Probe calibration ±6.55 Normal 1 1 ±6.55 ∞ Axial isotropy of the probe ±4.7 Rectangular √3 1 ±2.7 ∞ Spherical isotropy of the probe ±9.6 Rectangular 0 0 0 ∞ Boundary effects ±1.0 Rectangular √3 1 ±1.2 ∞ Probe linearity ±4.7 Rectangular √3 1 ±2.7 ∞ Detection limit ±1.0 Rectangular √3 1 ±0.6 ∞ Readout electronics ±0.3 Normal 1 1 ±0.3 ∞ Response time 0 Rectangular √3 1 0 ∞ Integration time 0 Rectangular √3 1 0 ∞ RF ambient Noise ±1.0 Rectangular √3 1 ±1.7 ∞ RF ambient Reflections ±1.0 Rectangular √3 1 ±1.7 ∞ Probe Positioner ±0.8 Rectangular √3 1 ±0.5 ∞ Probe positioning ±6.7 Rectangular √3 1 ±3.9 ∞ Algorithms for Max.SAR Eval. ±2.0 Rectangular √3 1 ±1.2 ∞ Dipole Deviation of exp.dipole ±5.5 Rectangular √3 1 ±3.2 ∞ Dipole Axis to Liquid Distance ±2.0 Rectangular √3 1 ±1.2 ∞ Input power and SAR drift meas. ±3.4 Rectangular √3 1 ±2.7 ∞ Phantom and Setup Phantom uncertainty ±4.0 Rectangular √3 1 ±2.3 ∞ SAR correction ±1.9 Rectangular √3 1 ±1.1 Liquid conductivity (target) ±5.0 Rectangular √3 0.78 ±2.3 ∞ Liquid conductivity (meas.) +5.0 Rectangular 1 0.26 ±1.3 ∞ Liquid permittivity (target) ±5.0 Rectangular √3 0.78 ±2.3 ∞ Liquid permittivity (meas.) -4.9 Rectangular 1 0.23 ±1.1 ∞ Combined Standard Uncertainty ±11.00 Expanded Uncertainty (k=2) ±22.0 Test report No. : 32BE0278-HO-R-R4 Page : 97 of 184 FCC ID : A3LGTP6200L Issued date : October 18, 2011 Revised date : November 18, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 2. System validation result 2450MHz System validation result for Head 2450 Simulated Tissue Liquid Parameter confirmation Date Ambient Temp. [deg.c] Relative Humidity [%] Liquid type Liquid Temp. [deg.c] Measured Frequency [MHz] Parameters Target Value*1 Measured Deviation [%] Limit [%] εr 39.238.0-3.1+/-5 σ [mho/m] 1.801.895.0+/-5 εr: Relative Permittivity / σ : Coductivity *1 The Target value is a parameter defined in FCC OET 65. 572450 DIELECTRIC PARAMETERS MEASUREMENT RESULTS 7-Oct23.5 HSL 2450 24 System validation result Forward Power 250mWConversion 1WDeviationLimit MeasuredCalculation[%][%] 7-Oc t2450.0013.2052.8052.400.8+/-10 *1 The taget value is the parameter defined in IEEE 1528. SYSTEM VALIDATION Date Target 1W *1 Frequenc y [MHz] SAR 1g [W/kg] 2450MHz System Validation DATA / Dipole2.4GHz / Forward Conducted Power : 250mW Communication System: CW; Communication System Band: D2450 (2450.0 MHz); Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.89 mho/m; ε r = 38; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration Probe: EX3DV3 - SN3507; ConvF(7.88, 7.88, 7.88); Calibrated: 2011/03/16 Sensor-Surface: 2mm (Mechanical Surface Detection) Electronics: DAE4 Sn509; Calibrated: 2011/07/20 Phantom: ELI 4.0; Type: QDOVA001BA; Measurement SW: DASY52, Version 52.6 (1); Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 21.622 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 106.3 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 27.595 W/kg SAR(1 g) = 13.2 mW/g; SAR(10 g) = 6.09 mW/g Maximum value of SAR (measured) = 20.223 mW/g Date: 2011/10/07 Ambient Temp. : 24.0 degree.C. Liquid Temp.; 23.5 degree.C. Test report No. : 32BE0278-HO-R-R4 Page : 98 of 184 FCC ID : A3LGTP6200L Issued date : October 18, 2011 Revised date : November 18, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 System validation result for Body 2450 Simulated Tissue Liquid Parameter confirmation Date Ambient Temp. [deg.c] Relative Humidity [%] Liquid type Liquid Temp. [deg.c] Measured Frequency [MHz] Parameters Target Value*1 Measured Deviation [%] Limit [%] εr 52.750.1-4.9+/-5 σ [mho/m] 1.952.002.6+/-5 εr: Relative Permittivity / σ : Coductivity *1 The Target value is a parameter defined in FCC OET 65 . 542450 DIELECTRIC PARAMETERS MEASUREMENT RESULTS 2-Oct24.5 MSL 2450 24 Date Ambient Temp. [deg.c] Relative Humidity [%] Liquid type Liquid Temp. [deg.c] Measured Frequency [MHz] Parameters Target Value*2 Measured Deviation [%] Limit*3 [%] εr 52.550.1-4.6+/-6 σ [mho/m] 1.952.002.6+/-6 εr: Relative Permittivity / σ : Coductivity *3 The limit is for deviation provided by manufacture. *2 The target value is the calibrated dipole Body TSL parameters. (D2450V2 SN:713, Measured Body TSL parameters) 542450 DIELECTRIC PARAMETERS MEASUREMENT RESULTS 2-Oct24.5 MSL 2450 24 System validation result Forward Power 250mWConversion 1WDeviationLimit MeasuredCalculation[%][%] 2-Oc t2450.0014.4057.6051.90-9.9+/-10 *1 The taget value is the parameter defined in 1g SAR (normalizes to 1W) in manufacturer calibrated dipole (D2450V2 SN:713) SYSTEM VALIDATION Date SAR 1g [W/kg] Target 1W *1 Frequenc y [MHz] Test report No. : 32BE0278-HO-R-R4 Page : 99 of 184 FCC ID : A3LGTP6200L Issued date : October 18, 2011 Revised date : November 18, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Body 2450MHz System Validation DATA / Dipole2.4GHz / Forward Conducted Power : 250mW Communication System: CW; Communication System Band: D2450 (245…

Text truncated - open the document above for the full version.

Test report No. : 32BE0278-HO-R-R4 Page : 134 of 184 FCC ID : A3LGTP6200L Issued date : October 18, 2011 Revised date : November 18, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 …
