A3LGTP7320TTablet PC with Cellular WCDMA/GSM/EDGE, PCS GSM/EDGE, WLAN and Bluetooth

Using this guide 2 Using this guide Congratulations on your purchase of the Samsung GT-P7320T. This powerful, “go anywhere” device, puts the best of the web and mobile computing at your fingertips in a lightweight, highly versatile platform that fits your active lifestyle. Built on the Google Android operating system, the GT-P7320T gives you access to thousands of useful and entertaining applications to enrich your mobile web experience. With integrated wireless access and a responsive touch screen, you can keep in touch with versatile messaging and video calling applications; read books and newspapers on the go; stay up-to-date on the latest news, sports, and weather; manage your multimedia and business files; and browse the web for maps, business locations, and more. Read me first Please read all safety precautions and this guide carefully before using your device to ensure ‡ safe and proper use. The descriptions in this guide are based on the default settings of your device. ‡ Images and screenshots used in this guide may differ in appearance from the actual product.‡ Content in this guide may differ from the product, or from software provided by service ‡ providers or carriers, and is subject to change without prior notice. Using this guide 3 Available features and additional services may vary by device, software, or service provider.‡ Formatting and delivery of this guide is based on Google Android operating systems and may ‡ vary depending on the user’s operating system. Applications and their functions may vary by country, region, or hardware specifications. ‡ Samsung is not liable for performance issues caused by third-party applications. Samsung is not liable for performance issues or incompatibilities caused by user editing of ‡ registry settings. You may upgrade your mobile device’s software by accessing www.samsungmobile.com. ‡ Sound sources, wallpapers, and images provided in this device are licenced for limited use ‡ between Samsung and their respective owners. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Samsung is not liable for such copyright infringement by the user. Please keep this guide for future reference. ‡ Using this guide 4 Instructional icons Before you start, familiarise yourself with the icons you will see in this guide: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your device or other equipment Note—notes, usage tips, or additional information Ź Refer to—pages with related information; for example: Ź p.12 (represents “see page 12”) ĺ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Settings ĺ Wireless and network (represents Settings, followed by Wireless and network) []Square brackets—device keys; for example: [ ] (represents the Power key) Using this guide 5 Copyright Copyright © 2011 Samsung Electronics This user manual is protected under international copyright laws. No part of this user manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. Trademarks SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics.‡ The Android logo, Google Search‡ ™ , Google Maps ™ , Google Mail ™ , YouTube ™ , Android Market ™ , and Google Talk ™ are trademarks of Google, Inc. Bluetooth ‡ ® is a registered trademark of the Bluetooth SIG, Inc. worldwide. Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be ‡ trademarks of their respective owners. Windows Media Player ‡ ® is a registered trademark of Microsoft Corporation. Wi-Fi ‡ ® , the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. Using this guide 6 DivX‡ ® , Divx Certified ® , and associated logos are trademarks of DivX, Inc. and are used under license. Covered by one or more of the following U.S. patents: Pat. 7,295,673; 7,460,668; 7,515,710; 7,519,274 All other trademarks and copyrights are the property of their respective owners. ‡ Using this guide 7 ABOUT DIVX VIDEO DivX ® is a digital video format created by DivX, Inc. This is an official DivX Certified ® device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video. DivX Certified ® to play DivX ® video up to HD 720p, including premium content May play DivX ® video up to HD 1080p (LCD resolution : 1024x600) ABOUT DIVX VIDEO-ON-DEMAND This DivX Certified ® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. Contents 8 Assembling ...........................................................................................11 Unpack ............................................................................................................................... 11 Charge the battery .......................................................................................................... 12 Insert the SIM or USIM card ........................................................................................... 13 Insert a memory card (optional) .................................................................................. 15 Getting started .....................................................................................18 Turn your device on and off .......................................................................................... 18 Get to know your device ................................................................................................ 20 Use the touch …

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS Co., LTD. 416, Maetan-3dong, Yeongtong-gu Suwon-City, Gyeonggi-do, 443-742, Korea Date: January 6, 2012 PCTEST TCB/CB Div.of PCTEST Engineering Lab.,Inc. 6660-B Dobbin Road Columia, MD 21045 Subject : Samsung Electronics Co.,Ltd. FCC ID : A3LGTP7320T To Whom It May Concern We attest to the following for this application: GT-P7320T is based on GT-P7320. The differences are below. a). block WCDMA Band 8 by SW b). change LTE Band 20 to WCDMA Band 5 by HW - LTE Band 20 PAM and matching block <> WCDMA Band 5 PAM matching block - LTE Band 20 Saw filter 2pcs <> WCDMA Band 5 Saw filter 2pcs The intenna of GT-P7320T are all the same with that of GT-P7320. There is “no change” between GT-P7320 and GT-P7320T except support RF Band. So, It is possible to re-use all power FCC data for non-W850 operations from GT-P7320. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely ___________________ Soo pyoung (Patrick), Park / Engineer Samsung Electronics CO. LTD TEL: (+)82-31-301-4045 E-mail: [email protected]

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: January 11, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTP7320T To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

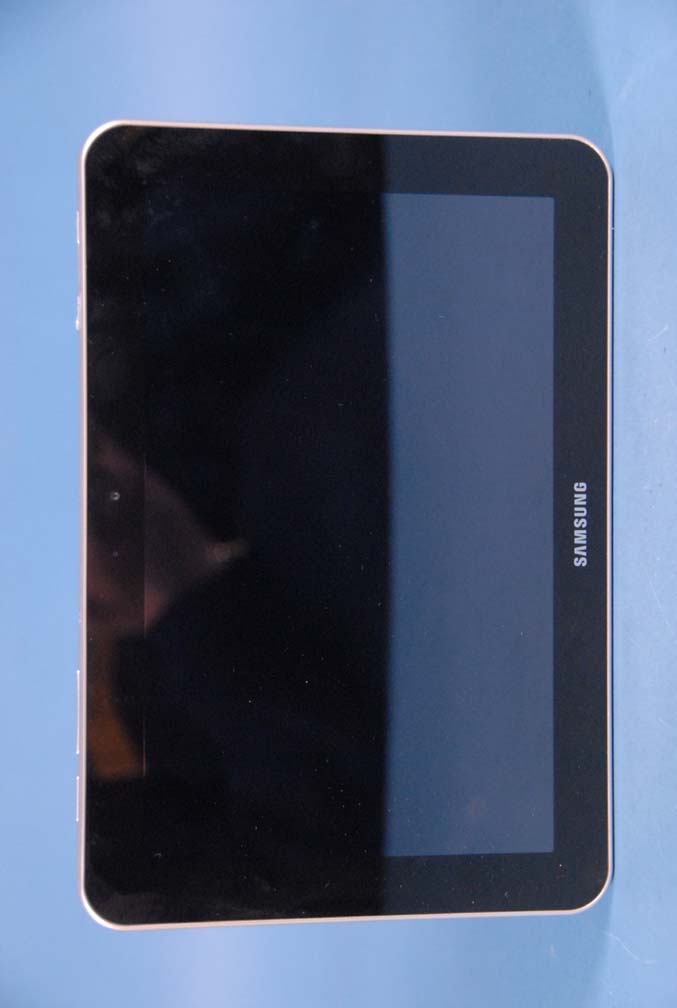

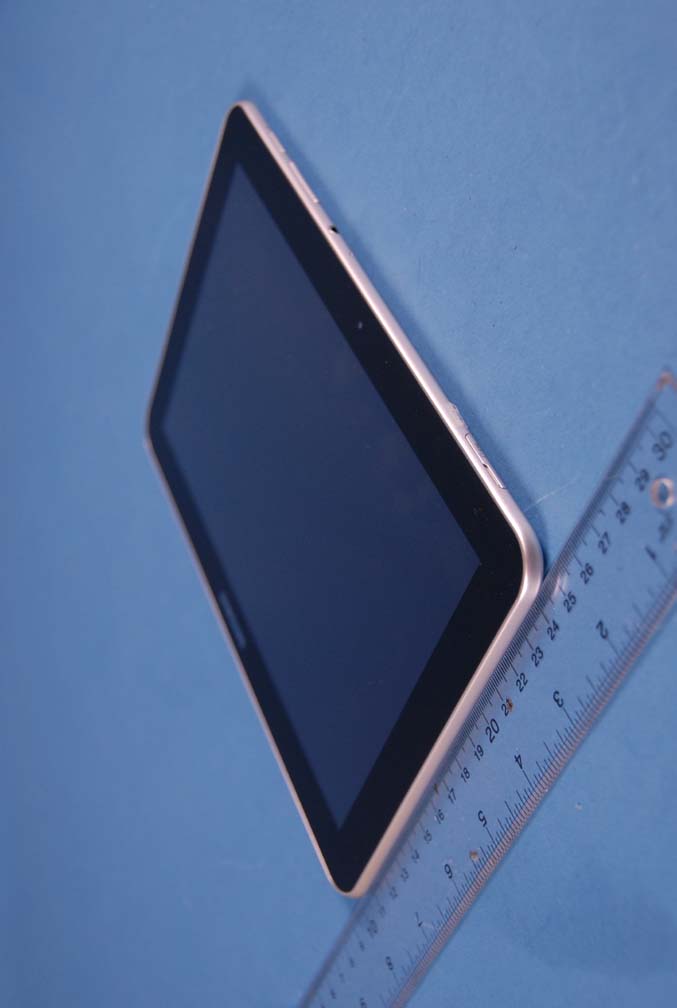

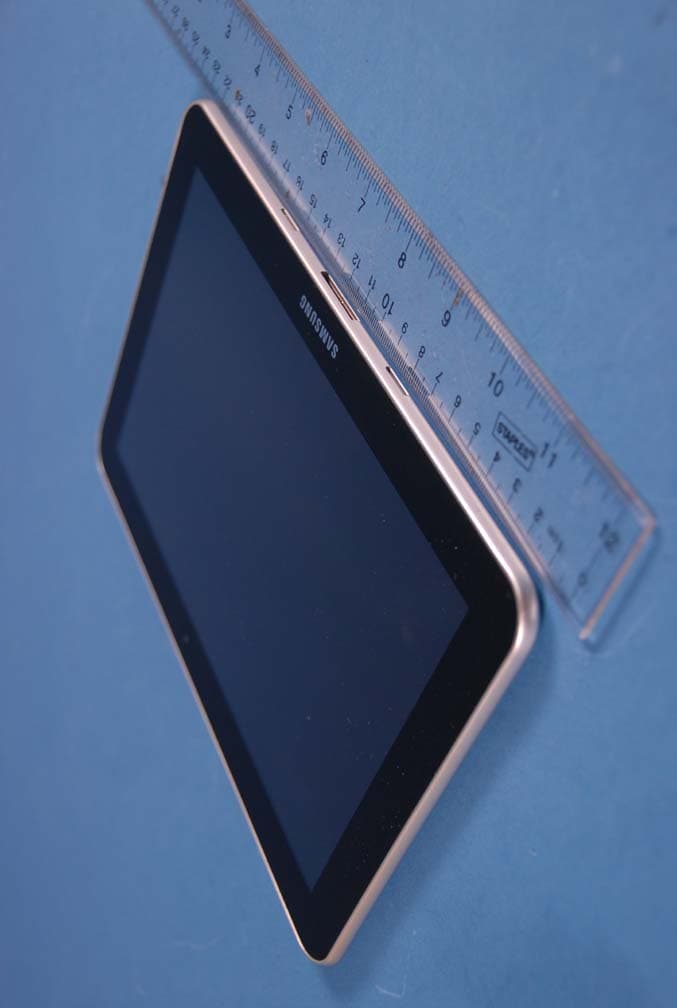

Samsung FCC ID: A3LGTP7320T Model: GT-P7320T External Photos EUT Type: Portable Tablet Computer Page 1 of 4 © 2012 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung FCC ID: A3LGTP7320T Model: GT-P7320T External Photos EUT Type: Portable Tablet Computer Page 2 of 4 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP7320T Model: GT-P7320T External Photos EUT Type: Portable Tablet Computer Page 3 of 4 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP7320T Model: GT-P7320T External Photos EUT Type: Portable Tablet Computer Page 4 of 4 © 2012 PCTEST Engineering Laboratory Inc.

Samsung FCC ID: A3LGTP7320T Model: GT-P7320T Internal Photos EUT Type: Portable Tablet Computer Page 1 of 8 © 2012 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung FCC ID: A3LGTP7320T Model: GT-P7320T Internal Photos EUT Type: Portable Tablet Computer Page 2 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP7320T Model: GT-P7320T Internal Photos EUT Type: Portable Tablet Computer Page 3 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP7320T Model: GT-P7320T Internal Photos EUT Type: Portable Tablet Computer Page 4 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP7320T Model: GT-P7320T Internal Photos EUT Type: Portable Tablet Computer Page 5 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP7320T Model: GT-P7320T Internal Photos EUT Type: Portable Tablet Computer Page 6 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP7320T Model: GT-P7320T Internal Photos EUT Type: Portable Tablet Computer Page 7 of 8 © 2012 PCTEST Engineering Laboratory Inc. Samsung FCC ID: A3LGTP7320T Model: GT-P7320T Internal Photos EUT Type: Portable Tablet Computer Page 8 of 8 © 2012 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: A3LGTP7320T SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1112292211.A3L 10/19/11 – 01/09/12 Portable Tablet Computer Page 1 of 53 © 2012 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 10/19/11 – 01/09/12 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1112292211.A3L FCC ID: A3LGTP7320T APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: Portable Tablet Computer Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] GT-P7320T Test Device Serial No.: Pre-Production [S/N: FI-255-A, CSP^1, CSP^2, #1, #2] 1 gm Body (W/kg) GPRS/EDGE 850824.20 - 848.80 MHz29.250.85 GPRS/EDGE 19001850.20 - 1909.80 MHz28.880.69 WCDMA/HSPA 850826.40 - 846.60 MHz22.450.76 2.4 GHz WLAN2412 - 2462 MHz13.41N/A 5.8 GHz WLAN5745 - 5825 MHz10.170.35 5.2 GHz WLAN5180 - 5240 MHz10.22 5.3 GHz WLAN5260 - 5320 MHz10.37 5.5 GHz WLAN5500 - 5700 MHz10.140.73 Bluetooth2402 - 2480 MHz10.34N/A N/A SAR Band & ModeTx Frequency Conducted Power [dBm] Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all capabilities. The wireless portable device has been shown to be electrically equivalent to the device of FCC ID: A3LGTP7320 with respect to GPRS/EDGE 850, GPRS/EDGE 1900, 2.4 GHz WLAN, 5 GHz WLAN and Bluetooth modes. Previous SAR test data for these modes have been incorporated in this report in addition to the new test data for WCDMA/HSPA 850 mode . This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT Reviewed by: FCC ID: A3LGTP7320T SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1112292211.A3L 10/19/11 – 01/09/12 Portable Tablet Computer Page 2 of 53 © 2012 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 TABLE OF CONTENTS 1 EQUIPMENT UNDER TEST ...........................................................................................................3 2 INTRODUCTION ............................................................................................................................. 6 3 TEST SITE LOCATION ................................................................................................................... 7 4 SAR MEASUREMENT SETUP ....................................................................................................... 8 5 DASY E-FIELD PROBE SYSTEM ................................................................................................ 10 6 PHANTOM AND EQUIVALENT TISSUES.................................................................................... 11 7 DOSIMETRIC ASSESSMENT ...................................................................................................... 12 8 FCC RF EXPOSURE LIMITS........................................................................................................ 13 9 SAR TABLET TESTING ................................................................................................................ 14 10 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 31 11 RF CONDUCTED POWERS......................................................................................................... 34 12 SYSTEM VERIFICATION.............................................................................................................. 39 13 SAR DATA SUMMARY ................................................................................................................. 42 14 VERTEX SAR TESTS ................................................................................................................... 45 15 EQUIPMENT LIST......................................................................................................................... 46 16 MEASUREMENT UNCERTAINTIES ............................................................................................ 49 17 CONCLUSION............................................................................................................................... 51 18 REFERENCES .............................................................................................................................. 52 Reviewed by: FCC ID: A3LGTP7320T SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1112292211.A3L 10/19/11 – 01/09/12 Portable Tablet Computer Page 3 of 53 © 2012 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 1 EQUIPMENT UNDER TEST 1.1 Device Overview GPRS/EDGE 850824.20 - 848.80 MHz GPRS/EDGE 19001850.20 - 1909.80 MHz WCDMA/HSPA 850826.40 - 846.60 MHz 2.4 GHz WLAN2412 - 2462 MHz 5.8 GHz WLAN…

Text truncated - open the document above for the full version.

© 2011 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION

CONFIDENTIAL 08. The schematic and Placement RI*73 SAMSUNG CONFIDENTIAL THIS DOCUMENT CONTAINS CONFIDENTIAL PROPRIETARY INFORMATION THAT IS SAMSUNG ELECTRONICS CO’S PROPERTY. DO NOT DISCLOSE TO OR DUPLICATE FOR OTHERS EXCEPT AS AUTHORIZED BY SAMSUNG. 0 GRIP SENSOR DRX_MODE_SEL_B GSM1800 RX 0 1 LTE BAND7 1 1 0 1 1 Band NC(RX1) 0 1 LTE/WCDMA BAND3: 1805-1880MHz 0 Band 1(RX3) 1 1 1 Rx BandDRX_MODE_SEL_A 0 LTE BAND20 1 X 0 Band 7(RX4) 10 GSM1800/1900 TX Diversity 0 1 1 1 1 0 WCDMA8 TRx GSM850/900 TX 11 LTE BAND3 1 1/15 DRX_SPDT_n 0 00 Band 20(RX2) 0 0 1 1 1 DRX_MODE_SEL_C GSM850 RX 0 Temp ADC X 0 1 1 ELECTRONICS X1 1 WCDMA BAND8: 925-960MHz WCDMA1 TRx WCDMA BAND1: 2110-2170MHz (Placement near LTE RF PA) AGPS 0 Shield CAN 1 1 0 VC2 0 X 0 0 0 0 X 0 1 SWITCH(MAIN) SWITCHABLE ANT 1 0 0 1 0 1 0 X Band 8(RX3) 1 SAMSUNG LTE BAND7: 2620-2690MHz GT-P7320 REV0.6 RF_PART GSM900 RX 1 1 Power Down Mode X SMPS for VPAM 0 GSM1900 RX SUB ANT 00 1 All Off VC1 X 0 1 DRX_SPDT Mode Band 3(RX5) X SAFEB881MFM0F00(2904-001669) GT-P7320T Replac Info. VC3VC4 0 LTE BAND20: 791-821MHz 1 RF PART 1 0 0 VCC 4 user33Friday, November 12, 20104:50:36 pm user33 user33 2 A0 All Off 10 U100 MAX2659ELT GND 1 GND 2 3 RFIN RFOUT 6 5 SHDN RX5 1 V1 1514 V2 V3 13 12 VDD 16 GND 17 GND NC 18 19 NC 8 RX1 6 RX2 4 RX3 2 RX4 10 ANT DGND 11 GND 3 GND 5 GND 7 GND 9 F104 BGS15AN16 47PFC170 0603 25V 8.2nH C191 OPEN 1005 L134 0603 L114 OPEN 1 1 2 2 0603 47nH L112 HJ-ICT-05Y ANT101 2 G2 5 1 S1 S2 4 C185 100PF 50V 1005 4 OUT US6M2GTR U109 6 D1 D2 3 G1 SAFEB1G84FC0F00 F103 G 2 G 5 1 IN OUT 3 RFS100 KMS-560-002-BEF 2 AC 1 G 3 G 4 330K VREG_FEMID_2.85V 1005 R100 33PFC131 0603 25V 0603 R133 10K 10nHL103 0603 L135 1.5nH 1005 ZD101 PESD5V0F1BL C186 0.12nF 25V 0603 VREG_FEMID_2.85V 10V 0603 C153 1000nF 1005 R10133K 0603 15nH L126 56nH L107 0603 C133100PF 0603 25V 330K R144 1005 25V 0603 C150100PF 0603 25V 100PFC108 C193100PF 0603 25V 47PFC179 0603 25V 5.6nH 0603 L120 1005 L121 56nH OPEN 0603 L130 C129 100PF 25V 0603 25V 0603 C17847PF 50V 1005 C190 33PF R151 51 1005 OPEN R124 0603 PESD5V0F1BL ZD102 OPEN 1005 25V C161 VREG_FEMID_2.85V 0603 C14033PF R105 OPEN 0603 47PFC172 0603 25V 0603 25V 27pFC114 0.47uHL116 0603 L131 12NH 0603 BPEN C1 FB C2 VIN C3 L117 OPEN NC 1 NC 2 VCON A1 SGND A2 PGND A3 EN B1 NC B2 SW B3 0603 LM3242 U104 100PF L1271.0nH OPEN 1005 25V 0603 C134 25V 0603 C124 L102 0603 100PF C102 VPAM 5.6nHL128 100PF 1005 16V 100NF C130 C125 0603 25V 0603 25V 100PF 510 1005 VREG_FEMID_2.85V 25V C110 0603 100PF 100PFC147 R137 L1362.7nH 0603 25V RB520G-30 1005 R145 1005 VDD_GRIP_2.8V D102 PORT1+ 1 PORT1- 3 8 PORT2+ PORT2- 7 PORT3+ 5 4 PORT3- 220K,1% XM0860SR-DL0868 U102 2 CTL1 6 CTL2 L105 0603 1.0nH L119 1005 BLM15BA220SN1D SAFEA1G58FB0F00 2 GG 5 1 IN 3 OUT OUT 4 4700NF 10V F100 0.022nF C144 1005 50V C143 C138 10000NF 6.3V 27pF 25V 0603 L108 8.2nH 0603 C107 CTL1 2 CTL2 6 1 PORT1+ 3 PORT1- PORT2+ 8 7 PORT2- 5 PORT3+ PORT3- 4 U111 XM0860SR-DL0868 25V 100PFC154 0603 ANT111 1 1 2 2 KMS-560-002-BEF RFS101 A 21 C 3 G 4 G VREG_MSME_1.8V HJ-ICT-05Y ANT102 HJ-ICT-05Y 1 1 2 2 100K 1005 R142 SAFEA1G58KA0F00 F101 G 2 G 3 G 5 1 IN 4 OUT OPEN 0603 51K 0603 R127 GND 1 INA 3 NC 4 OUTY 5 VCC R129 U110 TC7SH04FS 2 C101 1005 16V 10NF C127 100PF 25V 0603 0603 R120 OPEN HJ-ICT-05Y ANT103 1 1 2 2 VDD_GRIP_2.8V 330K 1005 R147 L113 47nH 0603 1005 OPEN C139 C187 0.12nF 25V 0603 C183 OPEN 1005 22nH 0603 68K,1% 1005 L137 0603 OPEN L122 R143 R138 1005 2M SHORT R146 0ohm 1005 C109 0.5pF 25V 0603 100nH 1005 VREG_FEMID_2.85V R132 0603 L100 6 CR 4 CS GND 5 OUT 1 SYNC 3 VDD 2 10K TS01S U106 10nF C164 0603 2M 1005 R139 6.3V 0603 C17647PF 47PF 25V 0603 25V 47PFC168 0603 25V C171 1 1 2 2 R136 HJ-ICT-06Y ANT106 1005 50V 100PF C184 1005 510 0.012nF 25V 0603 100PF 0603 25V C103 R110 OPEN 0603 C151 100PF 25V 0603 C137 1005 L124 VREG_MSME_1.8V 4.7NF C142 1.5nH 7 VC1 UMTS3 8 9 UMTS2 1005 50V 27 GSM850|900_TX GND 2829 GND 3 VDD GND 30 VC4 4 5 VC3 VC2 6 GSM1800|1900_RX GND 2 GSM1800|1900_RX 20 21 GND GSM850_RX 22 23 GSM850_RX BAND1_TX 24 25 BAND8_TX GSM1800|1900_TX 26 BAND8_RX BAND8_RX 12 13 GND BAND1_RX 14 15 BAND1_RX GND 1617 GNDGND 18 19 F102 LMSW54GL-C78 1 ANT UMTS1 10 11 25V 0603 C17347PF Q100 DTC144EM 1 3 2 R115 OPEN 0603 50V 100PF 1005 C159 0603 L1295.6nH 1005 C160 50V 0.001nF 1.0nHL125 0603 OPEN 0603 0603 OPEN L109 R119 0603 25V 0.12nF C155 L1046.8nH 1005 100nF 10V C118 1005 RCLAMP0521P ZD100 C112 1 1 2 2 VREG_FEMID_2.85V 33PF 50V 1005 0603 ANT100 HJ-ICT-05Y OPEN R126 C104 1.2PF 1005 50V C146 10V 100nF R148 1005 OPEN 1005 25V 0603 C16947PF 2.2nHL101 1005 UNBAL8 UNBAL1 4 47PFC175 0603 25V 9 8 BAL8 BAL1 7 6 BAL1 2 GG 35 GG 10 1 F105 SAWEN942MCA0F00 BAL8 VOUT_CHARGER C100 1005 10V 100nF 1 IN OUT 3 4 OUT 100PFC194 0603 25V SAFEA806MCM0F00 F107 G 25 G 100PFC135 0603 25V 0603 OPEN R125 1K 1005 OPEN R116 0603 R107 ANT107 HJ-ICT-05Y 1 1 2 2 47nH L123 2 2 33 4 4 5 5 6 6 7 7 8 8 9 9 1005 SHIELDCAN-P5-LTE-EUR-RF SC100 1 1 10 10 1111 12 12 OUT 47PFC177 0603 25V B9478 F106 G 25 G 1 IN OUT 3 4 C113100PF 50V 1005 1000nF C156 0603 10V 0603 OPEN L132 0603 C152100PF 1 OUT 3 SYNC 2 VDD 25V U105 TS01S CR 6 CS 4 5 GND C132100PF 0603 25V VR100 NTCCM10054BH103HC 25V 0603 C17447PF ANT112 HJ-ICT-05Y 1 1 2 2 L10610nH 0603 0ohm D103 RB520G-30 VREG_FEMID_2.85V SHORT 1005 R106 0603 VDD_GRIP_2.8V L1151.0nH 0603 25V 100PF C128 R111 OPEN 0603 33PF C192 1005 50V QTR_GNSS_P QTR_GNSS_M RF_TOUCH_INT2 TEMP_RF GNSS_EN COND_N RF_TOUCH_EN RF_TOUCH_INT COND_N DRX_LB3_INM DRX_MODE_SEL_A DRX_MODE_SEL_C DRX_MODE_SEL_B SUB_ANT DRX_LB20_WB8_INP DRX_LB20_WB8_INM DRX_SPDT DRX_LB7_WB1_INP DRX_LB7_WB1_INM DRX_LB3_INP TRX_LB_B20 TX_WB_B1 TRX_LB_B7 TRX_LB_B3 GTX_1800_1900 GTX_850_900 PRX_WB1_INM PRX_WB1_INP PRX_WB8_900_INM PRX_WB8_900_INP RX_DPCS_INM RX_DPCS_INP GSM_ANT_SEL3_N GSM_ANT_SEL2_N GSM_ANT_SEL1_N GSM_ANT_SEL0_N TX_WB_B8 SUB_ANT TX_AGC_ADJ MDM_APT_EN RX_850_INM RX_850_INP SAMSUNG CONFIDENTIAL THIS DOCUMENT CONTAINS CONFIDENTIAL PROPRIETARY INFORMATION THAT IS SAMSUNG ELECTRONICS CO’S PROPERTY. DO NOT DISCLOSE TO OR DUPLICAT…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LGTP7320T FCC Pt. 22/24 GSM / EDGE / WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1112292212.A3L Oct. 17, 2011 - Jan. 06, 2012 Portable Tablet Computer Page 1 of 47 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.4GFI 09/15/2011 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. Oct. 17, 2011 - Jan. 06, 2012 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1112292212.A3L FCC ID: A3LGTP7320T APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2; §22(H), §24(E) IC Specification(s): RSS-132 Issue 2; RSS-133 Issue 5 EUT Type: Portable Tablet Computer Model(s): GT-P7320T Test Device Serial No.: identical prototype [S/N: FI-255-C & 4JAN-2] Max. Power (W) Max. Power (dBm) GSM850824.2 - 848.8244KGXW1.42931.55 EDGE850824.2 - 848.8239KG7W0.66128.20 WCDMA850826.4 - 846.64M12F9W0.18922.76 GSM19001850.2 - 1909.8243KGXW1.31031.17 EDGE19001850.2 - 1909.8241KG7W0.81229.09 ERP/EIRP Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 / IC RSS-132/RSS-133 Reviewed by: FCC ID: A3LGTP7320T FCC Pt. 22/24 GSM / EDGE / WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1112292212.A3L Oct. 17, 2011 - Jan. 06, 2012 Portable Tablet Computer Page 2 of 47 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.4GFI 09/15/2011 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT............................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.4 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................... 6 3.2 OCCUPIED BANDWIDTH ................................................................................................................... 6 3.3 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 7 3.5 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 7 3.6 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.8 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 8 3.9 PEAK-AVERAGE RATIO ..................................................................................................................... 8 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 8 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 5.0 SAMPLE CALCULATIONS ............................................................................................................10 6.0 TEST RESULTS .............................................................................................................................11 6.1 SUMMARY......................................................................................................................................... 11 6.2 EFFECTIVE RADIATED POWER OUTPUT DATA ........................................................................... 12 6.3 EQUIVALENT ISOTROPIC RADIATED POWER OUTPUT DATA .................................................... 13 6.4 CELLULAR GSM RADIATED MEASUREMENTS ..........................…

Text truncated - open the document above for the full version.

Samsung FCC ID: A3LGTP7320T Model: GT-P7320T Test Set-Up Photos EUT Type: Portable Tablet Computer Page 1 of 1 © 2012 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung FCC ID: A3LGTP7320T Model: GT-P7320T Test Set-Up Photos EUT Type: Portable Tablet Computer Page 2 of 2 © 2012 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: A3LGTP7320T SAR COMPLIANCE REPORT Quality Manager Test Dates: EUT Type: 10/19/11 – 01/09/12 Portable Tablet Computer Page i of v © 2012 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 APPENDIX D: SAR TEST SETUP PHOTOGRAPHS Reviewed by: FCC ID: A3LGTP7320T SAR COMPLIANCE REPORT Quality Manager Test Dates: EUT Type: 10/19/11 – 01/09/12 Portable Tablet Computer Page ii of v © 2012 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 SAR Test Setup Photo 1: Back at 0.0 cm SAR Test Setup Photo 2: Back at 1.0 cm Reviewed by: FCC ID: A3LGTP7320T SAR COMPLIANCE REPORT Quality Manager Test Dates: EUT Type: 10/19/11 – 01/09/12 Portable Tablet Computer Page iii of v © 2012 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 SAR Test Setup Photo 3: Top at 0.0 cm SAR Test Setup Photo 4: Top at 0.5 cm Reviewed by: FCC ID: A3LGTP7320T SAR COMPLIANCE REPORT Quality Manager Test Dates: EUT Type: 10/19/11 – 01/09/12 Portable Tablet Comput…

Text truncated - open the document above for the full version.
