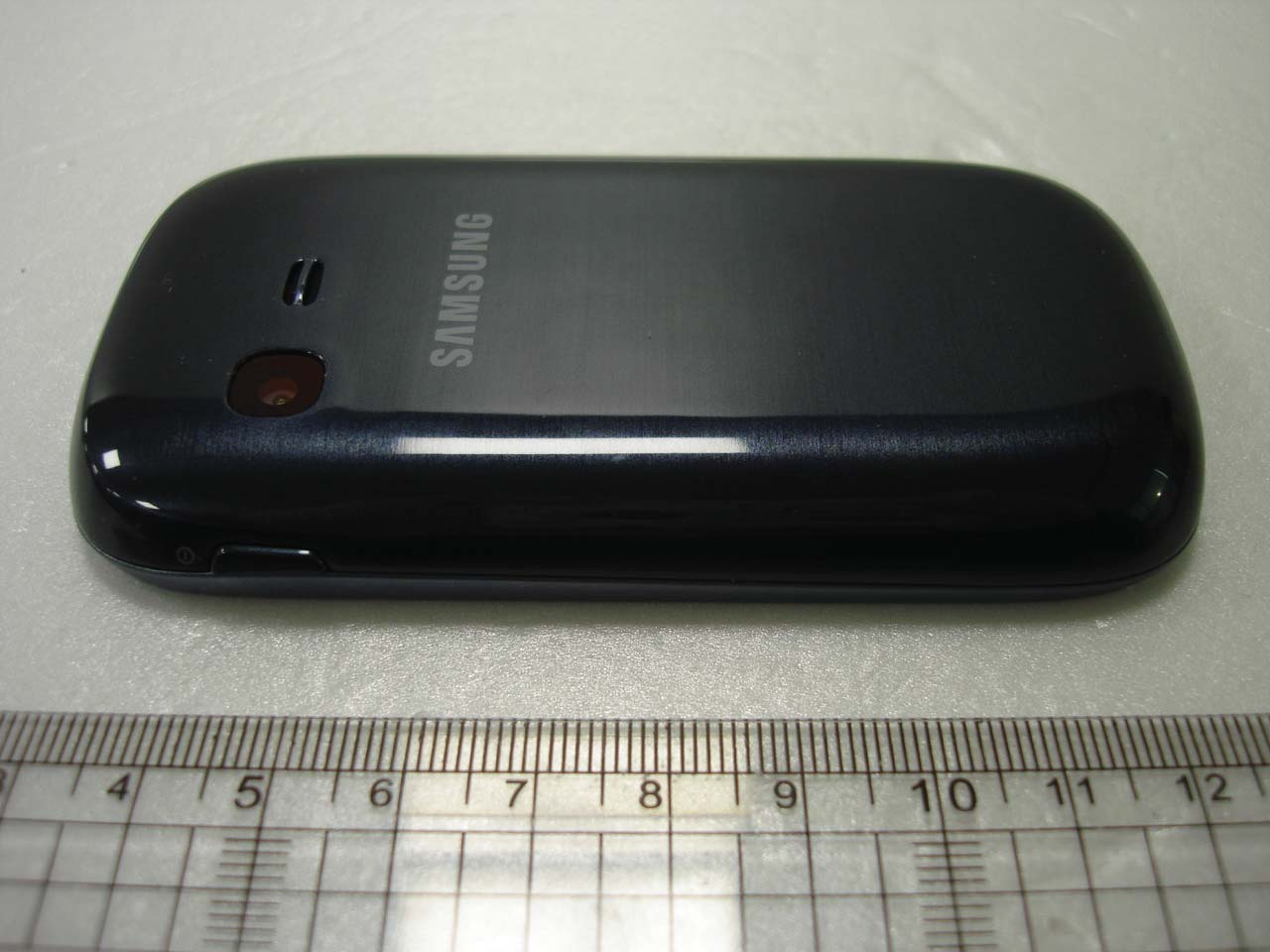

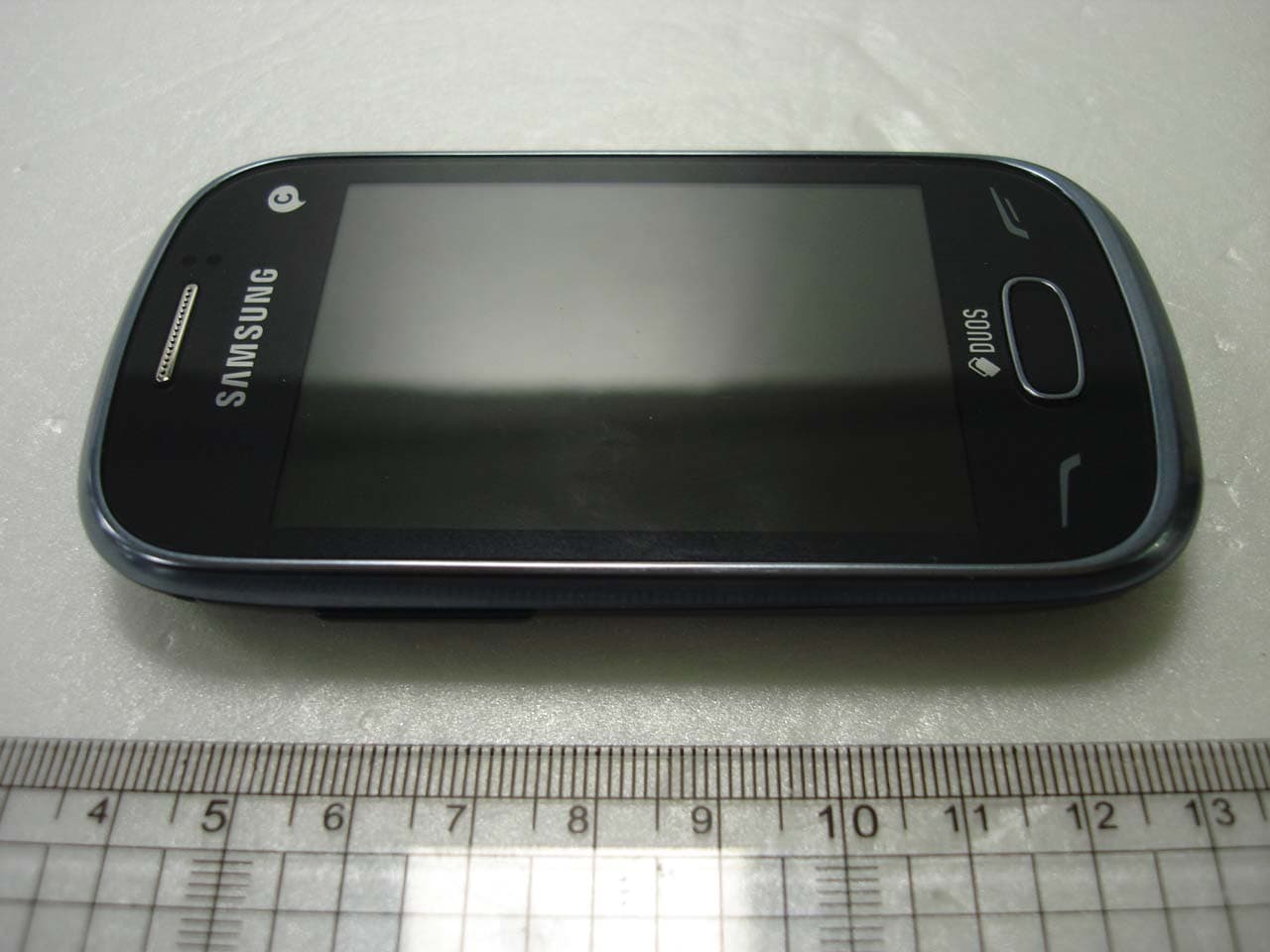

A3LGTS3802WCellular/ PCS GSM Phone with WLAN and Bluetooth

Device layout GT-S3802W user manual www.samsung.com Printed in Korea GH68-XXXXXX English (CIS). 12/2012. Rev. 1.0 Some content may differ from your device depending on the region • or service provider. Third party services may be terminated or interrupted at any time, • and Samsung makes no representation or warranty that any content or service will remain available for any period of time. This product includes certain free/open source software. The exact • terms of the licences, disclaimers, acknowledgements and notices are available on the Samsung’s website opensource.samsung.com. 1 Volume button From the Home screen, adjust the device’s volume; Make a fake call (down); Send an SOS message See “Using the SOS message feature” 2 Dial button Make or answer a call; From the Home screen, retrieve recently dialled, missed, or received numbers 3 Back button In the Menu screen, cancel an input and return to the Home screen; Switch between SIM cards (press and hold) 4 Power button Turn the device on or off (press and hold) 5 End button End a call; In the Menu screen, cancel an input and return to the Home screen IconDescription No SIM card No signal Signal strength 1 Network searching EDGE network connected Battery power level Call in progress Call diverting activated New text message (SMS) New multimedia message (MMS) New voicemail message New push message SOS message feature activated IconDescription Normal profile activated Silent profile activated Bluetooth feature activated Browsing the web Connected to computer Alarm activated Music playback in progress Music playback paused FM radio on Roaming (outside of normal service area) Memory card inserted 10:00 Current time 1. The icon may vary depending on the SIM card setting. The device displays the following status indicators at the top of the screen: Installing the SIM cards and battery Remove the back cover and insert the SIM cards.1. Back cover Do not bend or twist the back cover excessively. Doing so may damage the cover. Insert the battery and replace the back cover.2. Charging the battery To electric socket Plug the small end of the charger into the multipurpose 1. jack of the device, and plug the large end of the charger into an electric socket. After fully charging, disconnect the device from the 2. charger. First unplug the charger from the device, and then unplug it from the electric socket. Use only Samsung-approved chargers, batteries, • and cables. Unapproved chargers or cables can cause battery to explode or damage the device. Do not remove the battery before removing the • charger. This may damage the device. To save energy, unplug the charger when not in • use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The device should remain close to the electric socket while charging. If the device receives an unstable power supply • while charging, the touch screen may not function. If this happens, unplug the charger from the device. Inserting a memory card (optional) The device accepts memory cards with maximum capacities of 32 GB. Depending on the memory card manufacturer and type, some memory cards may not be compatible with the device. Memory card Insert the memory card as shown in the drawing. Formatting the memory card on a computer might • cause incompatibility with your device. Format the memory card only on the device. Frequent writing and erasing of data will shorten • the lifespan of memory cards. Do not use sharp tools to remove the memory card • from the device. Turning the device on or off Turning the device on Press and hold the Power button, and then enter the PIN, if necessary. Turning the device off Press and hold the Power button. If the battery is fully discharged or removed from the device, the time and date will be reset. Using the touch screen The device’s touch screen lets you easily select items or perform functions. Learn basic actions to use the touch screen. Do not use sharp tools to avoid scratching the touch screen. Ta p Touch the screen once to select or launch a menu, option, or application. Tap and hold Tap an item and hold for more than 2 seconds. Drag Tap and hold an item, then drag it to move. T9 mode Select the appropriate virtual buttons to enter an entire 1. word. When the word displays correctly, tap 2. to insert a space. If the correct word does not display, select to select an alternate word. ABC mode Select an appropriate virtual button until the character appears on the display. Number mode Select an appropriate virtual button to enter a number. Symbol mode Select an appropriate virtual button to enter a symbol. Other features for text input Tap Move the cursor. Tap Delete a character one by one. Tap and hold Delete characters quickly. Tap 1Enter punctuation marks. Tap Change to uppercase. Tap twice to type all words in uppercase. Accessing menus To access the device’s menus or options, Drag on the touch screen Scroll left or right to see another the Menu screen. Ta pLaunch a menu or an application. MenuOpen the Menu screen. Back buttonReturn to the previous screen. [ ] Close the menu or application and return to the Home screen. When you access a menu requiring the PIN2, you • must enter the PIN2 supplied by the SIM card. For details, contact your service provider. Samsung is not responsible for any loss of • passwords or private information or other damage caused by illegal software. Entering text Changing the text input mode Tap EnglishChange the input language. Tap T9 Switch between T9 and ABC mode. Depending on region, you might be able to access an input mode for your specific language. Tap 123 or symSwitch to Number or Symbol mode. Making or answering a call To make a call, tap • Keypad, enter a phone number and select or . To end a call, press [• ]. To call a recently dialled number, select • or to select a number, and select or again to dial the number. To make a call using the phonebook, tap…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea February 13, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LGTS3802W Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the device will be marketed without the battery installed. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: February 15, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTS3802W To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

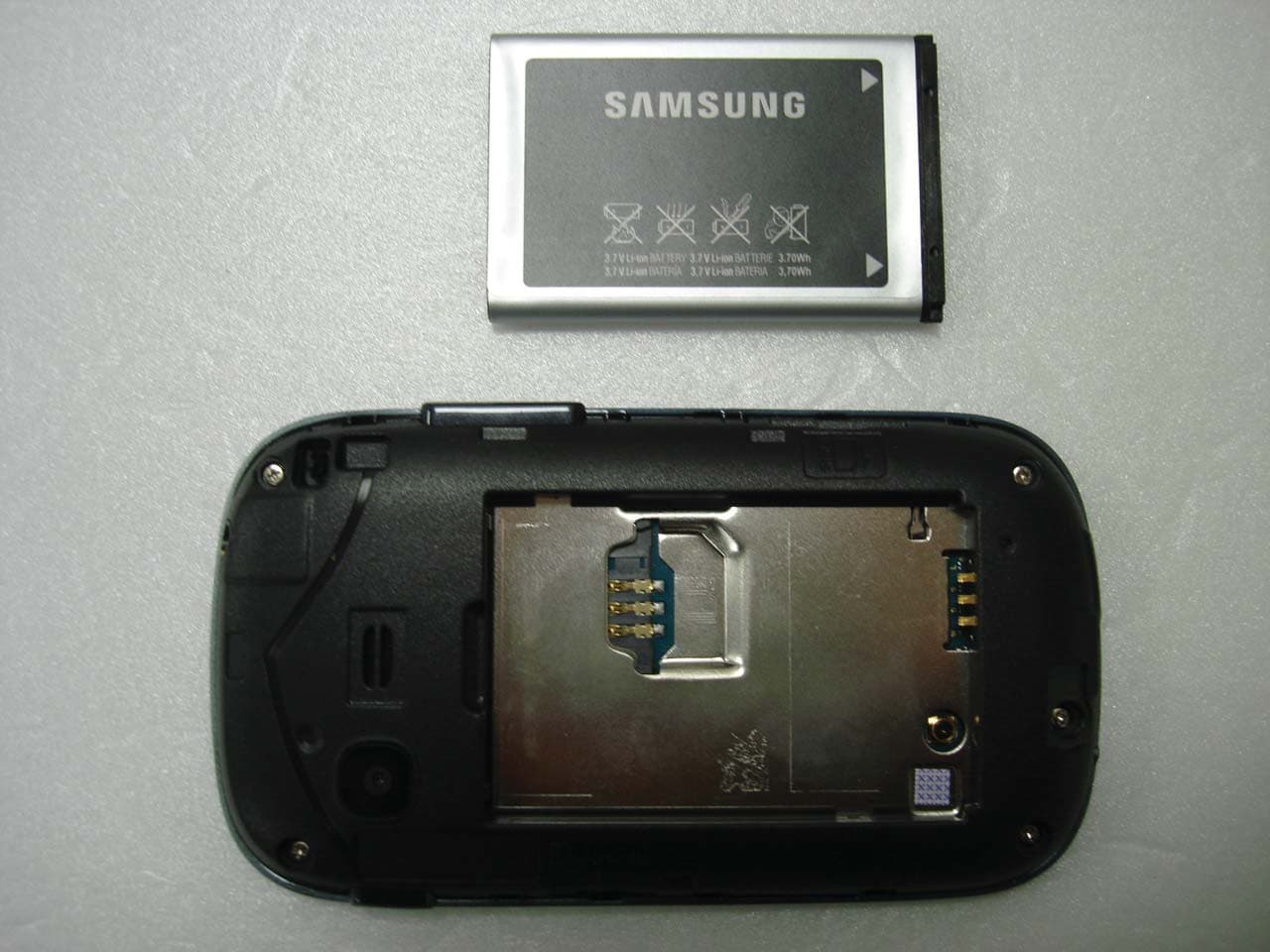

Label and Location Samsung Phone Model: GT-S3802W FCC ID: A3LGTS3802W Label: Location: Top Back plate of device Bottom Label is placed inside of the battery compartment. IMEI No. La bel

Report No.: HCTA1301FS07 FCC ID: A3LGTS3802W Date of Issue: Jan. 25, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 2 of 119 Table of Contents 1. INTRODUCTION .......................................................................................................................................... ３ 2. TEST METHODOLOGY ............................................................................................................................... ４ 3. DESCRIPTION OF DEVICE ......................................................................................................................... ５ 4. DESCRIPTION OF TEST EQUIPMENT ...................................................................................................... ６ 5. SAR MEASUREMENT PROCEDURE ..................................................................................................... １３ 6. DESCRIPTION OF TEST POSITION ....................................................................................................... １５ 7. MEASUREMENT UNCERTAINTY ........................................................................................................... １７ 8. ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................................................. １８ 9. SAR SYSTEM VALIDATION .................................................................................................................... １９ 10. SYSTEM VERIFICATION ....................................................................................................................... ２０ 11. RF CONDUCTED POWER MEASUREMENT ....................................................................................... ２１ 12. SAR Test configuration & Antenna Information ................................................................................ ２７ 13. SAR TEST DATA SUMMARY ................................................................................................................ ２８ 13.1 Measurement Results (GSM850 Head SAR) ................................................................................ ２８ 13.2 Measurement Results (GSM1900 Head SAR) .............................................................................. ２９ 13.3 Measurement Results (802.11b/g/n Head) ................................................................................... ３０ 13.3 Measurement Results (GSM850 Body-Worn SAR) ...................................................................... ３１ 13.4 Measurement Results (GSM1900 Body-Worn SAR) .................................................................... ３２ 13.5 Measurement Results (802.11b/g/n Body-Worn SAR) .................................................................. ３３ 14. SAR Summation Scenario ................................................................................................................... ３４ 15. SAR Measurement Variability and Uncertainty ................................................................................. ３７ 16. CONCLUSION ........................................................................................................................................ ３８ 17. REFERENCES ....................................................................................................................................... ３９ Attachment 1. – SAR Test Plots ................................................................................................................ ４０ Attachment 2. – Dipole Verification Plots................................................................................................. ７０ Attachment 3. – Probe Calibration Data ................................................................................................... ８３ Attachment 4. – Dipole Calibration Data .................................................................................................. ９５ Report No.: HCTA1301FS07 FCC ID: A3LGTS3802W Date of Issue: Jan. 25, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 3 of 119 1. INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices. The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017. The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radio frequency Electromagnetic Fields,” NCRP Report No. 86 NCRP, 1986, Bethesda, MD 20814. SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biological hazards. SAR Definition Specific Absorption Rate (SAR) is defined as the time derivative of the incremental electromagnetic energy (dW) absorbed by (dissipated in) an incremental mass (dm) contained in a volume element (dV) of a given density (r ). It is also defined as the rate of RF energy absorption per unit mass at a point in an absorbing body. NOTE: The pr…

Text truncated - open the document above for the full version.

Report No.: HCTA1301FS07 FCC ID: A3LGTS3802W Date of Issue: Jan. 25, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 51 of 119 Test Laboratory: HCT CO., LTD EUT Type: 850/1900 GSM/GPRS Phone with Bluetooth v3.0, 802.11b/g/n and EDGE Rx Only Liquid Temperature: 21.1°C Ambient Temperature: 21.3°C Test Date: Jan. 18, 2013 Plot No.: 11 DUT: GT-S3802W; Type: bar; Serial: FK-008-A Communication System: GSM 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1910 MHz; σ = 1.38 mho/m; ε r = 40.8; ρ = 1000 kg/m 3 Phantom section: Right Section ; Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ET3DV6 - SN1609; ConvF(5.26, 5.26, 5.26); Calibrated: 2012-03-19 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn869; Calibrated: 2012-09-18 - Phantom: SAM 1800/1900 MHz; Type: SAM Right touch 810/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.02 mW/g Right touch 810/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.01 V/m; Power Drift = 0.020 dB Peak SAR (extrapolated) = 1.54 W/kg SAR(1 g) = 0.890 mW/g; SAR(10 g) = 0.483 mW/g Maximum value of SAR (measured) = 0.982 mW/g 0 dB = 0.982mW/g Report No.: HCTA1301FS07 FCC ID: A3LGTS3802W Date of Issue: Jan. 25, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 52 of 119 Test Laboratory: HCT CO., LTD EUT Type: 850/1900 GSM/GPRS Phone with Bluetooth v3.0, 802.11b/g/n and EDGE Rx Only Liquid Temperature: 21.1°C Ambient Temperature: 21.3°C Test Date: Jan. 18, 2013 Plot No.: 12 DUT: GT-S3802W; Type: bar; Serial: FK-008-A Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.35 mho/m; ε r = 40.9; ρ = 1000 kg/m 3 Phantom section: Right Section ; Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ET3DV6 - SN1609; ConvF(5.26, 5.26, 5.26); Calibrated: 2012-03-19 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn869; Calibrated: 2012-09-18 - Phantom: SAM 1800/1900 MHz; Type: SAM Right tilt 661/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.440 mW/g Right tilt 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.9 V/m; Power Drift = -0.058 dB Peak SAR (extrapolated) = 0.563 W/kg SAR(1 g) = 0.349 mW/g; SAR(10 g) = 0.203 mW/g Maximum value of SAR (measured) = 0.378 mW/g 0 dB = 0.378mW/g Report No.: HCTA1301FS07 FCC ID: A3LGTS3802W Date of Issue: Jan. 25, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 53 of 119 Test Laboratory: HCT CO., LTD EUT Type: 850/1900 GSM/GPRS Phone with Bluetooth v3.0, 802.11b/g/n and EDGE Rx Only Liquid Temperature: 21.1°C Ambient Temperature: 21.3°C Test Date: Feb. 21. 2013 Plot No.: 20 DUT: GT-S3802W; Type: bar; Serial: FK-008-A Communication System: 2450MHz FCC; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.82 mho/m; ε r = 38.1; ρ = 1000 kg/m 3 Phantom section: Left Section ; Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ET3DV6 - SN1609; ConvF(4.52, 4.52, 4.52); Calibrated: 2012-03-19 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn869; Calibrated: 2012-09-18 - Phantom: 1800/1900 Phantom; Type: SAM Left Touch ch6/Area Scan (71x111x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 0.065 mW/g Left Touch ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.55 V/m; Power Drift = 0.035 dB Peak SAR (extrapolated) = 0.143 W/kg SAR(1 g) = 0.058 mW/g; SAR(10 g) = 0.025 mW/g Maximum value of SAR (measured) = 0.064 mW/g 0 dB = 0.064mW/g Report No.: HCTA1301FS07 FCC ID: A3LGTS3802W Date of Issue: Jan. 25, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 54 of 119 Test Laboratory: HCT CO., LTD EUT Type: 850/1900 GSM/GPRS Phone with Bluetooth v3.0, 802.11b/g/n and EDGE Rx Only Liquid Temperature: 21.1°C Ambient Temperature: 21.3°C Test Date: Feb. 21. 2013 Plot No.: 21 DUT: GT-S3802W; Type: bar; Serial: FK-008-A Communication System: 2450MHz FCC; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.82 mho/m; ε r = 38.1; ρ = 1000 kg/m 3 Phantom section: Left Section ; Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ET3DV6 - SN1609; ConvF(4.52, 4.52, 4.52); Calibrated: 2012-03-19 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn869; Calibrated: 2012-09-18 - Phantom: 1800/1900 Phantom; Type: SAM Left Tilt ch6/Area Scan (71x111x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 0.016 mW/g Left Tilt ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.00 V/m; Power Drift = -0.073 dB Peak SAR (extrapolated) = 0.024 W/kg SAR(1 g) = 0.014 mW/g; SAR(10 g) = 0.00812 mW/g Maximum value of SAR (measured) = 0.016 mW/g 0 dB = 0.016mW/g Report No.: HCTA1301FS07 FCC ID: A3LGTS3802W Date of Issue: Jan. 25, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 55 of 119 Test Laboratory: HCT CO., LTD EUT Type: 850/1900 GSM/GPRS Phone with Bluetooth v3.0, 802.11b/g/n and EDGE Rx Only Liquid Temperature: 21.1°C Ambient Temperature: 21.3°C Test Date: Feb. 21. 2013 Plot No.: 22 DUT: GT-S3802W; Type: bar; Serial: FK-0…

Text truncated - open the document above for the full version.

FCCGPT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1302FR18-1 Date of Issue: February 19, 2013 EUT Type: 850/1900 GSM/GPRS Phone with Bluetooth v3.0, 802.11b/g/n and EDGE Rx Only FCC ID: A3LGTS3802W Page୎ of 130 Version TEST REPORT NO. DATE DESCRIPTION HCTR1302FR18 February 14, 2013 - First Approval Report HCTR1302FR18-1 February 19, 2013 - Retest Conducted Spurious Emissions and 6 dB Bandwidth FCCGPT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1302FR18-1 Date of Issue: February 19, 2013 EUT Type: 850/1900 GSM/GPRS Phone with Bluetooth v3.0, 802.11b/g/n and EDGE Rx Only FCC ID: A3LGTS3802W Page୏ of 130 Table of Contents 1. GENERAL INFORMATION ..........................................................................................................................எ 2. EUT DESCRIPTION ..................................................................................................................................... எ 3. TEST METHODOLOGY ............................................................................................................................... ஏ 3.1 EUT CONFIGURATION ...................................................................................................................... ஏ 3.2 EUT EXERCISE .................................................................................................................................. ஏ 3.3 GENERAL TEST PROCEDURES ...................................................................................................... ஏ 3.4 DESCRIPTION OF TEST MODES ..................................................................................................... ஏ 4. INSTRUMENT CALIBRATION..................................................................................................................... ஐ 5. FACILITIES AND ACCREDITATIONS ......................................................................................................... ஐ 5.1 FACILITIES ......................................................................................................................................... ஐ 5.2 EQUIPMENT ....................................................................................................................................... ஐ 6. ANTENNA REQUIREMENTS ...................................................................................................................... ஑ 7. SUMMARY TEST OF RESULTS ................................................................................................................. ஒ 8. TEST RESULT ............................................................................................................................................. ஓ 8.1 6dB BANDWIDTH (802.11b/g/n) ....................................................................................................... ஓ 8.2 OUTPUT POWER (802.11b/g/n) .................................................................................................... ஋ஐ 8.3 POWER SPECTRAL DENSITY (802.11b/g/n) ............................................................................... ஒஎ 8.4 OUT OF BAND EMISSIONS AT THE BAND EDGE/ CONDUCTED SPURIOUS EMISSIONS ... ஓ஋ 8.5 RADIATED MEASUREMENT. ..................................................................................................... ஋஋஋ 8.5.1 RADIATED SPURIOUS EMISSIONS. ............................................................................... ஋஋஋ 8.5.2 RADIATED RESTRICTED BAND EDGES ....................................................................... ஋஌஌ 8.6 POWERLINE CONDUCTED EMISSIONS .................................................................................. ஋஌ஏ 9. LIST OF TEST EQUIPMENT ................................................................................................................ ஋஍ஊ G FCCGPT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1302FR18-1 Date of Issue: February 19, 2013 EUT Type: 850/1900 GSM/GPRS Phone with Bluetooth v3.0, 802.11b/g/n and EDGE Rx Only FCC ID: A3LGTS3802W Page୐ of 130 1. GENERAL INFORMATION G Applicant: SAMSUNG Electronics Co., Ltd. Address: 129, Samsung-ro, Yeongtong-gu Suwon-si, Gyeonggi-do, 443-742 Rep. of Korea FCC ID: A3LGTS3802W EUT Type: 850/1900 GSM/GPRS Phone with Bluetooth v3.0, 802.11b/g/n and EDGE Rx Only Model name(s): GT-S3802W Date(s) of Tests: January 19, 2013 ~ February 12, 2013 Place of Tests: HCT Co., Ltd. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA. (IC Recognition No. : 5944A-3) G 2. EUT DESCRIPTION EUT Type 850/1900 GSM/GPRS Phone with Bluetooth v3.0, 802.11b/g/n and EDGE Rx Only FCC Model Name GT-S3802W Power Supply DC 3.7 V Battery type Li-ion Battery(Standard) Frequency Range TX: 2412 MHz ~ 2462 MHz RX: 2412 MHz ~ 2462 MHz Max. RF Output PowerPeak Wi-Fi 802.11b(22.44 dBm) / Wi-Fi 802.11g (22.05 dBm) / Wi-Fi 802.11n (21.67 dBm) Average Wi-Fi 802.11b(16.04 dBm) / Wi-Fi 802.11g (13.11 dBm) / Wi-Fi 802.11n (12.91 dBm) Modulation Type DSSS/CCK(802.11b), OFDM(802.11g, 802.11n) Antenna Specification Manufacturer: TAIANJIN MAXSKYLINK ELECTRONICS Antenna type: Internal Antenna Peak Gain : 1.6 dBi FCCGPT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1302FR18-1 Date of Issue: February 19, 2013 EUT Type: 850/1900 GSM/GPRS Phone with Bluetooth v3.0, 802.11b/g/n and EDGE Rx Only FCC ID: A3LGTS3802W Page୑ of 130 3. TEST METHODOLOGY The measurement procedure described in the American National Standard for Testing Unlicensed Wireless Devices(ANSI C63.10-2009) Operating Under ­15.247” were used in the measurement. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the Tx frequ…

Text truncated - open the document above for the full version.

FCC ID: A3LGTS3802WG G HCT CO., LTD 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page୍ of 16 TEST SETUP PHOTOGRAPHS FCC ID: A3LGTS3802WG G HCT CO., LTD 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page୎ of 16 G G ̰ Conducted BT Test Setup Photo FCC ID: A3LGTS3802WG G HCT CO., LTD 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page୏ of 16 G G ̰ Conducted WLAN Test Setup Photo FCC ID: A3LGTS3802WG G HCT CO., LTD 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page୐ of 16 G G ̰ BT/WLAN Test Setup Photo FCC ID: A3LGTS3802WG G HCT CO., LTD 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page୑ of 16 G ̰ BT/WLAN Test Setup Photo FCC ID: A3LGTS3802WG G HCT CO., LTD 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page୒ of 16 G ̰ BT/WLAN Test Setup Photo FCC ID: A3LGTS3802WG G HCT CO., LTD 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page୓ of 16 G G ̰ BT/WLAN Test Setup Photo FCC ID: A3LGTS3802WG G HCT CO., LTD 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page୔ of 16 G G ̰ BT/WLAN Test Setup Photo FCC ID: A3LGTS3802WG G HCT CO., LTD 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page୕ of 16 G ̰ BT/WLAN Test Setup Photo FCC ID: A3LGTS3802WG G HCT CO., LTD 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page୍ୌ of 16 G ̰ BT/WLAN Test Setup Photo FCC ID: A3LGTS3802WG G HCT CO., LTD 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page୍୍ of 16 G G ̰ BT/WLAN Test Setup Photo FCC ID: A3LGTS3802WG G HCT CO., LTD 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page୍୎ of 16 G ̰ BT/WLAN Test Setup Photo FCC ID: A3LGTS3802WG G HCT CO., LTD 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page୍୏ of 16 G G ̰ BT/WLAN Test Setup Photo FCC ID: A3LGTS3802WG G HCT CO., LTD 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page୍୐ of 16 G ̰ BT/WLAN Test Setup Photo FCC ID: A3LGTS3802WG G HCT CO., LTD 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 640…
