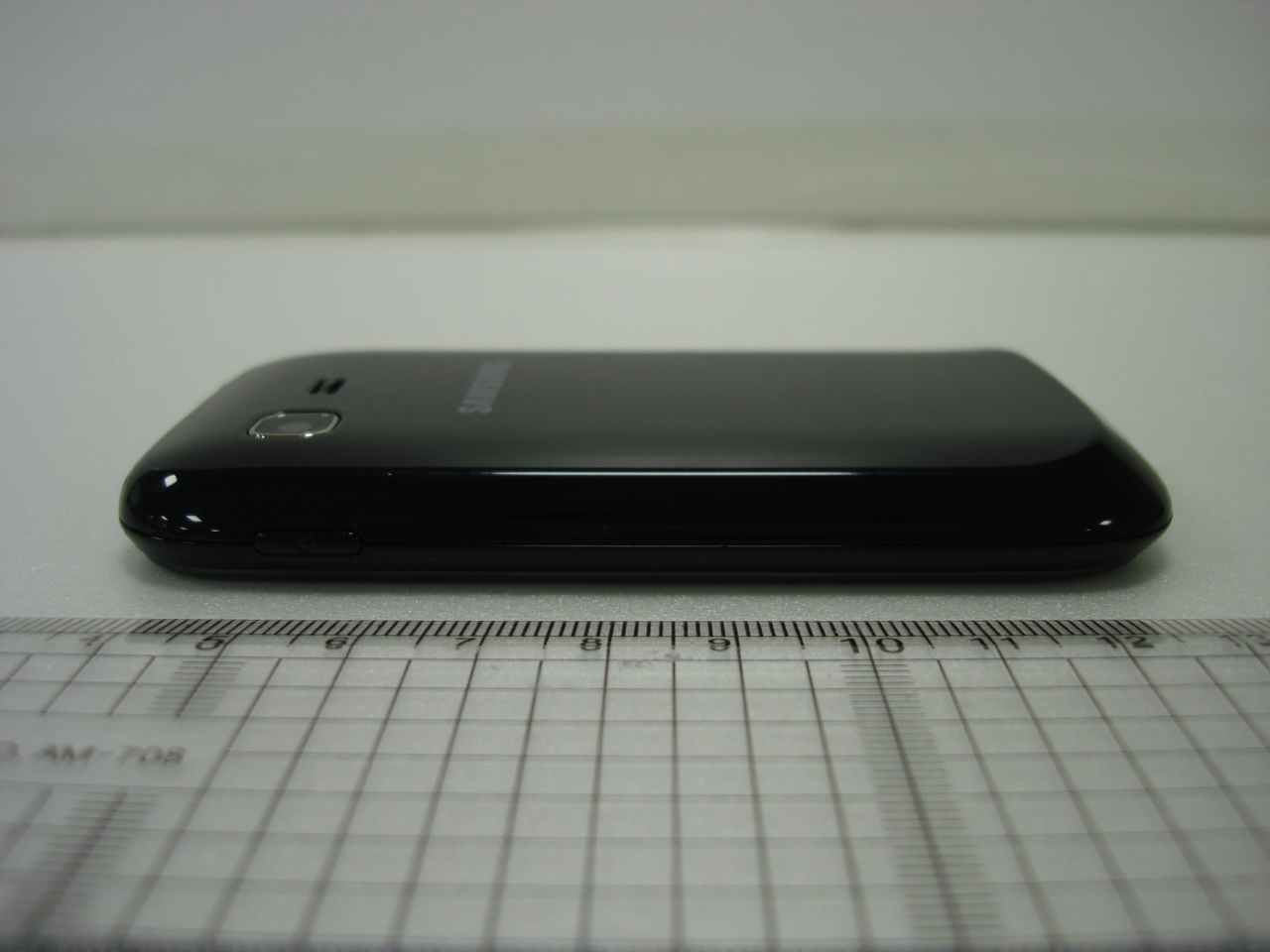

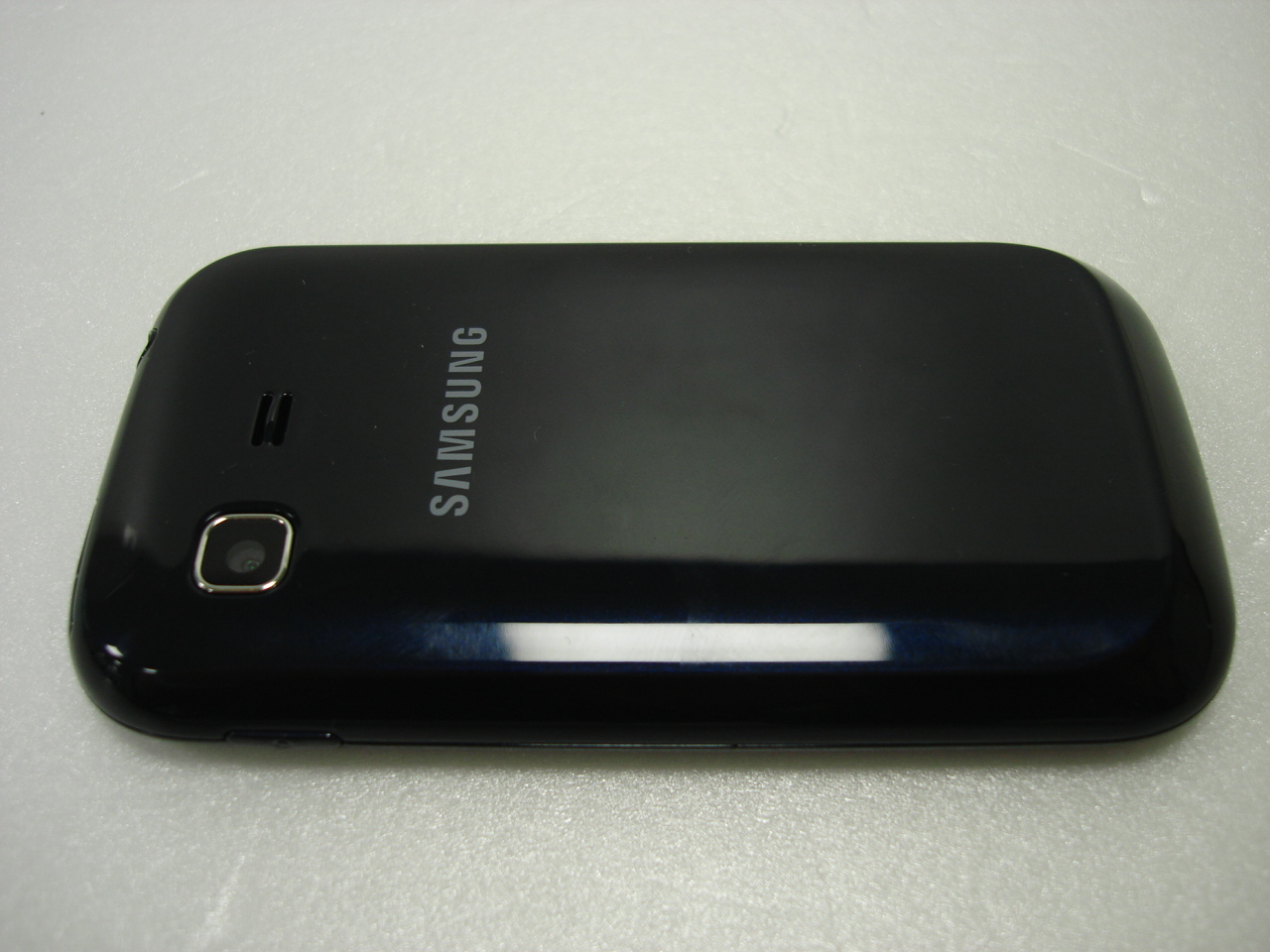

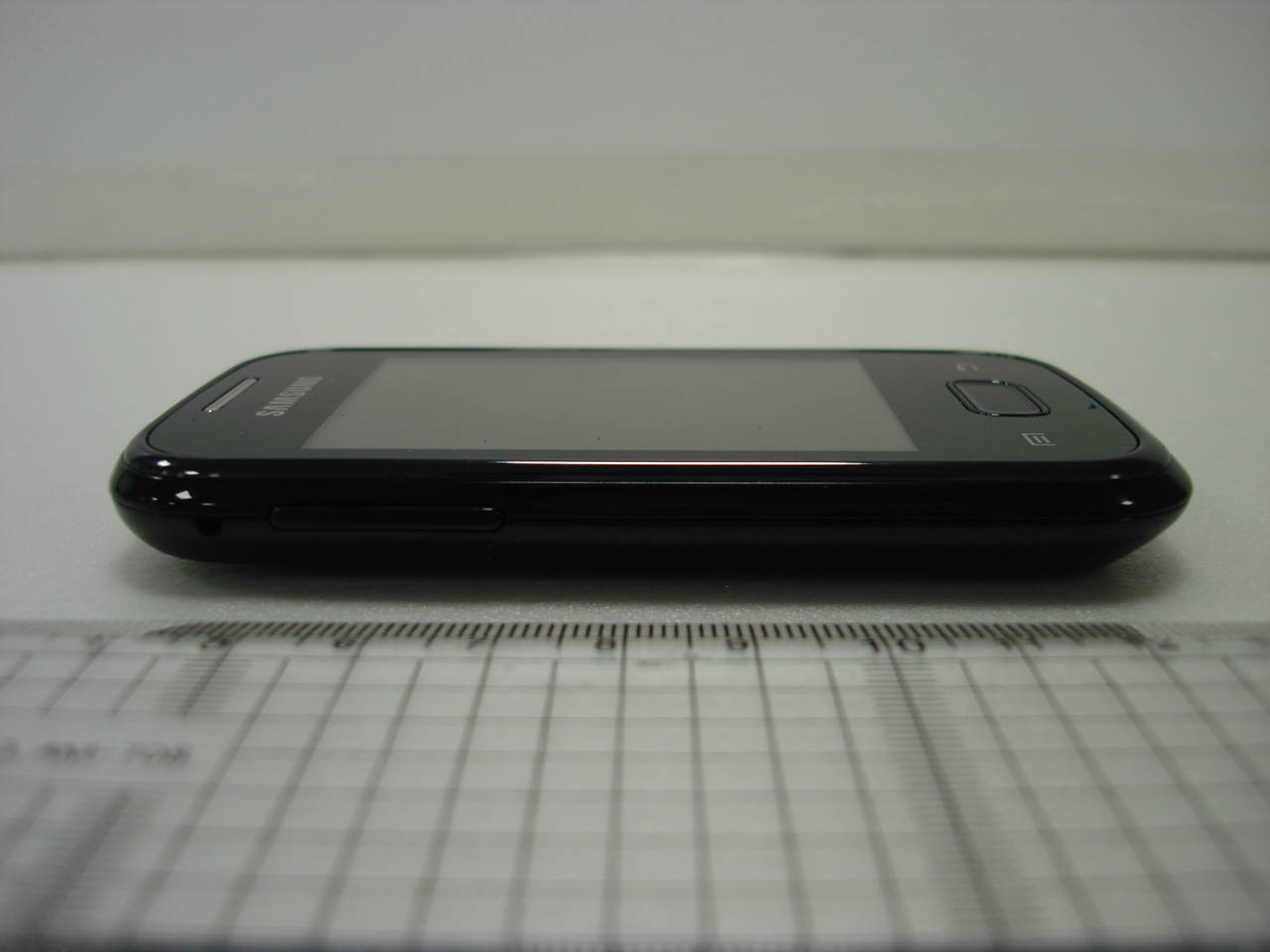

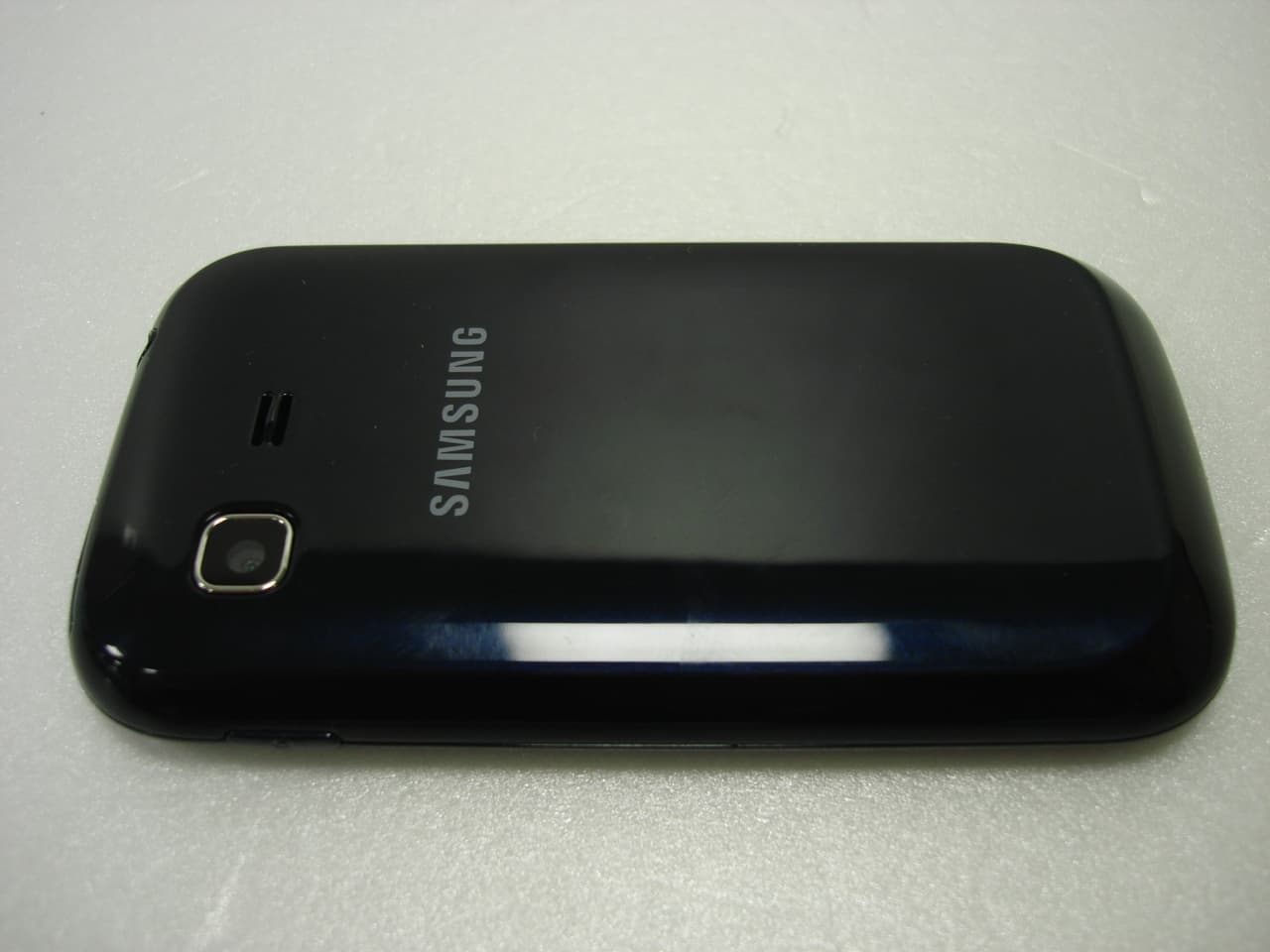

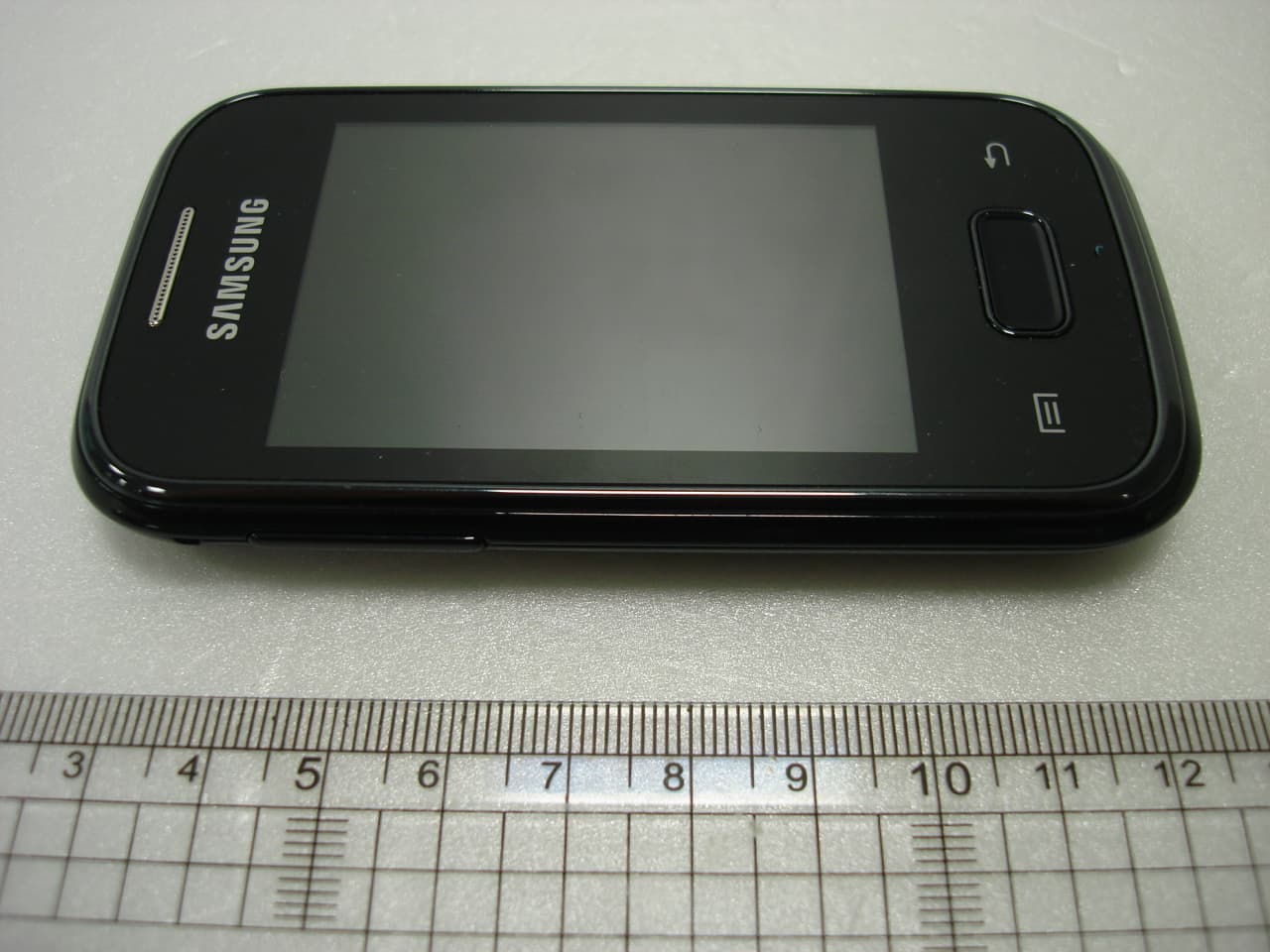

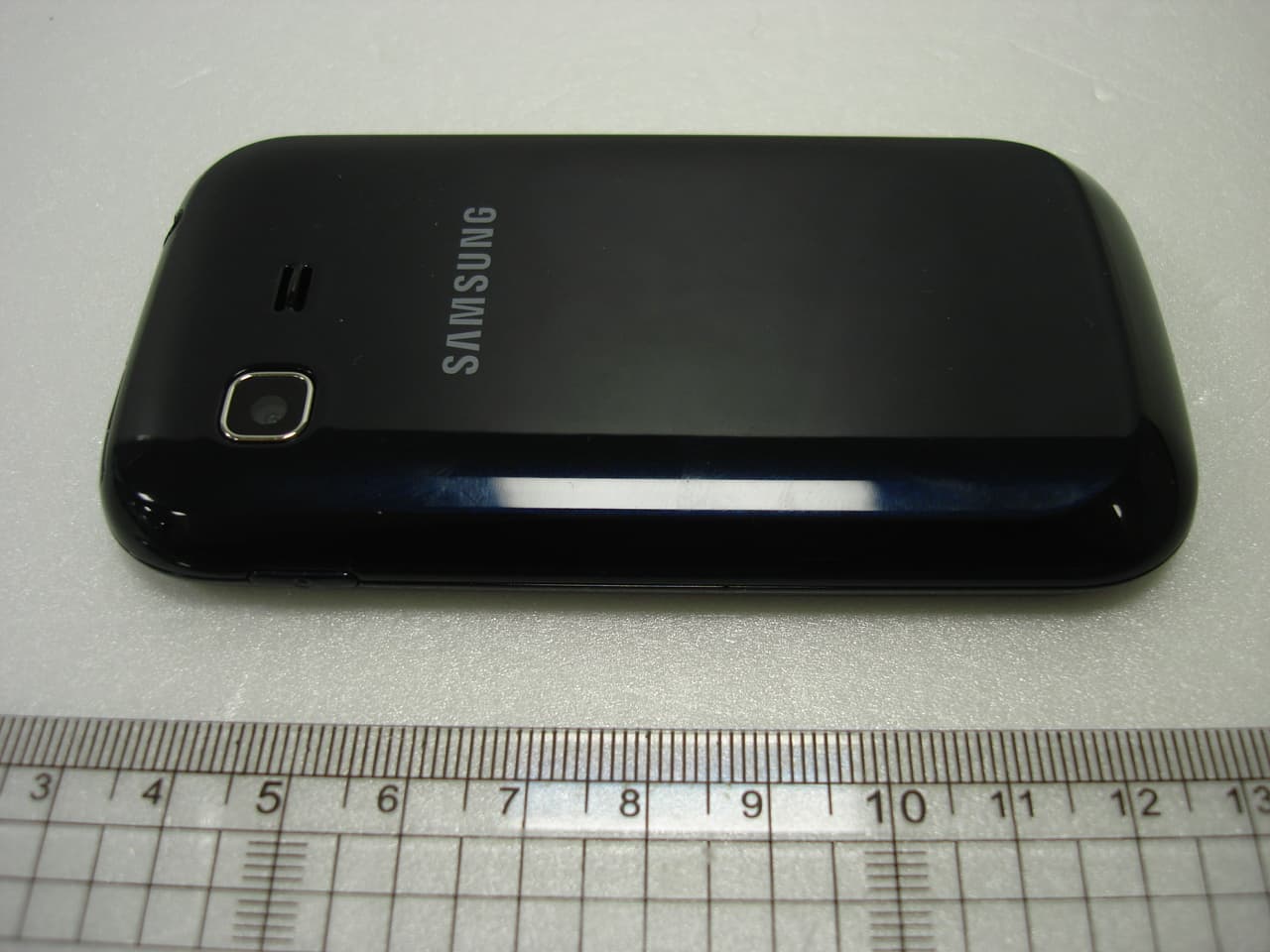

A3LGTS5301Cellular/PCS GSM Phone with WLAN and Bluetooth

User manual GT-S5301 Draft 6.1 2012-09-04 Only for Approval using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information Refer to— (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or permanent battery damage. Never use a damaged charger or …

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: September 27, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTS5301 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea September 26, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LGTS5301 Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the device will be marketed without the battery installed. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

Label and Location Samsung Phone Model: GT-S5301 FCC ID: A3LGTS5301 Label: Location: Top Back plate of device Bottom Label is placed inside of the battery compartment.

Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 2 of 115 Table of Contents 1. INTRODUCTION .......................................................................................................................................... ３ 2. DESCRIPTION OF DEVICE ......................................................................................................................... ４ 3. DESCRIPTION OF TEST EQUIPMENT ...................................................................................................... ５ 4. SAR MEASUREMENT PROCEDURE ..................................................................................................... １２ 5. DESCRIPTION OF TEST POSITION ....................................................................................................... １３ 6. MEASUREMENT UNCERTAINTY ........................................................................................................... １５ 7. ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................................................. １６ 8. SYSTEM VERIFICATION ......................................................................................................................... １７ 9. RF CONDUCTED POWER MEASUREMENT ......................................................................................... １８ 10. SAR Test configuration & Antenna Information ................................................................................ ２２ 11. SAR Considerations for Multiple Transmitters and Antennas ......................................................... ２３ 12. SAR TEST DATA SUMMARY ................................................................................................................ ２５ 12.1 Measurement Results (GSM850 Head SAR) ............................................................................. ２５ 12.2 Measurement Results (GSM1900 Head SAR) ........................................................................... ２６ 12.3 Measurement Results (802.11b Head SAR) .............................................................................. ２７ 12.4 Measurement Results (GSM850 Hotspot SAR) ........................................................................ ２８ 12.5 Measurement Results (GSM1900 Hotspot SAR) ...................................................................... ２９ 12.6 Measurement Results (802.11b Hotspot SAR) ......................................................................... ３０ 13. CONCLUSION ........................................................................................................................................ ３１ 14. REFERENCES ....................................................................................................................................... ３２ Attachment 1. – SAR Test Plots ................................................................................................................ ３３ Attachment 2. – Dipole Validation Plots ................................................................................................... ６６ Attachment 3. – Probe Calibration Data ................................................................................................... ７９ Attachment 4. – Dipole Calibration Data .................................................................................................. ９１ Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 3 of 115 1. INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices. The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017. The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radio frequency Electromagnetic Fields,” NCRP Report No. 86 NCRP, 1986, Bethesda, MD 20814. SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biological hazards. SAR Definition Specific Absorption Rate (SAR) is defined as the time derivative of the incremental electromagnetic energy (dW) absorbed by (dissipated in) an incremental mass (dm) contained in a volume element (dV) of a given density (r ). It is also defined as the rate of RF energy absorption per unit mass at a point in an absorbing body. NOTE: The primary factors that control rate of energy absorption were found to be the wavelength of the incident field in relations to the dimensions and geometry of the irradiated organism, the orientation of the organism in relation to the polarity of field vectors, the presence of reflecting surfaces, and whether conductive contact is made by the organism with a ground plane. Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105…

Text truncated - open the document above for the full version.

Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 91 of 115 Attachment 4. – Dipole Calibration Data Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 92 of 115 Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 93 of 115 Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 94 of 115 Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 95 of 115 Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 96 of 115 Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 97 of 115 Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 98 of 115 Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 99 of 115 Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 100 of 115 Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 101 of 115 Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 102 of 115 Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 103 of 115 Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 104 of 115 Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 105 of 115 Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 106 of 115 Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 107 of 115 Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 108 of 115 Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 109 of 115 Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 110 of 115 Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 111 of 115 Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 112 of 115 Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 113 of 115 Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 114 of 115 Report No.: HCTA1209FS06 FCC ID: A3LGTS5301 Date of Issue: Sep. 24, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 115 of 115

Report Number: F690501/RF-RTL005812-2 Page: 2 of 58 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea INDEX Table of contents 1. General information -------------------------------------------------------------------------------------- 3 2. Transmitter radiated spurious emissions and conducted spurious emission -------------- 6 3. 6 ㏈ bandwidth ------------------------------------------------------------------------------------------- 35 4. Maximum peak output power -------------------------------------------------------------------------- 42 5. Power Spectral Density --------------------------------------------------------------------------------- 46 6. Transmitter AC Power Line Conducted Emission------------------------------------------------- 53 7. Antenna Requirement ----------------------------------------------------------------------------------- 58 Report Number: F690501/RF-RTL005812-2 Page: 3 of 58 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 413-15, Gomae-Dong Giheung-Gu, Yongin-Si, Gyeonggi-Do, South Korea. - Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 428 5700 FAX : +82 31 427 2371 1.2. Details of Applicant Applicant : SAMSUNG ELECTRONICS CO., LTD. Address : 416, Maetan-dong, Yeongtong-gu, Suwan-city, Gyeonggi-do, Korea Contact Person : Kim, Seong Hun Phone No. : +82 +10 4527 3183 1.3. Description of EUT Kind of Product Mobile Phone Model Name GT-S5301 Serial Number N/A Power Supply DC 3.7 V Frequency Range 2 412 ㎒ ~ 2 462 ㎒ (11b/g/n_HT20), Modulation Technique DSSS, OFDM Number of Channels 11 channel (11b/g/n_HT20_SISO) Antenna Type Internal type Antenna Gain 2 412 ㎒ ~ 2 462 ㎒: -0.11 ㏈i 1.4. Declaration by the manufacturer - WLAN & BT do not transmit simultaneously. Report Number: F690501/RF-RTL005812-2 Page: 4 of 58 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal Date Cal Interval Cal Due. Signal Generator R&S SMJ100A 100882 Nov. 25, 2011 Annual Nov. 25, 2012 Signal Generator R&S SMR40 100540 Jan, 05, 2012 Annual Jan, 05, 2013 Spectrum Analyzer R&S FSV30 101004 Jul. 05, 2012 Annual Jul. 05, 2013 High Pass Filter Wainwright WHK3.0/18G-6SS 4 Aug. 01, 2012 Annual Aug. 01, 2013 Low Pass Filter Mini circuits NLP-1200+ V9500401023-1 Aug. 01, 2012 Annual Aug. 01, 2013 Power Divider KRYTAR 6005265 137137 Aug. 01, 2012 Annual Aug. 01, 2013 Attenuator AEROFLEX / INMET 26A-10dB 1 Apr. 02, 2012 Annual Apr. 02, 2013 Power Sensor R & S NRP-Z81 101341 Jul. 31. 2012 Annual Jul. 31. 2013 DC Power Supply Agilent U8002A MY50020026 Mar. 29, 2012 Annual Mar. 29, 2013 Preamplifier R & S 8447D 2727A05143 Jul. 18. 2012 Annual Jul. 18. 2013 Preamplifier R & S SCU 18 10117 Jan. 02, 2012 Annual Jan. 02, 2013 Preamplifier MITEQ Inc. JS44-18004000-35-8P 1546891 Jul. 12, 2012 Annual Jul. 12, 2013 Test Receiver R & S ESU40 100075 Feb. 13, 2012 Annual Feb. 13, 2013 Trilog Antenna SCHWARZBECK VULB9163 9163-390 Apr. 19, 2012 Biennial Apr. 19, 2014 Horn Antenna R&S HF907 100208 Aug. 13, 2012 Biennial Aug. 13, 2014 Horn Antenna SCHWARZBECK MESSELEKTRONIK BBHA9170 BBHA9170431 May 15, 2012 Biennial May 15, 2014 Antenna Master INN-CO MA4000-EP N/A N.C.R. N.C.R. N.C.R. Turn Table INN-CO DT-3000S N/A N.C.R. N.C.R. N.C.R. Anechoic Chamber SY Corporation L × W × H (21.5 m × 13.0 m × 9.0 m) N/A N.C.R. N.C.R. N.C.R. EMI Test Receiver R & S ESCI7 100778 Aug. 01, 2012 Annual Aug. 01, 2013 Two-Line V-Network R & S ENV216 101180 May 14, 2012 Annual May 14, 2013 ▶ Support equipment Description Manufacturer Model Serial Number N/A - - - Report Number: F690501/RF-RTL005812-2 Page: 5 of 58 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part15 Subpart C § 15.247 FCC Part Section(s) Test Item(s) Result 15.205 15.209 15.247(d) Transmitter Radiated Spurious Emissions Conducted Spurious Emission Complied 15.247(a)(2) 6 ㏈ Bandwidth Complied 15.247(b)(3) Maximum Peak Output Power Complied 15.247(e) Power Spectral Density Complied 15.207 Transmitter AC Power Line Conducted Emission Complied 1.7. Test Procedure(s) The measurement procedures described in the American National Standard for Methods of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 ㎑ to 40 ㎓ (ANSI C63.4-2003) and the guidance provided in KDB 558074 were used in the measurement of the…

Text truncated - open the document above for the full version.

Report Number: F690501/RF-RTL005812-2 Page: 41 of 58 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea High Channel Report Number: F690501/RF-RTL005812-2 Page: 42 of 58 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 4. Maximum Peak Output Power Measurement 4.1. Test Setup EUT Power Divider Power sensor Attenuator Test Note PC (Test Program) Spectrum Analyzer 4.2. Limit According to §15.247(b)(3), for systems using digital modulation in the 902 ~ 928 ㎒, 2 400 ~2 483.5 ㎒, and 5 725 ~ 5 850 ㎒ band: 1 Watt. As an alternative to a peak power measurement, compliance with the one watt limit can be based on a measurement of the maximum conducted output power. Maximum Conducted output Power is defined as the total transmit power delivered to all antennas and antenna elements averaged across all symbols in the signaling alphabet when the transmitter is operating at its maximum power control level. Power must be summed across all antenna elements. The average must not include any intervals during which the transmitter is off or is transmitting at a reduced power level. If multiple modes of operation are possible (e.g., alternative modulation methods), the maximum conducted output power is the highest total transmit power occurring in any mode. According to §15.247(b)(4), the conducted output power limit specified in paragraph(b) of this section is based on the use of antenna with directional gains that do not exceed 6 ㏈i. Except as shown in paragraph(c) of this section, if transmitting antenna of directional gain greater than 6 ㏈i are used, the conducted output power from the intentional radiator shall be reduced below the stated values in paragraph (b)(1), (b)(2), and (b)(3) of this section, as appropriate, by the amount in ㏈ that the directional gain of the antenna exceeds 6㏈i. Report Number: F690501/RF-RTL005812-2 Page: 43 of 58 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 4.3. Test Procedure 4.3.1. 11b, g, n_HT20 1. Place the EUT on the table and set it in the transmitting mode. 2. Remove the antenna from the EUT and then connect a low loss RF cable from the antenna port to the Power sensor. 3. Test program : (S/W name : R&S Power Viewer, Version : 3.2.0) 4. Measure peak & average power each channel. Report Number: F690501/RF-RTL005812-2 Page: 44 of 58 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea…
