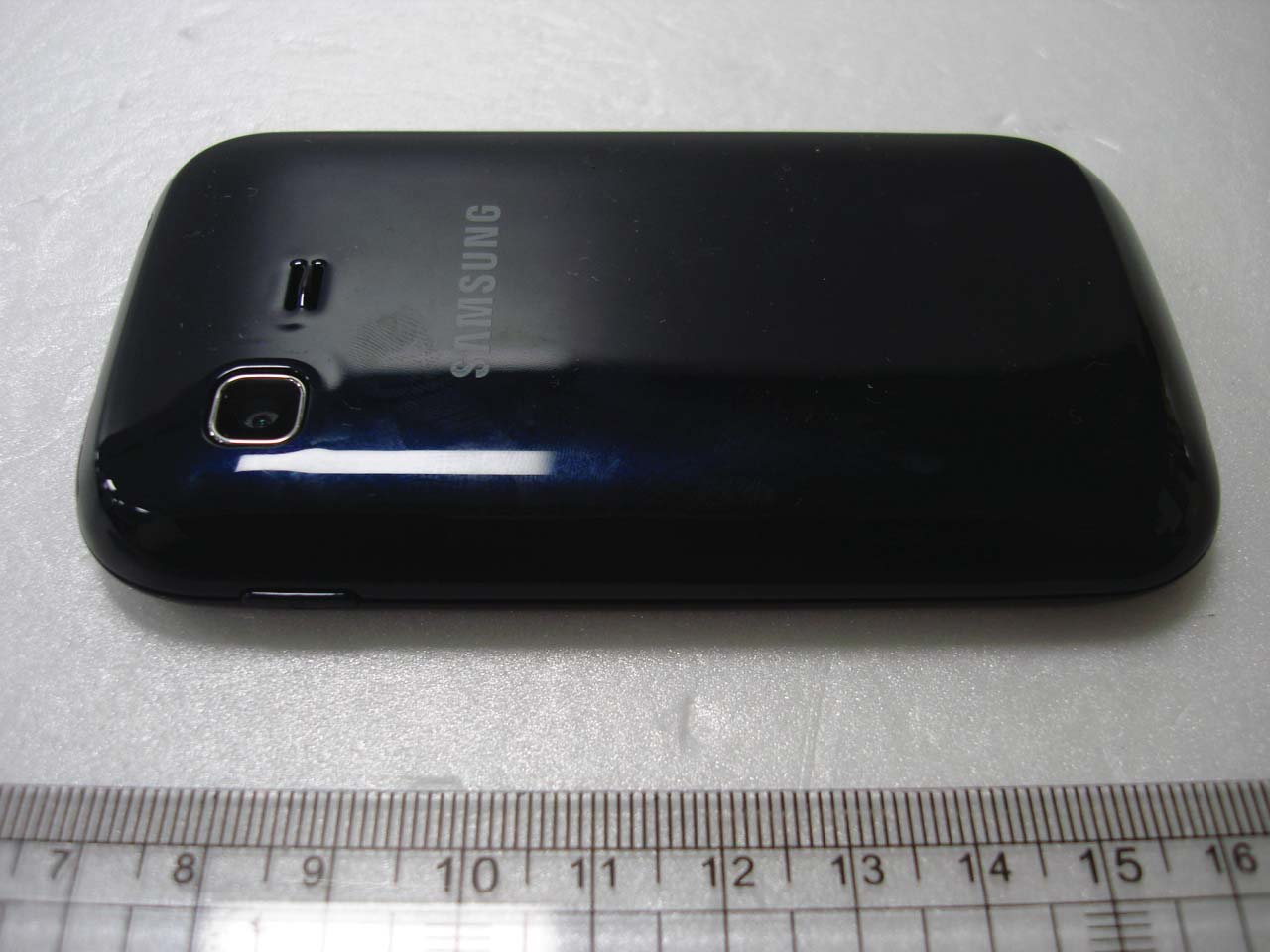

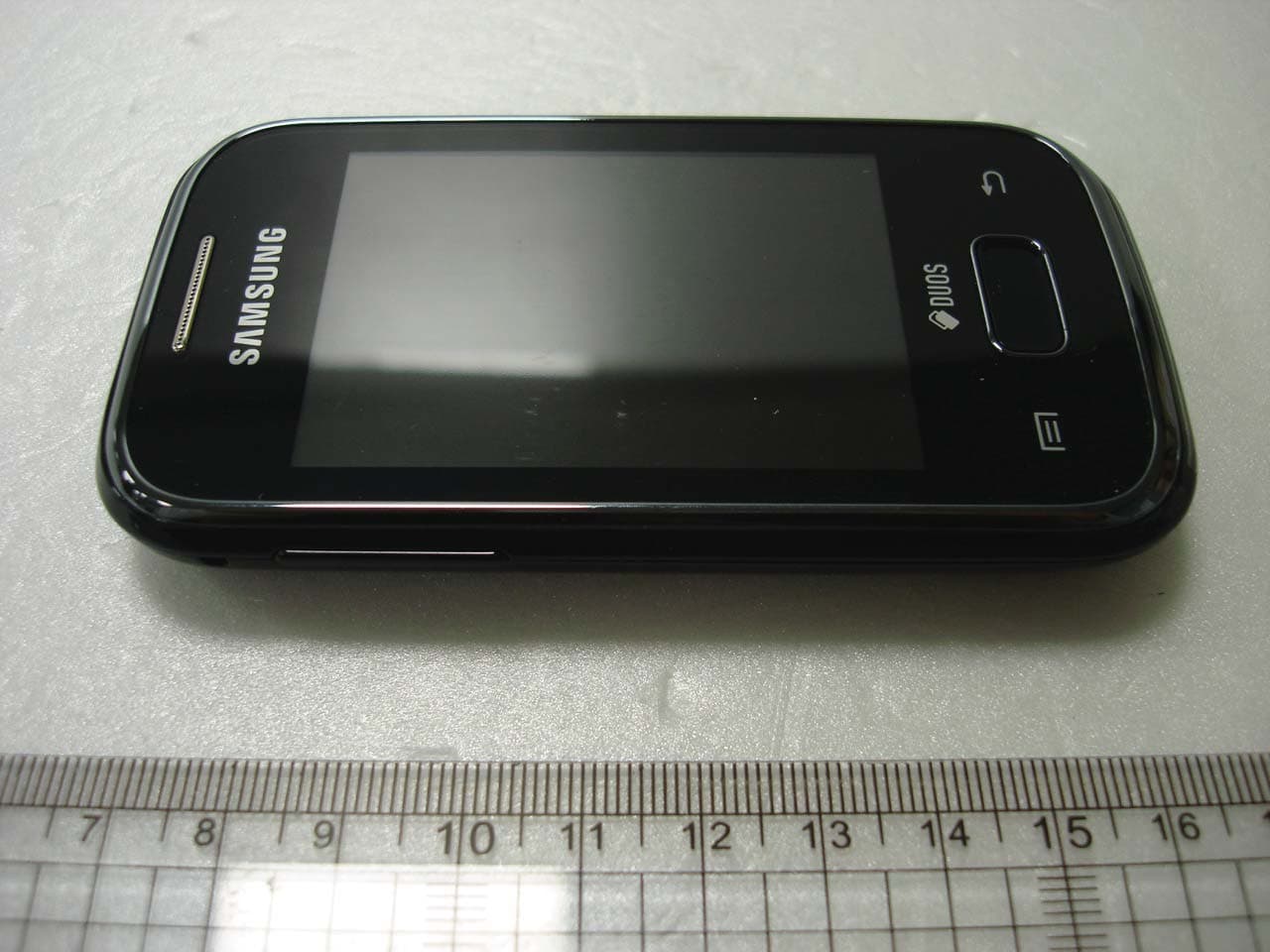

A3LGTS5303BPortable Handset

User manual GT-S5303B Draft 6.1 2013-01-17 Only for Approval using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information Refer to— (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or permanent battery damage. Never use a damaged charger or…

Text truncated - open the document above for the full version.

February 4, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A3L GTS5303B To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 310-900-5250 FAX: 310-537-5500 E-mail: [email protected]

416, Maetan-3 Dong , Yeongtong-Gu, Suwon-City, Gyeonggi-Do 443-742 South Korea Date: 04/09/2012 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, NAME: Sang Kyung(Peter), Ra TITLE: Head of QA Lab (General Manager) Applicant: Samsung Electronics America, Inc Address: 19 Chapin Rd, Building D. Pine Brook, NJ 07058

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea February 4, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3L GTS5303B Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the device will be marketed without the battery installed. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

Label and Location Samsung Phone Model: GT-S5303B FCC ID: A3LGTS5303B Label: Location: Top Back plate of device Bottom Phone: Label is placed inside of the battery compartment.

FCC Approval Antenna location & Ditance Model: GT-S5303B Date: 2013. 01. 09 * Placement of each antenna MAIN ANTENNA (GSM850/1900 Tx/Rx) BT/WIFI ANTENNA (CAP ANT) Front View GPS ANTENNA * Antenna pattern (FCC Band만 표기) GSM850 GSM 1900 * Distance between BT/WLAN antenna and Main antenna BT/WIFI ANTENNA (CAP ANT) Front View 83mm 74mm GSM850 GSM 1900 * Placement of each antenna MAIN ANTENNA Front View 99mm 51mm 88mm * Distance between Bluetooth antenna and EDGE 47.4mm 9.4mm Bluetooth & WLAN ant (CAP Ant on PCB) 82.5mm Front View * Distance between Bluetooth antenna and EDGE * Distance between Main antenna and EDGE Main antenna Pattern BT/WLAN antenna Pattern 5mm 5mm 2.5mm 7mm LEFT RIGHT FRONT REAR

Head Body-Worn Accessory Hot Spot IEEE 1528, Supp C Supp C FCC KDB 941225 D06 11900 MHz GSM Voice + WiFi 2.4GHzYes10mmN/AYes 2850/1900 WCDMA Voice + WiFi 2.4GHzYes10mmN/AYes 31900 MHz GPRS Data + WIFI 2.4 GHzN/AN/AYes2G HotspotYes 4850/1900 MHz WCDMA/HSPA Data + WIFI 2.4 GHzN/AN/AYes3G HotspotYes 51900 MHz GSM Voice + WiFi 5GHzN/AN/AN/A5GHz Client onlyYes 6850/1900 MHz WCDMA Voice + WIFI 5 GHzN/AN/AN/A5GHz Client onlyYes 71900 MHz GPRS/EDGE Data + WiFi 5GHzN/AN/AN/A5GHz Client onlyYes 8850/1900 MHz WCDMA/HSPA Data + WIFI 5 GHzN/AN/AN/A5GHz Client onlyYes Notes: 1.GSM/WCDMA use one modem and transciever IC.The signals can not be transmitted simultaneously. 2.This model cannot act as a master device in 5GHz WiFi, so this model is not capable of 5GHz WiFi hotspot. This cannot be changedby any S/W modification by any party after it is manufactured. Scenario Possible? No.Capable Transmit ConfigurationsNote

Test report No. : 33FE0016-HO-E-R1 Page : 1 of 171 FCC ID : A3LGTS5303B Issued date : February 7, 2013 Revised date : February 14, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 13-EM-F0429 SAR TEST REPORT Test Report No. : 33FE0016-HO-E-R1 Applicant :SAMSUNG ELECTRONICS CO., LTD. Type of Equipment :GSM/GPRS 850/1900 and WCDMA850 Phone with BT v3.0(EDR), 802.11b/g/n, EDGE Rx only and Hotspot Model No. :GT-S5303B FCC ID :A3LGTS5303B Test regulation :FCC47CFR 2.1093 FCC OET Bulletin 65, Supplement C (Edition 01-01) Test Result :Complied Reported SAR(1g) Value FCC Part 22H Head : 0692 W/kg Body-hotspot : 0.720 W/kg (10mm distance) FCC Part 24E Head : 1.02 W/kg Body-hotspot : 0.387 W/kg (10mm distance) FCC Part15.247 Head : 1.02 W/kg Body-hotspot : 0.199W/kg (10mm distance) The highest reported SAR(1g) Value for the device is 1.02 W/kg. Simultaneous transmission test was excluded. SAR to peak location separation ratio ≤ 0.04. 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. 6 This report is a revised version of 33FE0016-HO-E. 33FE0016-HO-E is replaced with this report. Date of test: January 21 to 25, 2013 Representative test engineer: Hisayoshi Sato Engineer of WiSE Japan, UL Verification Service Approved by : Takahiro Hatakeda Leader of WiSE Japan, UL Verification Service NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/m ark1/index.jsp#nvlap Test report No. : 33FE0016-HO-E-R1 Page : 2 of 171 FCC ID : A3LGTS5303B Issued date : February 7, 2013 Revised date : February 14, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 REVISION HISTORY Original Test Report No.: 33FE0016-HO-E Revision Test report No. Date Page revisedContents - (Original) 33FE0016-HO-E February 7, 2013 - - 1 33FE0016-HO-E-R1 February 14, 2013 87 The clerical error was corrected as follows. Error)Power drift = -0.29 dB Correct)Power drift = -0.20 dB 1 33FE0016-HO-E-R1 February 14, 2013 127 The clerical error was corrected as follows. Calibration(ULJ) date Error)2011/11/23 Correct)2012/11/30 1 33FE0016-HO-E-R1 February 14, 2013 9 The clerical error was corrected as follows. Simultaneous transmission SAR Step.5 or Step.6 Error) Refer to Section 9. Correct) Refer to Section 10. 1 33FE0016-HO-E-R1 February 14, 2013 38 GSM850 + WLAN2.4G = 1.712 W/kg This exceeds the 1.6 W/kg limit, so SPLSR evaluation was performed. SPLSR data was added in section 10.4. Test report No. : 33FE0016-HO-E-R1 Page : 3 of 171 FCC ID : A3LGTS5303B Issued date : February 7, 2013 Revised date : February 14, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ................................................................................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ..................................................................................................................................................... 4 2.1 Identification of E.U.T. ...................................................................................................................................... 4 2.2 Product description ............................................................................................................................................. 5 SECTION 3 : Test standard information ........................................................................................................................................................... 6 3.1 Test Specification ............................................................................................................................................... 6 3.2 Procedure ............................................................................................................................................................ 6 3.3 Exposure limit .................................................................................................................................................... 7 3.4 Test Location ...................................................................................................................................................... 7 SECTION 4 : Test result ...................................................................................................................................................................................... 8 4.1 Stand-alone SAR result ...................................................................................................................................... 8 4.2 Simultaneous transmission SAR result ............................................................................................................... 9 SECTION 5 : Description of the operating mode .............................................................................................................................................. 10 5.1 Output power operating modes ..................................................................…

Text truncated - open the document above for the full version.

Test report No. : 33FE0016-HO-E-R1 Page : 82 of 171 FCC ID : A3LGTS5303B Issued date : February 7, 2013 Revised date : February 14, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 vii) WLAN 2.4GHz Head GT-S5303B WLAN 11b 1Mbps Left cheek 2462MHz Communication System: WLAN 11a/b/g/n ; Communication System Band: WLAN 11b/g/n; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2462 MHz; σ = 1.904 mho/m; ε r = 37.308; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration Probe: EX3DV4 - SN3825; ConvF(7.21, 7.21, 7.21); Calibrated: 2012/12/10; ${Probe: Calibration Date} Sensor-Surface: 2mm (Mechanical Surface Detection) Electronics: DAE4 Sn509; Calibrated: 2012/07/13 Phantom: SAM with CRP; Type: SAM; Measurement SW: DASY52, Version 52.8 (3); Area Scan 2 2 2 (61x101x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 1.21 W/kg Zoom Scan 2 (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.021 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 1.93 W/kg SAR(1 g) = 0.559 W/kg; SAR(10 g) = 0.243 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.27 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.021 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 1.96 W/kg SAR(1 g) = 0.760 W/kg; SAR(10 g) = 0.320 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.29 W/kg Date: 2013/01/24 Ambient Temp. : 24.0 degree.C. Liquid Temp.; 23.5 degree.C. Test report No. : 33FE0016-HO-E-R1 Page : 83 of 171 FCC ID : A3LGTS5303B Issued date : February 7, 2013 Revised date : February 14, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 GT-S5303B WLAN 11b 1Mbps Left tilt 2462MHz Communication System: WLAN 11a/b/g/n ; Communication System Band: WLAN 11b/g/n; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2462 MHz; σ = 1.904 mho/m; ε r = 37.308; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration Probe: EX3DV4 - SN3825; ConvF(7.21, 7.21, 7.21); Calibrated: 2012/12/10; ${Probe: Calibration Date} Sensor-Surface: 2mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2mm (Mechanical Surface Detection) Electronics: DAE4 Sn509; Calibrated: 2012/07/13 Phantom: SAM with CRP; Type: SAM; Measurement SW: DASY52, Version 52.8 (3); Area Scan 2 2 2 (61x101x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.603 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.700 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.930 W/kg SAR(1 g) = 0.374 W/kg; SAR(10 g) = 0.159 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.636 W/kg Zoom Scan 2 (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 10.700 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.935 W/kg SAR(1 g) = 0.318 W/kg; SAR(10 g) = 0.153 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.625 W/kg Date: 2013/01/24 Ambient Temp. : 24.0 degree.C. Liquid Temp.; 23.5 degree.C. Test report No. : 33FE0016-HO-E-R1 Page : 84 of 171 FCC ID : A3LGTS5303B Issued date : February 7, 2013 Revised date : February 14, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 GT-S5303B WLAN 11b 1Mbps Right cheek 2462MHz Communication System: WLAN 11a/b/g/n ; Communication System Band: WLAN 11b/g/n; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2462 MHz; σ = 1.904 mho/m; ε r = 37.308; ρ = 1000 kg/m 3 Phantom section: Right Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration Probe: EX3DV4 - SN3825; ConvF(7.21, 7.21, 7.21); Calibrated: 2012/12/10; ${Probe: Calibration Date} Sensor-Surface: 2mm (Mechanical Surface Detection) Electronics: DAE4 Sn509; Calibrated: 2012/07/13 Phantom: SAM with CRP; Type: SAM; Measurement SW: DASY52, Version 52.8 (3); Area Scan 2 (61x101x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.575 W/kg Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.384 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 0.810 W/kg SAR(1 g) = 0.394 W/kg; SAR(10 g) = 0.179 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.581 W/kg Date: 2013/01/24 Ambient Temp. : 24.0 degree.C. Liquid Temp.; 23.5 degree.C. Test report No. : 33FE0016-HO-E-R1 Page : 85 of 171 FCC ID : A3LGTS5303B Issued date : February 7, 2013 Revised date : February 14, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 GT-S5303B WLAN 11b 1Mbps Right tilt 2462MHz Communication System: WLAN 11a/b/g/n ; Communication System Band: WLAN 11b/g/n; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2462 MHz; σ = 1.904 mho/m; ε r = 37.308; ρ = 1000 kg/m 3 Phantom section: Right Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration Probe: EX3DV4 - SN3825; ConvF(7.21, 7.21, 7.21); Calibrated: 2012/12/10; ${Probe: Calibration Date} Sensor-Surface: 2mm (Mechanical Surface Detection) Electroni…

Text truncated - open the document above for the full version.

Test report No. : 33FE0016-HO-E-R1 Page : 118 of 171 FCC ID : A3LGTS5303B Issued date : February 7, 2013 Revised date : February 14, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 3. System Validation Dipole (D1800V2,S/N: 2d04) Test report No. : 33FE0016-HO-E-R1 Page : 119 of 171 FCC ID : A3LGTS5303B Issued date : February 7, 2013 Revised date : February 14, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 33FE0016-HO-E-R1 Page : 120 of 171 FCC ID : A3LGTS5303B Issued date : February 7, 2013 Revised date : February 14, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 33FE0016-HO-E-R1 Page : 121 of 171 FCC ID : A3LGTS5303B Issued date : February 7, 2013 Revised date : February 14, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 33FE0016-HO-E-R1 Page : 122 of 171 FCC ID : A3LGTS5303B Issued date : February 7, 2013 Revised date : February 14, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 33FE0016-HO-E-R1 Page : 123 of 171 FCC ID : A3LGTS5303B Issued date : February 7, 2013 Revised date : February 14, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 33FE0016-HO-E-R1 Page : 124 of 171 FCC ID : A3LGTS5303B Issued date : February 7, 2013 Revised date : February 14, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 33FE0016-HO-E-R1 Page : 125 of 171 FCC ID : A3LGTS5303B Issued date : February 7, 2013 Revised date : February 14, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 33FE0016-HO-E-R1 Page : 126 of 171 FCC ID : A3LGTS5303B Issued date : February 7, 2013 Revised date : February 14, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 33FE0016-HO-E-R1 Page : 127 of 171 FCC ID : A3LGTS5303B Issued date : February 7, 2013 Revised date : February 14, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 D1800V2 Calibration for Impedance and Return-loss 1. Test environment 2. Equipment used Control No. Instrument Manufacturer Model No Serial No Calibration Date Expiration date of the calibration MNA-01 Network Analyzer Agilent/HP E8358A US41080381 2012/09/14 2013/09/30 EST-46 3.5mm Calibration Kit Agilent 85052D MY432528692012/08/13 2013/08/31 MCC-141 Microwave Cable Junkosha MWX221 1203S212(1m)2012/04/23 2013/04/30 MDA-06 Dipole Antenna Schmid&Partner Engineering AG D1800V2 2d040 2010/12/09 2013/12/31 MPSAM-02 SAM Phantom Schmid&Partner Engineering AG SAM Twin Phantom V4.0 1333 Pre Check - MOS-24 Thermo-Hygrometer Custom CTH-201 5 2012/05/14 2013/05/31 HSL2450 Daily chec - MSL2450 Daily chec - SAR room Daily chec - 3. Test Result Impeadance,Transformed to feed pointHeadDeviationToleranceResult Calibration (SPEAG) 2010/12/0948.8 Ω-1.9jΩ--- Calibration(ULJ)2012/11/3048.93Ω-3.96jΩ0.13Ω-2.06jΩ+/-5Ω+/-5jΩComplied Return lossHeadDeviationToleranceResult Calibration (SPEAG) 2010/12/09-33.1dB--- Calibration(ULJ)2012/11/30-27.66dB5.44dB-33.1 *+/-20%Complied Impeadance,Transformed to feed poin tBodyDeviationToleranceResult Calibration (SPEAG) 2010/12/0944.4 Ω-2.2jΩ--- Calibration(ULJ)2012/11/3045.36Ω-3.36jΩ0.96Ω-1.16jΩ+/-5Ω+/-5jΩComplied Return lossBod yDeviationToleranceResult Calibration (SPEAG) 2010/12/09-24.0dB--- Calibration(ULJ)2012/11/30-24.44dB-0.44dB-24*+/-20%Complied *Tolerance : According to the KDB450824D02 Date November 30, 2012 Ambient Temperature 24.0 deg.C Relative humidity 50%RH Test repo…

Text truncated - open the document above for the full version.
