A3LGTS5350LCellular/PCS WCDMA/GSM/EDGE Phone with Bluetooth

Some of the contents in this manual may differ from your phone depending on the software of the phone or your service provider.World Wide Webhttp://www.samsungmobile.com Printed in Korea Code No.:GH68-xxxxxA English (EU). 12/2009. Rev. 1.0 GT -S 535 0 user manual D r a f t 0 1 2 0 0 9 . 1 1 . 1 1 S W v e r s i o n : S 5 2 3 0 X X IG 2 ii using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone,” “assembling and preparing your mobile phone,” and “using basic functions.” Instructional iconsBefore you start, familiarise yourself with the icons you will see in this manual: Warning —situations that could cause injury to yourself or others Caution —situations that could cause damage to your phone or other equipment Note —notes, usage tips, or additional information X Refer to —pages with related information; for example: X p. 12 (represents “see page 12”) using this manual iii Copyright informationRights to all technologies and products that comprise this phone are the property of their respective owners:•Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide. Bluetooth QD ID: B0XXXXX • Java™ is a trademark of Sun Microsystems, Inc.• Windows Media Player ® is a registered trademark of Microsoft Corporation. → Followed by —the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages → Create message (represents Messages , followed by Create message ) [] Square brackets —phone keys; for example: [ ] (represents the Power/ Menu exit key) <> Angled brackets —softkeys that control different functions at each screen; for example: < OK > (represents the OK softkey) iv contents safety and usage information .................. 1 Safety warnings .......................................... 1Safety precautions ...................................... 4Important usage information ....................... 6 introducing your mobile phone ............. 12 Unpack ..................................................... 12Phone layout ............................................. 13Keys ......................................................... 14Display ...................................................... 15Icons ........................................................ 16 assembling and preparing your mobile phone ...................................................... 18 Install the SIM or USIM card and battery ... 18Charge the battery .................................... 20Insert a memory card (optional) ................. 21Attach a hand strap (optional) ................... 22 contents v using basic functions ............................ 23 Turn your phone on and off ....................... 23Access menus .......................................... 24Use the shortcut toolbar ........................... 24Customise your phone .............................. 25Use basic call functions ............................ 27Send and view messages ......................... 28Add and find contacts ............................... 30Use basic camera functions ...................... 31Listen to music ......................................... 33Browse the web ........................................ 35 using advanced functions ..................... 37 Use advanced call functions ..................... 37Use advanced phonebook functions ......... 40Use advanced messaging functions .......... 41Use advanced camera functions ............... 42Use advanced music functions ................. 46 using tools and applications ................. 49 Use the Bluetooth wireless feature ............ 49Activate and send an SOS message ......... 51Activate the mobile tracker ........................ 52Make fake calls ......................................... 53Record and play voice memos .................. 54Edit images ............................................... 55Print images .............................................. 57Upload photos and videos to the web ...... 57Use Java-powered games and applications .............................................. 59Synchronise data ...................................... 60Use RSS reader ........................................ 61Create and view world clocks ................... 62Set and use alarms ................................... 63Use the calculator ..................................... 64Convert currencies or measurements ....... 64Set a countdown timer ............................. 64 vi contents Use the stopwatch .................................... 64Create a new task ..................................... 65Create a text memo .................................. 65Manage your calendar .............................. 65 troubleshooting ........................................ aindex ......................................................... d 1 safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Keep your phone away from small children and petsKeep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed.Protect your hearing Safety warnings Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. 2 safety and usage information Install mobile phones and equipment with cautionEnsure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly.Handle and dispose of batteries and chargers with care• Use only Samsung-approved batteries and char…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: January 18, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTS5350L To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

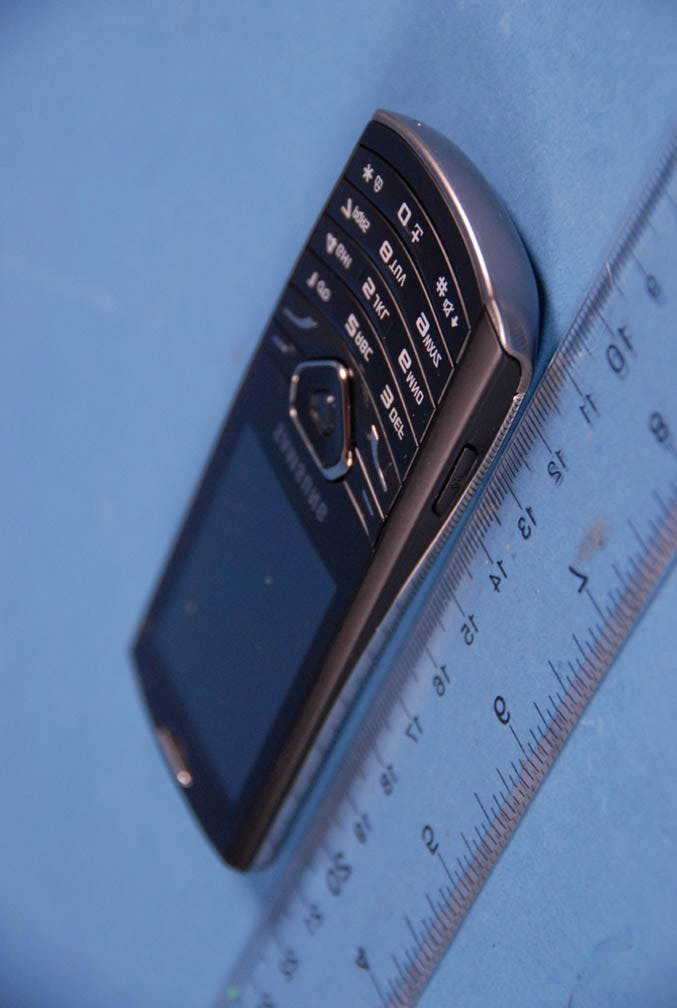

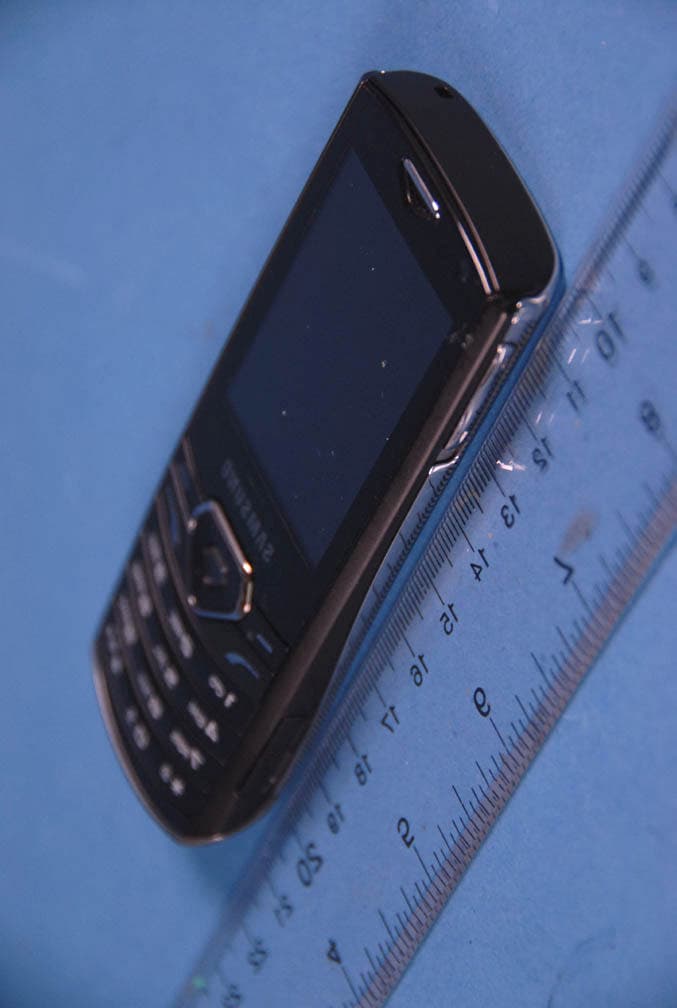

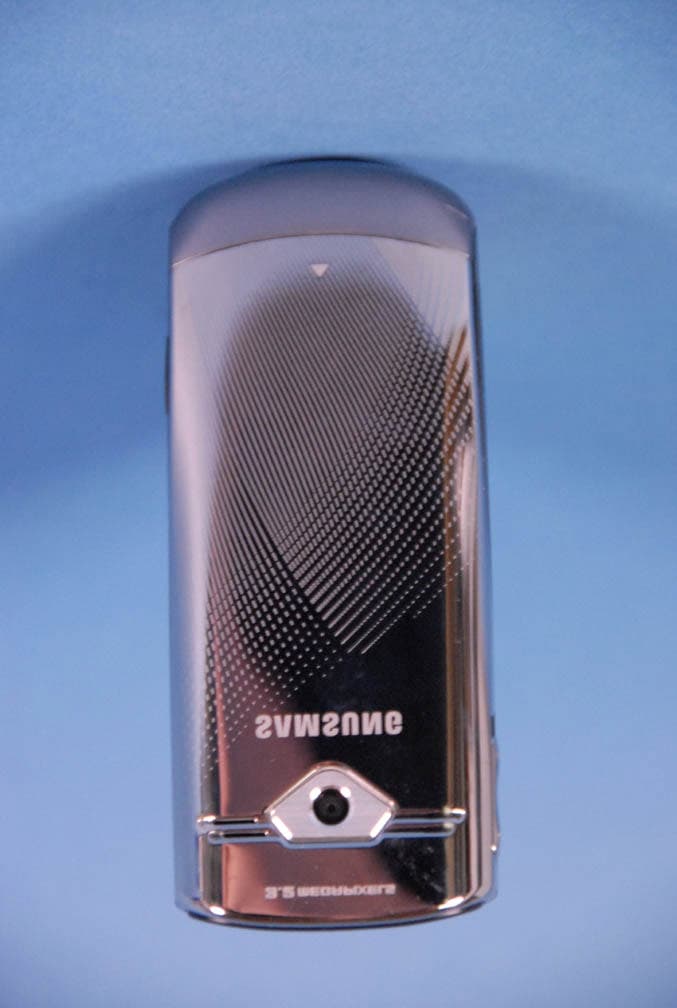

Samsung Electronics Co. Ltd. FCC ID: A3LGTS5350L Model: GT-S5350L External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth Page 1 of 4 © 2010 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung Electronics Co. Ltd. FCC ID: A3LGTS5350L Model: GT-S5350L External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth Page 2 of 4 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LGTS5350L Model: GT-S5350L External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth Page 3 of 4 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LGTS5350L Model: GT-S5350L External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth Page 4 of 4 © 2010 PCTEST Engineering Laboratory Inc.

윤준상 091224091224091224 조경환김준섭 GT-S5350L 중남미향 GH68-27565A WHITE IMEI : MODELO : GT-S5350L SSN: -S5350LGSMH RATED: 3,7 V ;1000 mA PRODUCTO COREANO/KOREAN PRODUCT FCC ID: A3LGTS5350L TELEFONO CELULAR/CELLULAR PHONE 5.0 39.0 12/24 : 사이즈 변경 (30 -> 39) The label is placed inside the battery compartment IMEI : MODELO : GT-S5350L SSN: - S5350LGSMH RATED: 3,7 V ; 1000 mA PRODUCTO COREANO/KOREAN PRODUCT FCC ID: A3LGTS5350L TELEFONO CELULAR/CELLULAR PHONE

Samsung Electronics Co. Ltd. FCC ID: A3LGTS5350L Model: GT-S5350L Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth Page 1 of 12 © 2010 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung Electronics Co. Ltd. FCC ID: A3LGTS5350L Model: GT-S5350L Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth Page 2 of 12 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LGTS5350L Model: GT-S5350L Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth Page 3 of 12 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LGTS5350L Model: GT-S5350L Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth Page 4 of 12 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LGTS5350L Model: GT-S5350L Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth Page 5 of 12 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LGTS5350L Model: GT-S5350L Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth Page 6 of 12 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LGTS5350L Model: GT-S5350L Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth Page 7 of 12 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LGTS5350L Model: GT-S5350L Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth Page 8 of 12 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LGTS5350L Model: GT-S5350L Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth Page 9 of 12 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LGTS5350L Model: GT-S5350L Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth Page 10 of 12 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LGTS5350L Model: GT-S5350L Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth Page 11 of 12 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LGTS5350L Model: GT-S5350L Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth Page 12 of 12 © 2010 PCTEST Engineering Laboratory Inc.

FCC ID: A3LGTS5350L SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 34 0Y1001120055.A3L 01/12/10 - 01/13/10 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth © 2010 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 01/12/10 - 01/13/10 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1001120055.A3L FCC ID: A3LGTS5350L APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): GT-S5350L Tx Frequency: 824.20 - 848.80 MHz (GSM 850) 1850.20 - 1909.80 MHz (GSM 1900) 826.40 - 846.60 MHz (UMTS V) 1852.4 - 1907.6 MHz (UMTS II) Conducted Power: 33.2 dBm GSM 850 30.65 dBm GSM 1900 22.55 dBm UMTS V 22.56 dBm UMTS II Max. SAR Measurement: 0.7 W/kg GSM 850 Head SAR 0.73 W/kg GSM 850 Body SAR 0.53 W/kg GSM 1900 Head SAR 0.46 W/kg GSM 1900 Body SAR 0.41 W/kg UMTS V Head SAR 0.26 W/kg UMTS V Body SAR 1.18 W/kg UMTS II Head SAR 0.45 W/kg UMTS II Body SAR Test Device Serial No.: Pre-Production [S/N: FG-275-B] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: A3LGTS5350L SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 34 0Y1001120055.A3L 01/12/10 - 01/13/10 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth © 2010 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES ...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 RF EXPOSURE LIMITS ................................................................................................................ 15 11 MEASUREMENT UNCERTAINTIES ............................................................................................ 16 12 SYSTEM VERIFICATION .............................................................................................................. 17 13 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 19 14 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 20 15 SAR DATA SUMMARY ................................................................................................................. 22 16 EQUIPMENT LIST ......................................................................................................................... 27 17 CONCLUSION ............................................................................................................................... 28 18 REFERENCES .............................................................................................................................. 29 19 SAR TEST SETUP PHOTOGRAPHS ........................................................................................... 31 FCC ID: A3LGTS5350L SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 3 of 34 0Y1001120055.A3L 01/12/10 - 01/13/10 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth © 2010 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LGTS5350L FCC Pt. 22/24 GSM/EDGE/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1001120056.A3L January 13-14, 2010 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth Page 1 of 57 © 2010 PCTEST Engineering Laboratory, Inc. REV 4.4GWC 12/09/2009 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. January 13-14, 2010 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0Y1001120056.A3L FCC ID: A3LGTS5350L APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth Model(s): GT-S5350L Tx Frequency Range: 824.20 - 848.80MHz (Cell. GSM) / 1850.20 - 1909.80MHz (PCS GSM) 826.40 - 846.60MHz (Cell. WCDMA) / 1852.4 - 1907.6MHz (PCS WCDMA) Max. RF Output Power: 1.496 W ERP Cell. GSM (31.75 dBm) / 1.774 W EIRP PCS GSM (32.49 dBm) 0.574 W ERP EDGE850 (27.59 dBm) / 0.723 W EIRP EDGE1900 (28.59 dBm) 0.112 W ERP Cell. WCDMA (20.48 dBm) / 0.248 W EIRP PCS WCDMA (23.95 dBm) Emission Designator(s): 248KGXW (Cellular GSM), 243KGXW (PCS GSM) 239KG7W (EDGE850), 244KG7W (EDGE1900) 4M17F9W (Cellular WCDMA), 4M15F9W (PCS WCDMA) Test Device Serial No.: identical prototype [S/N: FG-A375] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification Reviewed by: FCC ID: A3LGTS5350L FCC Pt. 22/24 GSM/EDGE/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1001120056.A3L January 13-14, 2010 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth Page 2 of 57 © 2010 PCTEST Engineering Laboratory, Inc. REV 4.4GWC 12/09/2009 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT............................................................................3 1.0 INTRODUCTION....................................................................................................................4 1.1 SCOPE..................................................................................................................................................................4 1.2 TESTING FACILITY............................................................................................................................................4 2.0 PRODUCT INFORMATION.....................................................................................................5 2.1 EQUIPMENT DESCRIPTION...........................................................................................................................5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS....................................................................................5 2.3 LABELING REQUIREMENTS...........................................................................................................................5 3.0 DESCRIPTION OF TESTS......................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................................6 3.2 OCCUPIED BANDWIDTH EMISSION LIMITS...............................................................................................6 3.3 CELLULAR - BASE FREQUENCY BLOCKS.................................................................................................6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS.............................................................................................7 3.5 PCS - BASE FREQUENCY BLOCKS..............................................................................................................7 3.6 PCS - MOBILE FREQUENCY BLOCKS.........................................................................................................7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL...................................................7 3.8 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS...............................................................8 3.9 PEAK-AVERAGE RATIO...................................................................................................................................8 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION.........................................................................8 4.0 TEST EQUIPMENT CALIBRATION DATA...............................................................................9 5.0 SAMPLE CALCULATIONS....................................................................................................10 6.0 TEST RESULTS...................................................................................................................11 6.1 SUMMARY.........................................................................................................................................................11 6.2 EFFECTIVE RADIATED POWER OUTPUT DATA.....................................…

Text truncated - open the document above for the full version.

Samsung Electronics Co. Ltd. FCC ID: A3LGTS5350L Model: GT-S5350L Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth Page 1 of 3 © 2010 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung Electronics Co. Ltd. FCC ID: A3LGTS5350L Model: GT-S5350L Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth Page 2 of 3 © 2010 PCTEST Engineering Laboratory Inc. Samsung Electronics Co. Ltd. FCC ID: A3LGTS5350L Model: GT-S5350L Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth Page 3 of 3 © 2010 PCTEST Engineering Laboratory Inc.

FCC ID: A3LGTS5350L SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 31 of 34 0Y1001120055.A3L 01/12/10 - 01/13/10 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth © 2010 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 19 SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LGTS5350L SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 32 of 34 0Y1001120055.A3L 01/12/10 - 01/13/10 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth © 2010 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 Figure 19-1 SAR Test Setup Photo 1 Figure 19-2 SAR Test Setup Photo 2 FCC ID: A3LGTS5350L SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 33 of 34 0Y1001120055.A3L 01/12/10 - 01/13/10 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth © 2010 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 Figure 19-3 SAR Test Setup Photo 3 Figure 19-4 SAR Test Setup Photo 4 FCC ID: A3LGTS5350L SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 34 of 34 0Y1001120055.A3L 01/12/10 - 01/13/10 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth © 2010 PCTEST Engineering Laboratory, Inc. REV 7.0 11/02/09 Figure 19-5 SAR Test Setup Photo 5 Figure 19-6 SAR Test Setup Photo 6
