SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: March 11, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTS5510T To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

Pioneers in Wireless Testing and Certification 6660-B Dobbin Road Columbia, MD 21045 USA 1.410.290.6652 April 8, 2010 FCC ID: A3LGTS5510T Applicant: Samsung Electronics Co Ltd Correspondence Reference Number: 83418 Form 731 Confirmation Number: TC331196 Date of Original E-mail: 04/07/2010 What is the DUT power drift? Please find attached updated test report with power drifts indicated on Pages 22-25. Provide probe calibration measurement uncertainty used per device operating frequency Please find attached updated test report with updated uncertainty. The table is valid for frequencies 835 – 2450 MHz, per the probe calibration uncertainty component. Should you have any further questions about this application, please do not hesitate to contact us. Sincerely,

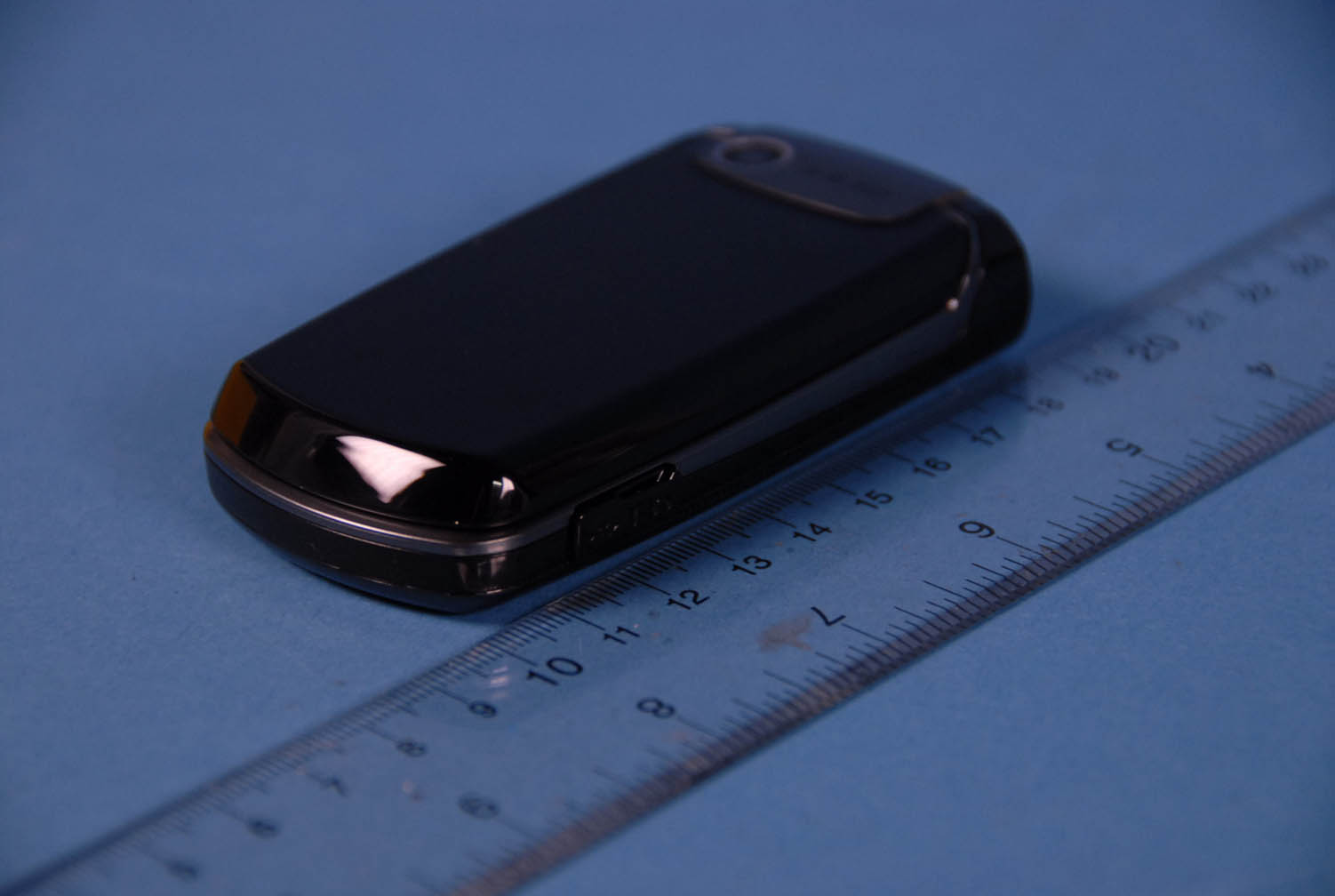

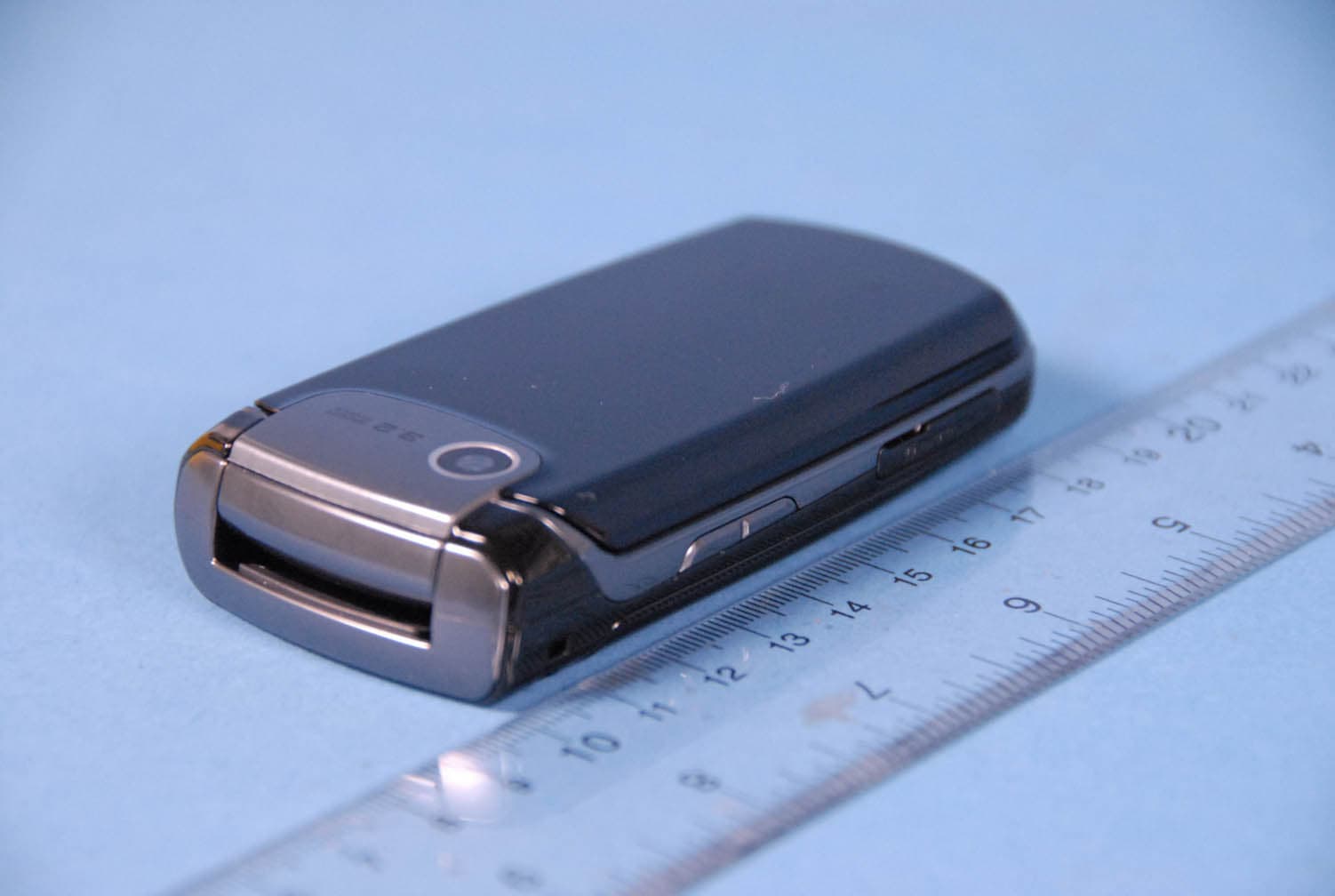

Samsung Electronics, Co. Ltd. FCC ID: A3LGTS5510T Model: GT-S5510T External Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 850 WCDMA Phone with BT Page 1 of 6 © 2009 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung Electronics, Co. Ltd. FCC ID: A3LGTS5510T Model: GT-S5510T External Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 850 WCDMA Phone with BT Page 2 of 6 © 2009 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTS5510T Model: GT-S5510T External Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 850 WCDMA Phone with BT Page 3 of 6 © 2009 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTS5510T Model: GT-S5510T External Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 850 WCDMA Phone with BT Page 4 of 6 © 2009 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTS5510T Model: GT-S5510T External Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 850 WCDMA Phone with BT Page 5 of 6 © 2009 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTS5510T Model: GT-S5510T External Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 850 WCDMA Phone with BT Page 6 of 6 © 2009 PCTEST Engineering Laboratory Inc.

GH68- A 0168 MOBILE PHONE MODEL: GT-S5510T RATED: 3.7 V; 800 mA MADE IN KOREA BY SAMSUNG FCC ID : A3LGTS5510T SSN:-S5510TGSMH Hansung P&I LEE JAE JIN 09-12-22 JO KEONG HWAN KIM JUNE SOP GT-S5510T 09-12-22 09-12-22 0168 MOBILE PHONE MODEL : GT-S5510T RATED : 3.7 V ; 800 mA MADE IN KOREA BY SAMSUNGFCC ID : A3LGTS5510T SSN :-S5510TGSMH The label is placed inside the battery compartment

Samsung Electronics, Co. Ltd. FCC ID: A3LGTS5510T Model: GT-S5510T Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 850 WCDMA Phone with BT Page 1 of 12 © 2009 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung Electronics, Co. Ltd. FCC ID: A3LGTS5510T Model: GT-S5510T Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 850 WCDMA Phone with BT Page 2 of 12 © 2009 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTS5510T Model: GT-S5510T Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 850 WCDMA Phone with BT Page 3 of 12 © 2009 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTS5510T Model: GT-S5510T Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 850 WCDMA Phone with BT Page 4 of 12 © 2009 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTS5510T Model: GT-S5510T Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 850 WCDMA Phone with BT Page 5 of 12 © 2009 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTS5510T Model: GT-S5510T Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 850 WCDMA Phone with BT Page 6 of 12 © 2009 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTS5510T Model: GT-S5510T Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 850 WCDMA Phone with BT Page 7 of 12 © 2009 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTS5510T Model: GT-S5510T Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 850 WCDMA Phone with BT Page 8 of 12 © 2009 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTS5510T Model: GT-S5510T Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 850 WCDMA Phone with BT Page 9 of 12 © 2009 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTS5510T Model: GT-S5510T Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 850 WCDMA Phone with BT Page 10 of 12 © 2009 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTS5510T Model: GT-S5510T Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 850 WCDMA Phone with BT Page 11 of 12 © 2009 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LGTS5510T Model: GT-S5510T Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and 850 WCDMA Phone with BT Page 12 of 12 © 2009 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: A3LGTS5510T SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1002120262.A3L 02/11/2010 – 02/15/2010 850/1900 GSM/GPRS/EDGE and 850 WCDMA/HSDPA Phone with BT Page 1 of 33 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/8/2010 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 02/11/2010 – 02/15/2010 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1002120262.A3L FCC ID: A3LGTS5510T APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: 850/1900 GSM/GPRS/EDGE and 850 WCDMA/HSDPA Phone with BT Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): GT-S5510T Tx Frequency: 824.20 - 848.80 MHz (GSM 850) 1850.20 - 1909.80 MHz (GSM 1900) 826.40 - 846.60 MHz (UMTS V) Conducted Power: 32.53 dBm GSM 850 29.84 dBm GSM 1900 22.71 dBm UMTS V Max. SAR Measurement: 0.36 W/kg GSM 850 Head SAR 0.41 W/kg GSM 850 Body SAR 0.64 W/kg GSM 1900 Head SAR 0.58 W/kg GSM 1900 Body SAR 1.00 W/kg UMTS V Head SAR 0.33 W/kg UMTS V Body SAR Test Device Serial No.: Pre-Production [S/N: R1YZ169595B, R1YZ169603Y] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT Reviewed by: FCC ID: A3LGTS5510T SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1002120262.A3L 02/11/2010 – 02/15/2010 850/1900 GSM/GPRS/EDGE and 850 WCDMA/HSDPA Phone with BT Page 2 of 33 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/8/2010 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 RF EXPOSURE LIMITS ................................................................................................................ 15 11 MEASUREMENT UNCERTAINTIES ............................................................................................ 16 12 SYSTEM VERIFICATION.............................................................................................................. 17 13 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS......................................................... 19 14 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 20 15 SAR DATA SUMMARY ................................................................................................................. 22 16 EQUIPMENT LIST......................................................................................................................... 26 17 CONCLUSION............................................................................................................................... 27 18 REFERENCES .............................................................................................................................. 28 19 SAR TEST SETUP PHOTOGRAPHS ........................................................................................... 30 Reviewed by: FCC ID: A3LGTS5510T SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1002120262.A3L 02/11/2010 – 02/15/2010 850/1900 GSM/GPRS/EDGE and 850 WCDMA/HSDPA Phone with BT Page 3 of 33 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/8/2010 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels wit…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LGTS5510T SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1002120262-R1.A3L 02/11/2010 – 02/15/2010 850/1900 GSM/GPRS/EDGE and 850 WCDMA/HSDPA Phone with BT Page 1 of 33 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/8/2010 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 02/11/2010 – 02/15/2010 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1002120262-R1.A3L FCC ID: A3LGTS5510T APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: 850/1900 GSM/GPRS/EDGE and 850 WCDMA/HSDPA Phone with BT Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): GT-S5510T Tx Frequency: 824.20 - 848.80 MHz (GSM 850) 1850.20 - 1909.80 MHz (GSM 1900) 826.40 - 846.60 MHz (UMTS V) Conducted Power: 32.53 dBm GSM 850 29.84 dBm GSM 1900 22.71 dBm UMTS V Max. SAR Measurement: 0.36 W/kg GSM 850 Head SAR 0.41 W/kg GSM 850 Body SAR 0.64 W/kg GSM 1900 Head SAR 0.58 W/kg GSM 1900 Body SAR 1.00 W/kg UMTS V Head SAR 0.33 W/kg UMTS V Body SAR Test Device Serial No.: Pre-Production [S/N: R1YZ169595B, R1YZ169603Y] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT Reviewed by: FCC ID: A3LGTS5510T SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1002120262-R1.A3L 02/11/2010 – 02/15/2010 850/1900 GSM/GPRS/EDGE and 850 WCDMA/HSDPA Phone with BT Page 2 of 33 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/8/2010 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 RF EXPOSURE LIMITS ................................................................................................................ 15 11 MEASUREMENT UNCERTAINTIES ............................................................................................ 16 12 SYSTEM VERIFICATION.............................................................................................................. 17 13 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS......................................................... 19 14 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 20 15 SAR DATA SUMMARY ................................................................................................................. 22 16 EQUIPMENT LIST......................................................................................................................... 26 17 CONCLUSION............................................................................................................................... 27 18 REFERENCES .............................................................................................................................. 28 19 SAR TEST SETUP PHOTOGRAPHS ........................................................................................... 30 Reviewed by: FCC ID: A3LGTS5510T SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1002120262-R1.A3L 02/11/2010 – 02/15/2010 850/1900 GSM/GPRS/EDGE and 850 WCDMA/HSDPA Phone with BT Page 3 of 33 © 2010 PCTEST Engineering Laboratory, Inc. REV 7.7M 2/8/2010 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safet…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LGTS5510T FCC Pt. 22/24 GSM/EDGE/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1002120263.A3L February 17, 2010 850/1900 GSM/GPRS/EDGE and 850 WCDMA Phone with BT Page 1 of 46 © 2010 PCTEST Engineering Laboratory, Inc. REV 4.3GWC 05/13/2009 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. February 17, 2010 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0Y1002120263.A3L FCC ID: A3LGTS5510T APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) EUT Type: 850/1900 GSM/GPRS/EDGE and 850 WCDMA Phone with BT Model(s): GT-S5510T Tx Frequency Range: 824.20 - 848.80MHz (Cell. GSM) / 1850.20 - 1909.80MHz (PCS GSM) 826.40 - 846.60MHz (Cell. WCDMA) Max. RF Output Power: 1.178 W ERP Cell. GSM (30.71 dBm) / 1.626 W EIRP PCS GSM (32.11 dBm) 0.423 W ERP EDGE850 (26.26 dBm) / 0.594 W EIRP EDGE1900 (27.74 dBm) 0.396 W ERP Cell. WCDMA (25.98 dBm) Emission Designator(s): 244KGXW (Cellular GSM), 244KGXW (PCS GSM) 242KG7W (EDGE850), 241KG7W (EDGE1900) 4M17F9W (Cellular WCDMA) Test Device Serial No.: identical prototype [S/N: 100210#A] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification Reviewed by: FCC ID: A3LGTS5510T FCC Pt. 22/24 GSM/EDGE/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1002120263.A3L February 17, 2010 850/1900 GSM/GPRS/EDGE and 850 WCDMA Phone with BT Page 2 of 46 © 2010 PCTEST Engineering Laboratory, Inc. REV 4.3GWC 05/13/2009 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT............................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.3 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................... 6 3.2 OCCUPIED BANDWIDTH EMISSION LIMITS .................................................................................... 6 3.3 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS................................................................................... 7 3.5 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 7 3.6 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.8 RADIATED SPURIOUS AND HARMONIC EMISSIONS ..................................................................... 8 3.9 PEAK-AVERAGE RATIO ..................................................................................................................... 8 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 8 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 5.0 SAMPLE CALCULATIONS ............................................................................................................10 6.0 TEST RESULTS .......................................................................…
