A3LGTS5530Cellular/PCS GSM/EDGE Phone with Bluetooth

Some of the contents in this manual may differ from your phone depending on the software of the phone or your service provider.World Wide Webhttp://www.samsungmobile.com Printed in Korea Code No.:GH68-xxxxxA English (EU). 04/2010. Rev. 1.0 GT-S5530 user manual D r a f t 0 1 2 0 1 0 . 0 3 . 2 6 SW V e r s i o n : S5 5 3 0 X X J B 3 ii using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone,” “assembling and preparing your mobile phone,” and “using basic functions.” Instructional iconsBefore you start, familiarise yourself with the icons you will see in this manual: Warning —situations that could cause injury to yourself or others Caution —situations that could cause damage to your phone or other equipment Note —notes, usage tips, or additional information X Refer to —pages with related information; for example: X p. 12 (represents “see page 12”) using this manual iii Copyright informationRights to all technologies and products that comprise this phone are the property of their respective owners:•Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide. Bluetooth QD ID: B0xxxxx • Java™ is a trademark of Sun Microsystems, Inc.• Windows Media Player ® is a registered trademark of Microsoft Corporation. → Followed by —the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages → Create message (represents Messages , followed by Create message ) [] Square brackets —phone keys; for example: [ ] (represents the Power/ Menu exit key) <> Angled brackets —softkeys that control different functions at each screen; for example: < OK > (represents the OK softkey) iv contents safety and usage information .................. 1 Safety warnings .......................................... 1Safety precautions ...................................... 4Important usage information ....................... 6 introducing your mobile phone ............. 12 Unpack ..................................................... 12Phone layout ............................................. 13Keys ......................................................... 14Display ...................................................... 15Icons ........................................................ 16 assembling and preparing your mobile phone ...................................................... 18 Install the SIM or USIM card and battery ... 18Charge the battery .................................... 20Insert a memory card (optional) ................. 21 contents v using basic functions ............................ 22 Turn your phone on and off ....................... 22Access menus .......................................... 23Switch applications ................................... 23Use the smart home screen ...................... 24Customise your phone .............................. 25Use basic call functions ............................ 28Send and view messages ......................... 29Add and find contacts ............................... 31Use basic camera functions ...................... 32Listen to music ......................................... 34Browse the web ........................................ 36Use the Google services ........................... 37 using advanced functions ..................... 39 Use advanced call functions ..................... 39Use advanced phonebook functions ......... 42Use advanced messaging functions .......... 43 Use advanced camera functions ............... 45Use advanced music functions ................. 49 using tools and applications ................. 53 Use the Bluetooth wireless feature ............ 53Activate and send an SOS message ......... 55Activate the mobile tracker ........................ 56Record and play voice memos .................. 57Edit images ............................................... 57Print images .............................................. 60Upload photos and videos to the web ...... 60Use Java-powered games and applications .............................................. 62Synchronise data ...................................... 63Create and view world clocks ................... 63Set and use alarms ................................... 64Use the calculator ..................................... 64Convert currencies or measurements ....... 65 vi contents Set a countdown timer .............................. 65Use the stopwatch .................................... 65Create a new task ..................................... 65Create a text memo .................................. 66Manage your calendar .............................. 66Search for data ......................................... 67 troubleshooting ........................................ aindex ......................................................... d 1 safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Keep your phone away from small children and petsKeep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed.Protect your hearing Safety warnings Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. 2 safety and usage information Install mobile phones and equipment with cautionEnsure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly.Handle and dispose of batteries and chargers with care• Use only Samsung-approved batteries and chargers …

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: May 12, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTS5530 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

안대근김준섭 GT-S5530(EU) 한성 090413 090413 WHITE 폴리프로필렌(T=0.13) MODEL : GT-S5530 SSN : -S5530GSMH RATED : 3.7 V 800 mA MADE IN KOREA BY SAMSUNG IMEI : MOBILE PHONE FCC ID : A3LGTS5530 GH68- 0168 40,60 1,00 R 1,00 R 2,10 R 3,00 R 1,00 R 1,00 R 1,00 R 35,37 C:2.0 상세치수 DXF파일참조 The label is placed inside the battery compartment

Reviewed by: FCC ID: A3LGTS5530 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1004150646.A3L 04/19/10 - 04/20/10 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 1 of 33 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.0M 4/92010 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 04/19/10 - 04/20/10 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1004150646.A3L F C C I D : A3 L G T S 5 5 3 0 AP P L I C AN T : S AMS UNG E LE CT RO NI CS , CO . LT D. EUT Type: 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): GT-S5530 Tx Frequency: 824.20 - 848.80 MHz (GSM 850) 1850.20 - 1909.80 MHz (GSM 1900) Conducted Power: 32.48 dBm GSM 850 29.38 dBm GSM 1900 Max. SAR Measurement: 0.32 W/kg GSM 850 Head SAR 0.63 W/kg GSM 850 Body SAR 0.53 W/kg GSM 1900 Head SAR 0.43 W/kg GSM 1900 Body SAR Test Device Serial No.: Pre-Production [S/N: FH-061-B] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT Reviewed by: FCC ID: A3LGTS5530 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1004150646.A3L 04/19/10 - 04/20/10 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 2 of 33 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.0M 4/92010 T A B L E O F C O N T E N T S 1 INTRODUCTION ..............................................................................................................................3 2 TEST SITE LOCATION ....................................................................................................................4 3 SAR MEASUREMENT SETUP ........................................................................................................5 4 DASY E-FIELD PROBE SYSTEM ...................................................................................................7 5 PROBE CALIBRATION PROCESS .................................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES.......................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS....................................................................10 8 DEFINITION OF REFERENCE POINTS .......................................................................................11 9 TEST CONFIGURATION POSITIONS ..........................................................................................12 10 RF EXPOSURE LIMITS .................................................................................................................15 11 MEASUREMENT UNCERTAINTIES .............................................................................................16 12 SYSTEM VERIFICATION...............................................................................................................17 13 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS..........................................................19 14 FCC 3G MEASUREMENT PROCEDURES ...................................................................................20 15 SAR DATA SUMMARY ..................................................................................................................21 16 EQUIPMENT LIST..........................................................................................................................24 17 CONCLUSION................................................................................................................................25 18 REFERENCES ...............................................................................................................................26 19 SAR TEST SETUP PHOTOGRAPHS ............................................................................................28 Reviewed by: FCC ID: A3LGTS5530 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1004150646.A3L 04/19/10 - 04/20/10 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 3 of 33 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.0M 4/92010 1 I N T R O D U C T I O N The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz[2] and Health Canada RF Exposure Guidelines Safety…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 22 & 24 SUBPART CERTIFICATION REPORT Model Tested : GT-S5530 FCC ID(Requested) : A3LGTS5530 Report No : FH-061-R1 Job No : FH-061 Date issued : May 11, 2010 - Abstract - All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part22, Part24. Prepared By JH HAN – Test Engineer Authorized By WT JANG – Technical Manager Report Number : FH-061-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC CERTIFICATION INFORMATION .....................................................................3 1.1. §2.1033 General Information .........................................................................3 2. INTRODUCTION .......................................................................................................4 2.1. General..........................................................................................................4 3. MEASURING INSTRUMENT CALIBRATION ...........................................................5 4. TEST EQUIPMENT LIST...........................................................................................6 5. DESCRIPTION OF TESTS ........................................................................................7 5.1. Effective Radiated Power / Equivalent Isotropic Radiated Power ..................7 5.2. Radiated Spurious & Harmonic Emission ......................................................8 5.3. Peak-Average Ratio.......................................................................................9 5.4. Occupied Bandwidth ....................................................................................10 5.5. Spurious and Harmonic Emission at Antenna Terminal................................10 5.5.1. Occupied Bandwidth Emission Limits ..............................................10 5.5.2. Conducted Spurious Emission .........................................................12 5.6. Frequency Stability / Temperature Variation .................................................13 6. TEST DATA .............................................................................................................14 6.1. Conducted Output Power.............................................................................14 6.2. Effective Radiated Power (E.R.P.)................................................................15 6.3. Equivalent Isotropic Radiated Power (E.I.R.P.)............................................16 6.4. GSM850 Radiated Spurious & Harmonic measurement..............................17 6.5. GSM1900 Radiated Spurious & Harmonic measurement............................18 6.6. GSM850 Radiated Spurious & Harmonic Conversion Table ........................19 6.7. GSM1900 Radiated Spurious & Harmonic Conversion Table ......................20 6.8. Frequency Stability.......................................................................................21 6.8.1. GSM850 Frequency Stability Table ..................................................21 6.8.2. GSM850 Frequency Stability Graph.................................................22 6.8.3. GSM1900 Frequency Stability Table ................................................25 6.8.4. GSM1900 Frequency Stability Graph...............................................26 7. CONCLUSION.........................................................................................................29 8. TEST PLOTS...........................................................................................................30 Report Number : FH-061-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1. §2.1033 General Information • Applicant Name : SAMSUNG ELECTRONICS CO., LTD. • Address : 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 • FCC ID • Model : : A3LGTS5530 GT-S5530 • Quantity : Quantity production is planned • Emission Designators : 247KGXW(GSM850), 244KG7W(GSM850 EDGE) 249KGXW(GSM1900), 246KG7W(GSM1900 EDGE) • Tx Freq. Range : 824.2 - 848.8MHz (GSM850) 1850.2MHz - 1909.8MHz (GSM1900) • Rx Freq. Range : 869.2 - 893.8 MHz (GSM850) 1930.2MHz - 1989.8MHz (GSM1900) • Max. Power Rating : 0.531 W ERP GSM850 (27.25 dBm) 1.239 W EIRP GSM1900 (30.93 dBm) 0.145 W ERP GSM850 EDGE(21.60dBm) 0.327 W EIRP GSM1900 EDGE(25.15dBm) • FCC Classification(s) : PCS Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type : 850/1900 GSM/EDGE/GPRS Phone with Bluetooth • Frequency Tolerance : ±0.00025% (2.5ppm) • FCC Rule Part(s) : §24(E), §22(H), §2. • Dates of Test : April 8-9, 2010 • Place of Test : SAMSUNG Lab, • Test Report S/N : FH-061-R1 Report Number : FH-061-R1 2. INTRODUCTION 2.1. General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a Non-conducted turntable 3- meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedur…

Text truncated - open the document above for the full version.

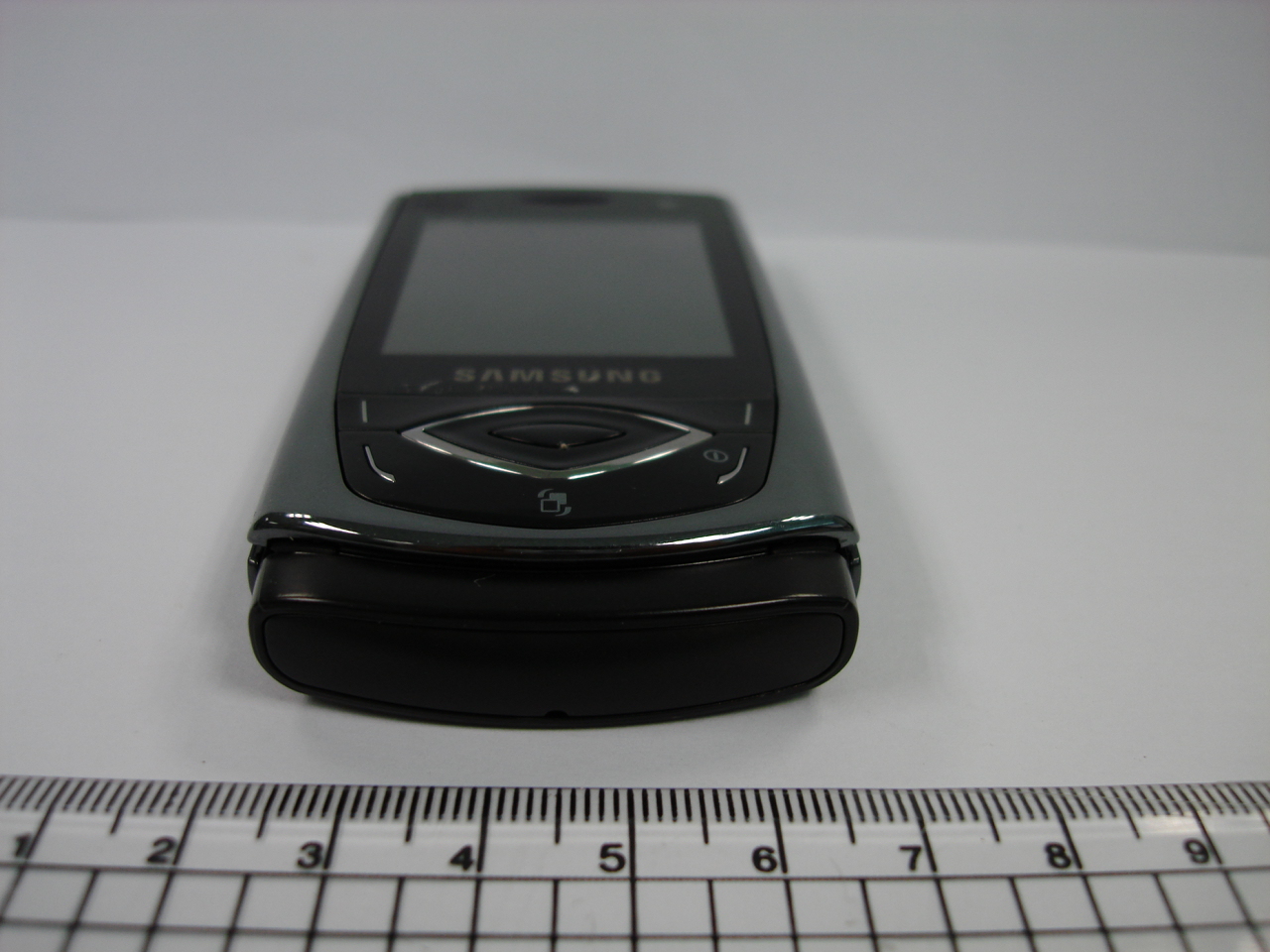

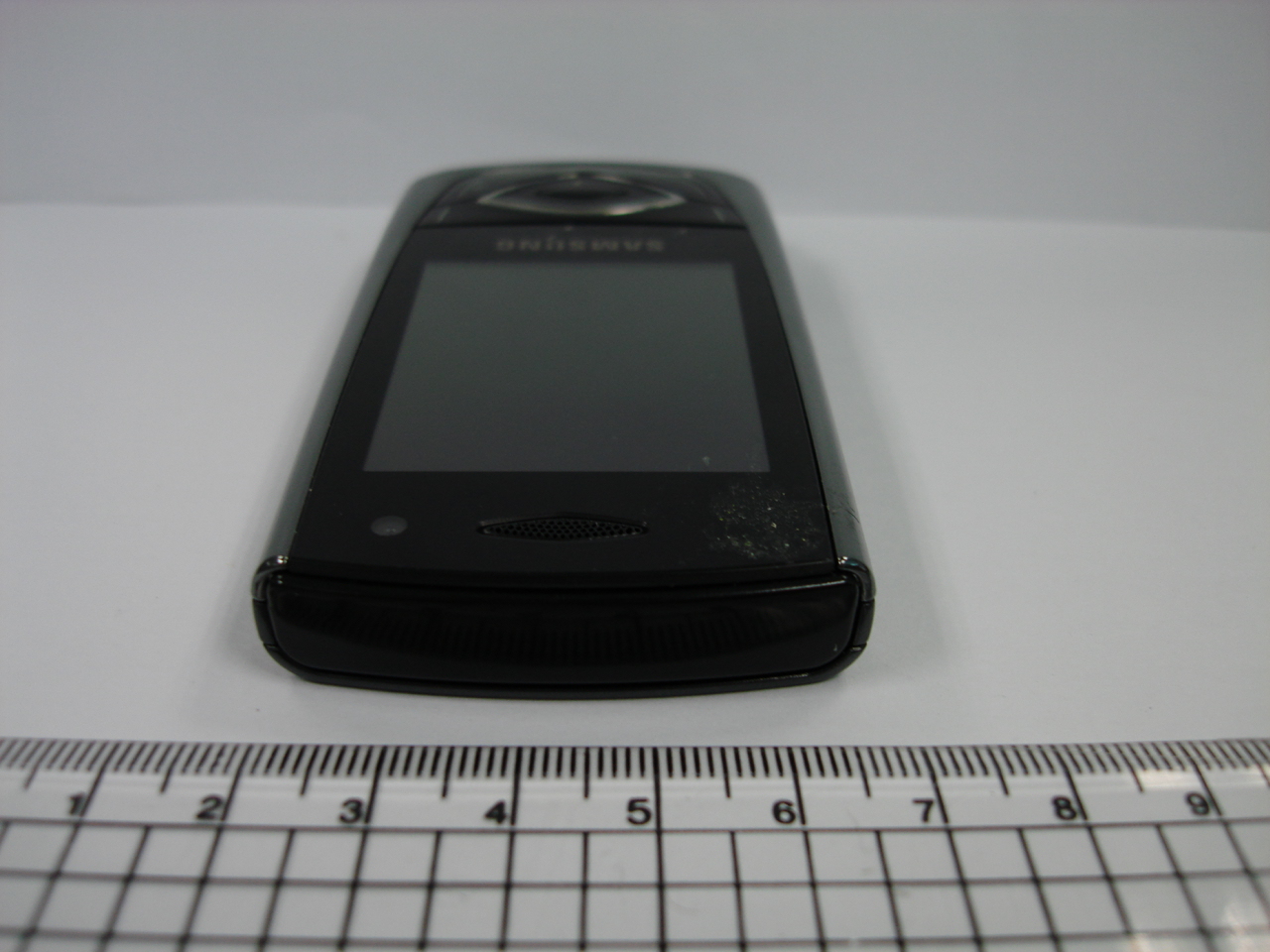

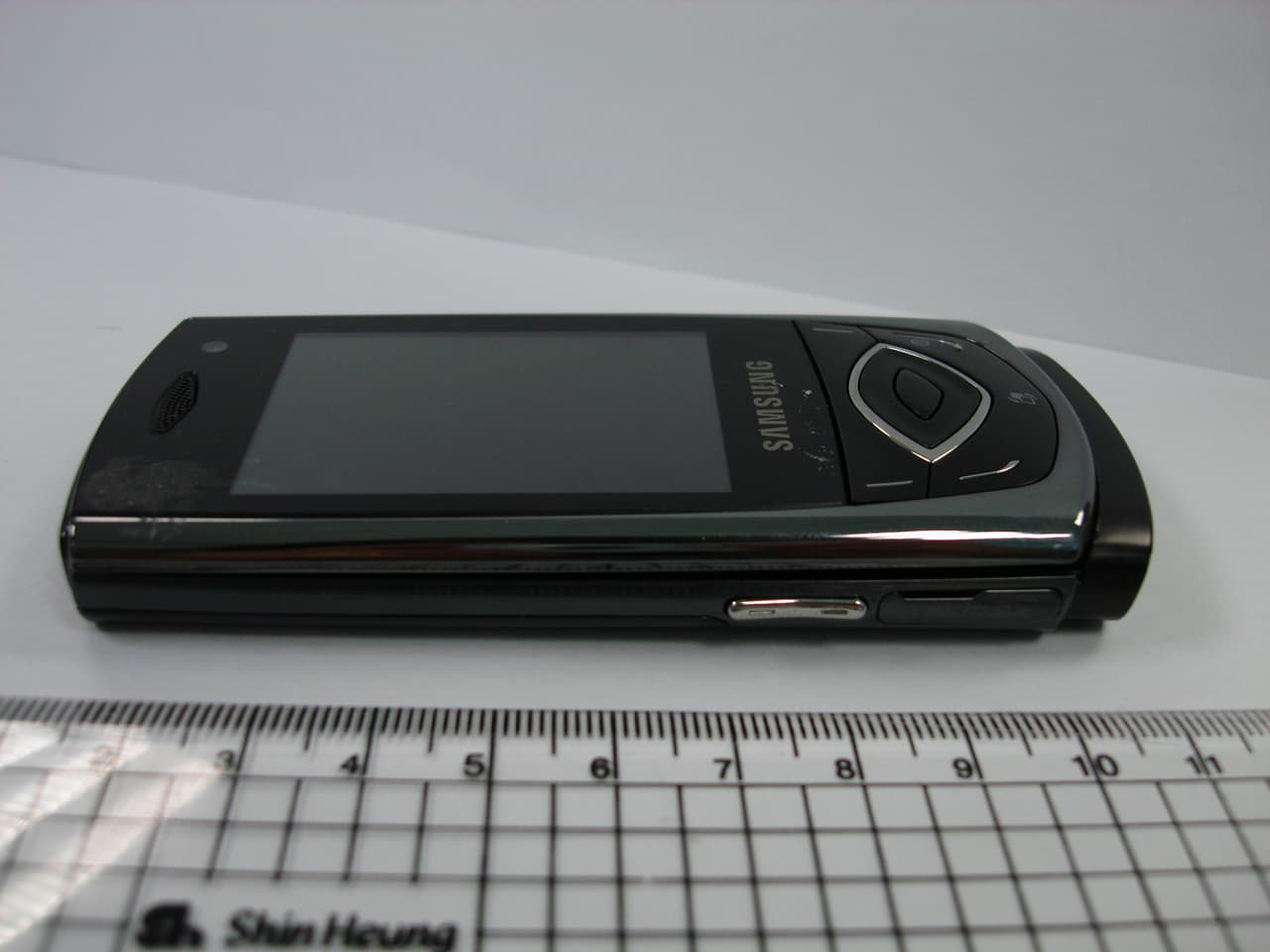

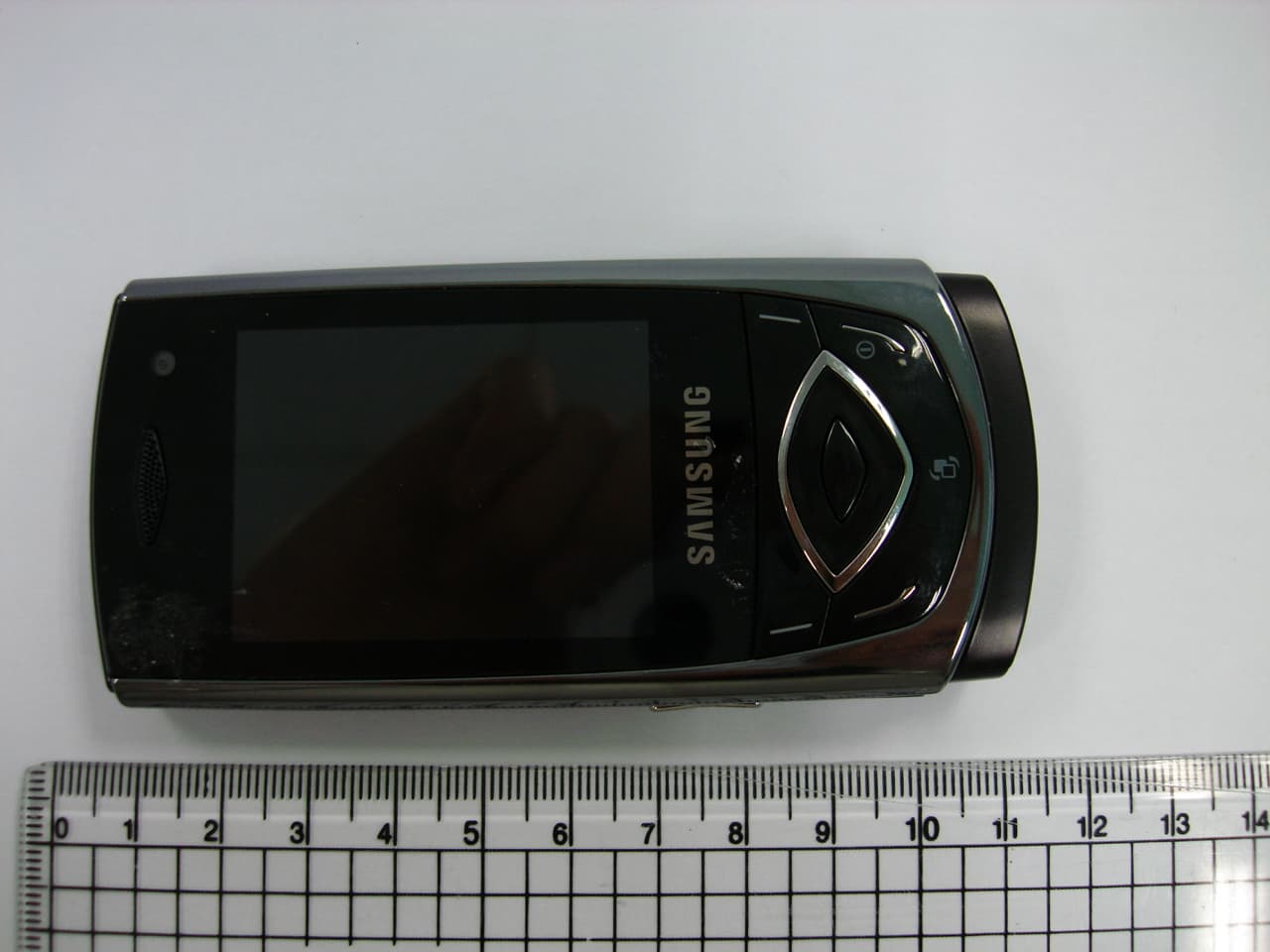

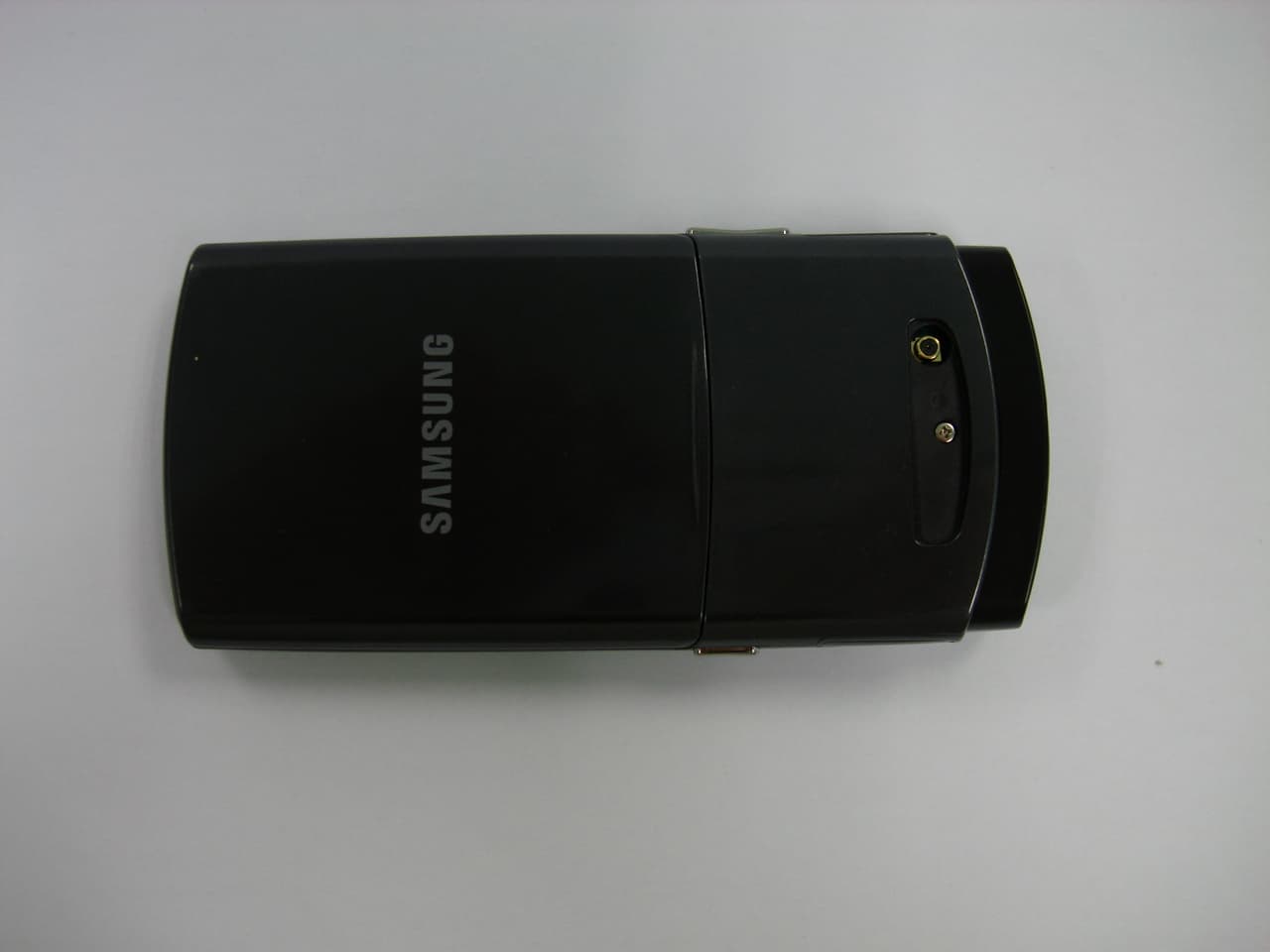

SAMSUNG FCC ID: A3LGTS5530 850/1900 GSM/EDGE/GPRS Phone with Bluetooth SAMSUNG FCC ID: A3LGTS5530 850/1900 GSM/EDGE/GPRS Phone with Bluetooth

Reviewed by: FCC ID: A3LGTS5530 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1004150646.A3L 04/19/10 - 04/20/10 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 28 of 33 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.0M 4/92010 19 S A R T E S T S E T U P P H O T O G R A P H S Reviewed by: FCC ID: A3LGTS5530 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1004150646.A3L 04/19/10 - 04/20/10 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 29 of 33 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.0M 4/92010 Figure 19-1 SAR Test Setup Photo 1 Figure 19-2 SAR Test Setup Photo 2 Reviewed by: FCC ID: A3LGTS5530 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1004150646.A3L 04/19/10 - 04/20/10 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 30 of 33 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.0M 4/92010 Figure 19-3 SAR Test Setup Photo 3 Figure 19-4 SAR Test Setup Photo 4 Reviewed by: FCC ID: A3LGTS5530 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1004150646.A3L 04/19/10 - 04/20/10 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 31 of 33 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.0M 4/92010 Figure 19-5 SAR Test Setup Photo 5 Figure 19-6 SAR Test Setup Photo 6 Reviewed by: FCC ID: A3LGTS5530 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1004150646.A3L 04/19/10 - 04/20/10 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 32 of 33 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.0M 4/92010 Figure 19-7 SAR Test Setup Photo 7 Figure 19-8 SAR Test Setup Photo 8 Reviewed by: FCC ID: A3LGTS5530 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1004150646.A3L 04/19/10 - 04/20/10 850/1900 GSM/GPRS/EDGE Phone with Bluetooth Page 33 of 33 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.0M 4/92010 Figure 19-9 SAR Test Setup Photo 9 Figure 19-10 SAR Test Setup Photo 10
