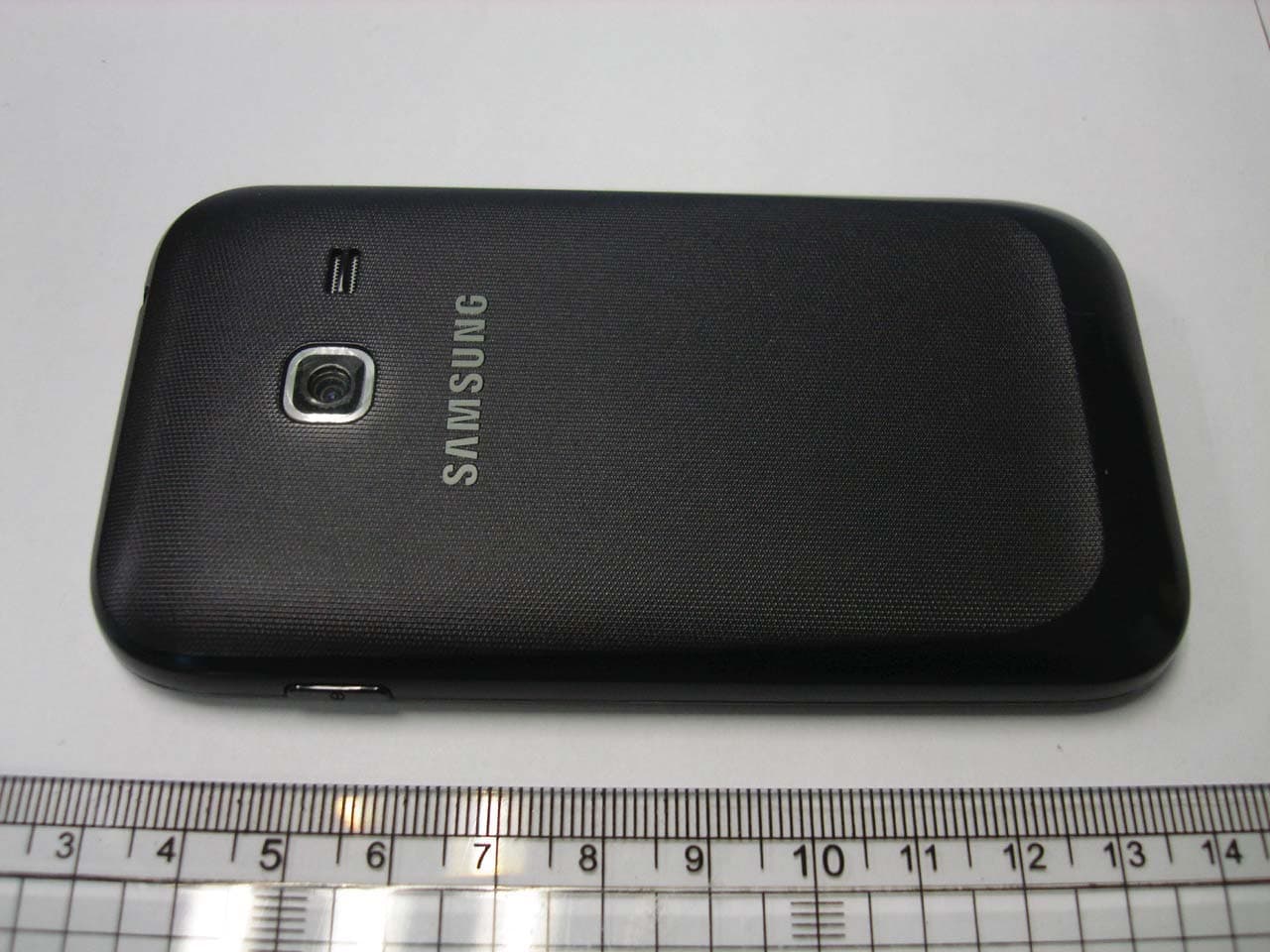

A3LGTS6352Portable Handset

User manual GT-S6352 . Draft 6 2011-12-23 Only for Marketing using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information  Refer to—pages with related information; for example:  p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or pe…

Text truncated - open the document above for the full version.

April 26, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A3LGTS6352 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards Sang Kyung (Peter), Ra/ General Manager Samsung Electronics CO. LTD TEL: 310-900-5250 FAX: 310-537-5500 E-mail: [email protected]

416, Maetan-3 Dong , Yeongtong-Gu, Suwon-City, Gyeonggi-Do 443-742 South Korea Date: 04/09/2012 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, NAME: Sang Kyung(Peter), Ra TITLE: Head of QA Lab (General Manager) Applicant: Samsung Electronics America, Inc Address: 19 Chapin Rd, Building D. Pine Brook, NJ 07058

Label and Location Samsung Phone Model: GT-S6352 FCC ID: A3LGTS6352 Label: Location: Top Back plate of device Bottom Label is placed inside of the battery compartment. Label

SAR TEST REPORT HCT CO., LTD EUT Type: 850/1900 GSM/GPRS Phone with Bluetooth/WLAN and EDGE Rx Only FCC ID: A3LGTS6352 Model: GT-S6352 Date of Issue: Apr.25, 2012 Test report No.: HCTA1204FS08 Test Laboratory: HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 TEL: +82 31 645 6485 FAX: +82 31 645 6401 Applicant : SAMSUNG Electronics Co., Ltd. 416 Maetan3-Dong, YeongTong-Gu, Suwon-Si, Gyeonggi-Do, Korea, 443-742 Testing has been carried out in accordance with: RSS-102 Issue 4; Health Canada Safety Code 6 47CFR §2.1093 FCC OET Bulletin 65(Edition 97-01), Supplement C (Edition 01-01) ANSI/ IEEE C95.1 – 1992 IEEE 1528-2003 Test result: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Max SAR Band 1g SAR (W/kg) Head Body Hotspot GSM850 0.073 0.171 0.171 GSM1900 0.589 0.664 0.664 802.11b 0.042 0.00903 0.018 Simultaneous SAR per KDB 690783 D01 0.631 0.673 0.673 Signature Report prepared by Approved by : Young-Soo Jang : Jae-Sang So Test Engineer of SAR Part Manager of SAR Part Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 2 of 129 Table of Contents 1. INTRODUCTION .......................................................................................................................................... ３ 2. DESCRIPTION OF DEVICE ......................................................................................................................... ４ 3. DESCRIPTION OF TEST EQUIPMENT ...................................................................................................... ５ 3.1 SAR MEASUREMENT SETUP ........................................................................................................... ５ 3.3 PROBE CALIBRATION PROCESS .................................................................................................... ７ 3.4 SAM Phantom ..................................................................................................................................... ９ 3.5 Device Holder for Transmitters ............................................................................................................ ９ 3.6 Brain & Muscle Simulating Mixture Characterization ...................................................................... １０ 3.7 SAR TEST EQUIPMENT ................................................................................................................ １１ 4. SAR MEASUREMENT PROCEDURE ..................................................................................................... １２ 5. DESCRIPTION OF TEST POSITION ....................................................................................................... １３ 5.1 HEAD POSITION ............................................................................................................................ １３ 5.2 Body Holster/Belt Clip Configurations ............................................................................................. １４ 6. MEASUREMENT UNCERTAINTY ........................................................................................................... １５ 7. ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................................................. １６ 8. SYSTEM VERIFICATION ......................................................................................................................... １７ 8.1 Tissue Verification ........................................................................................................................... １７ 8.2 System Validation ............................................................................................................................ １７ 8.3 System Validation Procedure .......................................................................................................... １７ 9. RF CONDUCTED POWER MEASUREMENT ......................................................................................... １８ 9.1 GSM ................................................................................................................................................ １８ 9.2 WiFi ................................................................................................................................................. ２０ 10. SAR Test configuration & Antenna Information ................................................................................ ２２ 11. SAR Considerations for Multiple Transmitters and Antennas ......................................................... ２３ 12. SAR TEST DATA SUMMARY ................................................................................................................ ２５ 12.1 Measurement Results (GSM850 Head SAR) ................................................................................ ２５ 12.2 Measurement Results (GSM1900 Head SAR) .............................................................................. ２６ 12.3 Measurement Results (802.11b/g/n Head) ................................................................................... ２７ 12.4 Measurement Results (GSM850 Hotspot SAR) ............................................................................ ２８ 12.5 Measurement Results (GSM1900 Hotspot SAR) .......................................................................... ２９ 12.6 Measurement Results (802.11b/g/n Hotspot SAR) ....................................................................... ３０ 13. CONCLUSION ........................................................................................................................................ ３１ 14. REFERENCES .......................................................................…

Text truncated - open the document above for the full version.

Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 94 of 129 Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 95 of 129 Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 96 of 129 Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 97 of 129 Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 98 of 129 Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 99 of 129 Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 100 of 129 Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 101 of 129 Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 102 of 129 Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 103 of 129 Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 104 of 129 Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 105 of 129 Attachment 4. – Dipole Calibration Data Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 106 of 129 Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 107 of 129 Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 108 of 129 Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 109 of 129 Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 110 of 129 Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 111 of 129 Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 112 of 129 Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 113 of 129 Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 114 of 129 Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 115 of 129 Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 116 of 129 Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 117 of 129 Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 118 of 129 Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 119 of 129 Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 120 of 129 Report No.: HCTA1204FS08 FCC ID: A3LGTS6352 DATE: Apr.25, 2012 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 64851 FAX: +82 31 645 6401 www.hct.co.kr 121 of 129 Re…

Text truncated - open the document above for the full version.

FCC PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1204FR25 Date of Issue: April 25, 2012 EUT Type: 850/1900 GSM/GPRS Phone with Bluetooth/WLAN and EDGE Rx Only FCC ID: A3LGTS6352 Page ２ of 119 Version TEST REPORT NO. DATE DESCRIPTION HCTR1204FR25 April 25, 2012 - First Approval Report FCC PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1204FR25 Date of Issue: April 25, 2012 EUT Type: 850/1900 GSM/GPRS Phone with Bluetooth/WLAN and EDGE Rx Only FCC ID: A3LGTS6352 Page ３ of 119 Table of Contents 1. GENERAL INFORMATION .......................................................................................................................... ４ 2. EUT DESCRIPTION ..................................................................................................................................... ４ 3. TEST METHODOLOGY ............................................................................................................................... ５ 3.1 EUT CONFIGURATION ...................................................................................................................... ５ 3.2 EUT EXERCISE .................................................................................................................................. ５ 3.3 GENERAL TEST PROCEDURES ...................................................................................................... ５ 3.4 DESCRIPTION OF TEST MODES ..................................................................................................... ５ 4. INSTRUMENT CALIBRATION..................................................................................................................... ６ 5. FACILITIES AND ACCREDITATIONS ......................................................................................................... ６ 5.1 FACILITIES ......................................................................................................................................... ６ 5.2 EQUIPMENT ....................................................................................................................................... ６ 6. ANTENNA REQUIREMENTS ...................................................................................................................... ７ 7. SUMMARY TEST OF RESULTS ................................................................................................................. ８ 8. TEST RESULT ............................................................................................................................................. ９ 8.1 6dB BANDWIDTH (802.11b/g/n) ....................................................................................................... ９ 8.2 OUTPUT POWER (802.11b/g/n) .................................................................................................... １６ 8.3 POWER SPECTRAL DENSITY (802.11b/g/n) ............................................................................... ８３ 8.4 OUT OF BAND EMISSIONS AT THE BAND EDGE/ CONDUCTED SPURIOUS EMISSIONS ... ９０ 8.5 RADIATED MEASUREMENT. ..................................................................................................... １０５ 8.5.1 RADIATED SPURIOUS EMISSIONS. ............................................................................... １０５ 8.5.2 RADIATED RESTRICTED BAND EDGES ....................................................................... １１３ 8.6 POWERLINE CONDUCTED EMISSIONS .................................................................................. １１４ 9. LIST OF TEST EQUIPMENT ................................................................................................................ １１９ FCC PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1204FR25 Date of Issue: April 25, 2012 EUT Type: 850/1900 GSM/GPRS Phone with Bluetooth/WLAN and EDGE Rx Only FCC ID: A3LGTS6352 Page ４ of 119 1. GENERAL INFORMATION Applicant: SAMSUNG Electronics Co., Ltd. Address: 416, Maetan 3-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do 443-742, Korea FCC ID: A3LGTS6352 EUT Type: 850/1900 GSM/GPRS Phone with Bluetooth/WLAN and EDGE Rx Only Model name(s): GT-S6352 Date(s) of Tests: April 06, 2012~ April 25, 2012 Contact Person: Name: Kwang Ho Yoon Phone #: +82-31-301-0853 Place of Tests: HCT Co., Ltd. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA. (IC Recognition No. : 5944A-3) 2. EUT DESCRIPTION EUT Type 850/1900 GSM/GPRS Phone with Bluetooth/WLAN and EDGE Rx Only FCC Model Name GT-S6352 Power Supply DC 3.7 V Battery type Li-ion Battery(Standard) Frequency Range TX: 2412 MHz ~ 2462 MHz RX: 2412 MHz ~ 2462 MHz Max. RF Output Power Peak Wi-Fi 802.11b(22.91 dBm) / Wi-Fi 802.11g (22.95 dBm) / Wi-Fi 802.11n (22.77 dBm) Average Wi-Fi 802.11b(16.23 dBm) / Wi-Fi 802.11g (14.24 dBm) / Wi-Fi 802.11n (14.09 dBm) Modulation Type DSSS/CCK(802.11b), OFDM(802.11g, 802.11n) Antenna Specification Manufacturer: SkyCross Korea Antenna type: Internal Antenna Peak Gain : -3.35 dBi FCC PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1204FR25 Date of Issue: April 25, 2012 EUT Type: 850/1900 GSM/GPRS Phone with Bluetooth/WLAN and EDGE Rx Only FCC ID: A3LGTS6352 Page ５ of 119 3. TEST METHODOLOGY The measurement procedure described in the American National Standard for Testing Unlicensed Wireless Devices(ANSI C63.10-2009) and FCC KDB 558074 D01 DTS Meas Guidance V01 dated January 18, 2012 entitled “Guidance for Performing Compliance Measurements on Digital Transmission Systems(DTS) Operating Under §15.247” were used in the measurement. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the Tx frequency that was for the …
