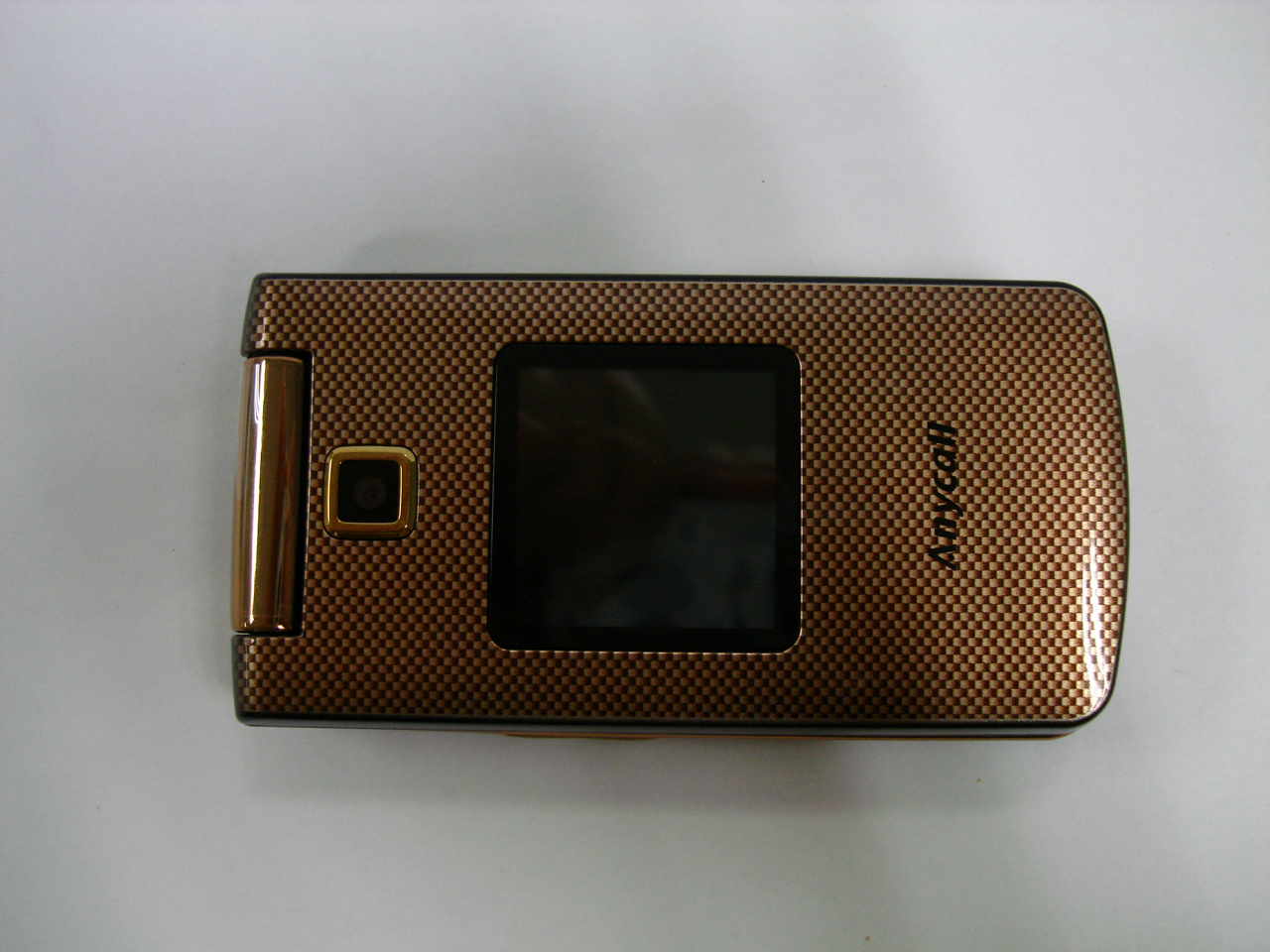

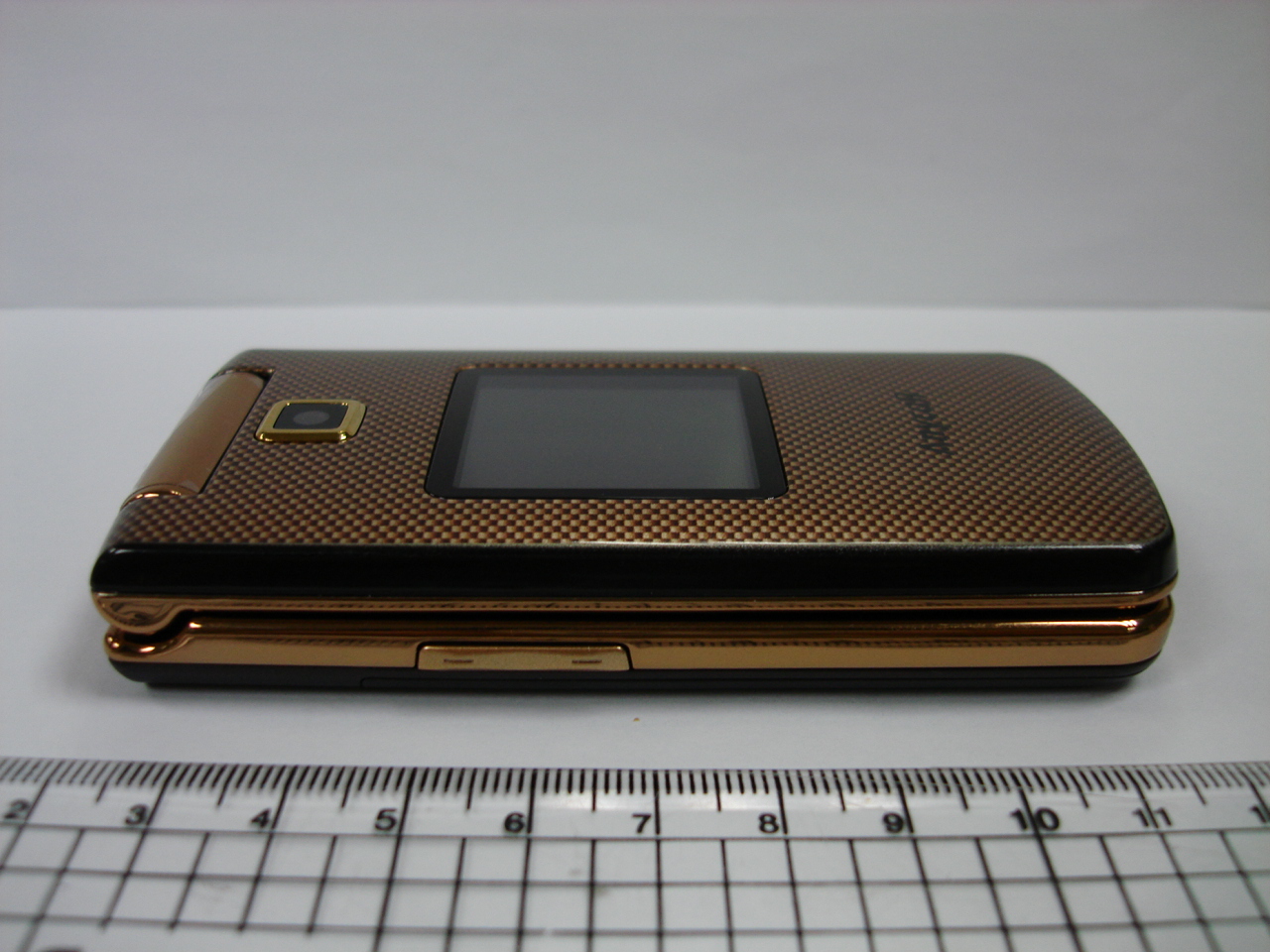

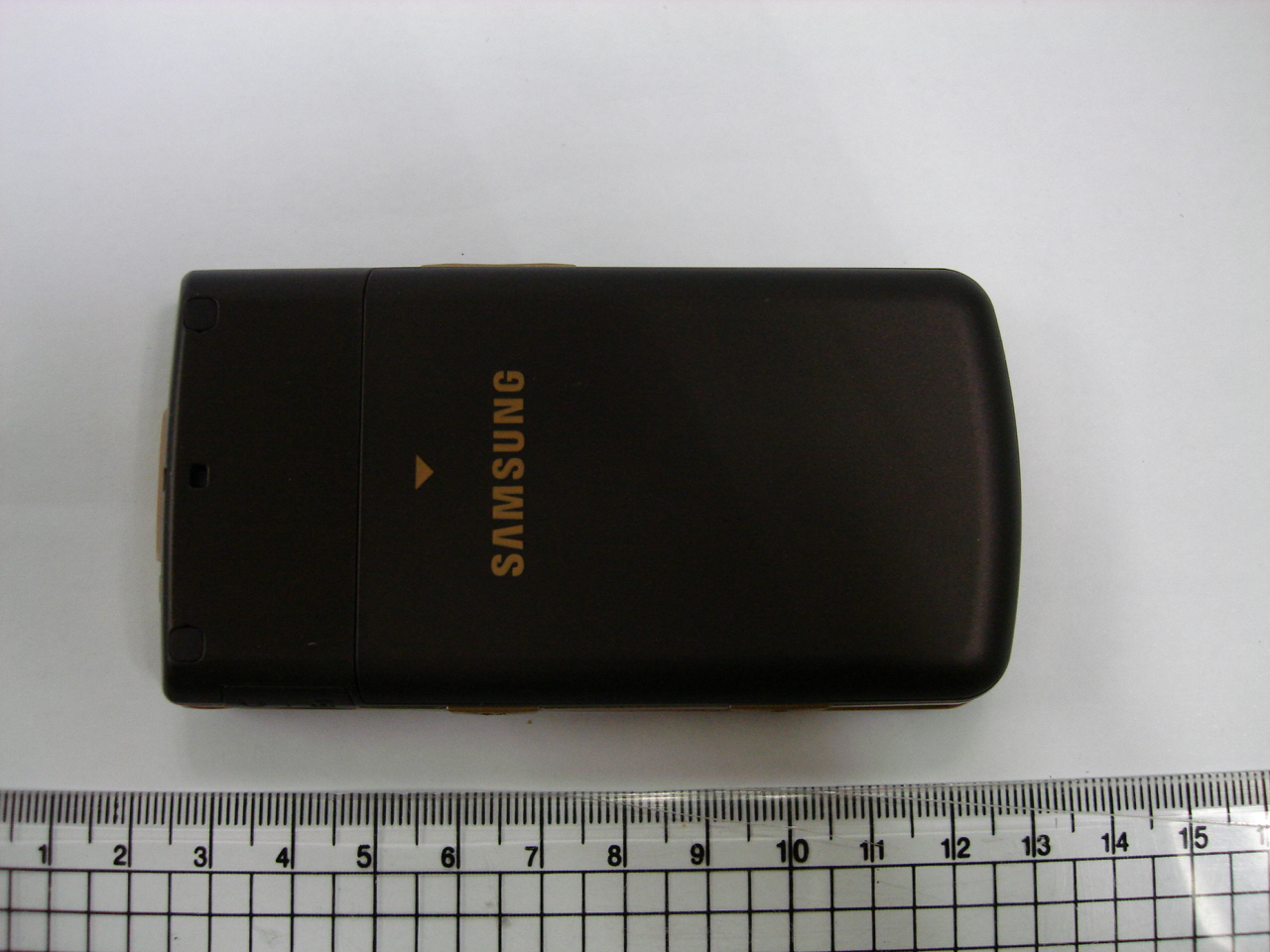

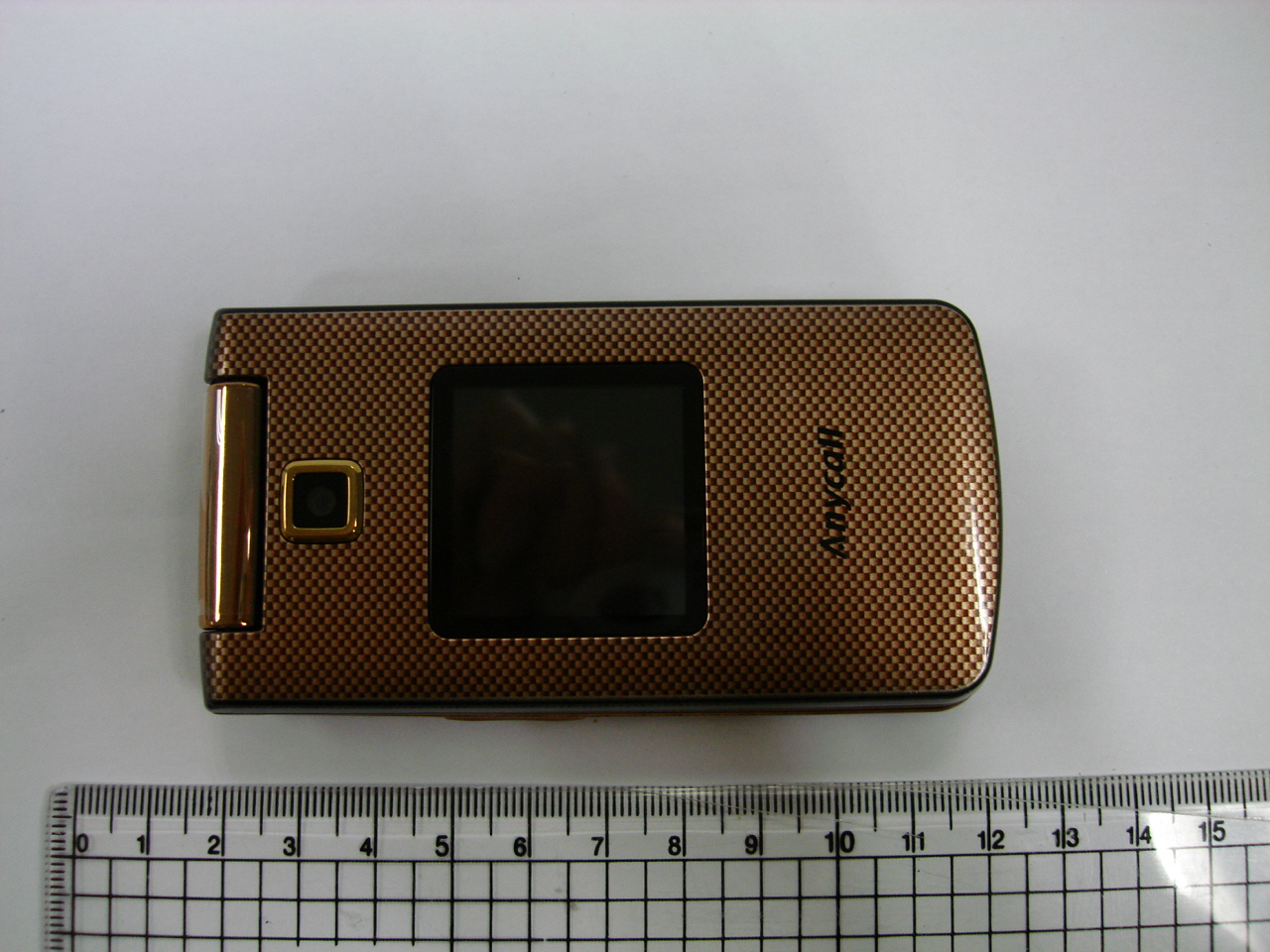

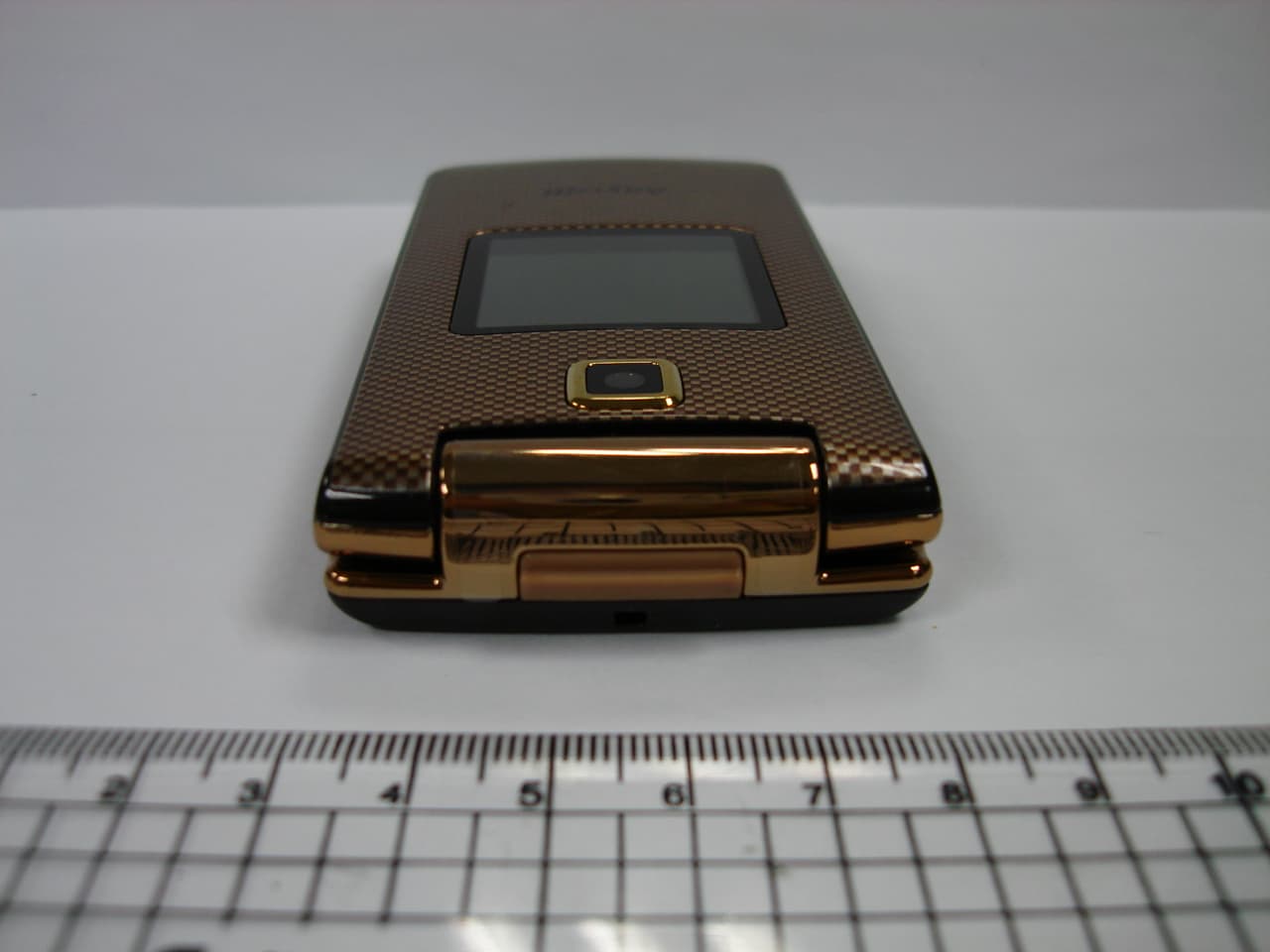

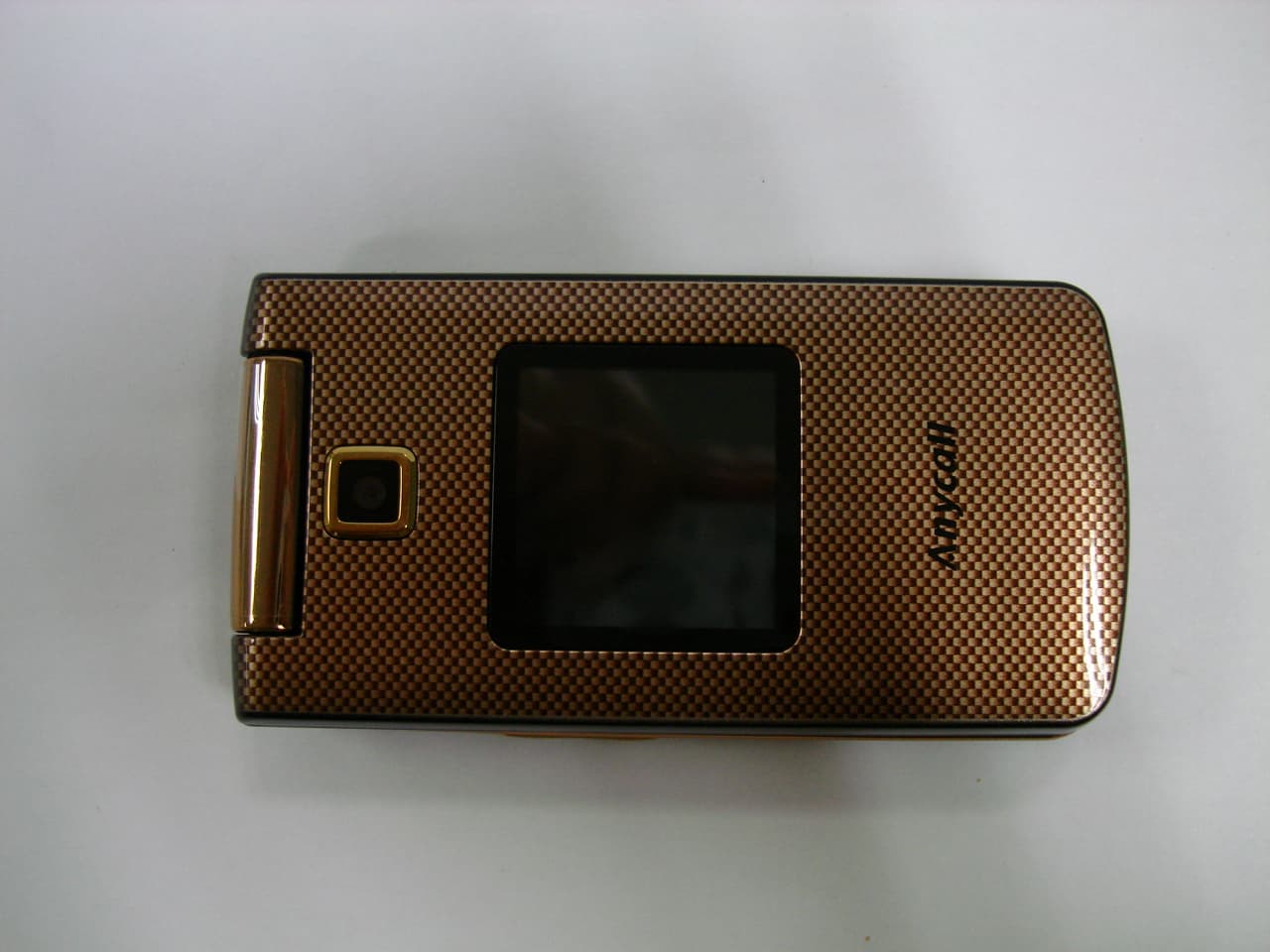

A3LGTS6888PCS GSM/EDGE Phone with Bluetooth

User manual GT-S6888 Draft 4 2010-07-22 Only for Marketing using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone,” “ 오류! 참조 원본을 찾을 수 없습니다.,” and “오류! 참조 원본을 찾을 수 없습니다. .” Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information  Refer to—pages with related information; for example:  p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [ ](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and -…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: September 16, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTS6888 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

The label is placed inside the battery compartment

Reviewed by: FCC ID: A3LGTS6888 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1008201399.A3L 08/23/10 - 08/24/10 1900 GSM/GPRS/EDGE Phone with Bluetooth Page 1 of 31 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.5M 8/17/2010 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 08/23/10 - 08/24/10 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1008201399.A3L FCC ID: A3LGTS6888 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: 1900 GSM/GPRS/EDGE Phone with Bluetooth Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): GT-S6888 Tx Frequency: 1850.20 - 1909.80 MHz (GSM 1900) Conducted Power: 29.43 dBm GSM 1900 Max. SAR Measurement: 0.09 W/kg GSM 1900 Head SAR 0.42 W/kg GSM 1900 Body SAR Test Device Serial No.: Pre-Production [S/N: FH-180-B] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT Reviewed by: FCC ID: A3LGTS6888 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1008201399.A3L 08/23/10 - 08/24/10 1900 GSM/GPRS/EDGE Phone with Bluetooth Page 2 of 31 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.5M 8/17/2010 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 RF EXPOSURE LIMITS ................................................................................................................ 15 11 MEASUREMENT UNCERTAINTIES ............................................................................................ 16 12 SYSTEM VERIFICATION.............................................................................................................. 17 13 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS......................................................... 20 14 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 21 15 SAR DATA SUMMARY ................................................................................................................. 22 16 EQUIPMENT LIST......................................................................................................................... 24 17 CONCLUSION............................................................................................................................... 25 18 REFERENCES .............................................................................................................................. 26 19 SAR TEST SETUP PHOTOGRAPHS ........................................................................................... 28 Reviewed by: FCC ID: A3LGTS6888 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1008201399.A3L 08/23/10 - 08/24/10 1900 GSM/GPRS/EDGE Phone with Bluetooth Page 3 of 31 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.5M 8/17/2010 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz[2] and Health Canada RF Exposure Guidelines Safety Code 6 [26]. The measurement procedure described in IEEE/ANSI C95.3-2002 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields -…

Text truncated - open the document above for the full version.

gusrudSAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 24 SUBPART CERTIFICATION REPORT Model Tested : GT-S6888 FCC ID(Requested) : A3LGTS6888 Report No : FH-180-R1 Job No : FH-180 Date issued : September 1, 2010 - Abstract - All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part24. Prepared By KJ KWON – Test Engineer Authorized By WT JANG – Technical Manager Report Number : FH-180-R1 2 of 43 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC CERTIFICATION INFORMATION .....................................................................3 1.1. §2.1033 General Information .........................................................................3 2. INTRODUCTION .......................................................................................................4 2.1. General..........................................................................................................4 3. MEASURING INSTRUMENT CALIBRATION ...........................................................5 4. TEST EQUIPMENT LIST...........................................................................................6 5. DESCRIPTION OF TESTS ........................................................................................7 5.1. Effective Radiated Power / Equivalent Isotropic Radiated Power ..................7 5.2. Radiated Spurious & Harmonic Emission ......................................................8 5.3. Peak-Average Ratio .......................................................................................9 5.4. Occupied Bandwidth ....................................................................................10 5.5. Spurious and Harmonic Emission at Antenna Terminal................................10 5.5.1. Occupied Bandwidth Emission Limits ..............................................10 5.5.2. Conducted Spurious Emission .........................................................12 5.6. Frequency Stability / Temperature Variation .................................................13 6. TEST DATA .............................................................................................................14 6.1. Conducted Output Power.............................................................................14 6.2. Equivalent Isotropic Radiated Power (E.I.R.P.) ............................................15 6.3. GSM1900 Radiated Spurious & Harmonic measurement ............................16 6.4. GSM1900 Radiated Spurious & Harmonic Conversion Table ......................17 6.5. Frequency Stability.......................................................................................18 6.5.1. GSM1900 Frequency Stability Table ................................................18 6.5.2. GSM1900 Frequency Stability Graph...............................................19 7. CONCLUSION.........................................................................................................21 8. TEST PLOTS...........................................................................................................22 Report Number : FH-180-R1 3 of 43 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1. §2.1033 General Information • Applicant Name : SAMSUNG ELECTRONICS CO., LTD. • Address : 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 • FCC ID : A3LGTS6888 • Model : GT-S6888 • Quantity : Quantity production is planned • Emission Designators : 247KGXW(GSM1900), 253KG7W(GSM1900 EDGE) • Tx Freq. Range : 1850.2MHz -1909.8MHz (GSM1900) • Rx Freq. Range : 1930.2MHz - 1989.8MHz (GSM1900) • Max. Power Rating : 0.607 W EIRP GSM1900 (27.83 dBm) 0.447 W EIRP GSM1900 EDGE(26.50 dBm) • FCC Classification(s) : PCS Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type : 1900 GSM/EDGE/GPRS Phone with Bluetooth • Frequency Tolerance : ±0.00025% (2.5ppm) • FCC Rule Part(s) : §24(E), §2. • Dates of Test : Aug 12-13, 2010 • Place of Test : SAMSUNG Lab, • Test Report S/N : FH-180-R1 Report Number : FH-180-R1 4 of 43 2. INTRODUCTION 2.1. General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a Non-conducted turntable 3- meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure2. Photograph of 3m Fully-Anechoic Chamber Figure1. Map of the Suwon City area. Report Number : FH-180-R1 5 of 43 3. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. Report Number : FH-180-R1 6 of 43 4. TEST EQUIPMENT LIST …

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LGTS6888 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1008201399.A3L 08/23/10 - 08/24/10 1900 GSM/GPRS/EDGE Phone with Bluetooth Page 28 of 31 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.5M 8/17/2010 19 SAR TEST SETUP PHOTOGRAPHS Reviewed by: FCC ID: A3LGTS6888 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1008201399.A3L 08/23/10 - 08/24/10 1900 GSM/GPRS/EDGE Phone with Bluetooth Page 29 of 31 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.5M 8/17/2010 Figure 19-1 SAR Test Setup Photo 1 Figure 19-2 SAR Test Setup Photo 2 Reviewed by: FCC ID: A3LGTS6888 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1008201399.A3L 08/23/10 - 08/24/10 1900 GSM/GPRS/EDGE Phone with Bluetooth Page 30 of 31 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.5M 8/17/2010 Figure 19-3 SAR Test Setup Photo 3 Figure 19-4 SAR Test Setup Photo 4 Reviewed by: FCC ID: A3LGTS6888 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1008201399.A3L 08/23/10 - 08/24/10 1900 GSM/GPRS/EDGE Phone with Bluetooth Page 31 of 31 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.5M 8/17/2010 Figure 19-5 SAR Test Setup Photo 5 Note: Headset Cable is connected to the device during Body SAR assessment, as seen above.
