A3LGTS7070CPCS GSM/EDGE Phone with Bluetooth

User manual GT-C using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone,” “ 오류! 참조 원본을 찾을 수 없습니다.,” and “오류! 참조 원본을 찾을 수 없습니다. .” Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information X Refer to—pages with related information; for example: X p. 12 (represents “see page 12”) ⌫ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages ⌫ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [ ](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners: z Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide z Java™ is a trademark of Sun Microsystems, Inc. z Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Listening to a headset at high volumes can damage your hearing. Use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care z Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone. z Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones. z Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated. z Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or permanent battery damage. Never use a damaged charger or battery. Handle your…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: December 29, 2009 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTS7070C To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

LABEL(P)-MAIN-CHINA-EU A3LGTS7070C {ŒG“ˆ‰Œ“GšG—“ˆŠŒ‹G•š‹ŒG›ŒG‰ˆ››Œ™ GŠ–”—ˆ™›”Œ•›

１ of 29 +82-31-301-4282SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 TEST REPORT ON SAR Model Tested: GT-S7070C FCC ID (Requested): A3LGTS7070C Job No: FG-343 Report No: FG-343-S1 Date issued: Dec.22, 2009 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By MK YOUN - Test Engineer Authorized By JD JANG - Technical Manager Report Number: FG-343-S1 2 of 29 Contents 1. GENERAL INFORMATION............................................................................................................. 3 2. DESCRIPTION OF DEVICE ........................................................................................................... 3 3. DESCRIPTION OF TEST EQUIPMENT ......................................................................................... 4 3.1 SAR Measurement Setup ......................................................................................................4 3.2 E-field Probe .......................................................................................................................... 6 3.3 Phantom................................................................................................................................. 8 3.4 Brain & Muscle Simulating Mixture Characterization ............................................................. 9 3.5 Device Holder for Transmitters ............................................................................................ 10 3.6 Validation Dipole .................................................................................................................. 10 3.7 Equipment Calibration...........................................................................................................11 4. SAR MEASUREMENT PROCEDURE ......................................................................................... 12 5. DESCRIPTION OF TEST POSITION ........................................................................................... 13 5.1 SAM Phantom Shape...........................................................................................................13 5.2 Cheek/Touch Position .......................................................................................................... 13 5.3 EAR/Tilt 15° Position ............................................................................................................ 15 5.4 Body Holster/Belt Clip Configurations .................................................................................. 16 6. MEASUREMENT UNCERTAINTY................................................................................................ 18 7. SYSTEM VERIFICATION ............................................................................................................. 19 7.1 Tissue Verification ................................................................................................................ 19 7.2 Test System Validation ......................................................................................................... 19 8. SAR MEASUREMENT RESULTS ................................................................................................ 20 8.1 Measurement Results(GSM1900 Right Head SAR - Touch) ............................................... 22 8.2 Measurement Results(GSM1900 Right Head SAR - Tilt) .................................................... 23 8.3 Measurement Results(GSM1900 Left Head SAR - Touch).................................................. 24 8.4 Measurement Results(GSM1900 Left Head SAR - Tilt)....................................................... 25 8.5 Measurement Results(GSM1900 Body SAR without Holster) ............................................. 26 9. CONCLUSION .............................................................................................................................. 27 10. REFERENCES ............................................................................................................................ 28 Report Number: FG-343-S1 3 of 29 1. GENERAL INFORMATION Test Sample : Single-Band PCS GSM/EDGE Phone with Bluetooth Model Number : GT-S7070C Serial Number : Identical prototype (S/N : # FG-343-A) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Address : SK YANG416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : Dec.08, 2009 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 1850.20 ~ 1909.80 MHz (GSM1900) 2402 ~ 2480 MHz (Bluetooth) Rx Freq. Range : 1930.20 ~ 1989.80 MHz (GSM1900) 2402 ~ 2480 MHz (Bluetooth) Antenna Manufacturer : YOKOWO Model No.: Y0422-Main Antenna Dimensions : 25.96 * 11.89 * 5.39 (mm) GPRS Class 12 Separation distance between Main and Bluetooth antenna : 82 mm Report Number: FG-343-S1 4 of 29 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, Samsung computer, near- field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the Samsung computer with Windows XP system and SAR Measurement…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 24 SUBPART CERTIFICATION REPORT Model Tested : GT-S7070C FCC ID(Requested) : A3LGTS7070C Report No : FG-343-R1 Job No : FG-343 Date issued : December 08, 2009 - Abstract - All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part24. Prepared By KJ KWON – Test Engineer Authorized By WT JANG – Technical Manager Report Number : FG-343-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC CERTIFICATION INFORMATION.............................................................................3 1.1. §2.1033 General Information..................................................................................3 2. INTRODUCTION....................................................................................................................4 2.1. General.......................................................................................................................4 3. MEASURING INSTRUMENT CALIBRATION..................................................................5 4. TEST EQUIPMENT LIST......................................................................................................6 5. DESCRIPTION OF TESTS..................................................................................................7 5.1. Effective Radiated Power / Equivalent Isotropic Radiated Power....................7 5.2. Radiated Spurious & Harmonic Emission.............................................................8 5.3. Peak-Average Ratio.................................................................................................9 5.4. Occupied Bandwidth..............................................................................................10 5.5. Spurious and Harmonic Emission at Antenna Terminal....................................10 5.5.1. Occupied Bandwidth Emission Limits....................................................10 5.5.2. Conducted Spurious Emission................................................................12 5.6. Frequency Stability / Temperature Variation.......................................................13 6. TEST DATA...........................................................................................................................14 6.1. Conducted Output Power......................................................................................14 6.2. Equivalent Isotropic Radiated Power (E.I.R.P.)..................................................15 6.3. GSM1900 Radiated Spurious & Harmonic measurement................................16 6.4. GSM1900 Radiated Spurious & Harmonic Conversion Table.........................17 6.5. Frequency Stability.................................................................................................18 6.5.1. GSM1900 Frequency Stability Table......................................................18 6.5.2. GSM1900 Frequency Stability Graph.....................................................19 7. CONCLUSION......................................................................................................................21 8. TEST PLOTS........................................................................................................................22 Report Number : FG-343-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1. §2.1033 General Information • Applicant Name : SAMSUNG ELECTRONICS CO., LTD. • Address : 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 • FCC ID : A3LGTS7070C • Model : GT-S7070C • Quantity : Quantity production is planned • Emission Designators : 245KGXW(GSM1900), 236KG7W(GSM1900 EDGE) • Tx Freq. Range : 1850.2MHz -1909.8MHz (GSM1900) • Rx Freq. Range : 1930.2MHz - 1989.8MHz (GSM1900) • Max. Power Rating : 0.957 W EIRP GSM1900 (29.81 dBm) 0.512 W EIRP GSM1900 EDGE(27.09 dBm) • FCC Classification(s) : PCS Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type : 1900 GSM/EDGE/GPRS Phone with Bluetooth • Frequency Tolerance : ±0.00025% (2.5ppm) • FCC Rule Part(s) : §24(E), §2. • Dates of Test : December 01-02, 2009 • Place of Test : SAMSUNG Lab, • Test Report S/N : FG-343-R1 Report Number : FG-343-R1 2. INTRODUCTION 2.1. General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a Non-conducted turntable 3- meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure2. Photograph of 3m Fully-Anechoic Chamber Figure1. Map of the Suwon City area. Report Number : FG-343-R1 3. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s re…

Text truncated - open the document above for the full version.

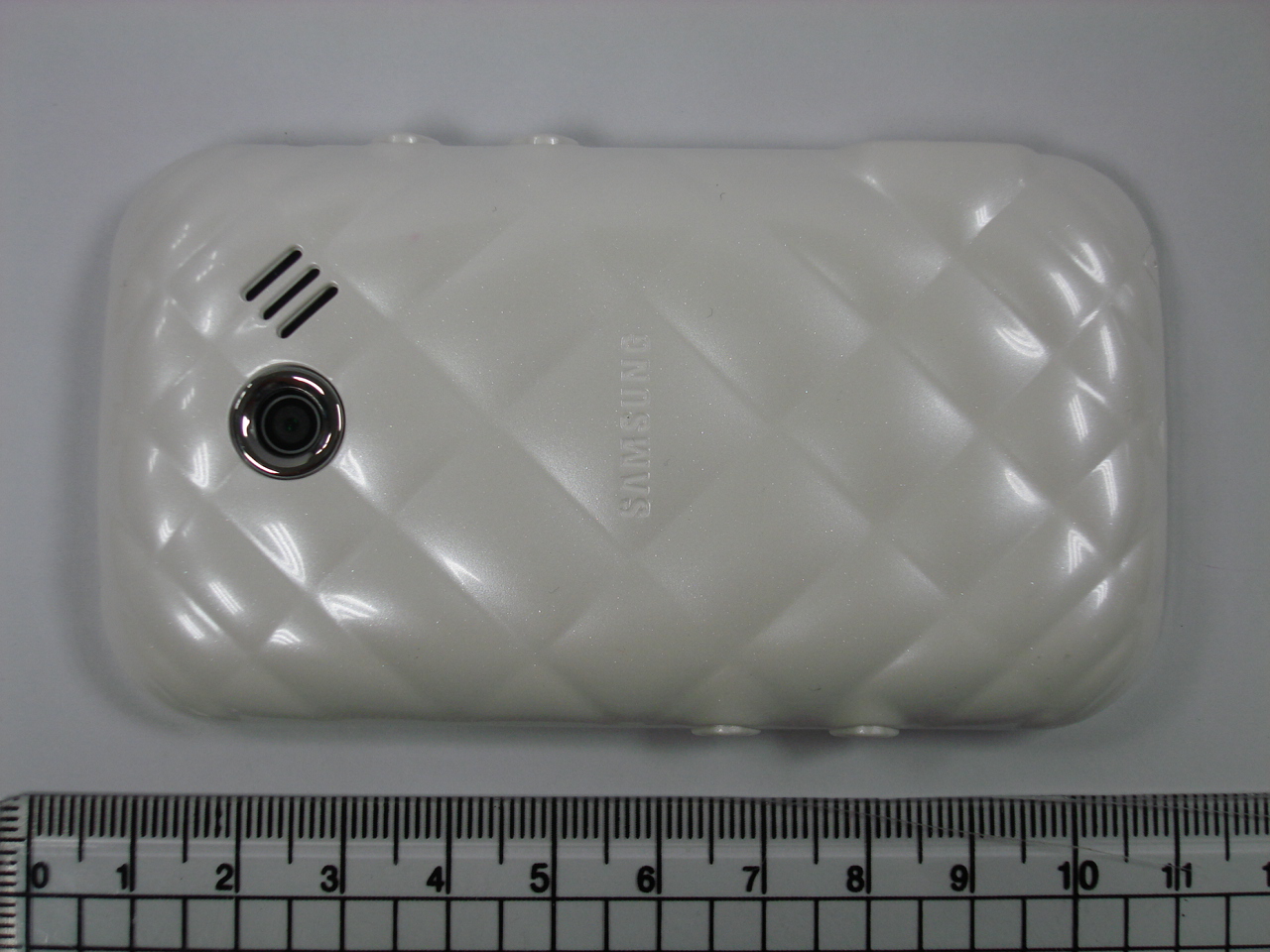

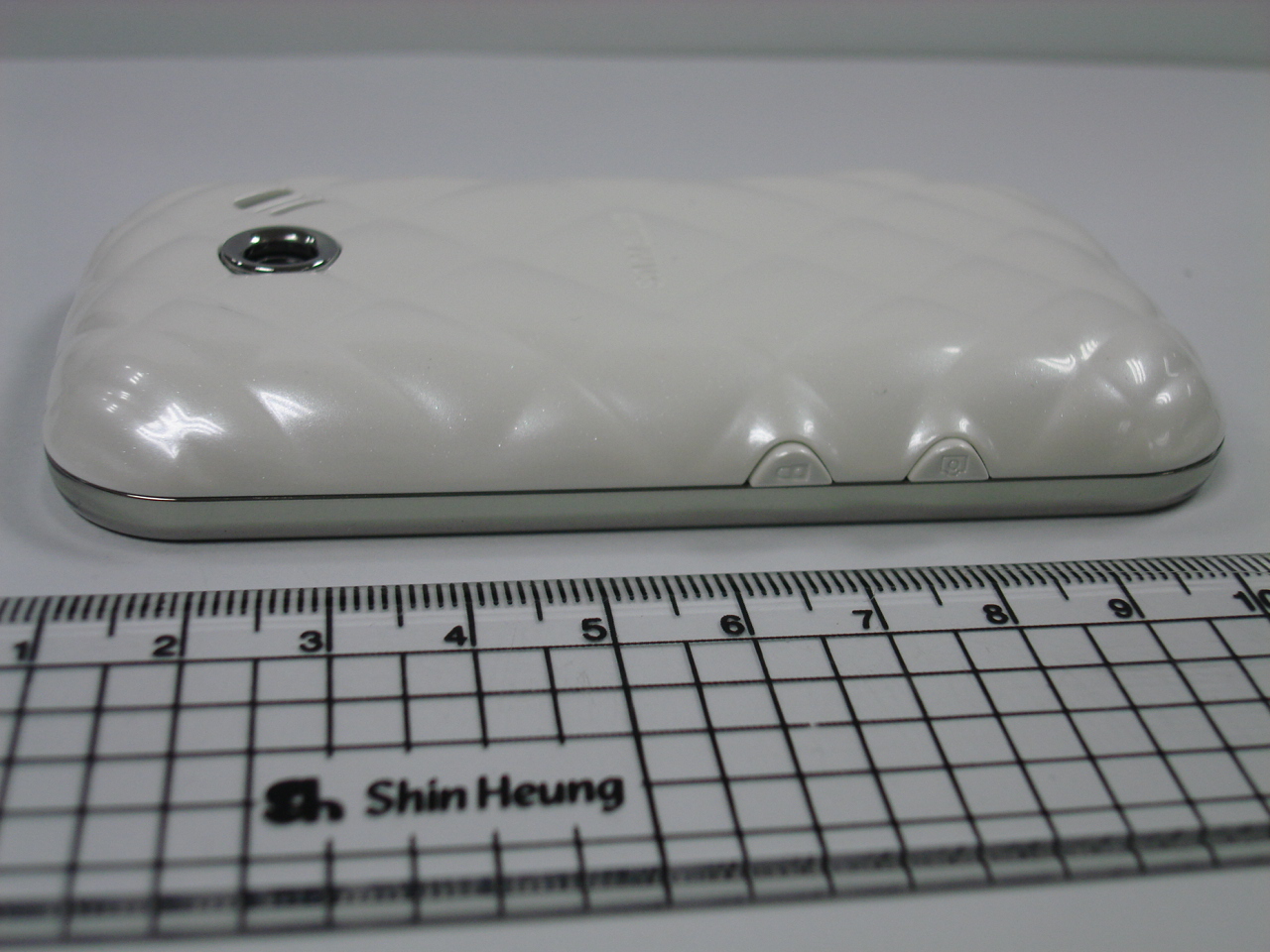

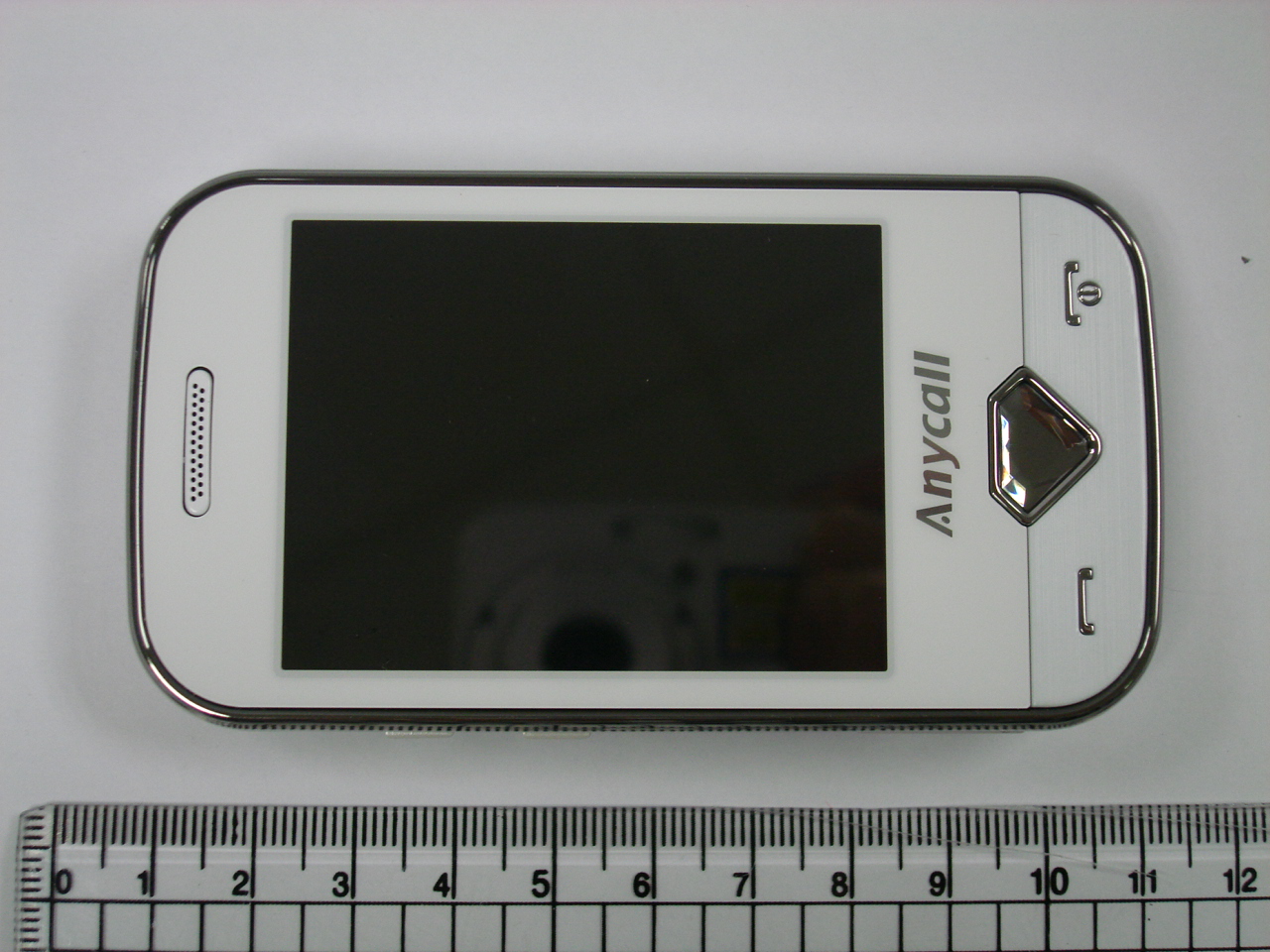

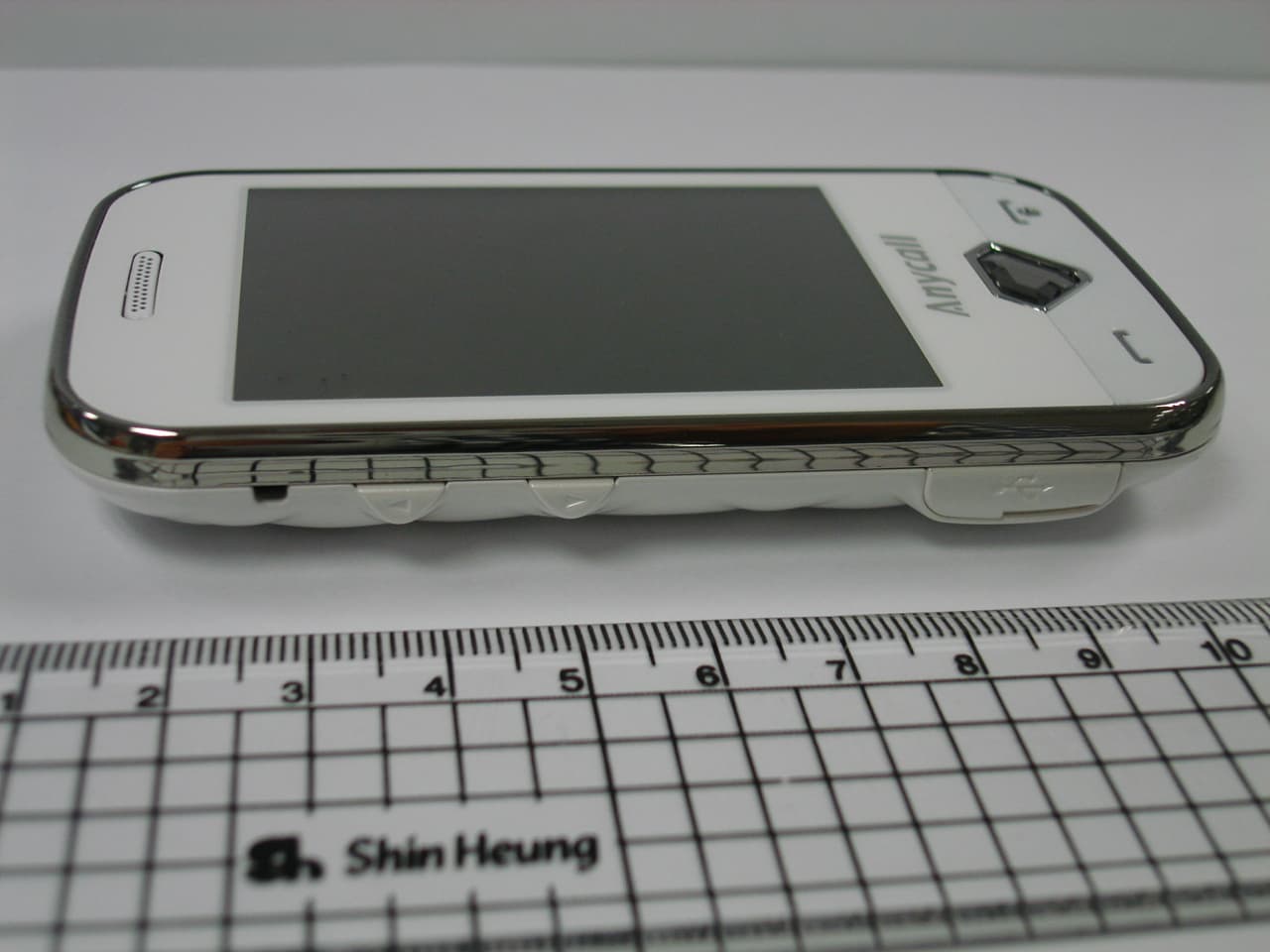

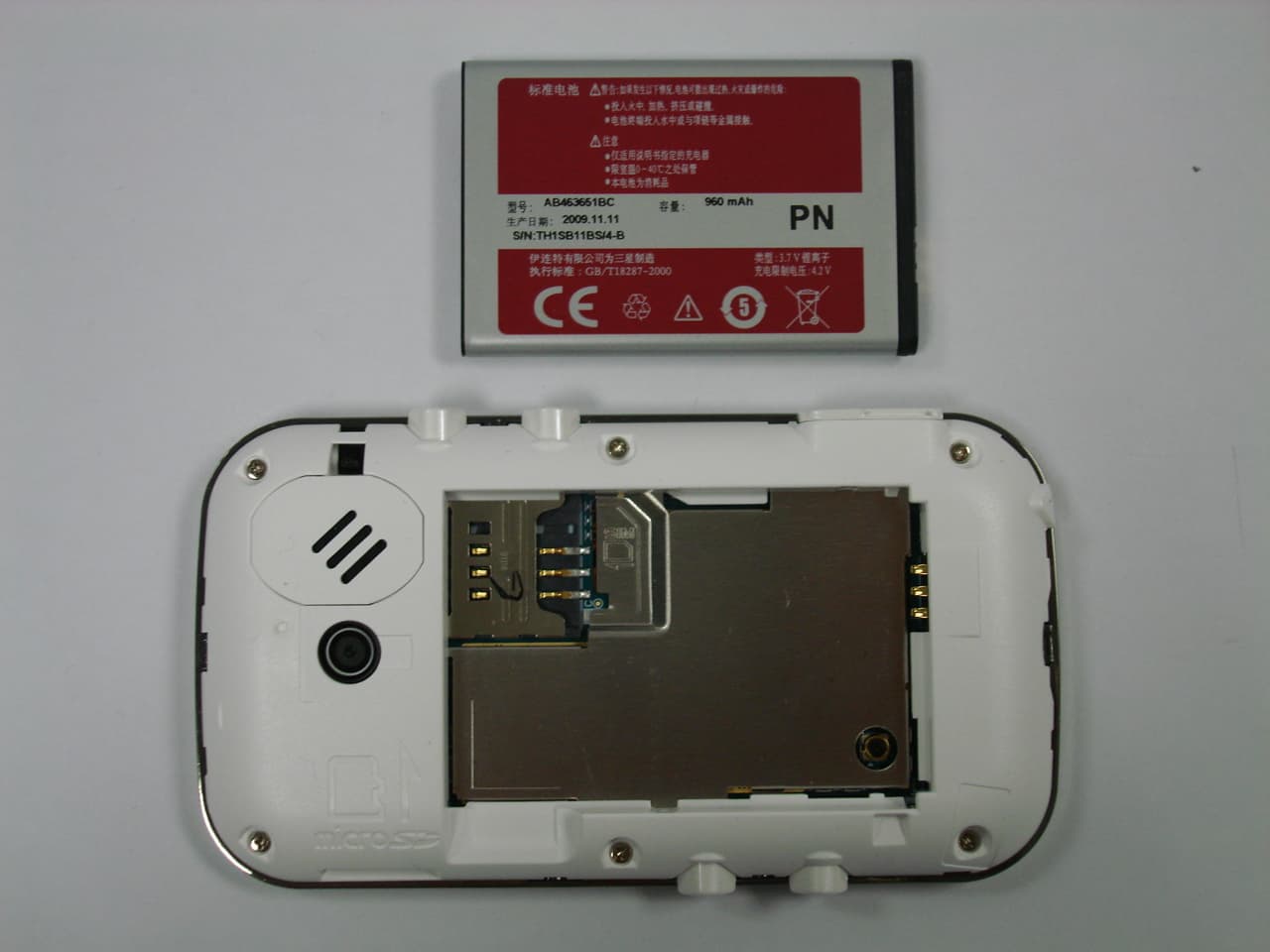

SAMSUNG FCC ID: A3LGTS7070C 1900 GSM/EDGE/GPRS Phone with Bluetooth

© 2009 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS7070C Single-Band PCS GSM/EDGE Phone with Bluetooth © 2009 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS7070C Single-Band PCS GSM/EDGE Phone with Bluetooth 1.5cm © 2009 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS7070C Single-Band PCS GSM/EDGE Phone with Bluetooth © 2009 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS7070C Single-Band PCS GSM/EDGE Phone with Bluetooth © 2009 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS7070C Single-Band PCS GSM/EDGE Phone with Bluetooth © 2009 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS7070C Single-Band PCS GSM/EDGE Phone with Bluetooth © 2009 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS7070C Single-Band PCS GSM/EDGE Phone with Bluetooth © 2009 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS7070C Single-Band PCS GSM/EDGE Phone with Bluetooth
