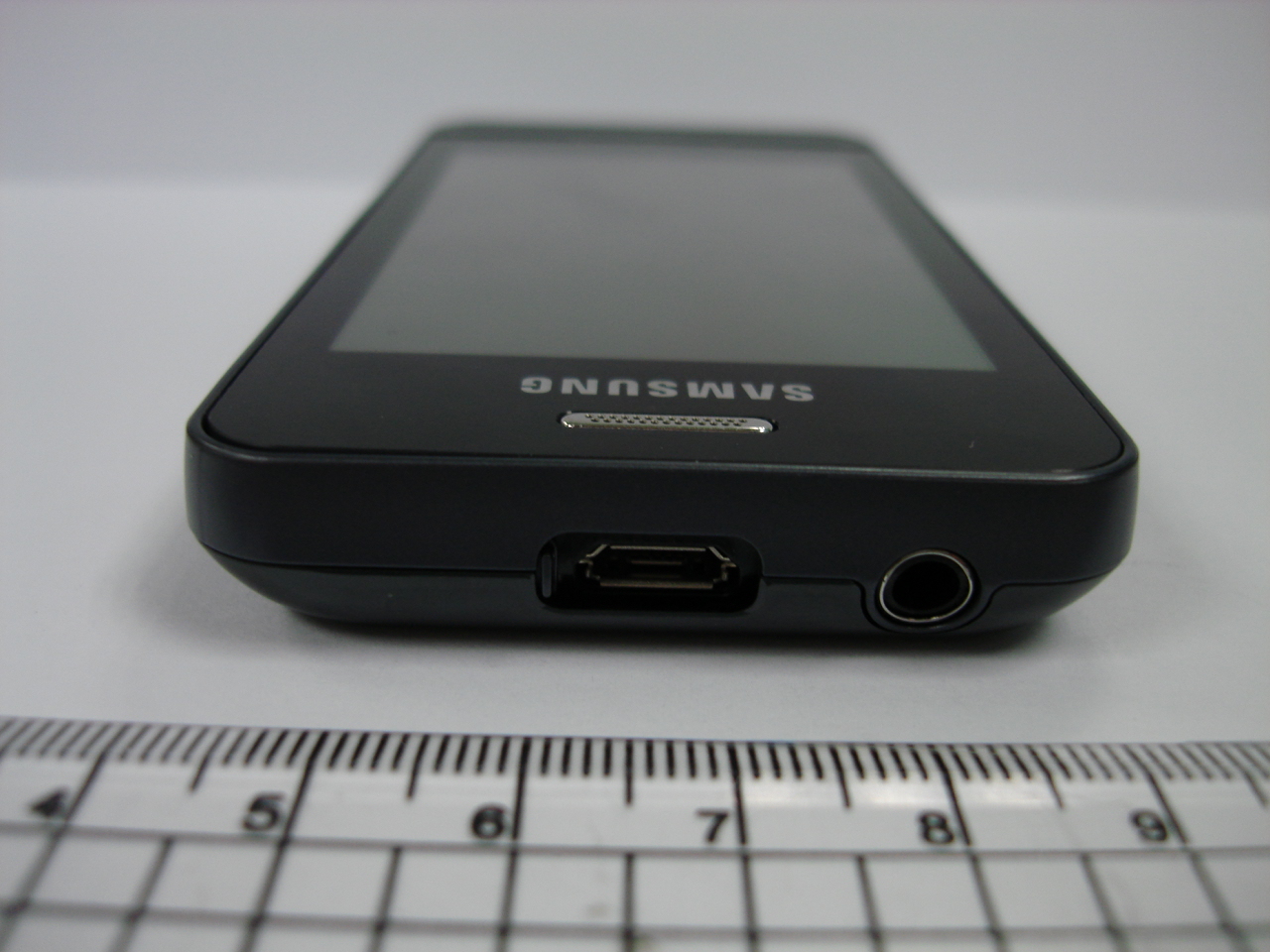

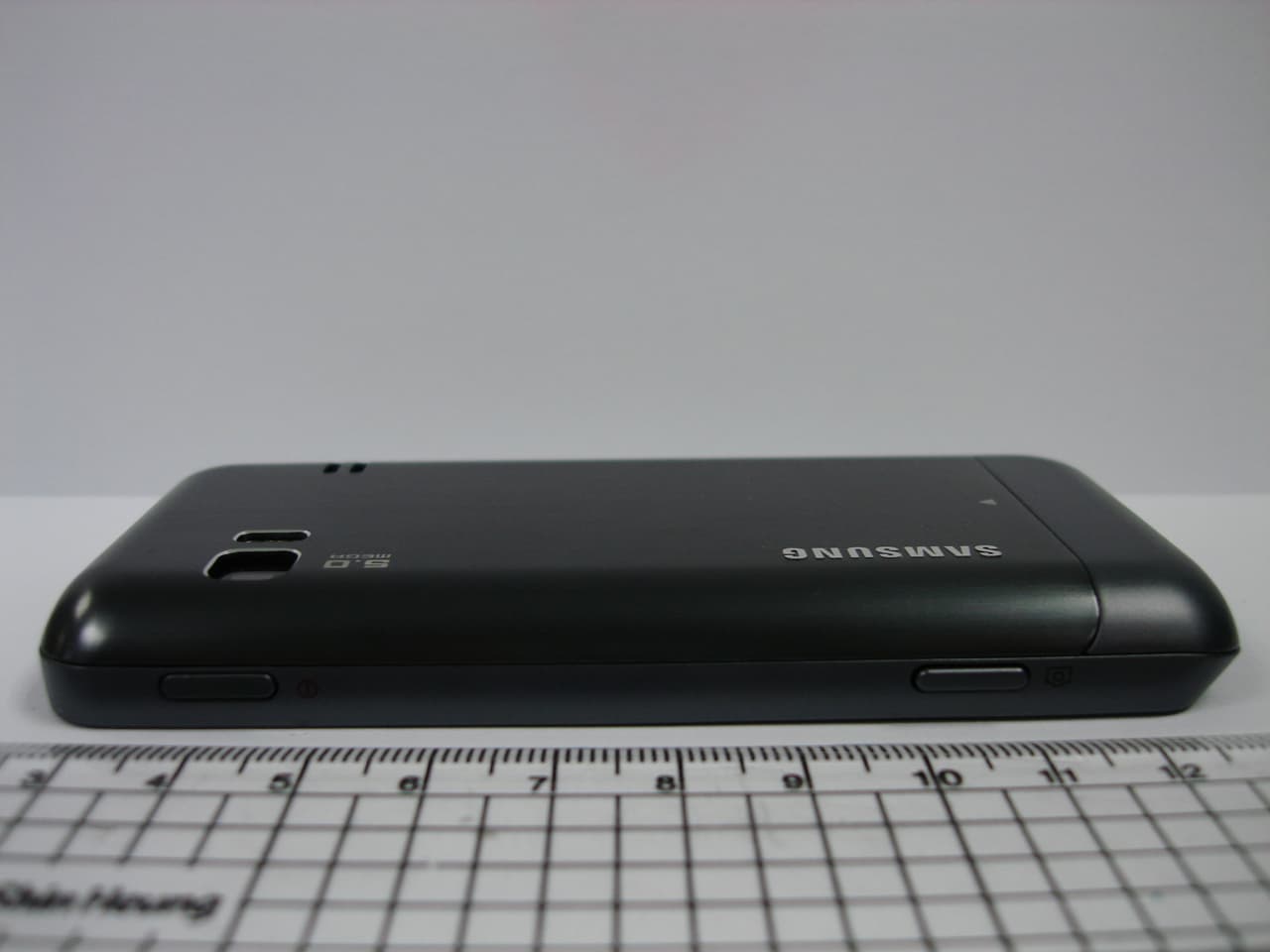

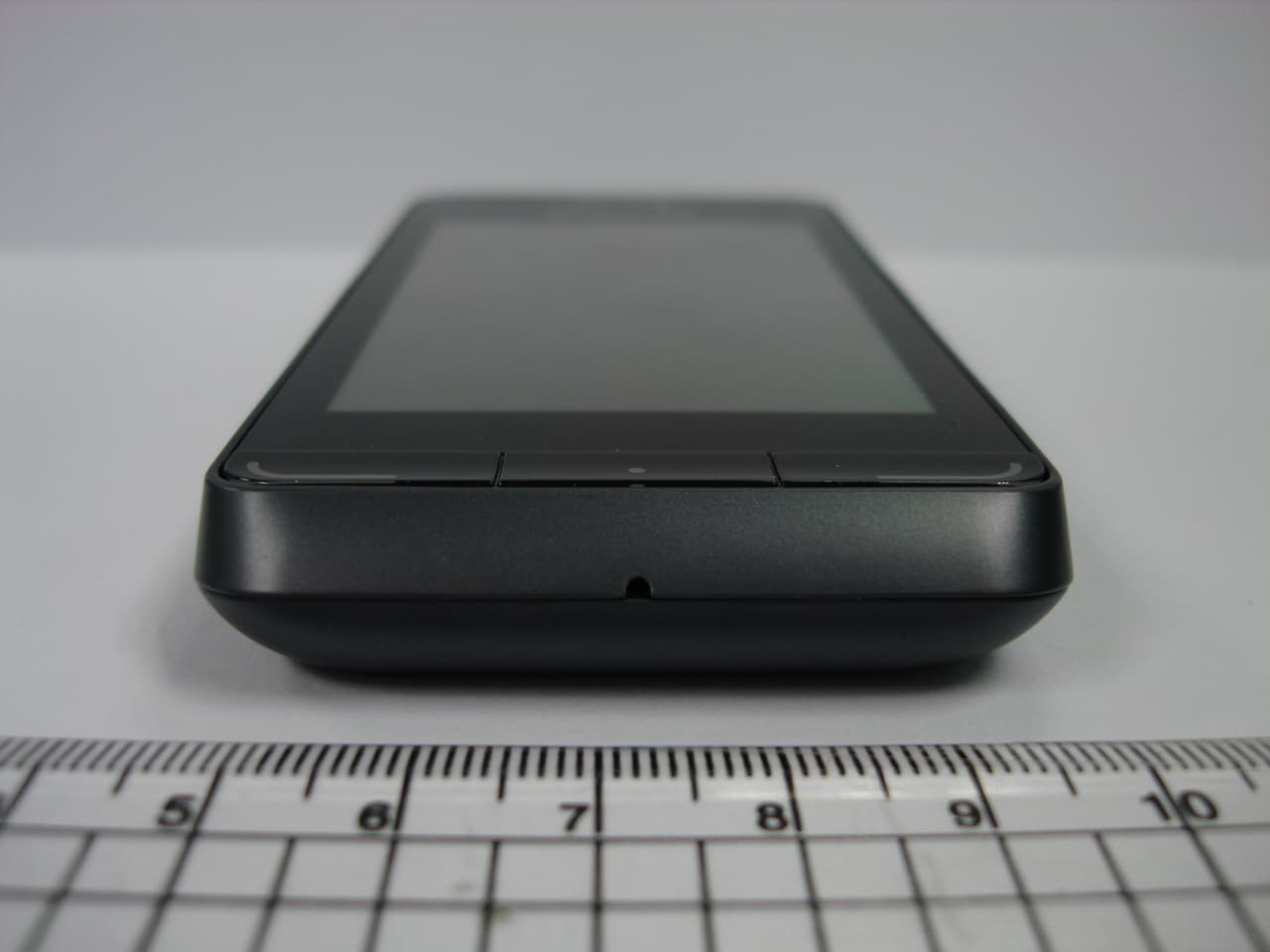

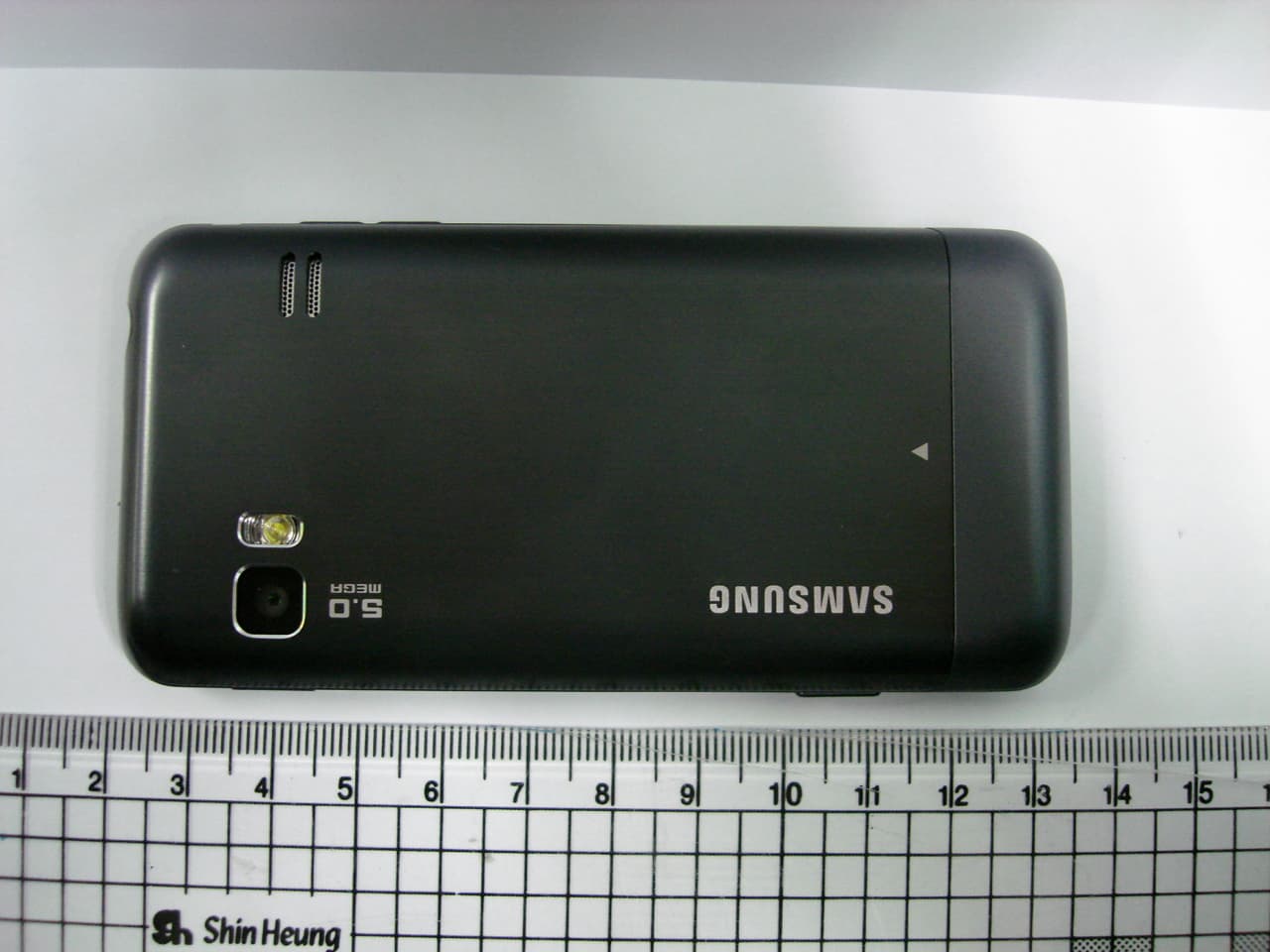

A3LGTS7230BCellular/ PCS GSM and Cellular WCDMA Phone with WLAN and Bluetooth

User manual GT-S7230B using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone,” Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information  Refer to—pages with related information; for example:  p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [ ](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or permanent battery damage. Never use a d…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: December 9, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTS7230B To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics PERMANENT 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

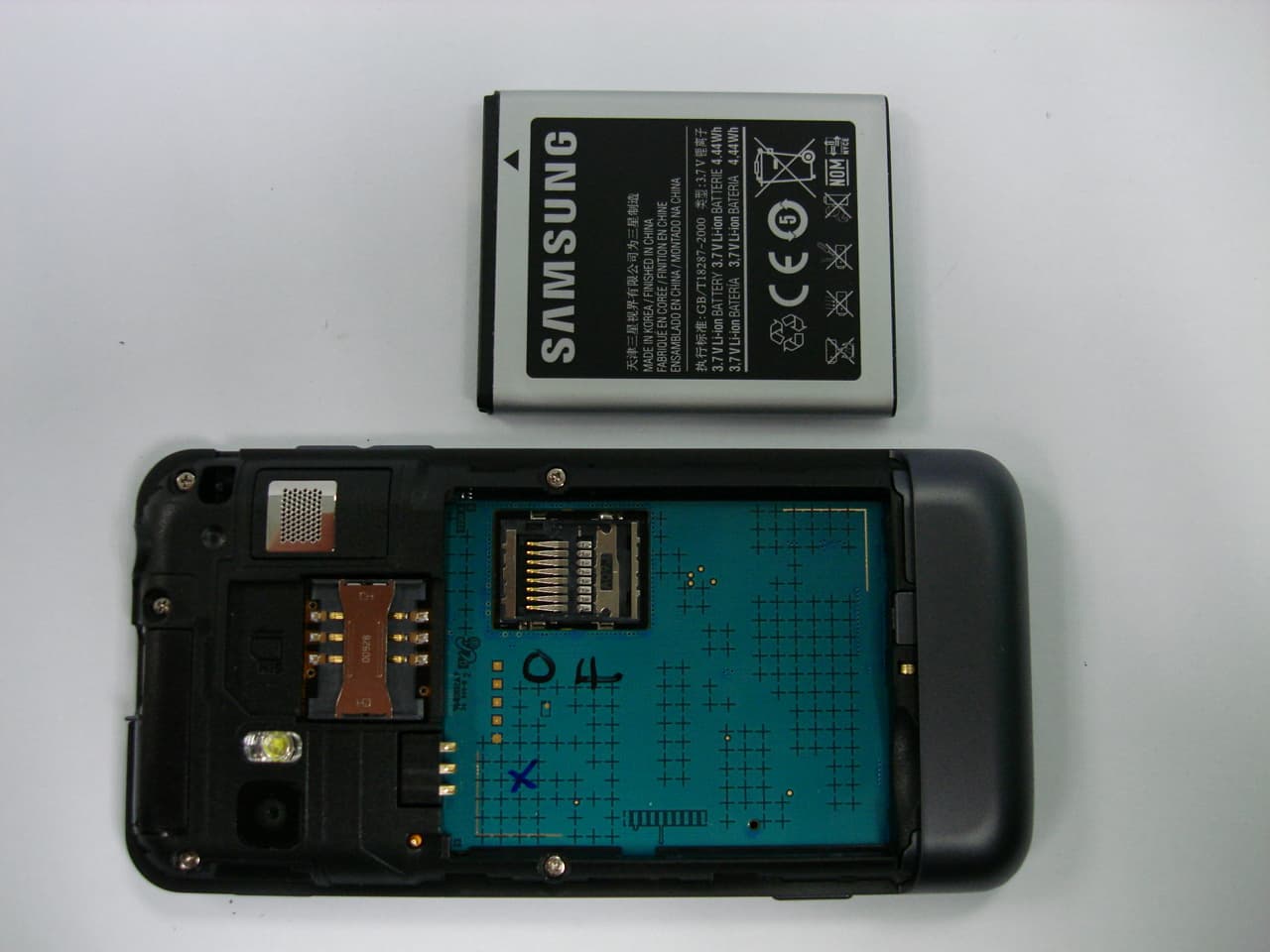

GT-S7230B(LTN) 100629 An dae geunJo Kyeong Hwan Junesop Kim HANSUNG <1:1 ART WORK> 38,78 46,83 22,35 22,33 38,78 46,83 22,35 22,33 100629 100629 GH68- IMEI : GT-S7230B -S7230BGSMH FCC ID : A3LGTS7230B KOREAN ALIMENTACION:3,7 V ; 1000 mA 3. Label Location. The label is placed insidethe battery compartment. GH68- IMEI : GT-S7230B -S7230BGSMH FCC ID : A3LGTS7230B KOREAN ALIMENTACION:3,7 V ; 1000 mA

FCC ID: A3LGTS7230BReport Number: FH-247-S1 Page : 1 of 38 SAMSUNG Electronics C0. LTD EUT Type: Dual-Band GSM850/1900 and Single-Band WCDMA850 Phone with Bluetooth and WLAN Issue Date : Dec.10, 2010 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 TEST REPORT ON SAR Model Tested: GT-S7230B FCC ID (Requested): A3LGTS7230B Job No: FH-247 Report No: FH-247-S1 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By MK YOUN - Test Engineer Authorized By JD JANG - Technical Manager FCC ID: A3LGTS7230BReport Number: FH-247-S1 Page : 2 of 38 SAMSUNG Electronics C0. LTD EUT Type: Dual-Band GSM850/1900 and Single-Band WCDMA850 Phone with Bluetooth and WLAN Issue Date : Dec.10, 2010 Contents 1. GENERAL INFORMATION .............................................................................. 3 2. DESCRIPTION OF DEVICE ............................................................................ 3 3. DESCRIPTION OF TEST EQUIPMENT .......................................................... 4 3.1 SAR Measurement Setup ............................................................................................................... 4 3.2 E-field Probe ................................................................................................................................... 5 3.3 Phantom.......................................................................................................................................... 7 3.4 Brain Simulating Mixture Characterization .................................................................................... 9 3.5 Device Holder for Transmitters........................................................................................................ 9 3.6 Validation Dipole ........................................................................................................................... 10 3.7 Equipment Calibration................................................................................................................... 11 4. SAR MEASUREMENT PROCEDURE ........................................................... 12 5. DESCRIPTION OF TEST POSITION ............................................................ 13 5.1 SAM Phantom Shape.................................................................................................................... 13 5.2 “cheek” Position ............................................................................................................................ 13 5.3 “tilted” Position .............................................................................................................................. 15 5.4 Body Holster/Belt Clip Configurations ........................................................................................... 16 6. MEASUREMENT UNCERTAINTY ................................................................. 18 7. SYSTEM VERIFICATION............................................................................... 21 7.1 Tissue Verification ......................................................................................................................... 21 7.2 Test System Validation .................................................................................................................. 21 8. SAR MEASUREMENT RESULTS.................................................................. 22 8.1 GSM850 Head SAR Results ......................................................................................................... 28 8.2 GPRS850 Body SAR Results(Without Holster)............................................................................. 29 8.3 GSM1900 Head SAR Results ....................................................................................................... 30 8.4 GPRS1900 Body SAR Results(Without Holster)........................................................................... 31 8.5 WCDMA850 Head SAR Results ...................................................................................................32 8.6 WCDMA850 Body SAR Results(Without Holster) ......................................................................... 33 8.7 WLAN Head SAR Results ............................................................................................................. 34 8.8 WLAN Body SAR Results(Without Holster) .................................................................................. 35 9. CONCLUSION ............................................................................................... 36 10. REFERENCES ............................................................................................. 37 APPENDIX A SAR Definition ........................................................................... 39 APPENDIX B Probe Calibration Process ........................................................ 40 APPENDIX C ANSI/IEEE C95.1 – 2005 RF EXPOSURE LIMITS.................. 41 APPENDIX D The Validation Measurements .................................................. 42 APPENDIX E Plots of The SAR Measurements.............................................. 46 APPENDIX F Probe Calibration ...................................................................... 77 APPENDIX G Calibration of The Validation Dipole ......................................... 89 FCC ID: A3LGTS7230BReport Number: FH-247-S1 Page : 3 of 38 SAMSUNG Electronics C0. LTD EUT Type: Dual-Band GSM850/1900 and Single-Band WCDMA850 Phone with Bluetooth and WLAN Issue Date : Dec.10, 2010 1. GENERAL INFORMATION Test Dates : Nov.15, 2010 ~ Nov.25, 2010 Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Address : 416 Maetan3-Dong, Suwon City, Korea Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Tested for : FCC/TCB Certification 2. DES…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LGTS7230B FCC Pt. 22/24 GSM/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y101171843.A3L Nov. 18-19, 2010 850/1900 GSM/GPRS and 850 WCDMA Phone with Bluetooth and WLAN Page 1 of 45 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.2GWCFI 04/19/2010 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. Nov. 18-19, 2010 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0Y101171843.A3L FCC ID: A3LGTS7230B APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) IC Specification(s): RSS-132 Issue 2; RSS-133 Issue 5 EUT Type: 850/1900 GSM/GPRS and 850 WCDMA Phone with Bluetooth and WLAN Model(s): GT-S7230B Tx Frequency Range: 824.20 - 848.80MHz (Cell. GSM) / 1850.20 - 1909.80MHz (PCS GSM) 826.40 - 846.60MHz (Cell. WCDMA) Max. RF Output Power: 1.117 W ERP Cell. GSM (30.48 dBm) / 0.918 W EIRP PCS GSM (29.63 dBm) 0.079 W ERP Cell. WCDMA (18.96 dBm) Emission Designator(s): 246KGXW (Cellular GSM), 247KGXW (PCS GSM) 4M11F9W (Cellular WCDMA) Test Device Serial No.: identical prototype [S/N: FH-247-B] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 / IC RSS-132/RSS-133 Reviewed by: FCC ID: A3LGTS7230B FCC Pt. 22/24 GSM/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y101171843.A3L Nov. 18-19, 2010 850/1900 GSM/GPRS and 850 WCDMA Phone with Bluetooth and WLAN Page 2 of 45 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.2GWCFI 04/19/2010 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT............................................................................3 1.0 INTRODUCTION....................................................................................................................4 1.1 SCOPE..................................................................................................................................................................4 1.2 TESTING FACILITY............................................................................................................................................4 2.0 PRODUCT INFORMATION.....................................................................................................5 2.1 EQUIPMENT DESCRIPTION...........................................................................................................................5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS....................................................................................5 2.3 LABELING REQUIREMENTS...........................................................................................................................5 3.0 DESCRIPTION OF TESTS......................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................................6 3.2 OCCUPIED BANDWIDTH.................................................................................................................................6 3.3 CELLULAR - BASE FREQUENCY BLOCKS.................................................................................................6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS.............................................................................................7 3.5 PCS - BASE FREQUENCY BLOCKS..............................................................................................................7 3.6 PCS - MOBILE FREQUENCY BLOCKS.........................................................................................................7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL...................................................7 3.8 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS...............................................................8 3.9 PEAK-AVERAGE RATIO...................................................................................................................................8 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION.........................................................................8 4.0 TEST EQUIPMENT CALIBRATION DATA...............................................................................9 5.0 SAMPLE CALCULATIONS....................................................................................................10 6.0 TEST RESULTS...................................................................................................................11 6.1 SUMMARY.........................................................................................................................................................11 6.2 EFFECTIVE RADIATED POWER OUTPUT DATA.....................................................................................12 6.3 EQUIVALE…

Text truncated - open the document above for the full version.

Samsung Electronics Co. Ltd. FCC ID: A3LGTS7230B Model: GT-S7230B Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS and 850 WCDMA Phone with BT and WLAN Page 1 of 1 © 2010 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung Electronics Co. Ltd. FCC ID: A3LGTS7230B Model: GT-S7230B Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS and 850 WCDMA Phone with BT and WLAN Page 2 of 2 © 2010 PCTEST Engineering Laboratory Inc.

FCC SAR Test Setup Photographs © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS7230B Dual-Band GSM850/1900 and Single-Band WCDMA850 Phone with Bluetooth and WLAN © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS7230B Dual-Band GSM850/1900 and Single-Band WCDMA850 Phone with Bluetooth and WLAN © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS7230B Dual-Band GSM850/1900 and Single-Band WCDMA850 Phone with Bluetooth and WLAN © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS7230B Dual-Band GSM850/1900 and Single-Band WCDMA850 Phone with Bluetooth and WLAN © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS7230B Dual-Band GSM850/1900 and Single-Band WCDMA850 Phone with Bluetooth and WLAN © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS7230B Dual-Band GSM850/1900 and Single-Band WCDMA850 Phone with Bluetooth and WLAN © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS7230B Dual-Band GSM850/1900 and Single-Band WCDMA850 Phone with Bluetooth and WLAN © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS7230B Dual-Band GSM850/1900 and Single-Band WCDMA850 Phone with Bluetooth and WLAN © 2010 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LGTS7230B Dual-Band GSM850/1900 and Single-Band WCDMA850 Phone with Bluetooth and WLAN
