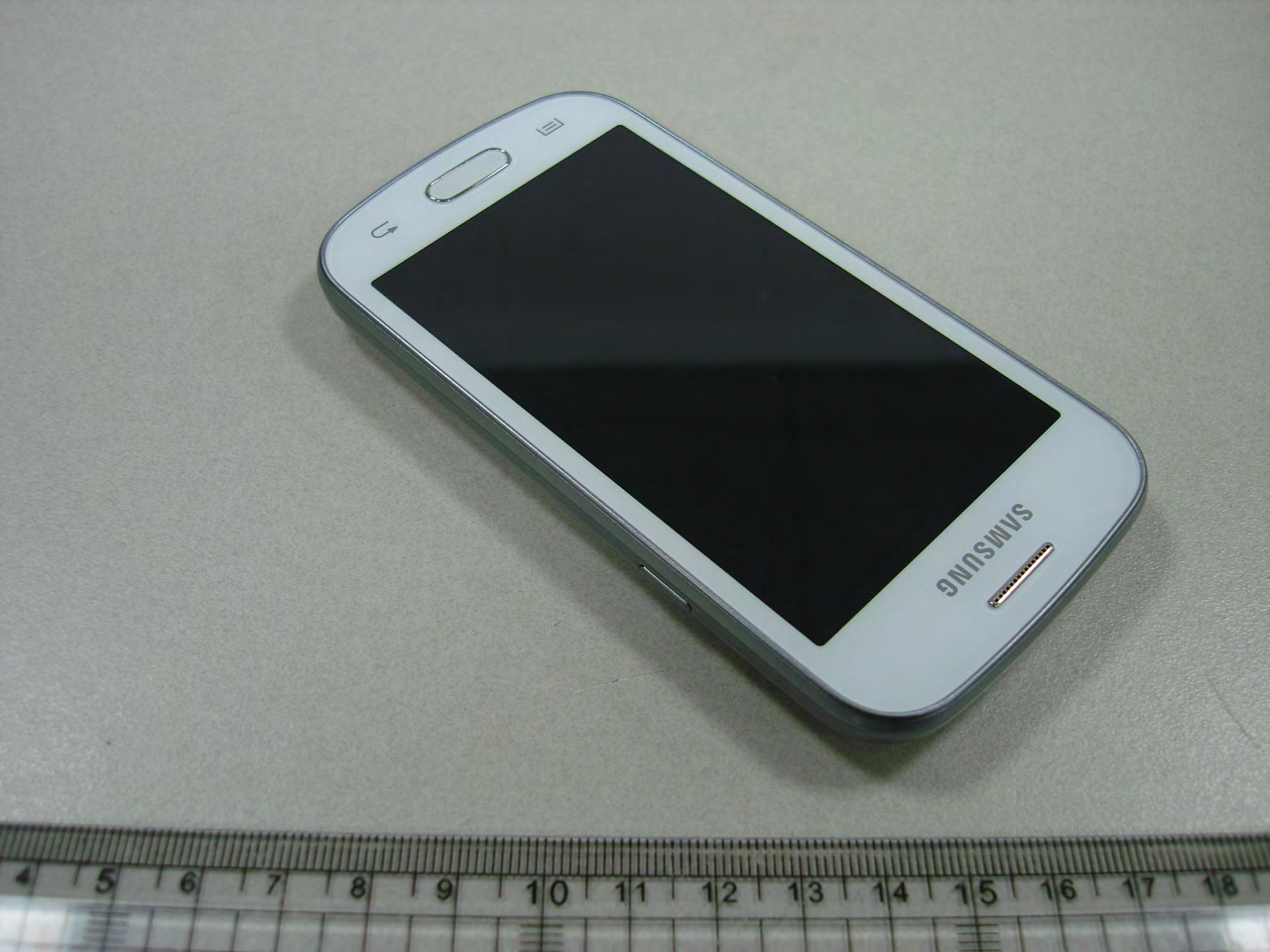

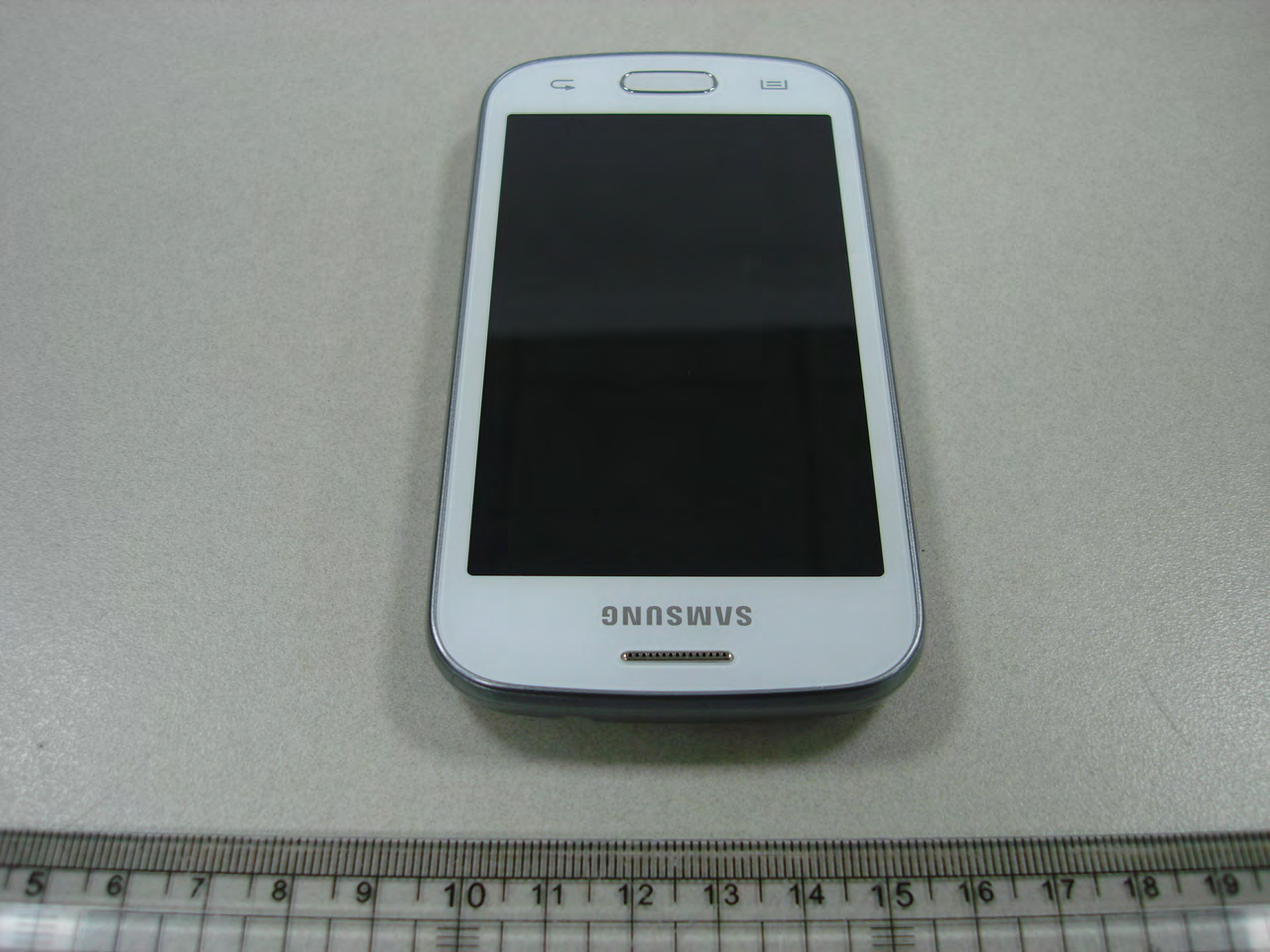

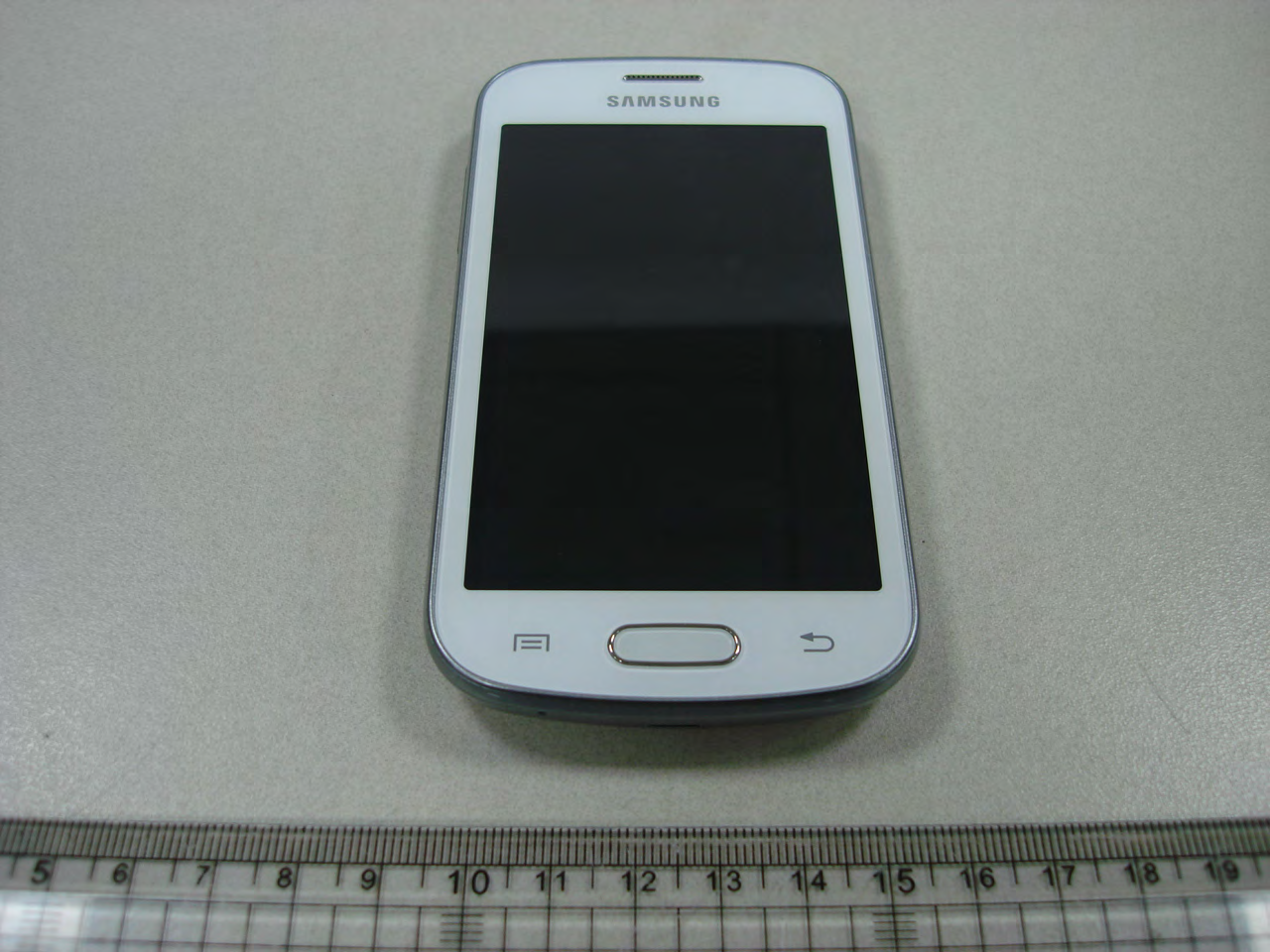

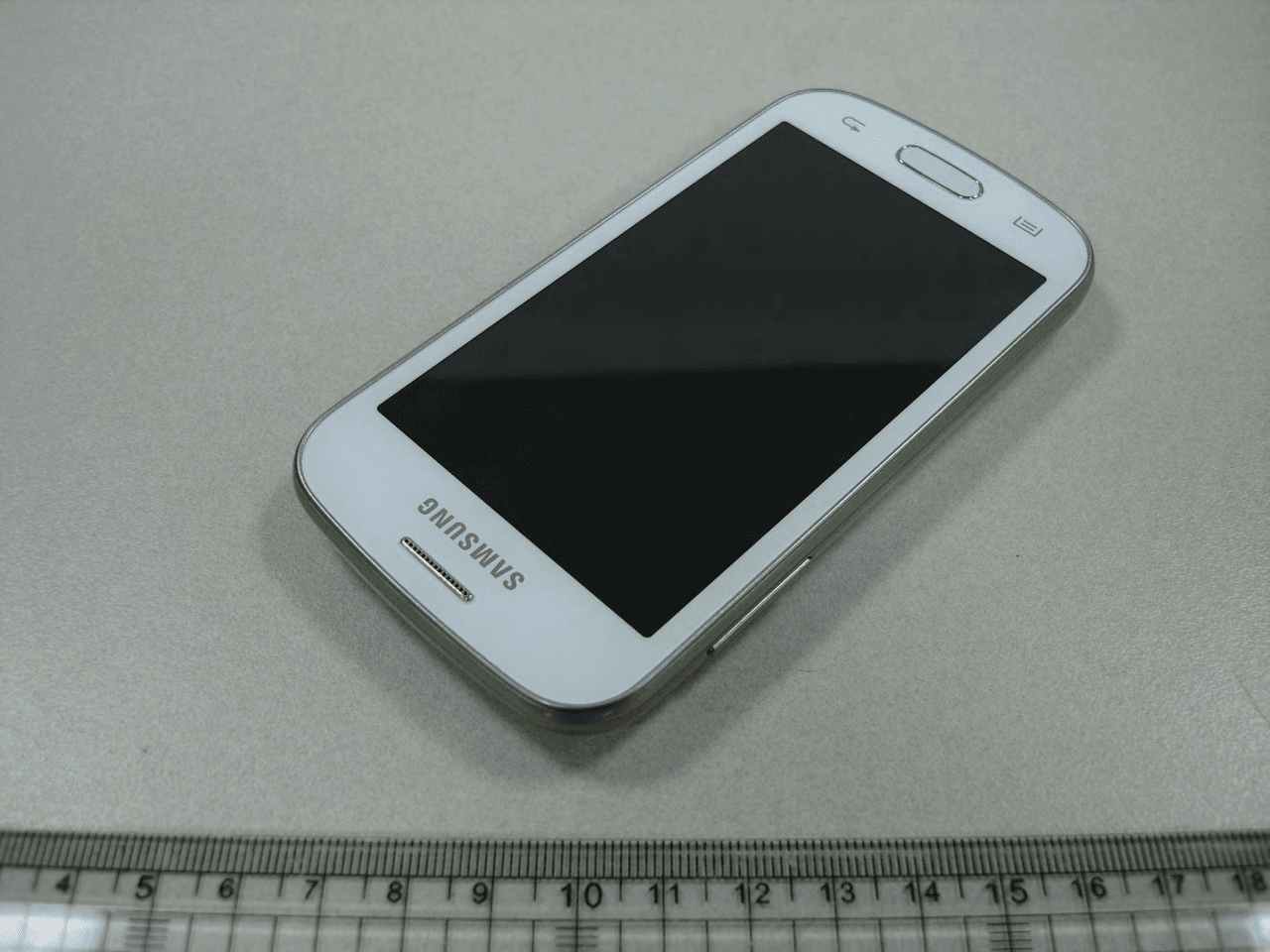

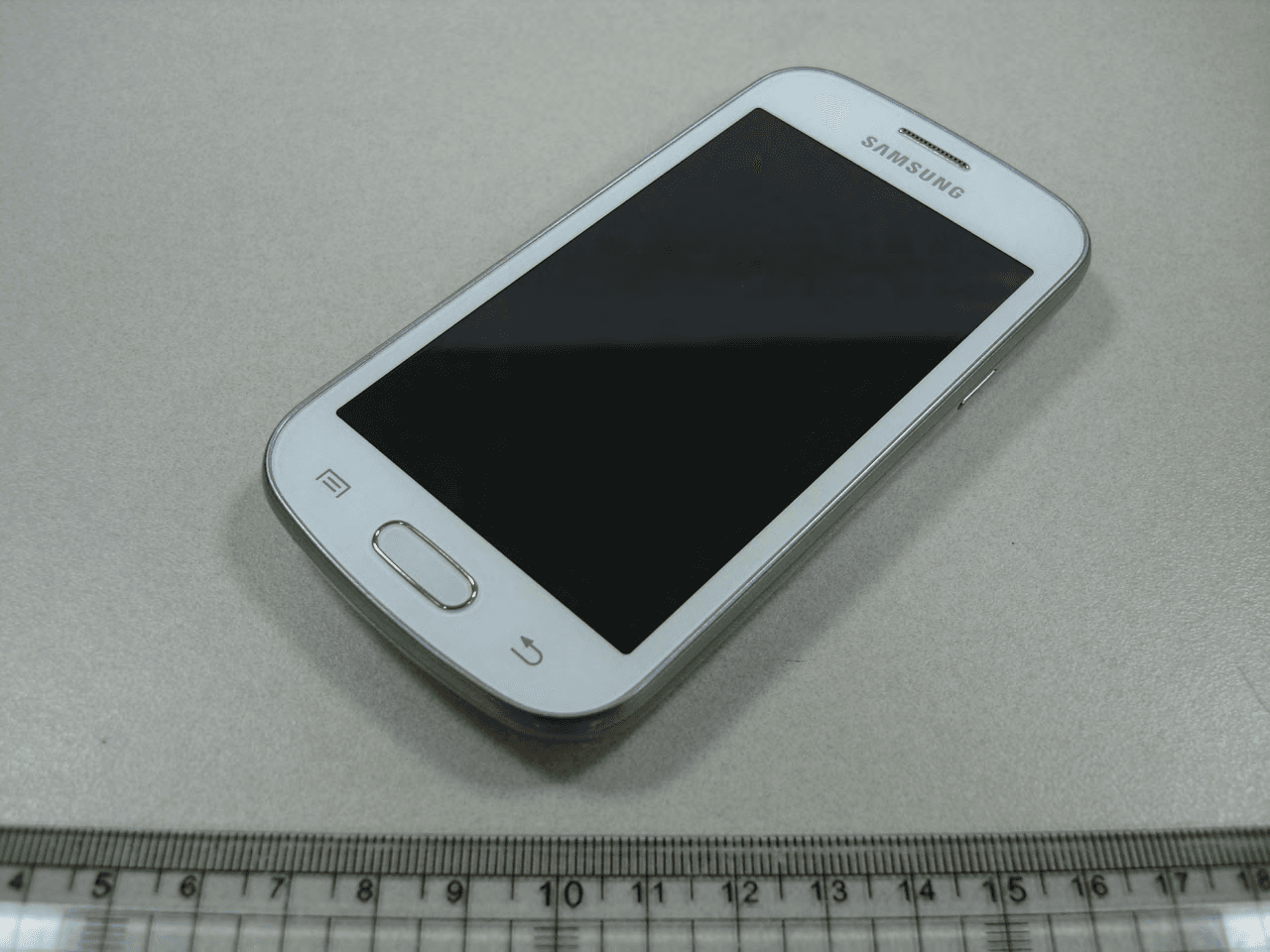

A3LGTS7390GMobile Phone

User manual GT-S7390G Draft 6.1 2012-09-08 Only for Approval using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone, Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information Refer to— (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or permanent battery damage. Never use a damaged charger or…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea March 13, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LGTS7390G Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy of KDB 784748 D01. The label statement is as follows: The FCC ID label is located in the battery compartment. While the battery cover is installed when the unit is shipped from the factory, the battery is never installed prior to sale, so the user must remove the cover in order to install the battery and operate the device. At this time the FCC ID is readily visible to the user. The label is permanently attached by acrylic glue and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

 March13  4             !" # $  $ %   &" GTS7390G  ' ()  &%  "  *    )+ ,  $  - -. $)  / 0 11 -2-.324#  5)   4)) )$  4 5 )   $    $ +    $ %-     ! ! !!! "! # $!%& #'$  6 ,        %  # +  +   + +% $     +  $)# +  -')+     $ ,    5)) $    + % 4 5,  +   $, 5 ) -  &    ,      2+    * 7 68 $ )  /+ %2    +%4))  55     1-9 ) +     1-24)   5)    , $      $  )   5 $ 4% ) : ,-(#  5)   5 ) 8  $ %#  )$  4 5)    ( ')  *+!# ,!!# $ # &-!$  &    5)    + 2 &$     +    5$ ,4+  5  $       ) $   4,$ + ,4 )5  $ # +   ) :  -  ;5        5<% 50*32=>  5    5?  -@' '?@".8998 6A".8998 ?8 "B  5-

129, Samsung-Ro, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, KOREA Date : October 22 nd , 2013 UL Verification Services Inc. Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our agent, we still recognize that we are responsible to: comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; 129, Samsung-Ro, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, KOREA f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyung (Peter), RA Head of QA Lab (General Manager) Samsung Electronics America, Inc 19 Chapin Rd, Bldg D Pine Brook, NJ 07058

Label and Location Samsung Phone Model: GT-S7390G FCC ID: A3LGTS7390G Label: Location: Top Back of device Bottom Label is placed inside of the battery compartment.

FCC ID: A3LGTS7390G Issue Date: Mar. 12, 2014 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 2 of 93 HCT-A-1403-F003 TEL: +82 31 645 6300 FAX: +82 31 645 6401 Version Rev. DATE DESCRIPTION HCT-A-1403-F003 Mar. 12, 2014 First Approval Report FCC ID: A3LGTS7390G Issue Date: Mar. 12, 2014 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 3 of 93 HCT-A-1403-F003 TEL: +82 31 645 6300 FAX: +82 31 645 6401 Table of Contents 1. INTRODUCTION .......................................................................................................................................... 2. TEST METHODOLOGY ............................................................................................................................... 3. DESCRIPTION OF DEVICE ......................................................................................................................... 4. DESCRIPTION OF TEST EQUIPMENT ...................................................................................................... 5. SAR MEASUREMENT PROCEDURE ..................................................................................................... 6. DESCRIPTION OF TEST POSITION ....................................................................................................... 7. MEASUREMENT UNCERTAINTY ........................................................................................................... 8. ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................................................. 9. SAR SYSTEM VALIDATION .................................................................................................................... 10. SYSTEM VERIFICATION ....................................................................................................................... 11. RF CONDUCTED POWER MEASUREMENT ....................................................................................... 11.5 SAR Test Exclusions Applied ............................................................................................................ 12. SAR Test configuration & Antenna Information ................................................................................ 13. SAR TEST DATA SUMMARY ................................................................................................................ 13.1-1 Measurement Results (GSM850 Head SAR) ............................................................................ 13.1-2 Measurement Results (GSM1900 Head SAR) .......................................................................... 13.1-3 Measurement Results (DTS Head SAR) ................................................................................... 13.2-1 Measurement Results (GSM850 Hotspot SAR) ......................................................................... 13. 2-2 Measurement Results (GSM1900 Hotspot SAR)...................................................................... 13. 2-3 Measurement Results (WLAN Hotspot SAR) ........................................................................... 13.3-1 Measurement Results (Body-worn SAR) ................................................................................... 13.4 SAR Test Notes ........................................................................................................... .................. 14. SAR Measurement Variability and Uncertainty ................................................................................. 15. SAR Summation Scenario ................................................................................................................... 16. CONCLUSION ........................................................................................................................................ 17. REFERENCES ....................................................................................................................................... Attachment 1. – SAR Test Plots ................................................................................................................ Attachment 2. – Dipole Verification Plots................................................................................................. Attachment 3. – Probe Calibration Data ................................................................................................... Attachment 4. – Dipole Calibration Data .................................................................................................. FCC ID: A3LGTS7390G Issue Date: Mar. 12, 2014 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 4 of 93 HCT-A-1403-F003 TEL: +82 31 645 6300 FAX: +82 31 645 6401 1. INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices. The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. 1992 by the Institute of Electrical and Electronics Engineers, Inc., Ne York, New York 10017. The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposur…

Text truncated - open the document above for the full version.

FCCPT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCT-R-1403-F017-1 Date of Issue: March 18, 2014 EUT Type: Mobile Phone FCC ID: A3LGTS7390G Page 1 of 72 HCT CO., LTD. CERTIFICATE OF COMPLIANCE FCC Certification Applicant Name: SAMSUNG Electronics Co., Ltd. Address: 129, Samsung-ro, Yeongtong-gu Suwon-si, Gyeonggi-do, 443-742 Rep. of Korea Date of Issue: March 18, 2014 Test Site/Location: HCT CO., LTD., 74, Seoicheon-ro 578beon-gil, Majang- myeon, Icheon-si, Gyeonggi-do, Korea Report No.: HCT-R-1403-F017-1 HCT FRN: 0005866421 FCC ID : A3LGTS7390G APPLICANT : SAMSUNG Electronics Co., Ltd. FCC Model(s): GT-S7390G EUT Type: Mobile Phone Max. RF Output Power: 9.228 dBm (8.371 mW) Frequency Range: 2402 MHz - 2480 MHz (Bluetooth) Modulation type GFSK(Normal), π/4DQPSK and 8DPSK(EDR) FCC Classification: FCC Part 15 Spread Spectrum Transmitter FCC Rule Part(s): Part 15 subpart C 15.247 Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. HCT CO., LTD. Certifies that no party to this application has subject to a denial of Federal benefits that includes FCC benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1998,21 U.S. C.853(a) Report prepared by : Jong Seok Lee Test Engineer of RF Team Approved by : Chang Seok Choi Manager of RF Team This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. FCCPT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCT-R-1403-F017-1 Date of Issue: March 18, 2014 EUT Type: Mobile Phone FCC ID: A3LGTS7390G Page 2 of 72 Version TEST REPORT NO. DATE DESCRIPTION HCT-R-1403-F017 March 12, 2014 - First Approval Report HCT-R-1403-F017-1 March 18, 2014 -Revised Band Edge result, 2483.5MHz/2390 MHz use the Duty Cycle Correction factor. (Page 63~ 64) FCCPT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCT-R-1403-F017-1 Date of Issue: March 18, 2014 EUT Type: Mobile Phone FCC ID: A3LGTS7390G Page 3 of 72 Table of Contents 1.GENERAL INFORMATION ....................................................................................................................... 4 2.EUT DESCRIPTION .................................................................................................................................. 4 3.TEST METHODOLOGY ............................................................................................................................ 5 3.1EUT CONFIGURATION ............................................................................................................. 5 3.2EUT EXERCISE ......................................................................................................................... 5 3.3GENERAL TEST PROCEDURES ............................................................................................. 5 3.4DESCRIPTION OF TEST MODES ............................................................................................ 6 4.INSTRUMENT CALIBRATION .................................................................................................................. 6 5.FACILITIES AND ACCREDITATIONS ...................................................................................................... 6 5.1FACILITIES ................................................................................................................................ 6 5.2EQUIPMENT .............................................................................................................................. 6 6.ANTENNA REQUIREMENTS.................................................................................................................... 6 7.SUMMARY OF TEST RESULTS ............................................................................................................... 7 8.FCC PART 15.247 REQUIREMENTS ....................................................................................................... 8 8.1PEAK POWER ........................................................................................................................... 8 8.2BAND EDGES .......................................................................................................................... 15 8.3FREQUENCY SEPARATION / OCCUPIED BANDWIDTH (99% BW) ................................... 23 8.4NUMBER OF HOPPING FREQUENCY .................................................................................. 32 8.5TIME OF OCCUPANCY (DWELL TIME) ................................................................................. 36 8.6SPURIOUS EMISSIONS .......................................................................................................... 43 8.6.1CONDUCTED SPURIOUS EMISSIONS .......................................................................... 43 8.6.2RADIATED SPURIOUS EMISSIONS .............................................................................. 52 8.6.3RADIATED RESTRICTED BAND EDGES ...................................................................... 63 8.7POWERLINE CONDUCTED EMISSIONS ............................................................................... 67 9.LIST OF TEST EQUIPMENT ................................................................................................................... 72 FCCPT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCT-R-1403-F017-1 Date of Issue: March 18, 2014 EUT Type: Mobile Phone FCC ID: A3LGTS7390G Page 4 of 72 1. GENERAL INFORMATION Applicant: SAMSUNG Electronics Co., Ltd. Address: 129, Samsung-ro, Yeongtong-gu Suwon-si, Gyeonggi-do, 443-742 Rep. of Korea FCC ID: A3LGTS7390G EUT Type: Mobile Phone Model name(s): …

Text truncated - open the document above for the full version.

FCC ID: A3LGTS7390G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 TEST SETUP PHOTOGRAPHS FCC ID: A3LGTS7390G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 ■ Conducted BT Test Setup Photo FCC ID: A3LGTS7390G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 ■ Conducted WLAN Test Setup Photo FCC ID: A3LGTS7390G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 ■ BT/WLAN Test Setup Photo FCC ID: A3LGTS7390G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 ■ BT/WLAN Test Setup Photo FCC ID: A3LGTS7390G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 ■ BT/WLAN Test Setup Photo FCC ID: A3LGTS7390G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 ■ BT/WLAN Test Setup Photo FCC ID: A3LGTS7390G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 ■ BT/WLAN Test Setup Photo FCC ID: A3LGTS7390G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 ■ BT/WLAN Test Setup Photo FCC ID: A3LGTS7390G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 ■ BT/WLAN Test Setup Photo FCC ID: A3LGTS7390G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 ■ BT/WLAN Test Setup Photo FCC ID: A3LGTS7390G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 ■ BT/WLAN Test Setup Photo FCC ID: A3LGTS7390G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 ■ BT/WLAN Test Setup Photo FCC ID: A3LGTS7390G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 ■ BT/WLAN Test Setup Photo FCC ID: A3LGTS7390G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 ■ BT/WLAN Test Setup Photo FCC ID: A3LGTS7390G HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page of 16 ■ Conducted Emission Test Setup Photo

FCC A pp roval Antenna location & Distance FCC ID: A3LGTS7390GModel:GT-S7390GDate: 2014 02 13Date: 2014 . 02 . 13 * Placement of each antenna GPS ANTENNA Top GPS ANTENNA Front View Ri ht Left Right MAIN ANTENNA(GSM850/1900 Tx/Rx) BT/WIFI ANTENNA (GSM850/1900 Tx/Rx) BT/WIFI ANTENNA Bottom * Distance between BT/WLAN antenna and Main antenna Top Front View Right Left 15mm Bluetooth & WLAN GSM850 antenna Pattern 34mm Bottom GSM 1900 * Distance between Main antenna and edge Top Left Ri ht 103mm 122mm Right Mi t 22mm 3mm M a i n an t enna 3mm 63mm Bottom * Distance between Bluetooth antenna and edge Bluetooth & WLANBluetooth & WLAN antenna Pattern Top Front View Ri ht 110mm Left Right 51 5mm 51 mm 5mm Bottom 3mm * Diagonal dimension of LCD and device Top Di l di i f Di a g ona l di mens i on o f LCD:101mm Left Ri ht Di l Di i : 122mm Right Di a g ona l Di mens i on : 127mm 63mm Bottom * Distance between Main antenna and edge Main antennapattern Rear pattern Left Ri g ht 22mm 3 1mm g 3 mm 4mm Front * Distance between Bluetooth antenna and edge Rear Bluetooth & WLAN Left 51mm 5mm 3mm antenna Pattern Right 6mm Front

FCC ID: A3LGTS7390G Issue Date: Mar. 12, 2014 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 1 of 12 HCT-A-1403-F003 TEL: +82 31 645 6300 FAX: +82 31 645 6401 SAR Test Setup Photographs FCC ID: A3LGTS7390G Issue Date: Mar. 12, 2014 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 2 of 12 HCT-A-1403-F003 TEL: +82 31 645 6300 FAX: +82 31 645 6401  Test Setup Photo FCC ID: A3LGTS7390G Issue Date: Mar. 12, 2014 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 3 of 12 HCT-A-1403-F003 TEL: +82 31 645 6300 FAX: +82 31 645 6401  Test Setup Photo FCC ID: A3LGTS7390G Issue Date: Mar. 12, 2014 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 4 of 12 HCT-A-1403-F003 TEL: +82 31 645 6300 FAX: +82 31 645 6401  Test Setup Photo FCC ID: A3LGTS7390G Issue Date: Mar. 12, 2014 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 5 of 12 HCT-A-1403-F003 TEL: +82 31 645 6300 FAX: +82 31 645 6401  Test Setup Photo FCC ID: A3LGTS7390G Issue Date: Mar. 12, 2014 Report No. HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 6 of 12 HCT-A-1403-F003 TEL: +82 31 645 6300 FAX: +82 31 645 6401  Test Setup Photo FCC ID: A3LGTS7390G Issue Date: Mar. 12, 2014 Report No. HCT CO., LTD. 74, Seoicheon-ro 578…

Text truncated - open the document above for the full version.
